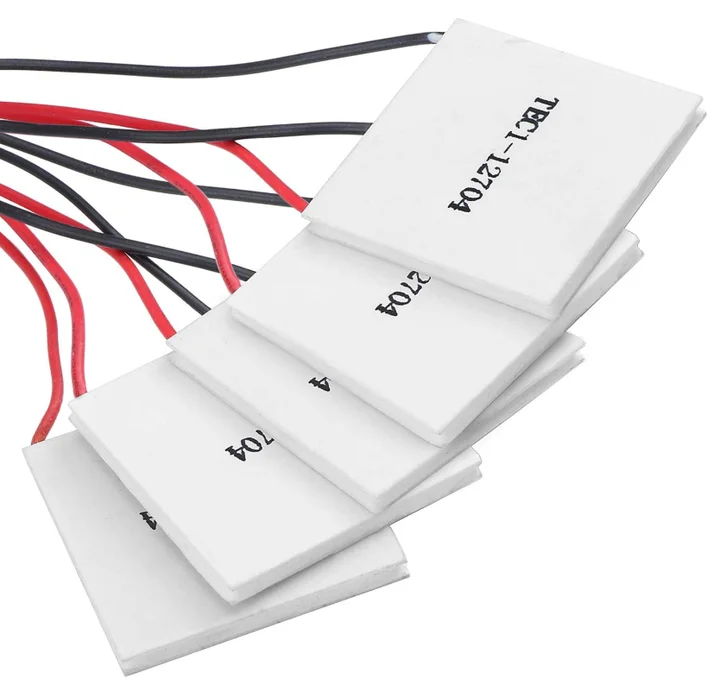

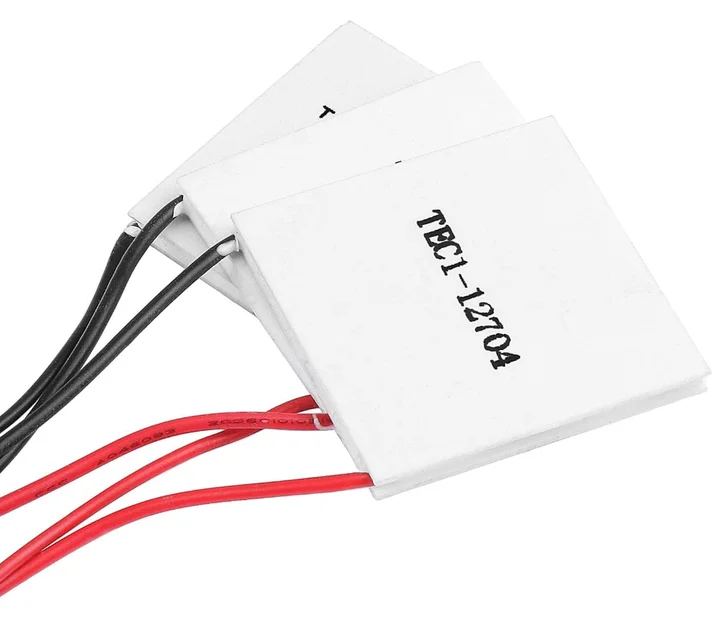

TEC1 12704 40*40 12V4A TEC Thermoelectric Cooler Peltier
- Category: >>>
- Supplier: Shenzhen Zhenrui Electronics Technology Co. Ltd.
Share on (1600988768960):
Product Overview
Description
Product Description
Product Name | TEC1-12704 |
Voltage | 12V |
Keyword | TEC |
Condition | 100%new |
Weight | 30g |
Package | Standard Package |
Product performance description
TEC1-12704 40*40 12V4A TEC Thermoelectric Cooler Peltier
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Used for many applications from CPU coolers to alternate power sources. Great for your own custom car drink warmer/cooler as well.
Features:
- It heats one side while simultaneously cooling on the other.
- You can use multiple ones in series or parallel.
- You may glue (use thermal glue) it right on to the chip or whatever you want.
- You can reverse the polarity and thus switch which side gets cold and which gets hot.
Specification:
- Model: TEC1-12704

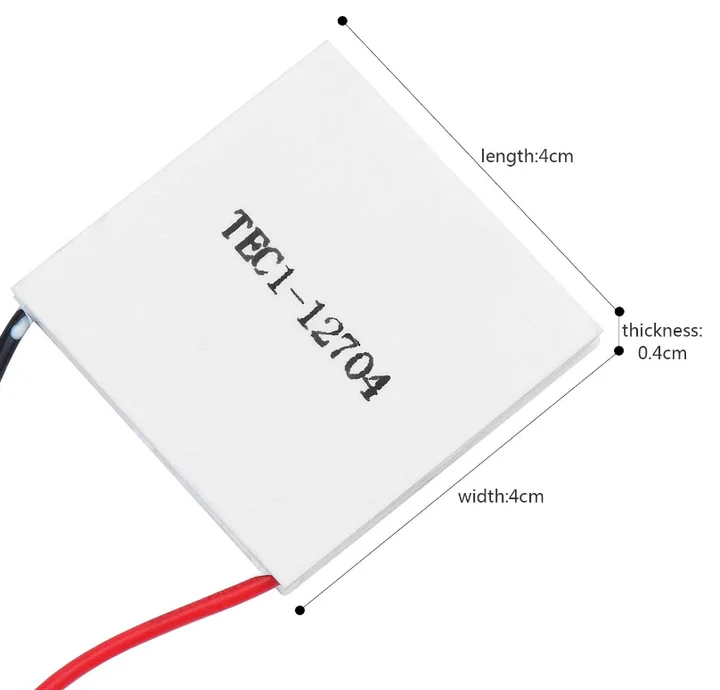

- Size: Approx. 40mm x 40mm x 4.0mm
- Voltage: DC 12V
- Max Power: 36W
- Imax (A): 4A
- Power Cord : 300mm
- Red wire to the positive, black wire to the negative
How to Use:
- Prepare five things, Thermoelectric Cooler + heatsink + Grease + potholder + power.
- Coated with silicone grease on both sides of the thermoelectric cooler.
- Place the thermoelectric cooler on a heat sink with a potholder in the middle.
- Tighten the screws. Powered, and it starts cooling.
Please Note:
- When installing, please pay attention to clean and flat surfaces
- Use only with the use of thermal grease
- Only in combination with a sufficiently dimensioned heat sink
Packing Contain:
1PCS x TEC1-12704Thermoelectric Cooler
1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business
confirmation shall prevail 2. The original factory packs the package, the specific price involves unpacking and repacking
according to the required quantity,the specific price and business confirmation shall prevail
Features:
- It heats one side while simultaneously cooling on the other.
- You can use multiple ones in series or parallel.
- You may glue (use thermal glue) it right on to the chip or whatever you want.
- You can reverse the polarity and thus switch which side gets cold and which gets hot.
Specification:
- Model: TEC1-12704
- Size: Approx. 40mm x 40mm x 4.0mm
- Voltage: DC 12V
- Max Power: 36W
- Imax (A): 4A
- Power Cord : 300mm
- Red wire to the positive, black wire to the negative
How to Use:
- Prepare five things, Thermoelectric Cooler + heatsink + Grease + potholder + power.
- Coated with silicone grease on both sides of the thermoelectric cooler.
- Place the thermoelectric cooler on a heat sink with a potholder in the middle.
- Tighten the screws. Powered, and it starts cooling.
Please Note:
- When installing, please pay attention to clean and flat surfaces
- Use only with the use of thermal grease
- Only in combination with a sufficiently dimensioned heat sink
Packing Contain:
1PCS x TEC1-12704Thermoelectric Cooler
1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business
confirmation shall prevail 2. The original factory packs the package, the specific price involves unpacking and repacking
according to the required quantity,the specific price and business confirmation shall prevail
