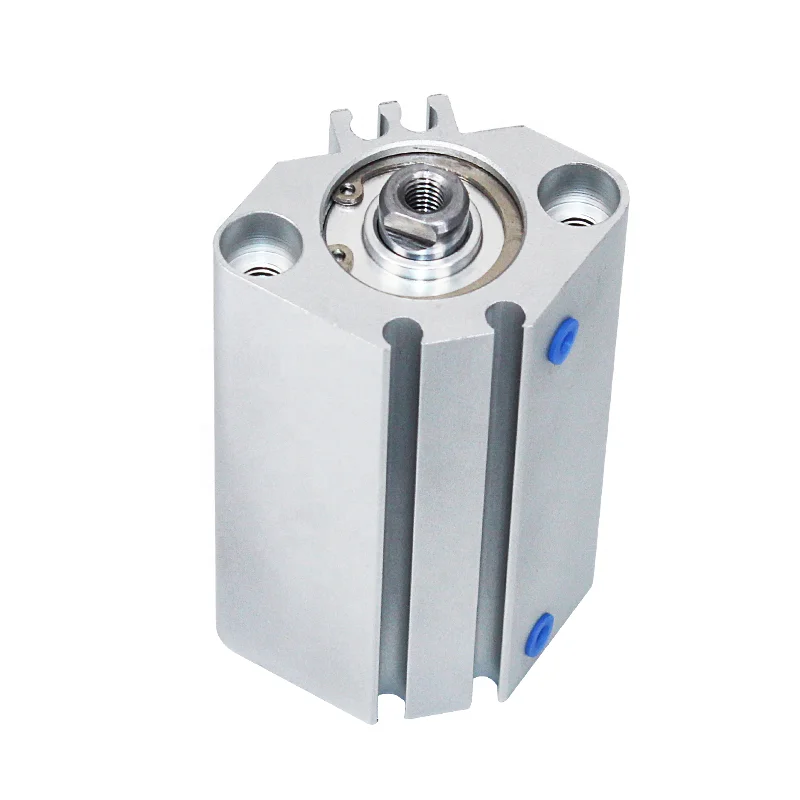

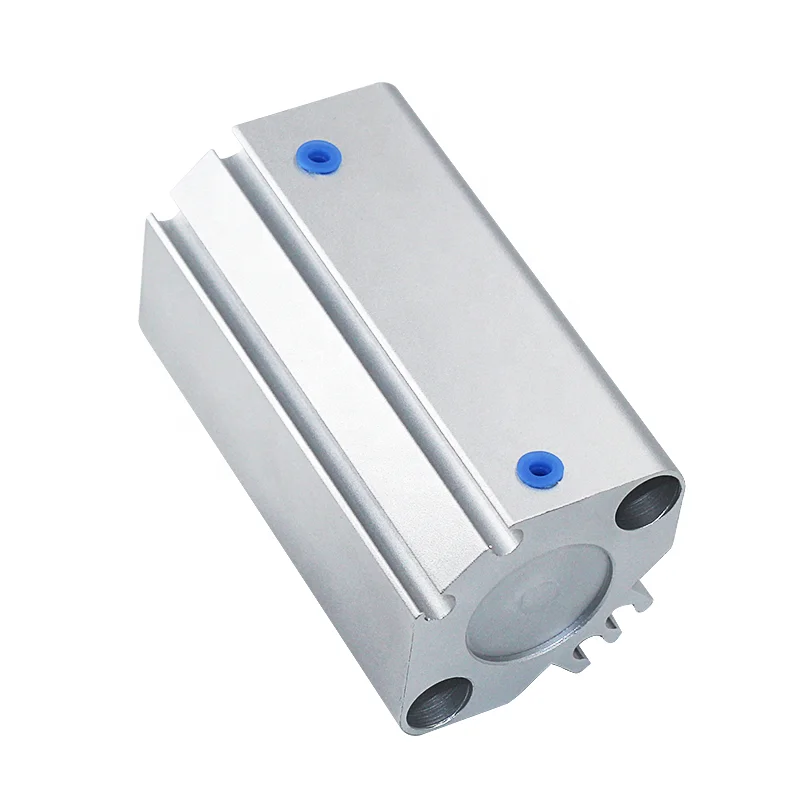

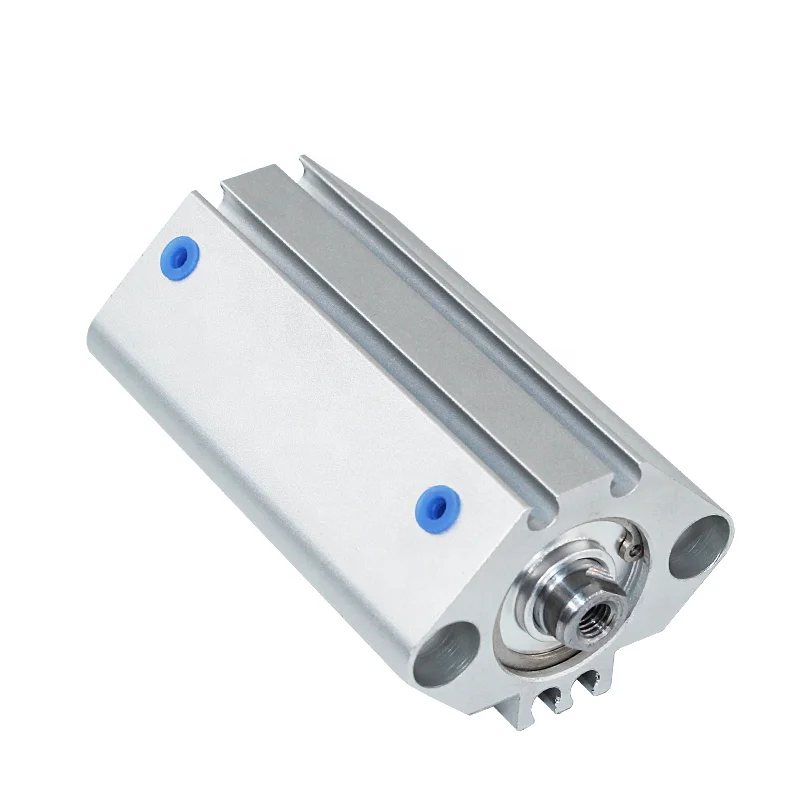

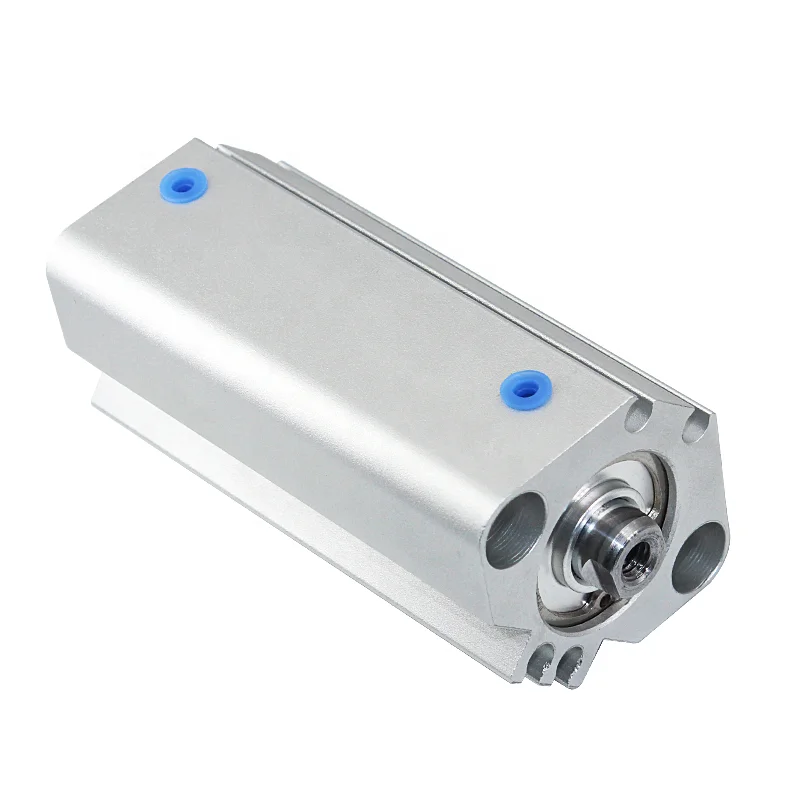

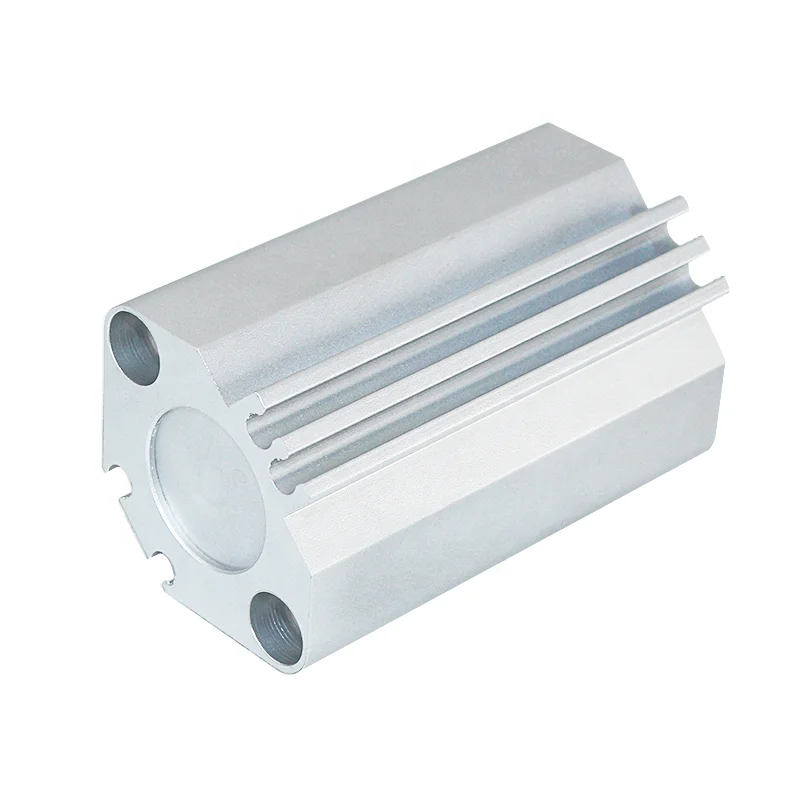

  • smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet
smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet

smc type CDQ2B Thin cylinder pneumatic actuator 20X40 20X80 25X40 25X80 All models are complet

Share on (1600988775201):


Price:

Quantity:


Product Overview

Description

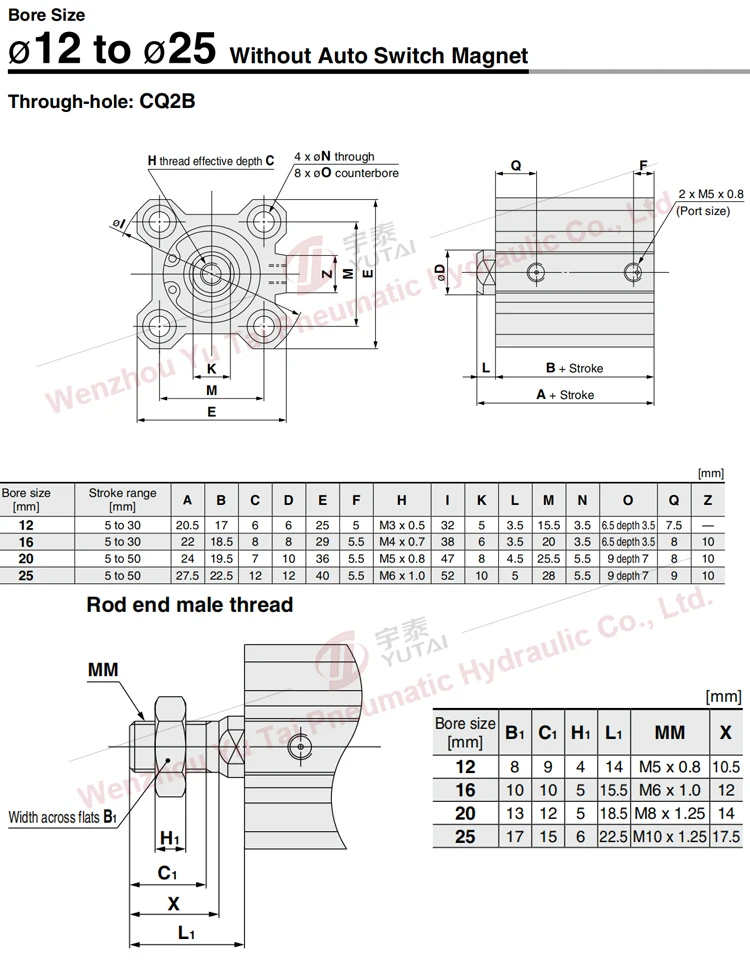

CQ2B-2





































Bore size (mm)Standard stroke (mm)
DNC3225 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000
DNC4025 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000
DNC5025 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000
DNC6325 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000
DNC8025 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000
DNC10025 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000
DNC12525 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000

 Speicfication

























Working MediumAir
Voltage regulation range0.05-0.85mpa
Max Pressure 1MPa
Working Temperature0~60℃
Filtering accuracy 5μm




Q&A


CDQ2B cylinder

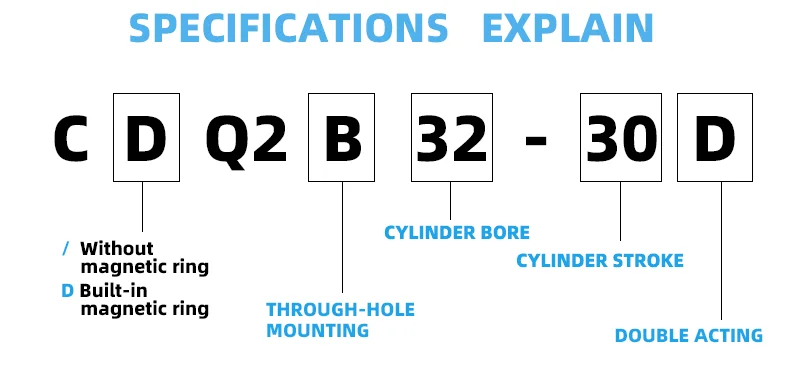

CDQ2B_12





Space saving cylinder with thin and compact design

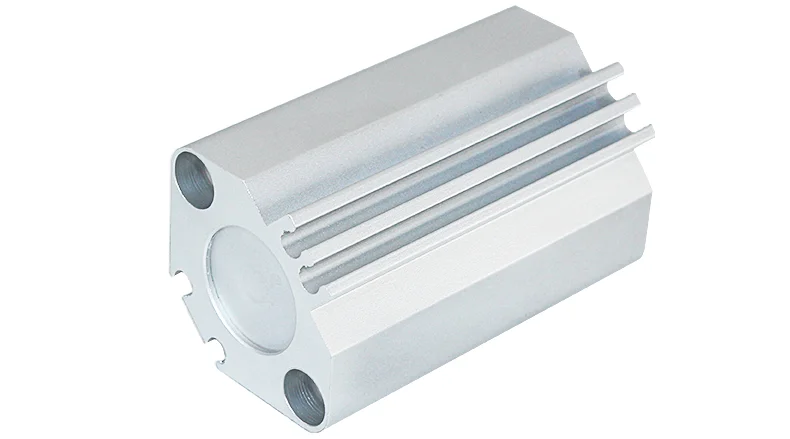

CDQ2B_10


Small magnetic switches can be installed on four sides( Φ 12 to Φ 25 is on both sides)





Magnetic switches do not protrude from the surface

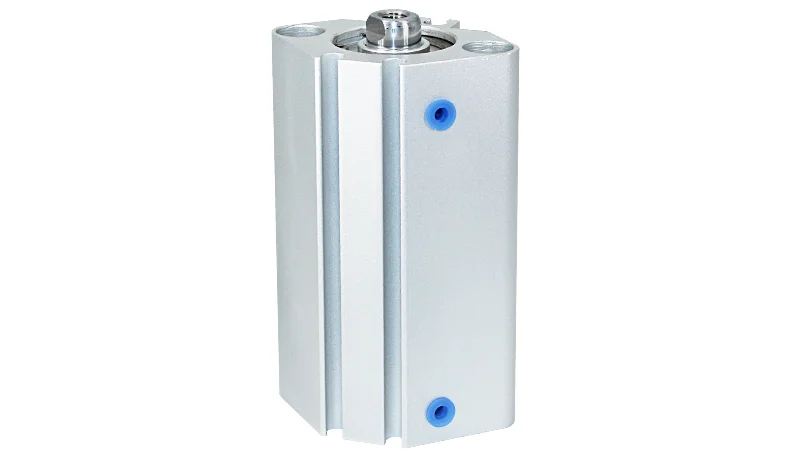

CDQ2B_02


Newly added double ear ring type and small foot seat type

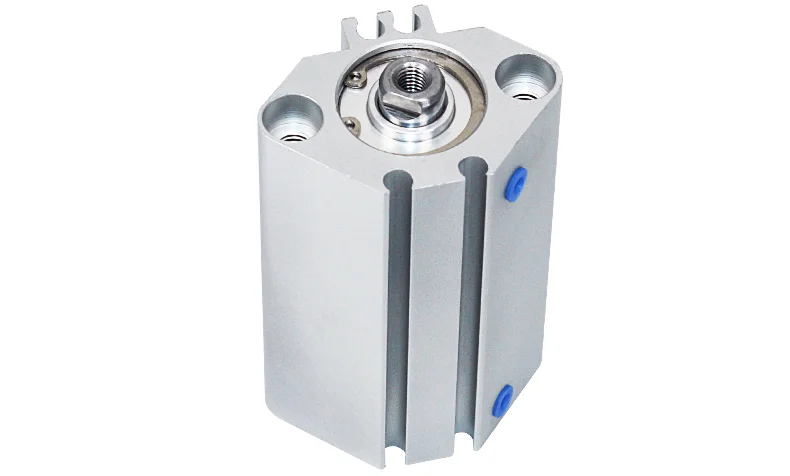

CDQ2B_08


Quality: reduced by 5% to 13% (compared to previous CQ2 series)

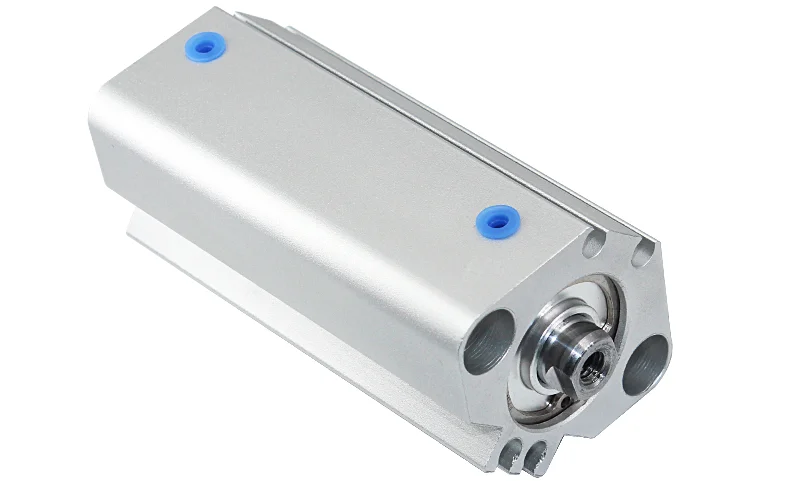

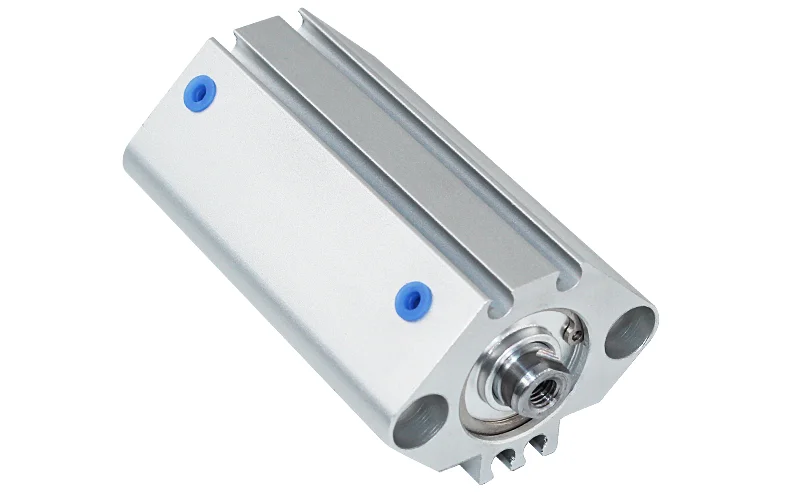

CDQ2B_06CDQ2B_14


Installation screws are bundled together, and the model of the rod end mounting parts is set (saving time for ordering cylinders and supports separately)

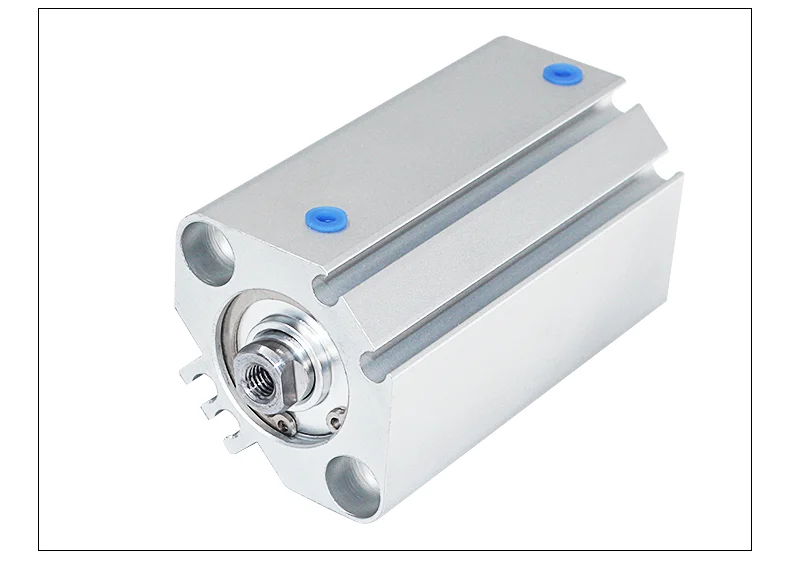

CDQ2B_04

























































































Bore size [mm] 121620253240506380100
Action Double acting, Single rod
Fluid Air
Proof pressure

1.5 MP


Maximum operating pressure1.0MPa
Minimum operating pressure0.07MPa0.05MPa
Ambient and fluid temperatures

Without auto switch magnet: -10 to 70°C


With auto switch magnet: -10 to 60°C


(No freezing)


LubricationNot required (Non-lube)
Piston speed50 to 500 mm/s
CushionWithout cushion or With rubber bumper
Allowable kineticenergy [J]Without cushion    0.022 0.0380.0550.090.150.260.460.771.362.27
With rubber bumper0.0130.0750.11 0.18 0.29 0.520.91 1.542.714.54
Stroke length tolerance1.0mm*10
