12 cores 24 cores 48 cores GYTA53 GYFTA53 direct buried double sheaths double armors fiber optic cable
- Category: >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1600988835006):
Product Overview
Description
Product Description

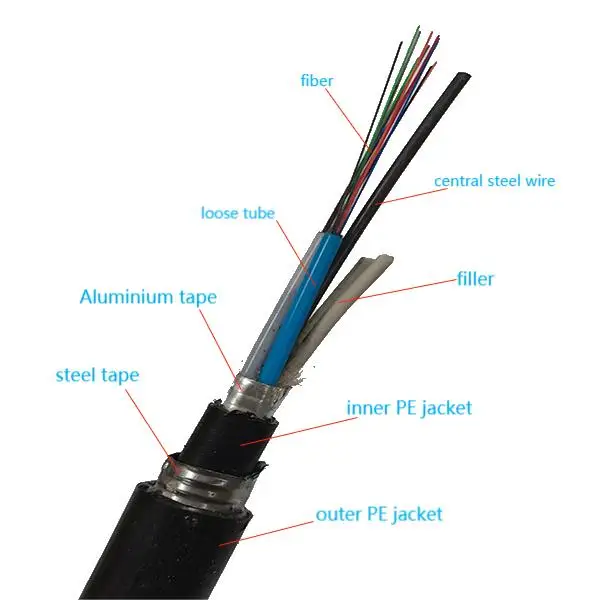

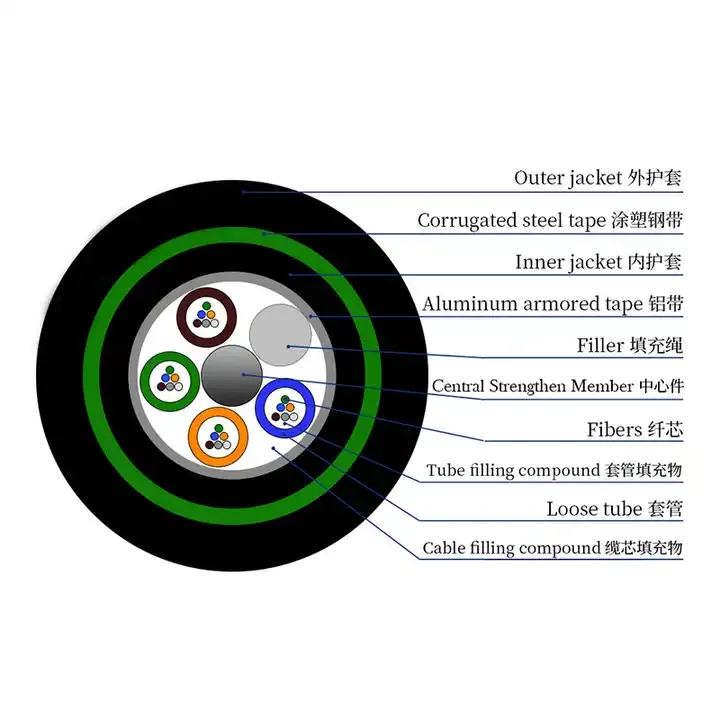

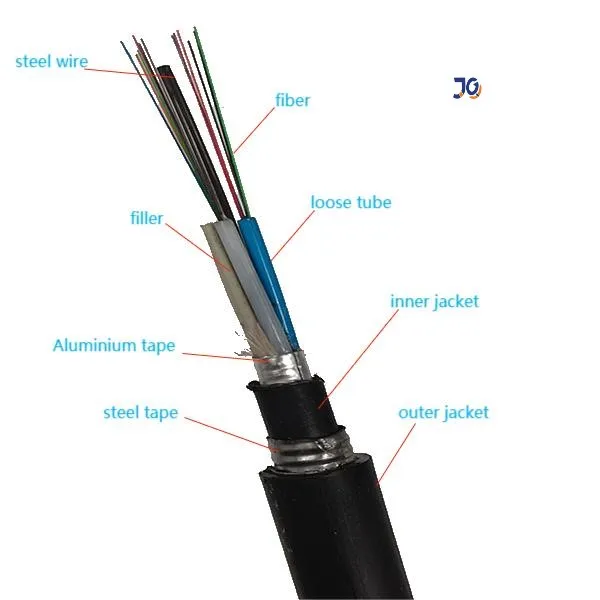

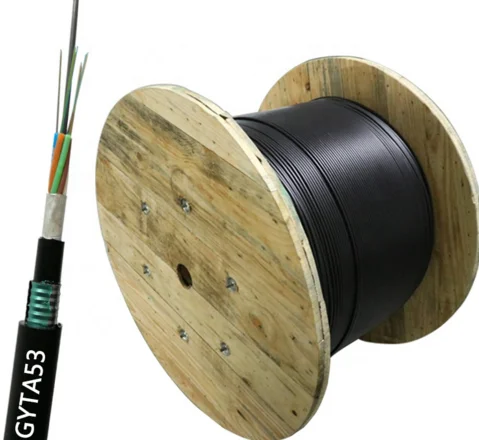

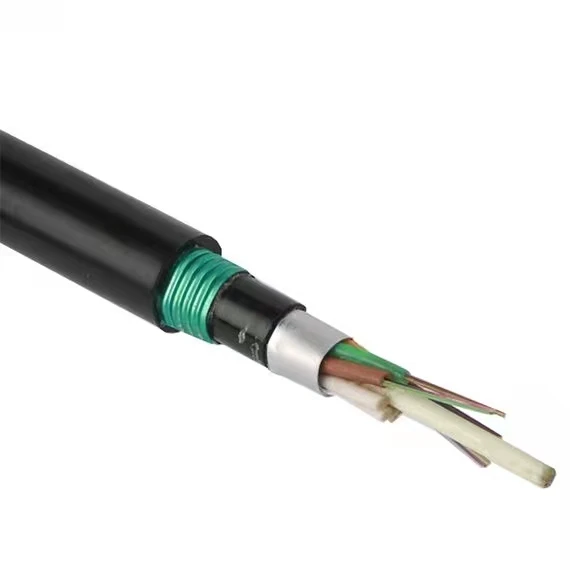

GYTA53 outdoor Optical Cable is a steel belt armored outdoor direct buried optical cable. The center of the cable core is a metal
reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with plastic
aluminum strip (APL) longitudinally and extruded with a layer of polyethylene inner sheath, and the double-sided plastic coated
steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath.
reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with plastic
aluminum strip (APL) longitudinally and extruded with a layer of polyethylene inner sheath, and the double-sided plastic coated
steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath.
.
The advantages of the GYTA53 fiber cable
Whole section water blocking structure ensures good water blocking performance. Metallic or FRP strength member makes cable have better tensile strength. The armored layer strengthens tensile strength and improves crush resistance. Polyethylene sheath has good UV resistance. The service life of the product is more than 30 years
Application 1
The cable is suitable for directly buried underground without a HDPE tube ,it is good for the railway stations and the area requires the anti-rodent .
Application 2
GYTA53 fiber cable is also suitable for laying underground with a HDPE tube .
Specification
Attenuation | G.652 | G.655 | 50/125μm | 62.5/125μm |
@850nm | - | ≤3.5dB/km | ≤3.5dB/km | |
@1300nm | - | ≤1.5dB/km | ≤1.5dB/km | |
@1310nm | ≤0.36dB/km | ≤0.36dB/km | - | |
@1550nm | ≤0.3dB/km | ≤0.22dB/km | - | |
Bandwidth （Class A） | @850 | - | ≥500MHZ·km | |
@1300 | - | ≥1000MHZ·km | ||
Numerical aperture | - | - | 0.200±0.015NA | |
Cable Cutoff Wavelength | ≤1260nm | ≤1480nm | - |
No. of cable | 12 | 24 | 48 | ||||||
Fiber Model | G.652D | ||||||||
Design (StrengthMember+Tube&Filler) | 1+5 | ||||||||
Central Strength Member | Material | Steel Wire | |||||||
Diameter（±0.5）mm | 1.4 | ||||||||
Loose Tube | Material | PBT | |||||||
Diameter（±0.06）mm | 1.72 | 1.72 | 2.0 | ||||||
Thickness（±0.03）mm | 0.30 | 0.30 | 0.32 | ||||||
The Max.Core NO./Tube | 6 | 6 | 12 | ||||||
Filler Rope | Material | LDPE | |||||||
Diameter（±0.06）mm | 1.7 | 1.7 | 2.0 | ||||||
NO. | 3 | 1 | 1 | ||||||
Moisture Barrier | Material | Polymer Coated Aluminum Tape | |||||||
Thickness（±0.03）mm | 0.20 | ||||||||
Inner Sheath | Material | PE | |||||||
Thickness（±0.2）mm | 0.9 | ||||||||
Armoring | Material | Polymer Coated Steel Tape | |||||||
Thickness（±0.2）mm | 0.22 | ||||||||
Water Bloaking Layer | Material | Filling Compound | |||||||
Outer Sheath | Material | PE | |||||||
Thickness（±0.2）mm | 1.8 | ||||||||
Cable Diameter（±0.5）mm | 12.0 | 12.0 | 12.2 | ||||||
Cable Weight（±10）kg/km | 152 | 167 | 180 | ||||||
Attenuation | 1310nm | 0.36dB/ km | |||||||
1550nm | 0.22dB/ km | ||||||||
Min. bending radius | Without Tension | 12.5×Cable-φ | |||||||
Under Maximum Tension | 25.0×Cable-φ | ||||||||
Temperature range （℃） | Installation | -20~+60 | |||||||
Transport&Storage | -40~+70 | ||||||||
Operation | -40~+70 | ||||||||
Packing & Delivery

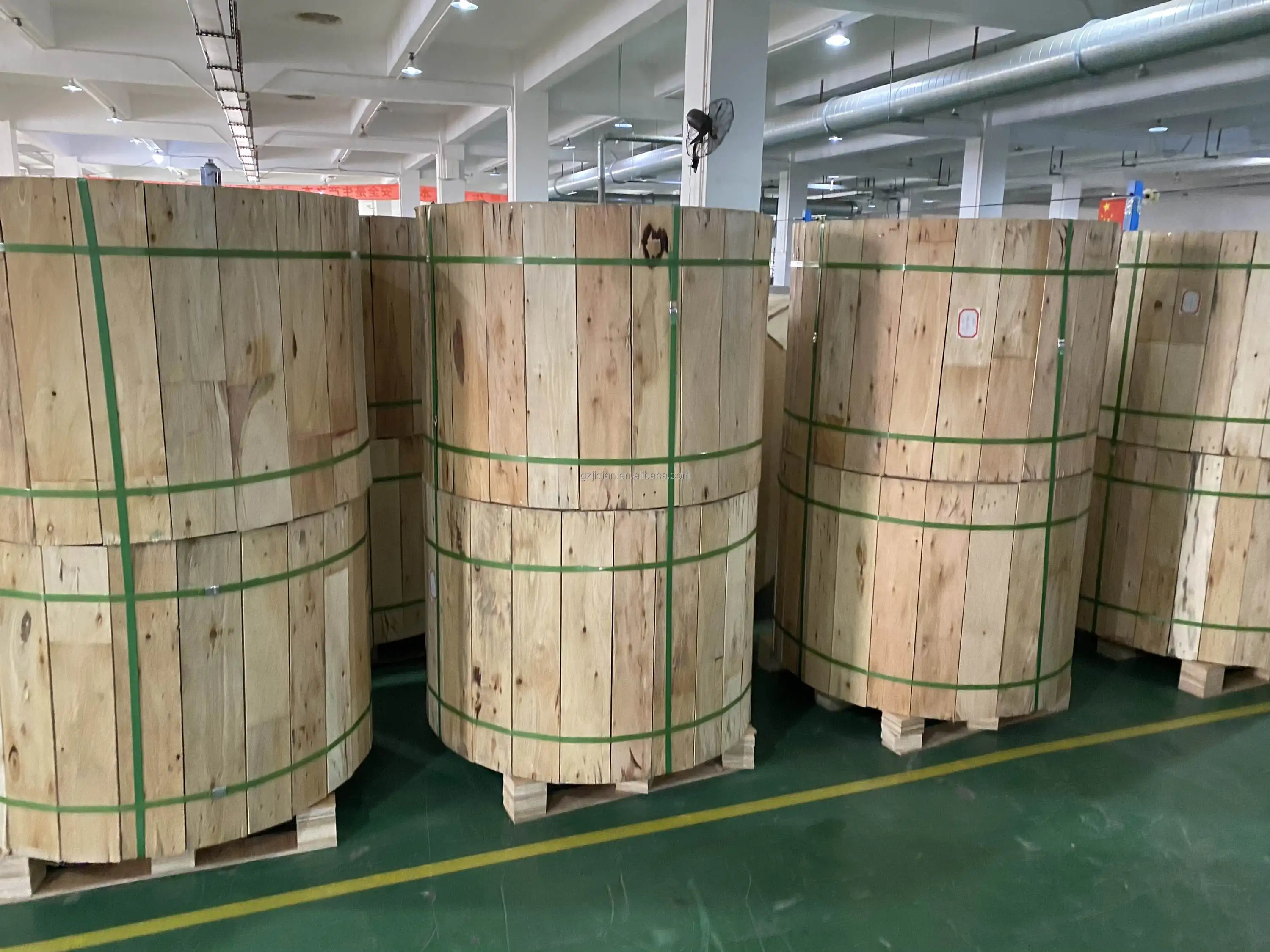

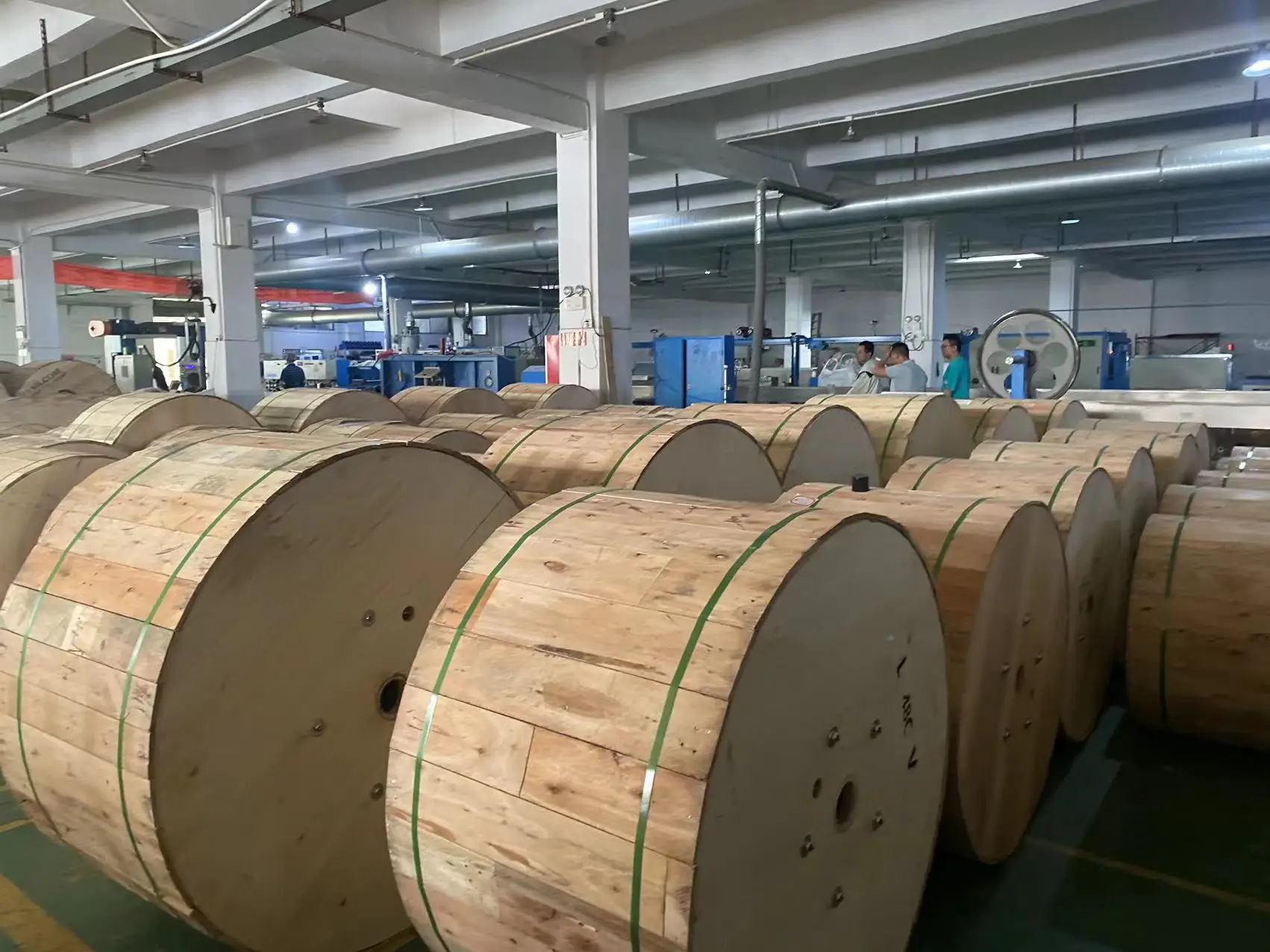

Packaging Details

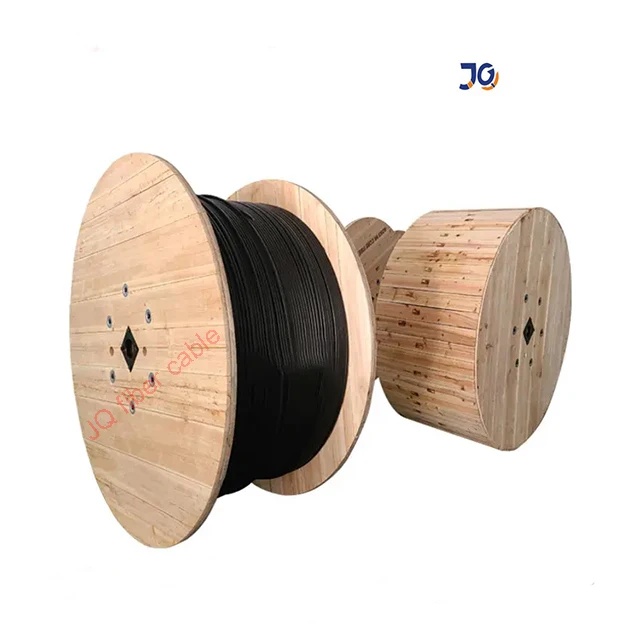

1.Wooden drum, 1Km/ drum, 2Km/ drum, 3Km/ drum, we recommend to be 5km/km, customer's requirements are also welcome;

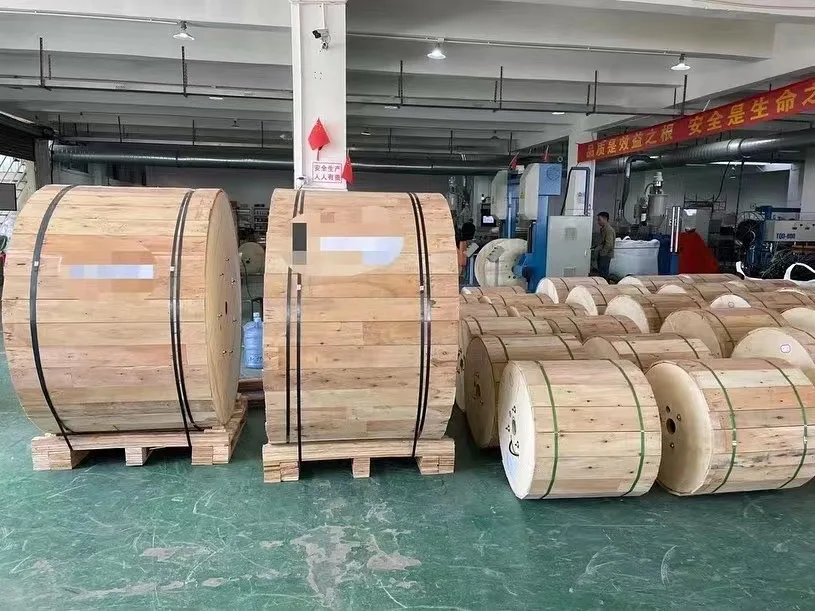

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
1.Wooden drum, 1Km/ drum, 2Km/ drum, 3Km/ drum, we recommend to be 5km/km, customer's requirements are also welcome;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
1.For large orders: by sea (LCL or FCL)
2.For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
1.For large orders: by sea (LCL or FCL)
2.For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Company Profile

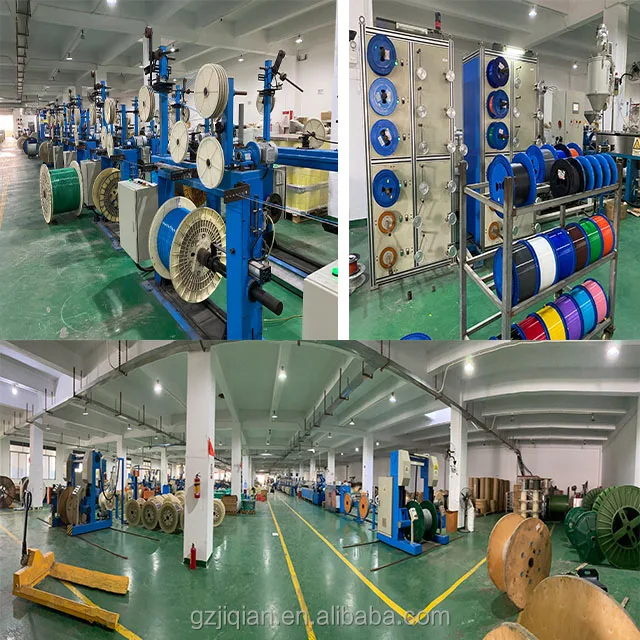

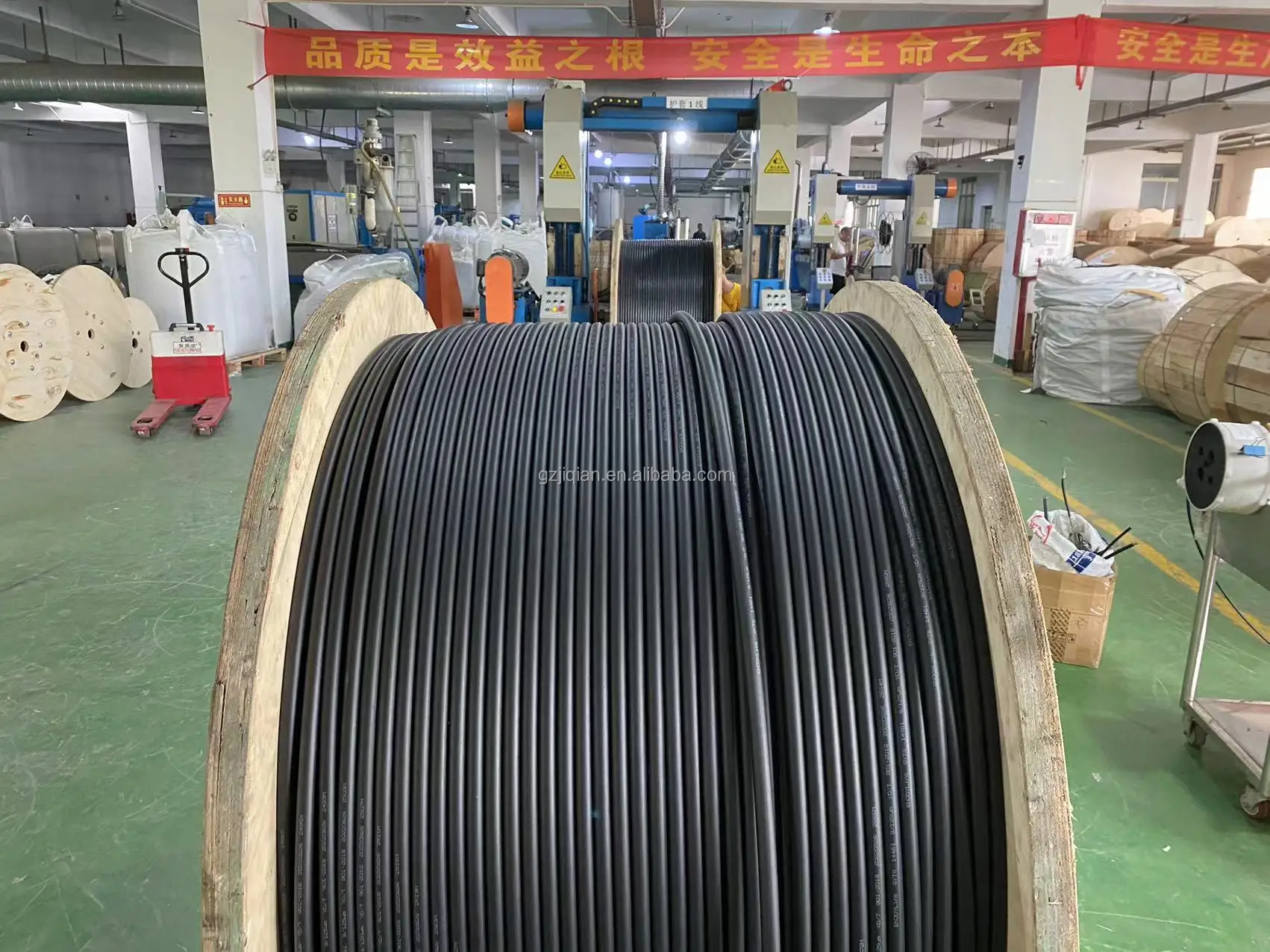

Guangzhou Jiqian fiber optical cable co., LTD is located in Guangzhou city, Guangdong province Xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable, the company adhering to the "integrity,fast, flexible, efficient and innovative" spirit of enterprise, strive for perfection, for the customer appreciation and paved the road to success.

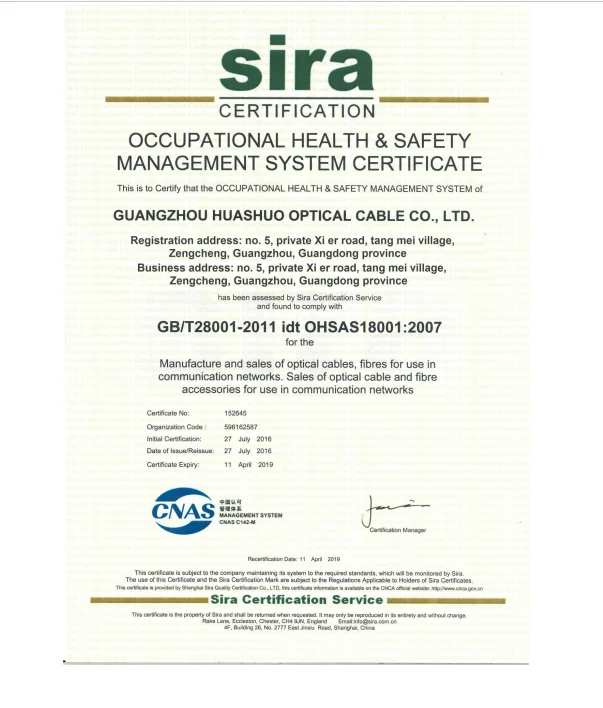

certifications

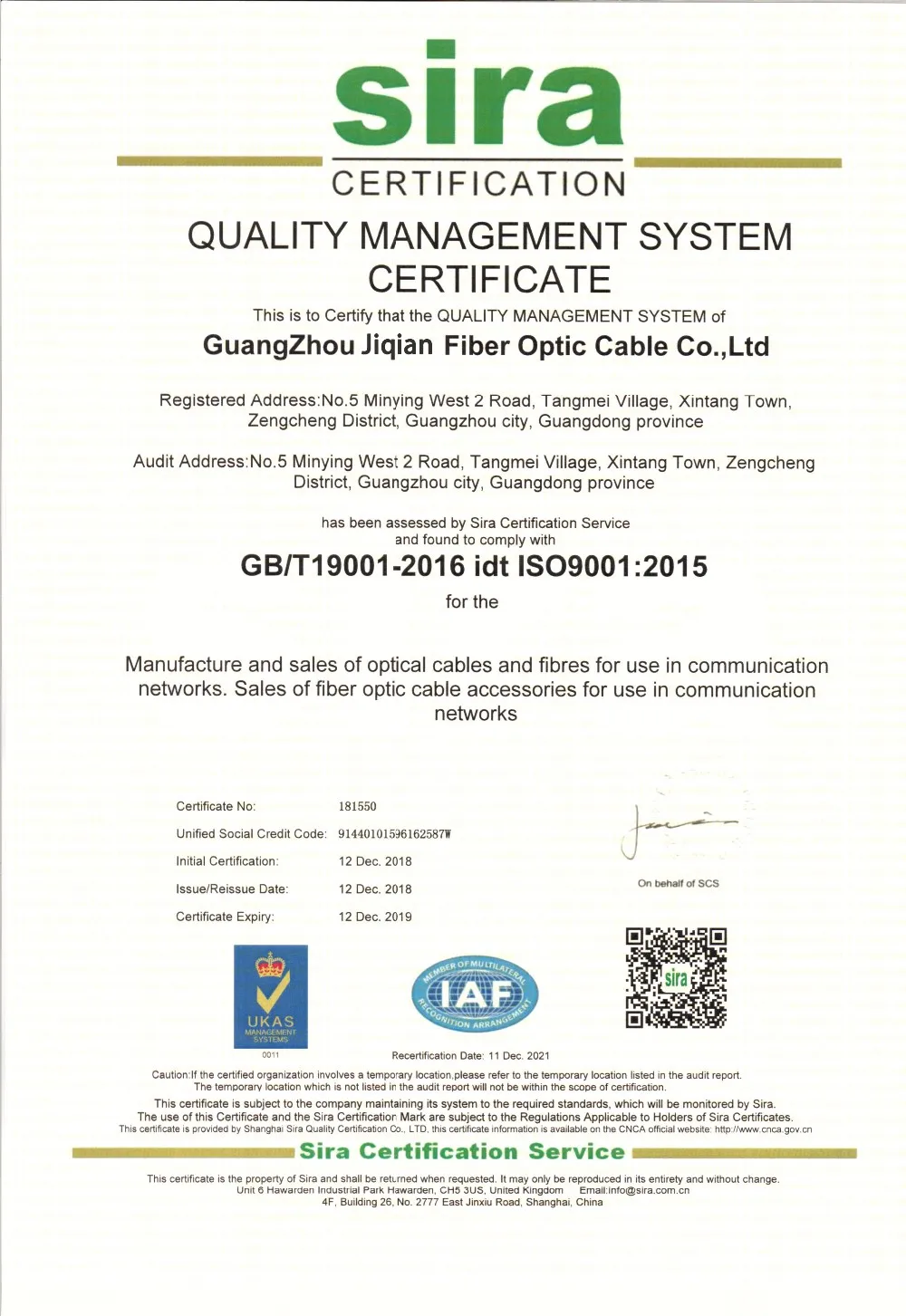

we have gained the certifications for ISO 9001-2015/ROHS/CE/FC....
FAQ
1. Are you factory direct?
we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables such as GYTA53,ADSS ,GYTA, GYTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables
3. Product quality guarantee period?
25 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
3. Product quality guarantee period?
25 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
