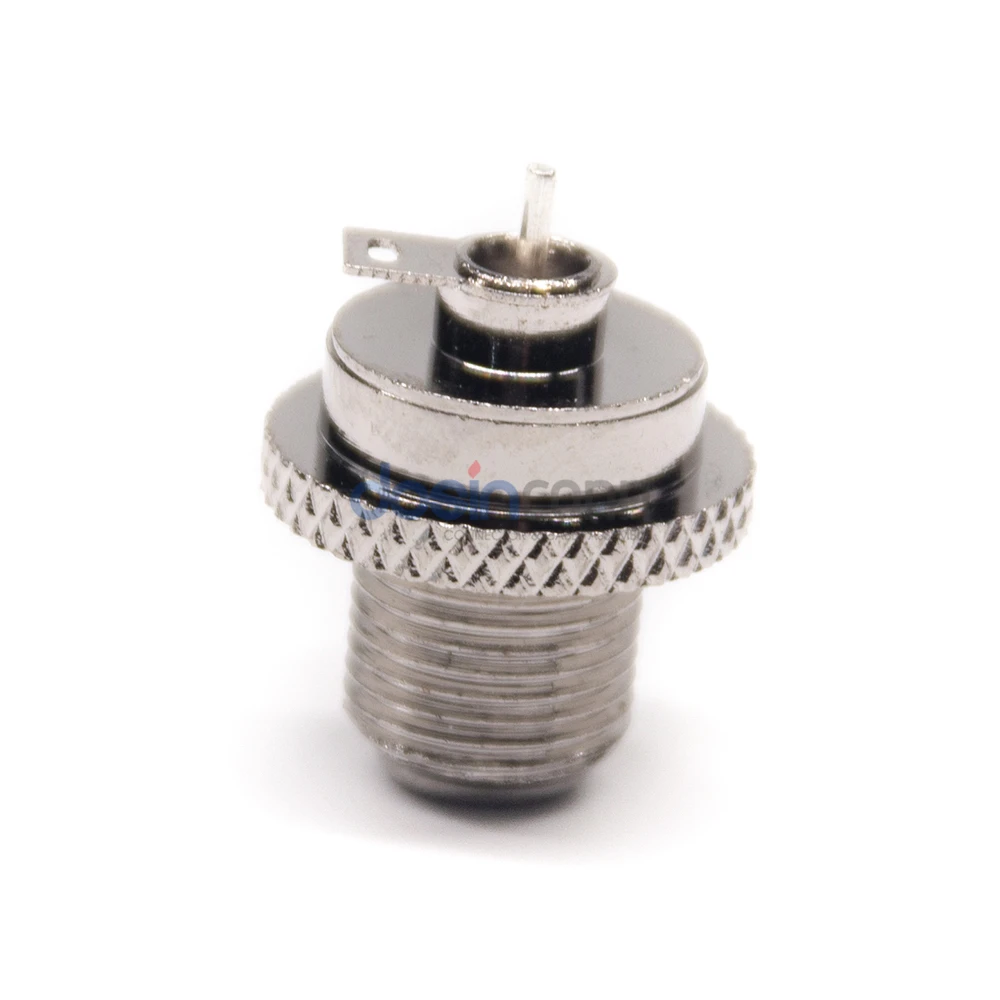

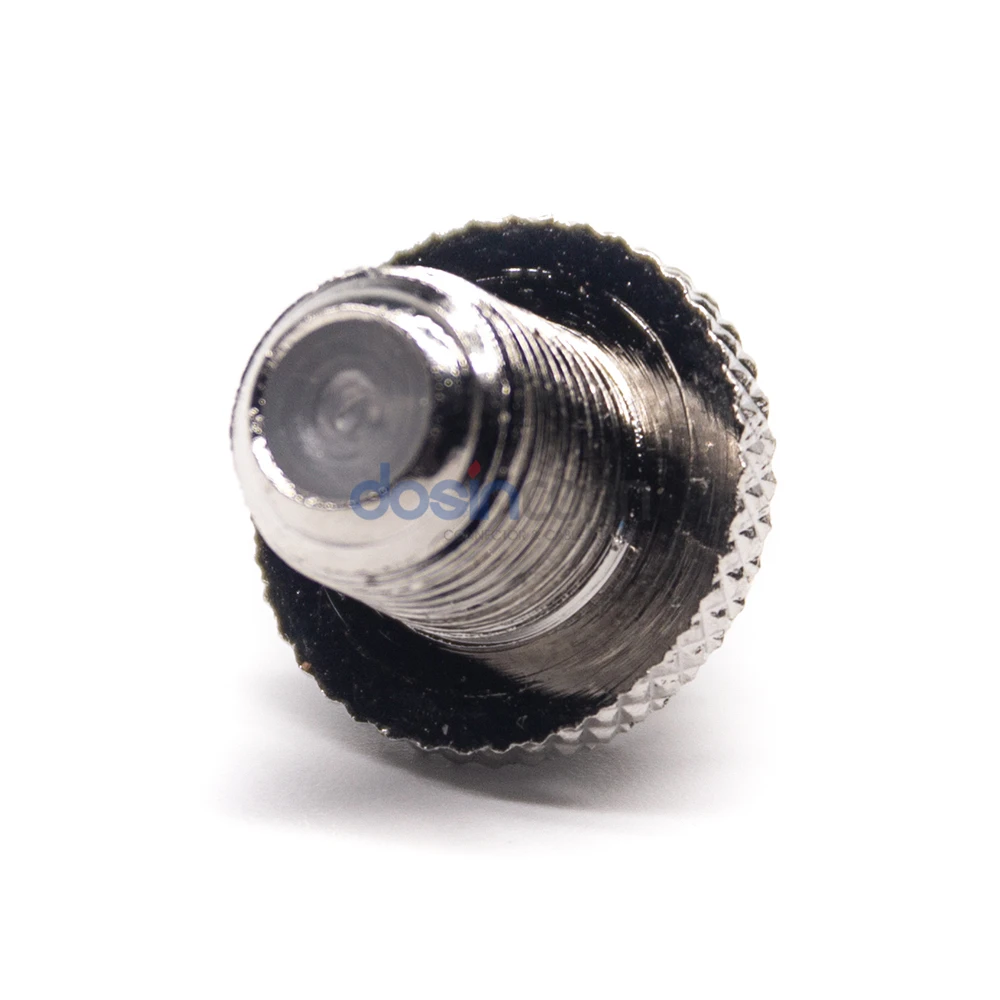

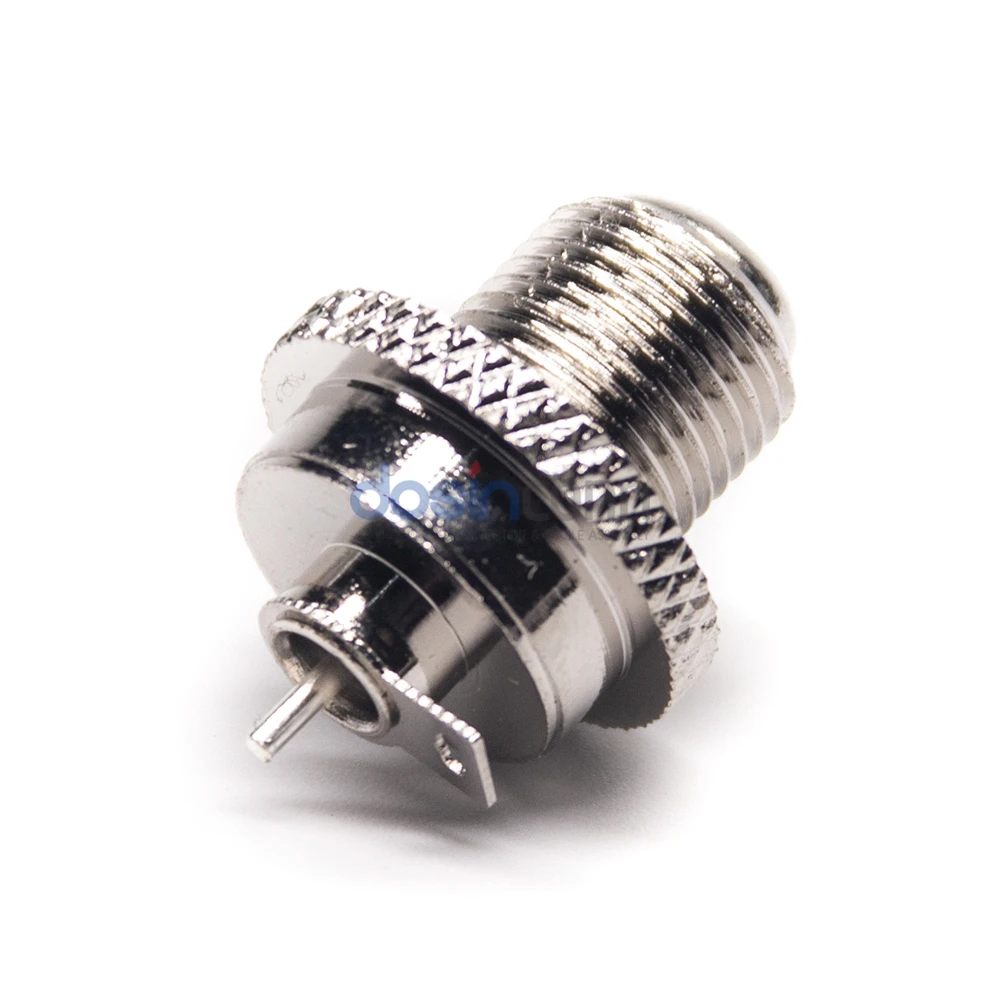

F Type Connector Female jack solder type bulkhead 75ohm PCB Mount
- Category: >>>
- Supplier: Renhao Weiye Technology (wuhan) Co. Ltd.
Share on (1600988859592):
Product Overview
Description
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier……
Products Description

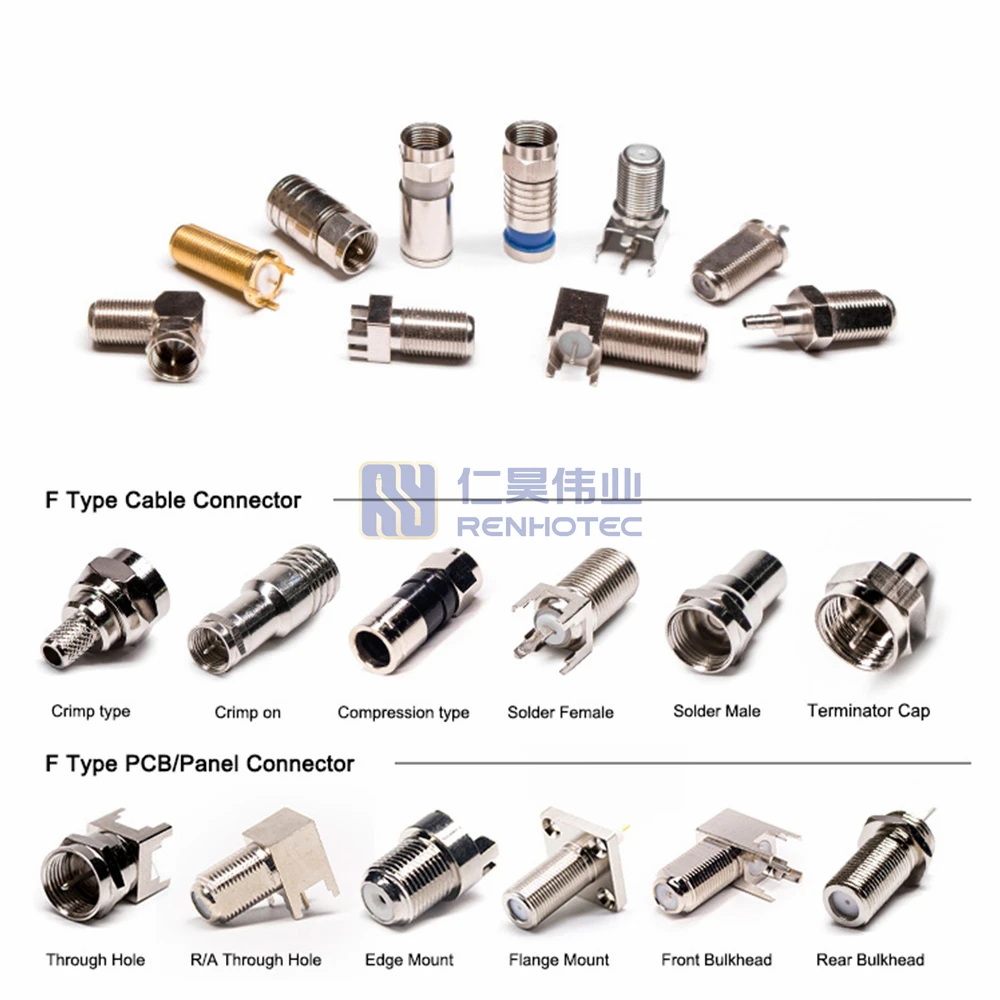

The F-Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
The F connector (also F-type connector) is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or with RG-59/U cable.
The F connector (also F-type connector) is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or with RG-59/U cable.
Features:
-Superior RF performance and excellent insertion/withdrawal characteristics
-Multiple PCB mounting : surface mount, edge mount, Through hole, ect.
-One connector accommodates a wide range of cable sizes to reduce part numbers
-Multiple PCB mounting : surface mount, edge mount, Through hole, ect.
-One connector accommodates a wide range of cable sizes to reduce part numbers
Gender | Plug / Socket |
Orientation | Straight / Right Angle |
Impedence | 75Ω |
Frequency | 0-1HZ |
Voltage Rating | 400 Volts RMS Continuous |
Withstanding Voltage | 500V R.M.S At Sea Level |
Working Voltage | 170V R.M.S At Sea Level |
Body Material | Brass / Nickel Plated |
Center Conductor | Phosphor Bronze / Gold Plated or Nickel Plated |
O-ring Sealing | 6146 Silastic |
Insulator | PTFE |
Temperature Range | −40°C to +140°C |
Durability (matings) | ≥ 500 (cycles) |
If You Still Not Found a Suitable Product, Please Contact Us>>
Industry Application
Head End Equipment;Set Top Boxes;CATV;High Speed Cable Modems;CIMs;Hybrid Fiber Coax Networks
Company Profile
Renhao Weiye Technology (Wuhan) Co., Ltd.
RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today’s cutting edge applications.
RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications.
Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs.
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
Production Process
Mould Design
Precision Zinc Alloy, Aluminum Alloy and plastic mold design
Die Casting & Injection
Alloy die casting and plastic injection molding production
Metal Lathe Processing
Metal parts drilling, tapping and lathe processing
Assembly Line
Automated, semi-automatic connector production line
Inspection Equipment
Test electrical, mechanical and environmental performance
Why Choose Us
Professional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.
Technology Improvement
Establish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintain
.
With professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQ
Q :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
