XB 8602H Syble High Cost Effective QR Code Reader Handsfree 2D Desktop Barcode Scanner
- Category: >>>
- Supplier: GUANGZHOU SYBLE CO. LTD
Share on (1600988916006):
Product Overview
Description
Product Description

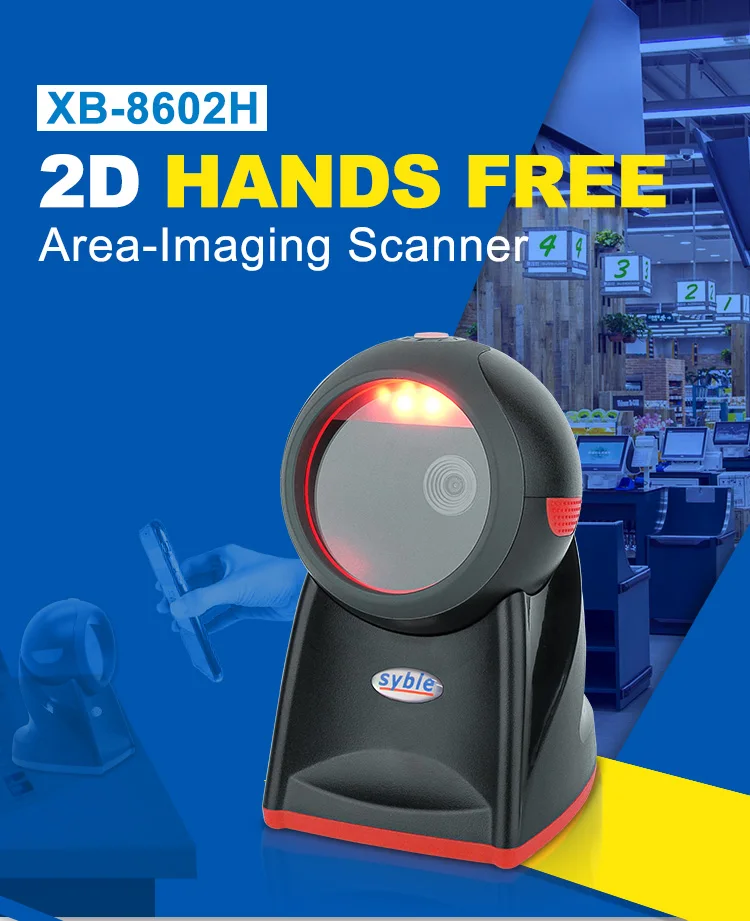

XB-8602H Syble High Cost Effective QR Code Reader Handsfree 2D Desktop Barcode Scanner
Model:XB-8602H
| Performance Parameters | |
Light Sources | 650nm red LED |
Supported Symbologies
| 1D:UPC, EAN, Code128, AIM-128, ISSN, ISBN, Code39, Code39 Full ASCII, Code32, Code11, Code93, Matrix 2 of 5, Interleaved 2 of 5, Industrial 2 of 5, Codebar, MSI-Plessey, PLessey ITF-14, ITF-6, GS1-Databar(RSS). 2D:PDF417, Data Matrix ,QR Code, Hanxin. |
Scan Mode | Automatic inductive |
Resolution | 3 mil (Code 39), 7.5 mil (Data Matrix), 4 mil (PDF 417) |

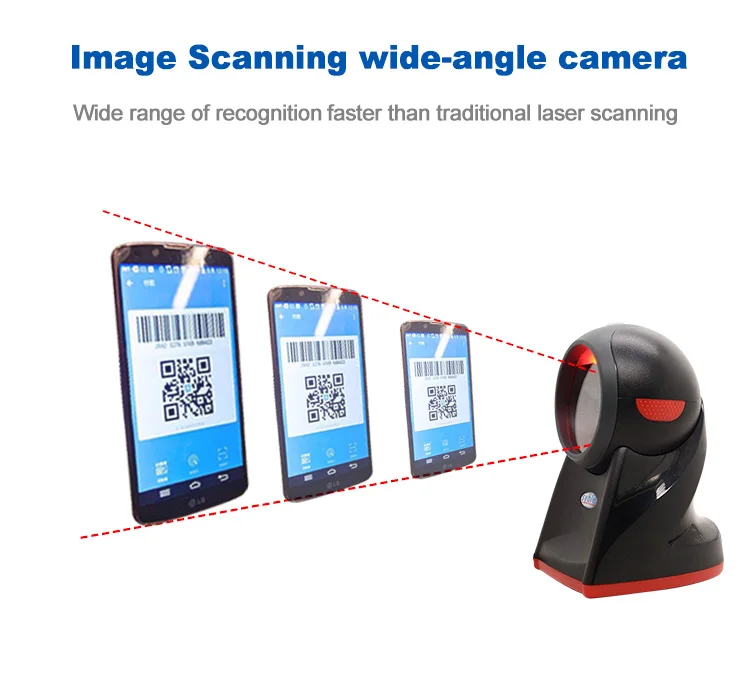

Field of View | Horizontal: 46.1°; Vertical: 30.4° |
Optical System | 640pixels(H)*480pixel(V) |

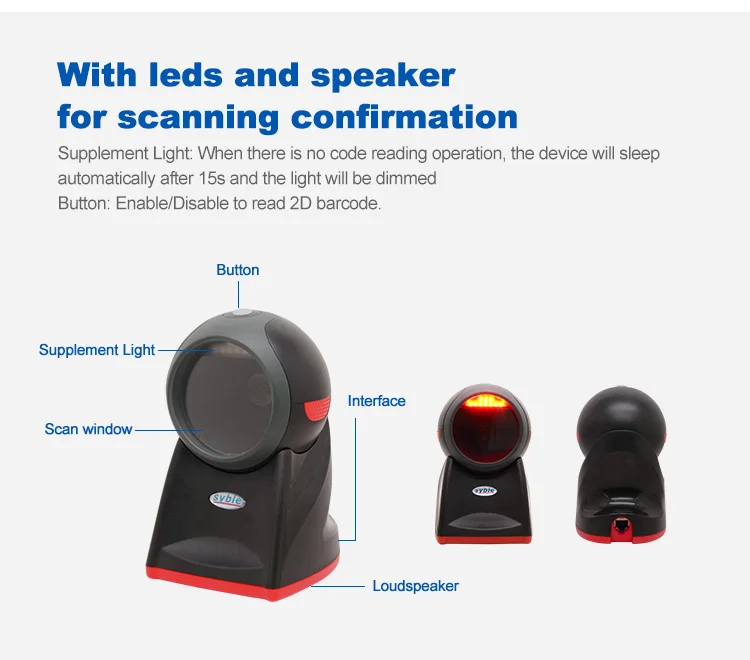

Indicator | LED, Speaker |
Interfaces | USB HID/USB-COM/RS-232 |
Physical Parameters | |
Dimensions | 150mm*108mm*96mm |
Weight | 277.3g |
Material | ABS+PC |
Cable Length | 2M |
Environmental Parameters | |
Operating Temperature | 0°C to 50 °C |
Storage Temperature | -40℃~70℃ |
Relative Humidity | 0%~95% RH(non-condensing/non-freezing) |
Shock Resistance: | 1.5m drops to concrete |
Electrical Parameters | |
Voltage | DC5V±1% |
Current | 130mA |
Product Feature
Features:

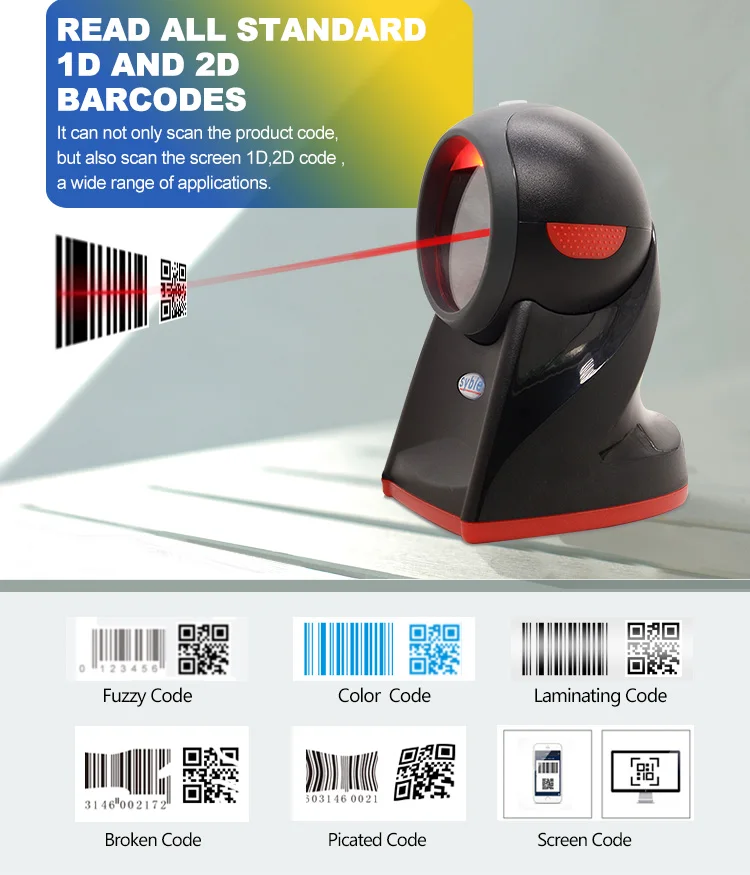

1. Fast and accurate in reading all 1D or 2D barcode codes.
2. Better read incomplete and fuzzy codes, very comfortable operation.
3. Self-developed decoder chip and high performance.
4. full quakeproof , water splash-proof, dustproof, antiknock design and EMI shielding.
5. Faster and accurate scanning, powerful decoding.
6. 32 bit CPU for encoding data.
Applications
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
More Information
Our barcode scanners have been exported to many countries:
Singapore, Philippines, Vietnam, Indonesia, Malaysia, Thailand, Dubai, Saudi Arab, Turkey, Russia, Ukraine, Germany, UK, France, Denmark, Netherland, Peru, Columbia, Canada, USA, Australia, Newzeland, etc.
Looking forward to your joining!
Our company
Guangzhou Xunbao Electronics Technology co., LTD is located in Guanzhou. It is a high-tech enterprise that specializes in the R&D, manufacturing, supplying, and service of automatic identification products.
We are professional in manufacturing and designing barcode scanner with strong R&D team. Our team have an average of many years' working experience in barcode identification industry.
Main products cover 1D/2D barcode scanner, 1D/2D scan engine, wired/wireless scanner, product quality comply with international standard.
Our barcode scanners have been widely used in many industries, such us Auto, Electronic, and payment, etc.
Our company is developing rapidly, so we are looking for reliable and qualified partner from all over the world to open up more market.
Certifications
Certificates Approved:
ISO9001:2008, CE, ROHS, FC, DOC, IP54Waterproof Test, IEC60825 etc.
