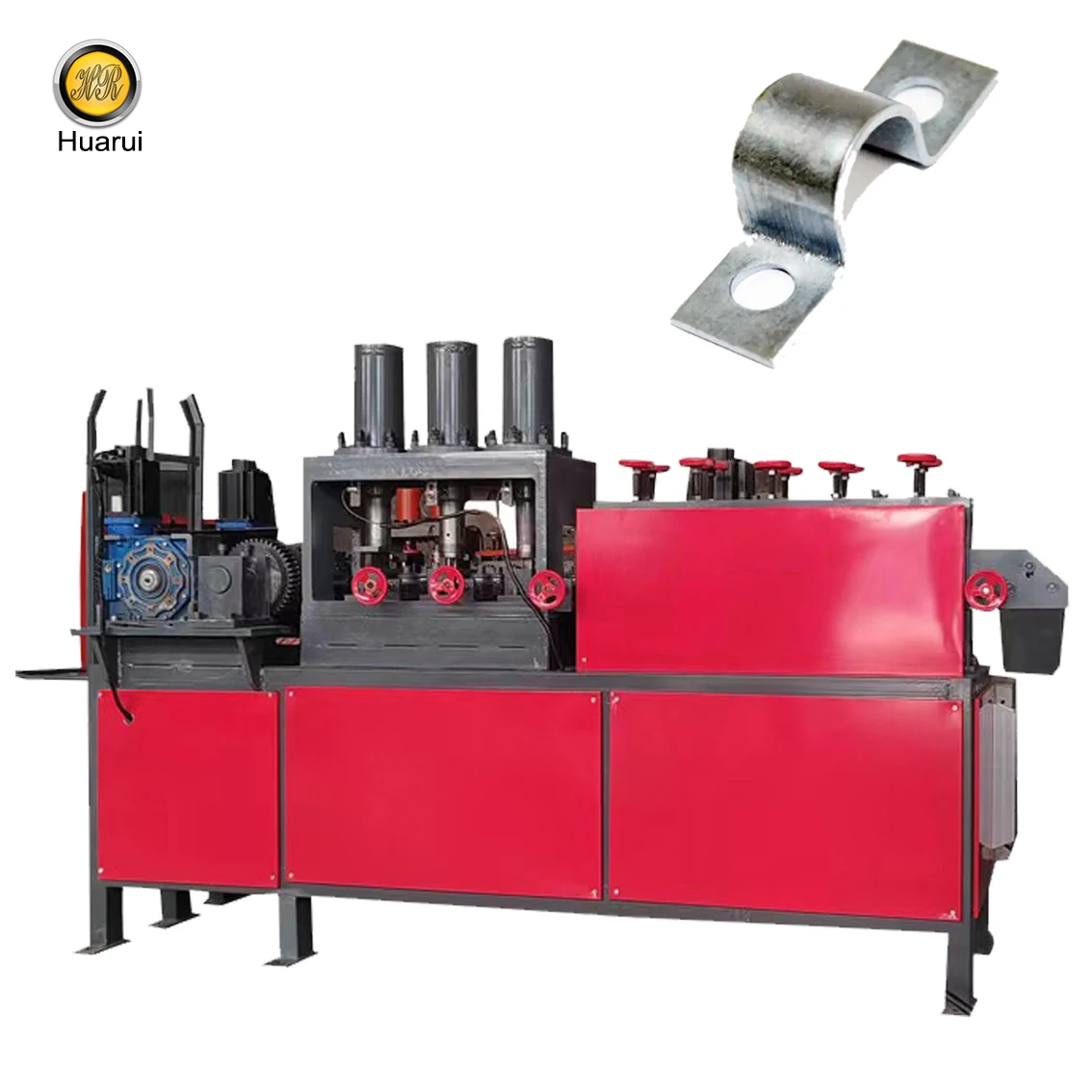

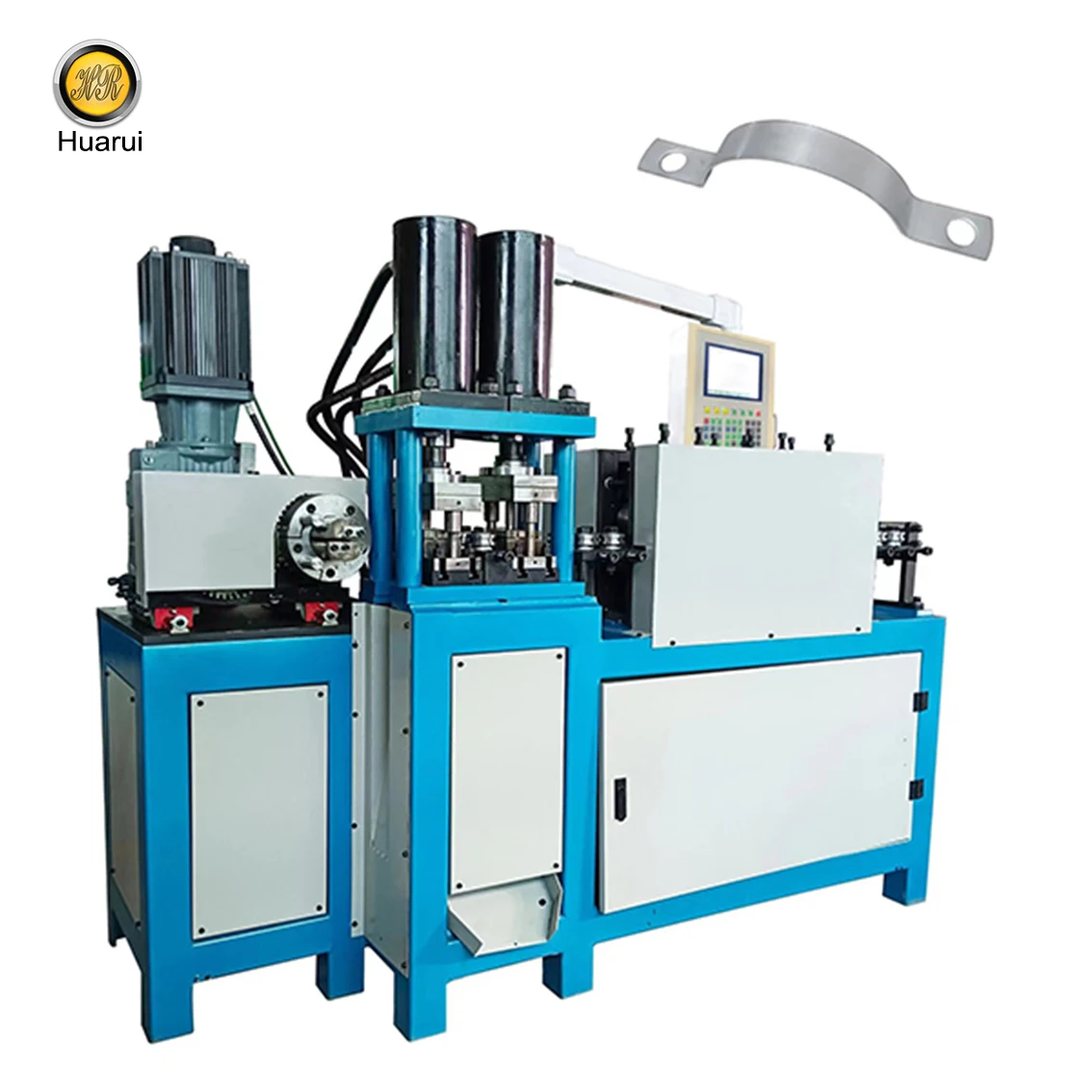

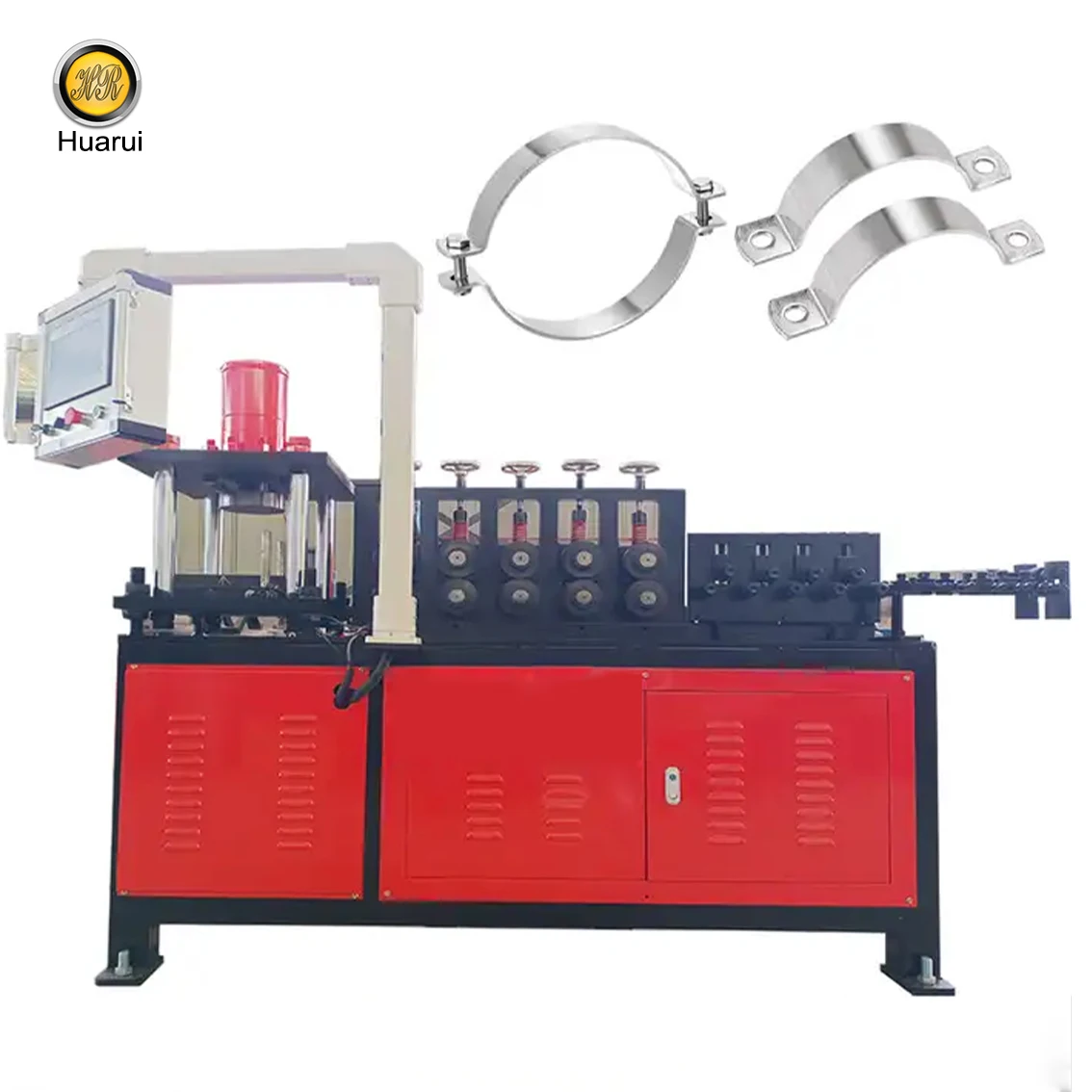

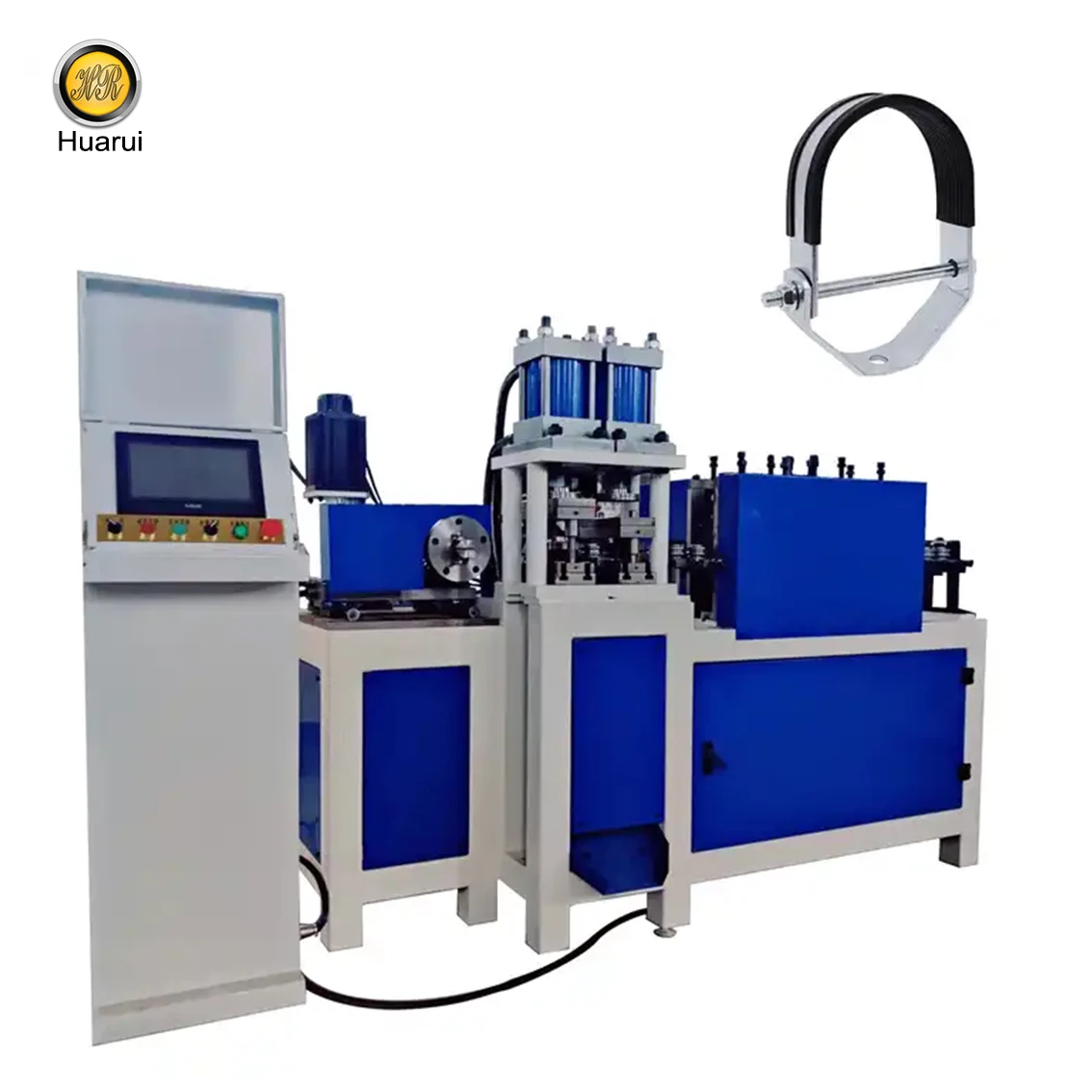

Hose Clamp making machines with cheaper price Pipe Clip

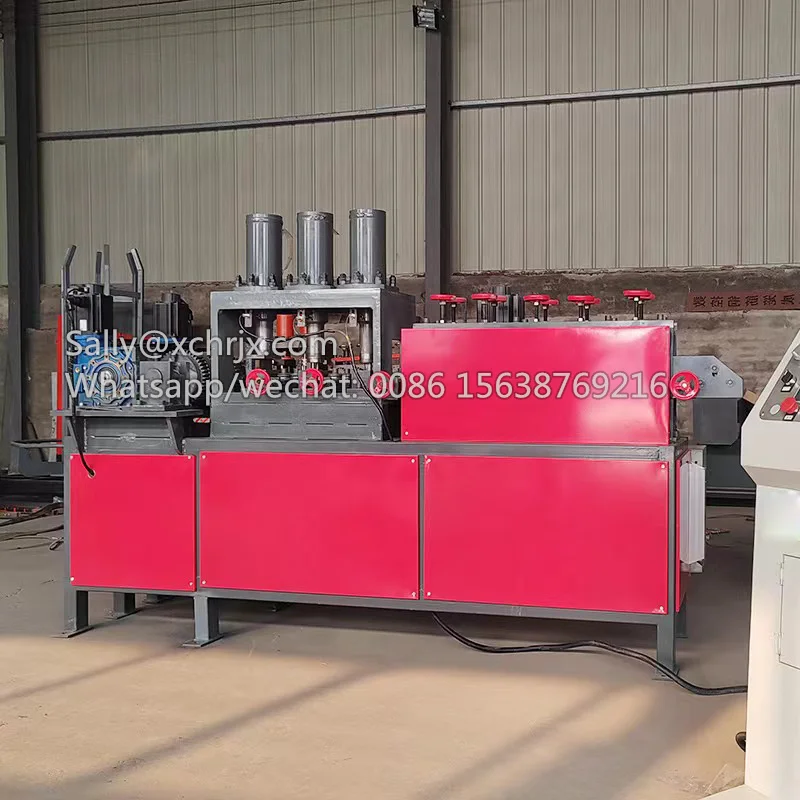

Flat iron hoop holding machine can also be called hoop forming machine or automatic hoop forming machine, this machine can be used under the operation of one person and has all the processes from adding materials to the finished hoop output can be realized.
Through the production of the machine, productivity can be improved, get rid of inefficient manual production, for the hoop production enterprises to improve the corresponding benefits.

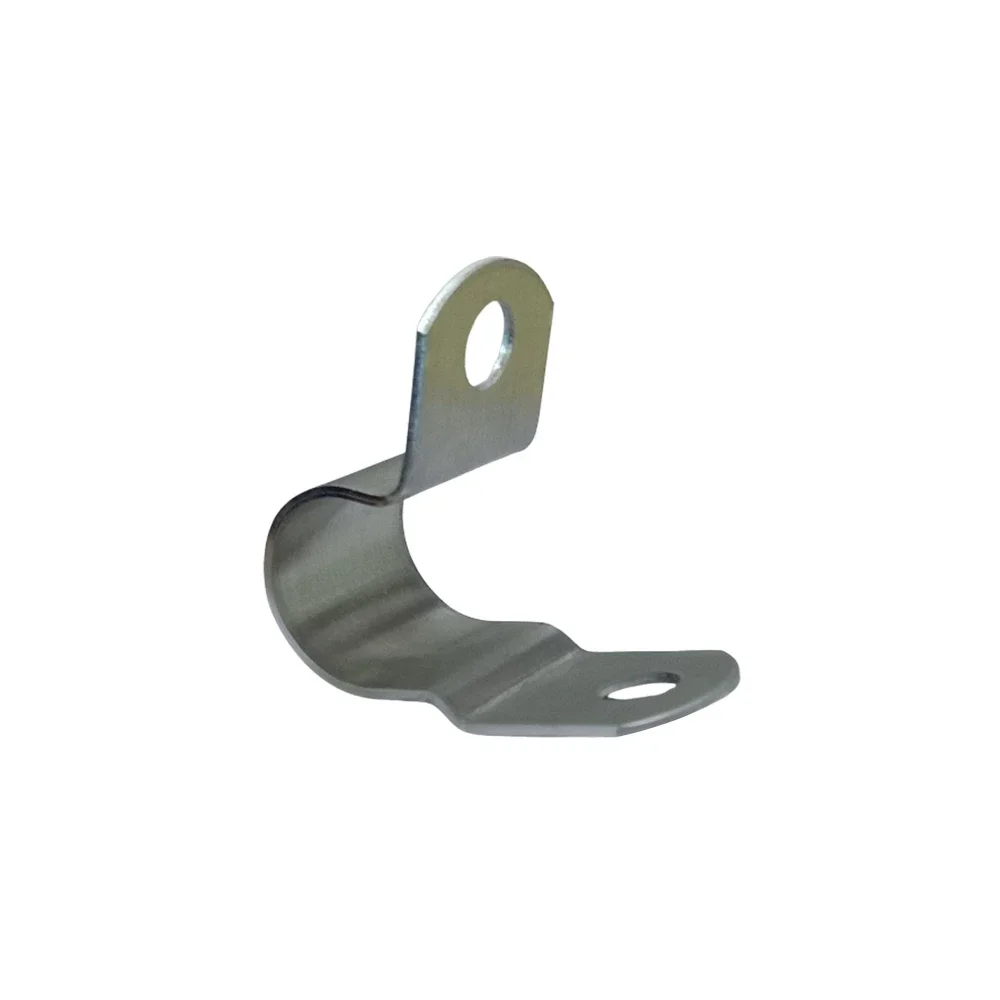

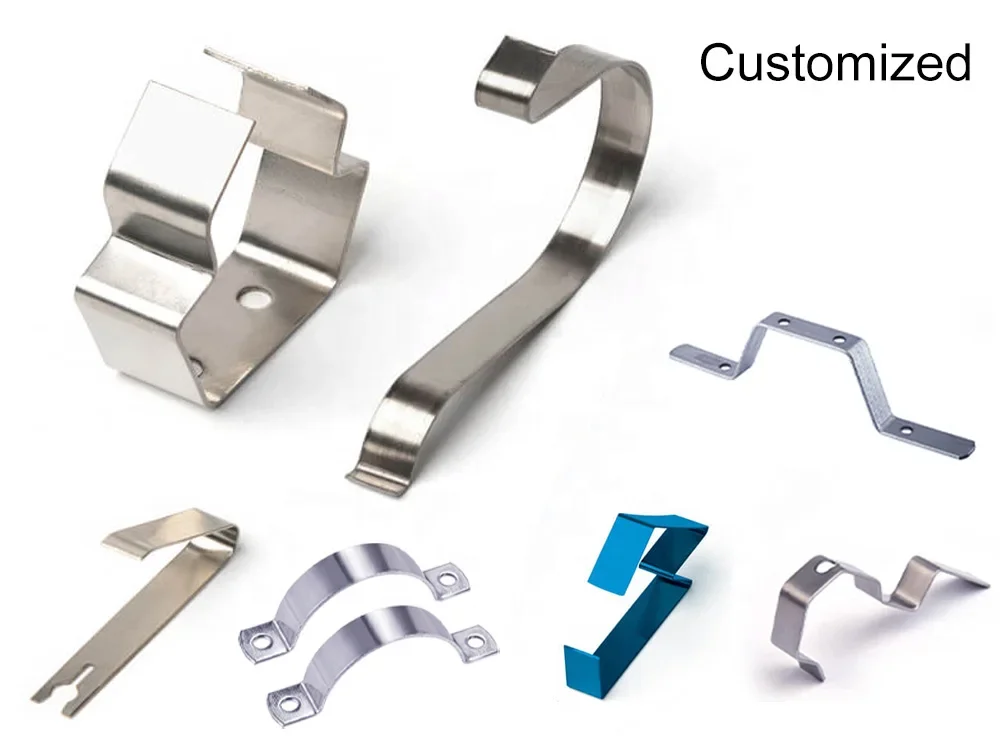

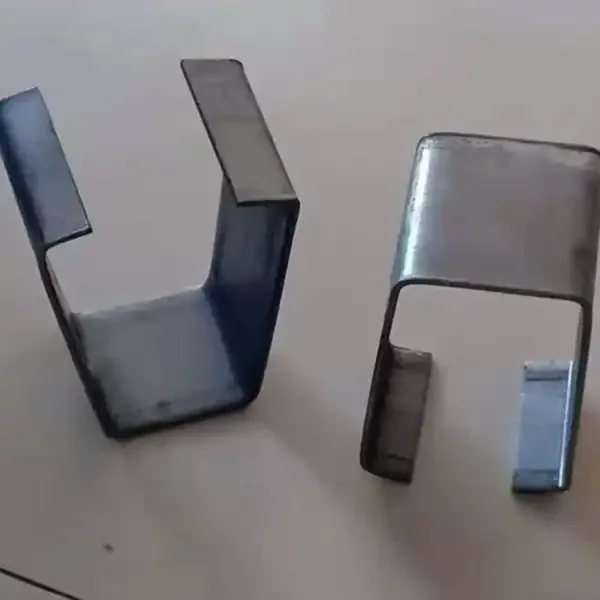

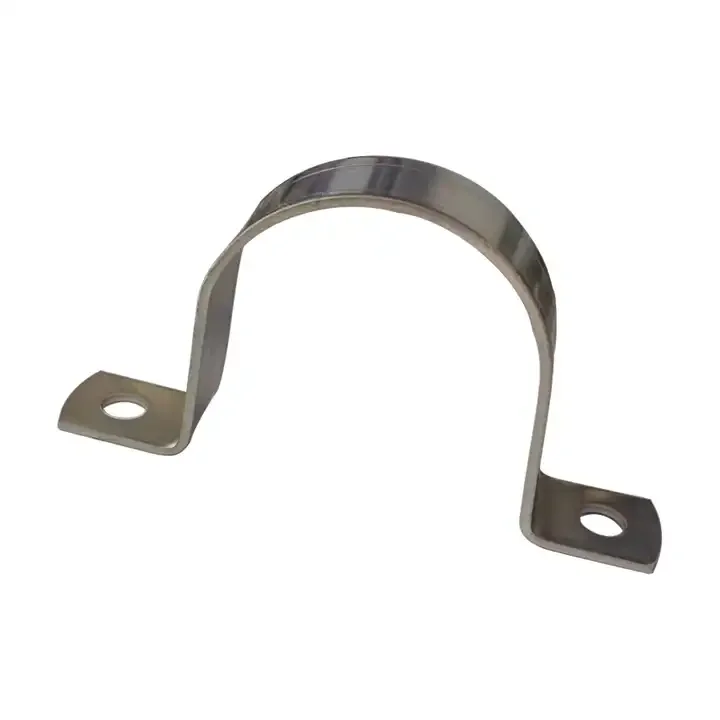

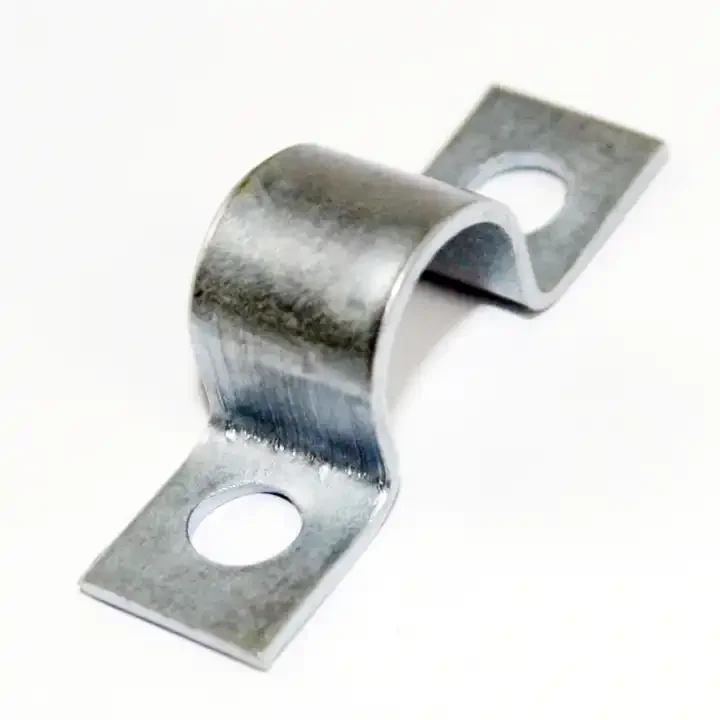

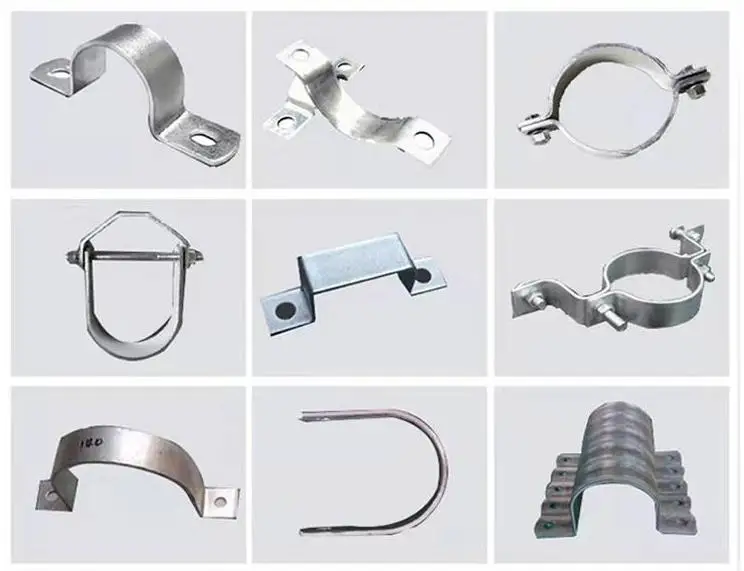

Different hose clamp shapes:Hose Clamp making machines with cheaper price Pipe Clip

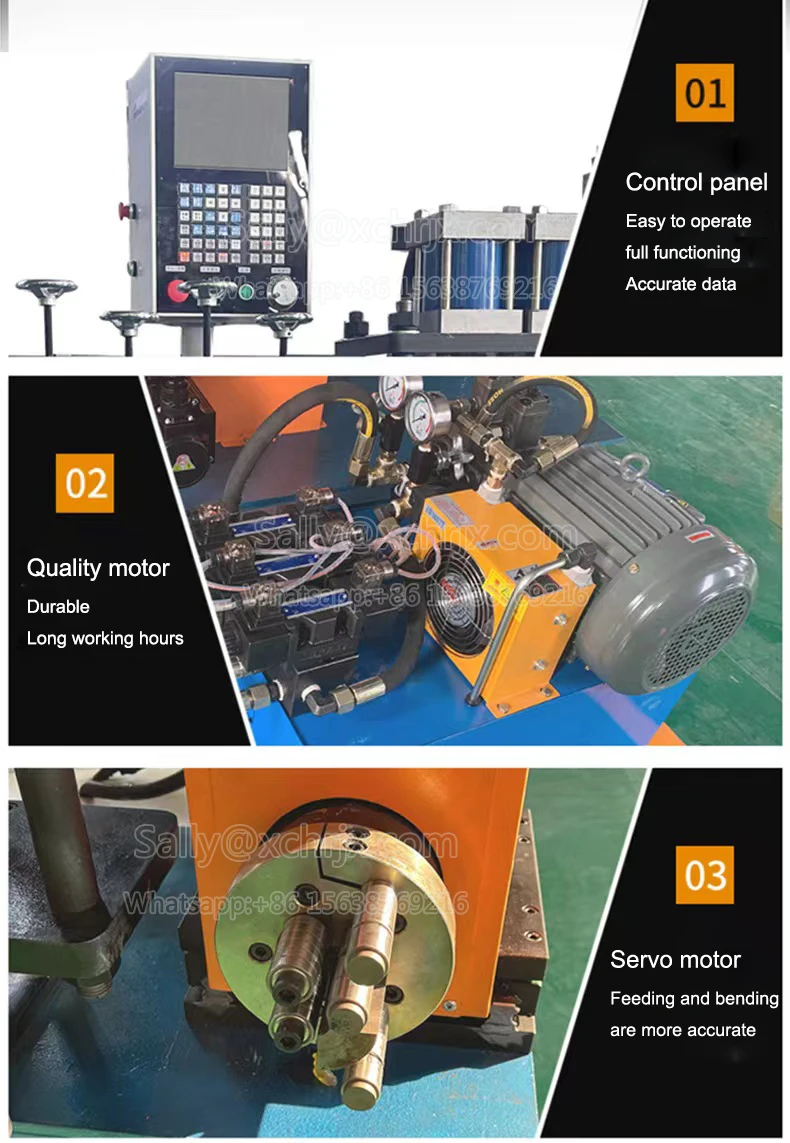

FEATURES AT A GLANCE


Features:
*CNC Control Hose Clamp making machines with cheaper price Pipe Clip
*Punching

*Curved arc

*Stamp

*Count


Advantages: Powerful Stable performance Strong and stable

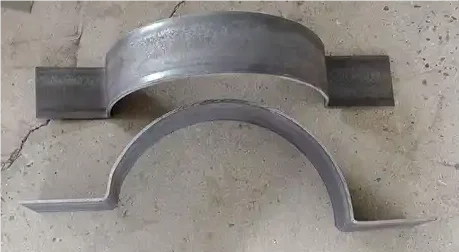

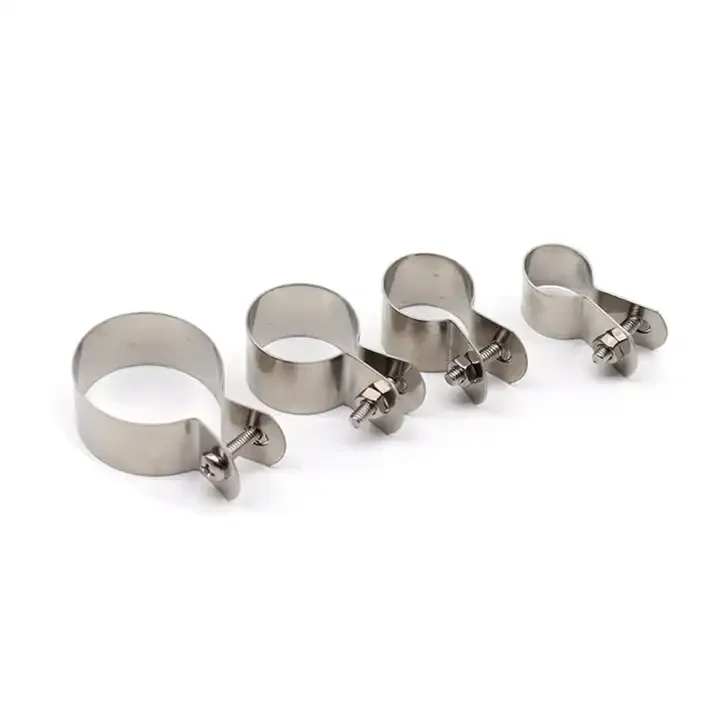

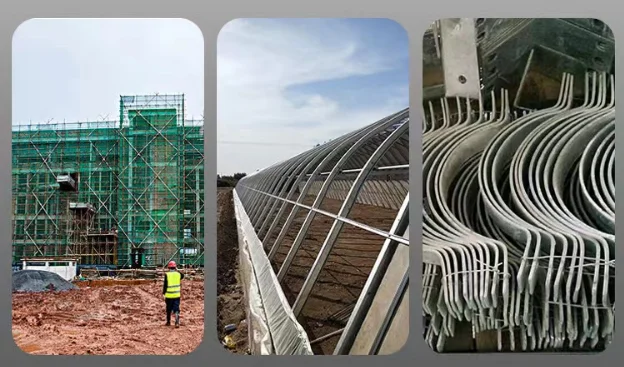

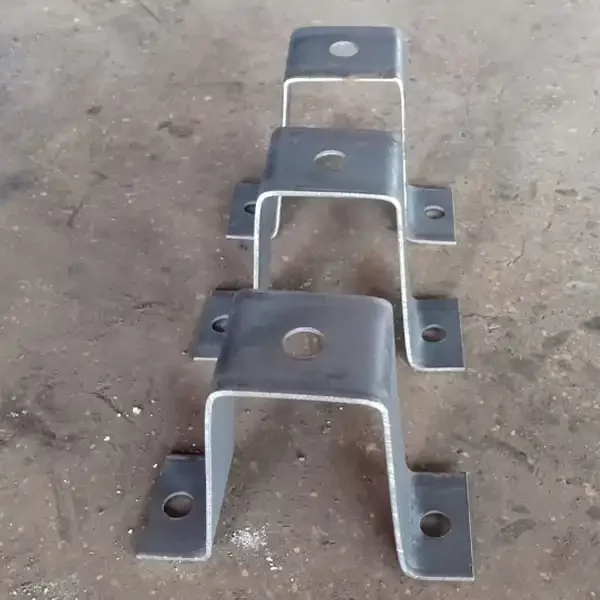

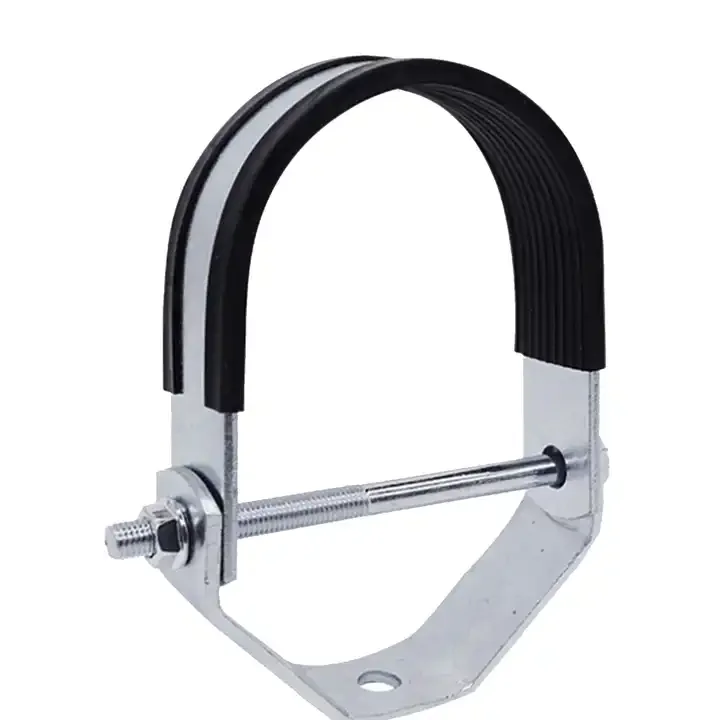

Finished products display

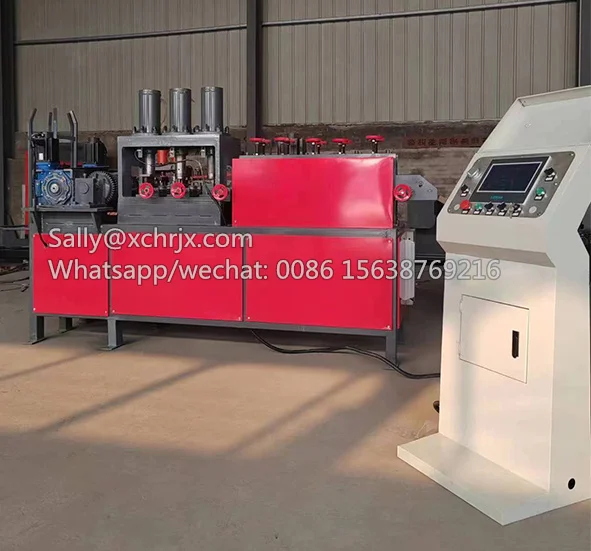

PRODUCT CONFIGURATION






PRODUCT SPECIFICATIONS


No
Items
Technical Parameters
1

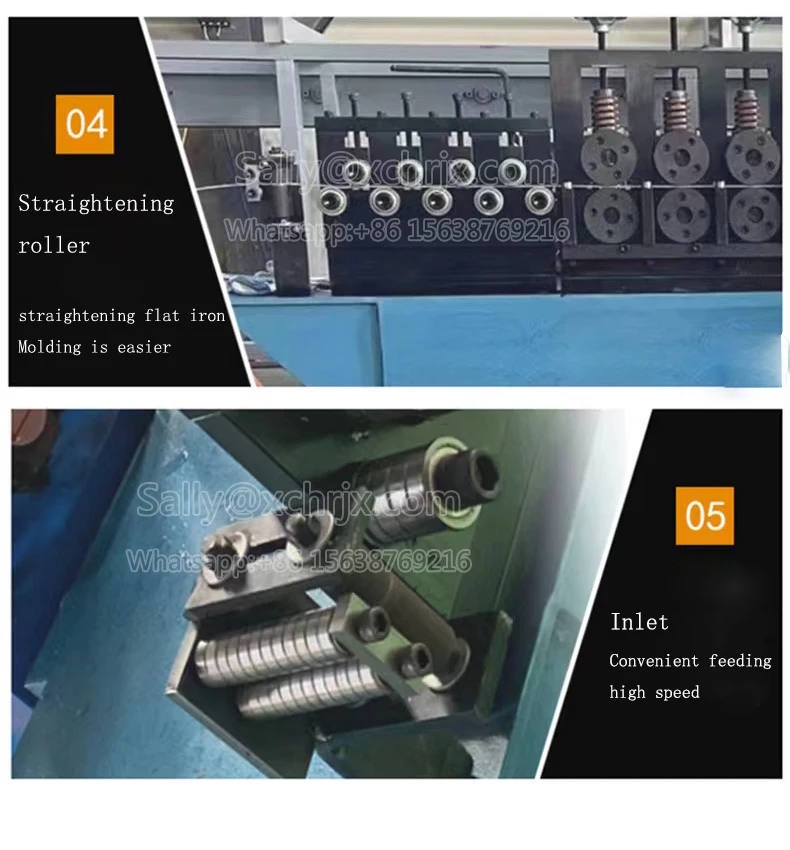

De-coiler and Straightening Combine Device
Width of Strip
30-100mm；
Thickness of Strip
≤3.5mm；
Inner Diameter of Coil
ф480-520 mm(according to customer’s requirements)；
Outer Diameter of Coil
φ1300mm；Loading Weight:≤2T
Expand Way
Manual
Power
De-coiler no power
Width of Strip
30-100mm；
Thickness of Strip
≤2mm；
Motor Power
3KW (straightening power)
Speed
Max16m/min
Roller Arrangement
7 rollers
Arrange mode
4-Point Independent
2
Roll Forming and Cutting Device
Forming Stations
8 Stations
Type of Driven
Gear
Forming Rack
High strength guide pillar gantry horizontal frame. The slider rollers are adjusted by digital display.
Station Pitch
250mm
Max. Feeding Width of Coil
100mm
Max. Thickness of Material
3.5mm
Diameter of Shafts
Φ60mm ,42CrMo (quenching and tempering)
Material of Roller
Cr12,Hardness: HRC58-60°
Main Driven Motor
37KW (Servo Motor)
Bending and Cutting Devices
1 set


SIMILAR PRODUCTS




FAQ


Q1: Are you manufacturer or trader?
A1: We are machinery manufacturer with over 20 years experience.
Q2: Do you offer customize service?
A2: Yes, we can customize machine according to your demands.
Q3: How many years warranty can you offer?
A3: We offer 2 years warranty.
Q4: Can you ship your machine to my country?
A4: Yes, if you don't have shipping agent , we can ship machines to your nearest sea port.
Q5: What payment term do you accept?
A5: TT, L/C, Alibaba assurance order, D/P, Paypal, Western Union and so on.
Hose Clamp making machines with cheaper price Pipe Clip
If you have other questions, pls contact us directly. We will offer you our best service.
Sally Li whatsapp/wechat: 008615638769216
Email: Sally@xchrjx.com

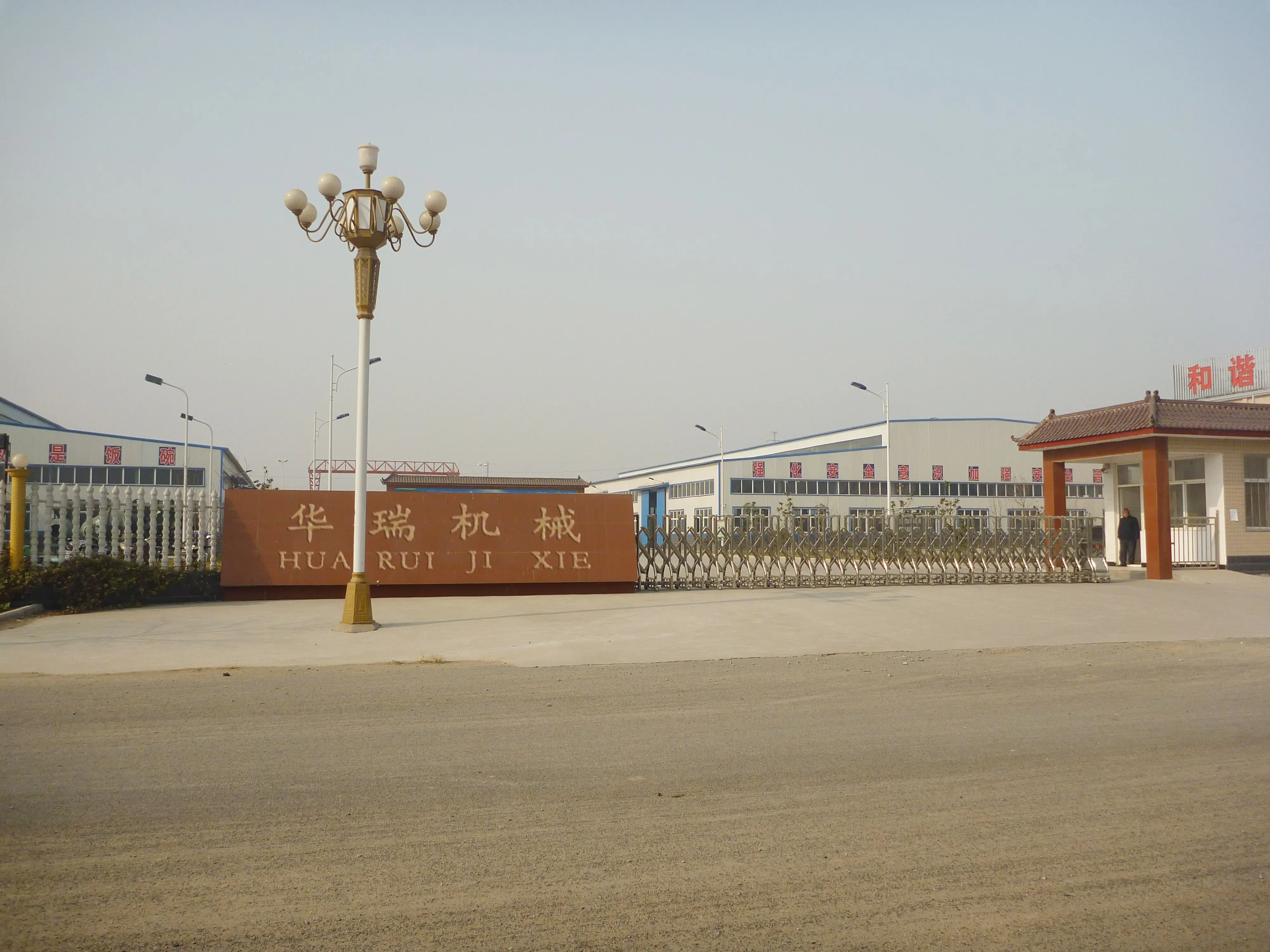

Xuchang Huarui Machinery
