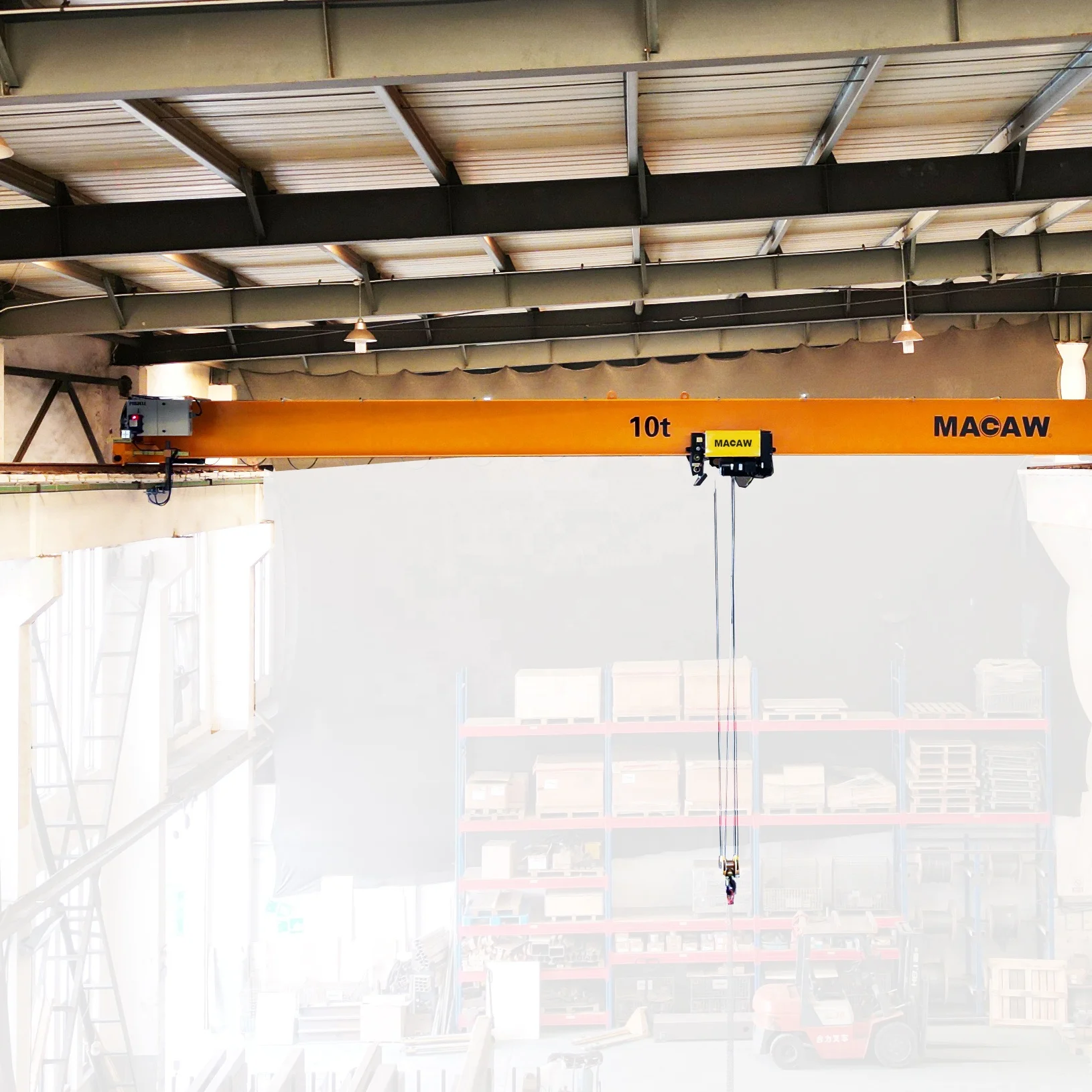

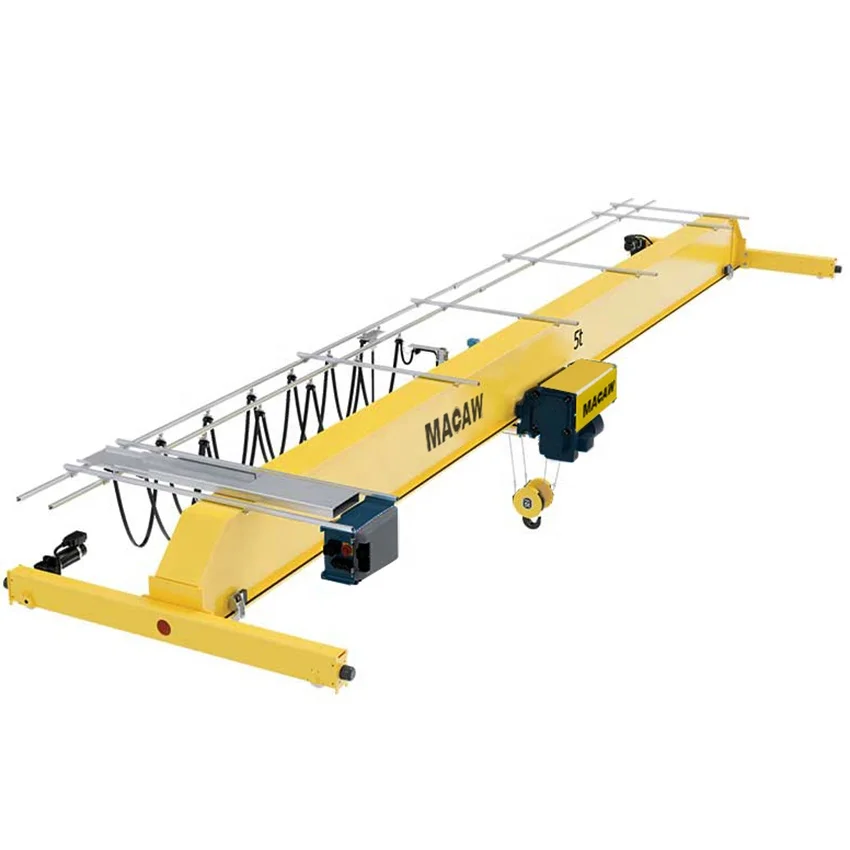

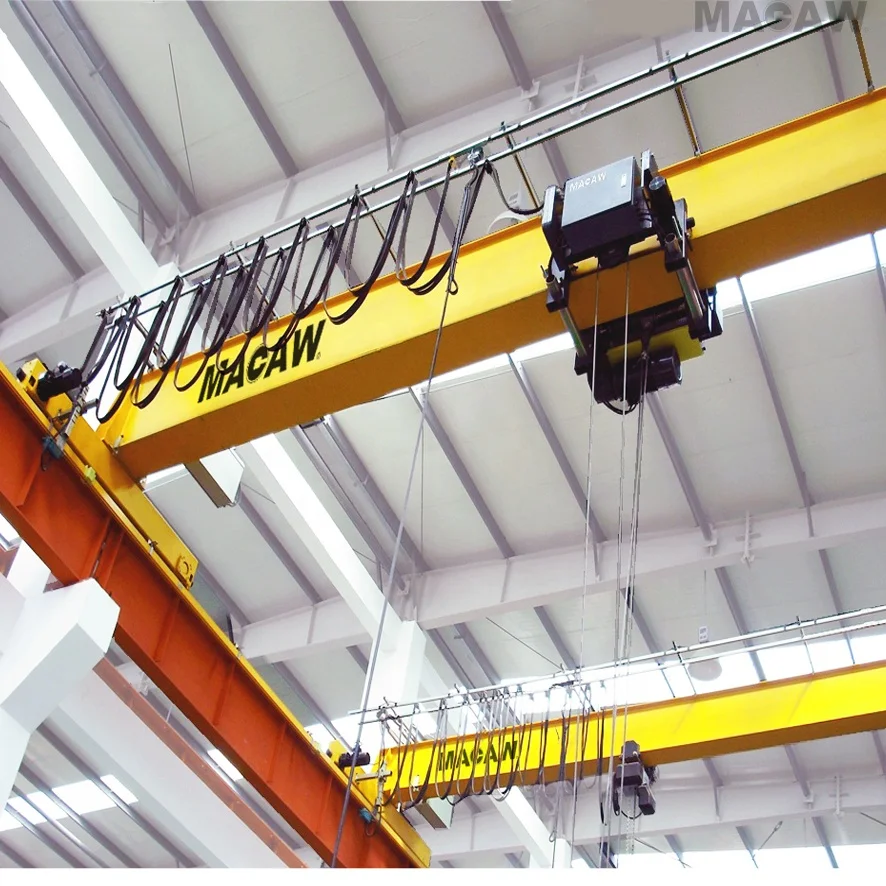

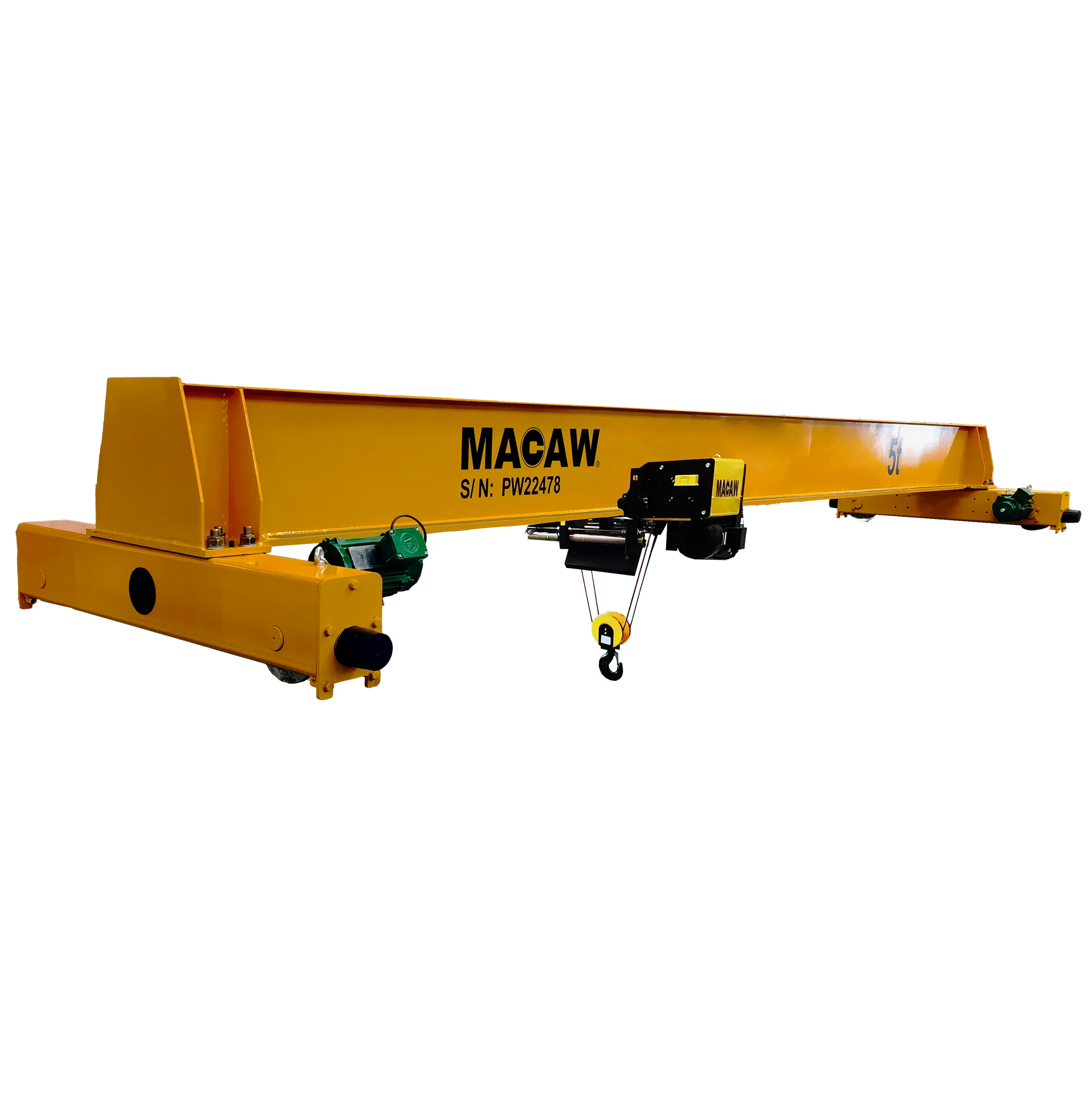

European Type Bridge Crane 10 ton OverHead Rail Tracks Top Running 6 Direction Motion Overhead Crane Remote Control
- Category: >>>
- Supplier: Toptech Machinery Wuxi Co. Ltd.
Share on (1600989051663):
Product Overview
Description
Product Description
1.Light weight structure,excellent performance, advanced design concept, effectively improve space utilization.
2.Made of high quality steel, durable and corrosion resistant.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.
Crane Control Panel
Electric Hoist
Power Supply
Remote Control
End Carriages with driven motor
Crane Limit Switch
Technical Paremeter
Please contact me for customized parameters
Basic Data | ||||||||||||||||
Crane Span (m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | ||||||||
Crane Weight (t) | 2.72 | 3.33 | 4.18 | 5.12 | 6.41 | 7.73 | 9.08 | 10.99 | ||||||||
Trolley Weight (t) | 0.67 | 0.67 | 0.67 | 0.67 | 0.67 | 0.67 | 0.67 | 0.67 | ||||||||
Max.Wheel Load (KN) | 51.2 | 54.7 | 57.8 | 61 | 65.2 | 68.8 | 72.4 | 76.9 | ||||||||
Min.Wheel Load (KN) | 11.8 | 11.4 | 12.6 | 14.1 | 16.4 | 19.3 | 22.2 | 27.0 | ||||||||
Crane Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||
Recommend Crane Rail | P22 | P22 | P22 | P22 | P22 | P22 | P22 | P22 | ||||||||
Operation Speed (m/min) | ||||||||||||||||
Lifting Speed | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | ||||||||
Trolley Speed | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | ||||||||
Bridge Speed | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | ||||||||
Driven Motor Power (KW) | ||||||||||||||||
Lifting Motor | 9.5/1.5 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | ||||||||
Trolley Motor | 0.96 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | ||||||||
Bridge Motor | 0.64*2 | 0.64*2 | 0.96*2 | 0.96*2 | 0.96*2 | 0.96*2 | 1.1*2 | 1.1*2 | ||||||||
Crane Power | 11.74 | 11.74 | 12.38 | 12.38 | 12.38 | 12.38 | 12.66 | 12.66 | ||||||||
Note:
Cranes have many kinds of specifications to choose,the data in this table base on 9M top of rail.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
Recommend Products
Packaging & Delivery
Electric overhead crane girder part
Electric hoist part
FAQ
Q. What's the information should I provide when inquiry on Electric crane and electric hoist?
More parameters, more better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
Plesee provide us the rquest lifting capacity, lifting height, span, power supply, building dimesnsion etc.
And if you can give us your design drawing, that will be very helpful.
Q.Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
