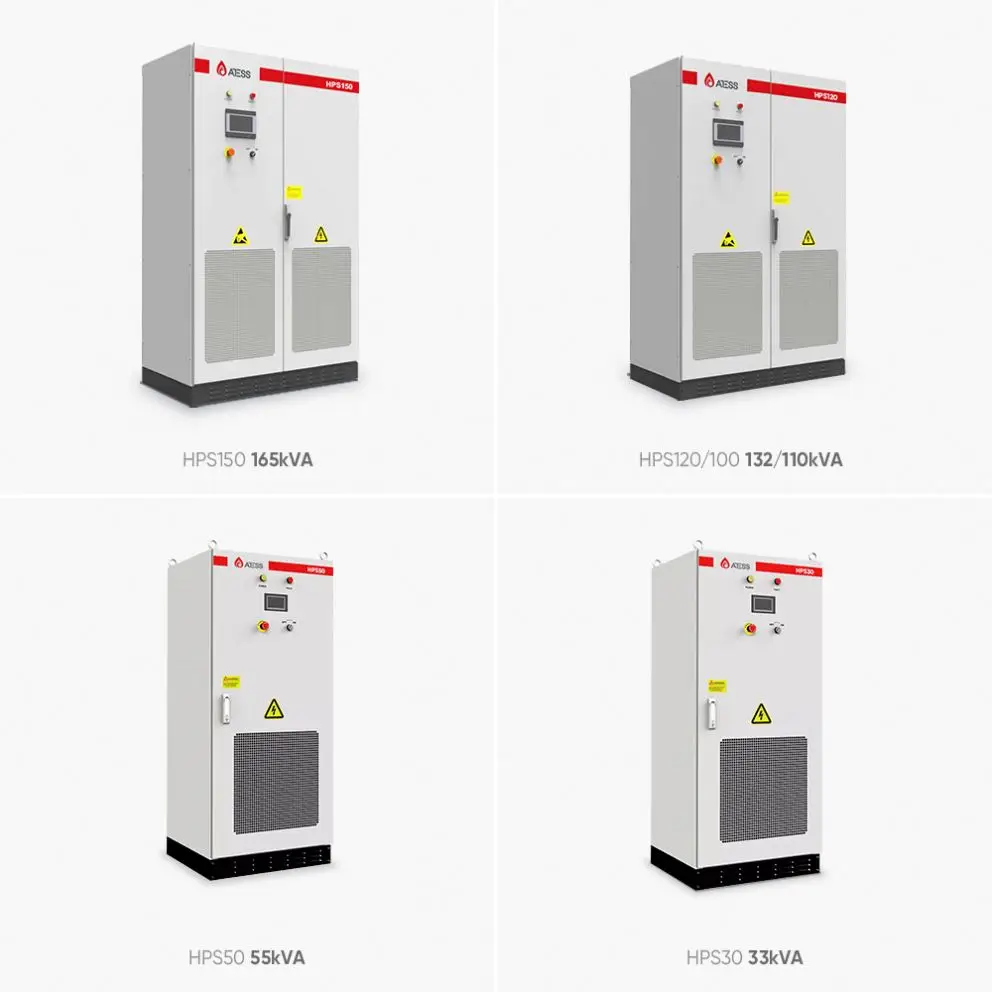

Inbuilt Mppt Atess 200Kw 180kw Solar Inverter AC 380V 400V 415V 200 Kw PV Inverters
- Category: >>>
- Supplier: DAWNICE ENERGY CO. LTD
Share on (1600989064589):
Product Overview
Description

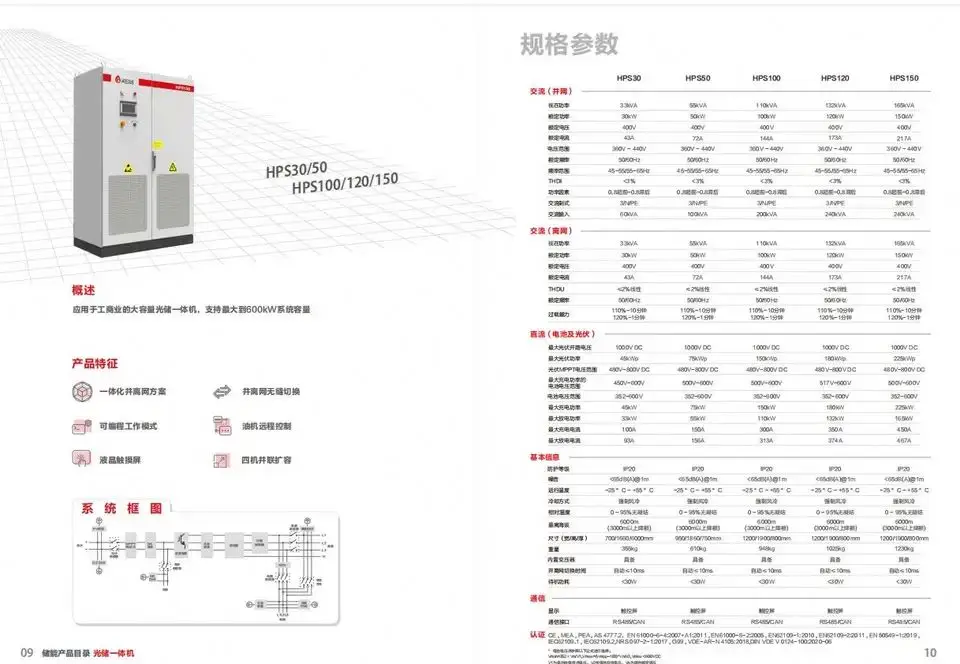

Product Paramenters

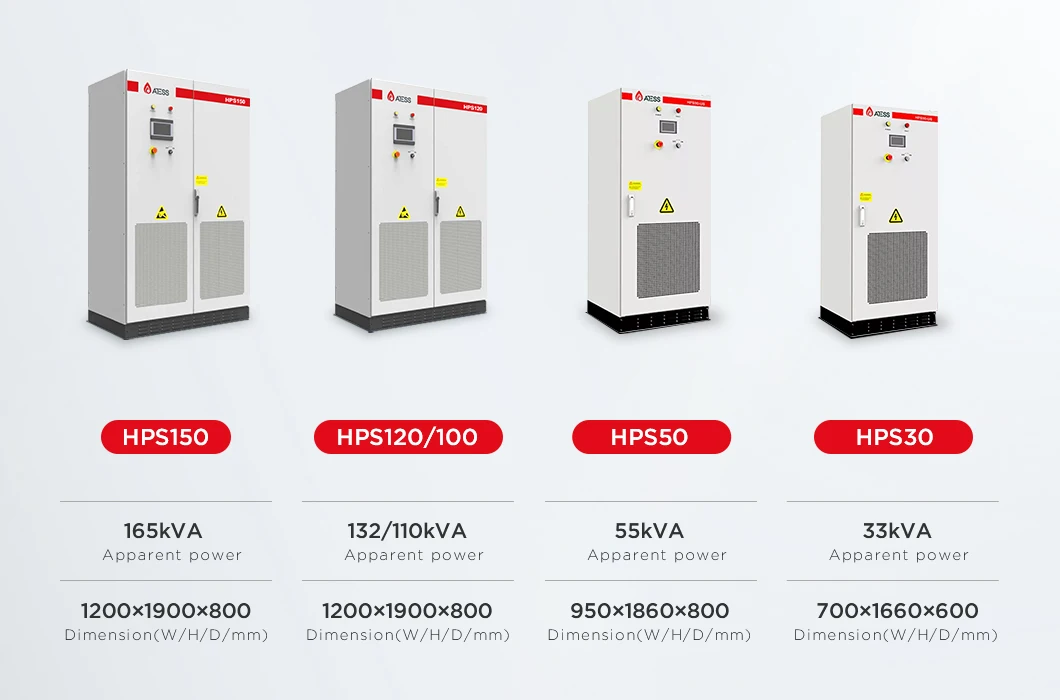

Model | HPS30 | HPS50 | HPS100 | HPS120 | HPS150 | |||||
AC (Grid-connected) | ||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA | |||||
Rated power | 30kW | 50kW | 100kW | 120kW | 150kW | |||||
Rated voltage | 400V | 400V | 400V | 400V | 400V | |||||
Rated current | 43A | 72A | 144A | 173A | 217A | |||||
Voltage range | 360V - 440V | |||||||||
Rated frequency | 50/60Hz | |||||||||
Frequency range | 45~65Hz | |||||||||
THDI | <3% | |||||||||
PF | 0.8lagging~0.8leading | |||||||||
AC connection | 3/N/PE | |||||||||
AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA | |||||
AC(Off-grid) | ||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA | |||||
Rated power | 30kW | 50kW | 100kW | 120kW | 150kW | |||||
Rated voltage | 400V | 400V | 400V | 400V | 400V | |||||
Rated current | 43A | 72A | 144A | 173A | 217A | |||||
THDU | ≤2%linear | |||||||||
Rated frequency | 50/60Hz | |||||||||
Overload capability | 110%-10 mins 120%-1 min | |||||||||
DC (Battery and PV) | ||||||||||
Max. PV open-circuit voltage | 1000V DC | |||||||||
Max. PV power | 45kWp | 75kWp | 150kWp | 180kWp | 225kWp | |||||
PV MPPT voltage range | 480V-800V DC | |||||||||
Battery voltage range at Max. charge power | 450V-600V | 500V-600V | 500V-600V | 517V-600V | 500V-600V | |||||
Battery voltage range | 352-600V | |||||||||
Max. charge power | 45kWp | 75kWp | 150kWp | 180kWp | 225kWp | |||||
Max. discharge power | 33kW | 55kW | 110kW | 132kW | 165kW | |||||
Max. charge current | 100A | 150A | 300A | 350A | 450A | |||||
Max. discharge current | 93A | 156A | 313A | 374A | 467A | |||||
General Information | ||||||||||
Protection degree | IP20 | |||||||||
Noise emission | <65dB(A)@1m | |||||||||
Operating temperature | -25 °C~+55 °C | |||||||||
Cooling | Forced-air | |||||||||
Relative humidity | 0-95% non-condensing | |||||||||
Maximum altitude | 6000m (derate over 3000m) | |||||||||
Dimension (W/H/D) | 700/1660/600mm | 950/1860/750mm | 1200/1900/800mm | 1200/1900/800mm | 1200/1900/800mm | |||||
Weight | 355kg | 610kg | 948kg | 1025kg | 1230kg | |||||
Build-in transformer | Yes | |||||||||
Transfer between on/off grid | Automatic≤10ms | |||||||||
Standby consumption | <30W | |||||||||
Communication | ||||||||||
Display | Touch screen | |||||||||
Communication | RS485/CAN | |||||||||

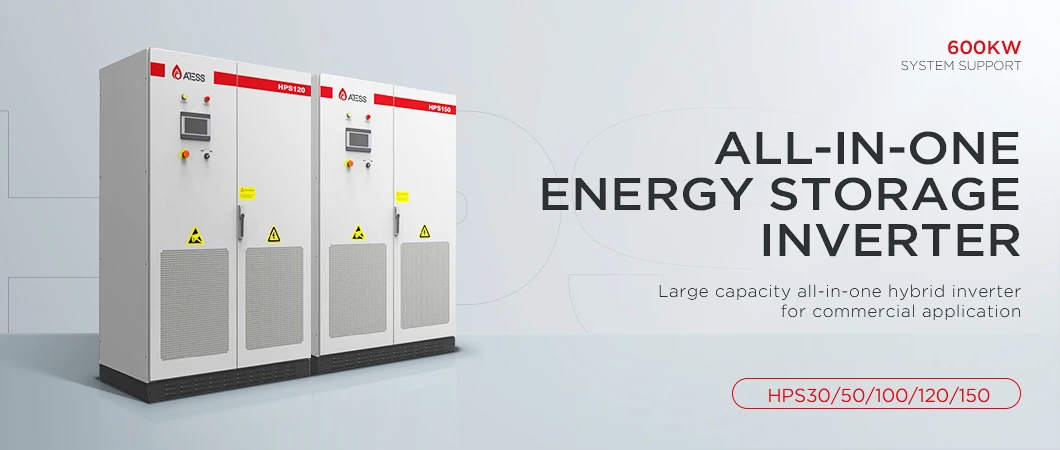

Energy Storage Hybrid Inverter
1.Flexible
1.Flexible
* Wide input voltage range.
* Compatible with lead-acid or lithium-ion batteries or other battery.
2.Grace
* Fashion apperance,light weight,smart operation.
* Natural cooling, low noise.
* IP65, wall mounted design, saving space.
2.Grace
* Fashion apperance,light weight,smart operation.
* Natural cooling, low noise.
* IP65, wall mounted design, saving space.
*Touch screen LCD
3.Reliable
* Compatible anti counter flow function.
* Battery reverse connect protection.
4.Advanced
* Intelligent energy management system for home.
* Power dispatching and demand side response management.
* Distributed virtual power station management
3.Reliable
* Compatible anti counter flow function.
* Battery reverse connect protection.
4.Advanced
* Intelligent energy management system for home.
* Power dispatching and demand side response management.
* Distributed virtual power station management
Company Profile

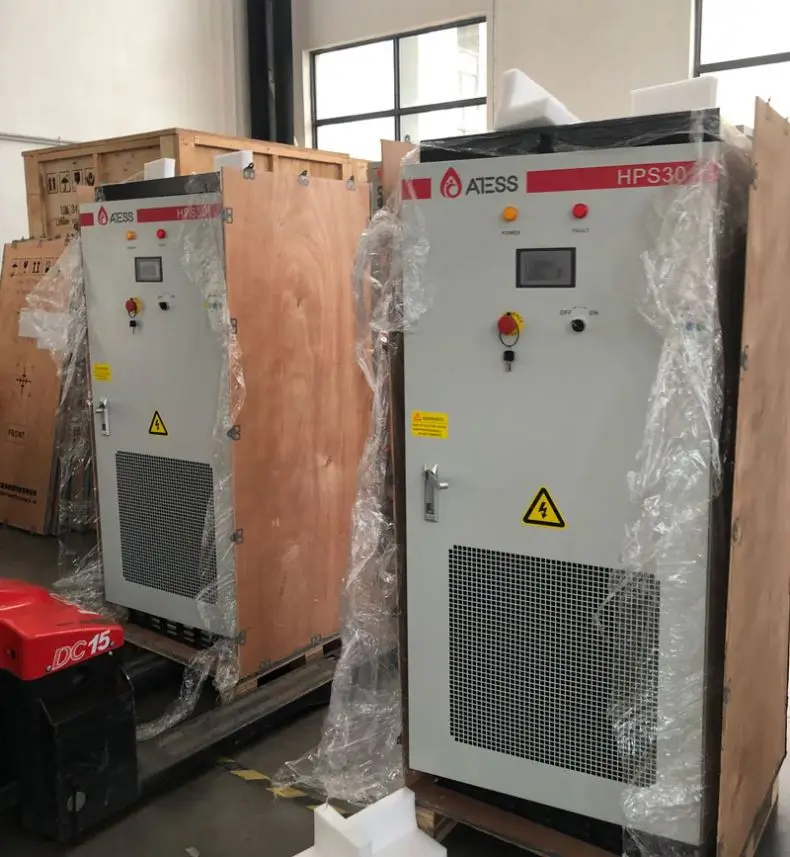

Packing & Delivery
Packing:
1. All shipping goods are 100% tested and packed very well.
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.
1. All shipping goods are 100% tested and packed very well.
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.
