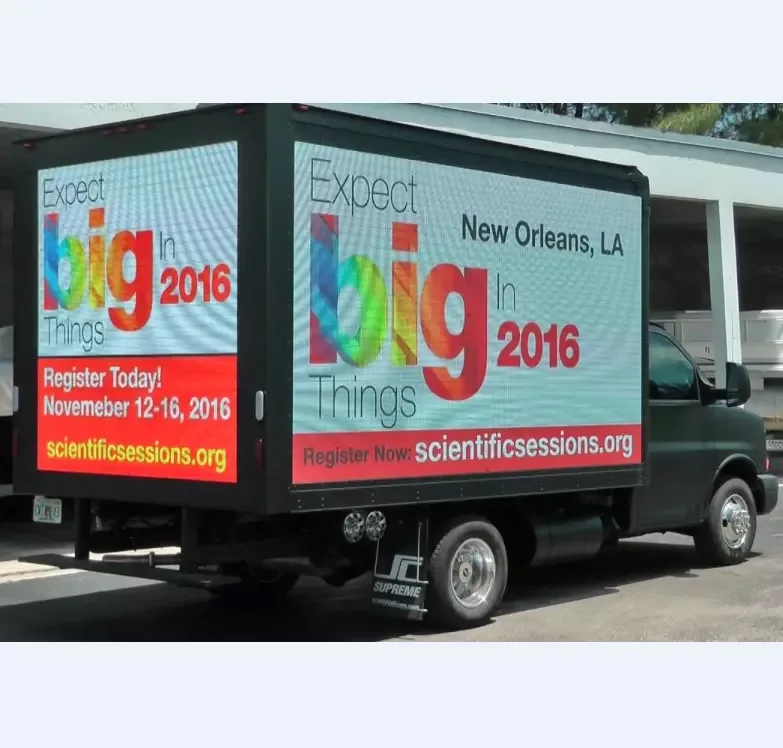

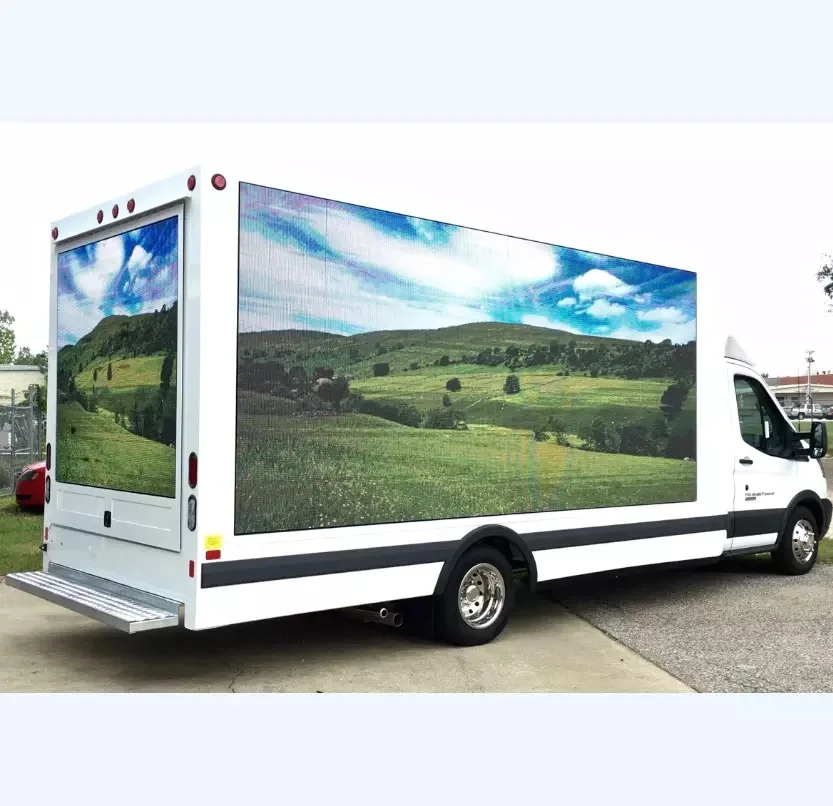

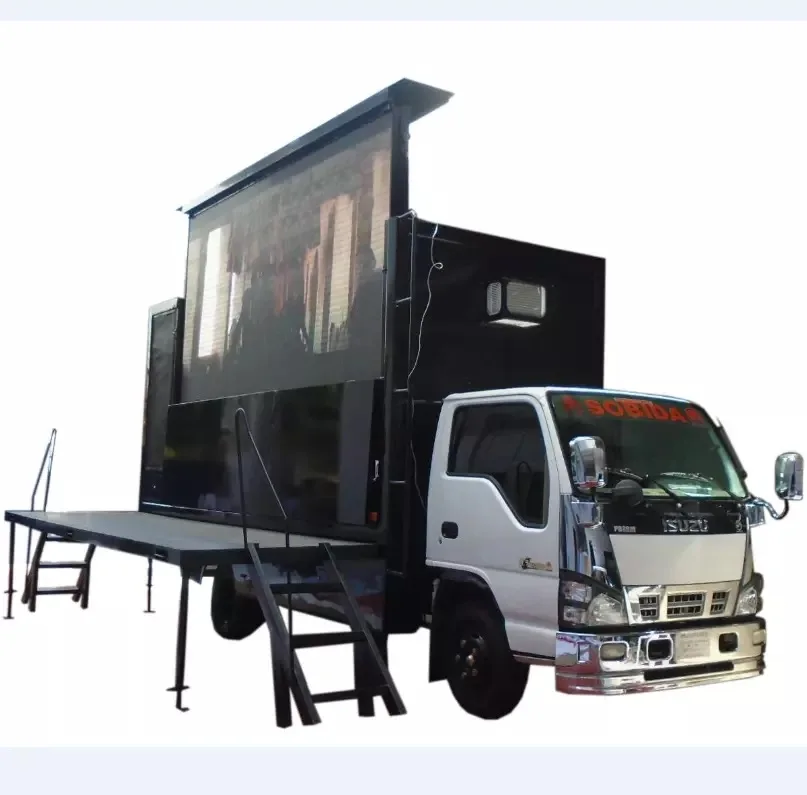

Wholesale High Quality P5 LED Car Display LED Truck Advertising Display Mobile Outdoor LED Advertising Screens For Cars
- Category: >>>
- Supplier: Shenzhen Huaxintong Photoelectric Technology Co. Ltd.
Share on (1600989124666):
Product Overview
Description
Related Products
Product Description
Specification
Item | Parameter | Parameter | Parameter |
Pixel Pitch | 5mm | 6mm | 8mm |
LED Lamp | SMD1921 | SMD2525 | SMD2727 |
Density | 40000dot/m2 | 27777dot/m2 | 15625dot/m2 |
Module Size | 320*160mm | 192*192mm | 320*160mm |
Module Pixels | 64*32=2048dot | 32*32=1024dot | 40*20=800dot |
Module Thickness | 15mm | 15mm | 15mm |
Caninet Size | 960mm*960mm | 960mm*960mm | 960mm*960mm |
Cabinet Weight | 6.5KG | 6.5KG | 6.5KG |
Brightness/Adjustment | ≥5000cd/m2 | ≥5000cd/m2 | ≥5000cd/m2 |
View Angle | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° |
Best View Distance | 3-100m | 4-100m | 5-20m |
Grey Scale | 65536 | 65536 | 65536 |
Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz |
Scan Mode | 1/28 Scan | 1/16 Scan | 1/13 Scan |
Life span | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) |
MTBF | >5000(Hrs) | >5000(Hrs) | >5000(Hrs) |
Out of control pixel rate | ≥3/10,000(discrete distribution) | ≥3/10,000(discrete distribution) | ≥3/10,000(discrete distribution) |
Operation Temperature | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ |
Working Humidity | 10%~98%RH | 10%~98%RH | 10%~98%RH |
Storage Temperature | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ |
Working Valtage | AC 110~240 V ±10% | AC 110~240 V ±10% | AC 110~240 V ±10% |
IP Grade | IP67 | IP67 | IP67 |

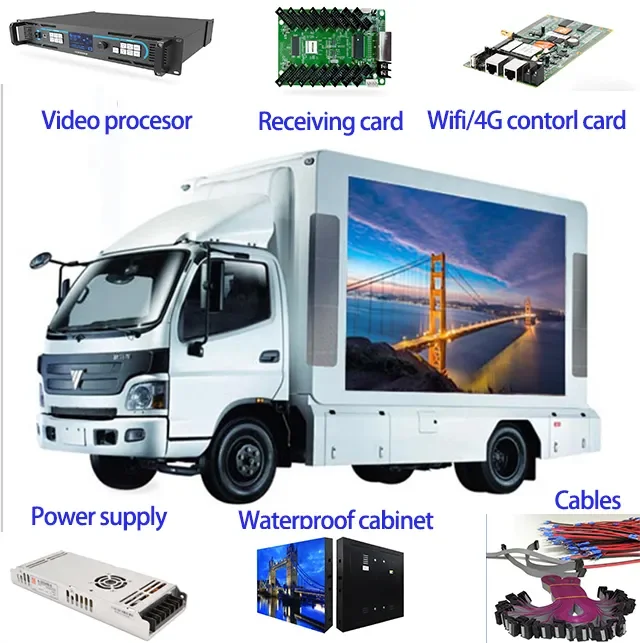

Schematic of the control system
Packing&Shipping

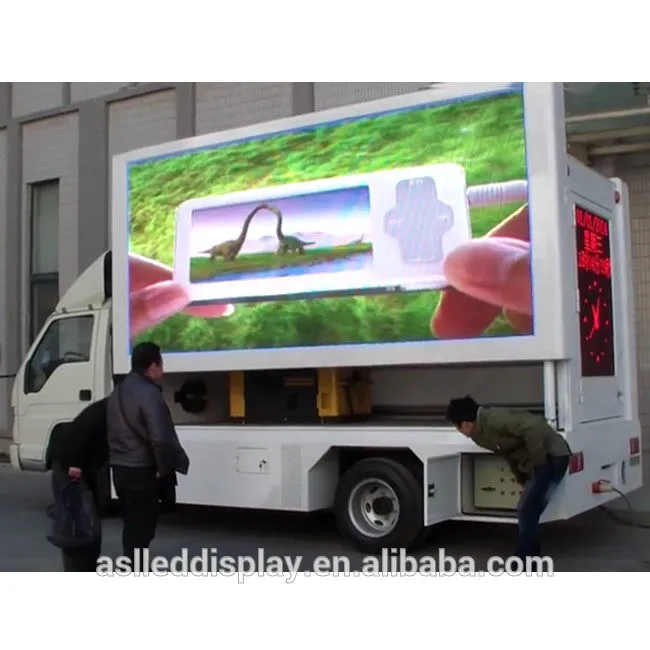

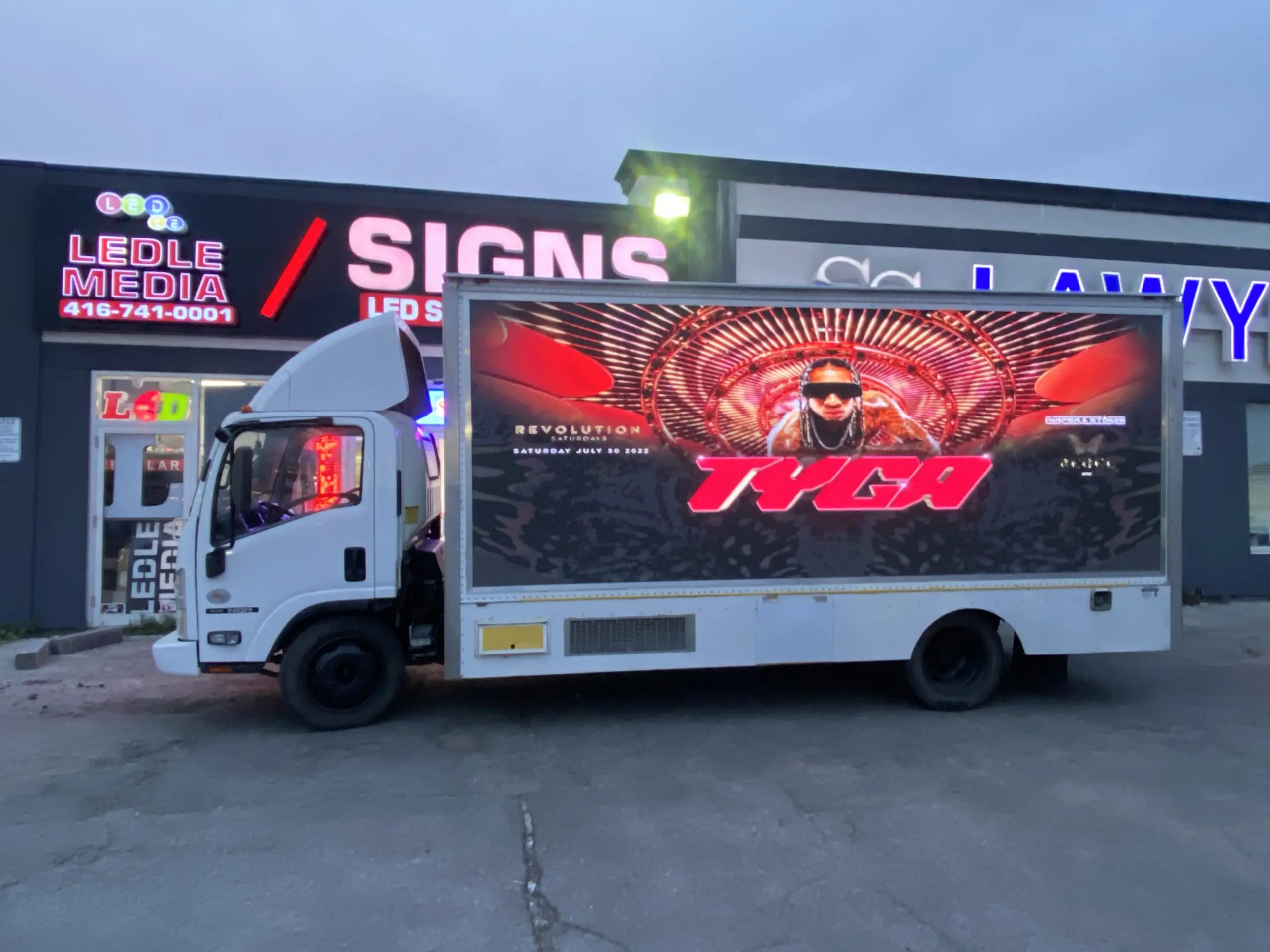

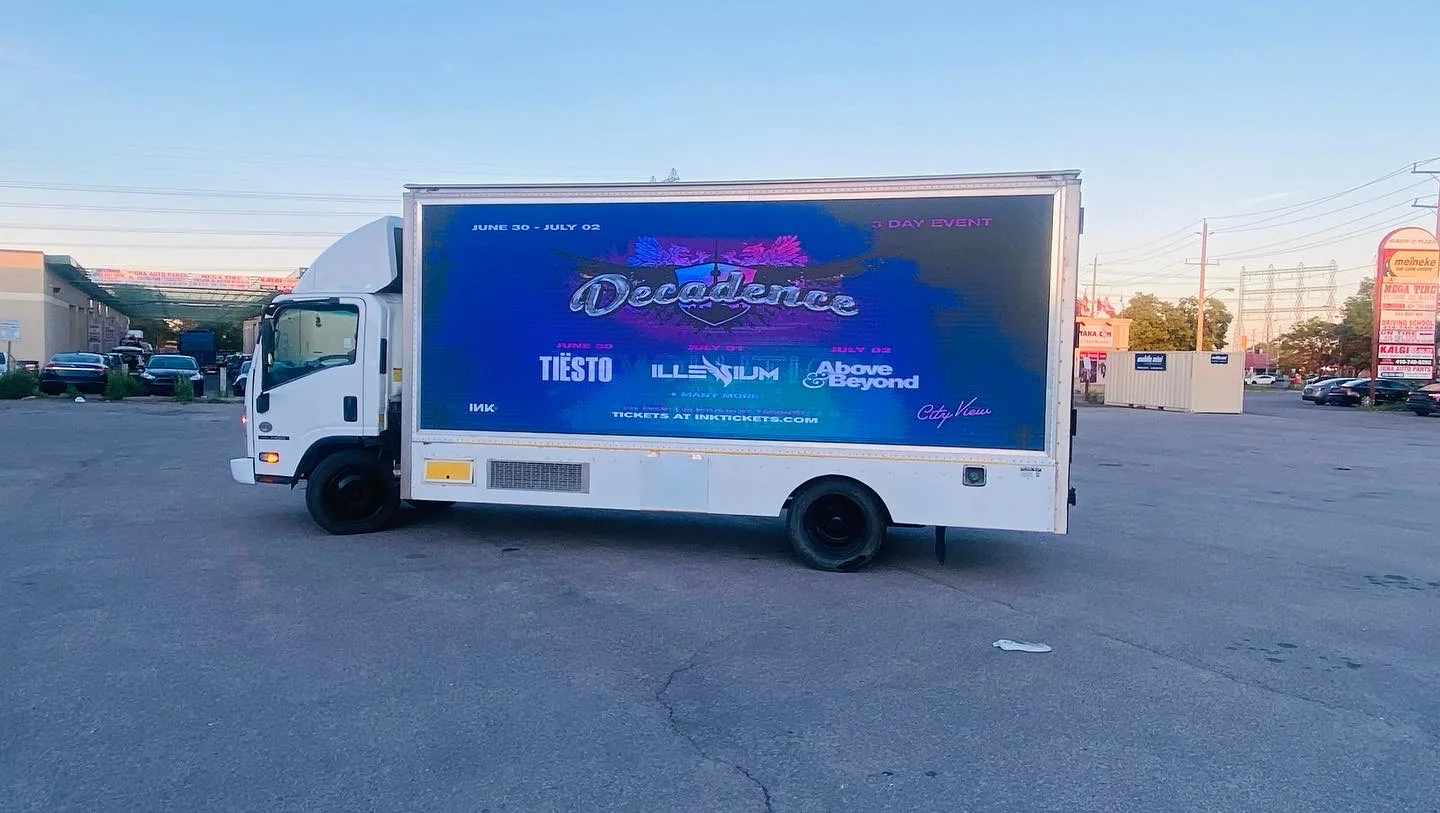

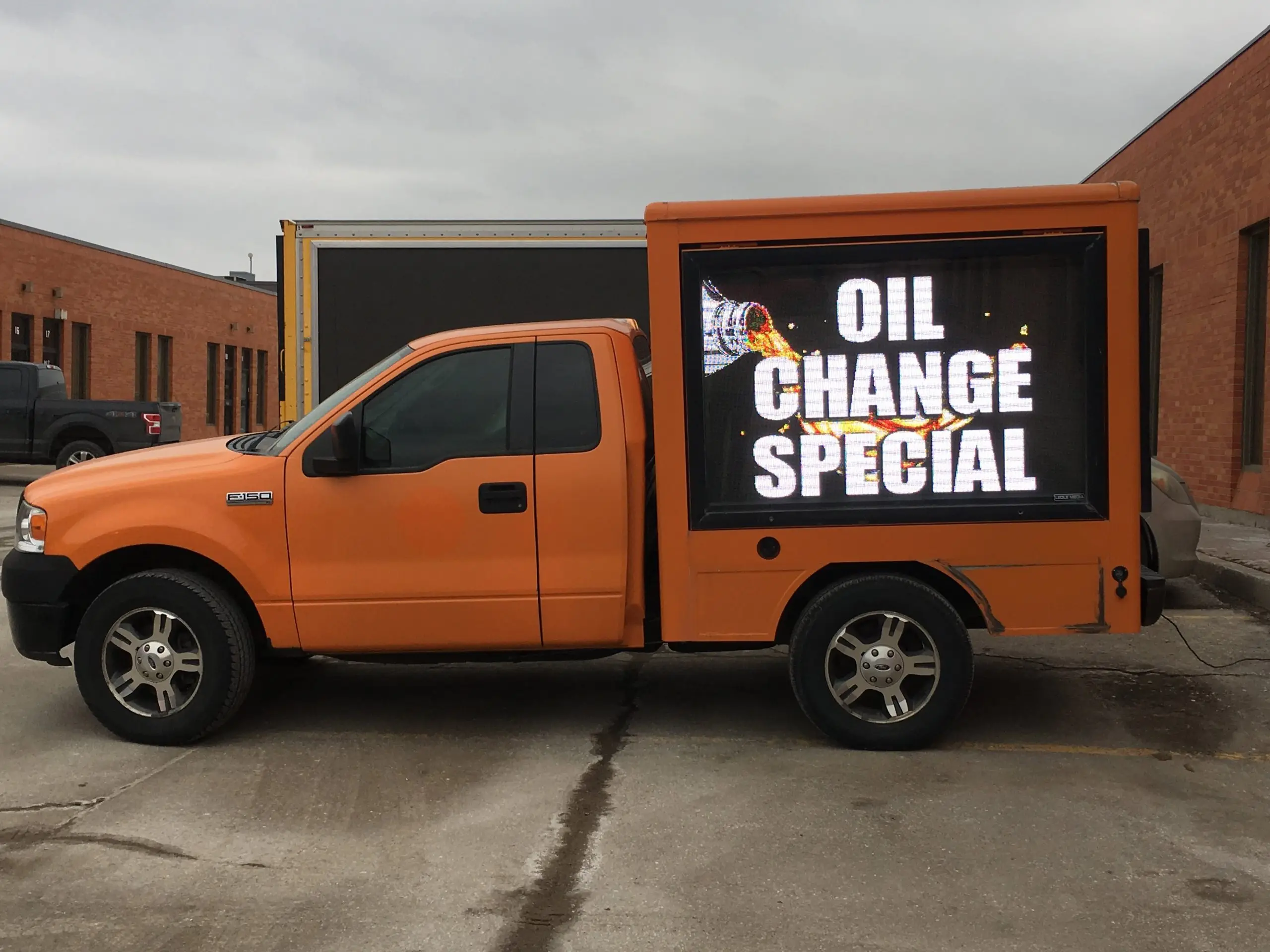

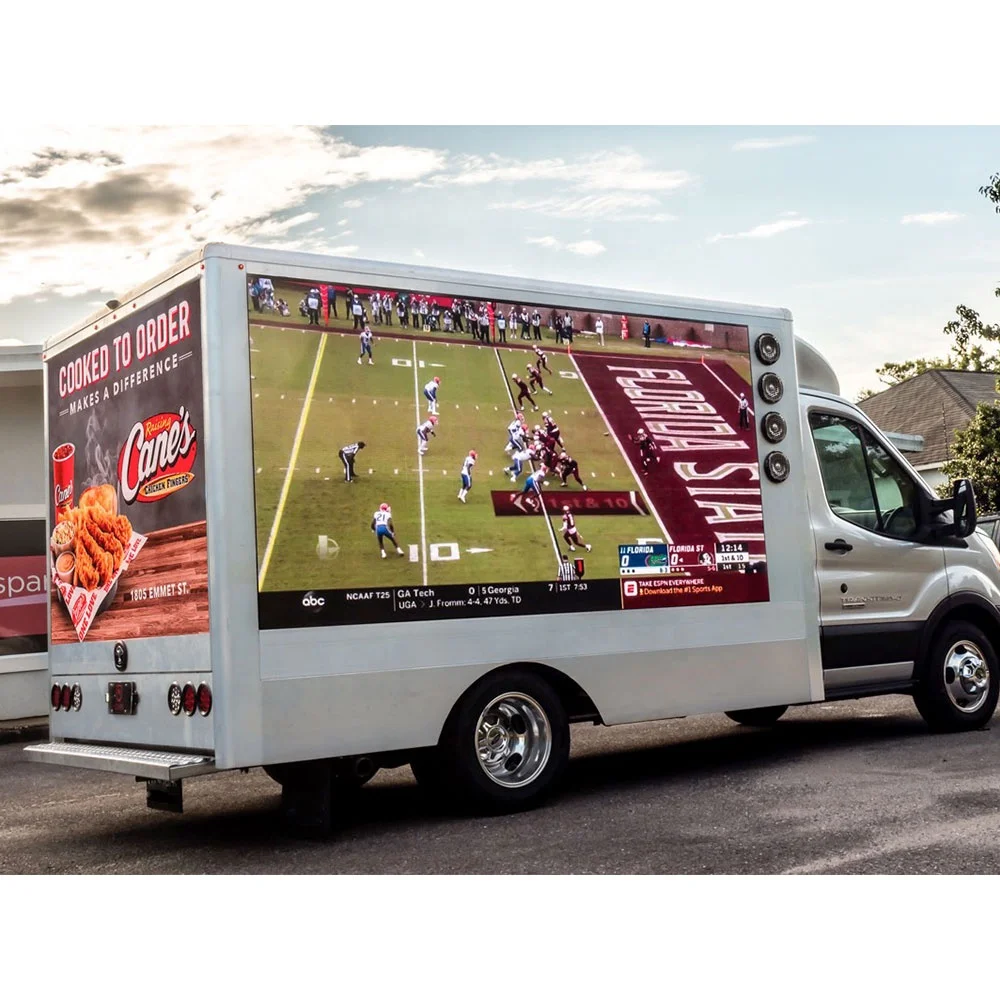

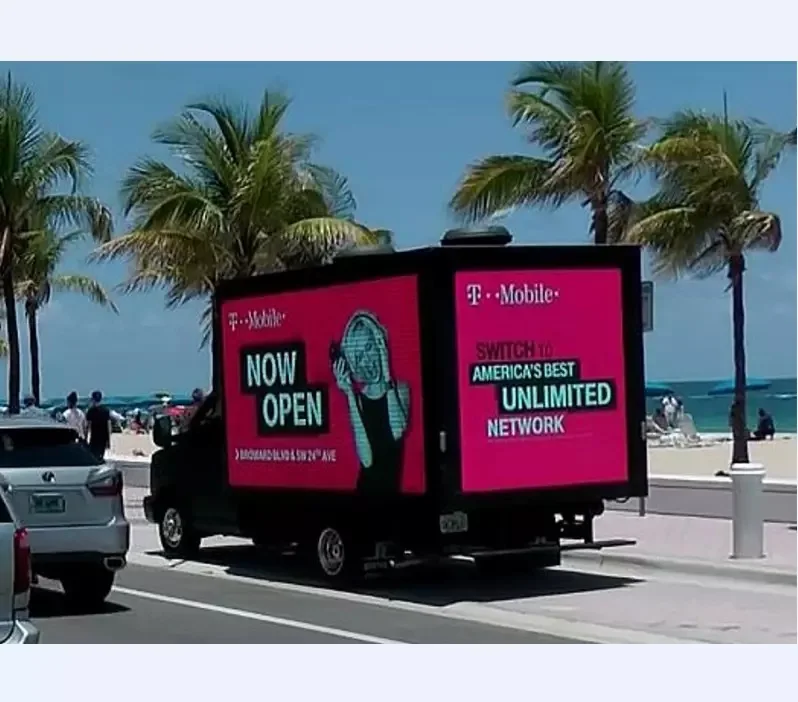

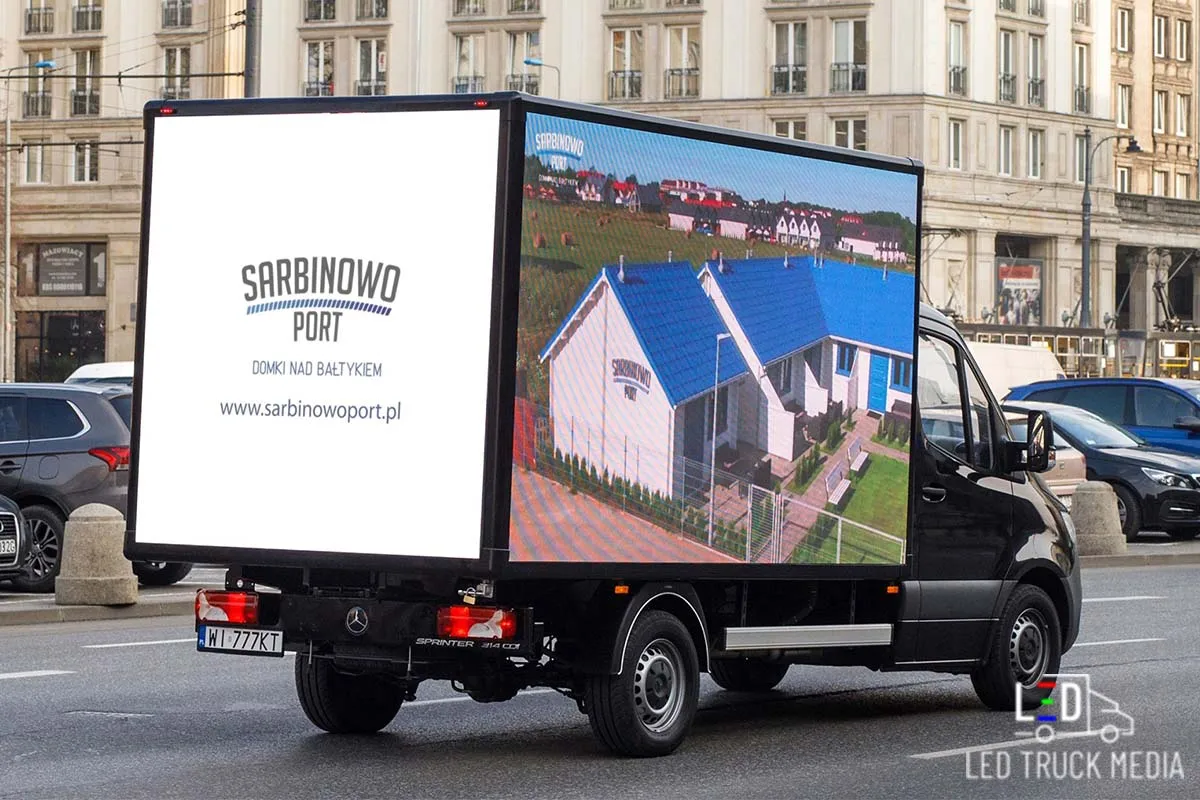

Application
Certifications
Our Factory
