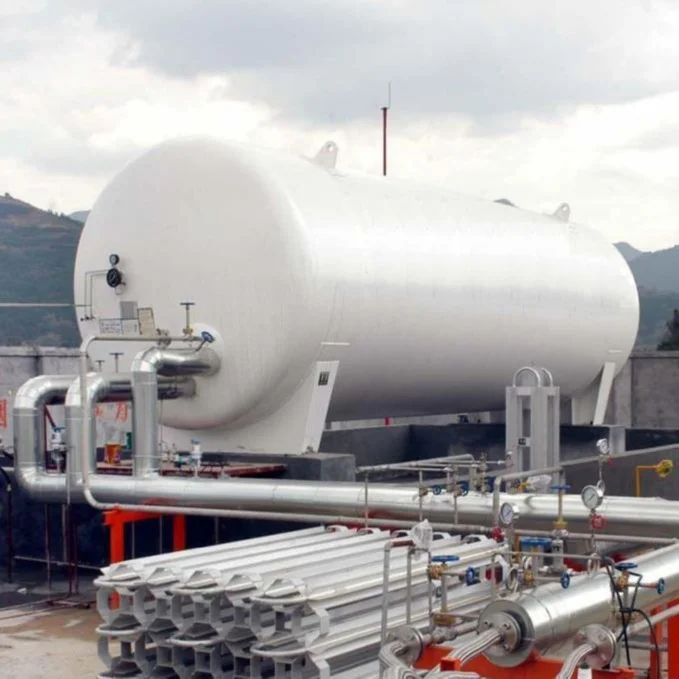

Hot Sale Liquid Oxygen/Nitrogen/Natural Gas Tank CO2 Storage Cryogenic Tank
- Category: >>>
- Supplier: Nangong Zhuoyue Gas Equipment CO. LTD.
Share on (1600989124757):
Product Overview
Description
Specification
Cryogenic liquid Oxygen / Nitrogen /Argon /LNG Storage Tank | ||||||||
NO. | Model | Dimension (mm) | Net Weight (KG) | Type | ||||
1 | CFL-5/0.8 | Φ1916*5172 | 3930 | Vertical | ||||
2 | CFL-10/0.8 | Φ2316*5981 | 5840 | |||||
3 | CFL-15/0.8 | Φ2316*8035 | 7900 | |||||
4 | CFL-20/0.8 | Φ2716*7377 | 9250 | |||||
5 | CFL-30/0.8 | Φ2920*8904 | 12600 | |||||
6 | CFL-40/0.8 | Φ2920*11290 | 16000 | |||||
7 | CFL-50/0.8 | Φ3220*11304 | 18700 | |||||
8 | CFL-80/0.8 | Φ3420*14920 | 31200 | |||||
9 | CFL-100/0.8 | Φ3420*18102 | 37200 | |||||
10 | CFL-150/0.8 | Φ3724*22128 | 53200 | |||||
11 | CFL-200/0.8 | Φ4024*24085 | 69400 | |||||
12 | CFL-50/1.6 | Φ3220*11304 | 25600 | |||||
13 | CFL-100/1.6 | Φ3520*17276 | 46300 | |||||
Cryogenic Liquid CO2 Storage Tank | ||||||||||||
Model | Volume (M3) | Working pressure （bar） | Dimension (mm) | Weight (KG) | Type | Standard | ||||||
CFL-5/2.16 | 5 | 21.6 | Φ2000*5130 | 4450 | Vertical | GB ASME | ||||||
CFL-10/2.16 | 10 | 21.6 | Φ2100*7170 | 6986 | ||||||||
CFL-15/2.16 | 15 | 21.6 | Φ2500*6912 | 8810 | ||||||||
CFL-20/2.16 | 20 | 21.6 | Φ2500*8756 | 11328 | ||||||||
CFL-25/2.16 | 25 | 21.6 | Φ2900*7728 | 17961 | ||||||||
CFL-30/2.16 | 30 | 21.6 | Φ2900*8875 | 14660 | ||||||||
CFL-50/2.16 | 50 | 21.6 | Φ3200*11320 | 26097 | ||||||||
CFL-60/2.16 | 60 | 21.6 | Φ3200*13180 | 30220 | ||||||||
CFL-100/2.16 | 100 | 21.6 | Φ3500*16870 | 49627 | ||||||||
Product Description
The low temperature liquid carbon dioxide storage tank is double-walled, the inner material is 16MnDR, and the outer material is Q345R, carbon steel. It adopts vertical and horizontal structure, adopts vacuum powder insulation, and has the advantages of compact structure, low release date, small footprint, centralized control, safety and reliability, and convenient operation and maintenance.

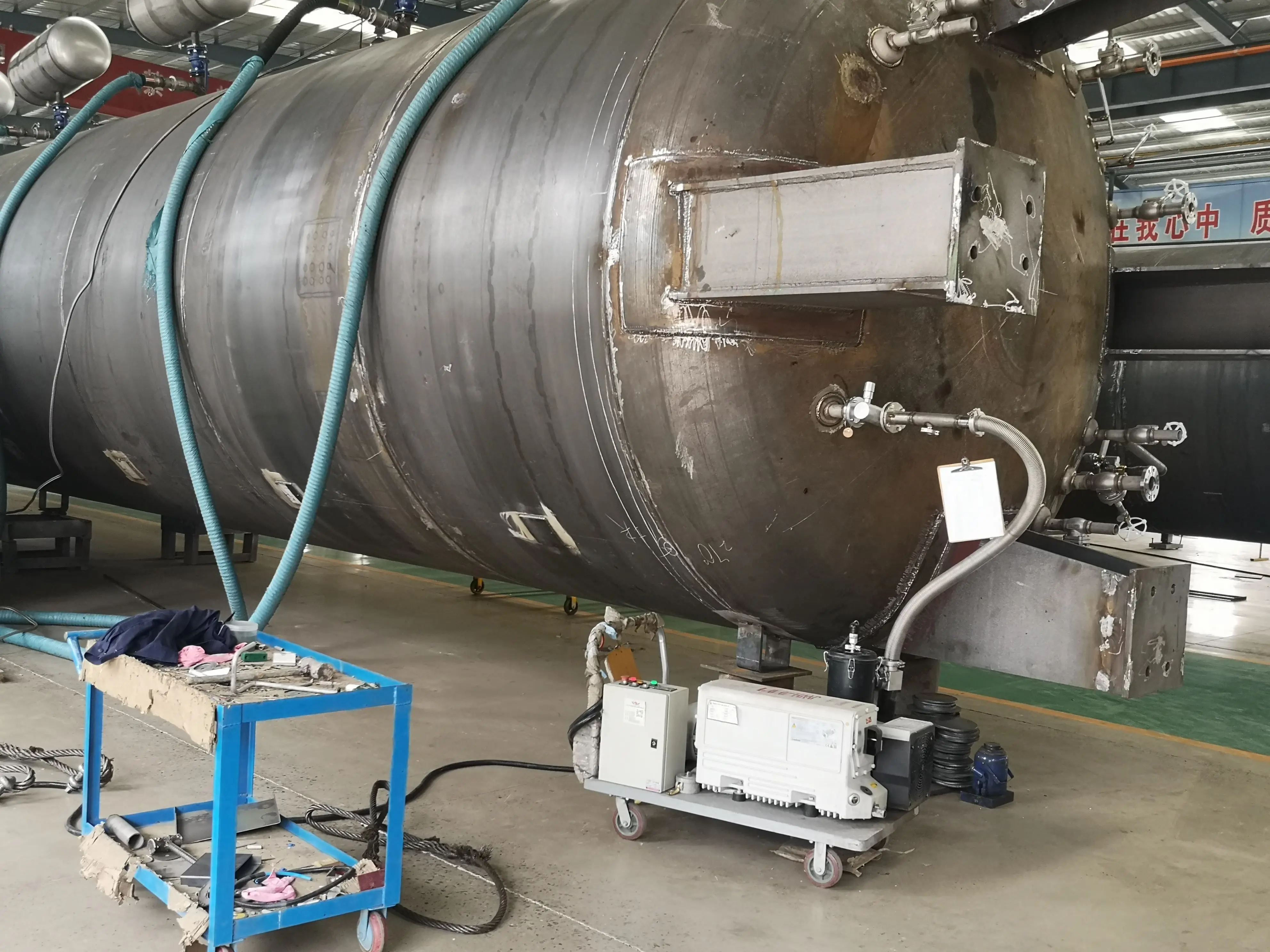

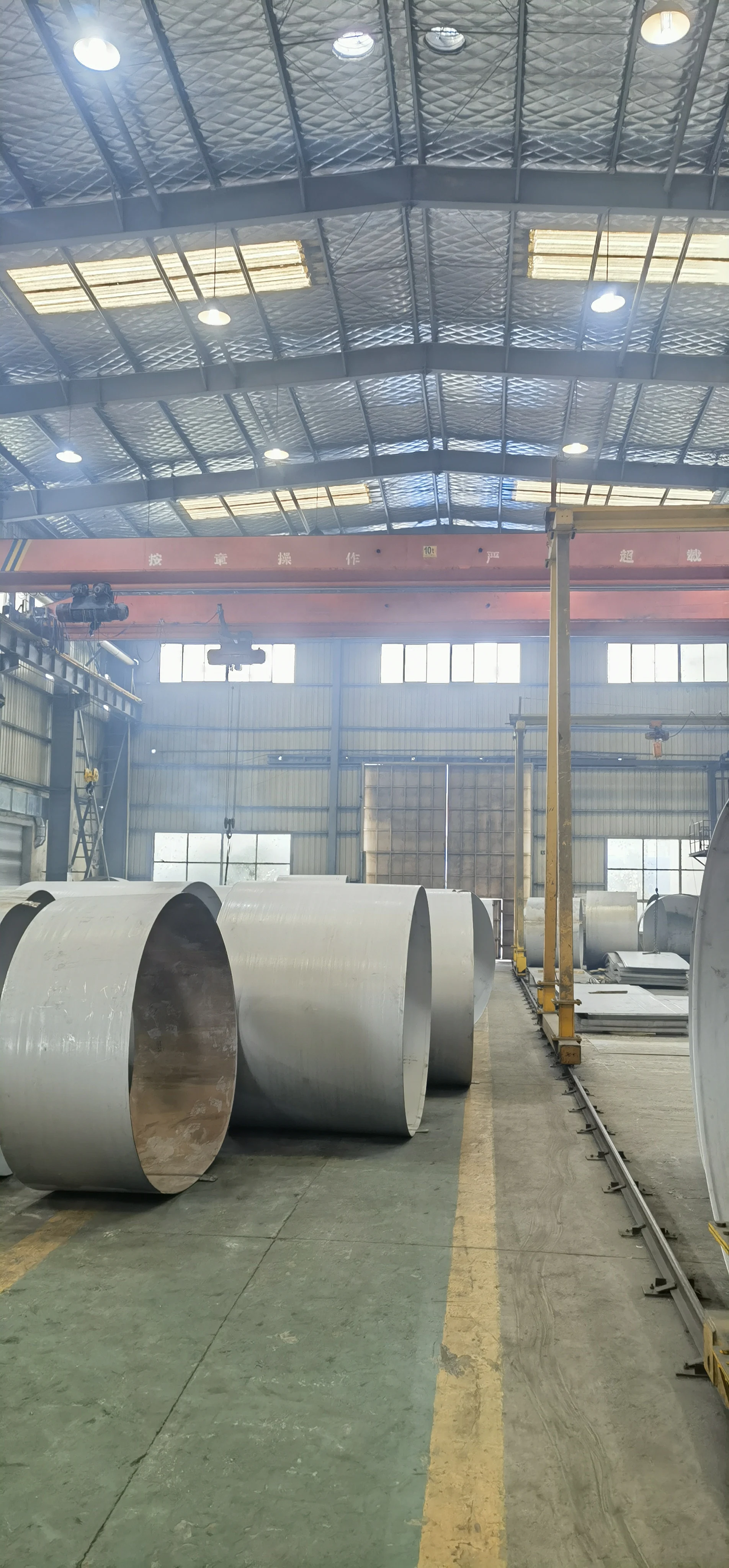

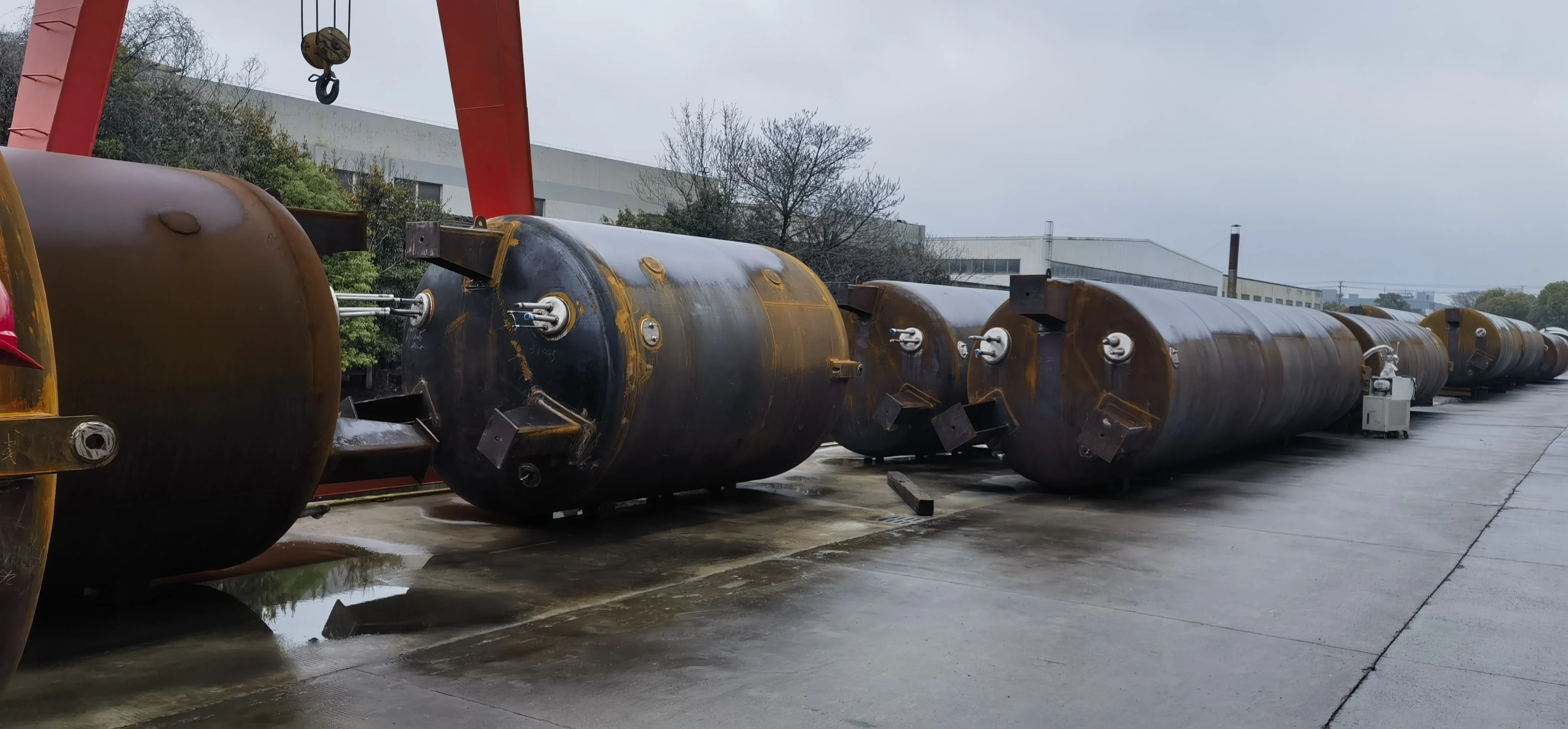

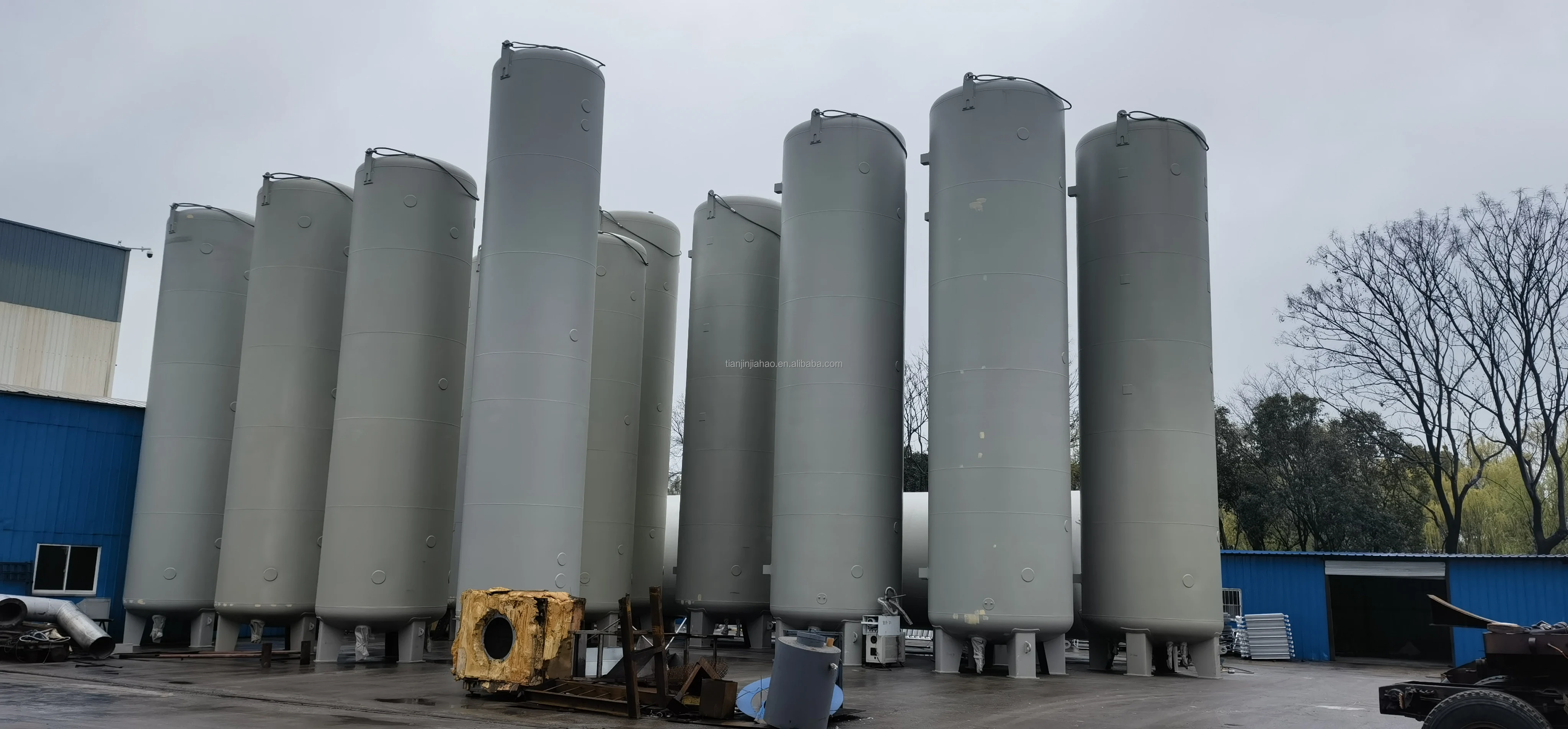

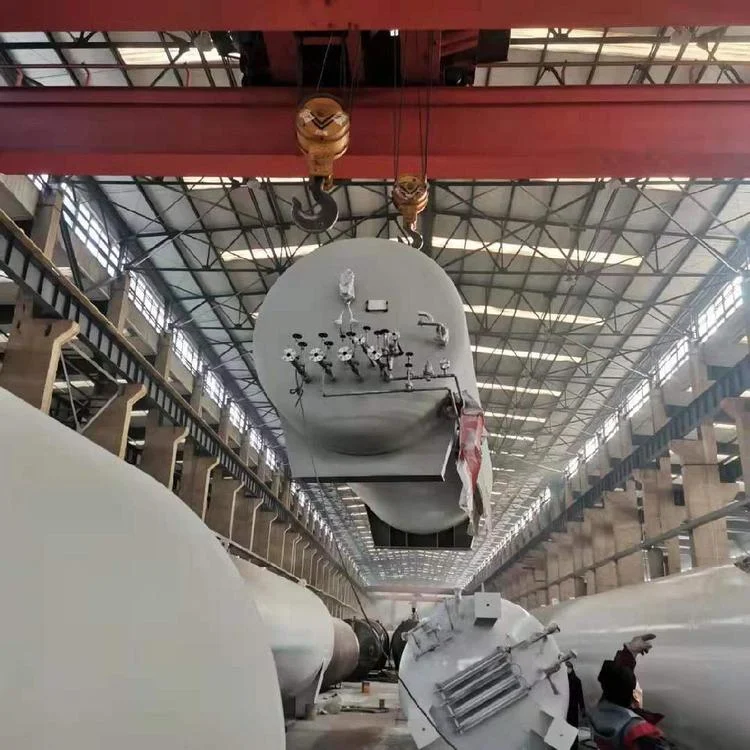

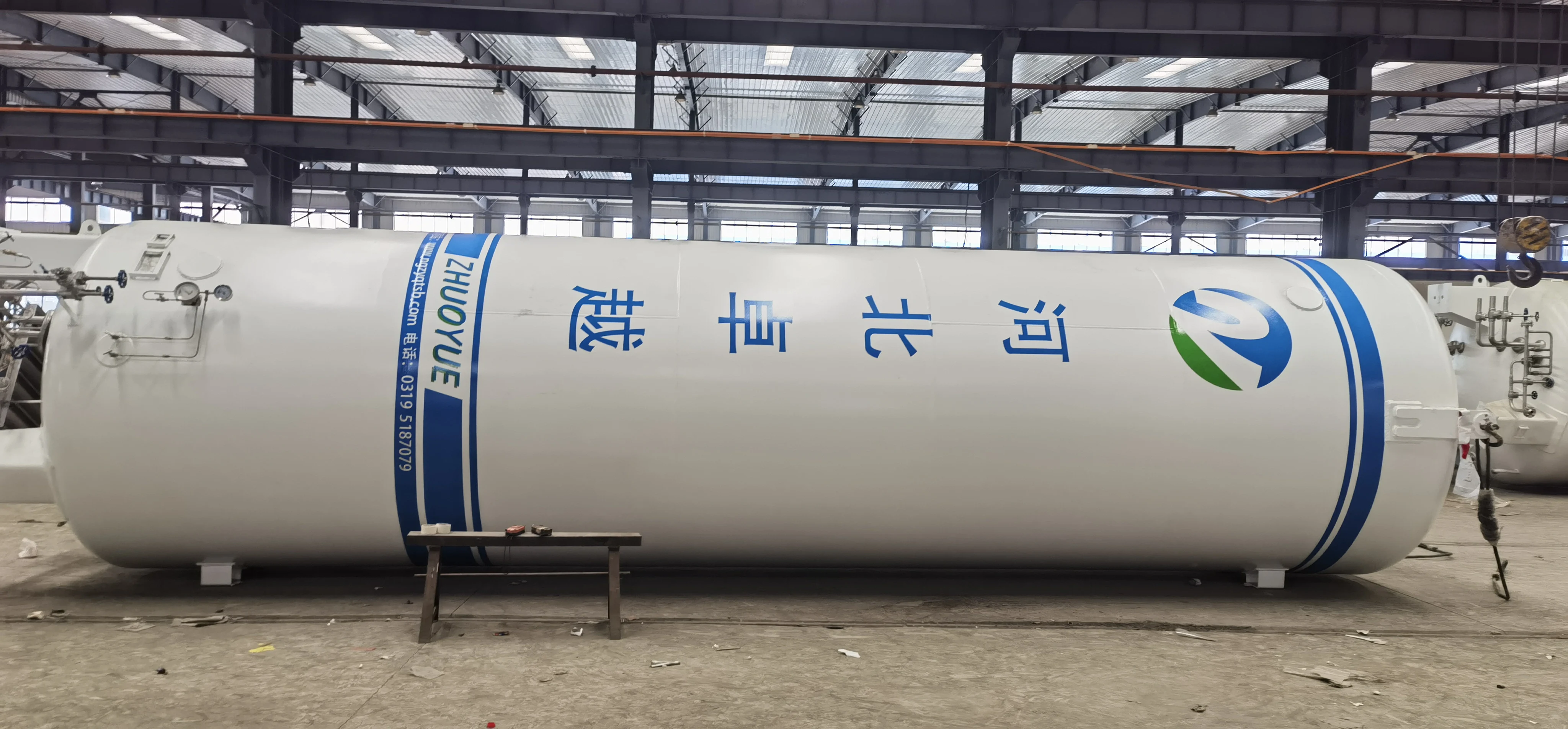

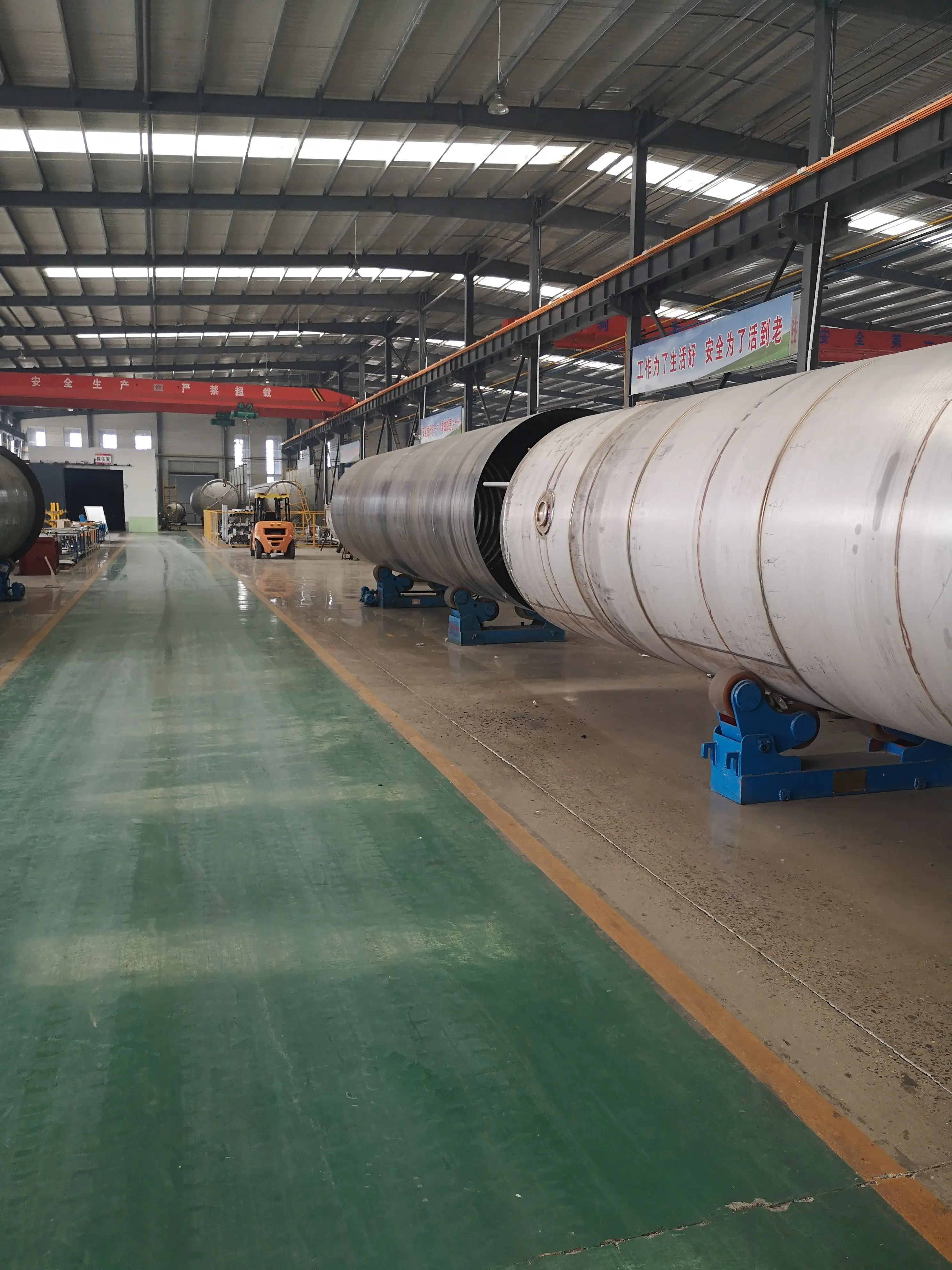

Zhuoyue Gas Workshop
Company Profile

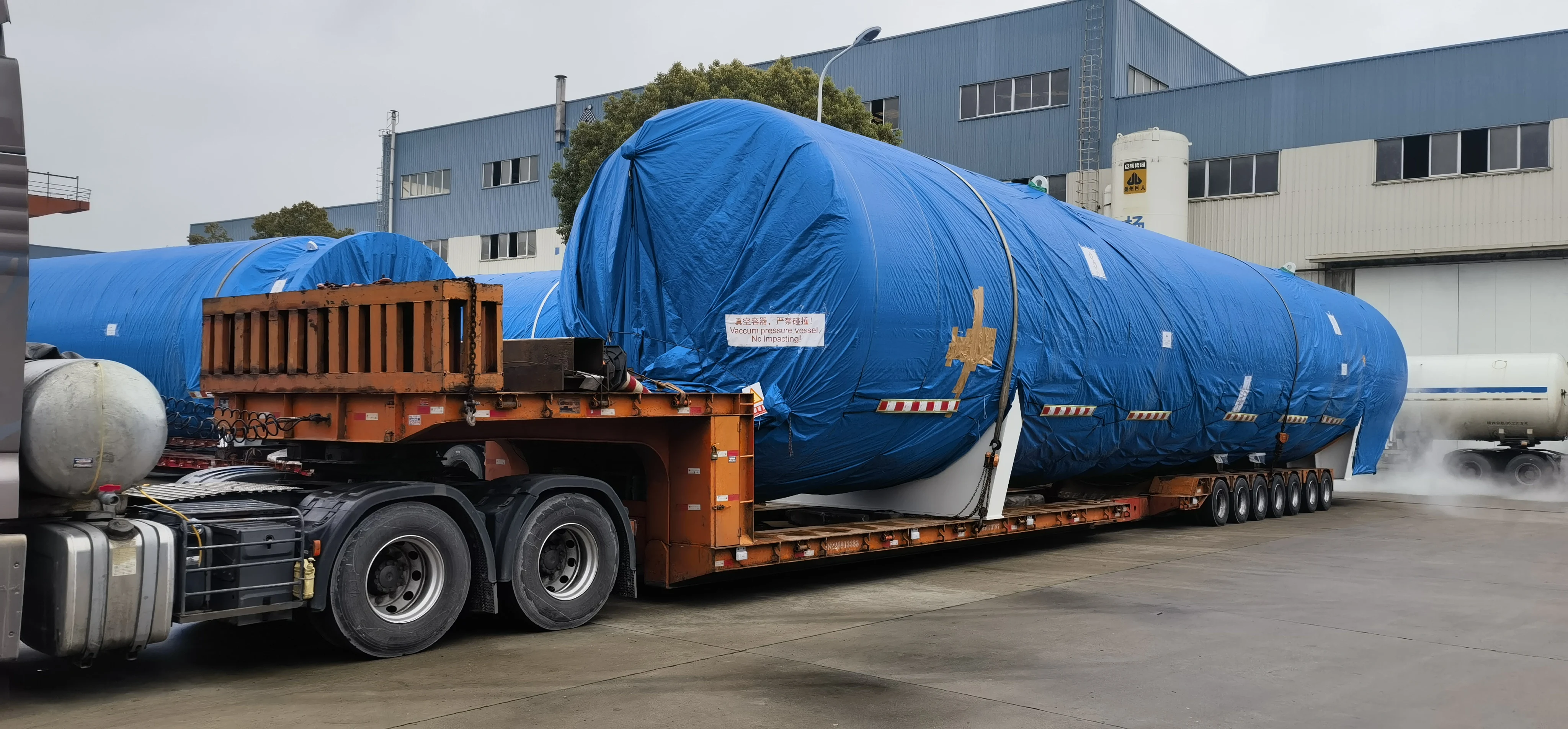

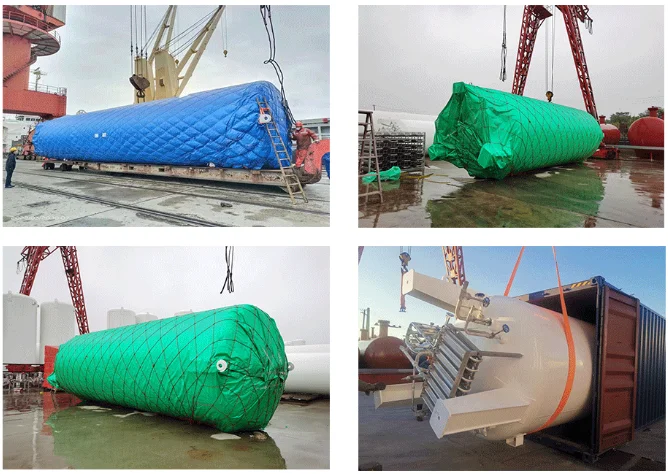

Product packaging
Certifications

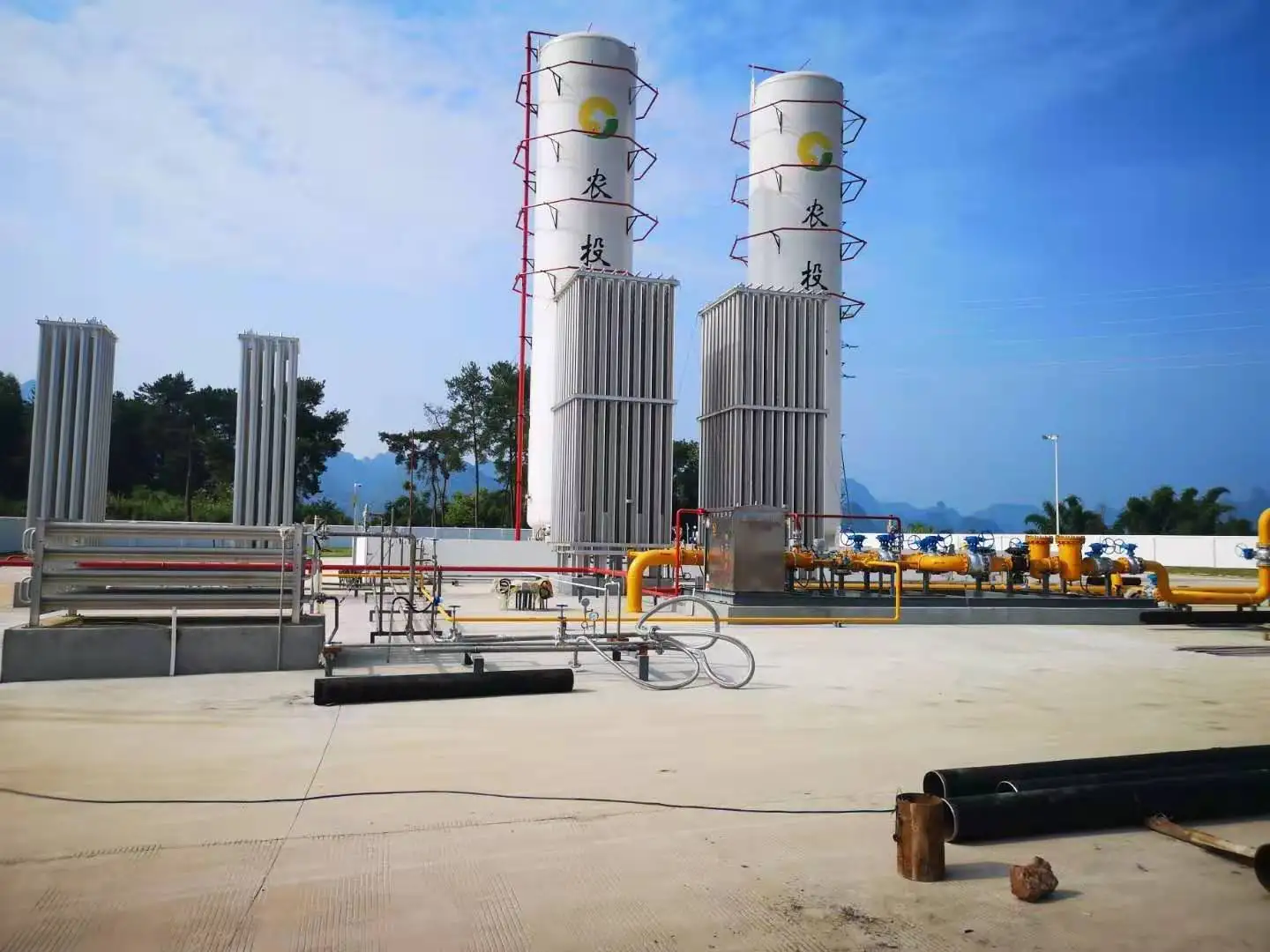

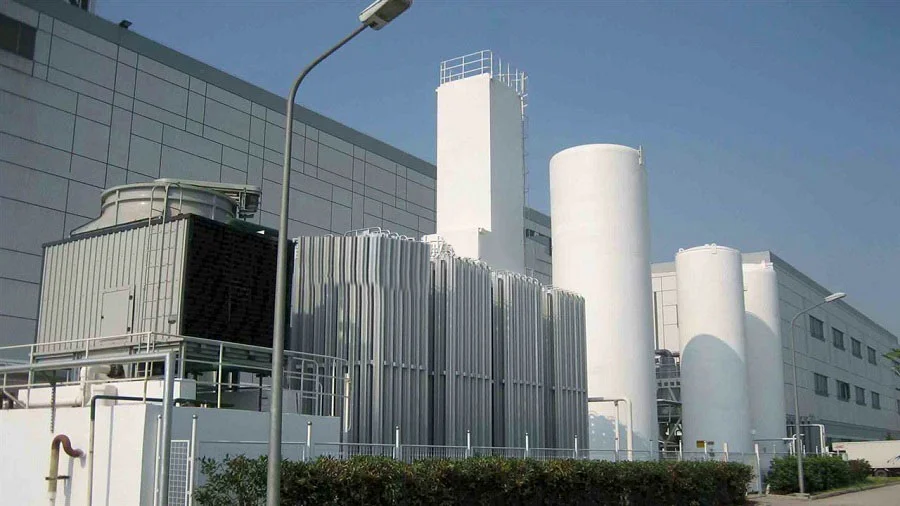

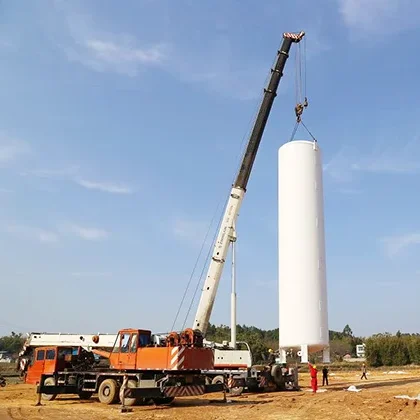

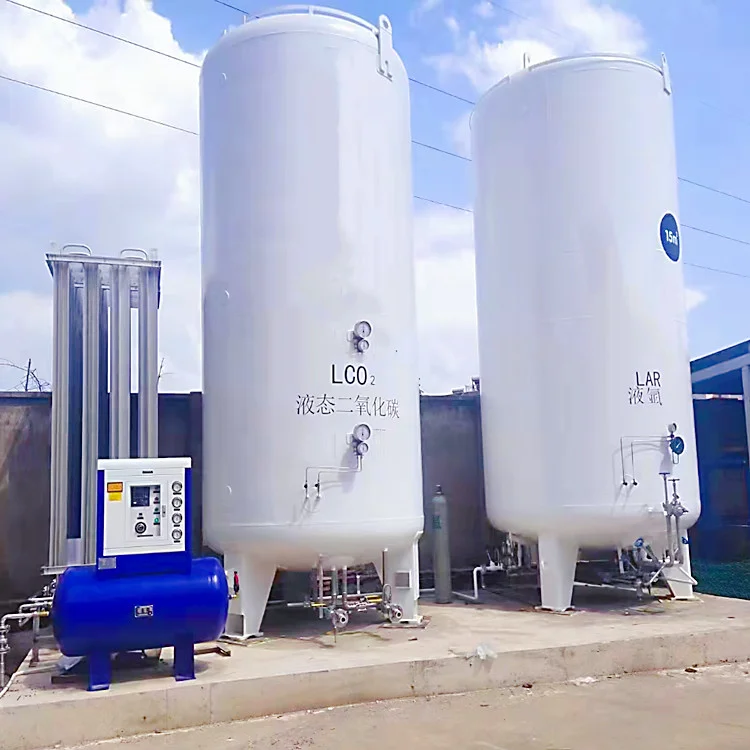

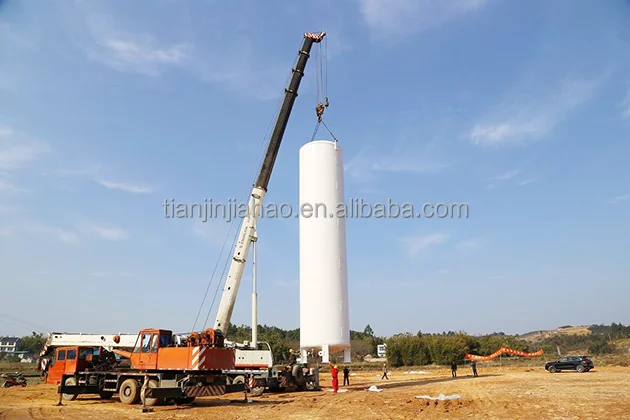

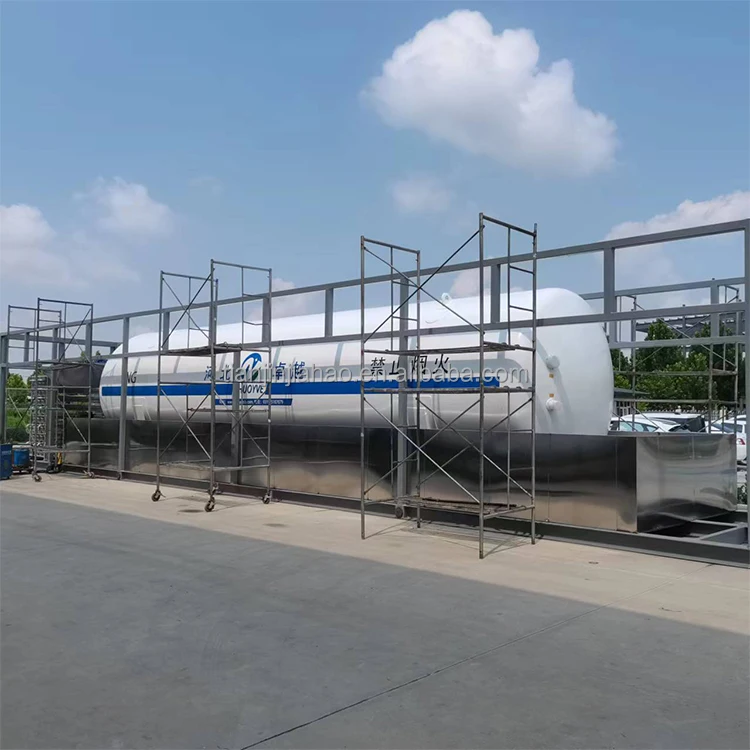

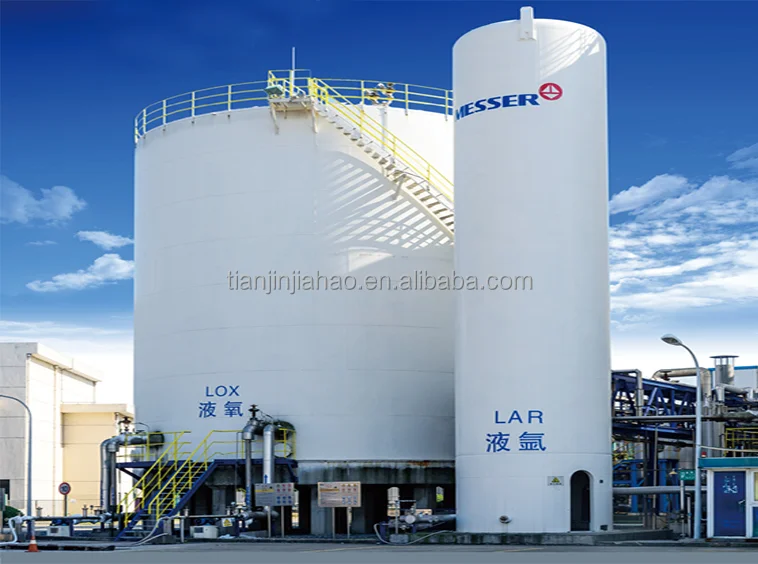

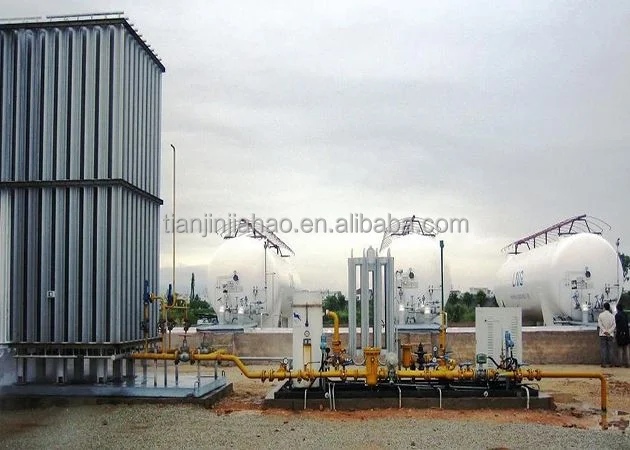

Engineering Project
FAQ
Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have a professional design engineer to provide you with customized design services.
What is the service life of your product?
Designed service life of 20 years;It can be extended according to the actual use situation. Some of our customers have used it for 30 years.
Can I put my logo on the product?
We support product painting color and logo customization.
