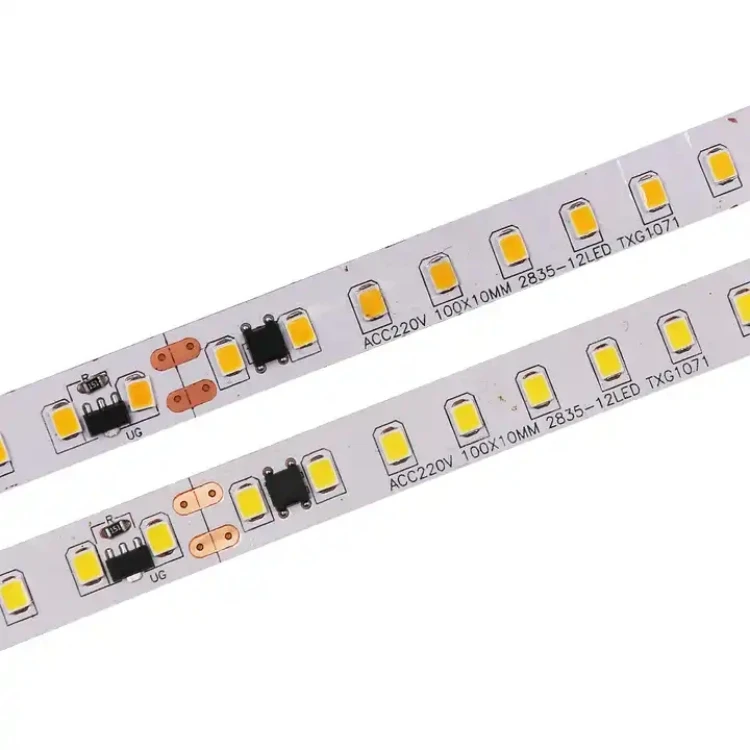

220V 2825 LED strip light 120LEDs/m with IC IP67 Outdoor Waterproof LED Tape smd light 2835 led strip
- Category: >>>
- Supplier: Dale Optoelectronic Technology (dongguan) Co. Ltd.
Share on (1600989249077):
Product Overview
Description
Products Description
Its the biggest advantage is not need any external drives, connected directly to an alternating current.
1)No waterproof apply to sealed, not open fixture.
2) Waterproof Strips apply to outdoor lighting.
1.Power: 24watt/meter for 120LED. 10cm a unit can be cutting(can be customized)
2.FPCB: 120LEDs/m 10mm High Voltage FPCB ,Best FPCB in ShenZhen.4 oz 72/72 μm copper foil.
3.LED Chip: Top quality High voltage SMD2835, IF=60mA 24-26lm+. Min CRI>80, We also can do CRI>95
4.3M tape: stronger 3M VHB-4914 tape, or 3M 300LSE tape, Supper viscous and not easy to fall off
5.Lead Wire: UL 18awg 20cm lead wire, 300V 80 degrees centigrade Good electrical conductivity,low thermal resistance.
6.Heat shrink tubing: 1cm length black or white double-wall thermal shrinkage tube.
7.New Extruded silicone Waterproof technology:11.9mm x 4.85mm x 5000mm(W x H x L).
2) Waterproof Strips apply to outdoor lighting.
1.Power: 24watt/meter for 120LED. 10cm a unit can be cutting(can be customized)
2.FPCB: 120LEDs/m 10mm High Voltage FPCB ,Best FPCB in ShenZhen.4 oz 72/72 μm copper foil.
3.LED Chip: Top quality High voltage SMD2835, IF=60mA 24-26lm+. Min CRI>80, We also can do CRI>95
4.3M tape: stronger 3M VHB-4914 tape, or 3M 300LSE tape, Supper viscous and not easy to fall off
5.Lead Wire: UL 18awg 20cm lead wire, 300V 80 degrees centigrade Good electrical conductivity,low thermal resistance.
6.Heat shrink tubing: 1cm length black or white double-wall thermal shrinkage tube.
7.New Extruded silicone Waterproof technology:11.9mm x 4.85mm x 5000mm(W x H x L).
Product Name | SMD2835 Flexible LED Strip | ||||||
LED Quantity | 120leds/meter | ||||||
Voltage | 220V --240V AC | ||||||
IP Grade | IP20 Non- Waterproof /IP65/IP67/IP68 | ||||||

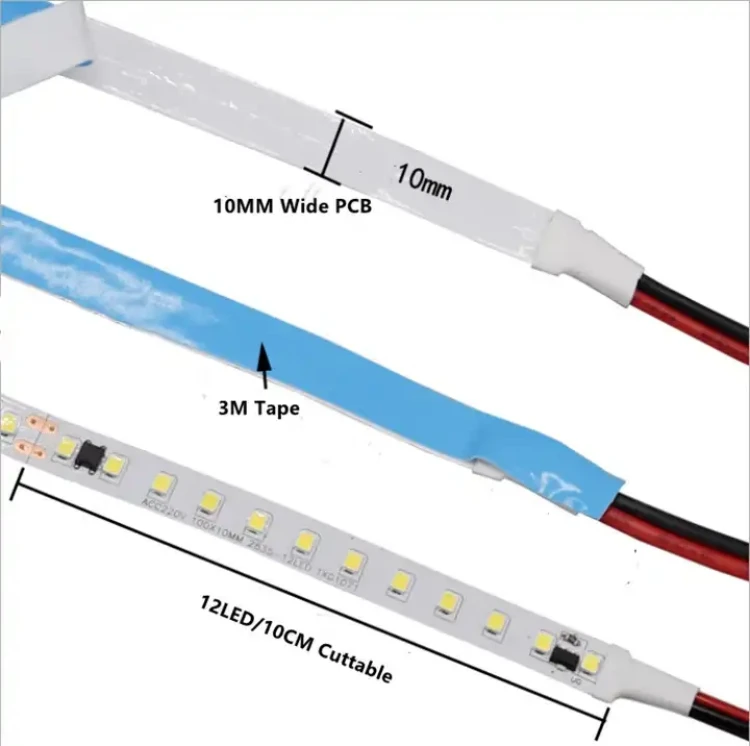

FPCB board width | 10mm | ||||||
Can be cut | 10CM (12LEDS) can be cut | ||||||

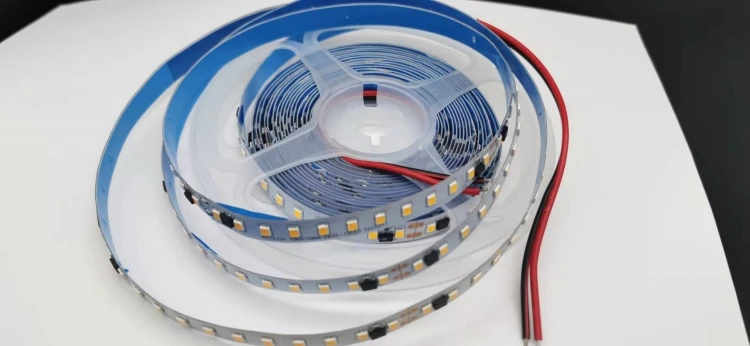

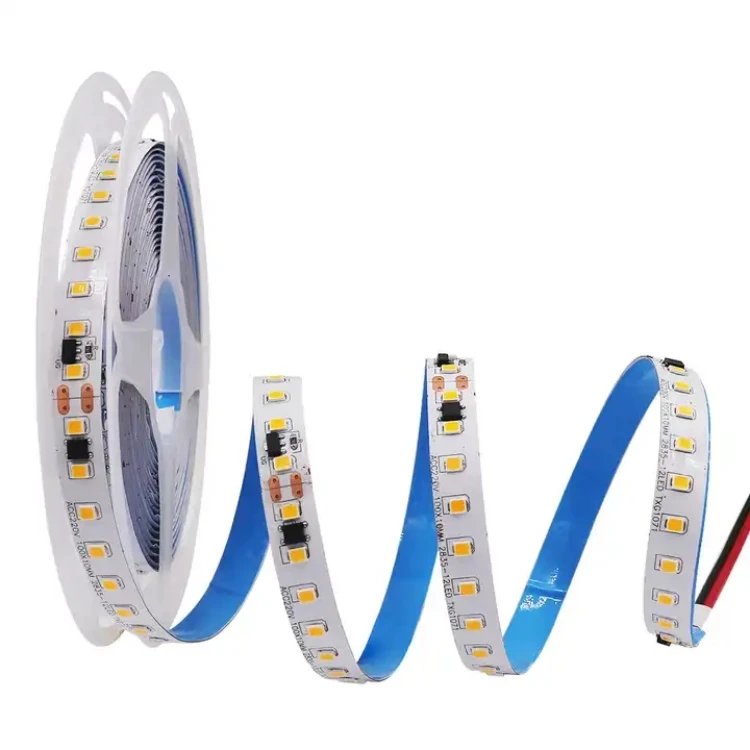

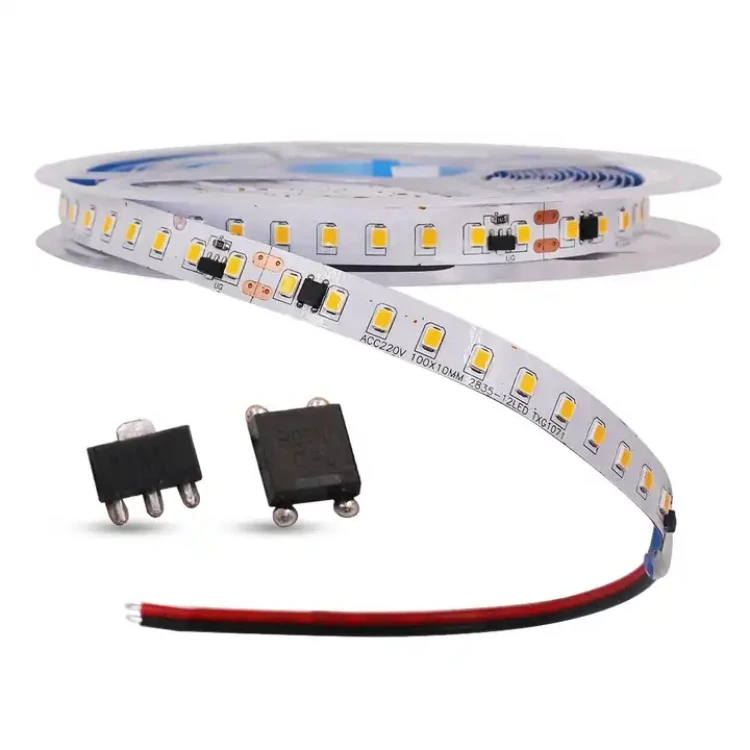

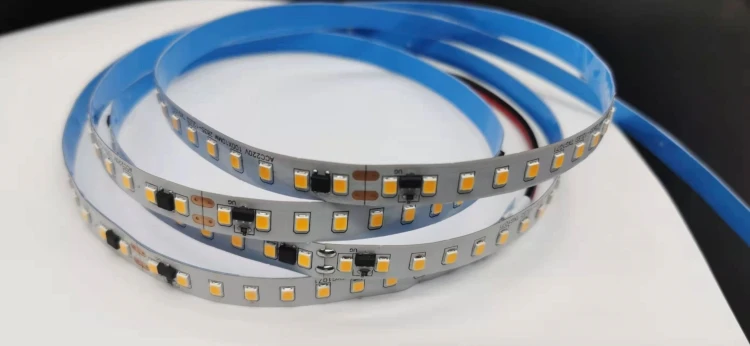

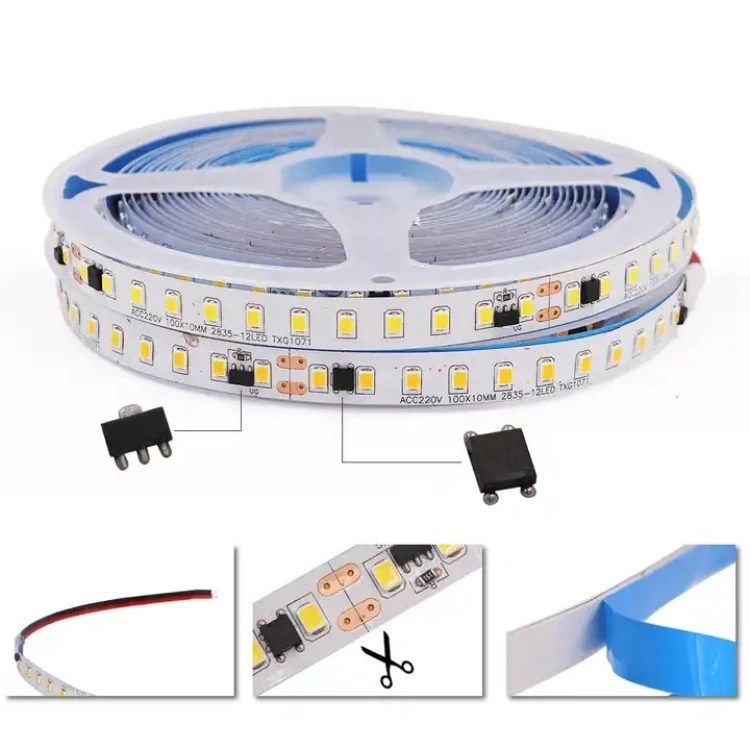

Details Images

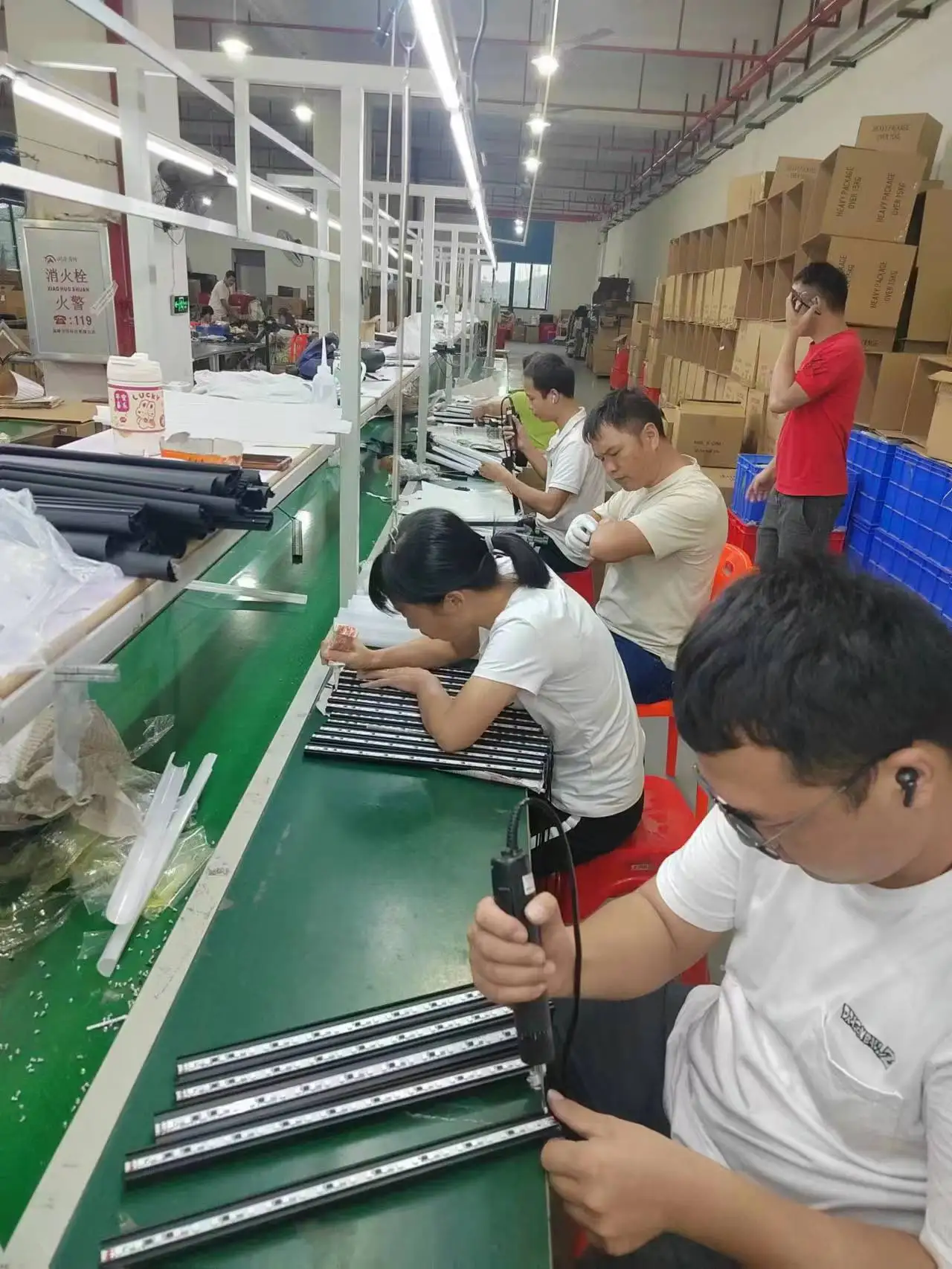

Company Profile
COMPANY INFORMATION
YOUR ONE-STOP LIGHTING SOLUTION PROVIDER
In today's world, doing business is all about simpler, faster and smarter.We know unique people have unique lighting needs.
With a vision to provide cost-effective lighting solutions,Daleopto produces a diverse product portfolio consisting of High Power LEDs, SMD LEDs, Lamps, Lighting Components, LED Lighting Modules, UV LED Lightings, aluminum profiles,Opto-couplers and Infrared Components for various applications.
With a vision to provide cost-effective lighting solutions,Daleopto produces a diverse product portfolio consisting of High Power LEDs, SMD LEDs, Lamps, Lighting Components, LED Lighting Modules, UV LED Lightings, aluminum profiles,Opto-couplers and Infrared Components for various applications.
Our Advantages
Advantages：
1.OEM&ODM
2.Environmentally-friendly material
3.Modern and fashionable deaign
4.Good workmanship
5.Short delivery time
6.Any holiday lights can be done according to customer's requirement.
6.Any holiday lights can be done according to customer's requirement.
7.We serve decorative lights with best quality,service and affordable price.
Shipment
FAQ
QI: Can I have sample order for LED light?
A1: Yes,We will send FREE samples to you test and check quality.
Mixed samples are acceptable.
Q2: What about the lead time?
A1: About 5-30days according to your quality.
Q3: Is it OK to print my logo on LED light product.
A3: Yes,Please inform us and confirm the design before ore production.
Q4: How to proceed an order for LED light?
A4: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production.
A1: Yes,We will send FREE samples to you test and check quality.
Mixed samples are acceptable.
Q2: What about the lead time?
A1: About 5-30days according to your quality.
Q3: Is it OK to print my logo on LED light product.
A3: Yes,Please inform us and confirm the design before ore production.
Q4: How to proceed an order for LED light?
A4: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production.
