PL15 180 10D12 10w uvc 254nm uv leds 12v dc electronic ballast GPH150T5L 8W inverter
- Category: >>>
- Supplier: Lightbest Co. Ltd.Lightbest Ltd.
Share on (1600989294553):
Product Overview
Description
Product Description
The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.
PL15 ——DC Power Supply Type 4-18W
l PL15-180-10D24

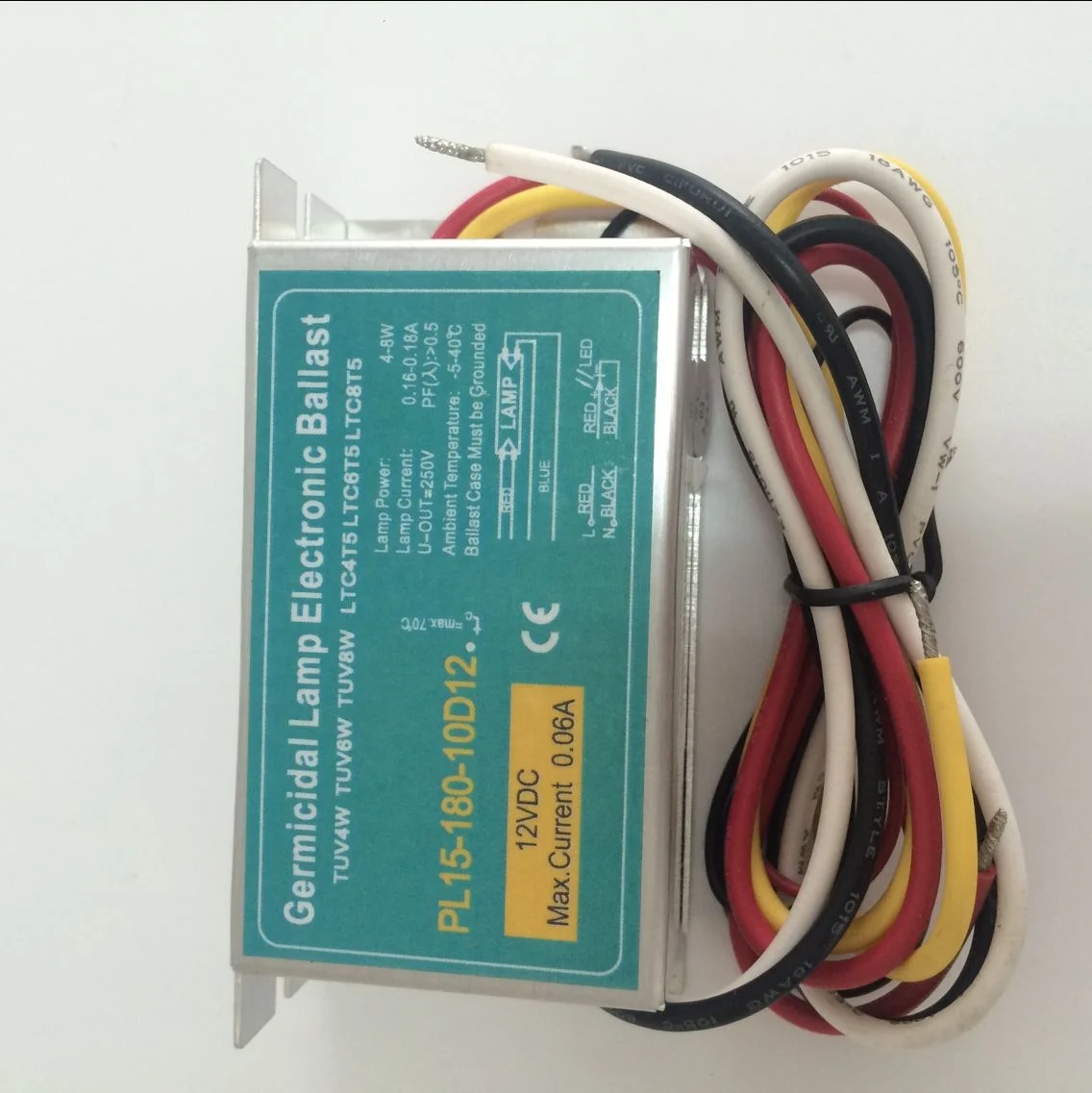

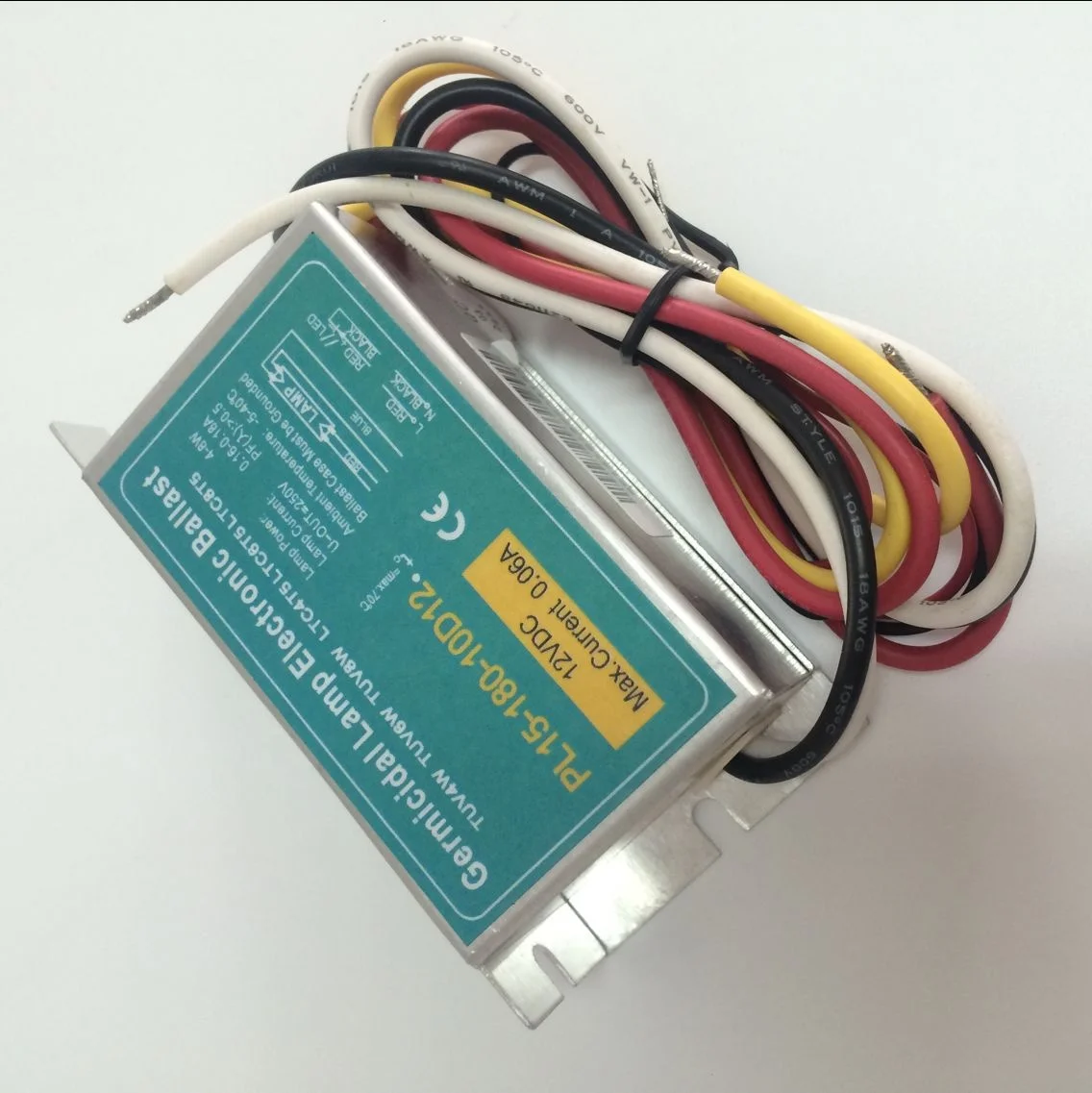

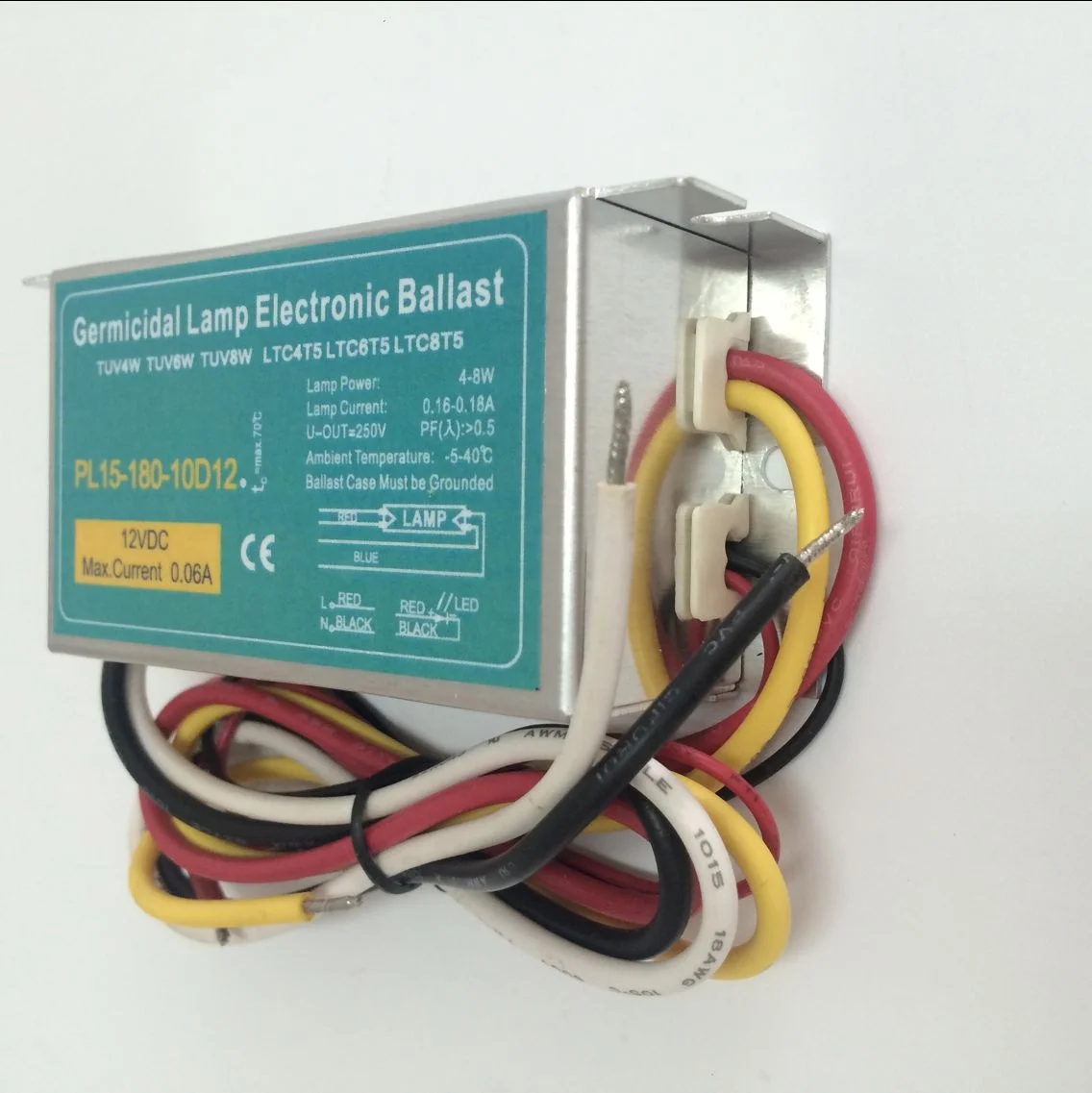

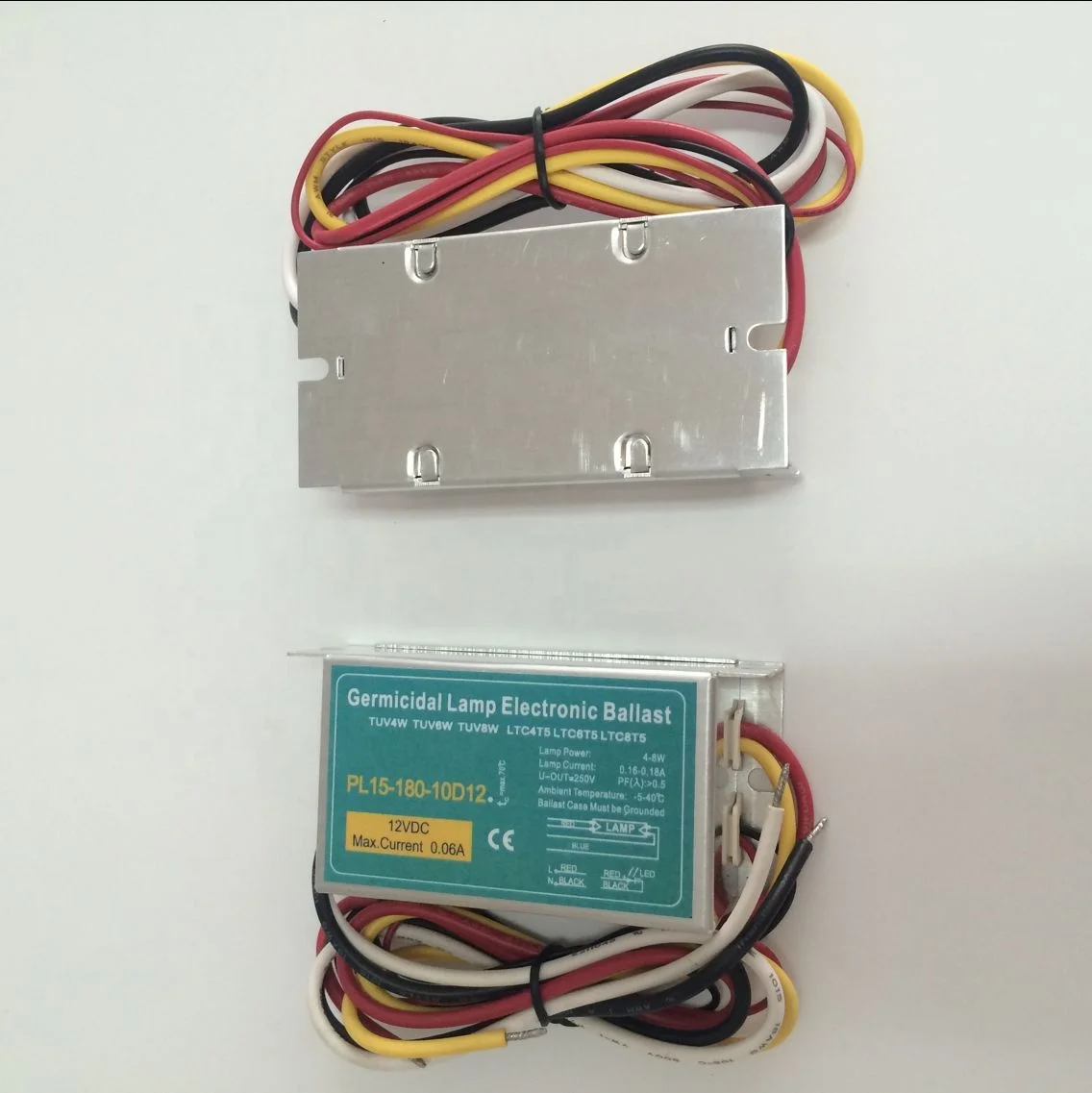

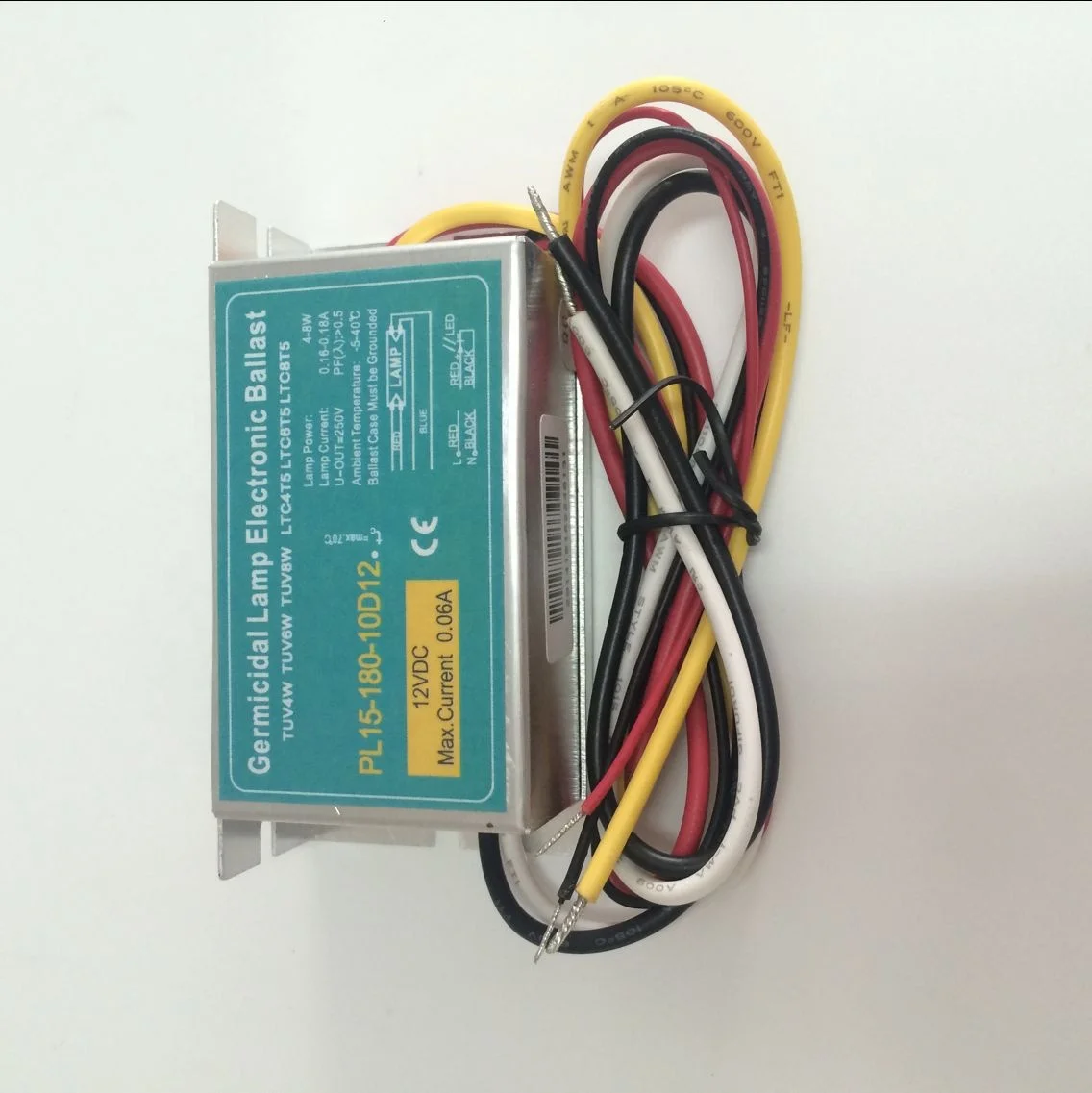

PL15-180-10D12
Lamp Types:TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5
l PL15-350-15D24
PL15-350-15D12
Lamp Types:TUV15WT8
l PL15-425-18D24
PL15-425-18D12
Lamp Types:GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W
l Technical specifications
Efficiency: >70%
Operating Frequency: 40-70KHz

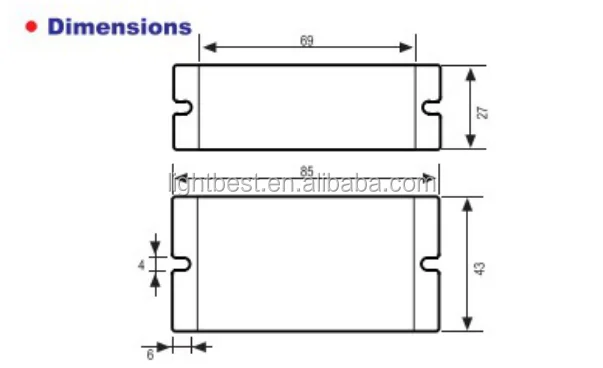

Dimensions:85*43*27mm
Max.cable length between ballasts and lamp:1.5m
l Installation requirement
Wire Gauge:0.5-1.0mm2
LED specification:VF=1.8-3.6V LF=20-50mA
l Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Don’t short any two wires of the four outputs.
l For applications with less than one switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start operation,ask lamp manufacturer.
l Features
Starting:Instant
Lamp status indication via DC signal output.
DC3~6V 5mA:lamp on. DC 0~0.8V:lamp fault or on lamp. Connect LED
l Applications
All areas of applications include Tanning UV lamps:
=>Air purification
=>Aquarium
=>Domestic drinking water
Type | Input Voltage(V) | Input Power (W) | Input Current (A) | Power Per Lamp(W) | Lamp Current(A) | Weight (kg) | Packing (mm) | Qty ( pcs ) | GW (kg) |
PL15-180-10D24 | 21.4~26.4 | 5.7-11.5 | 0.48A@24V | 4-8 | 0.16-0.18 | 0.15 | 450*280*190 | 100 | 15.5 |
PL15-350-15D24 | 21.4~26.4 | 21.4 | 0.89A@24V | 15 | 0.30-0.35 | 0.15 | 450*280*190 | 100 | 15.5 |
PL15-425-18D24 | 21.4~26.4 | 14.3-24.3 | 1.0A@24V | 10-17 | 0.35-0.42 | 0.15 | 450*280*190 | 100 | 15.5 |
PL15-180-10D12 | 10.8~13.2 | 5.7-11.5 | 0.96A@12V | 4-8 | 0.16-0.18 | 0.15 | 450*280*190 | 100 | 15.5 |
PL15-350-15D12 | 10.8~13.2 | 21.4 | 1.78A@12V | 15 | 0.30-0.35 | 0.15 | 450*280*190 | 100 | 15.5 |
PL15-425-18D12 | 10.8~13.2 | 14.3-24.3 | 2.0A@12V | 10-17 | 0.35-0.42 | 0.15 | 450*280*190 | 100 | 15.5 |
1. UV Lamp Replacement Parts
 |  |  | ||||
| Quartz Sleeve | uvc germicidal lamp | Lamp Socket/base holder |
Packaging & Shipping
Our Services
Lightbest provided: OEM service
Buyer Logo /Label
Custom Design Service
Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will
be deducted from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.
WARNING:
UV-C radiation output of these lamps is harmful to unprotected eyes and skin.
Appropriate safety wear must be worn, or installations completely scree
Customer distribution June 4th 2015

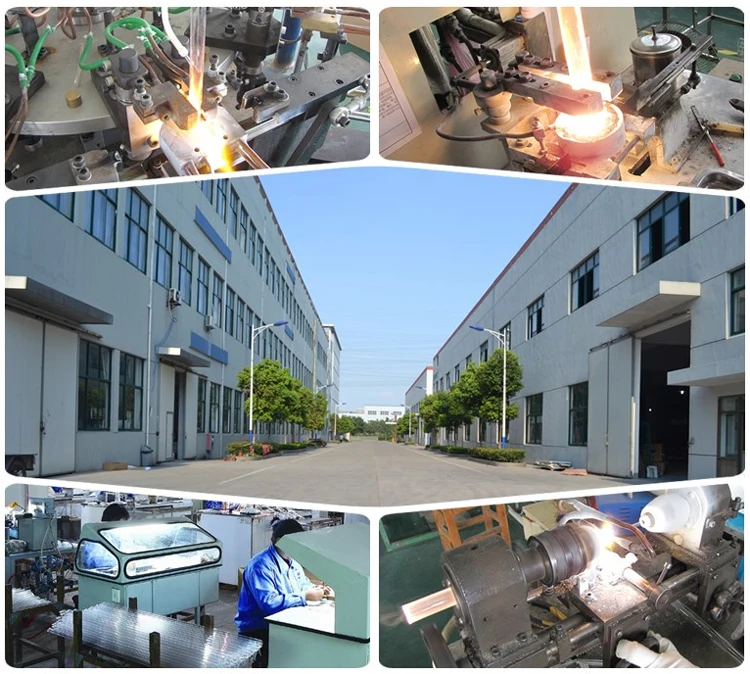

Company Information
Lightbest concentrates on water purification treatment and supplies customers with one-stop service and solution on
water treatment fields. We specialize in UV germicidal lamps, UV water sterilizers, electronic ballasts, booster pumps,
ion exchange resin, FRP tanks, PP filter etc., and adhere on the principle of fighting, upholding, sharing and win-win
together. We have been a supplier of water treatment with high-quality products, perfect service, professional operation
and reasonable price both in China and the globe.
Our factory has established a strict product quality control system and has gained the ISO9001-2000 certificate and introduced 5S quality management system from Japan. Our products have successfully passed CE and RoHS certifications.
Our products are best-sellers in foreign and domestic markets, and exported to many countries and regions such as America,Germany, Italy, Holland, Romania, Russia, Indonesia, Vietnam, Malaysia, Singapore, Japan, Korea, Brazil, Chile, Hong Kong,Taiwan and so on.
We introduced advanced production equipment and strict management of all aspects of the production process. Each position of the staff must strictly follow the operating requirements of the production process, and each product must have been tested by professional testing equipment before selling.
FAQ
Q: what's your advantage compared with other suppliers?
A: Our uv lamps are made with high-quality quartz, the same supplier for Philips and Lightsources.
There are CE and Rohs certificates and competive prices.
Q:What's my consideration when i choose one model of uv lamps?
A: -The water treatment volume and speed;
and lamp watts and lenth.
Q:Can i be a distributor of Lightbest?
A: Of course you can.
Q:What are the benefits of being a Lightbest distributor?
A: - Special discount .
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales service
Q: How can i become a distributor of Lightbest?
A: Contact us immediately for further details by sending us an inquiry.
We Recommend

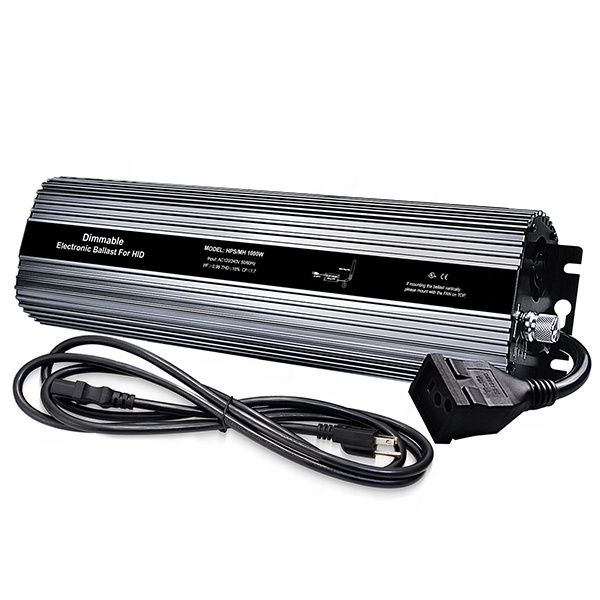

1000w Hydroponics Electronic Mercury Vapour Ballast
US $55.00-$100.00

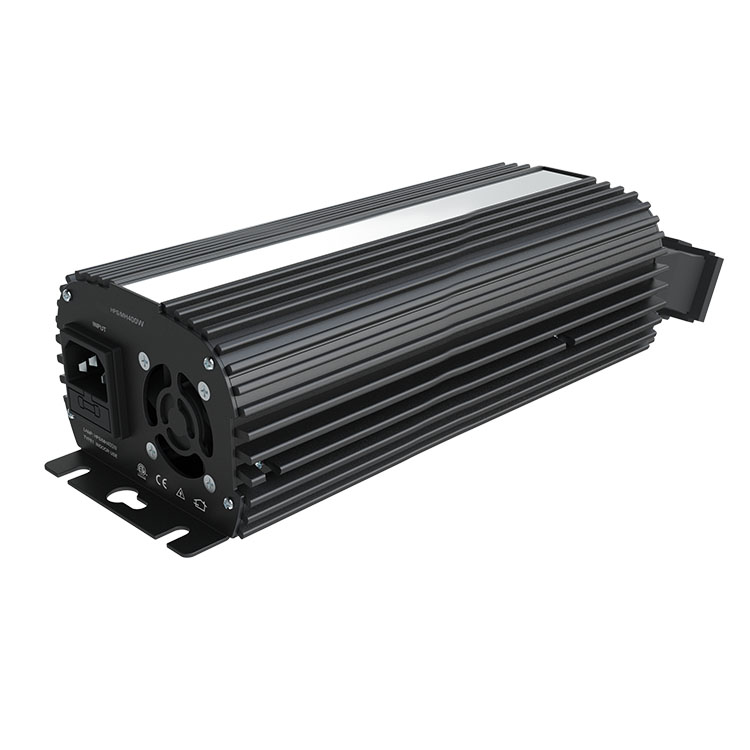

400 watt HPS Grow Light Ballast with and ETL for MH HPS Lamps
