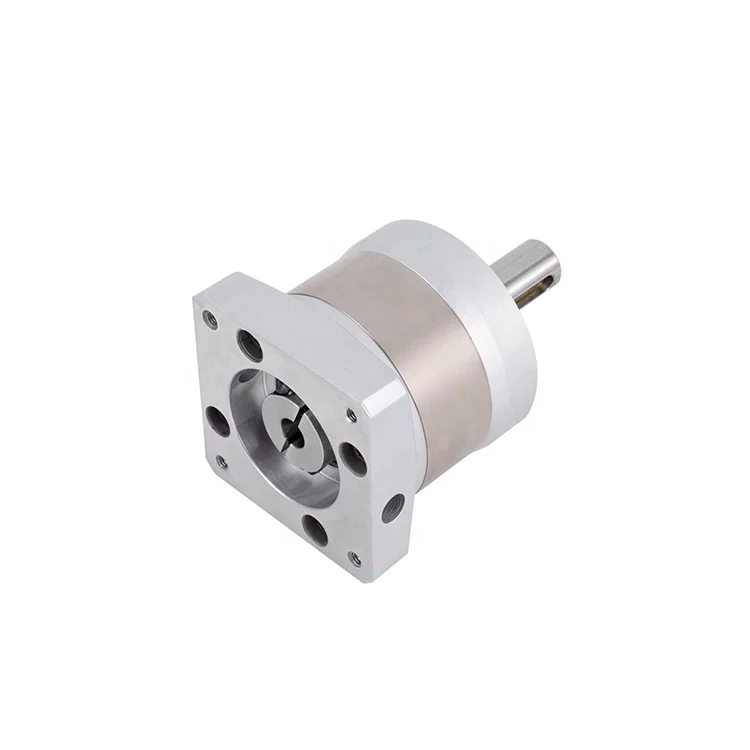

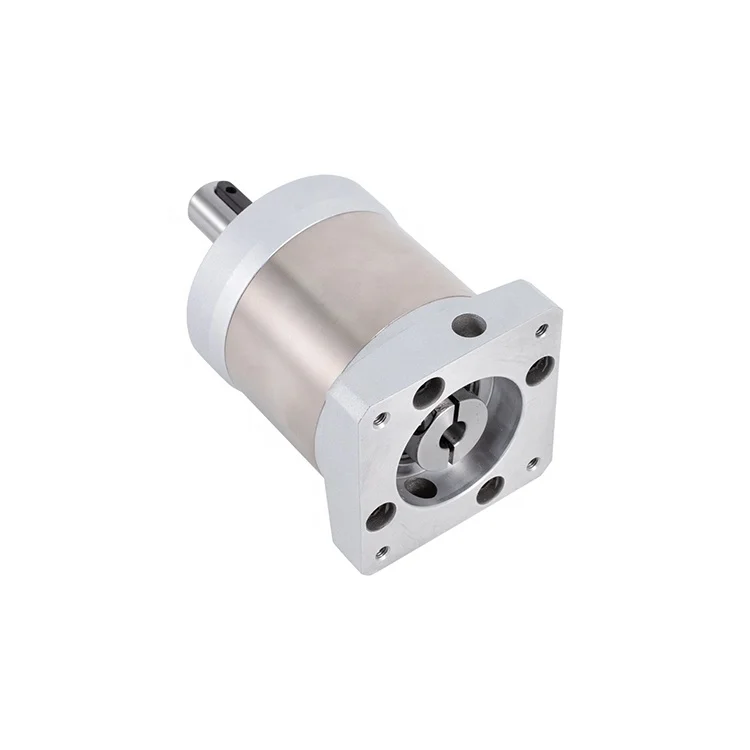

NEMA24 Precision Planetary Gearbox for Stepper Motor 60 Round Housing Planetary Spur Gear Reducer
- Category: >>>
- Supplier: Anhui High Precision Gear Transmission Co. Ltd.
Share on (1600989355261):
Product Overview
Description
Product Overview

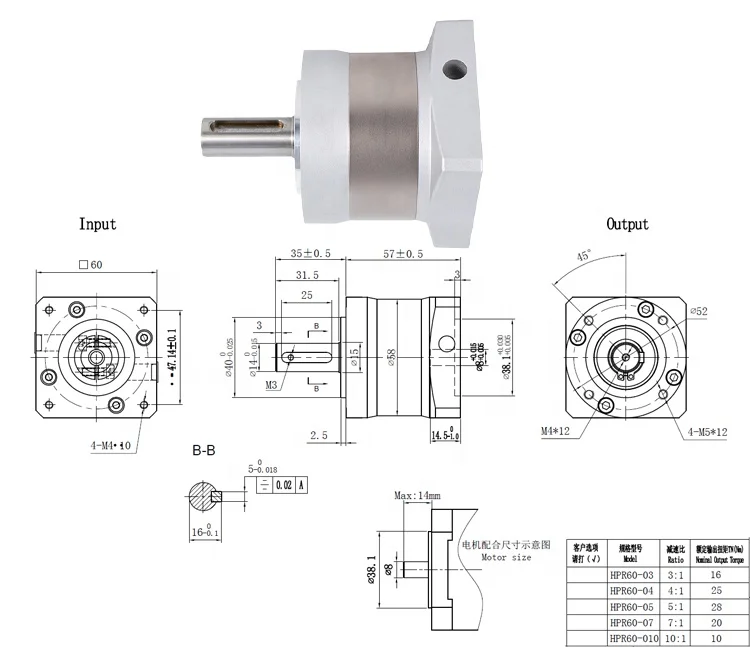

Output Shaft and The Front Flange
Input Shaft and The End Cover
PRODUCT SPECIFICATIONS
SPECIFICATIONS | STAGE | RATIO | RATED TORQUE (N.m) | ||
HPS42 Planetry Gearbox | L1 | 3 | 16 | ||
4 | 25 | ||||
5 | 28 | ||||
7 | 20 | ||||
10 | 10 | ||||
L2 | 16 | 30 | |||
20 | 30 | ||||
25 | 32 | ||||
28 | 30 | ||||
30 | 30 | ||||
35 | 30 | ||||
40 | 25 | ||||
50 | 25 | ||||
70 | 20 | ||||
100 | 10 | ||||
Rated Input Speed (rpm) | 1000 | ||||
Max Input Speed (rpm) | 2000 | ||||
Backlash | L1 | ≤ 15Arcmin | |||
L2 | ≤ 20Arcmin | ||||
Fault stop torque(N.m) | 2 times of rated torque | ||||
Efficiency | L1 | 96% | |||
L2 | 94% | ||||
Average life span | 20000h | ||||
Operating temperature | -10°~+150° | ||||
Nosie | ≤55 db | ||||
IP | 54 | ||||
Installation method | Any installation method | ||||
Application Field
SIMILAR PRODUCTS
Why Choose Us
Standard production and Strict testing process
CERTIFICATIONS
Package Type: Standard export packing & Wood pallets packing
Company Profile
Transmission Co., Ltd
Anhui High Precision Gear Transmission Co., Ltd is located in Hefei city of China, We are a leading manufacturer of planetary gearbox and gear motor, focus on industrial automation, intelligent service robot, AGV and solar PV fields. Our company covers an area of 6,500 square meters with an annual capacity of 500,000 pieces. Meanwhile, all 6 production lines strictly comply with ISO 9001 and C E to control the quality.
Besides, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction, we are making great efforts to develop new products and provide complete solutions to meet different clients’ requirements and market. Our R&D team has 15 years experience in this field, makes our company honored with many invention patents and utility patents, and we were awarded as New High-Tech Enterprise and Small and Medium Sized Science and Technology Enterprise.
In addition, our products have been exported to more than 30 countries with good reputation, because of our professional services,quality products and competitive prices. Our main market includes North America, South America, Europe and Asia.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
We warmly welcome you to cooperate with us for common success.
Besides, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction, we are making great efforts to develop new products and provide complete solutions to meet different clients’ requirements and market. Our R&D team has 15 years experience in this field, makes our company honored with many invention patents and utility patents, and we were awarded as New High-Tech Enterprise and Small and Medium Sized Science and Technology Enterprise.
In addition, our products have been exported to more than 30 countries with good reputation, because of our professional services,quality products and competitive prices. Our main market includes North America, South America, Europe and Asia.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
We warmly welcome you to cooperate with us for common success.
Competitive & Advantages of Planetary Gearbox
* ODM & OEM Service
* Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test
* Low Noise, Low Backlash, High Efficiency
* 20000 Hours Working Life
* 100% Quality Checked with Quality Guaranteed
* ODM & OEM Service
* Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test
* Low Noise, Low Backlash, High Efficiency
* 20000 Hours Working Life
* 100% Quality Checked with Quality Guaranteed
WORKSHOP
TEAM
HPS attends 5-6 exhibitions every year, both solar PV exhibitions and automation industry exhibitions, professional sales team and quality products build HPS a good reputation in the market.
FAQ
Q1：Which areas are your products mainly used in?
A1：At present, we have two main products: precision planetary gear reducer and solar geared motor. Most of the precision planetary reducers are used in automation fields, such as medical equipment, 3D printers, door openers, tapping machines, CNC lathes and a series of automation equipment. In addition, our solar geared motors are used in photovoltaic power generation projects, which are mainly combined with rotary drives to drive solar panels to track sunlight.
Q2 : How to choose the suitable planetary gearbox?
A2 :First of all, we need you to be able to provide relevant parameters. If you have a motor drawing, it will let us recommend a suitable gearbox for you faster. If not, we hope you can provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc.
Q3 :What is the price ?
A3 : The main determining factor for the price of each product is the order volume. You can communicate with us
and let us understand each other. I believe that our prices, product quality and our services can definitely make you satisfied.
and let us understand each other. I believe that our prices, product quality and our services can definitely make you satisfied.
Q4: Do you provide customized service?
A4: Yes, we provide customized services. You only need to put forward your needs, and we will do our best to provide you with a plan, make plans, and try our best to meet your needs.
