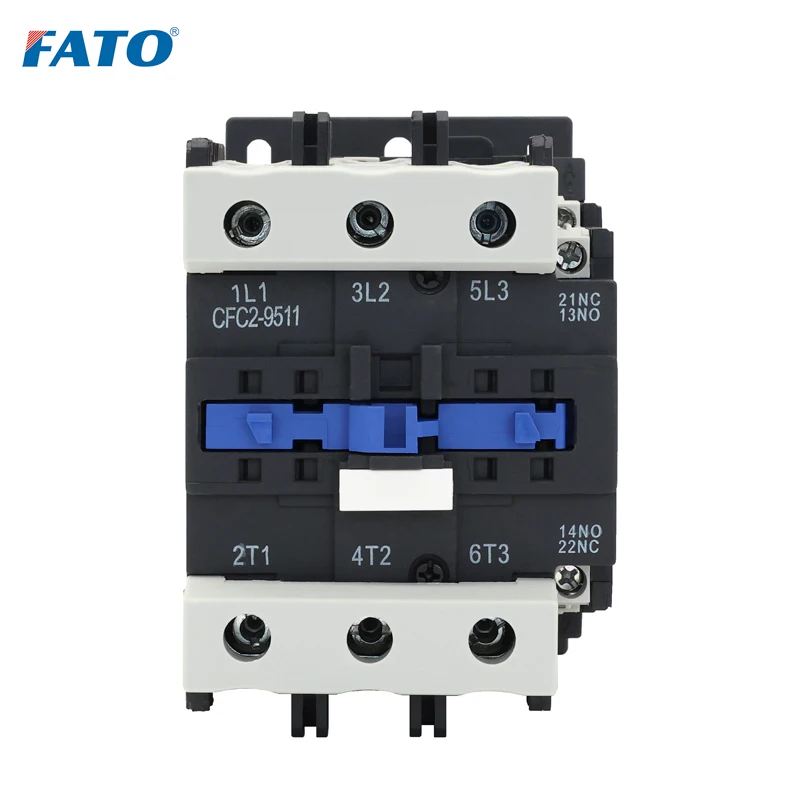

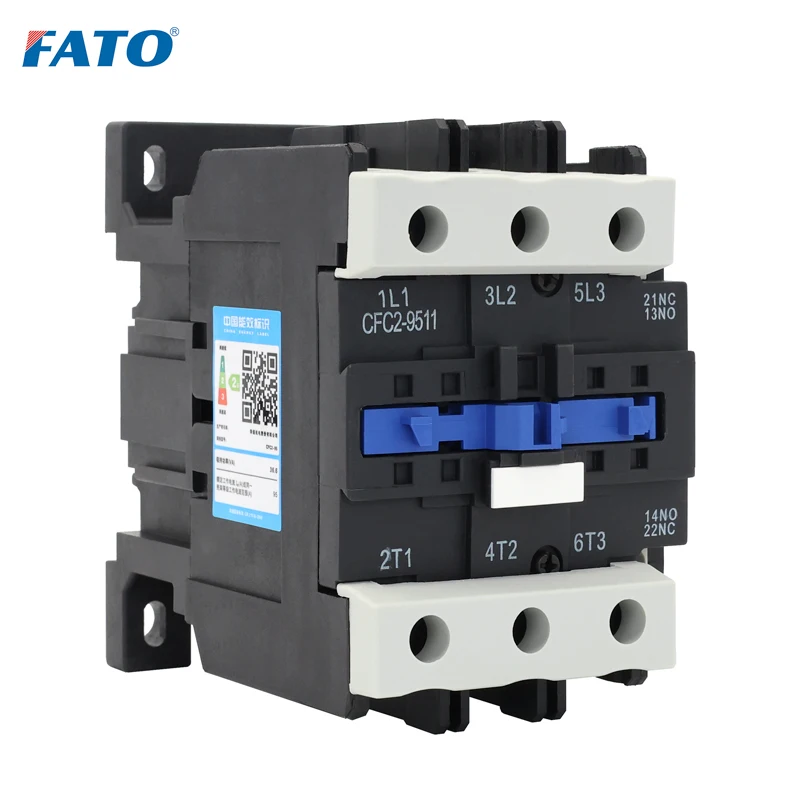

FATO Din Rail AC LC1 Magnetic Contactor electrical supplies 65A/80A/95A 220V/380V 3 Pole Motor Reversing

Product Overview

Description

Type		CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32
Rated Working Current(A)	AC3	9	12	18	25	32
	AC4	3.5	5	7.7	8.5	12
AC3 Capacity of Phase 3 Squirrel-cage Motor AC3(KW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated Heat Current(A)		20	20	32	40	50
Electrical Life	AC3X10^4	100
	AC4X10^4	20
No.of the Contacts		3P NC or NO



Type		CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Rated Working Current(A)	AC3	40	50	65	80	95
	AC4	18.5	24	28	37	44
AC3 Capacity of Phase 3 Squirrel-cage Motor AC3(KW)	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	55
	500V	22	30	37	55	55
	660/690V	30	33	37	45	55
Rated Heat Current(A)		60	80	80	125	125
Electrical Life	AC3X10^4	60
	AC4X10^4	15
No.of the Contacts		3P NC+NO











Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer a free sample depending on product types.



Q:Can you print our own logo?
A:Yes, we provide OEM/ODM services.



Q:How long is the quality guarantee?
A:18 months warranty,every products is inspected before they leave the factory.



Q: Do you have a catalog? Can you send me the catalog to see all your products?
A: Yes, we have e-catalog. Please contact us online or send us an e-mail to get it.



Q:How's the delivery?Because I really need them is urgently?
A: 5-10 days for inventory products and 7-20 days for customized products.



Q: What’s your main product?
A: Our main products include circuit breakers and transformers. We also have other low voltage apparatus as our minor products.



Q: What is your payment terms?
A: We accept T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.



Q: Any certification of your company or product?
A:We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
