Product Overview
Description
Product Description
48V 50Ah Lithium Technical Data
Function Parameter | ||||||||
Norminal Battery Energy | 2400wh | |||||||
Norminal Capacity | 50Ah | |||||||
Norminal Voltage | 48v | |||||||
Internal Resistance | ≤30mΩ | |||||||
Cycle Life | <6000 | |||||||
Months Self Discharge | <3% | |||||||
Charge Data | ||||||||
Charge Voltage | 53.2~54V | |||||||
Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) | |||||||
Charger Current | 10A | |||||||
Max. Charge Current | 50A | |||||||
Charge Cut-off Voltage | 54±0.2V | |||||||
Discharge Data | ||||||||
Continuous Current | 10A | |||||||
Max continuous discharge current | 50A | |||||||
Discharge Cut-off Voltage | 40.5V | |||||||
Working Condition | ||||||||
Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity | |||||||
Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||||
Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||||
Enclosure Protection Level | IP20 | |||||||
Mechanical Data | ||||||||
Cell & Method | 3.2V50Ah | |||||||
Shell material | Iron | |||||||
Dimensions | 480*360*90mm | |||||||
Weight (lbs./kg.) | 22kgs | |||||||
Package and Delivery

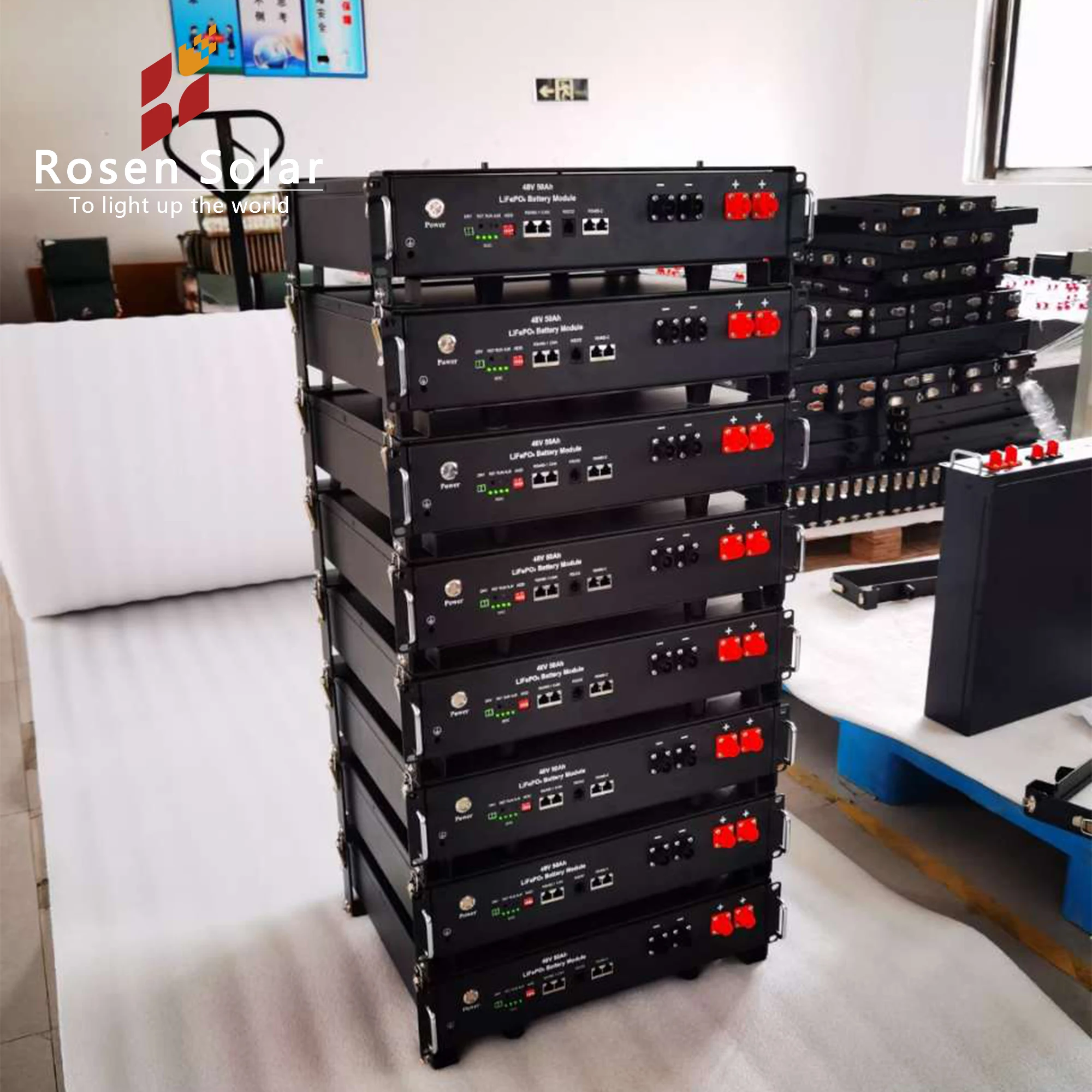

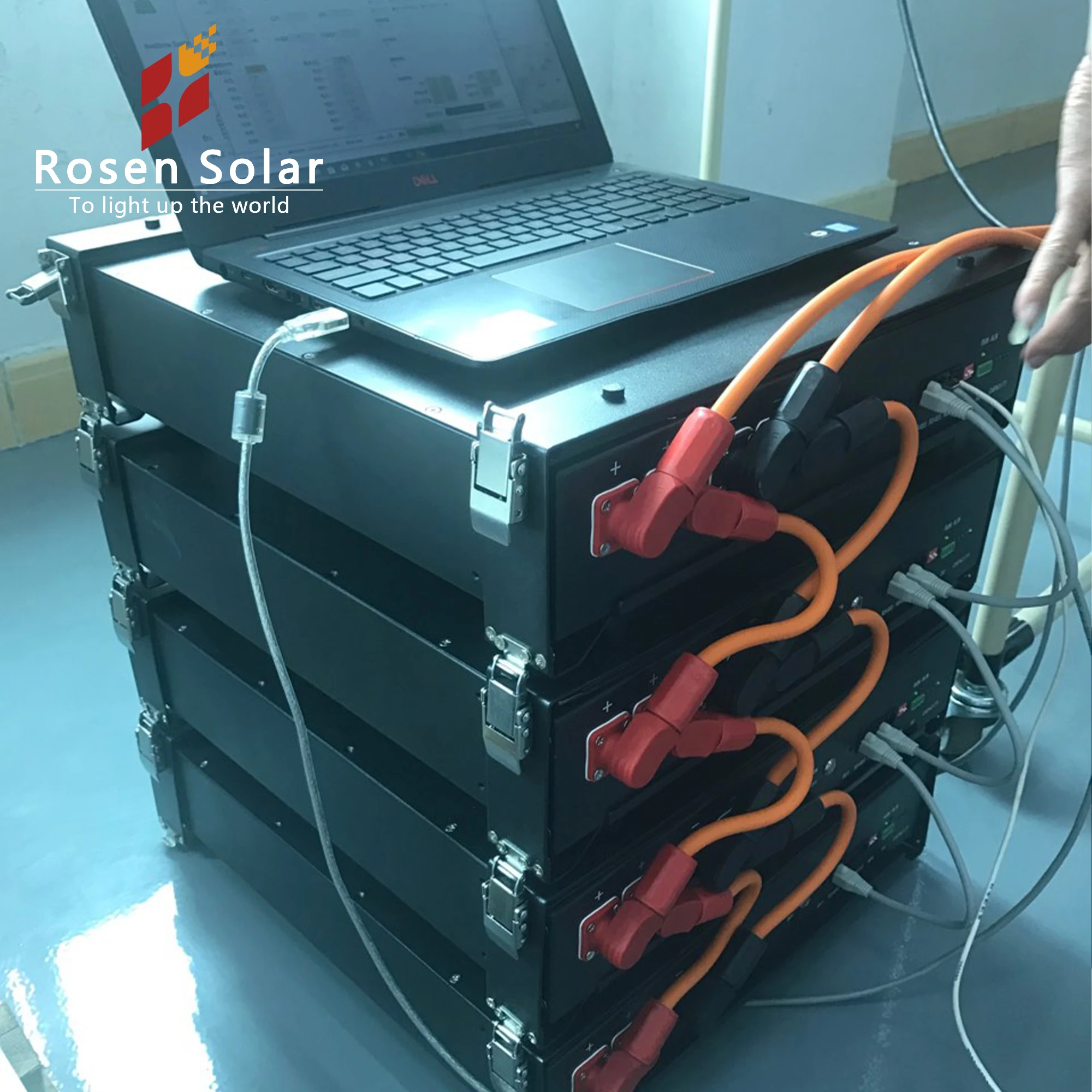

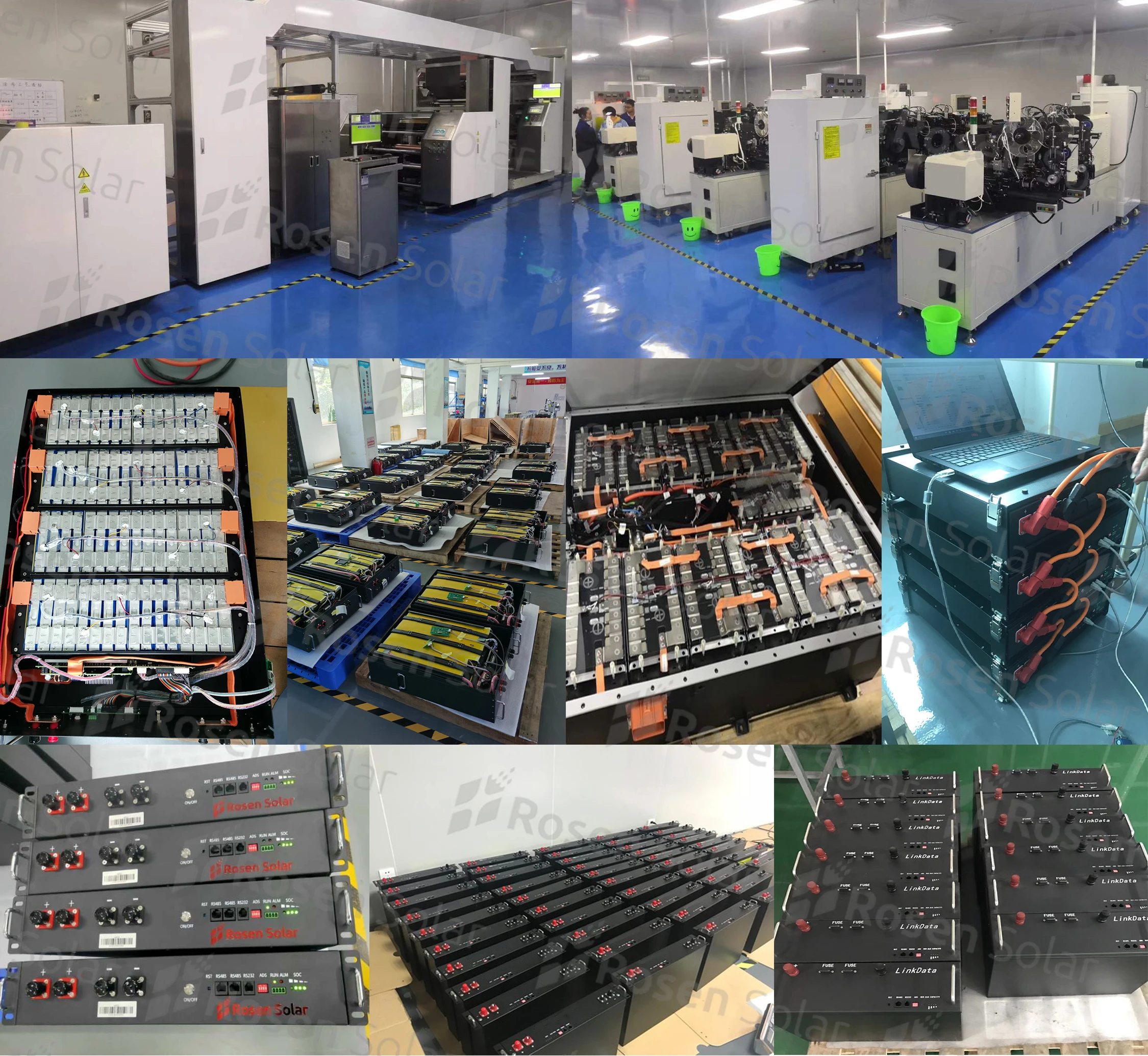

Lithium Battery Production

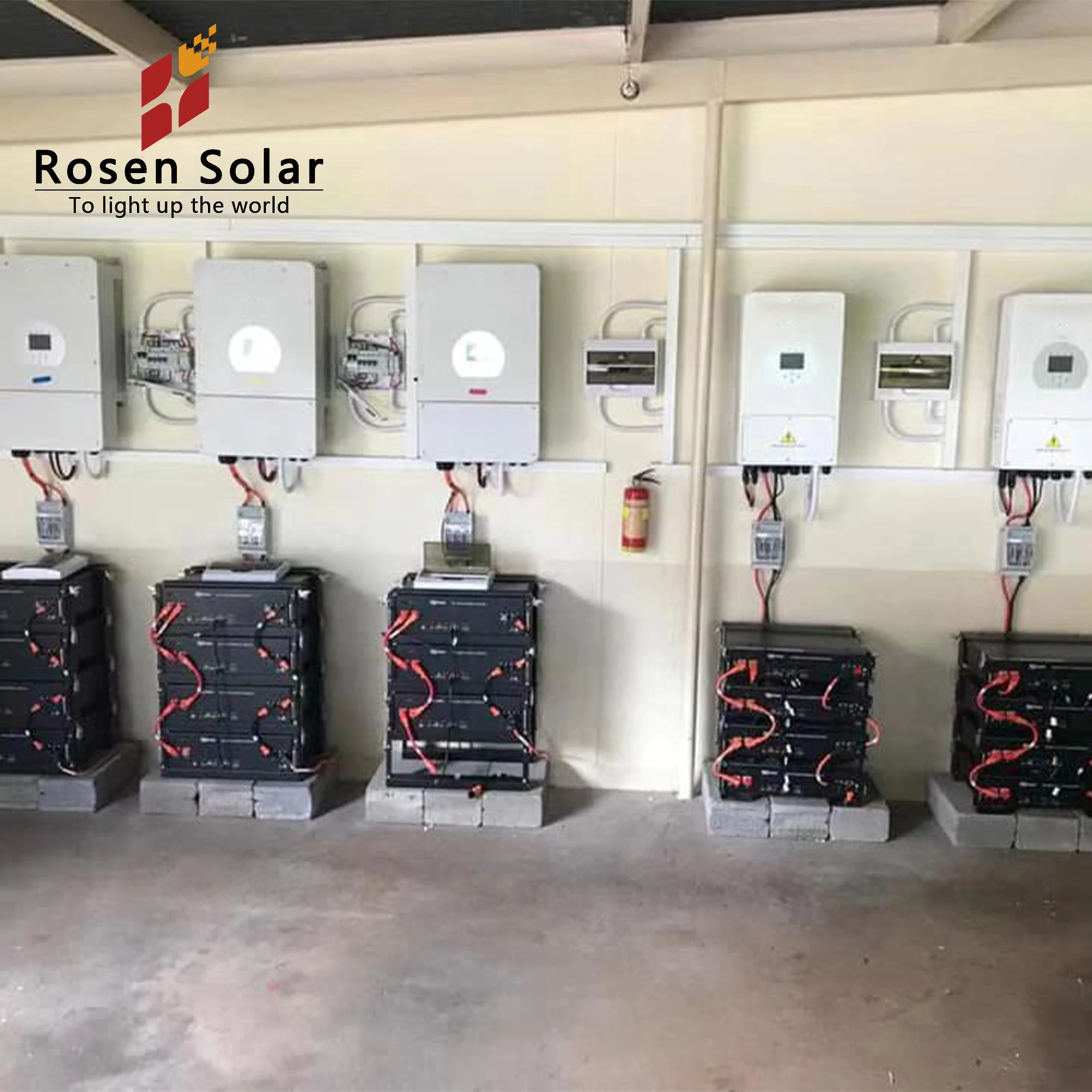

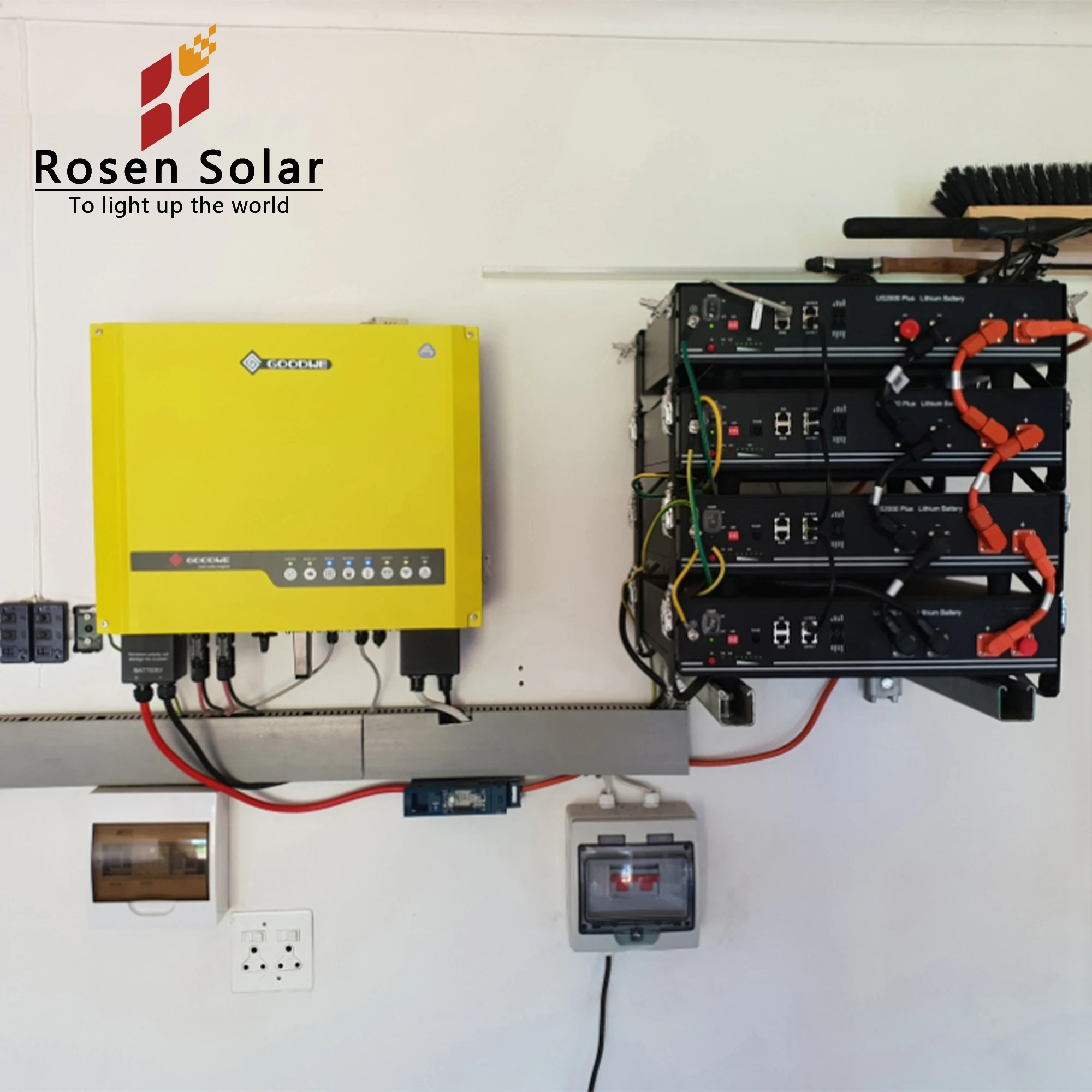

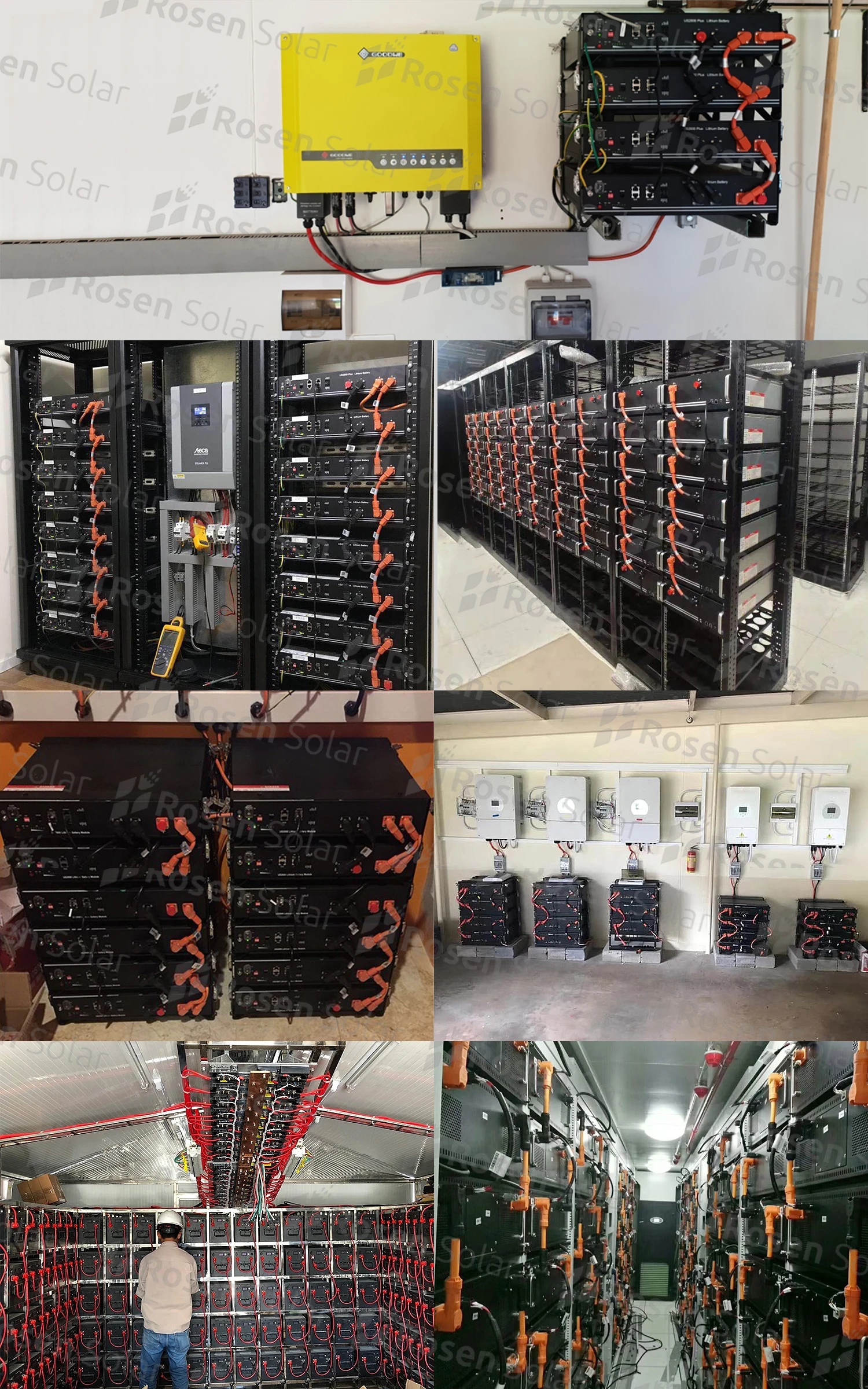

Battery Projects
