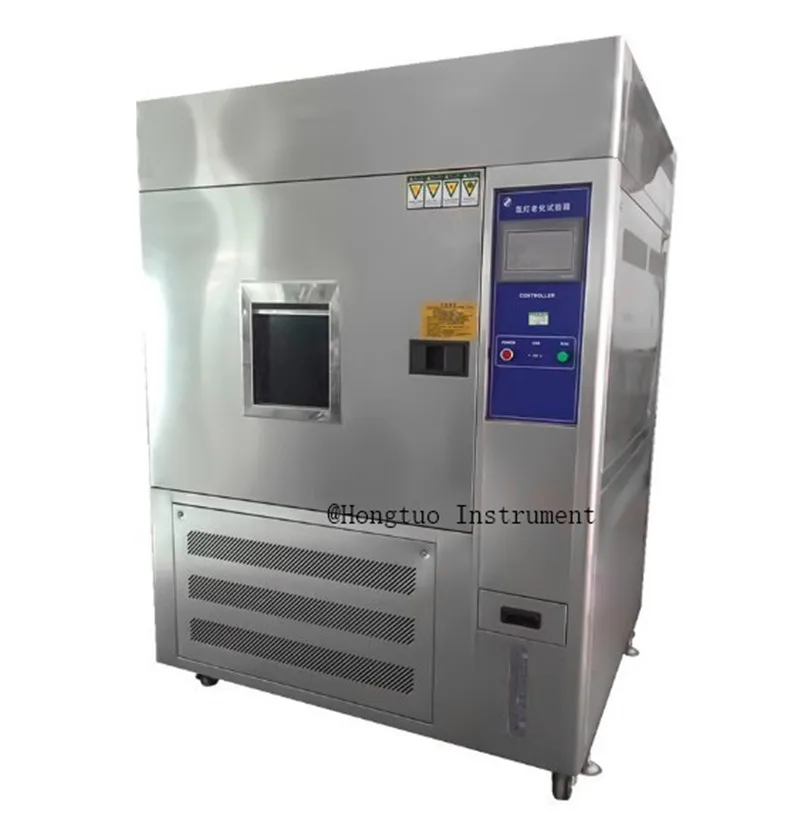

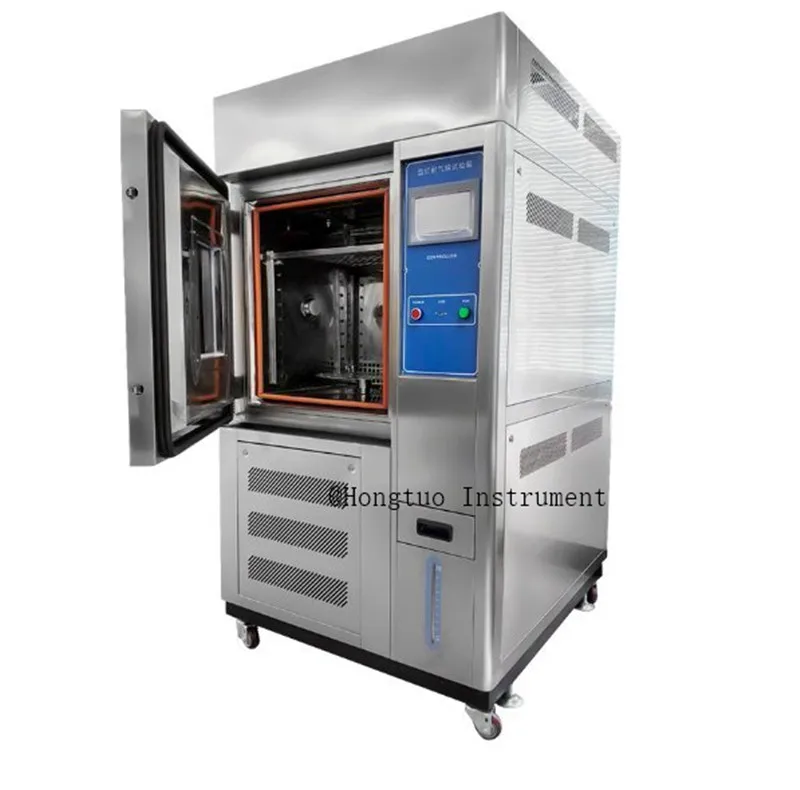

Simulated Xenon Lamp Aging Tester Cheap Small Xenon Aging Test Chamber

Product Overview

Description

Simulated Xenon Lamp Aging Tester Cheap Small Xenon Aging Test Chamber



1.Application:



By using the xenon lamp to simulate sunlight,and condensation of moisture to simulate rain and dew.put the testing specimen under sunlight at some temperature and humidity alternant cycle program to do the testing.the machine can help to show the bad effect on specimen from outdoor environment in short time with several days or weeks instead of years.The testing data can help to choose more suitable materials.and improve existed materials.and evaluate the changing of formula how to effect the durability of products.



2.Features:



1.Adopt the long axis fan motor,anti high and low temperature stainless steel multi-blades wheel,have good convection.and vertical diffusion cycle.



2.Double-layer anti-high temperature sealing strip has been used between the door and the box.to make sure the leakproofness for the testing area.



3.Adopt non-counteractive door knob,more easy operation.



4. Adopt high quality fixable PU running wheel of the bottom of machine.



5.Adopt multi-layer hollow tempered glass inspection window.(can observe the testing procedure clearly)



6.Irregular shape sample holder,make the installation of testing specimen more easier.and convenient to be used.



7. The working life of xenon lamp is determined by the radiation level.normal service life of lamp is 1600 hours.Lamp is easy to be changed.The effective filter can make sure spectrum demanded can be offered.





3.Specification:

Model	DH-XD
	-80	-150	-225	-408	-800	-1000
Inner size: WHD(cm)	40*50*40	50*60*50	60*75*50	60*85*80	100*100*80	100*100*100
External size: WHD(cm)	105*185*115	105*185*115	115*195*115	135*210*120	155*230*145	155*230*165
Temperature and humidity uniformity	± 2°C; ± 3%RH
Temperature range	0℃~80℃, adjustable
Humidity range	30%~98%R.H
Type of light source	imported air-cooled full solar spectrum long arc xenon lamp (average service life is around 1600 hours)
Rainfall time	1~9999min, adjustable
Rainfall cycle	1~240min,interval is adjustable
Wavelength	290nm~800nm
Source irradiance	290~800nm:   100~600w/m2             300~890nm:  200~1200w/m2             340nm:       0.3~1.2w/m2             420nm:       20~120w/m2
Distance from the center of the arc to the sample holder	350~380mm
Sample rotating basket speed	≥1r/min
Water spray cycle	Water spray time: 0 ~ 99h59min, continuously adjustable;                                                                   Stopping time: 0~99h59min, continuously adjustable
Light time	Continuous programming
Blackboard temperature	85±3℃
Cooling method	Mechanical refrigeration air cooling
Xenon lamp light	Xenon long-arc lamp, 1.8KW±10%, 290-800nm, 1200W/m2
Xenon lamp light quantity	1PCS			2pcs	3 PCS
Box material	Stainless Steel SUS304#
Control and cooling system	Korea TEMI programmable controller
Power (w)	4500	5500	6000	11800	13500	14000
weight (kg)	230	230	300	450	550	680
