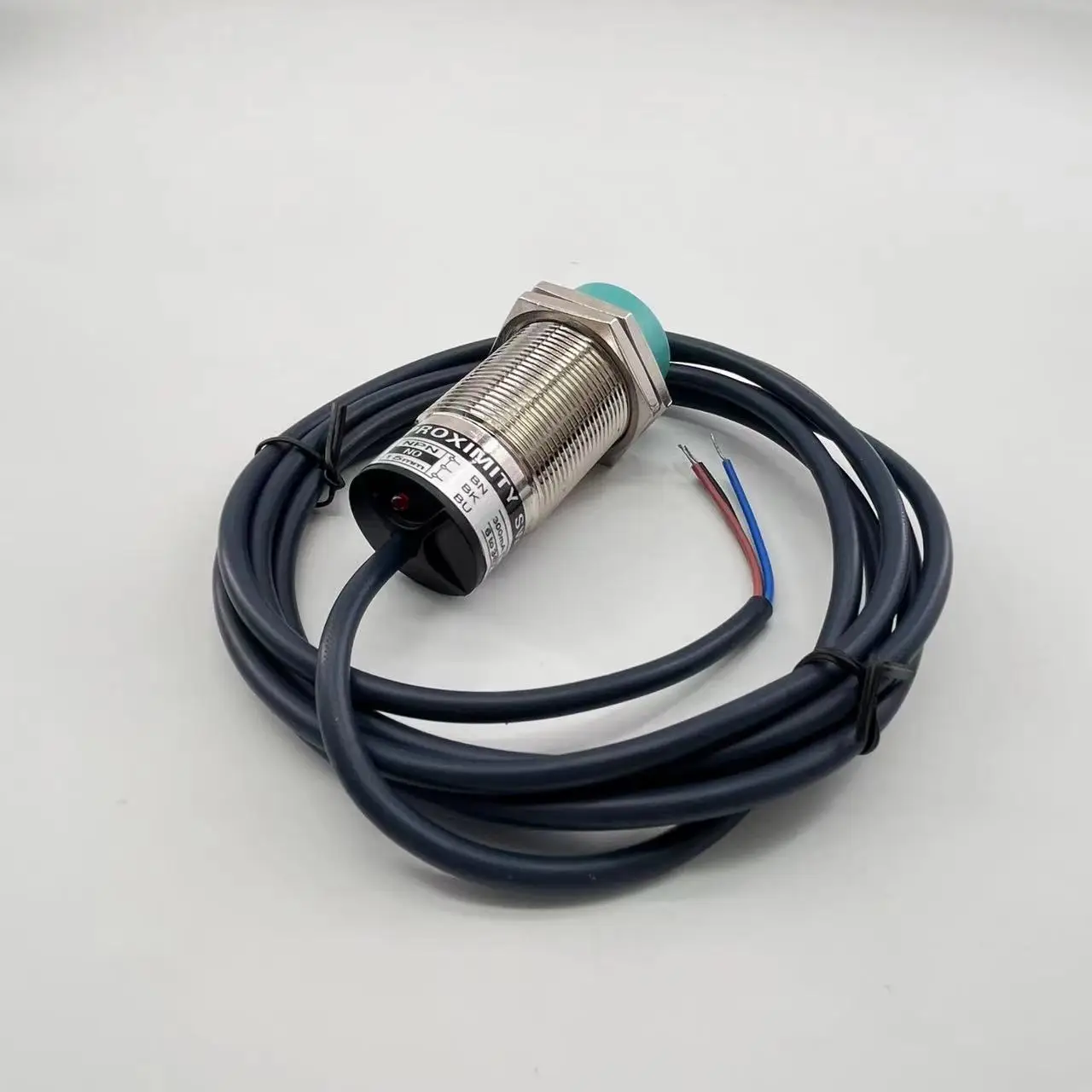

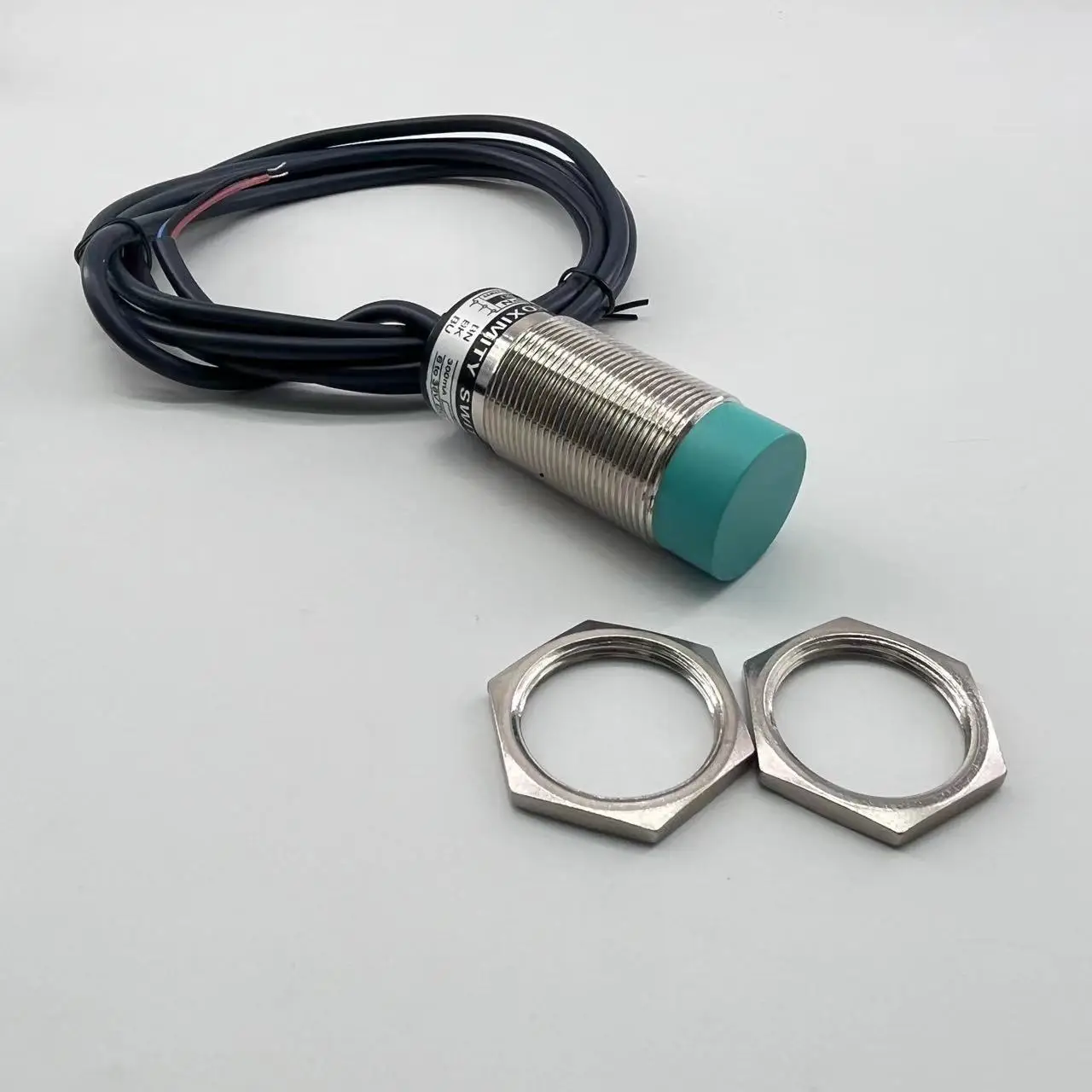

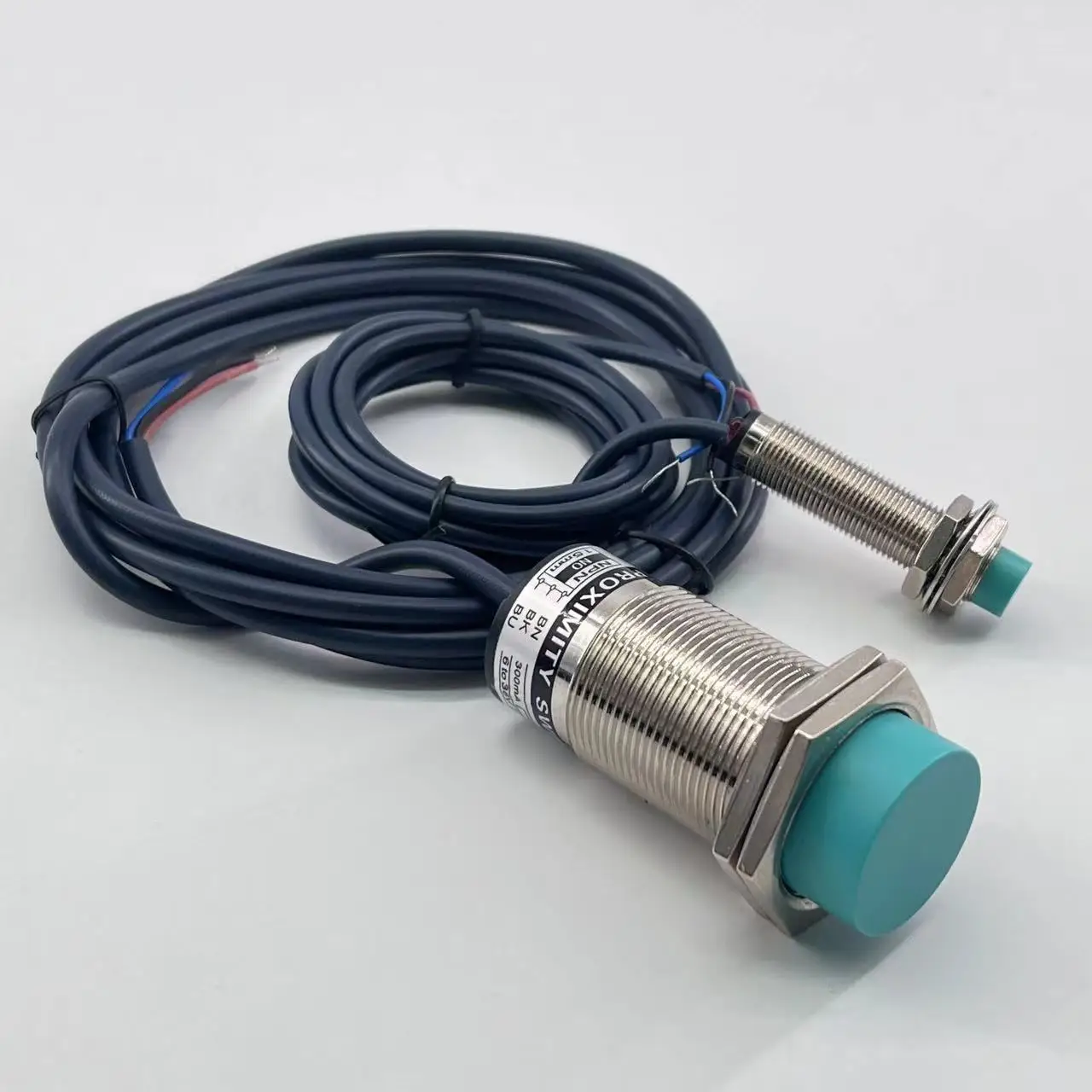

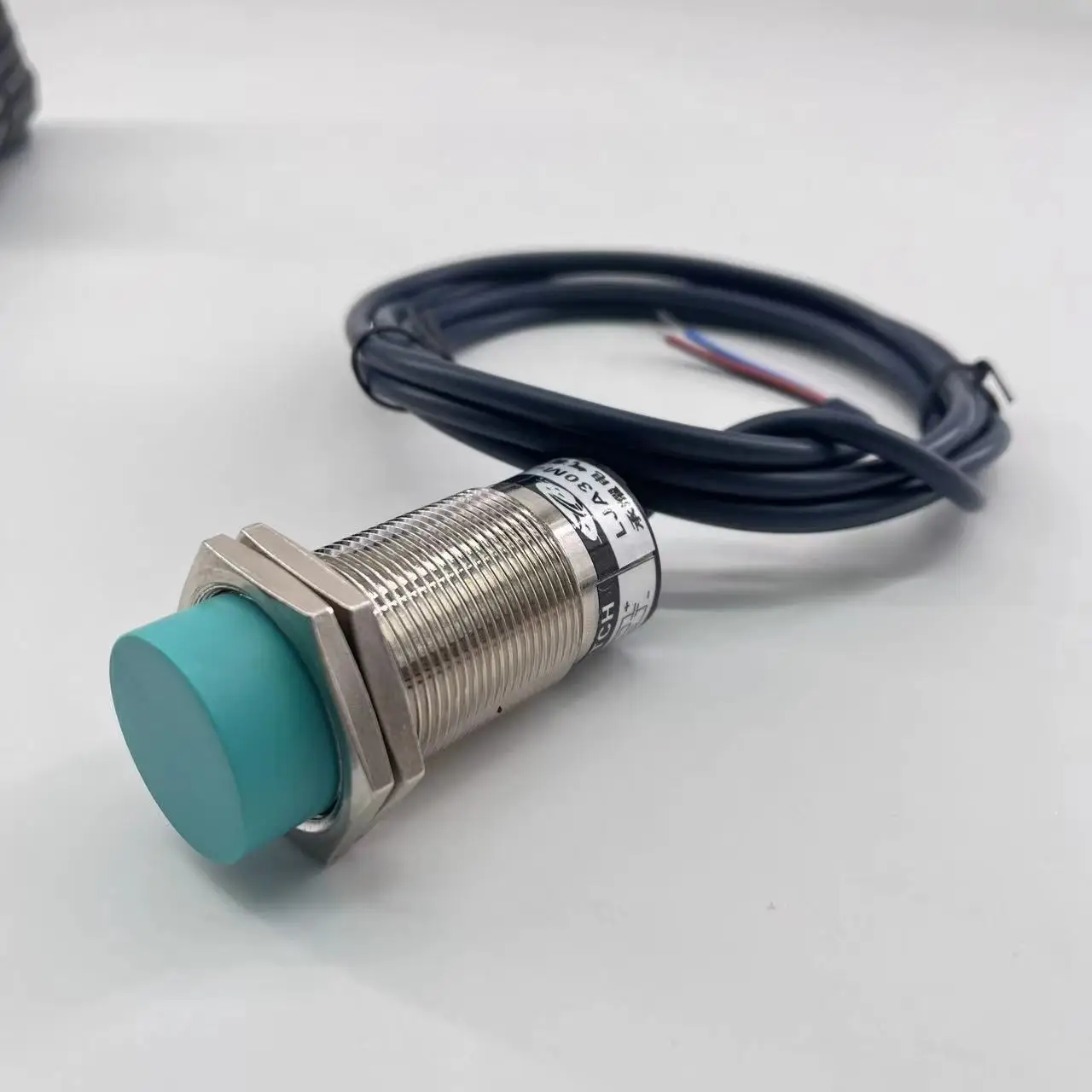

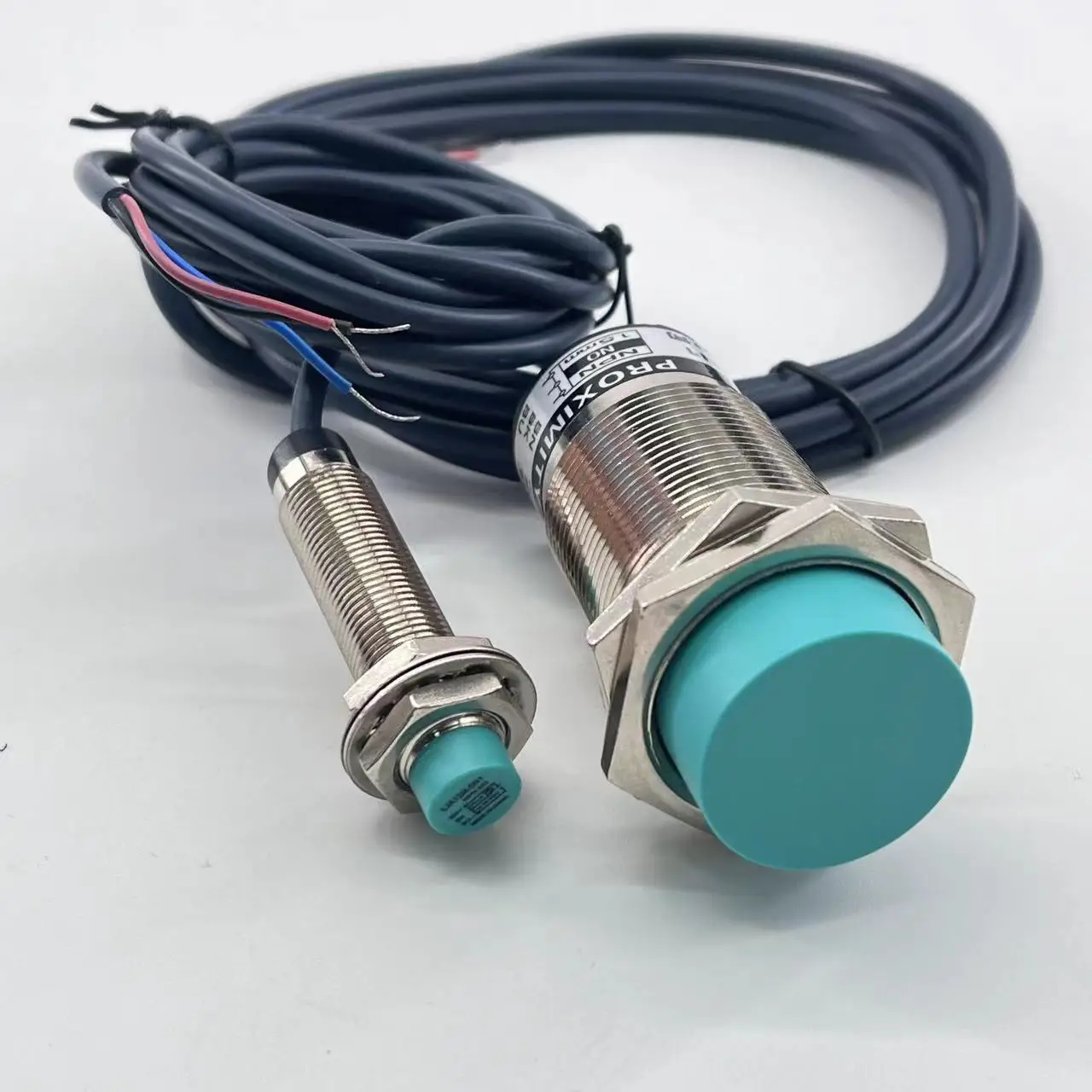

Cheap Diameter 30mm Detection Distance 15mm 3 Wire Normally Open Inductive Proximity Sensor
- Category: >>>
- Supplier: Changchun Huayue Technology Co. Ltd.
Share on (1600989748779):
Product Overview
Description
Detect objects | Metals: iron, copper, steel, aluminum, nickel, etc. The standard detection object is A3 iron |
Differential distance | Within 10% of the detection distance |

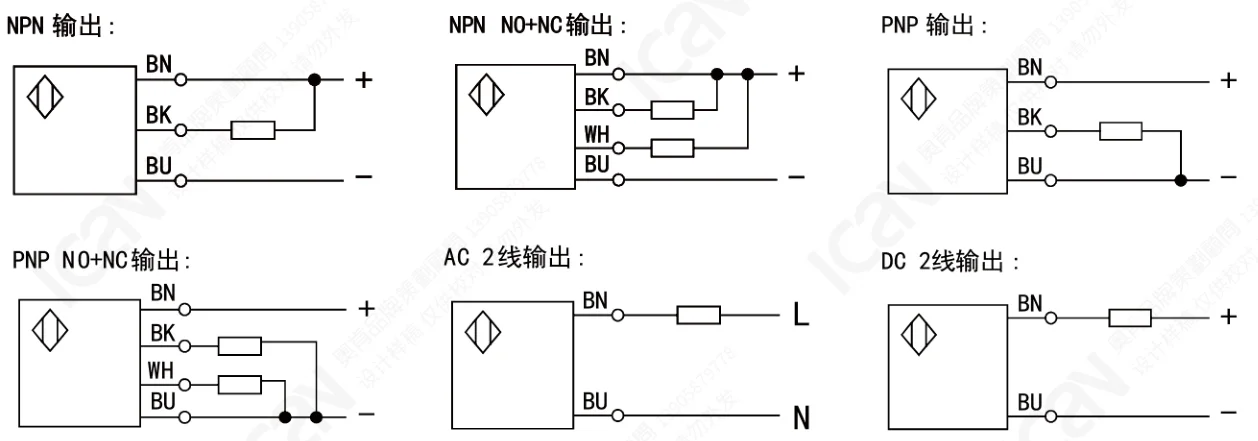

Power supply voltage | DC (NPN, PNP, two wire) type: DC6-36V; AC type: AC90-250V50/60Hz |
Consumption current | DC (NPN, PNP) type: ≤ 2.5mA; AC type: ≤ 10mA DC dual line: ≤ 1mA |
Control output | Max300mA, if it exceeds 300mA, a small electromagnetic relay needs to be added for capacity expansion |
Circuit protection | DC (NPN, PNP, two wire) type: short circuit protection; AC type: surge absorption protection |
Operating ambient temperature | 25 ° C~+70 ° C (but not frozen) Operating environment humidity: 35~95% HR |
The influence of temperature | The detection distance at 25 ° C and+70 ° C is within ± 10% of the detection distance at 25 ° C |
The influence of voltage | When the voltage is within ± 15% of the rated power supply voltage, the detection distance changes within ± 10% |
Residual voltage | DC (NPN, PNP) type: below 1.5; DC (two wire) type: below 3.5V; AC (two wire) type: below 10V |
Insulation impedance | Above 50MQ (using DC500V live parts together with the shell) |
Withstand voltage | DC (NPN, PNP two wire) type: AC1000V5060Hz, - minutes, between the live parts and the shell; AC (two wire) type: 2000V50/60Hz, with live parts together and between the shell |
Vibration | Durability: 10-55Hz, complex amplitude 15mm, XY, Z direction for 2 hours |
Impact | Durability: 500m/s (approximately 50g), 10 times in X, Y, and Z directions |
Protection level | IP54 |
Material | Shell: Brass nickel plating detection thermal ABS |
Q1:How to order our product ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
