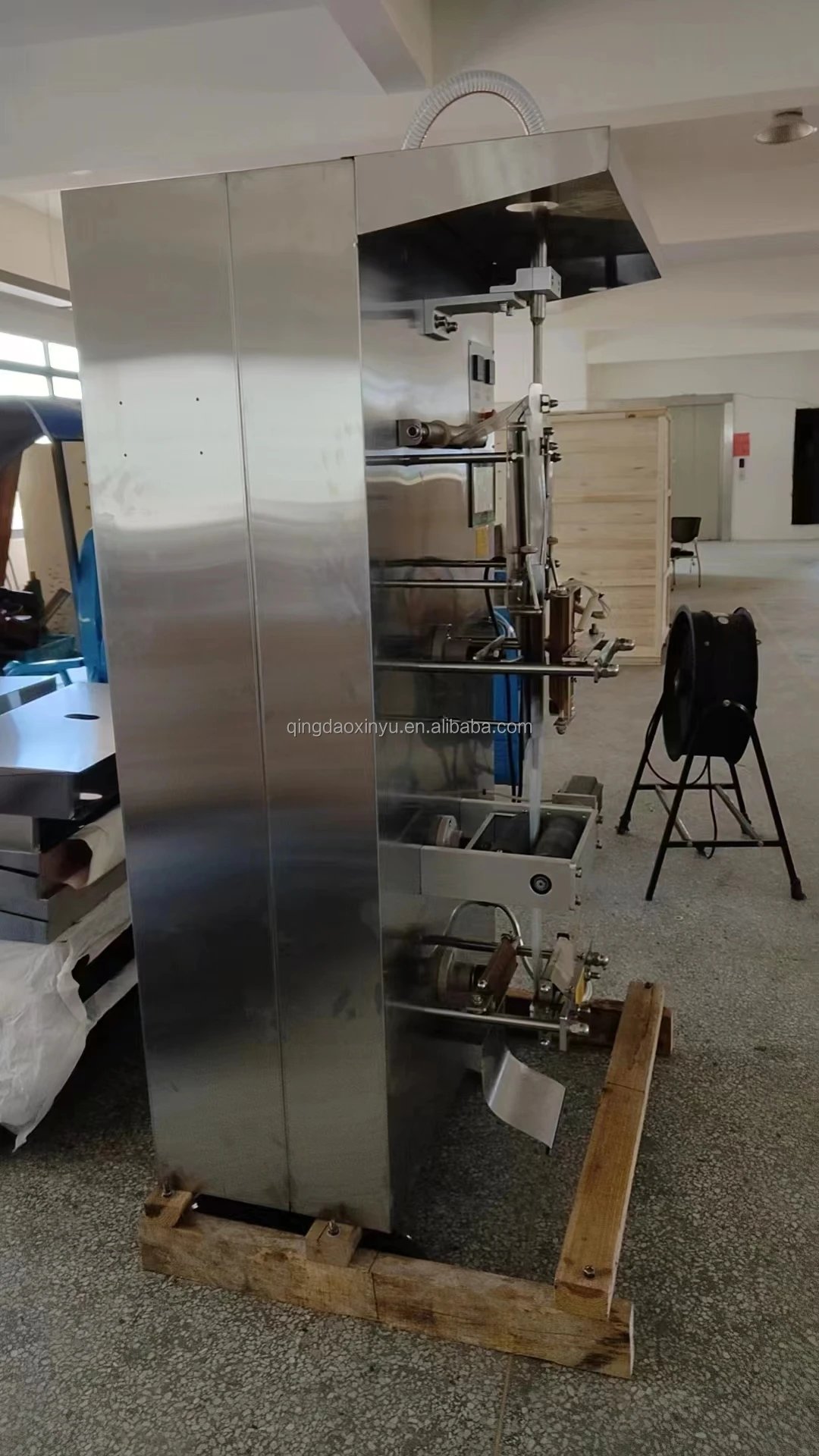

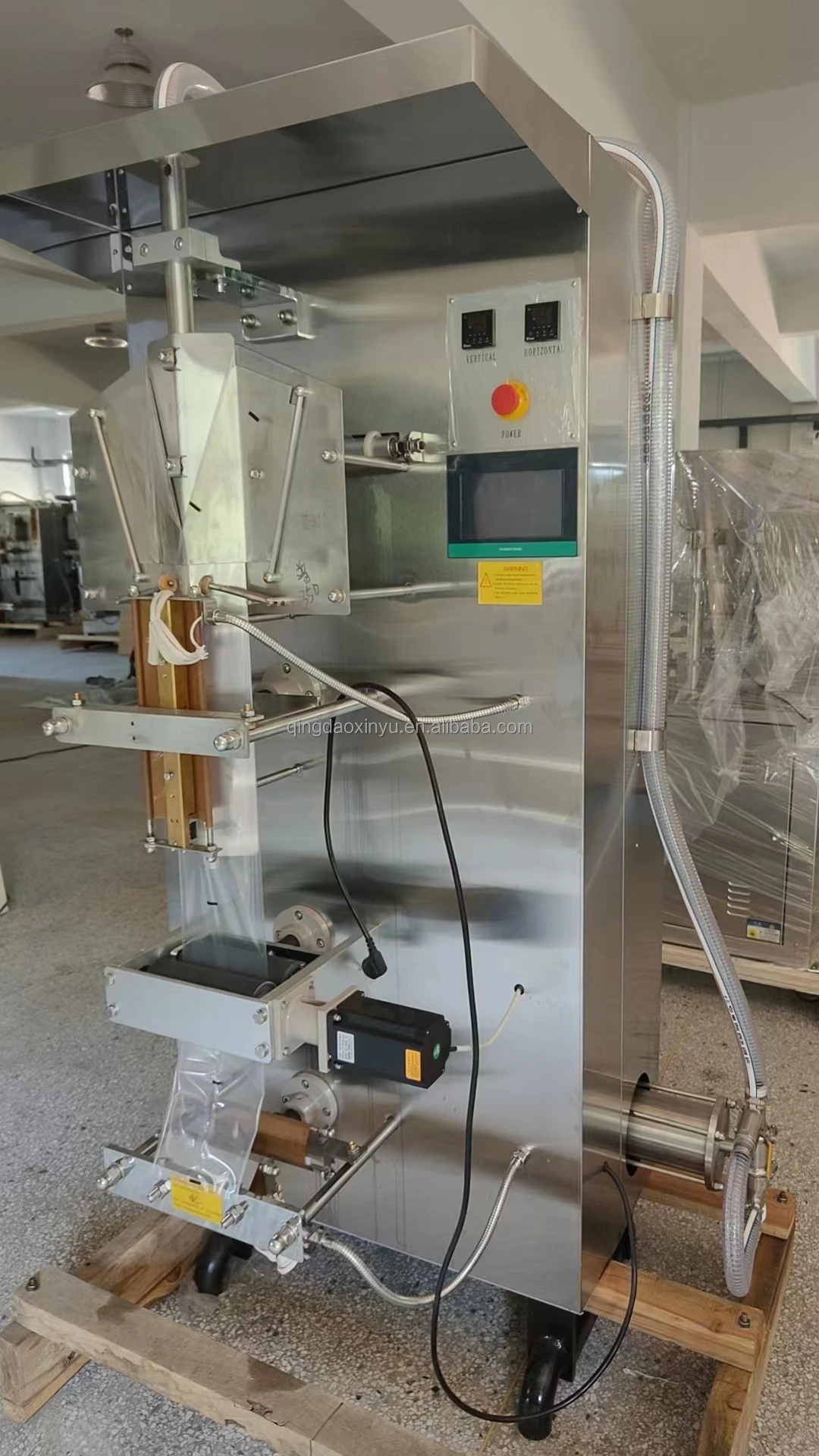

SJ-ZF Series Intelligent liquid packaging machine
* Main Parameters:
SJ-ZF Series intelligent liquid packaging machine is mainly used for the pillow bag filling and packaging a variety of liquid,
liquid without gas. Such as soy sauce, vinegar, fruit juice, mixed drinks, milk, soy milk, mineral water and liquid chemical
products etc.
* structure
◇Basic Configuration

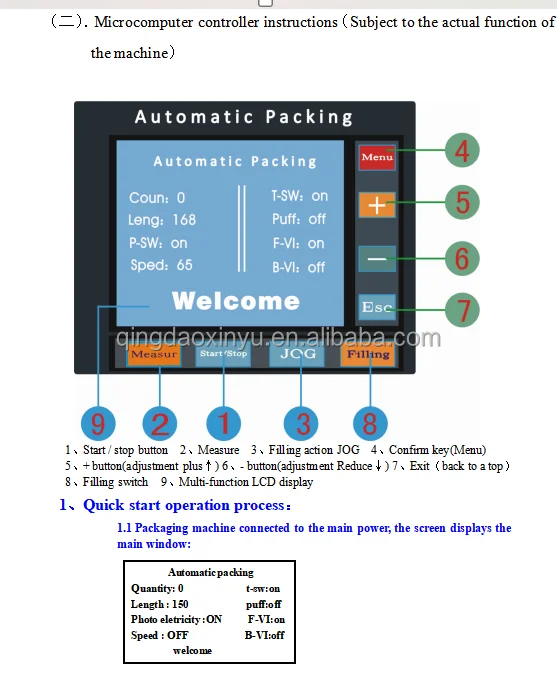

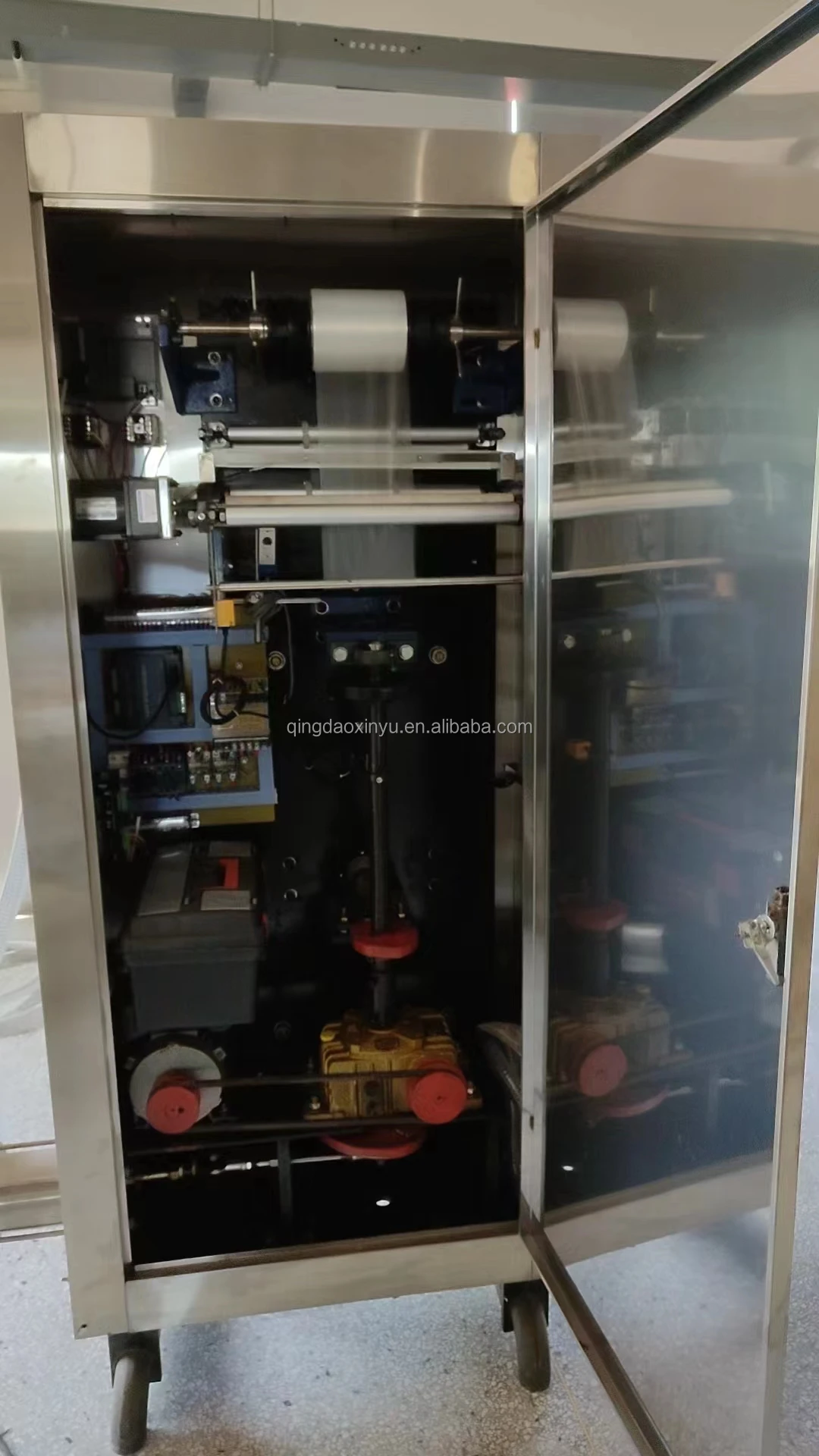

The whole machine is consist of: piston pump volume measurement devices, film delivery device, film forming device, the vertical
heat sealing equipment,horizonal heat sealing cutting unit, electric control parts, machine frame equipment and other components.
* Packing Process
Provide film and pull bags→heat sealing→filling→
cutting bags→packing ,finished product
* Main Parameters:
SJ-ZF Series intelligent liquid packaging machine is mainly used for the pillow bag filling and packaging a variety of liquid,
liquid without gas. Such as soy sauce, vinegar, fruit juice, mixed drinks, milk, soy milk, mineral water and liquid chemical
products etc.
* structure
◇Basic Configuration
The whole machine is consist of: piston pump volume measurement devices, film delivery device, film forming device, the vertical
heat sealing equipment,horizonal heat sealing cutting unit, electric control parts, machine frame equipment and other components.
* Packing Process
Provide film and pull bags→heat sealing→filling→
cutting bags→packing ,finished product
Model | SJ-ZF1000 | SJ-ZF2000 | SJ-ZF4000 | |
Capacity(pcs/min) | 20-25 | 20-25 | 15-20 | |
Packing rangeL(ml) | 50-500 | 200-1000 | 500-2000 | |
Power | 2.1KW/220V/50HZ | 2.5KW/220V/50HZ | 2.5KW/220V/50HZ | |
Length of bag | 50-100mm | 50-250mm | 65-210mm | |
Width of film | 150-320mm | 150-380mm | 150-450mm | |

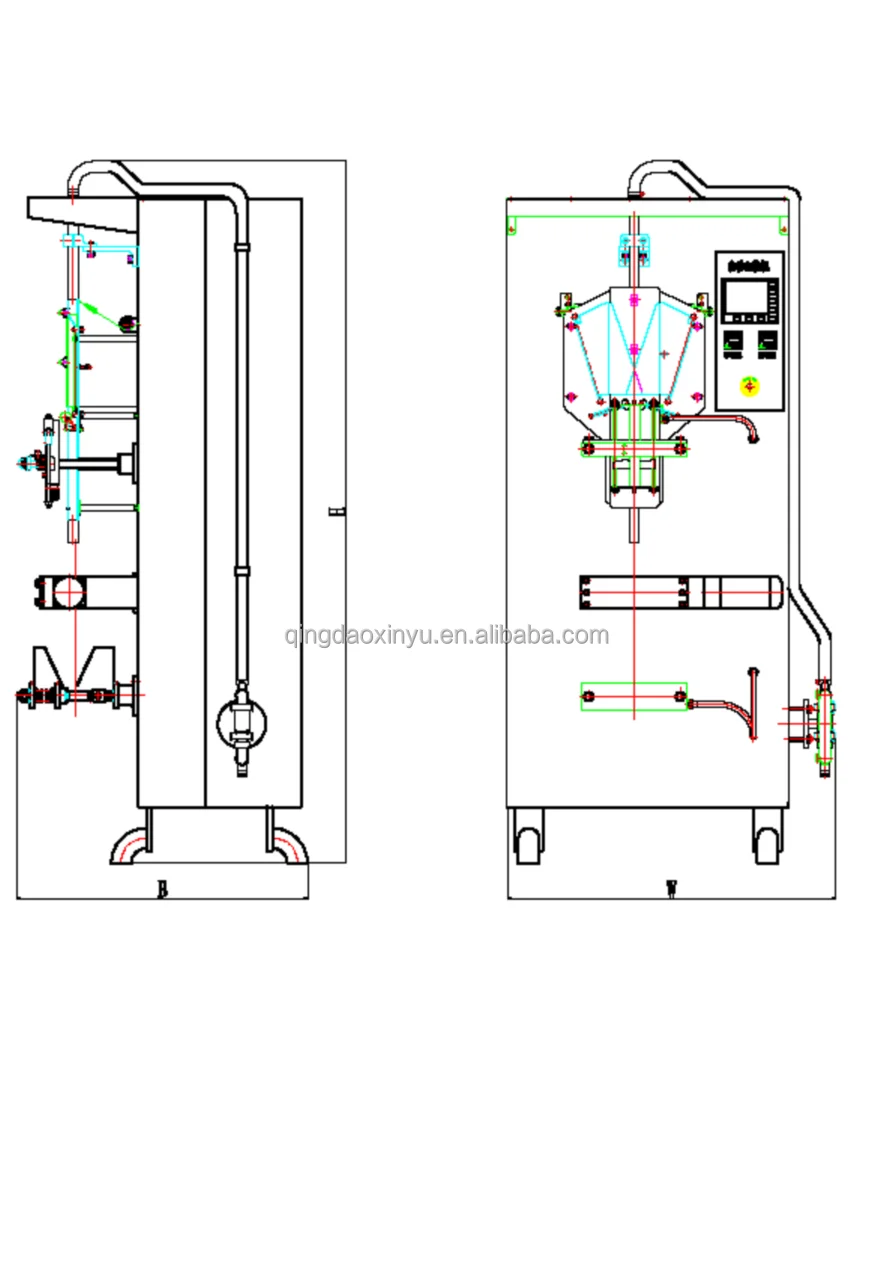

Dimension（m3） | 0.85×1.05×2.05 | 0.85×1.05×2.05 | 1.1×1.2×2.1 | |
Weight（Kg） | 370 | 380 | 460 |
三、Main features of the structure and debugging

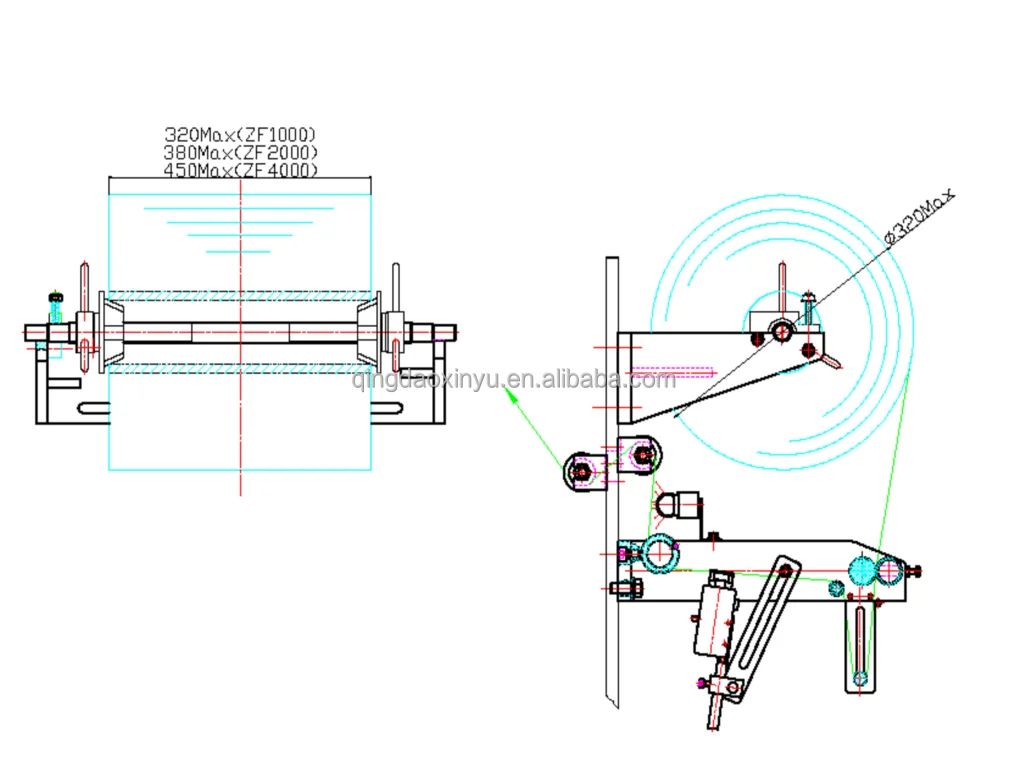

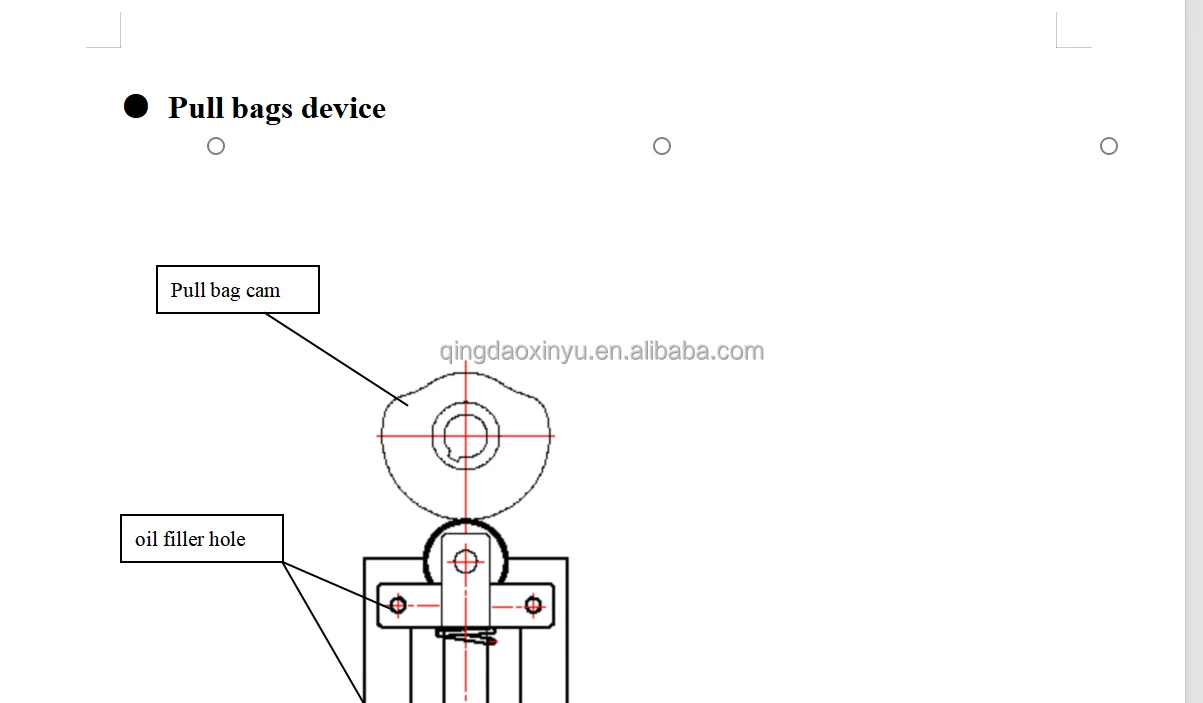

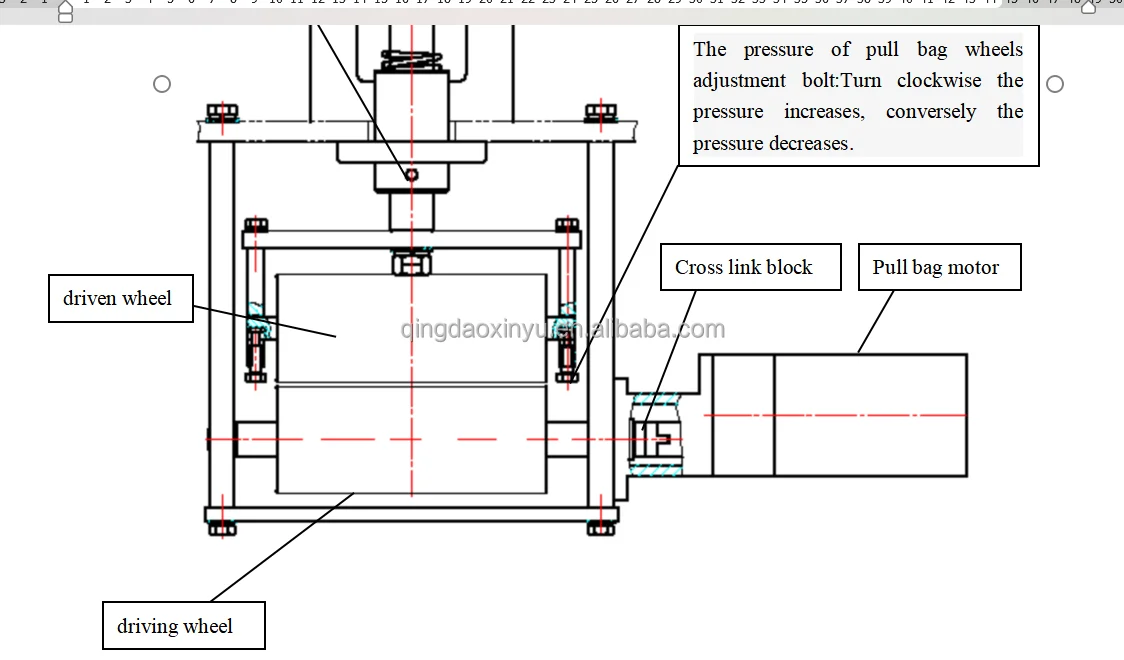

* Provide film device

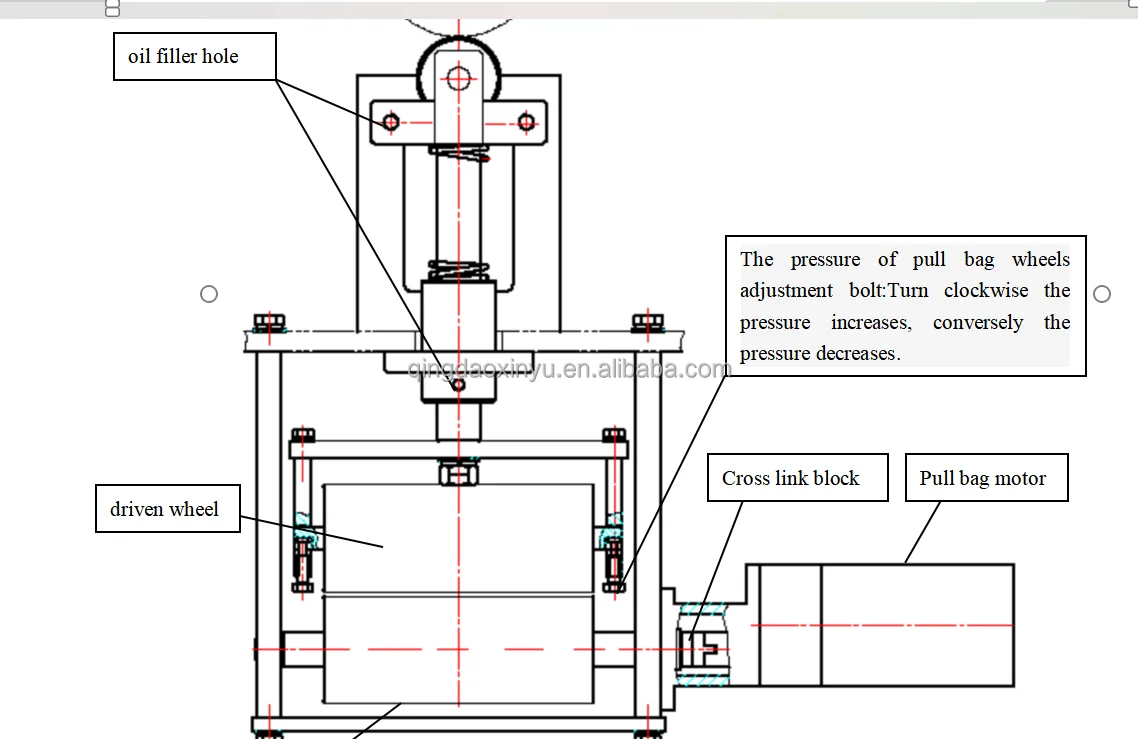

As the picture 1, let the packaging film installed in film reel and fixed film clip ring（printed outside or composite inside），as
the track shown in the picture put on packaging film.
* Provide film device
As the picture 1, let the packaging film installed in film reel and fixed film clip ring（printed outside or composite inside），as
the track shown in the picture put on packaging film.
Model | SJ-1000 | |||
Made bag length mm | 50-150 | |||
Made bag width mm | 40-150 | |||
Packaging film width mm | 100-320 | |||
Packaging film width ml | 50-500 | |||
Packing speed bags/h bags/h | 2000-2200 | |||
Power kw | 1.6 | |||
Overall dimensions mm | 880*760*1800 | |||
Machine weight kg | 275 |
【Attentions】
*** Packaging film roll max diameter no larger than 320mm
***Packaging film roll edge should be straight,shouldn’t be curling.
*** If the machine stopped running a long time, please get film roll off from the reel , placed in a fixed place

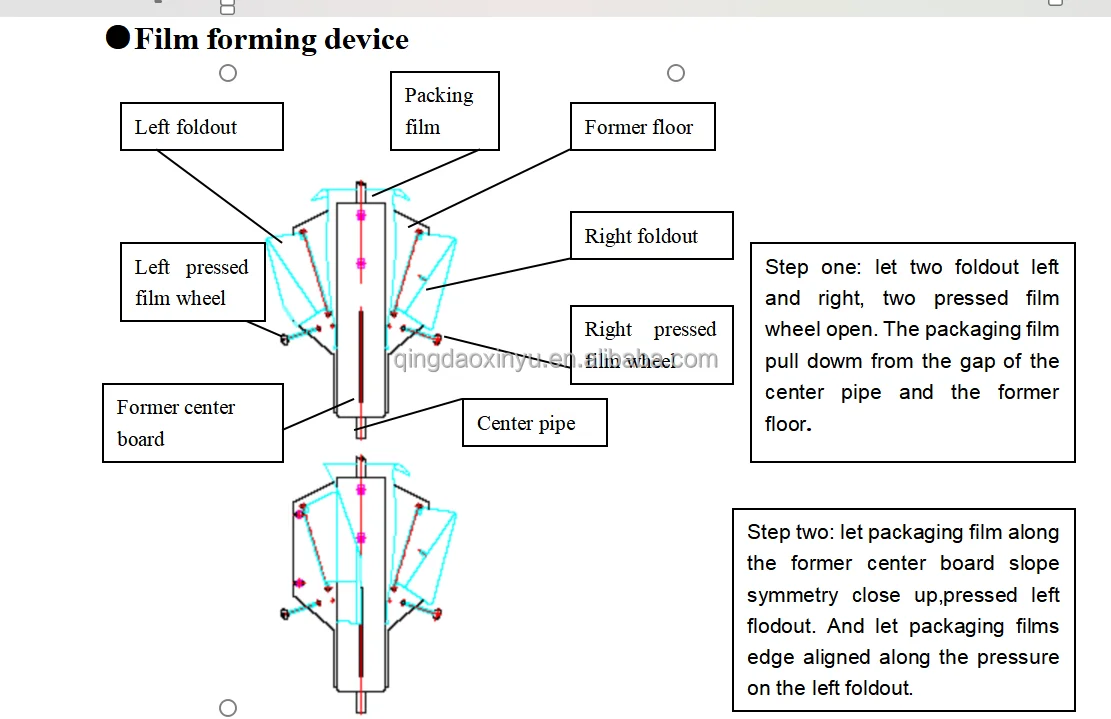

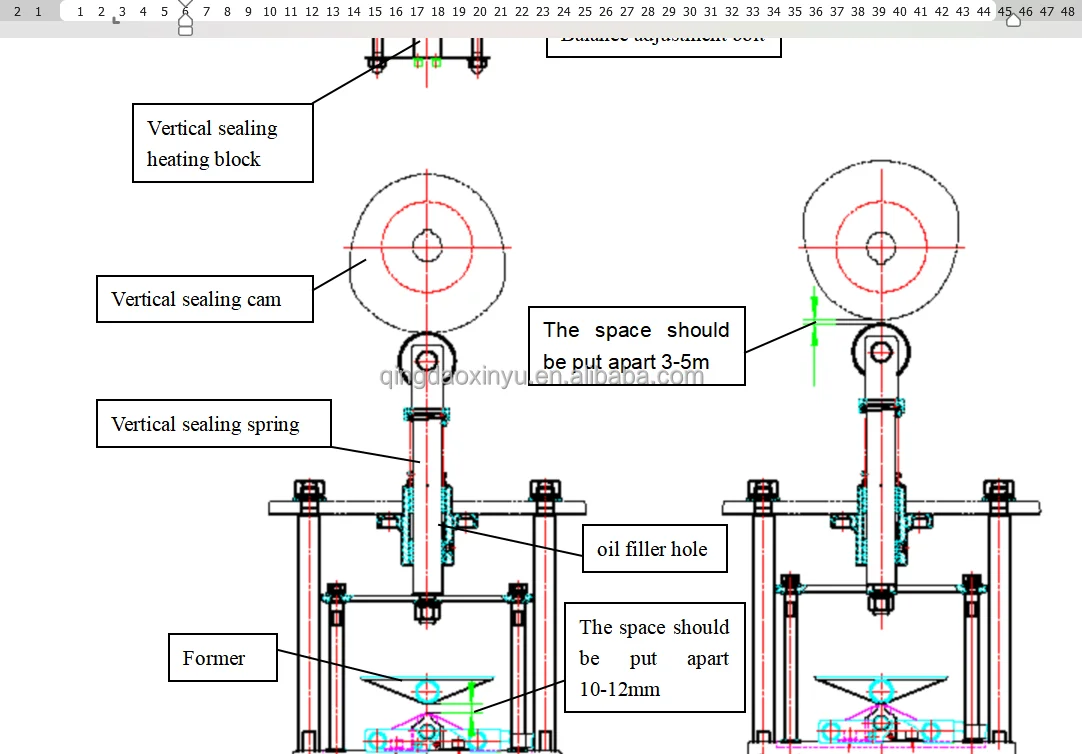

* Film forming device
*** Packaging film roll max diameter no larger than 320mm
***Packaging film roll edge should be straight,shouldn’t be curling.
*** If the machine stopped running a long time, please get film roll off from the reel , placed in a fixed place
* Film forming device

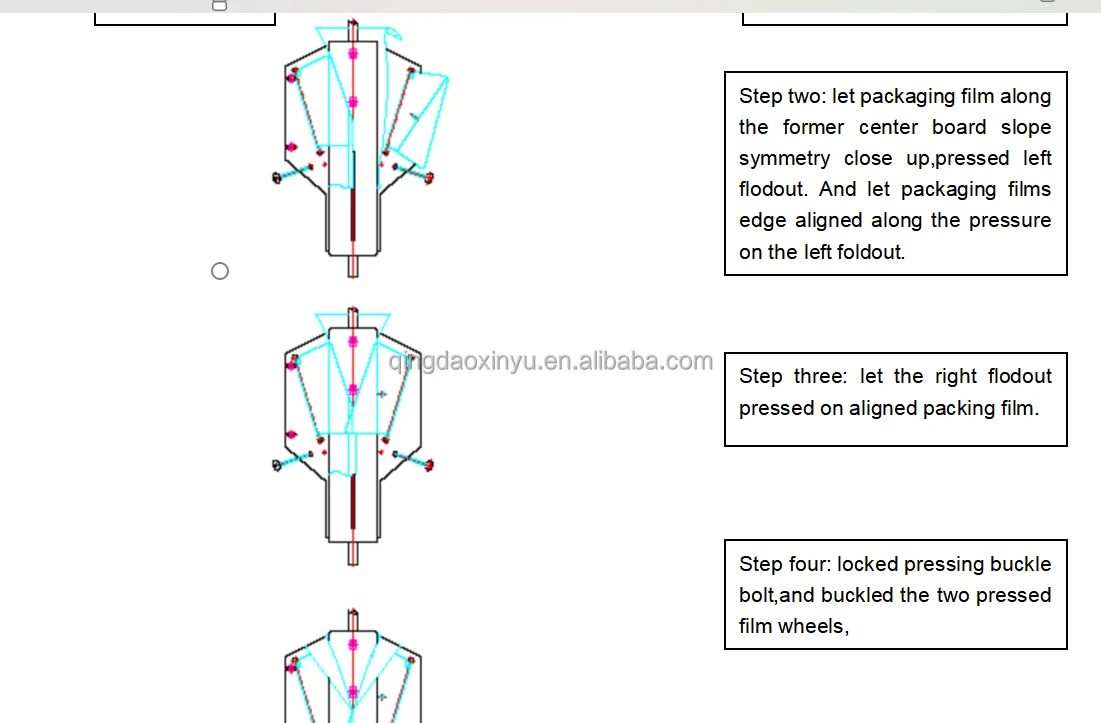

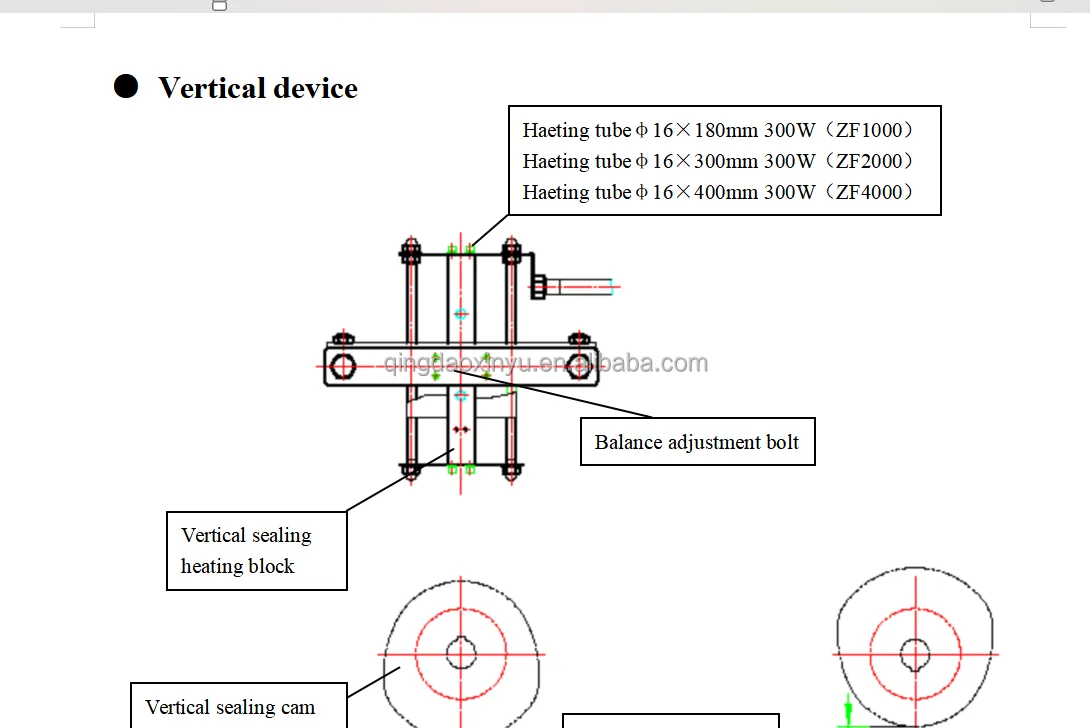

！！！Safety reminder

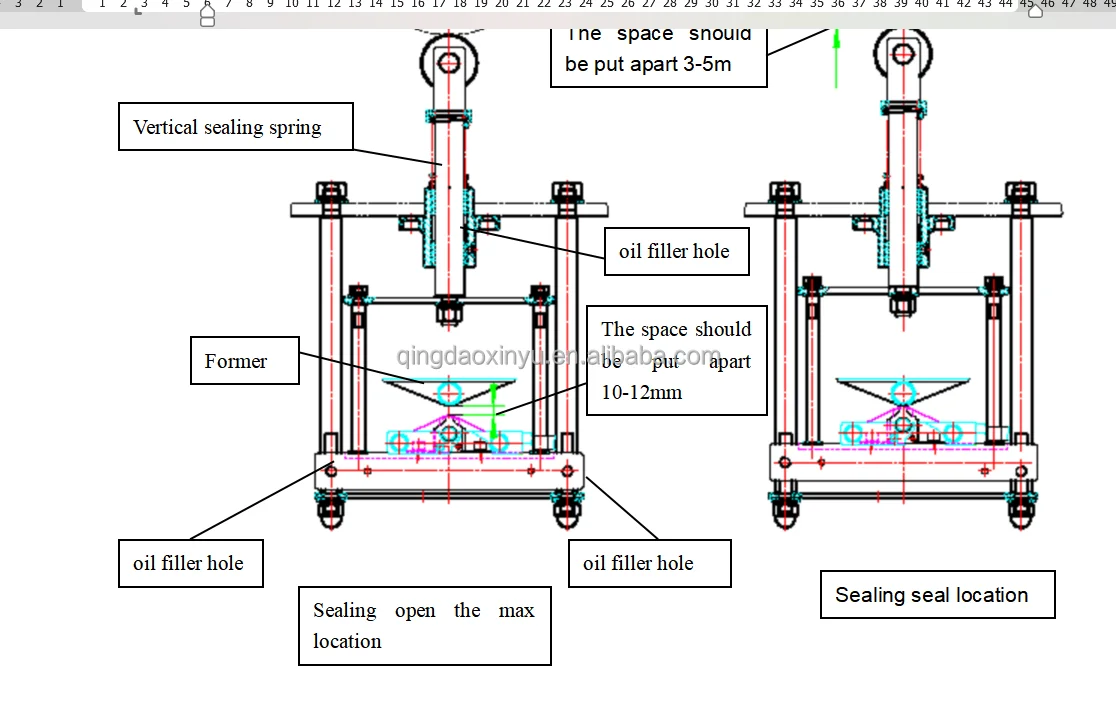

Note hands not be cought ro burn when the adjustment .
【Attention】
1. Every time,every oil filler hole shoud be filled with oil.
2. Sealing surfaceon sealing block should alwaysclean to ensure sealing quality. When cleaning, heating the sealing block to
about 120°C，with a wet towel or a clean copper wire brushing. Must not use water or acid-base rinse wash.
Note hands not be cought ro burn when the adjustment .
【Attention】
1. Every time,every oil filler hole shoud be filled with oil.
2. Sealing surfaceon sealing block should alwaysclean to ensure sealing quality. When cleaning, heating the sealing block to
about 120°C，with a wet towel or a clean copper wire brushing. Must not use water or acid-base rinse wash.
Steps:
1. Fixed Photoelectric switch，check the distance（10mm±2mm）meet the requirements. According to the packaging film you are using
needs to determine the light switch.
2. Move the packaging film, let the points of light falls on the background outside the color area, turn the sensitivity knob in
the end, then slowly rotate clockwise to the indicator just light. Remember at this time the sensitivity adjustment knob
position aspoint A in picture 1.（If the spin to the "high" position lamp is still not lit, the "high" position is point A。）
3. Move the packaging filmagain，the points of light falls within the color region，the sensitivity knob slowly rorate
counterclockwise to light just off，Remember at this time the sensitivity adjustment knob position as point B in picture 2.
4. After these two steps correctly, then the sensitivity adjustment knob set at C points,the middle of Aand B points.(as picture
3). Larger the distance between A and B points, means the color difference is larger，testing more stable. But A, B are two
points at least one grid distance, or Testing will be unstable.
【Attentions】
1. Testing distance must to meet 10mm ± 2mm。
2. Everytime changethe different packaging film should re-adjust the sensitivity.
3. Prevent strong light directly into the optical lens.
4. Usually to protect the lens clean。
1. Fixed Photoelectric switch，check the distance（10mm±2mm）meet the requirements. According to the packaging film you are using
needs to determine the light switch.
2. Move the packaging film, let the points of light falls on the background outside the color area, turn the sensitivity knob in
the end, then slowly rotate clockwise to the indicator just light. Remember at this time the sensitivity adjustment knob
position aspoint A in picture 1.（If the spin to the "high" position lamp is still not lit, the "high" position is point A。）
3. Move the packaging filmagain，the points of light falls within the color region，the sensitivity knob slowly rorate
counterclockwise to light just off，Remember at this time the sensitivity adjustment knob position as point B in picture 2.
4. After these two steps correctly, then the sensitivity adjustment knob set at C points,the middle of Aand B points.(as picture
3). Larger the distance between A and B points, means the color difference is larger，testing more stable. But A, B are two
points at least one grid distance, or Testing will be unstable.
【Attentions】
1. Testing distance must to meet 10mm ± 2mm。
2. Everytime changethe different packaging film should re-adjust the sensitivity.
3. Prevent strong light directly into the optical lens.
4. Usually to protect the lens clean。
