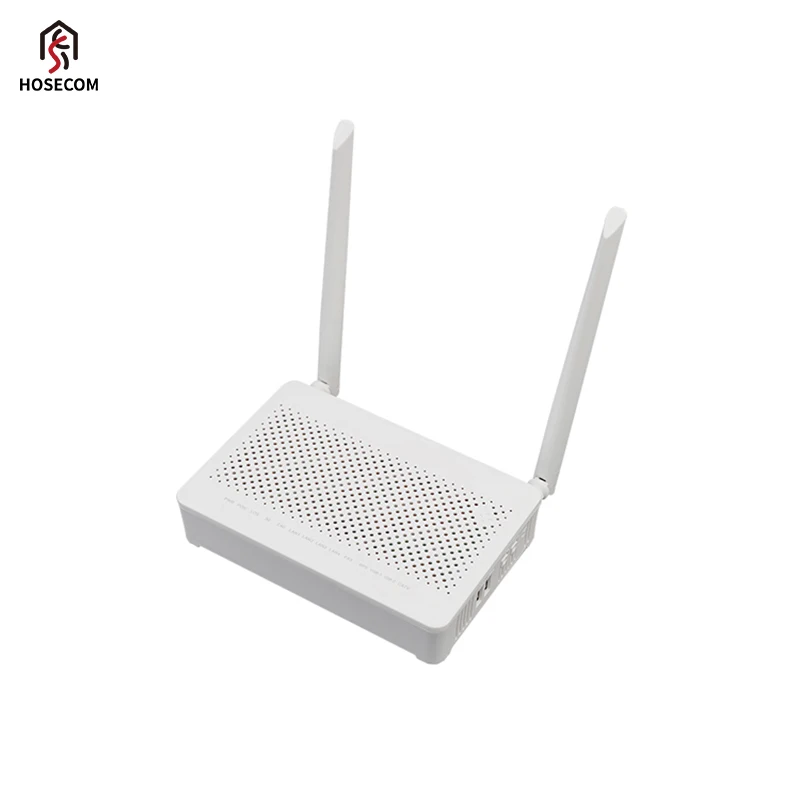

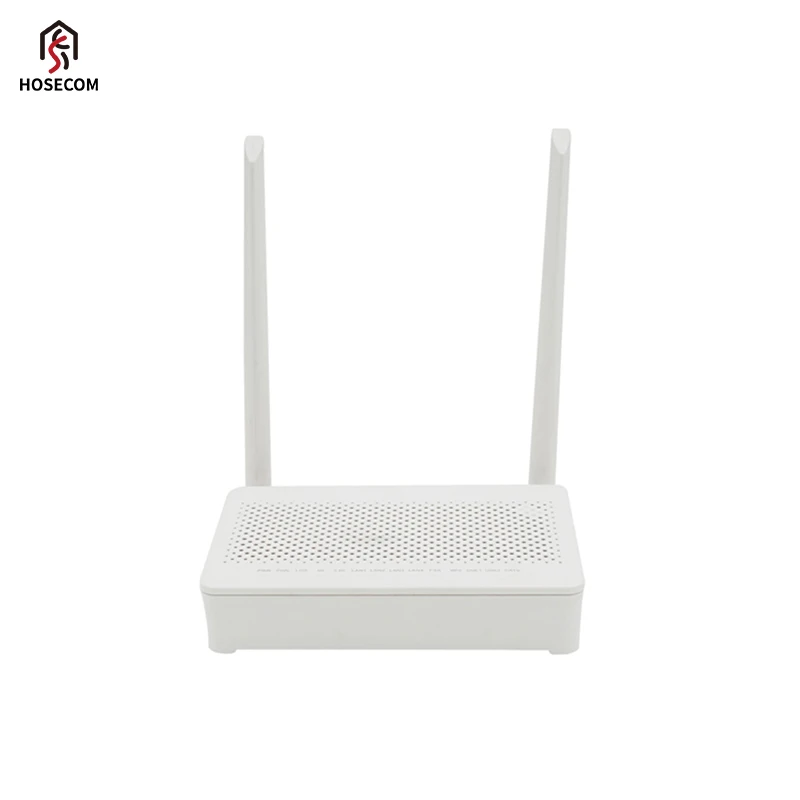

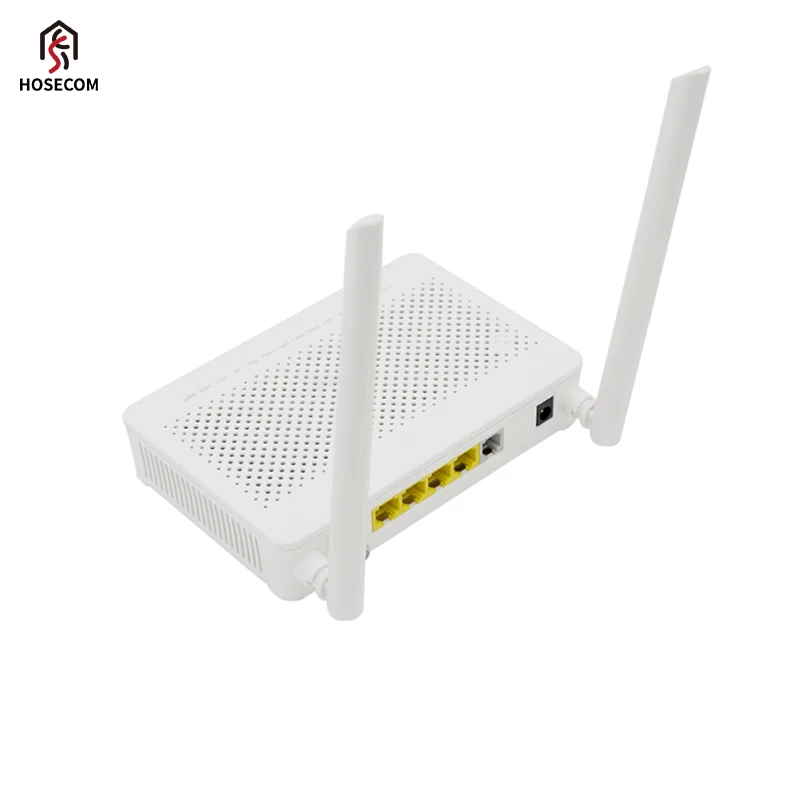

Dual Band AC1200 Xpon ONU 2.4G 5G With Catv FTTH 4GE ONT Compatible With Different OLT Gpon Epon Adative Newest Quality
- Category: >>>
- Supplier: HOSECOM LIMITED
Share on (1600989899765):
Product Overview
Description
Descriptions

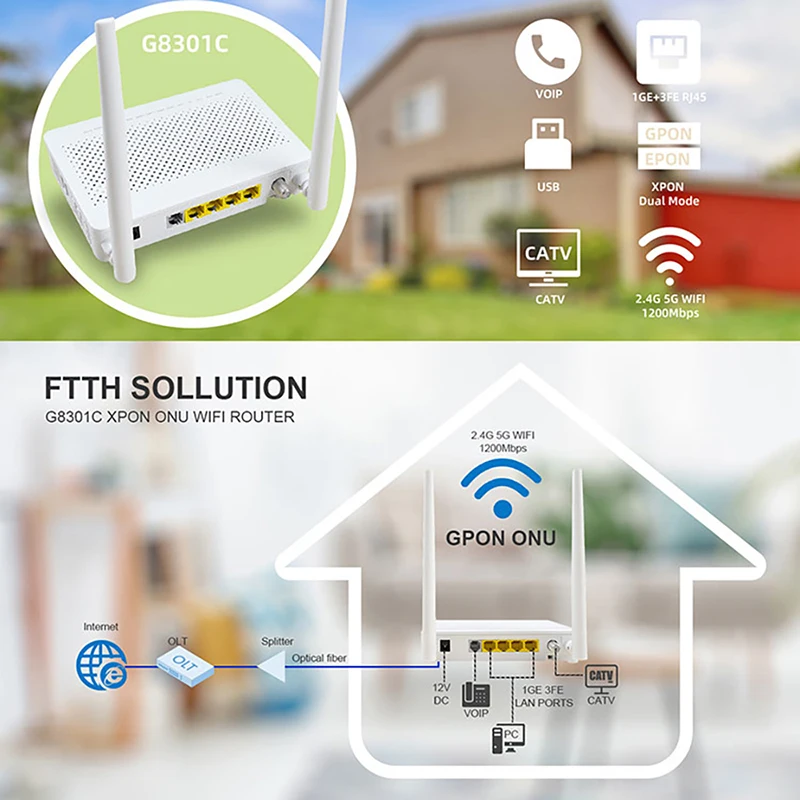

The G8301C dual-mode ONU optical interface supports EPON and GPON access. The
ONU automatically recognizes the central office OLT mode (GPON or EPON) and activates the corresponding
PON mode, thereby completing GPON or EPON adaptive access.
G8301C is a dual-mode ONU designed to meet the needs of telecom and radio and television
operators for ITTH fiber-to-home multi-service reception. This product integrates Gigabit Ethernet through
mature, stable and cost-effective Gigabit XPON technology Switching technology, WDM technology, HFC
technology, have the charac teristics of high bandwidth, high reliability, easy management and good quality of
service (QoS) guarantee. The functions and performance indicators of the equipment meet ITU-T, IEEE
related recommendations, relevant international standards and technical specifications of industry standards,
and have good compatibility when used with mainstream manufacturers'central office OLTs..
Features
EPON&GPON mode adaptive;
GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link;
4x 10/100/1000BASE-T Ethernet RJ45 Ports;
1x CATV;
1x POTS;

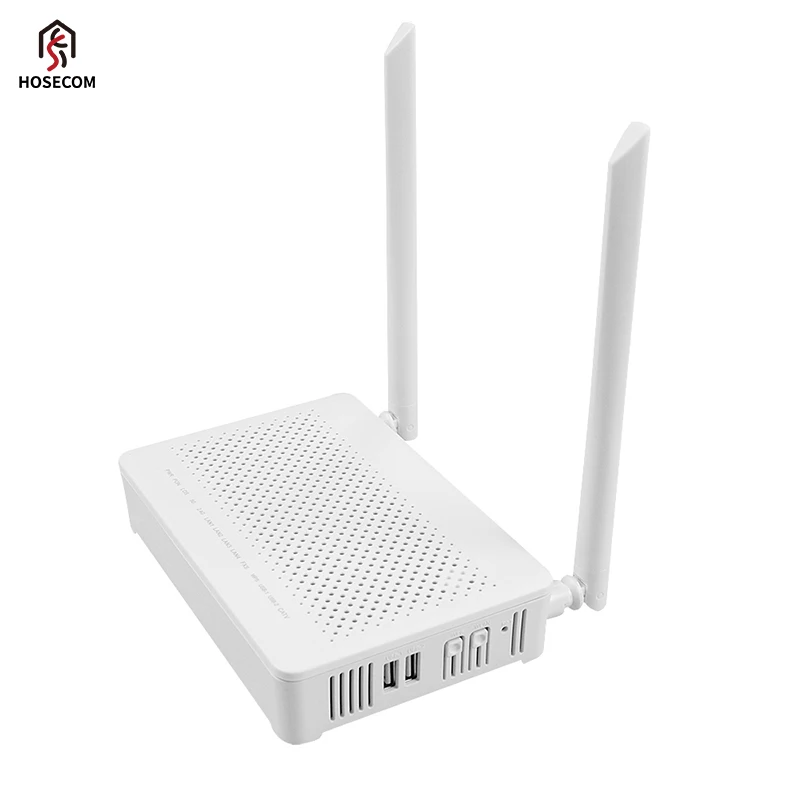

2x USB;
Support 802.11b/g/n speed up to 300Mbps;
Support 802.11a/b/g/n/ac speed up to 867Mbps
Specifications G8301C Specifications | |

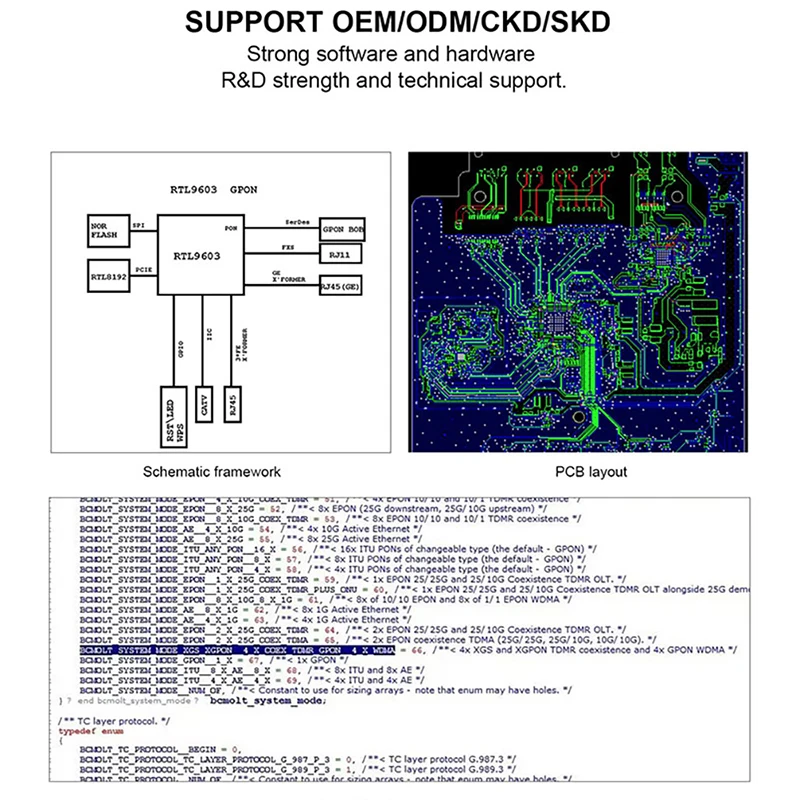

| Chip model | RTL9607+RTL8192+RTL8812 |
| Memory | DDR3:256MB / FLASH 128MB |
| WiFi Chip | 2.4G&5G: RTL8192+RTL8812 |
| GPON Protocol Specification | Comply ITU-T G.984 GPON standard: G.984.1 general characteristics G.984.2 physical Media Dependent (PMD) layer specifications G.984.3 transmission convergence layer specifications G.984.4 ONT management and control interface specification Support DS/US transmission rate to 2.488 Gbps/1.244 Gbps Wavelength: 1490 nm downstream & 1310 nm upstream Comply with class B+ type PMD Physical distance reach to 20 km Support Dynamic Bandwidth Allocation (DBA) GPON Encapsulation Method (GEM) supports Ethernet packet Supports GEM header removal/insertion and data extraction/segmentation (GEM SAR) |
Network Protocol Specifications | 802.3 10/100/1000 Base T Ethernet ANSI/IEEE 802.3 NWay auto-negotiation 802.1Q VLAN tagging/un-tagging Support flexible traffic classification Support VLAN staking Support VLAN Intelligent Bridging |

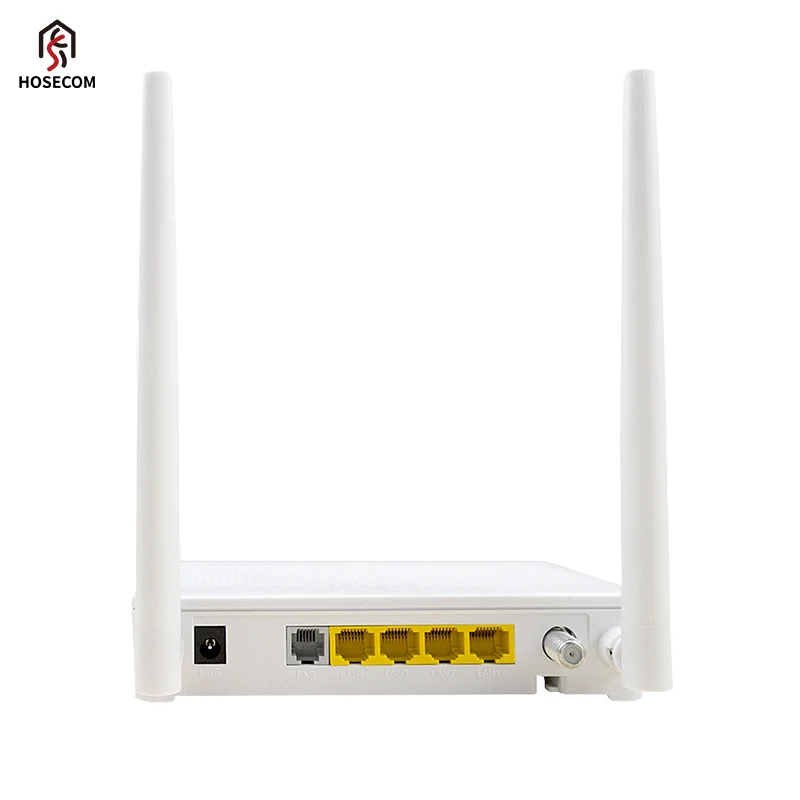

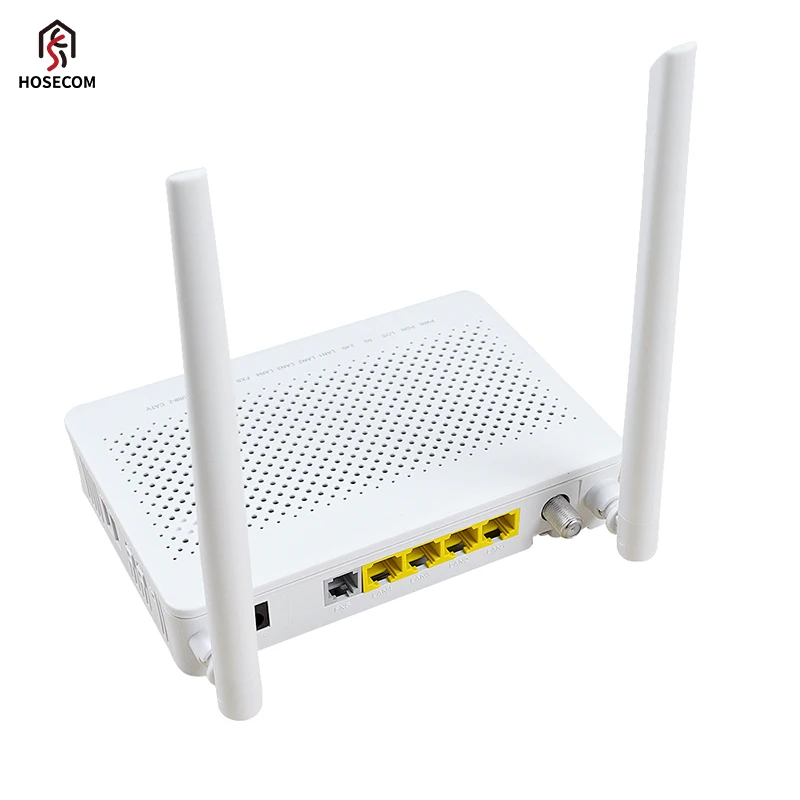

| Interface: | WAN: One Giga optical interface (APC or UPC) LAN: 4*10/100/1000 RJ-45 ports Voip: 1*RJ-11 port USB: 2*USB CATV:1*CATV |
| LED Indicators: | Power, PON, LOS, 5G, 2.4G, LAN1-4, FXS, WPS, USB-1, USB-2, CATV |
| WiFi Rate: | 2.4G: 802.11b/g/n speed up to 300Mbps 5G: 802.11a/b/g/n/ac speed up to 867Mbps |
| Buttons: | Power/WPS/WLAN/Reset |
| Antennas: | 2*5dBi external antenna (dual band antenna) |
| Power Supply: | DC12V/1.5A |
| Product Size: | 156*130*186mm (length X width X height) |
| Work Environment: | Working temperature: 0°C—40°C Working humidity: 10%~95%,no condensation |
| Security: | WPA/WPA2/WPA3 Firewall, Dos Protection |
| WAN Networking: | Static IP WAN connection DHCP client WAN connection PPPoE WAN connection |
| VOIP | G.711A/μ, G.729, and G.722 encoding/decoding T.30/T.38/G.711 fax mode |
CATV | Wavelength: 1100~1600nm Input optical power: -15dBm~0dBm RF frequency: 47MHz~1000M Hz RF output level: 80dBuV RF output return loss: >14dB RF impedance: 75ohms |
Management | Standard OMCI (G.984.4) Web GUI (HTTP/HTTPS) Firmware upgrade via FTP/TFTP/HTTP Telnet, Web, SSH CLI command via telnet/console Configuration backup/restore TR069 |
