Product Overview
Description
6 Motors 7800mAh Six AI-9 AI9 Signal Fire Optic Fusion Splicing Machine DVP740 Optical Fiber Fusion Splicer Machine

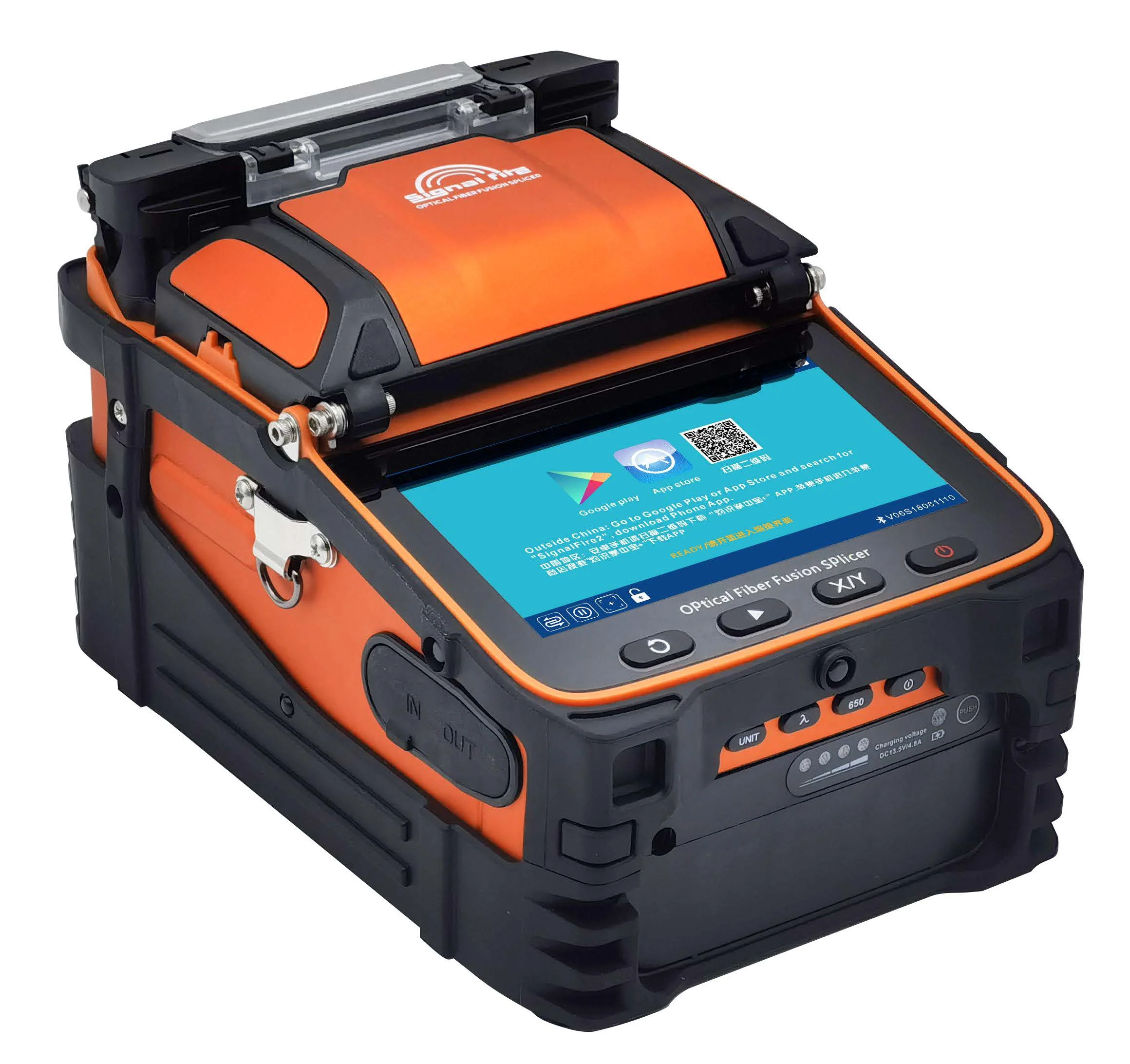

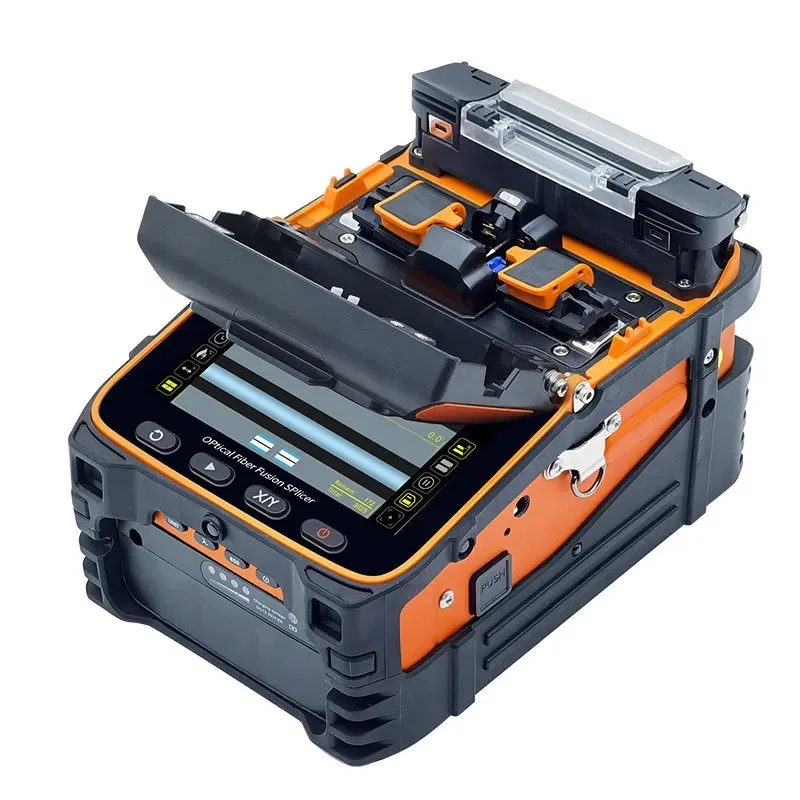

Product show
Signal Fire AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects.
Products Description

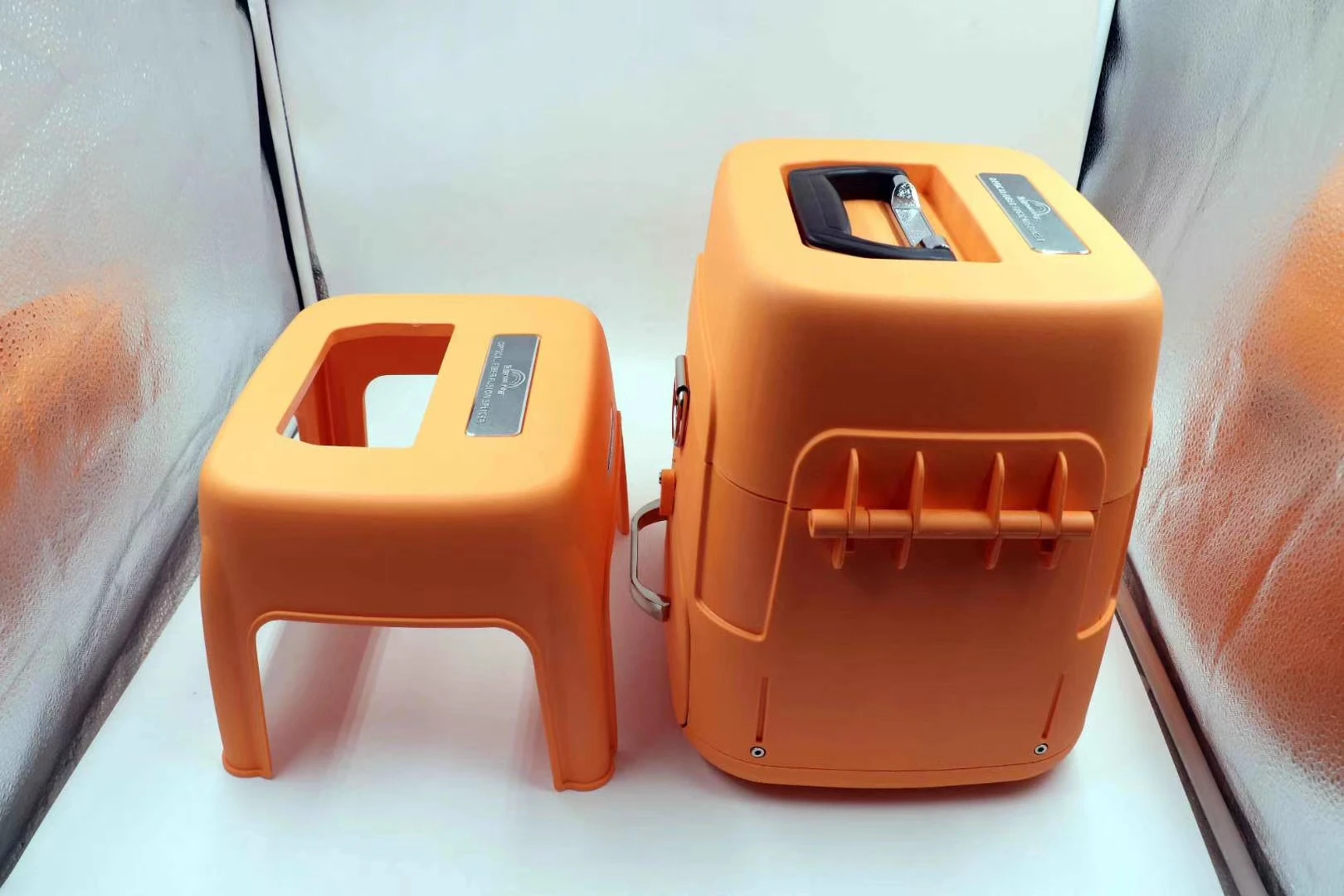

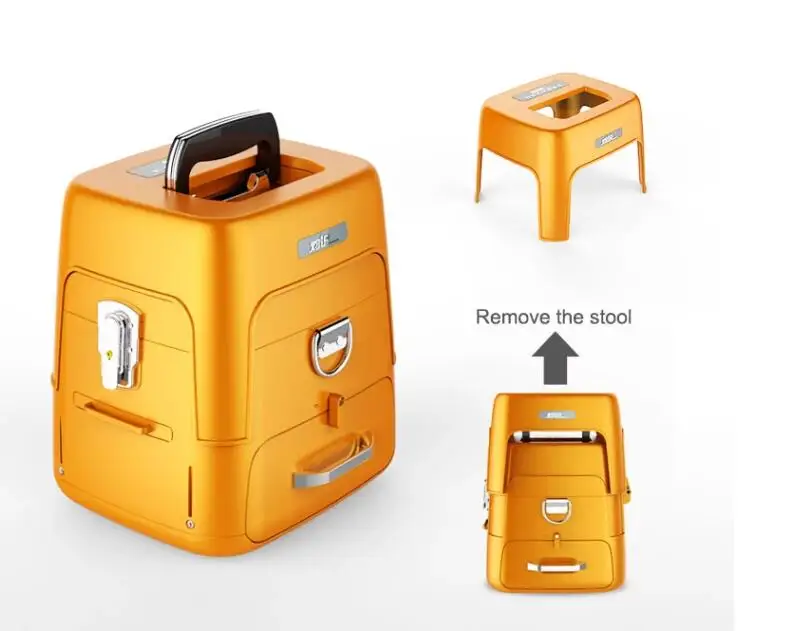

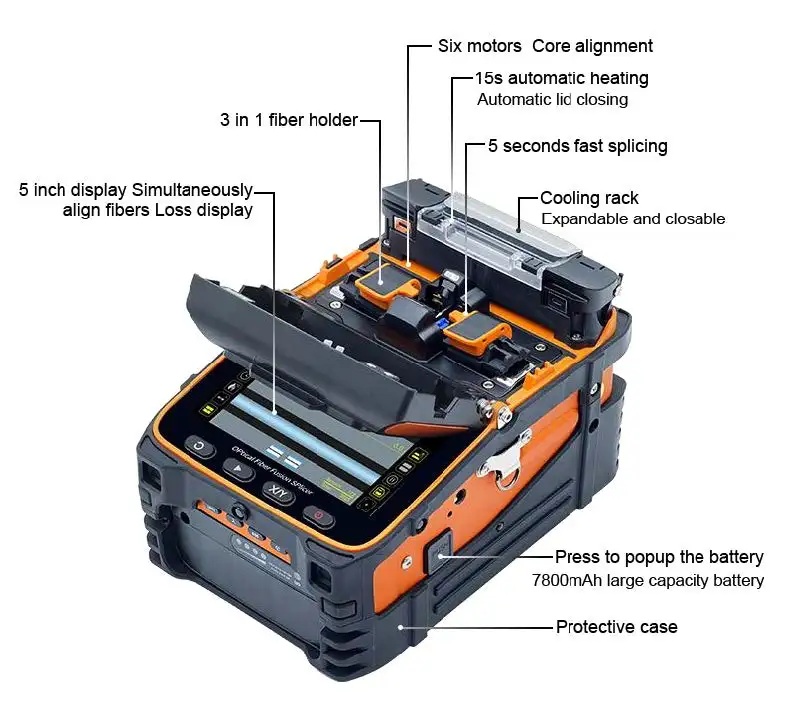

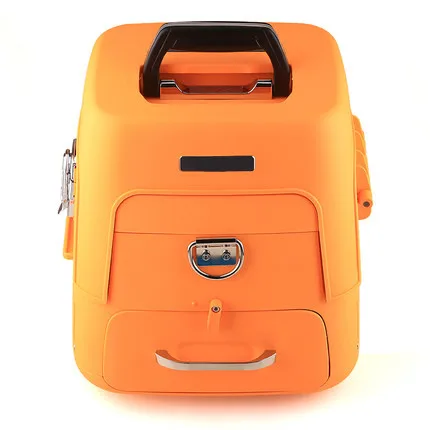

The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
Specifications
6 Motors 7800mAh Six AI-9 Signal Fire Optical Fiber Fusion Splicer SOC | ||||||
Fiber Alignment | auto focus and six motors core alignment | Fiber Type | M(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655) | |||
Fiber Diameter | Cladding Diameter: 80-150μm Coating Diameter: 100-1000μm | The Length Of Cleavage | Coating less than 250μm: 8-16mm Coating less than 250-1000μm:16mm | |||
Welding Time | 5S | Heating Time | 15S | |||
Welding Data Storage | Synchronize to the phone, the server to cloud storage unlimited | Weld Loss | 0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS) | |||
Screen | 5 inch TFT color display | Fiber Magnification | 300 for X or Y view, 150 for X or Y view | |||
Electrode Life | 3000times.( But have spare electrode in package) | Power Source | Input AC100-240V 50 / 60HZ | |||
Continuous splicing and heating | About 260 times | Battery Capacity | 7800mAh, charging time ≤ 3.5 hours | |||
Lanaguage Version | 10 Languages To Switch Freely (Chinese;English;French;Portuguese; Polish;Russian;Spanish;Thai;Arabic;Italian) | Additional Function | Built-in Power meter&VFL | |||
Return Loss | Better than 60DB | Better than 60DB | 60mm;50mm;40mm;25mm | |||
Control Technology | Real-time control and calibration of fusion ARC | Tension Test | Standard 2N | |||

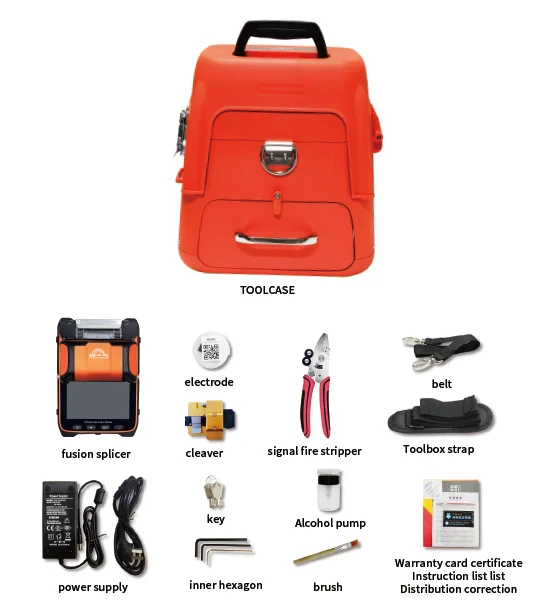

Product packaging
