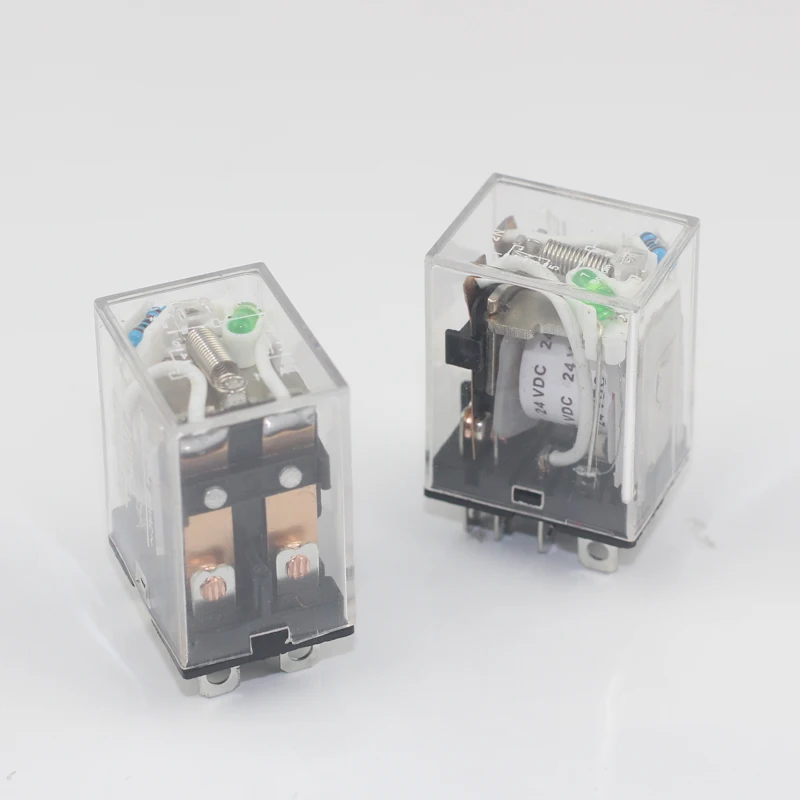

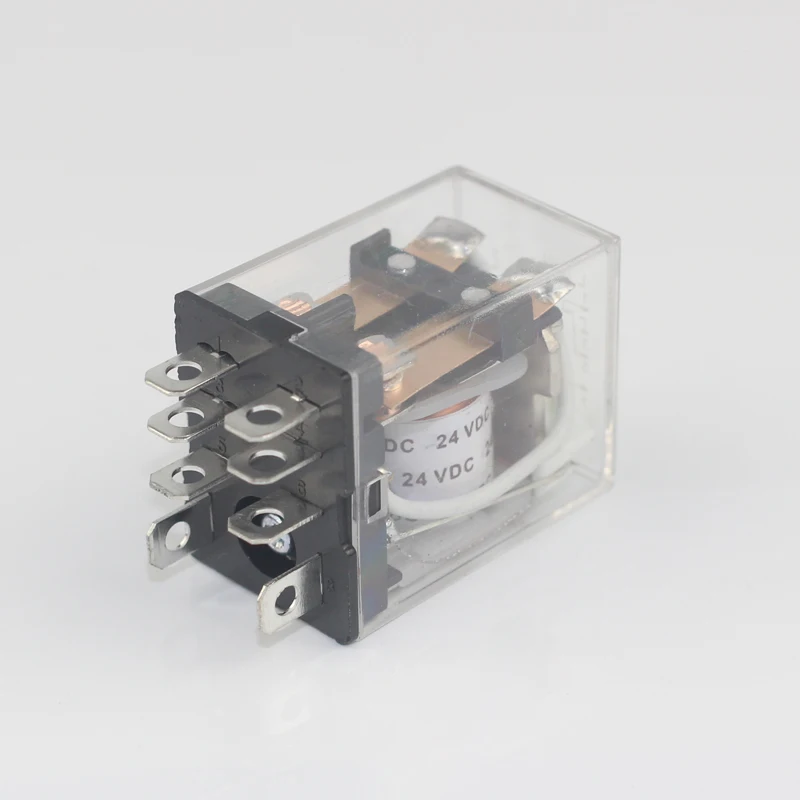

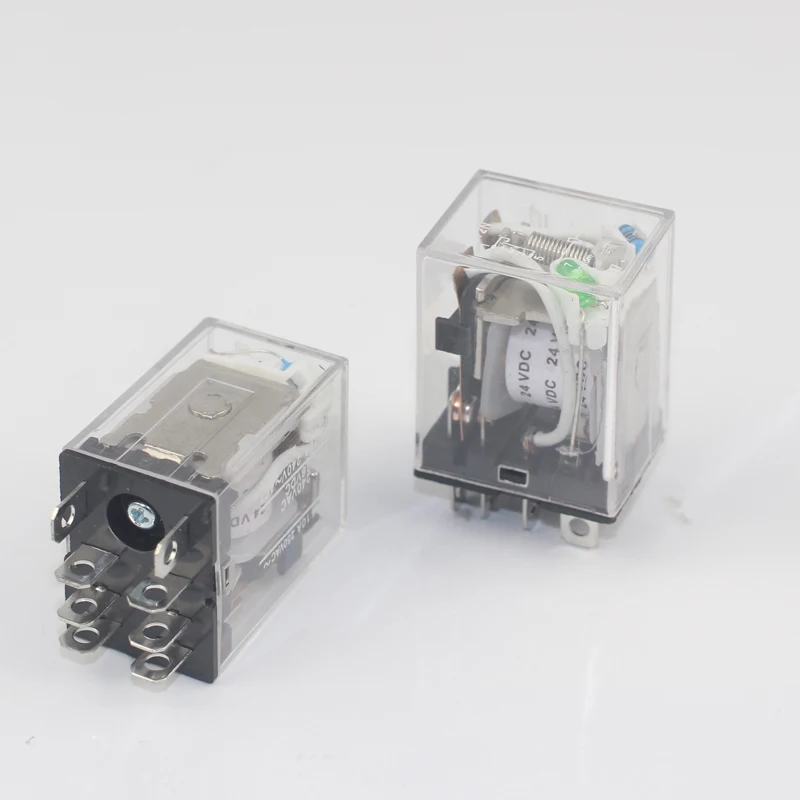

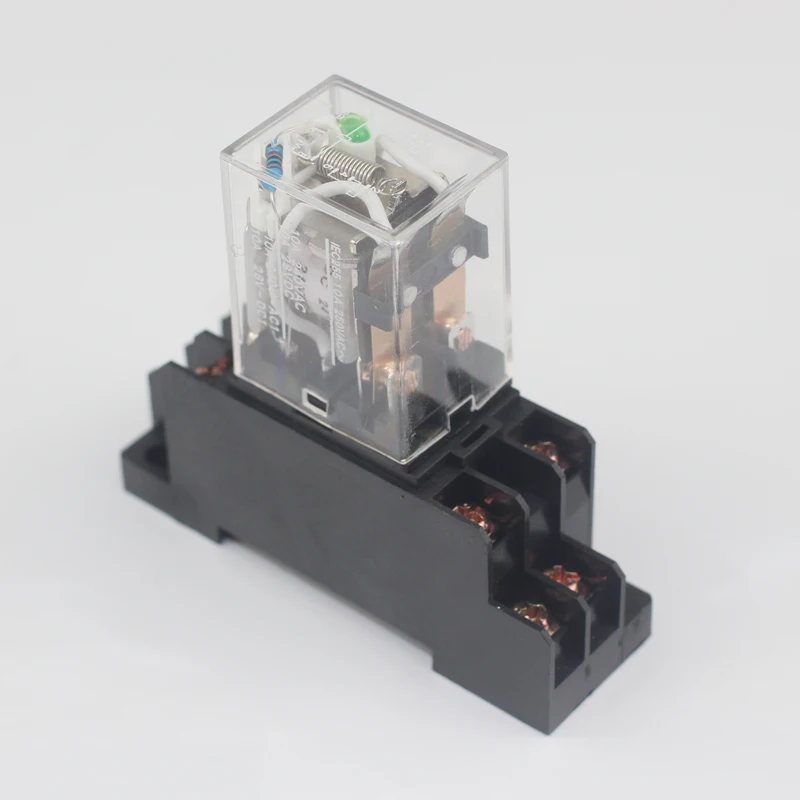

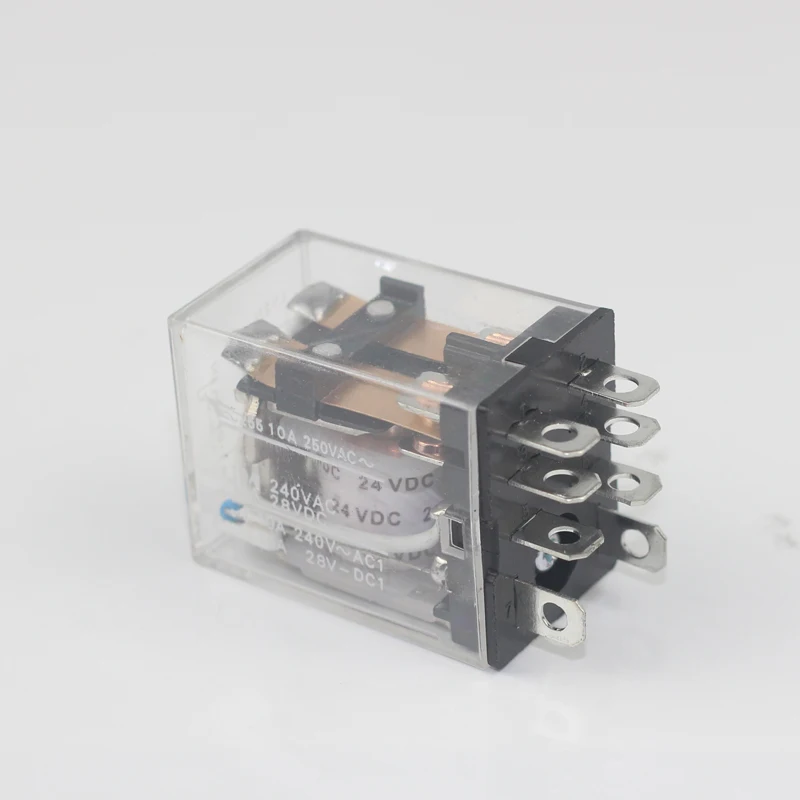

Jqx 13f intermediate relay LY2N J electromagnetic relay AC AC220/DC24/12V

Part NO.

JQX-13F (LY2 LY3 LY4)

Dimension

28*21*36

28*21*36

28*31*36

28*41*36

Contact Feature

Form

1A,1B,1C

2A,2B,2C

3A,3B,3C

4A,4B,4C

Rated load

15A/240VAC 28VDC

10A/240VAC 28VDC

Contact resistance

≤100mΩ

Material

Silver Alloy

Electrical life

≥1*105

Mechanical life

≥1*107

Operate voltage (23℃)

DC:≤75%*Rated voltage

AC:≤80%*Rated voltage

Release voltage (23℃)

DC:≥10%*Rated voltage

AC:≥30%*Rated voltage

Maximum voltage (23℃)

110%*Rated voltage

Normal coil voltage

DC

6-220V

AC

6-380V

Normal coil power

DC

0.9W

0.9W

1.4W

1.5W

AC

1.2VA

1.2VA

2.0VA

2.5VA

Pick-up time

≤20ms

Release time

≤20ms

Dielectric strength

Between Same-pole contacts

1000VAC/1min(leakage current 1mA)

Between Opposite-pole contacts

1500VAC/1min(leakage current 1mA)

Between contacts and coil

1500VAC/1min(leakage current 1mA)

Insulation resistance

≥100mΩ(500VDC)

Ambient temperature

-25℃ ~55℃

Ambient humidity

45%-75%RH

Atmospheric pressure

86-106KPa

Shock resistance

10G (sinusoidal half-wave pulse: 11ms)

Vibration resistance

10-55Hz (double amplitude: 1.0mm)

Installation

PCB,SOCKET,SCREW
