Lithium Battery 72V Charger Electric Motorcycle Battery Charger Battery Onboard Charger
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.Chengdu Ltd.
Share on (1600990583928):
Product Overview
Description

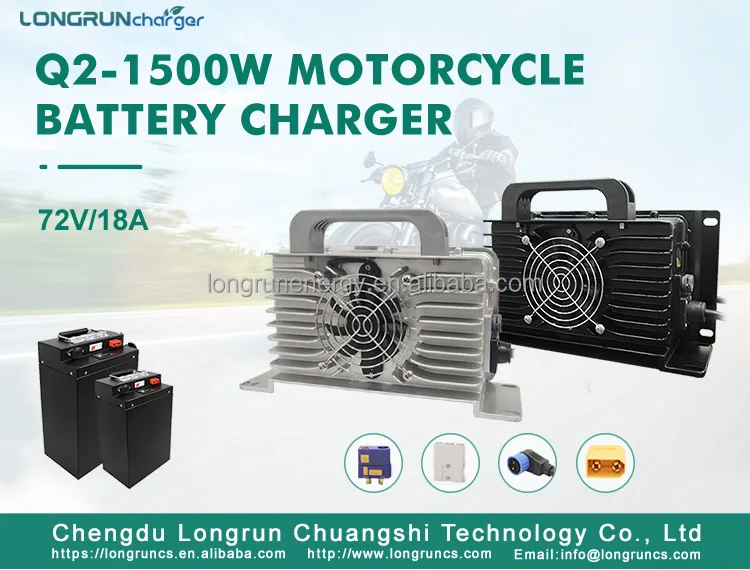

1.5kw Onboard Charger 24V 48V 72V Motorcycle Battery Charger Lithium Battery Charger
Product Paramenters
Q2-1.5KW Input ≤11a CAN/12v3a Optional | ||||||||||
Rated Voltage(v) | Battery Type(Strings) | Max Charging Voltage(v) | Max Output Current(a) | Others | ||||||
12 | 4S LiFePO4 | 15 | 30 | 30 | Size:282x168x90mm Net Weight:3.8kg | |||||
24 | 8S LiFePO4 | 30 | 30 | 30 | ||||||
36 | 12S LiFePO4 | 45 | 25 | 25 | ||||||
48 | 15S/16S LiFePO4 | 60 | 25 | 20 | ||||||
60 | 18S Li-ion | 75 | 20 | 15 | ||||||
72 | 20S Li-ion | 90 | 18 | 12 | ||||||
80 | 22S/23S Li-ion | 100 | 15 | |||||||
96 | 30S LiFePO4 | 120 | 10 | |||||||
102 | 32S LiFePO4 | 127 | 7 | |||||||
Technical Parameters | ||||||
Input | Output | |||||
Input Voltage | 90-264v(220v/110v) | Max Output Current（a） | 30a | |||
Input Frequency | 40-70HZ | Charge Code | CC-CV | |||
Power Factor | ≥0.98 | Efficiency | ≥93 | |||

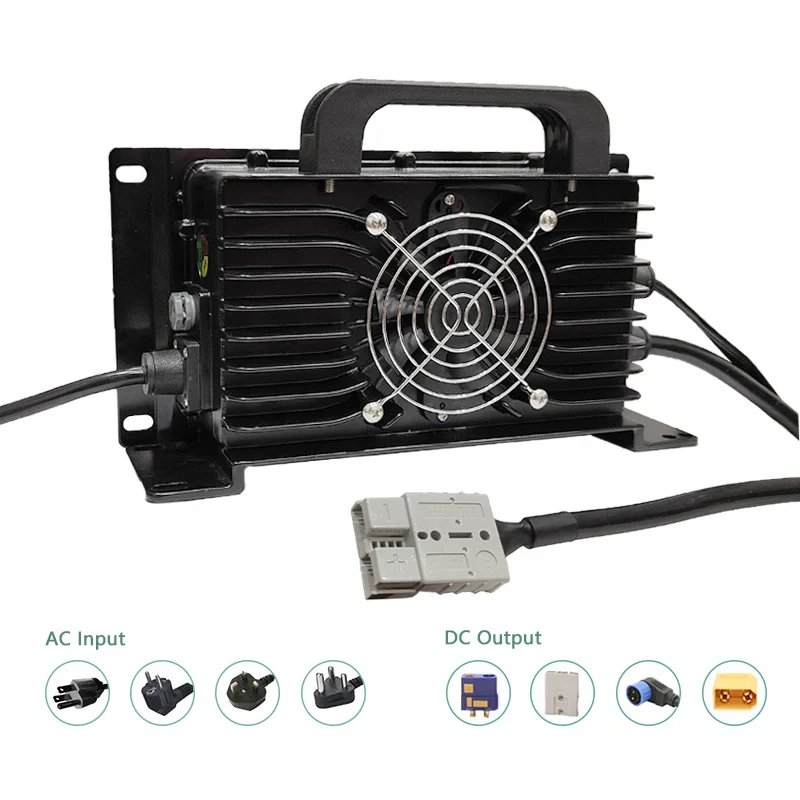

Plug | Schuko plug(EU), UK,US,India plug,ZA plug,BR plug, AU plug..... | Connector | Andersen 50, M8/10,C13/14,T60/90...... | |||
Indicator | Red:Charging Green:Fully Charge | |||||
Features | IP 66 Waterproof/shockproof Onboard/Off board Fast Charging | |||||
Application | For Battery: 24V/36V/48V LiFePO4 Charger, 60V/72V/84V Li-ion Charger,20S NMC Charger, 48V/60V/72V Lead acid Charger,LTO Charger For Electric Vehicle: 12v30a RV Charger24v30a AGV Charger 48v25a Golf Cart Charger 48v20a Golf Cart Charger 72v18a Motorcycle Charger 84v Motorcycle Charger | |||||
Remarks: 1. As a manufacture, We can customize the charging profile according to your battery, and customize the package, logo as per your requests. 2. If you choose DDP term, we will help you to save more shipping cost. 3. Fast delivery in small quantities. 4. CE/FCC/ROHS professional certification. 5. Warranty: 15 month. | ||||||
Details Images
Packaging & Delivery
Company Profile
Production Process
Certifications
FAQ
Q1: How's the lead time and services?
a. Samples: Fast dispatch in 2 days from our factory after payment.
b. Mass order: Usually fast dispatch in 15 days from our factory after payment, will be depends on your order quantity.
c. 8hrs response & 48hrs solution.
Q2: What's the payment term?
TT, L/C, West Union, Paypal etc.
Q3: Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
Q4: How's your quality control system?
100% PCM test by IQC. 100% Capacity test by OQC.
Q5: What is your warranty?
Growatt & TBB inverter: 2 years.
Deye inverter & nRuiT battery: 5 years.
It depends on what product you buy.
Q6: Why choose us?
a. Company Members: At present, the company has 118 technicians, sales personnel and management personnel in
total. We also cooperate with the research team of universities, with 14 members.
b. Company Equipment: We have a variety of professional equipment, including cell detection equipment, battery matc- hing equipment, lithium battery spot welder, fifinished product integrator.
c. Corporate Performance: With the increasing global demand for energy storage batteries, our company's
performance has also experienced three consecutive years of growth. From 2019 to 2022, the company's annual growth value of performance was 26%, 44%, 82%.
d. Operating Market: Our company's main market is in Europe, Germany and France have the largest
demand for our products, and the United States also has a large demand for our products. In the past two years, we have been devel- oping the Southeast Asian market and want to sellour products to all parts of the world.
Q7: How do I know whether you've shipped my order or not?
Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the pack-ing
status, photo you the done order and let you know the forwarder picked it up.
b. Mass order: Usually fast dispatch in 15 days from our factory after payment, will be depends on your order quantity.
c. 8hrs response & 48hrs solution.
Q2: What's the payment term?
TT, L/C, West Union, Paypal etc.
Q3: Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
Q4: How's your quality control system?
100% PCM test by IQC. 100% Capacity test by OQC.
Q5: What is your warranty?
Growatt & TBB inverter: 2 years.
Deye inverter & nRuiT battery: 5 years.
It depends on what product you buy.
Q6: Why choose us?
a. Company Members: At present, the company has 118 technicians, sales personnel and management personnel in
total. We also cooperate with the research team of universities, with 14 members.
b. Company Equipment: We have a variety of professional equipment, including cell detection equipment, battery matc- hing equipment, lithium battery spot welder, fifinished product integrator.
c. Corporate Performance: With the increasing global demand for energy storage batteries, our company's
performance has also experienced three consecutive years of growth. From 2019 to 2022, the company's annual growth value of performance was 26%, 44%, 82%.
d. Operating Market: Our company's main market is in Europe, Germany and France have the largest
demand for our products, and the United States also has a large demand for our products. In the past two years, we have been devel- oping the Southeast Asian market and want to sellour products to all parts of the world.
Q7: How do I know whether you've shipped my order or not?
Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the pack-ing
status, photo you the done order and let you know the forwarder picked it up.
