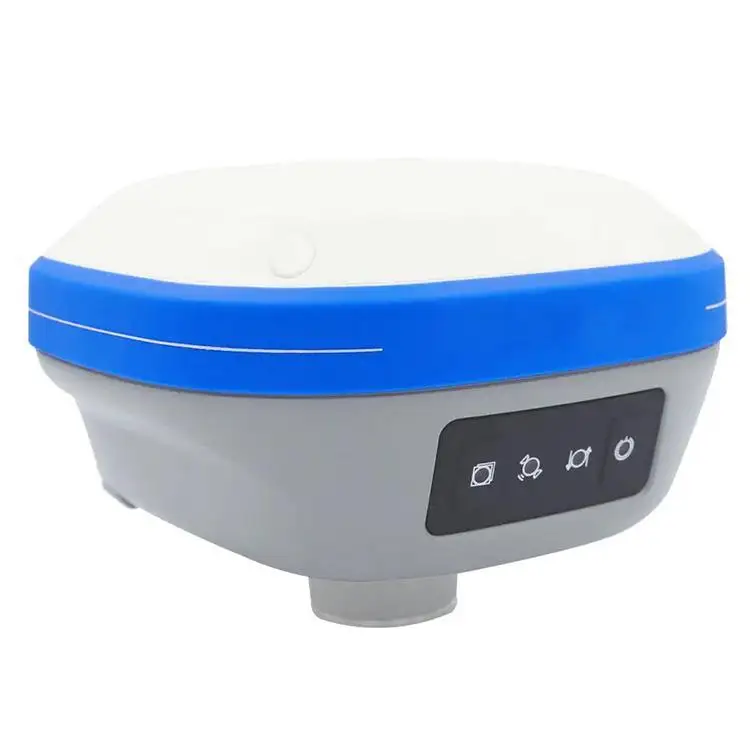

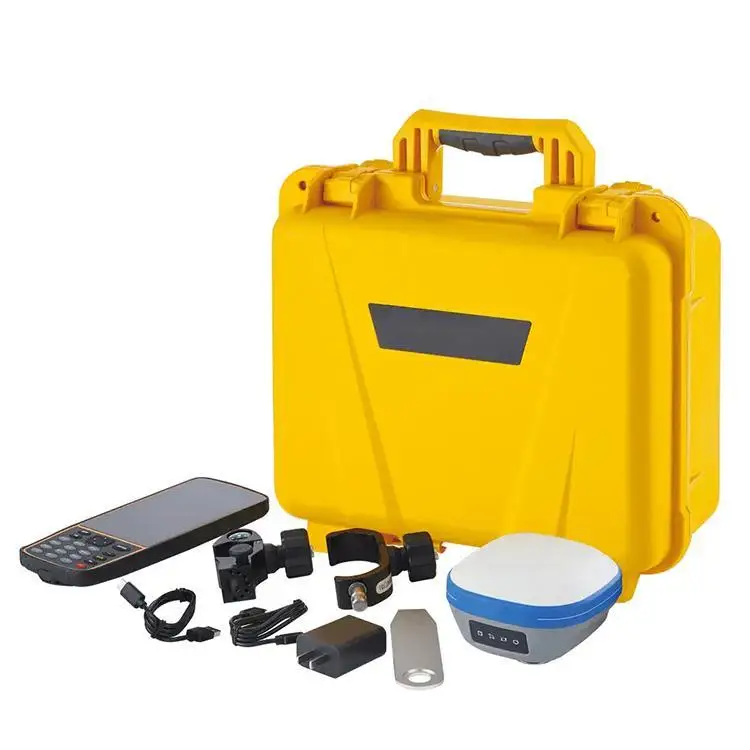

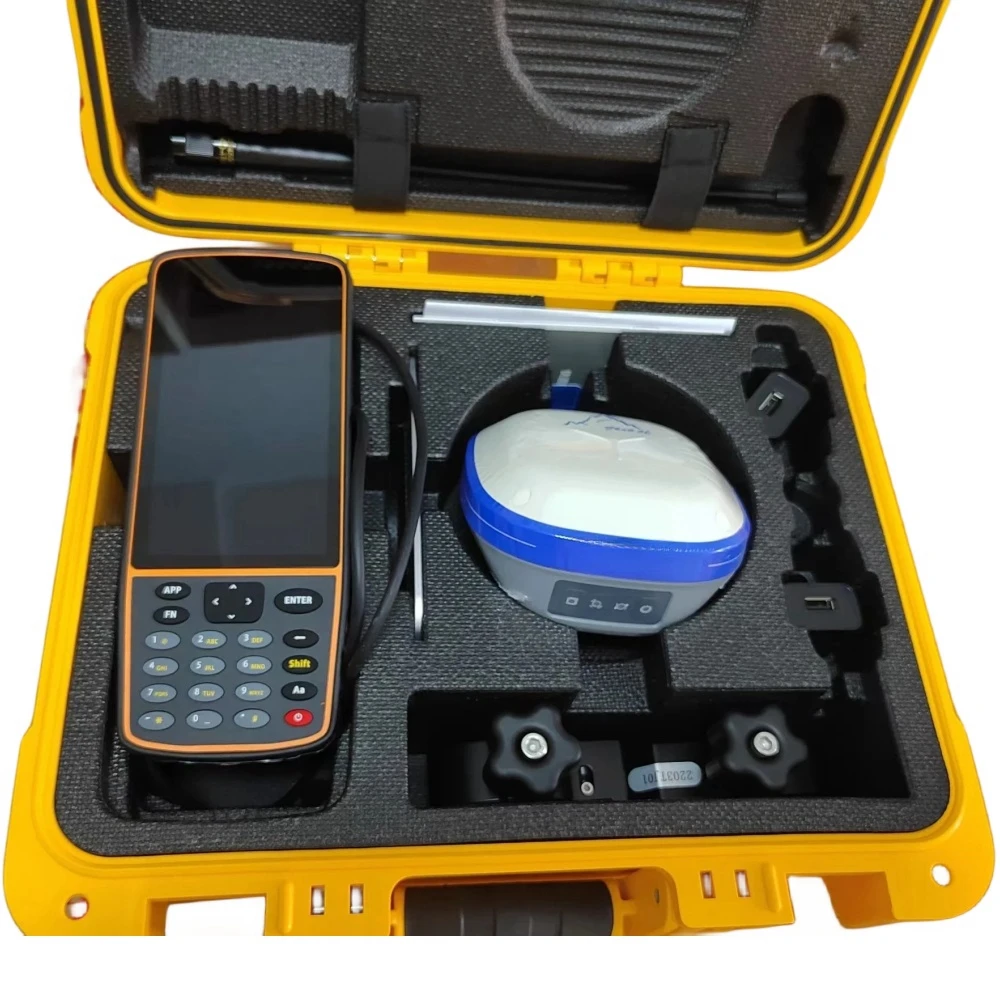

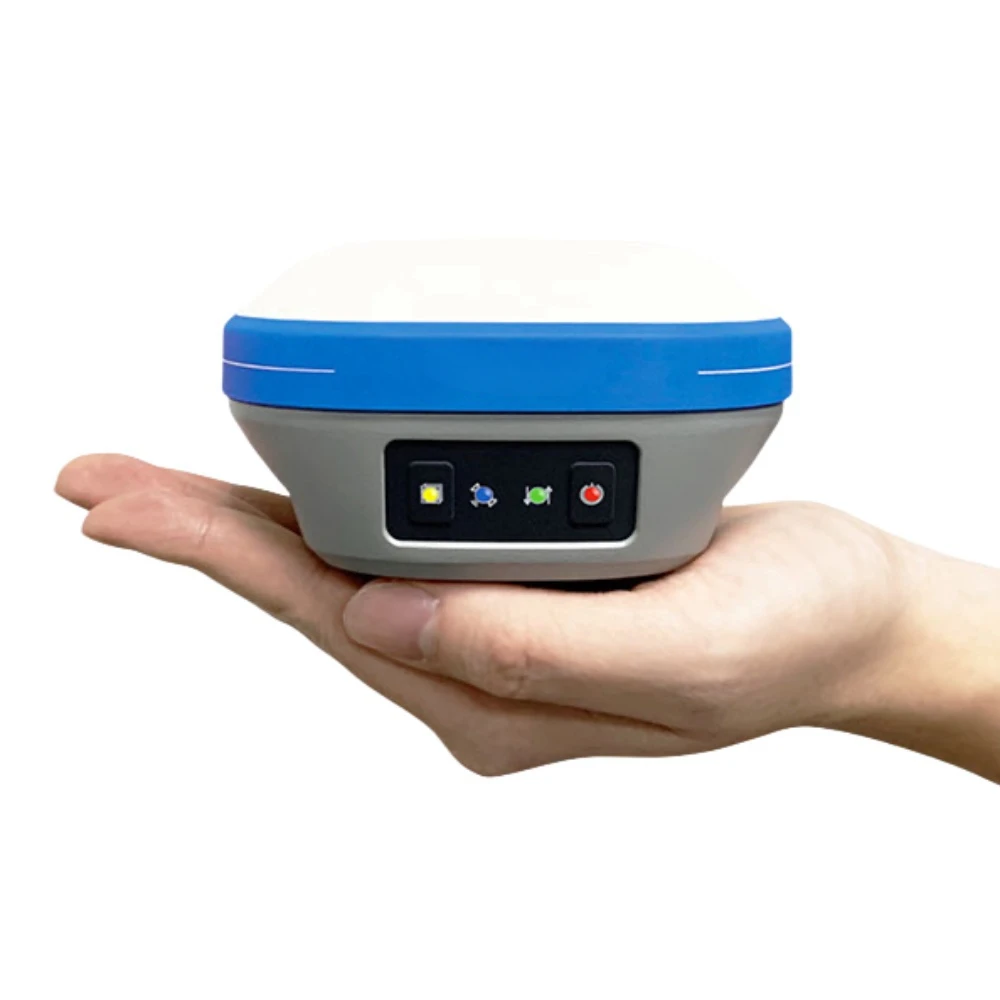

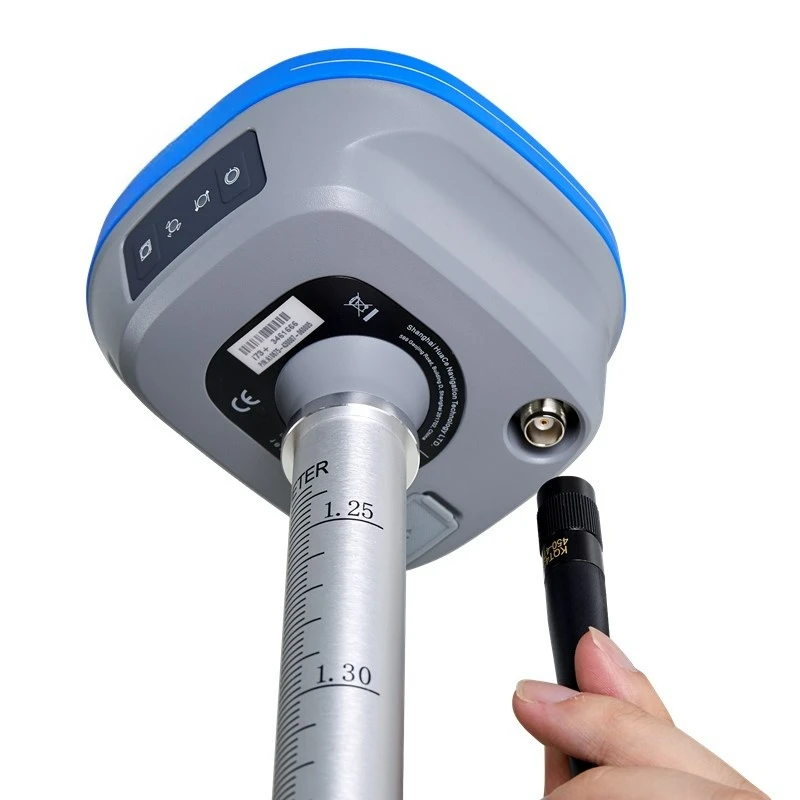

High Precision Inertial Navigation Rtk Measurement System Chcnav I73 Rtk Gnss Receiver Base And Rover Rtk Gnss
- Category: >>>
- Supplier: Shanghai Jice Instrument Co. Ltd.
Share on (1600990597692):
Product Overview
Description
Products Description
Specification
Receiver characteristics | satellite tracking：GPS+BDS+Glonass+Galileo+QZSS, supports the third generation of Beidou, supports five-star 16-band |
number of channels：624channels | |
operating system：LINUX system | |
Initialization time：<5s (typ.) | |
Initialization reliability：>99.99% | |
Receiver appearance | button：1 dynamic/static switch key, 1 power key |
Indicator light：1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light | |
Nominal accuracy | Plane accuracy: ±(2.5+ 0.5×10-6×D) mm |
Elevation accuracy: ±(5+0.5×10-6×D) mm | |
Plane accuracy: ±(8 + 1×10-6×D) mm | |
Elevation accuracy: ±(15+ 1×10-6×D) mm | |
Electrification parameters | Battery：Built-in 6800mAh lithium battery, supports 15 hours battery life of mobile station |
External power supply：Support USB port external power supply | |
Physical properties | Size (L*W*H)：119mm*119mm*85mm |
weight：0.73kg | |
Material：Magnesium alloy AZ91D body | |
Operating temperature：-45℃~+75℃ | |
storage temperature：-55℃~+85℃ | |
Waterproof and dustproof：IP68 level | |
Shock vibration：IK08 level | |
Anti-drop：Resistance to free fall of 2 meters | |
Data output | Output format：NMEA 0183, binary code |
output method：BT/Wi-Fi/Radio | |
Static storage | storage format：Can directly record HCN, HRC, RINEX |
storage：Standard 8GB built-in storage | |
Download method：Universal USB data download; HTTP download | |
Data communication | I/O interface：1 USB-TypeC interface, support charging, power supply, data download 1 external UHF antenna interface |
Network module：Handbook supports 4G full Netcom | |
Radio station：Built-in high-frequency 450-470MHz single-receiving radio | |
Blue tooth：BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems | |
data transmission：Wi-Fi data link | |
Wi-Fi：802.11 b/g/n | |
NFC：Support NFC flash connection | |
Receiver function | Super double collection：Support radio + network two-way data differential at the same time, provide comprehensive data services |
One-click matching：Support handbook software to match base station data with one key | |
Handbook parameters | model：HCE600 Android Measuring Handbook |
The internet：4G full Netcom, built-in eSIM free of three years of surveying and mapping traffic | |
operating system：Android 10 | |
CPU：Eight-core 2.0Ghz processor | |
LCD screen：5.5'' HD display | |
Battery：14 hours of battery life | |
Three defenses：IP68 |
