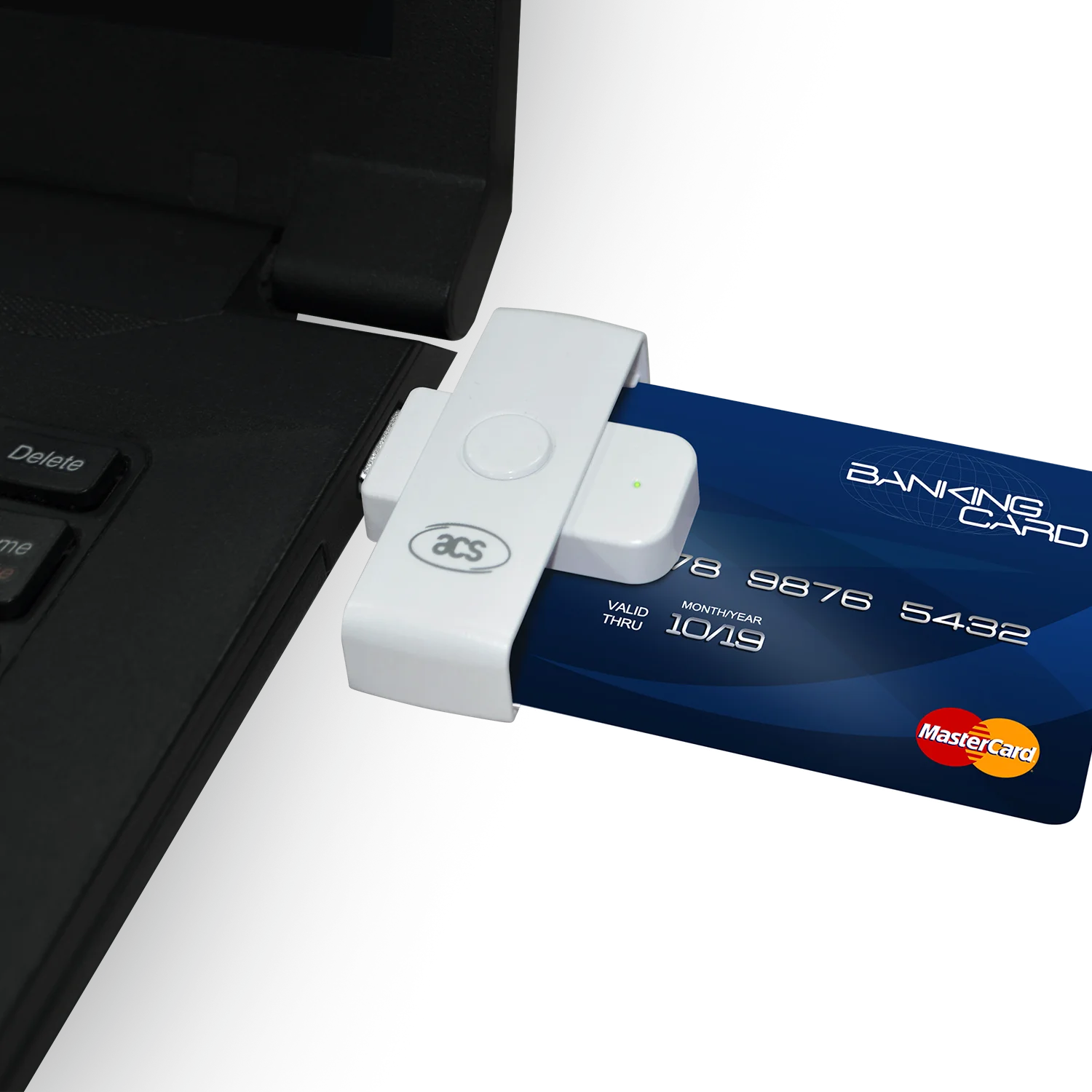

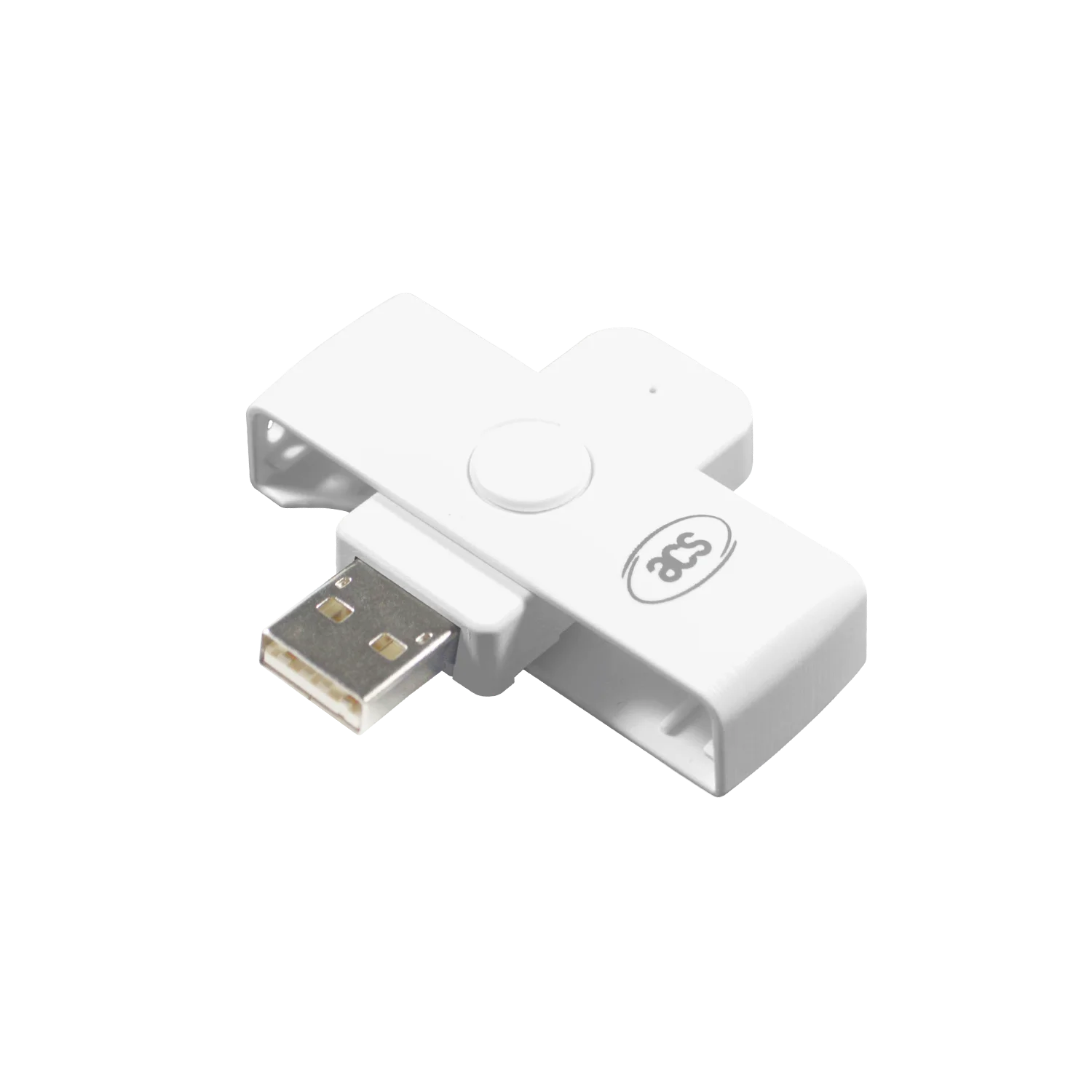

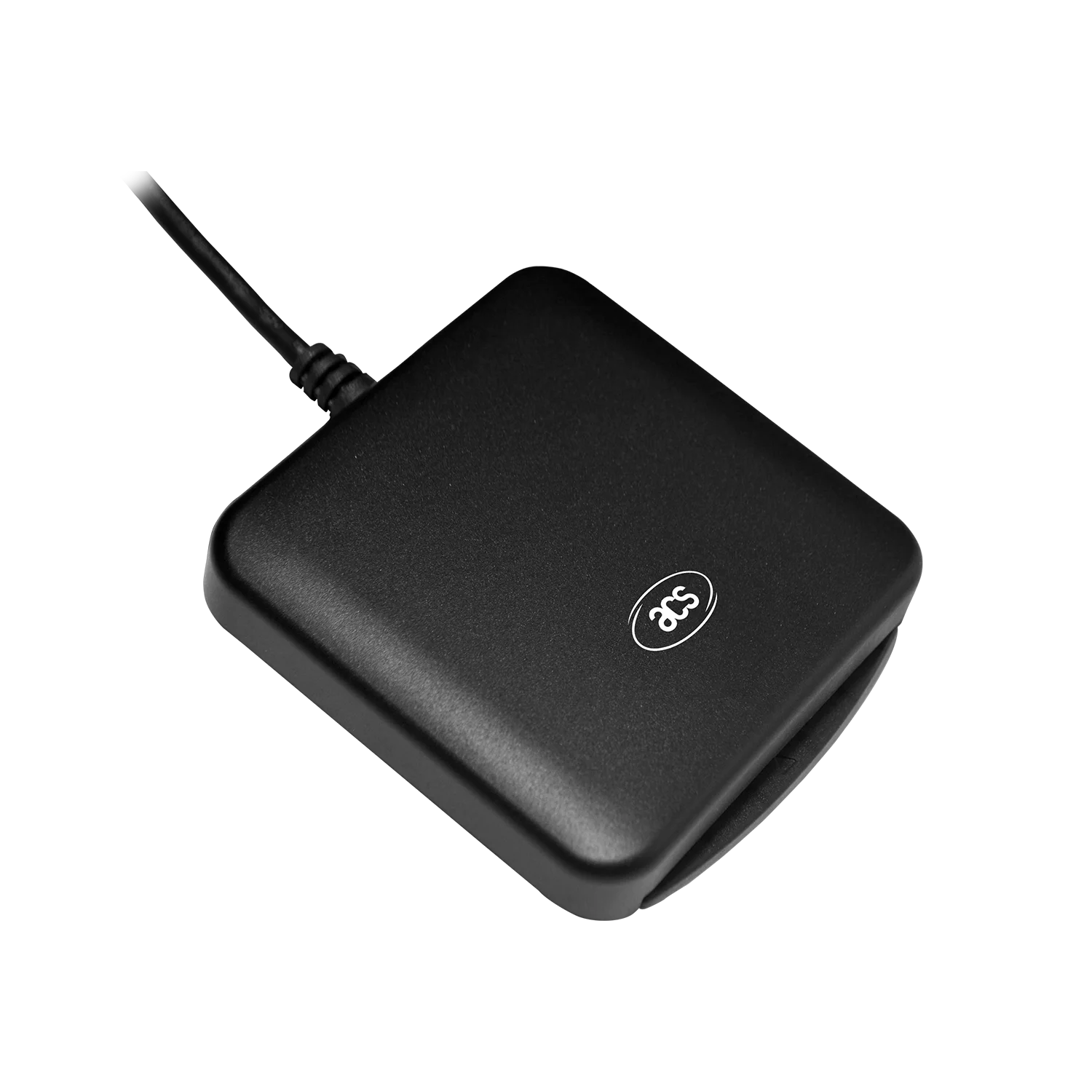

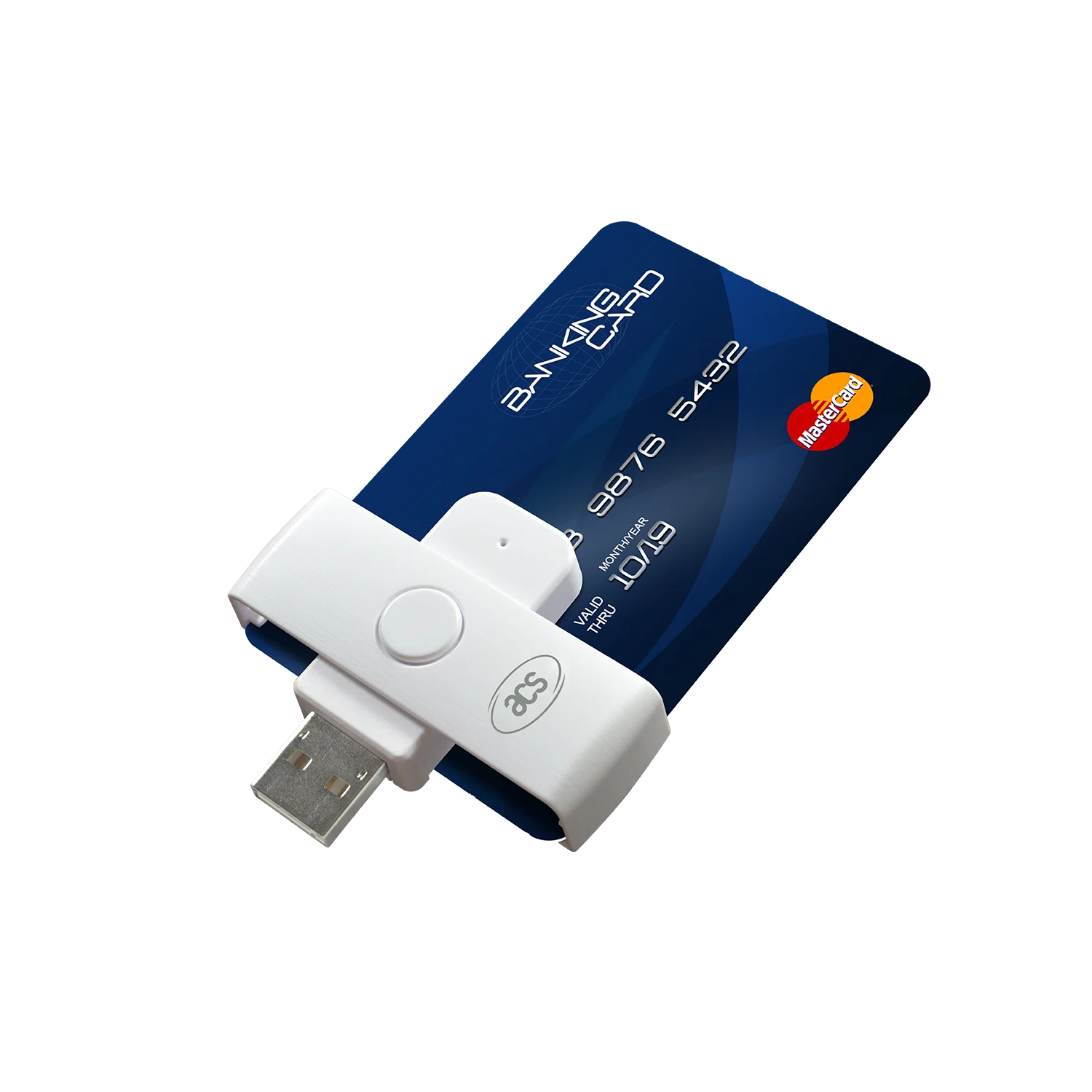

PC/SC CCID standards ACR39U-UF Smart Contact Card Reader (USB Type-C)






Product Description


ACR39U-UF Smart Card Reader is one of ACR latest products addressing the evolution of USB standards. This palm-sized reader features a USB Type C connector. The USB Type C Connector features reversible plug orientation and cable direction to fit mobile to device product designs for future smart card applications.


ACR39U-UF uses the same core as the ACR39U Series. It supports ISO 7816 smart cards and various memory cards, as well as microprocessor cards with T=0, T=1 protocols.


Unlike an older USB cable, it doesn’t matter which side is up with a Type-C plug; you can insert it either way. It complies with PC/SC and CCID standards, keeping the device compatible with current applications under USB specifications. ACR39U Smart Card Reader can easily be integrated to a computer-based and mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Solaris, Linux®, and Mac OS®. In addition, ACR39U-UF may be used on mobile devices running on Android™ versions 3.1 and later.


ACR39U with USB Type C is another breakthrough for ACR readers.





 Features:






  •      USB Type C Connector

  •      Plug and Play – CCID support brings utmost mobility

  •      Smart Card Reader:

  •      Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

  •      Supports CAC

  •      Supports SIPRNET Card

  •      Supports J-LIS Card

  •      Supports microprocessor cards with T=0 or T=1 protocol

  •      Supports memory cards

  •      Supports PPS (Protocol and Parameters Selection)

  •      Features Short-Circuit Protection

  •      Application Programming Interface:

  •      Supports PC/SC

  •      Supports CT-API CT-API (through wrapper on top of PC/SC)

  •      Supports Android™ 3.1 and later

  •      USB Type C Connector

  •      Plug and Play – CCID support brings utmost mobility

  •      Smart Card Reader:

  •      Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

  •      Supports CAC

  •      Supports SIPRNET Card

  •      Supports J-LIS Card

  •      Supports microprocessor cards with T=0 or T=1 protocol

  •     Supports memory cards

  •     Supports PPS (Protocol and Parameters Selection)

  •     Features Short-Circuit Protection

  •     Application Programming Interface:

  •     Supports PC/SC

  •     Supports CT-API CT-API (through wrapper on top of PC/SC)

  •     Supports Android™ 3.1 and later















Physical Characteristics











Dimensions (mm)72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H)
Weight (g)56.0 g



USB Interface

























ProtocolUSB CCID
Connector TypeStandard Type C
Power SourceFrom USB port
SpeedUSB Full Speed (12 Mbps)
Cable Length1.5 m, Fixed





































Contact Smart Card Interface
Number of Slots1 Full-sized Card Slot
StandardISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
ProtocolT=0; T=1; Memory Card Support
OthersCAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Certifications/ComplianceEN 60950/IEC 60950
ISO 7816
USB Full Speed
PC/SC
CCID
EMV Level 1 (Contact)
J-LIS (Japan)
PBOC
TAA (US)
VCCI (Japan)
Microsoft® WHQL
CE
FCC
WEEE
RoHS 2
REACH
Device Driver Operating System Support
Device Driver Operating System SupportWindows®
Linux®
MAC OS®
Solaris
Android™




































Contact Smart Card Interface
Number of Slots1 Full-sized Card Slot
StandardISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
ProtocolT=0; T=1; Memory Card Support
OthersCAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Certifications/ComplianceEN 60950/IEC 60950
ISO 7816
USB Full Speed
PC/SC
CCID
EMV Level 1 (Contact)
J-LIS (Japan)
PBOC
TAA (US)
VCCI (Japan)
Microsoft® WHQL
CE
FCC
WEEE
RoHS 2
REACH
Device Driver Operating System Support
Device Driver Operating System SupportWindows®
Linux®
MAC OS®
Solaris
Android™

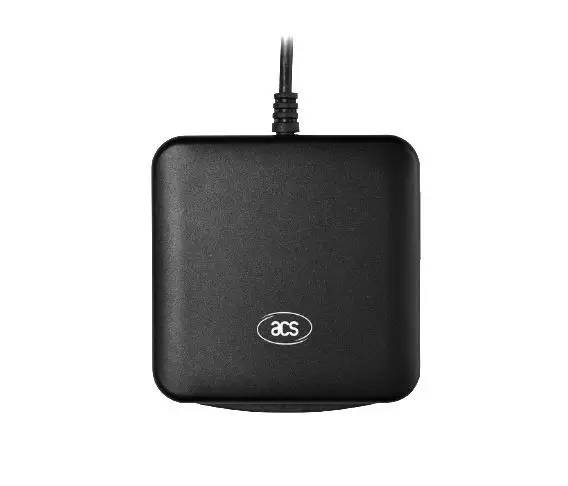

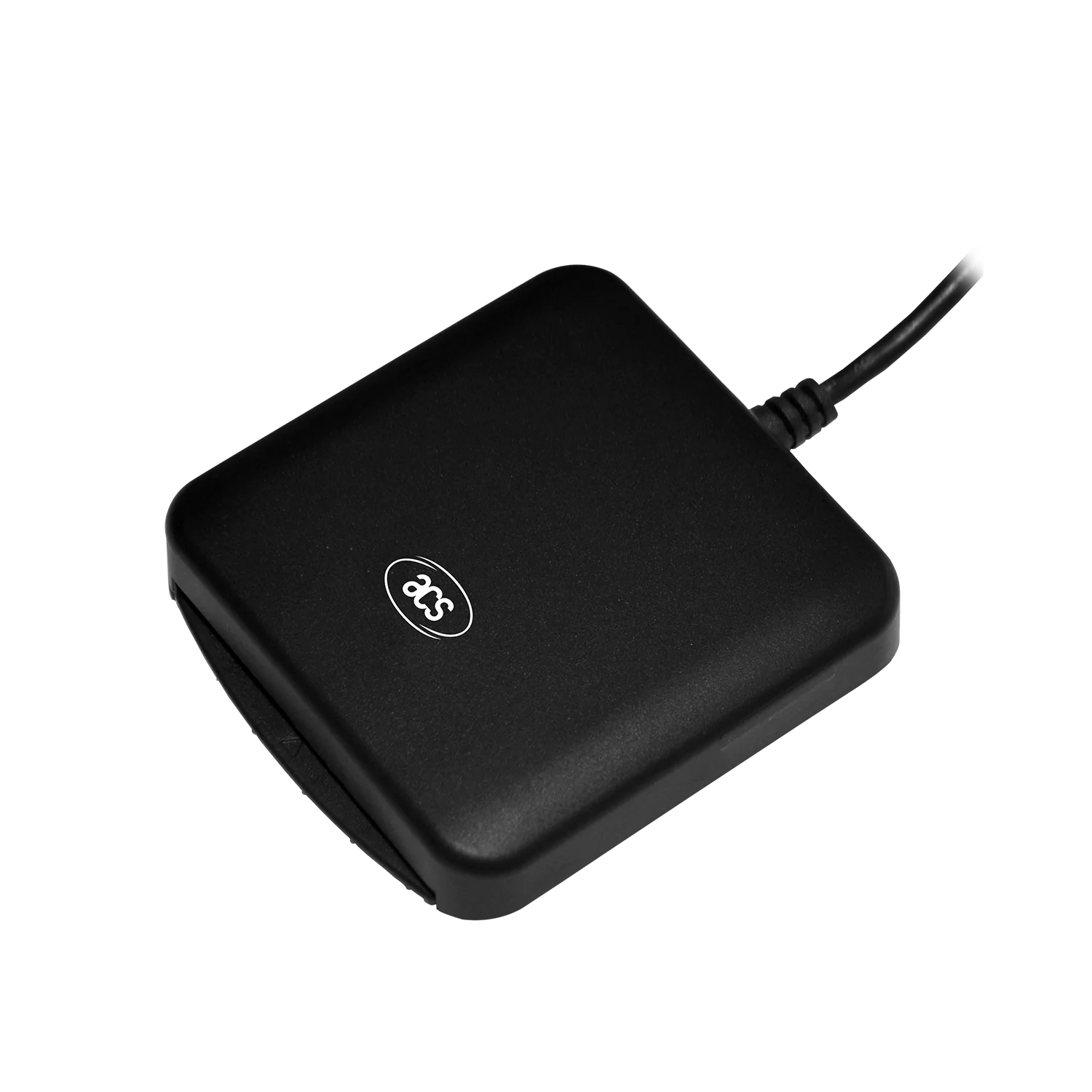

ACR39 (1).jpgACR39 (1).pngACR39 (2).png
