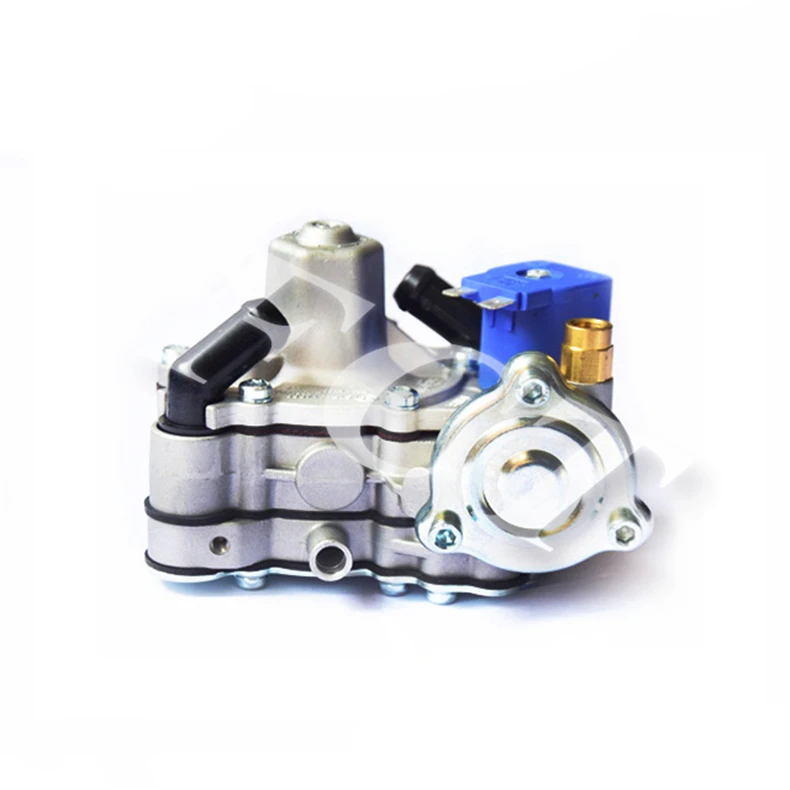

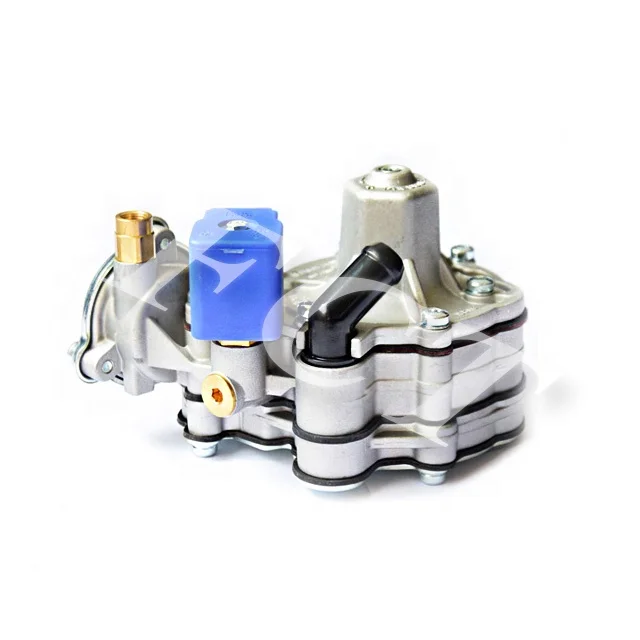

FC-09 lpg autogas FCT Auto engine lpg high pressure reducer 09 speed reducer lpg sistema de gas gnc cng reducer for used car

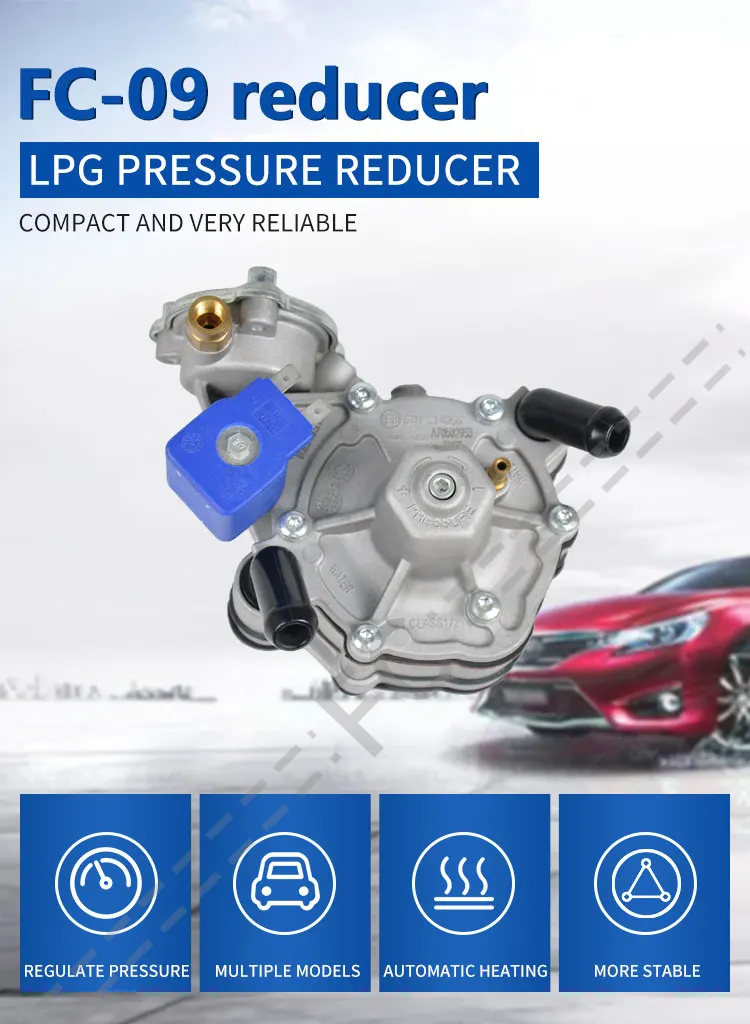

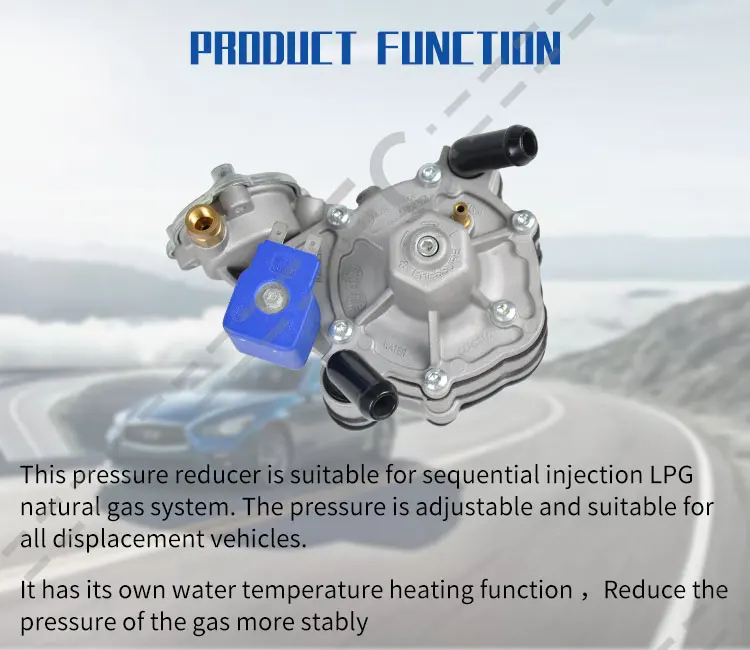

LPG pressure reducer, model FC-09, is an sequential injection reducer, suitable for sequential injection systems. it is equipped with an additional post-heating stage, suitable for medium-sized engines (up to about 140 KW).Compact and reliable.

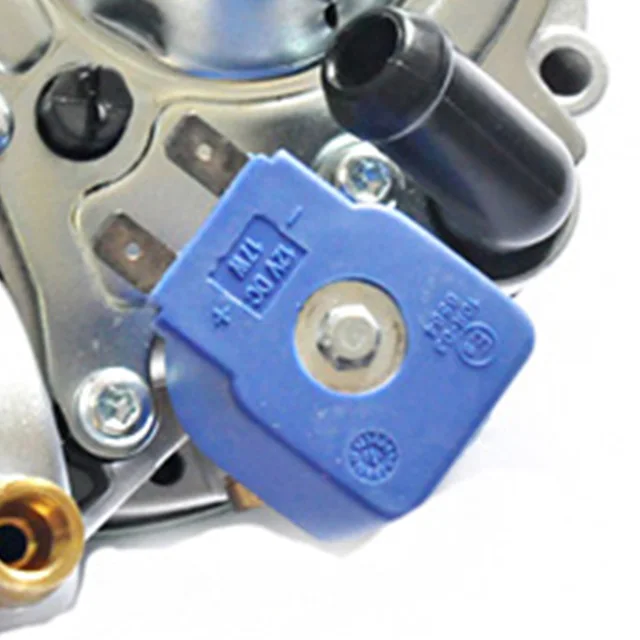

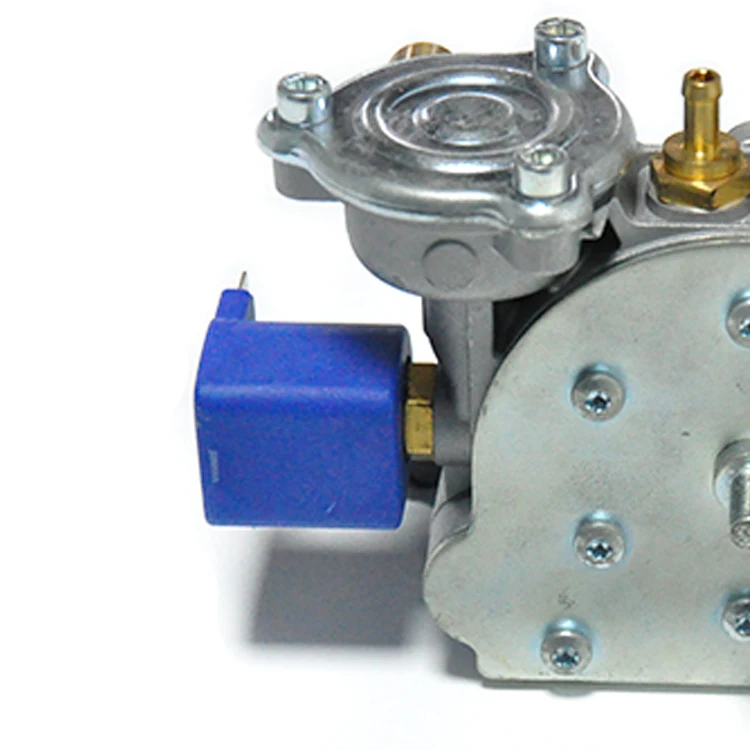

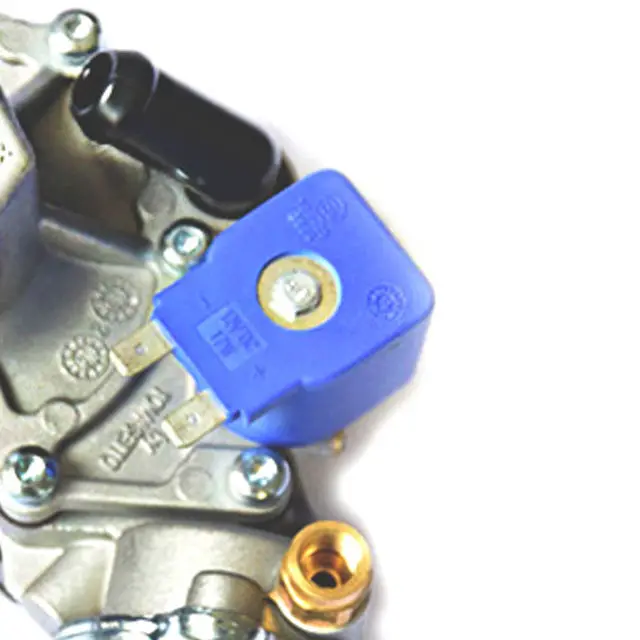

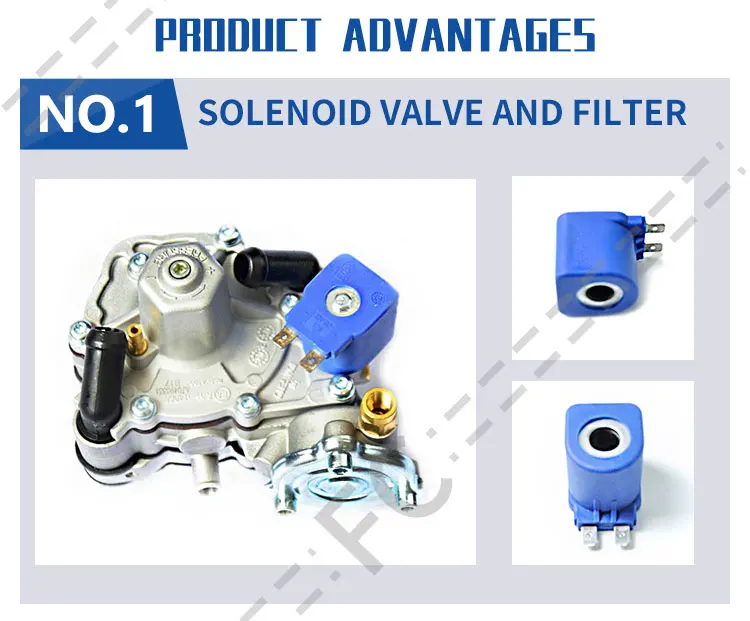

This reducer is equipped with a solenoid valve and an integrated filter unit at its inlet, in order to reduce the overall costs and permit an easier and faster installation.
Outlet pressure is adjustable from 0.09 to 0.18 MPa (pressures calculated with the reducer disconnected from the engine).
This reducer is equipped with a solenoid valve and an integrated filter unit at its inlet, in order to reduce the overall costs and permit an easier and faster installation.
Outlet pressure is adjustable from 0.09 to 0.18 MPa (pressures calculated with the reducer disconnected from the engine).
PRODUCT PARAMETER
Fuel type: | LPG |
Cylinder type: | 4/6 cylinders |

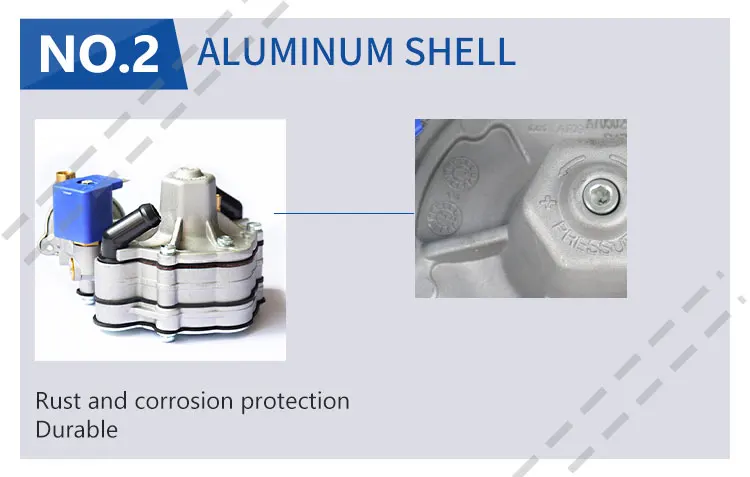

Material: | Aluminium, Copper. |
Max input pressure: | 22000KPa(220Bbar) |
Maximum output pressure: | 110KPa (1.1bar) |
Maximum flow: | More than15Nm3/h |
Horse power: | 180 HP |
Working pressure: | Less than20Mpa (200bar) |
Working voltage: | DC12V |

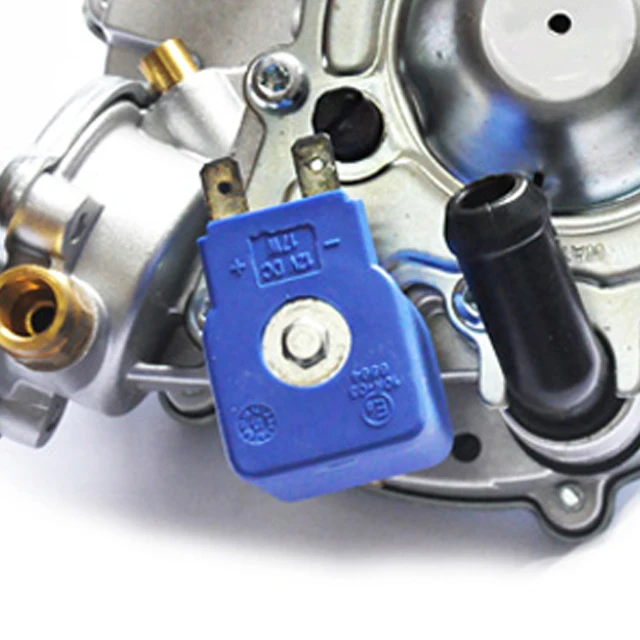

Coil Power: | 17 W (solenoid) |
Max. Flow: | 9 ±1 m3/h |
Dimensions: | 120*125*105 MM |
Weight: | 1.8 KG |
Applicable models: | LPG sequential injection models |
Precautions
1. The pressure reducer has been debugged and tested before leaving the factory. Users should not disassemble it at will to avoid safety accidents. Please contact our shop for quality problems. If there is any malfunction during use, please go to a professional repair shop for repair.
2. Routine maintenance: every time before driving, check whether the parts are loose or dew (smell smell). If so, please close the cylinder valve and go to a professional repair point for repair
3. Monthly maintenance: check whether the parts are loose, whether the gas cylinders, pipelines, and pressure reducers are leaking (can be detected by a gas leak detector), and whether the electrical wiring connections are reliable.
4. The filter should be replaced every 15,000 kilometers of the car, and the pressure reducer and various filling / cylinder valves should be checked.
5 The natural gas system should be overhauled every 25,000 kilometers, and all wearing parts should be replaced in time
6. Except for routine maintenance by the driver, items 3, 4, and 5 should all be carried out in a professional repair shop.
1. The pressure reducer has been debugged and tested before leaving the factory. Users should not disassemble it at will to avoid safety accidents. Please contact our shop for quality problems. If there is any malfunction during use, please go to a professional repair shop for repair.
2. Routine maintenance: every time before driving, check whether the parts are loose or dew (smell smell). If so, please close the cylinder valve and go to a professional repair point for repair
3. Monthly maintenance: check whether the parts are loose, whether the gas cylinders, pipelines, and pressure reducers are leaking (can be detected by a gas leak detector), and whether the electrical wiring connections are reliable.
4. The filter should be replaced every 15,000 kilometers of the car, and the pressure reducer and various filling / cylinder valves should be checked.
5 The natural gas system should be overhauled every 25,000 kilometers, and all wearing parts should be replaced in time
6. Except for routine maintenance by the driver, items 3, 4, and 5 should all be carried out in a professional repair shop.
