1200C 1800 Degree Optional Sizes Heat Treatment Oven Atmosphere Vacuum Ceramic Lab Fiber Muffle Furnace
- Category: >>>
- Supplier: Guangdong Newgoer Instrument Co. Ltd.
Share on (1600990767902):
Product Overview
Description
Product Description

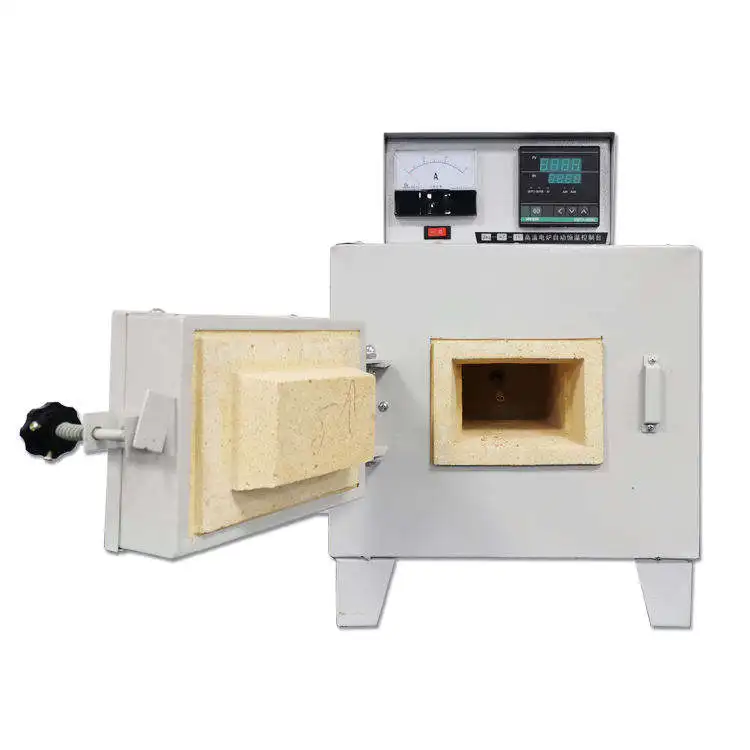

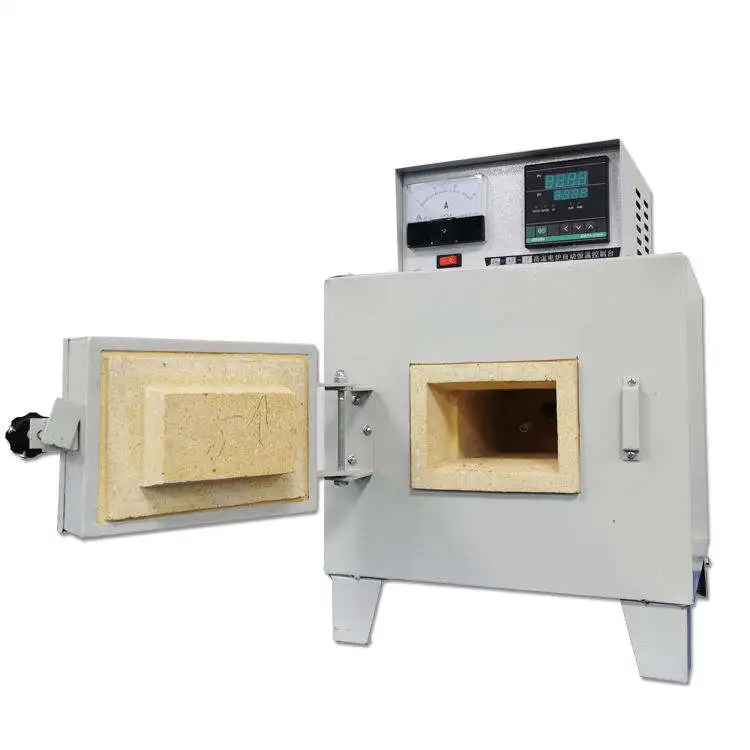

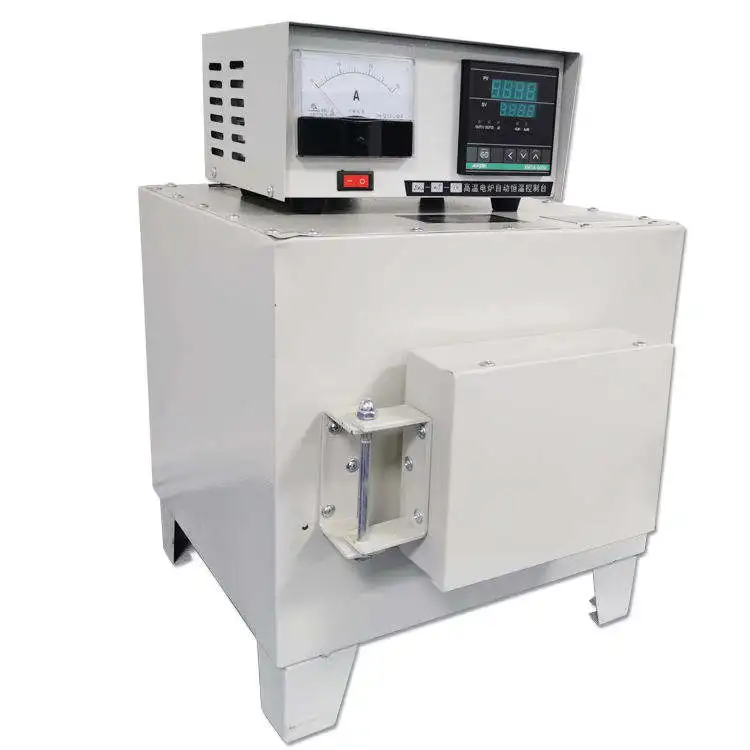

1200C-1800 Degree Optional Sizes Heat Treatment Oven
Atmosphere Vacuum Ceramic Lab Fiber Muffle Furnace
Summary:
High temperature ashing furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment,ect.
A double walled steel internal housing helps minimize heat loss to exterior surface. Laboratory furnaces are ideal for heat treating, reacting studies, sintering processes, and ceramic firing. Our laboratory furnaces feature temperatures up to 1800 degrees Celsius and capacities up to 45 liters. Important specifications to consider when searching for a laboratory furnace include the process temperature, control requirements, dimensions of sample and inner dimensions of chamber or tube, and pressure range.
Applications:
Mainly used in metallurgy, glass, ceramics, magnetic materials, refractories, crystals, electronic components, furnace manufacturing and small steel parts return, tempering and other high- temperature heat treatment fields;It is also an ideal equipment for high temperature sintering of products.
Features:
1. SECC steel plate with fine powder paint processing outside and high temperature ceramic silicon carbide inside.
2. Top heating element,long working life.
3. Imported PID digital thermometer, accurate temperature control, simple operation.
4. Fast heating and cooling, economic and quick.
5. Over-temperature protection, over load automatic power-off system.
6. Cyclic system: thermal radiation automatic power-off system.
7. Able to pass Nitrogen gases.
8. Temperature controller: Imported programmable controller, automatic constant temperature,rapid temperature compensation.
9. Timer:start timing when temperature achieves, power-off and alarm when time is over.
Main Specifications:
| Internal material | 1200 ° resistance high temperature ceramic fiber board |
| External material | 1.5mmsecc steel plate, powder spraying, beautiful and generous, high quality |
| Temperature range | RT ~ 1100 ℃, can be arbitrary set temperature. |
| Header parsing accuracy | 0.1 ℃ |
| Temperature accuracy | + / - 3 ℃ |
| Heating rate | RT ~ 100 ℃ about 8 minutes |
| Voltage | 220V, 50Hz |
| Timing | Use hours, minutes and seconds to choose. The time unit can be set within 0~9999. When the time arrives, the alarm will be automatically prompted |
| Insulation measures | Over current protection, leakage protection |
| Heater | Long life, high temperature 1300 ℃ of nickel and chromium heat wire 3, around three surface mounted at the bottom of the heater |
Model Selection:
Model number | Rated power(KW) | Rated voltage(V) | Phase | Rated temperature(℃) | Dimension Lx Wx H(mm) |
NG-HHL2 | 2.5 | 220 | 1 | 1100 | 200x120x80 |
NG-HHL3 | 4 | 220 | 1 | 1100 | 300x200x120 |
NG-HHL4 | 8 | 380 | 3 | 1100 | 400x250x160 |
NG-HHL5 | 12 | 380 | 3 | 1100 | 500x300x200 |
NG-HHL6 | 15 | 380 | 3 | 1100 | 600x400x300 |
