Unisheen 2 Channel SRT RTMP RTSP H.265 H.264 SDI HDMI VGA Output Video Streaming Decoder 1U Rack NVR
- Category: >>>
- Supplier: Shenzhen Unisheen Technology Co. Ltd.
Share on (1600990860085):
Product Overview
Description
Product Description

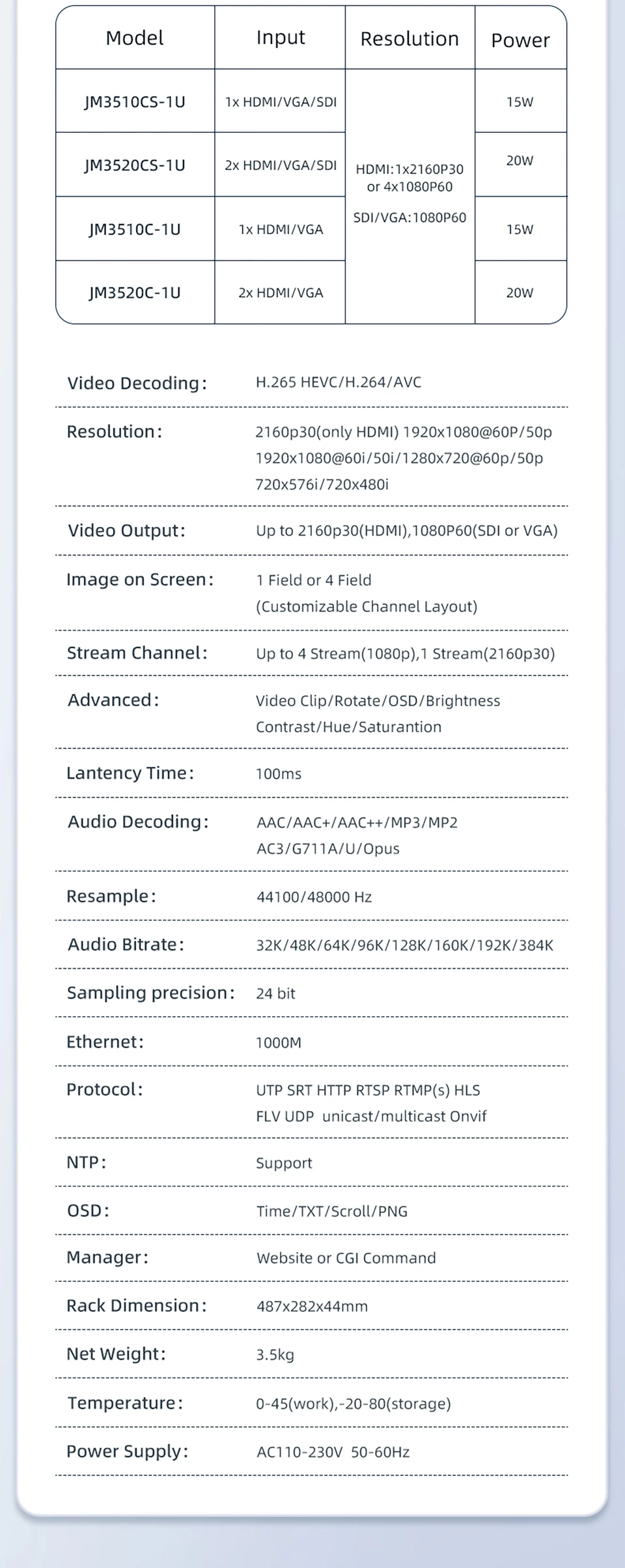

| Feature | *3G-SDI/HDMI/VGA Output *Up to 2160p30 Output(only hdmi) *SRT/RTSP/RTMPS/UDP/HTTP etc *Private Low Lantency Protocol UTP *Up to 4 Channel Decoding/Video Clip *1 Field or 4 Field Switchable *Brightness/Contrast/Hue/Saturantion *Customizable |
| Video | |
| Output | 2x HDMI/SDI/VGA |
| Resolution | 2160p30(only hdmi) 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
| Decoding | H.265 HEVC/H.264/AVC |
| Output | Up to 2160p30(hdmiP),1080P60(SDI or VGA) |
| Image on Screen | 1 Field or 4 Field |
| Stream Channel | up to 4 Stream(1080p),1 Stream(2160p30) |
| Channel Layout | Customizable |
| Advanced | Video Clip/Rotate/OSD/Brightness/Contrast/Hue/Saturantion |
| Lantency Time | 100ms |
| Upgradeable | Support |
| Audio | |
| Output | 2xHDMI/SDI Embeded/2x3.5mm |
| Decoding | AAC/AAC+/AAC++/MP3/MP2/AC3/G711A/U/Opus |
| Resample | 44100/48000 Hz |
| Bitrate | 32K/48K/64K/96K/128K/160K/192K/384K |
| Sampling precision | 24 bit |
| System | |
| Ethernet | 1000M |
| Protocol | UTP* SRT HTTP RTSP RTMP(s) HLS FLV UDP unicast/multicast Onvif |
| NTP | Support |
| OSD | Time/TXT/Scroll/PNG |
| Manager | Website or CGI Command |
| Gerneral | |
| Rack Dimension (W×L×H) | 480x200x44mm |
| Packing Box(WxLxH) | 520x370x140mm |
| Net Weight/Gross Weight/Volumn Weight | 2.5kg/3.5kg/5kg |
| Temperature | 0-45(work),-20-80(storage) |
| Power | AC110-230V 50-60Hz |
| Consumption | 20w |
| Included in the Package | |
| 1U-Rack | 1pcs |
| Power Cable | 1pcs |
Company Information
ShenZhen Unisheen Technology Co.,LTD. Over the years specializing in audio and video, frequency and soft hardware technology research and development, production and sales. Has a wealth of R & D, management experience, and domestic and foreign levels of sales channels. The main products are standard, HD video capture card, voiceless acquisition box, free computer recording box, streaming audio and video acquisition card, encoding and decoder etc.. The products are widely used in live streaming media broadcast system, IPTV system, education and broadcasting, medical consultation system, video conferencing, large screen display, high-definition monitor, digital signage, live broadcast, live interview, recording and broadcasting system of radio broadcast system, and it has been successfully used in numerous live streaming media, broadcast platform IPTV solution, television broadcasting system. By the domestic and foreign systems integrators, OEM manufacturers, as well as the broad masses of end customers. Shenzhen Lixin technology with strong R & D capability, excellent product quality, good customer service and rich industry experience and perfect customer applications support capacity, wholeheartedly for the domestic and foreign customers with video capture, encoding and matching solutions OEM customized solutions. Since its inception, the company has been adhering to the "product quality for enterprise survival fundamental" concept, is committed to continuous improvement of product quality and after-sales service, and strive to create more value for customers! Now invites domestic and foreign distributors and distributors of mutual cooperation and common development!
Packaging & Shipping
FAQ
Q1:Are you factory manufacturer or trade company?
A: Our manufacturer for video&audio products over 10 years. OEM & ODM are available.
Q2: Can I get a sample before order in bulk? What is your MOQ ?
A: Yes, support sample order
Q3:What is the lead time?
A:Generally 5-20 days(based on quantity),and most models have in stock.
Q4:Is it all right to make customer's Logo?
A:Sure, customer's logo can be embossed,debossed ,sreen printed, etc.
Q5:Where is your loading port?
A:Guangzhou Port, In China.
Q6:What are your payments terms?
A: T/T, PayPal, Western Union or by Alibaba Trade Assurance
