Product Overview

Description

Hydrocyclone High Efficiency Cyclone Separator Industrial Collector  Sand Washing Mineral Separator Hydrocyclone Price



Product Introduction



[Introduction]:

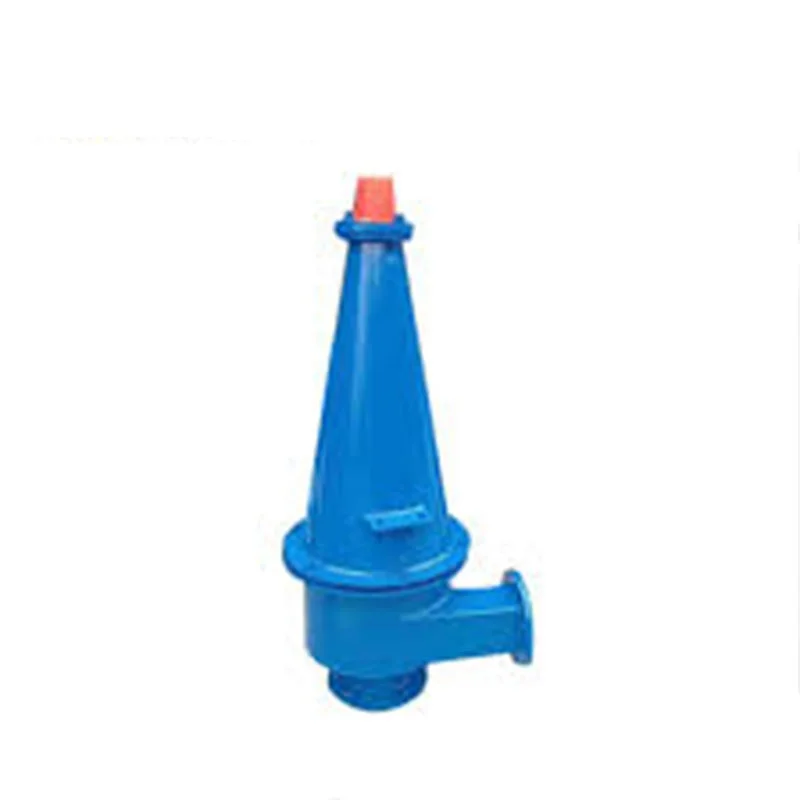

A hydrocyclone with involute feeding

[ Capacity ]:

≤542m3/h

[Improvement]:

Unique wraparound feed that eliminates disturbance, reduces wear and improves rating efficiency







Advantages



The form of enveloping feeding through the inlet branch reduces the turbulence of the burst of the emanating flow when the materials enter, makes a smooth movement of the liquid inside the cyclone, so it gives an accurate classification. The ratio of the rational length of the column and cone and the reasonable insertion depth of the vortex locator Wear-resistant rubber, as the coatings extend the service life by 2-4 times.



Working principle

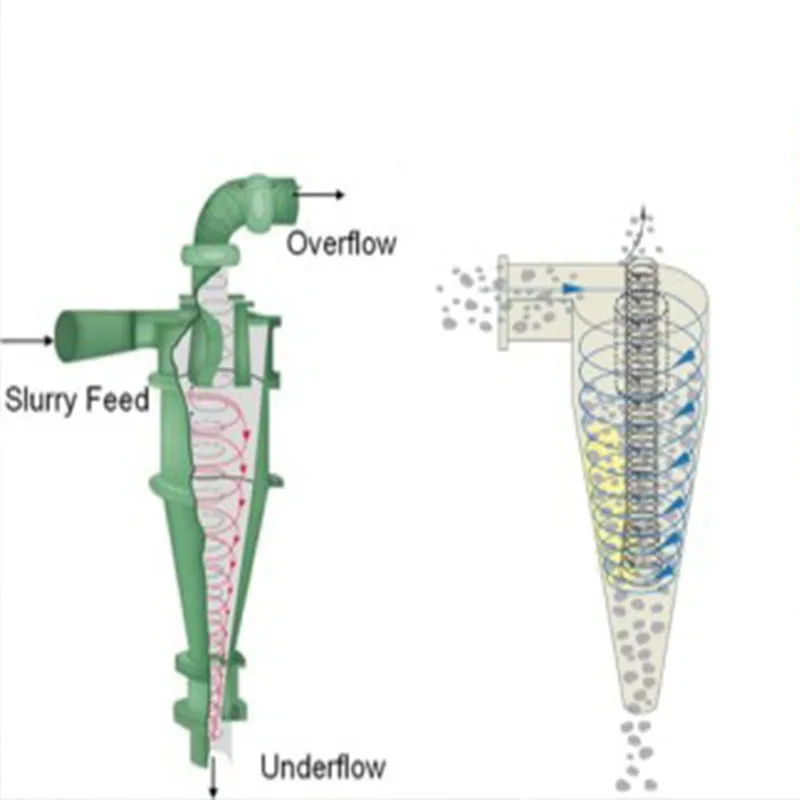

The working principle of the hydrocyclone is centrifugal sedimentation, when the mixed liquid of two phases (or three phases) is fed into the hydrocyclone by a liquid of a certain pressure and produces a strong three-dimensional elliptical rotational movement. Due to the different density of the particles, the centrifugal force, centripetal buoyancy and drag force are different. Thus, most of the coarse particles (or heavy phase) are discharged from the cyclone's underflow outlet, and the fine particles (or light phase) of the overflow tube, in order to achieve separation.



Application







Technical Data of Vibrating Feeder



Model	Spec.	Processing Capacity (m3/h)	Partition Size (μm)	Diameter of Overflow Port (mm)	Diameter of Dust- Setting Nozzle (mm)	Inlet Pressure (MPa)
XC II F 150	150	10 ~23	25 ~74	30 ~50	8~22	0.06~0.15
XC II F 200	200	17 ~38	28 ~80	40 ~65	16 ~32
XC II F 250	250	24 ~53	30 ~82	65~100	16 ~40
XC II F 300	300	40~100	36 ~90	65~120	20 ~40
XC II F 350	350	56~118	40~100	80~120	30 ~70
XC II F 375	375	74~157	42~105	90~135	30 ~70
XC II F 450	450	90~192	44~110	100~150	30 ~70
XC II F 500	500	128~300	50~115	130~220	35~100
XC II F 550	550	155~368	52~120	140~240	35~100
XC II F 600	600	200~468	57~125	160~260	65~110
XC II F 660	660	237~524	60~130	180~280	80~150
