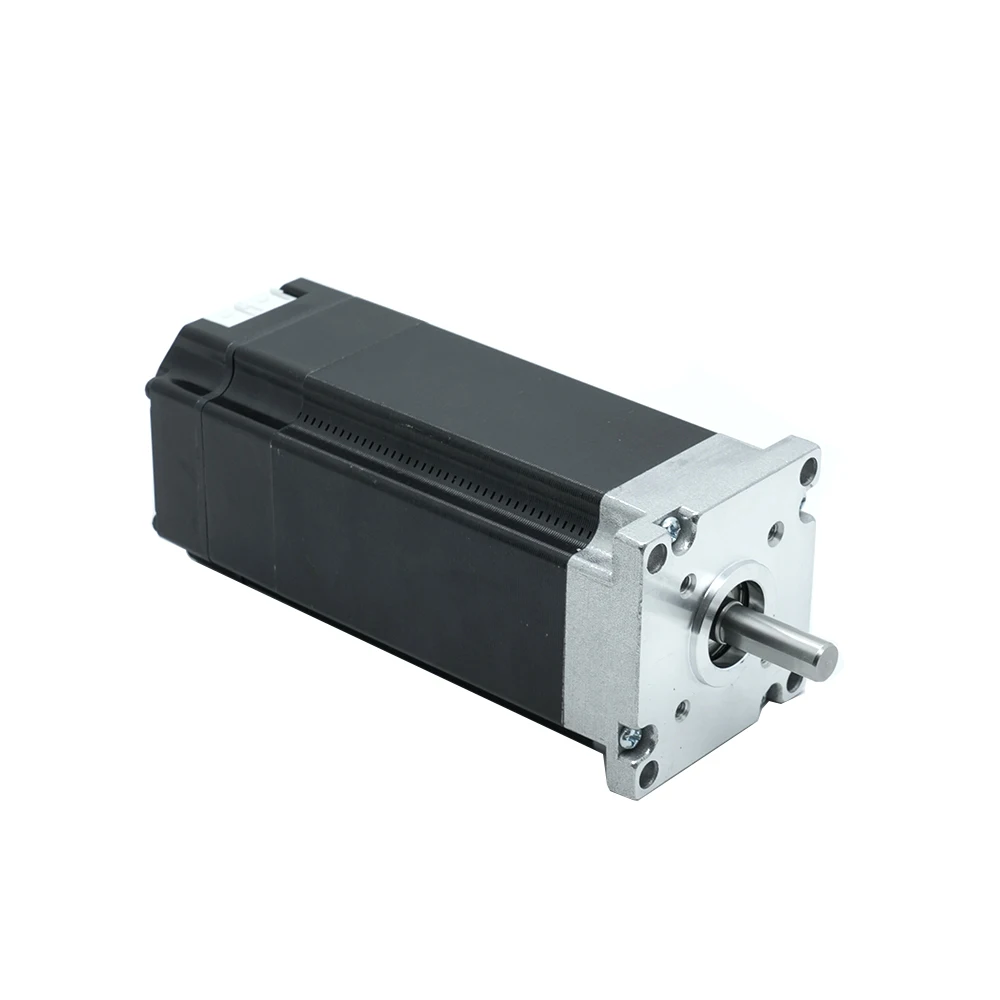

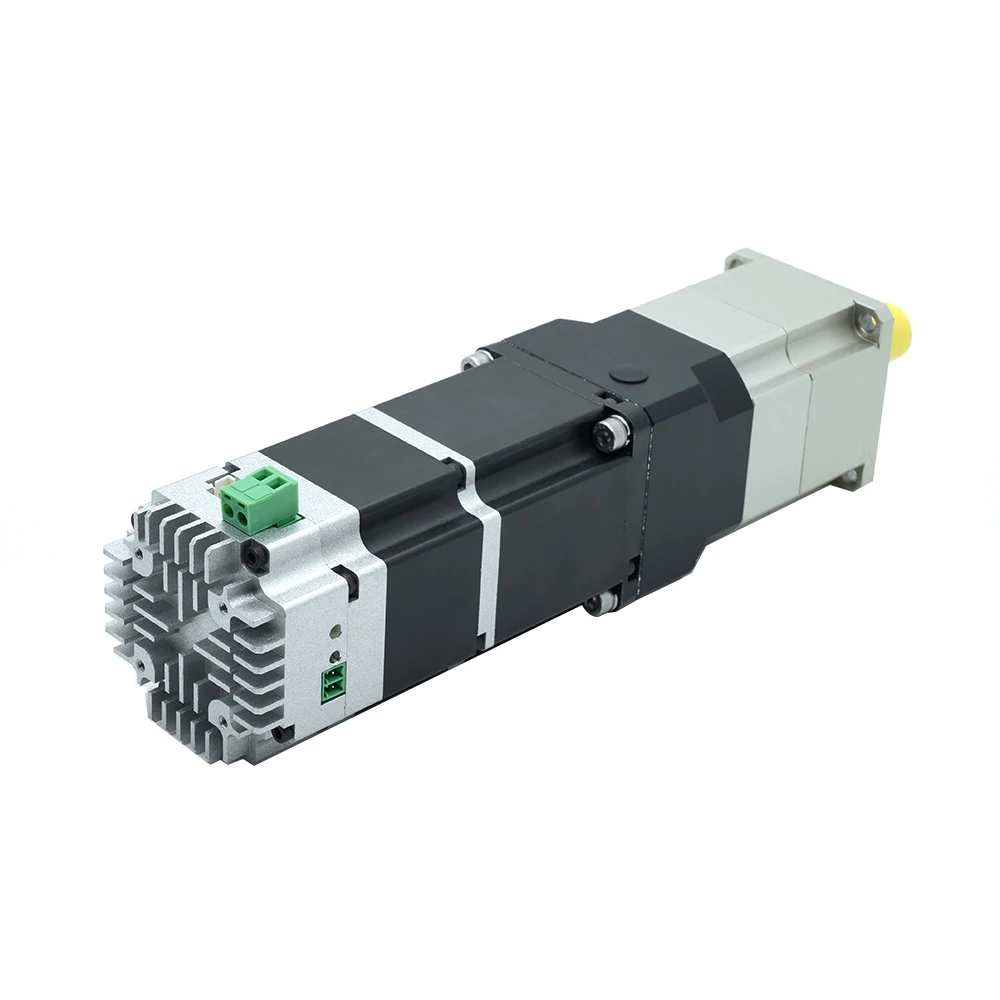

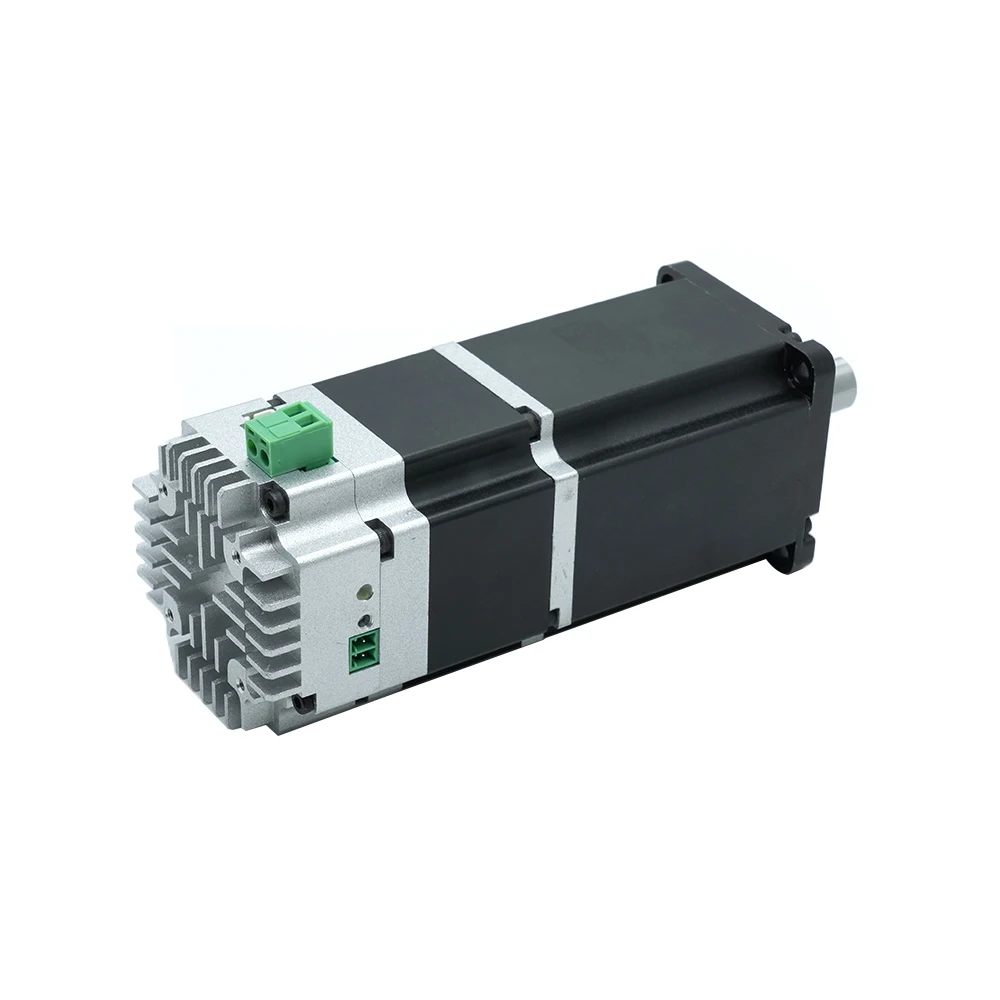

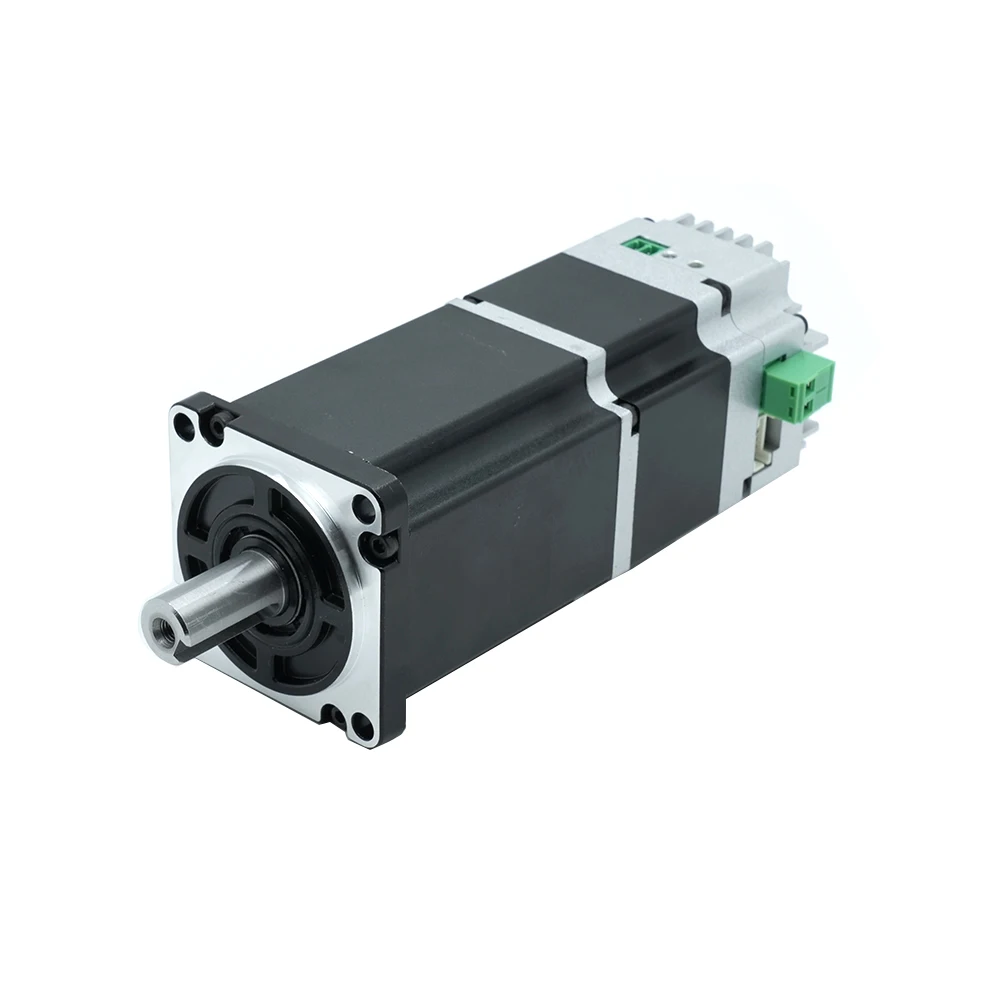

JKIDS80 P01A 42v / 72v Brushless 3000rpm 750w Canopen RS485 Integrated Dc Servo Motor With 17bit Encoder for Textile Machinery
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600991069606):
Product Overview
Description
Specification

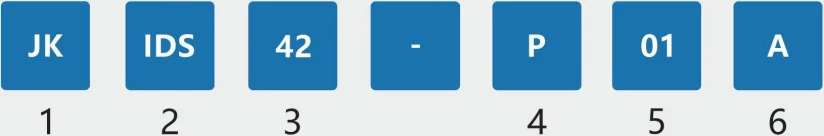

Model naming rules for low voltage integrated dc servo motor
1.Company name abbreviation
2.Product series model, indicating that the motor is an IDS series, referring to the acronym for integrated DC servo
3.Frame number (42/57/60/80), expressed in millimeters by the dimensions of the motor casing and mounting plate
4.Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5.The motor model, such as (01/02/03/04/05/06), represents the model of the motor
6.Encoder type: A represents a 17 bit single turn absolute encoder
2.Product series model, indicating that the motor is an IDS series, referring to the acronym for integrated DC servo
3.Frame number (42/57/60/80), expressed in millimeters by the dimensions of the motor casing and mounting plate
4.Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5.The motor model, such as (01/02/03/04/05/06), represents the model of the motor
6.Encoder type: A represents a 17 bit single turn absolute encoder

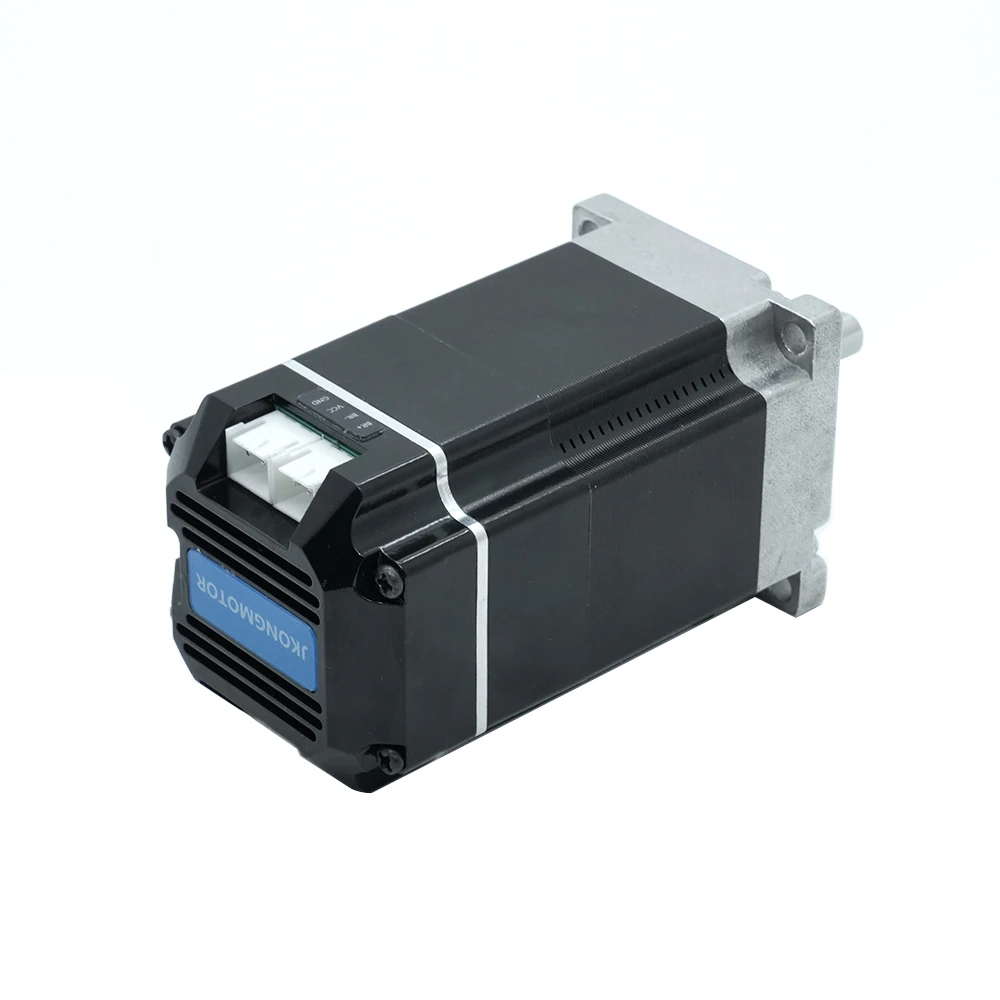

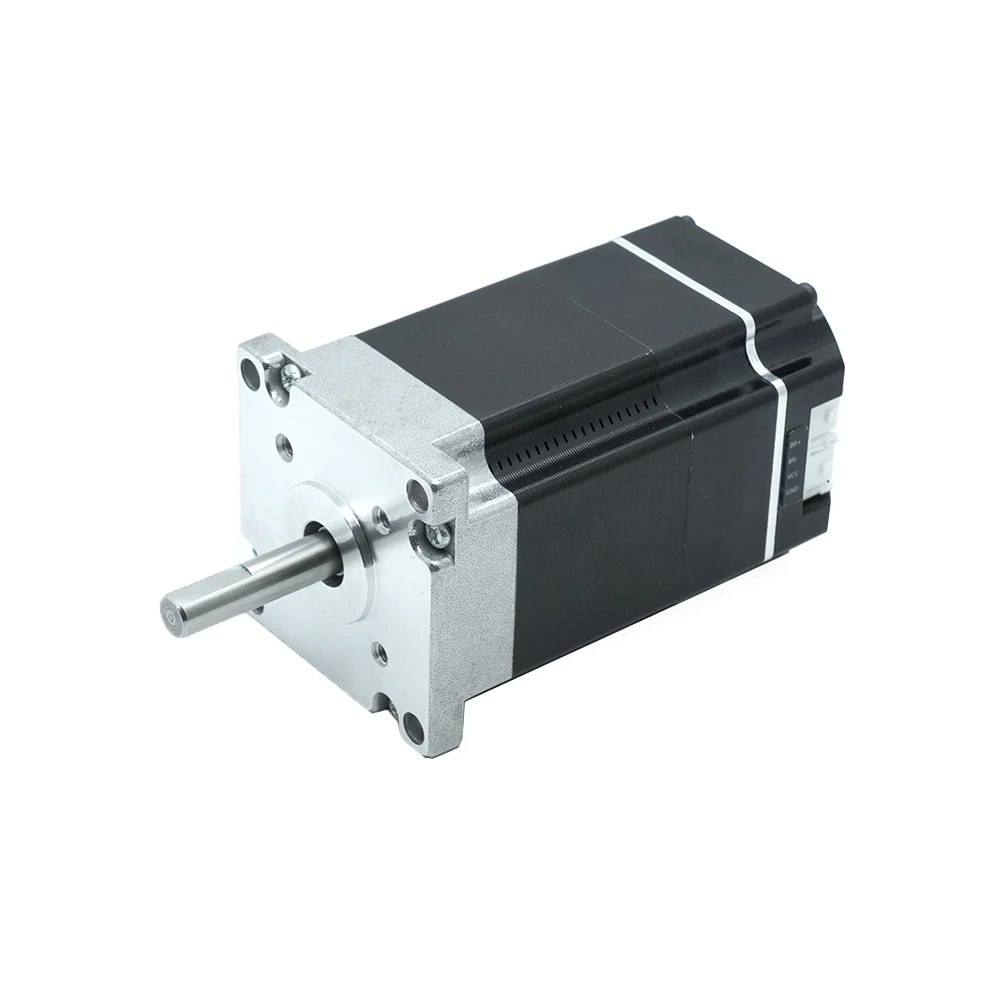

Characteristics of Integrated Dc Servo Motor
1、Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2、Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3、low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4、control mode: Supports pulse/RS485/CANopen.
5、Multi segment position speed function: With multi segment position function and multi segment speed function.
6、Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undeivoltage, and over temperature Can ensure the safe operation of processing equipment.

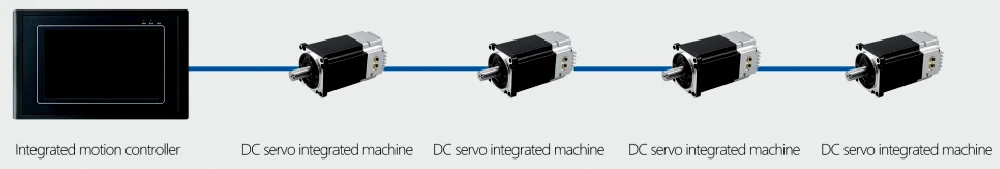

Integrated solution for precision control motors

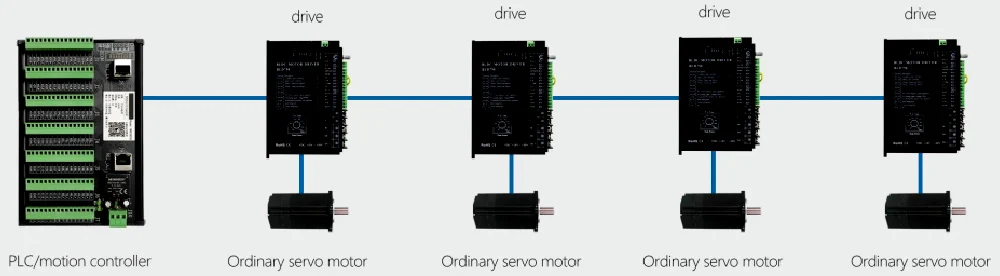

Traditional split solution
Features:
1、 Adopting a new 32-bit M4+core with 120M or 240M main frequency
2、 Stable torque characteristics from low to high speeds, with high speed and precision
3、 Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4、Wide speed range, low temperature rise, and high efficiency
5、 Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6、 Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7、 Configure a 17 bit single turn absolute encoder
2、 Stable torque characteristics from low to high speeds, with high speed and precision
3、 Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4、Wide speed range, low temperature rise, and high efficiency
5、 Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6、 Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7、 Configure a 17 bit single turn absolute encoder
Communication method:
1、Pulse type
2、RS485 MOdbus RTU network type
3、CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
medicine ingredient industry, etc

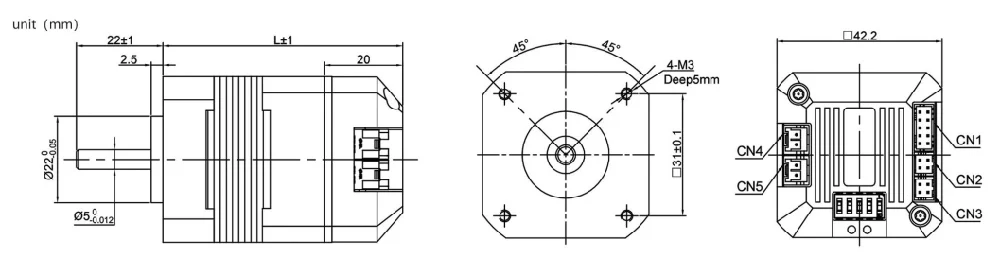

42mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JKIDS42-P01A | 26 | 24 | 1.8 | 4000 | 0.0625 | 61 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS42-P02A | 53 | 24 | 3.3 | 4000 | 0.125 | 81 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS42-P03A | 78 | 24 | 4.5 | 4000 | 0.185 | 101 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS42-P04A | 78 | 24 | 4.5 | 3000 | 0.25 | 120 | 17bit | Pulse / RS485 / CANopen | ||||||||

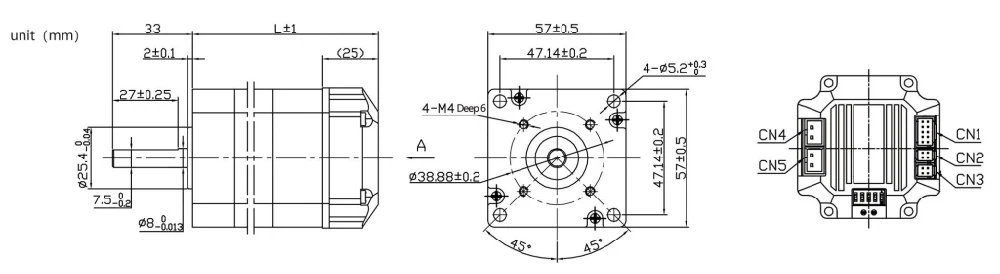

57mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JK57IDS57-P01A | 26 | 24/36 | 3.5 | 3000 | 0.29 | 101 | 17bit | Pulse / RS485 / CANopen | ||||||||
JK57IDS57-P02A | 53 | 24/36 | 5.4 | 3000 | 0.45 | 121 | 17bit | Pulse / RS485 / CANopen | ||||||||
JK57IDS57-P003A | 78 | 36/48 | 7.5 | 3000 | 0.64 | 141 | 17bit | Pulse / RS485 / CANopen | ||||||||

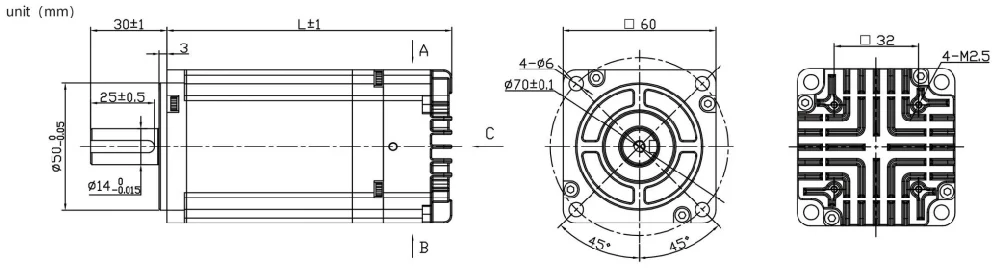

60mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JKIDS60-P01A | 200 | 24 | 12 | 3000 | 0.64 | 94 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS60-P02A | 400 | 48 | 11 | 3000 | 1.27 | 112 | 17bit | Pulse / RS485 / CANopen | ||||||||

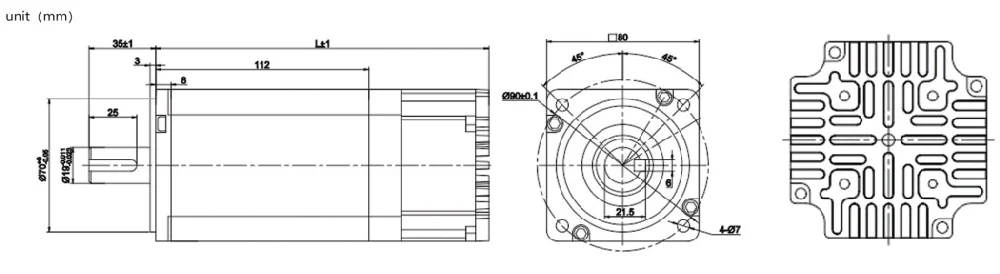

80mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JKIDS80-P01A | 750 | 48/72 | 19/12 | 3000 | 2.4 | 155 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS80-P02A | 1000 | 72 | 17 | 3000 | 3.2 | 175 | 17bit | Pulse / RS485 / CANopen | ||||||||

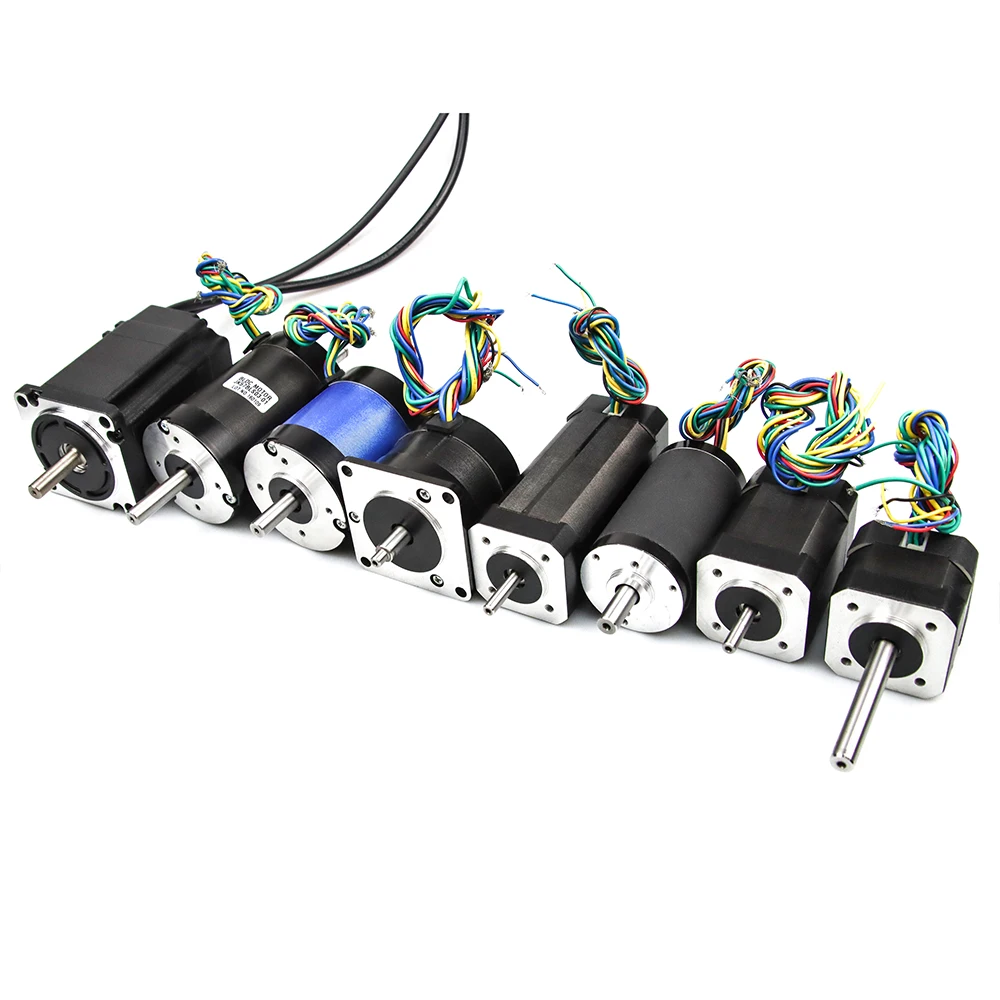

BLDC Motor
1、Various Size: 42mm to 130mm
2、Different Gearbox: Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
3、Parameters Customized: Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
4、Complete and mature drive system support
5、Without brush, low interference, long life, low maintenance cost, low noise, smooth operation

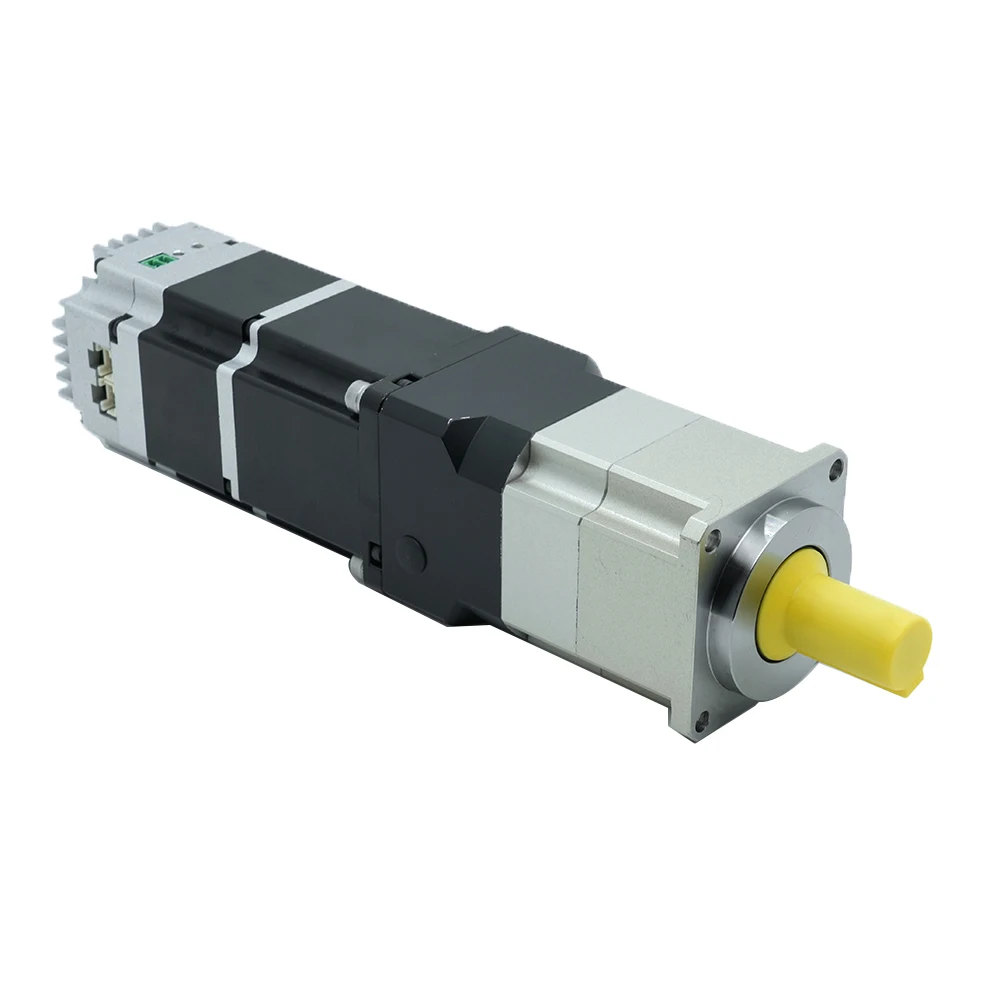

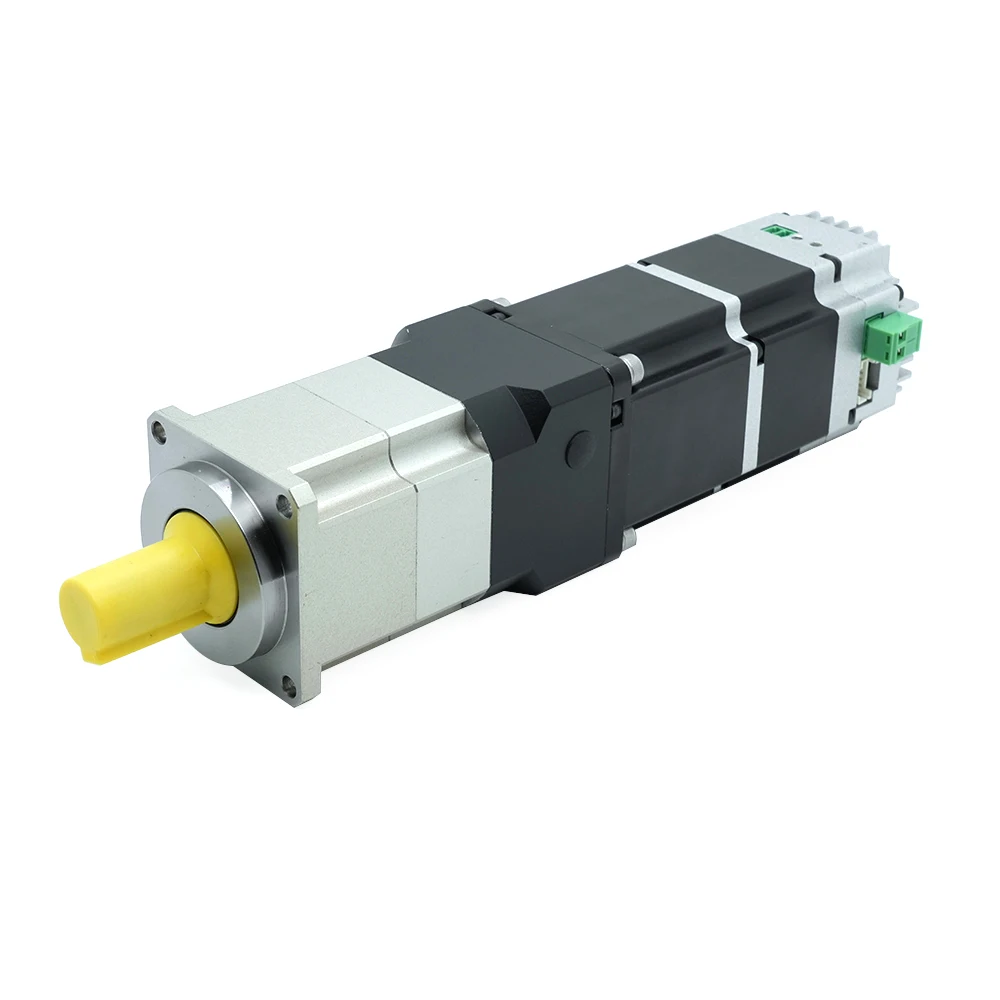

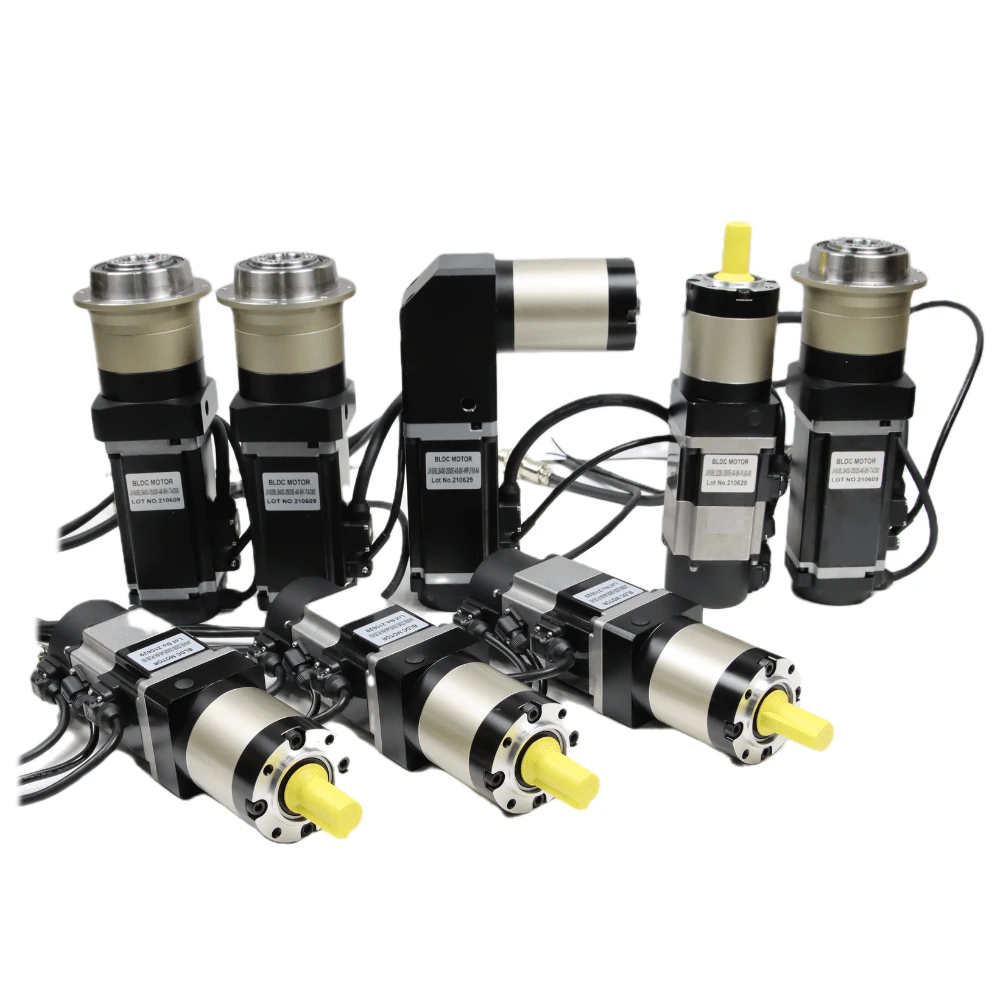

BLDC Gear / Brake Motor
1、Planetary Gearbox
2、High Precision Planetary Gearbox
3、Worm Gearbox
4、Eccentric Gearbox
5、Encoder / Brake
6、Integrated Dc Servo Motor
7、High-precision output
8、High-performance transmission can achieve high torque transmission, high-precision output, high rigidity and low noise
9、Small size, compact structure, large load-bearing capacity, and the design itself can also achieve high-precision positioning

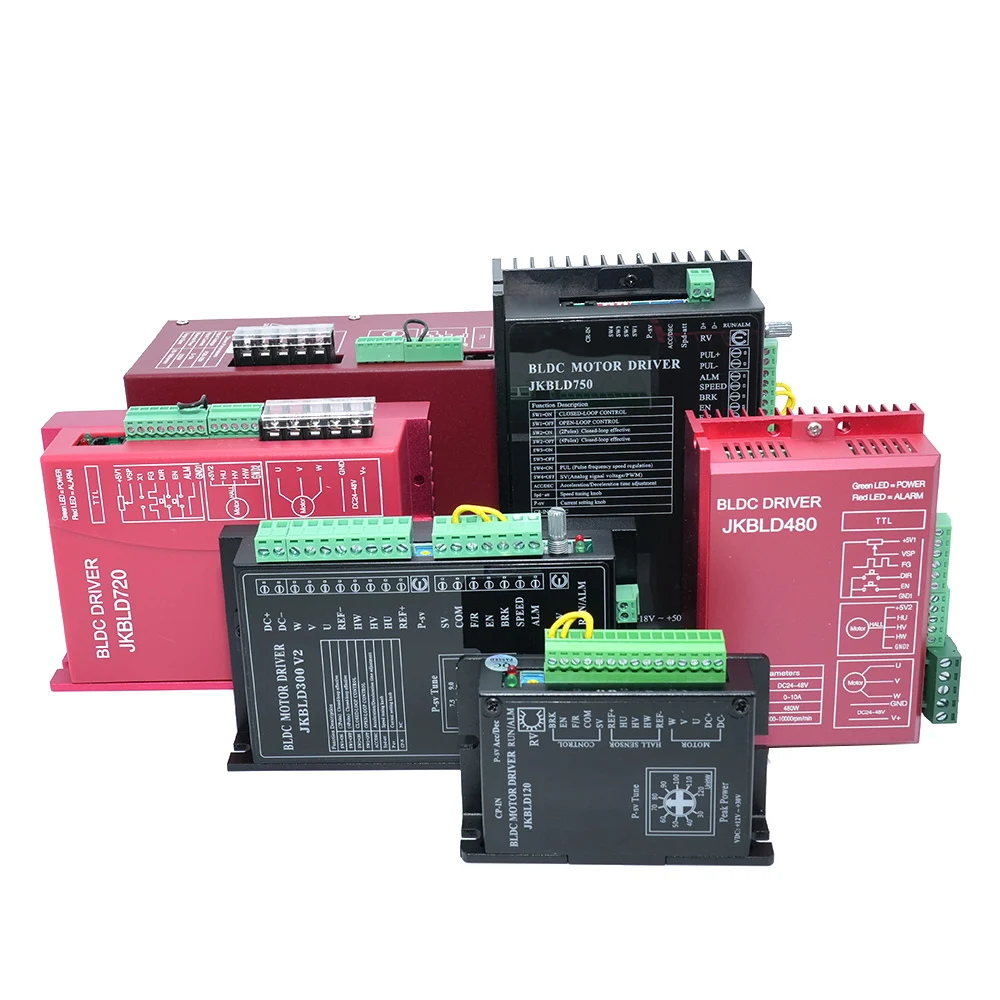

BLDC Motor Driver
1、Including：JKBLD120 / JKBLD300 / JKBLD480 / JKBLD720 / JKBLD750 / JKBLD1100 / JKBLD2200
2、Suitable for the bldc motor with Hallsensor or without hallsensor
3、Optional for RS232 / RS485 Control
4、Stable operation and can be appropriately overloaded
5、Suitable for brushless motors of various specifications
6、Complete and mature drive system support
7、Perfect pre-sales, during-sales and after-sales services

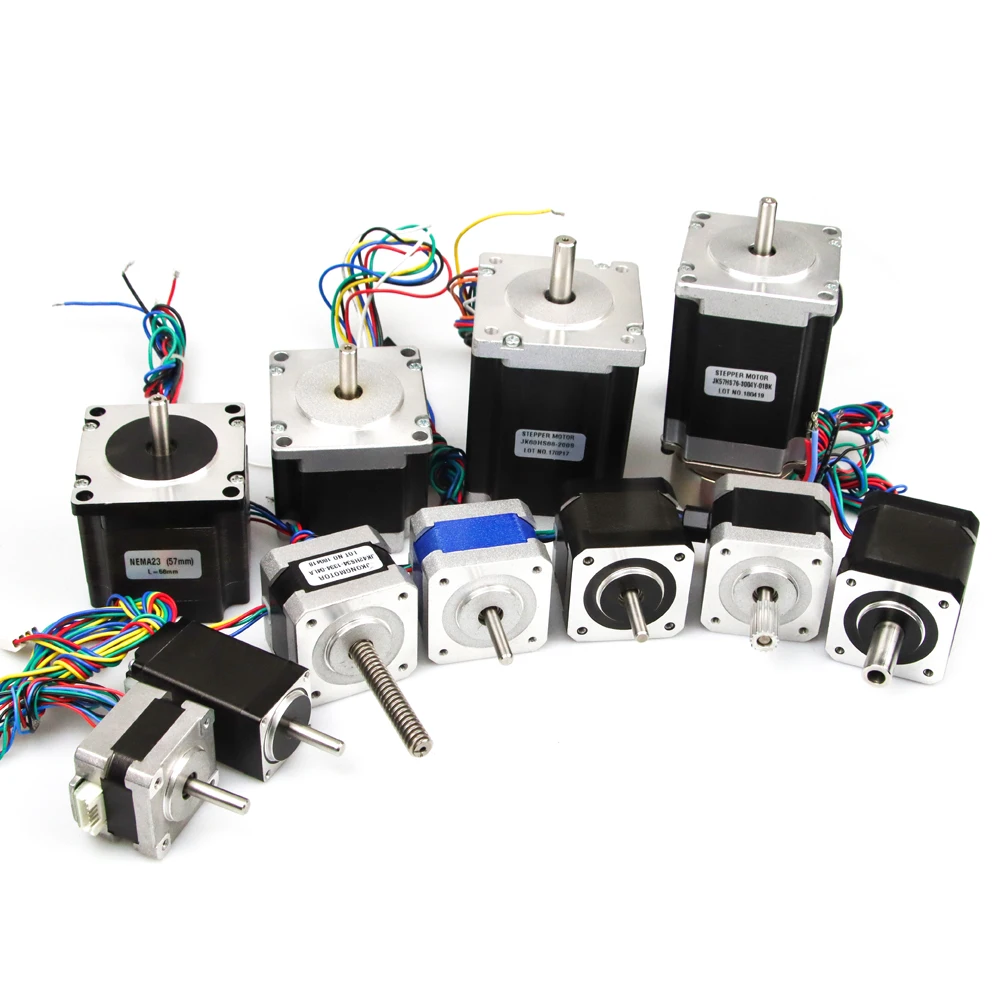

Stepper Motor
1、Various Size: 20mm to 130mm
2、Parameters Customized: Shaft / Flange / Brake / Encoder / Integrated Driver / Cables

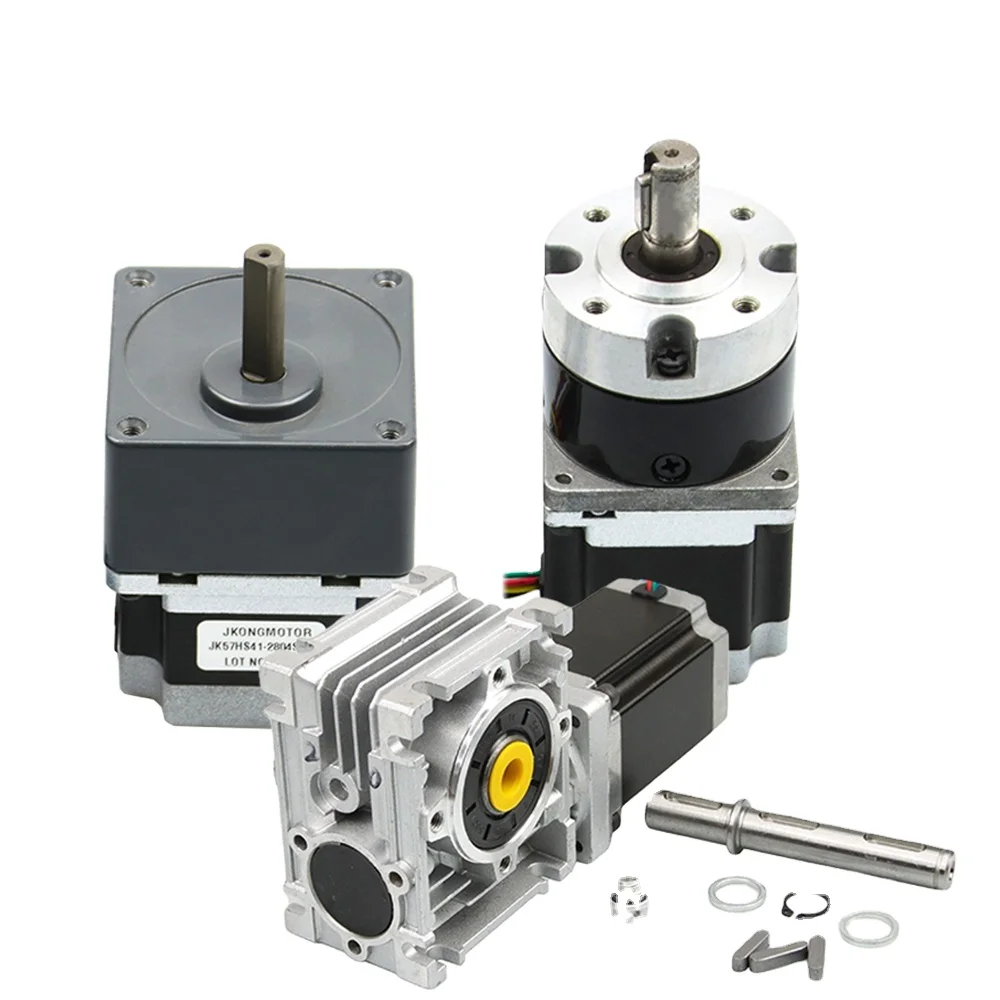

Geared / Brake Stepper Motor
1、Planetary Gearbox / High Precision Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
2、Encoder / Brake optional

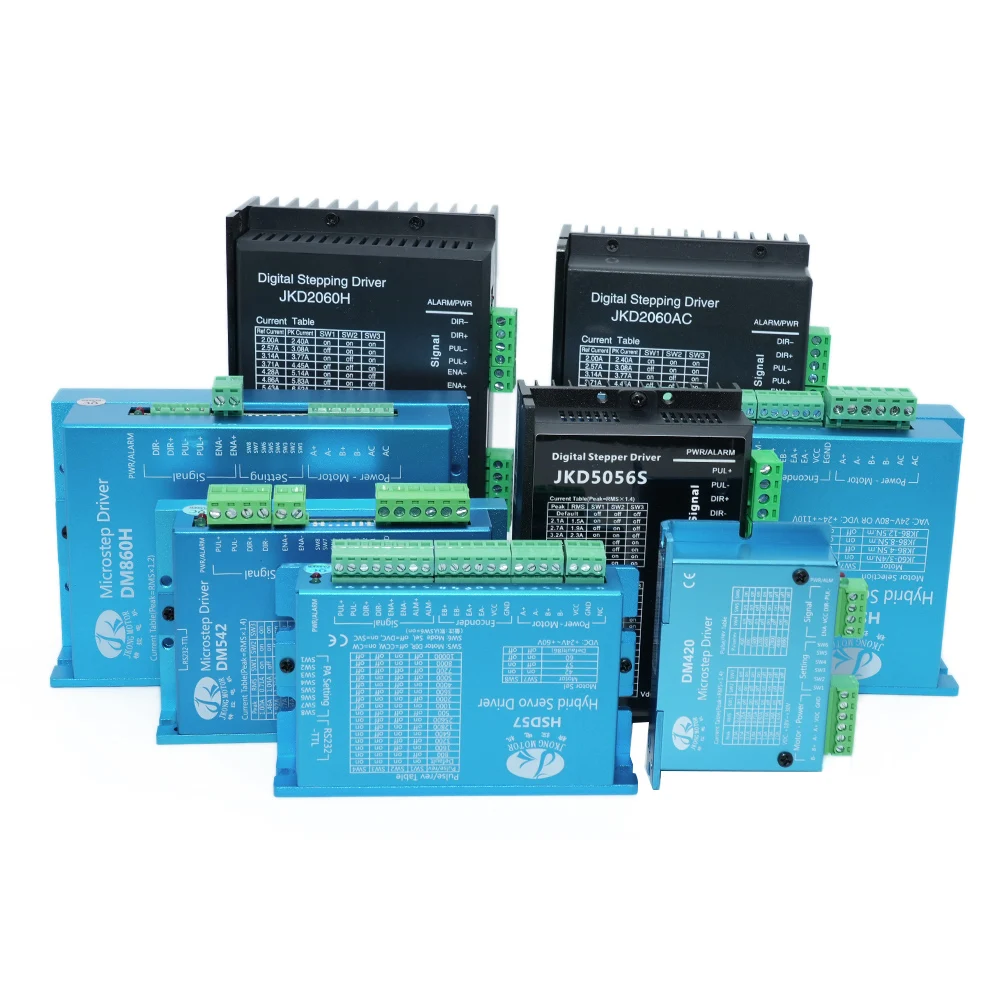

Stepper Motor Driver
1、Different type for stepper motors from nema 8 to nema 52 stepping motors
2、Suitable for Hybrid Stepper Motor or Closed Loop Stepping Motor

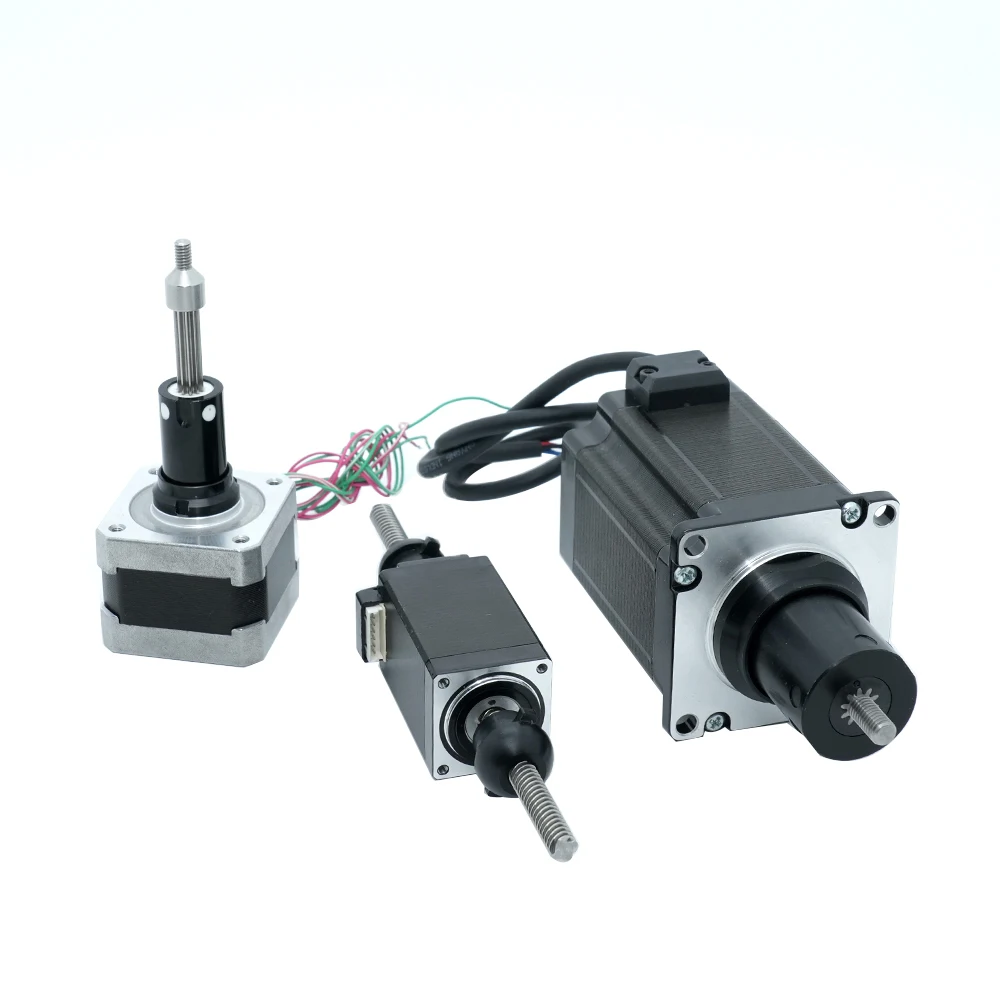

Linear Screw Motor
1、Linear Actuators / Linear Guide Rail
2、Ball Screw / T-Screw...

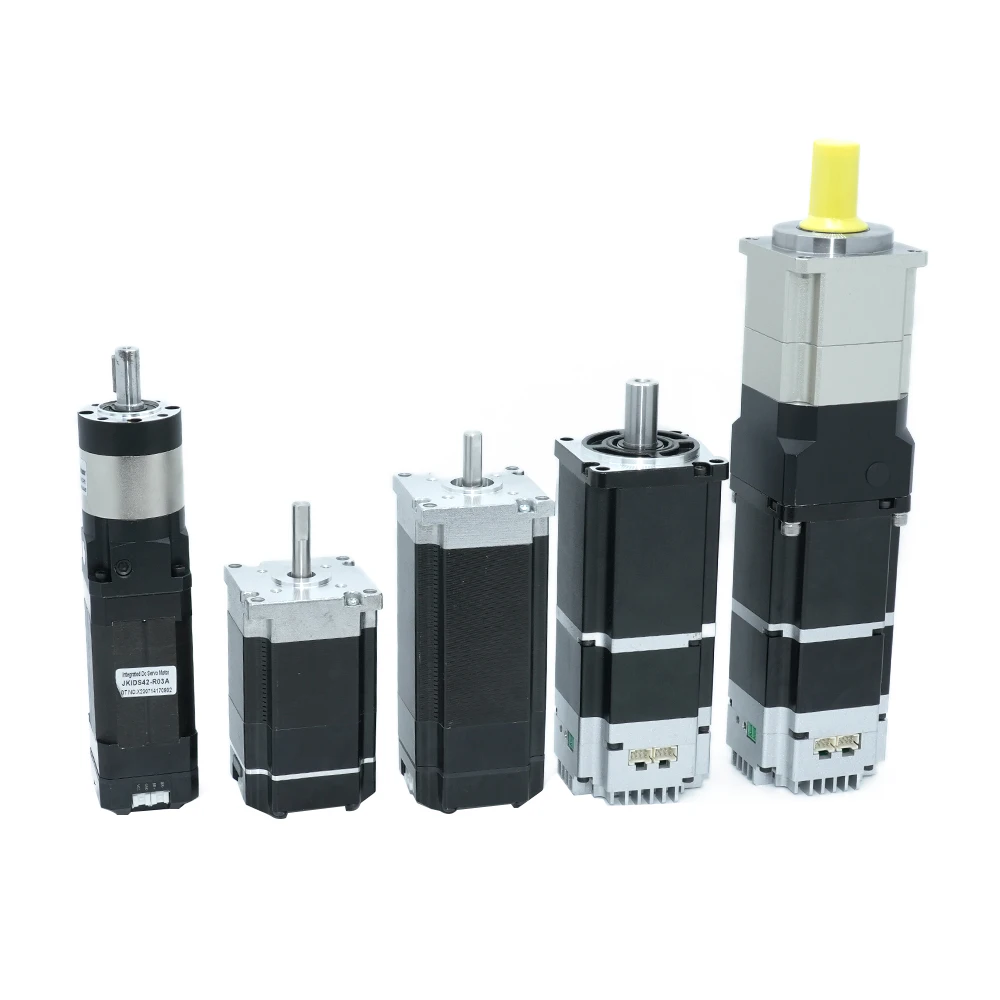

Integrated Servo Motor
1、Integrated Dc Servo Motor
2、Integrated Stepper Motor
3、Encoder / Brake / Gearbox / Shaft

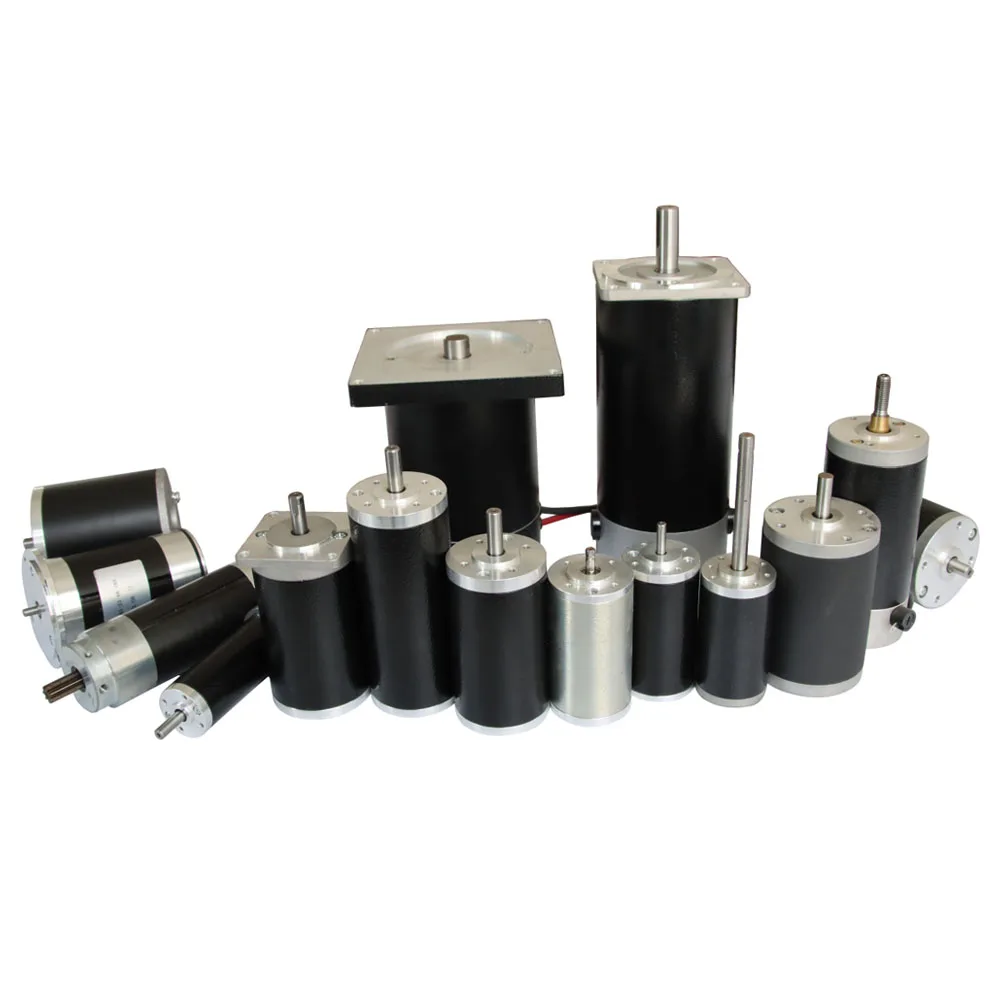

Brush Dc Motor
1、From 42mm to 90mm
2、Encoder / Brake / Gearbox optional
