High Quality Brand New 16 Ports Gpon Service Board GPHF For MA5800 Olt
- Category: >>>
- Supplier: Hunan Xunkai Intelligent Engineering Company Limited
Share on (1600991361763):
Product Overview
Description
Products Description
Brand | Huawei |
Model | GPHF |
GPON Port | 16-GPON Port |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimun Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Power Consumption and Maximum Frame Size | |
Power Consumption | Static: 25W; Maximum:50W |
Maximum Frame Size | 2004 bytes |
9216 bytes (jumbo frame enabled) | |
Operating temperature | -40°C to +65°C |
Overview

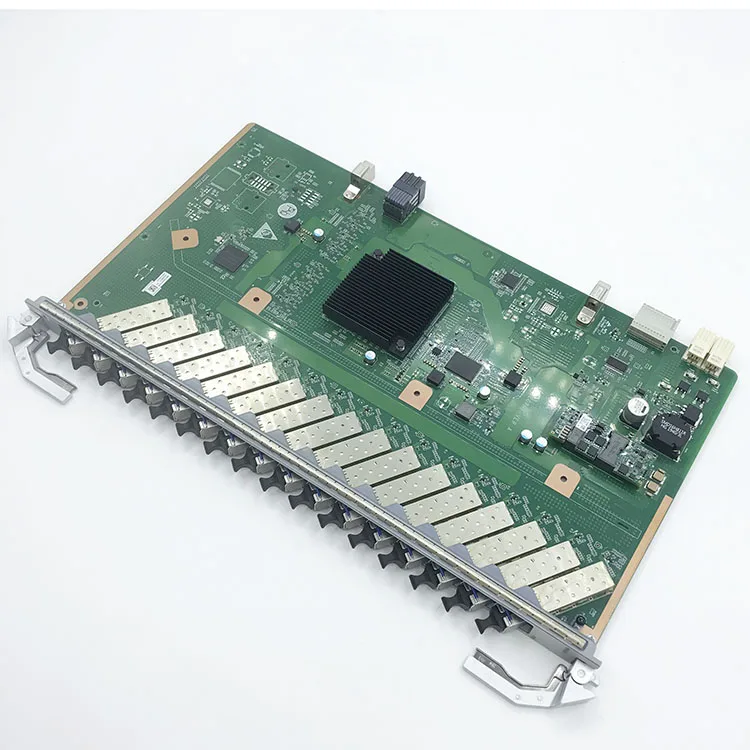

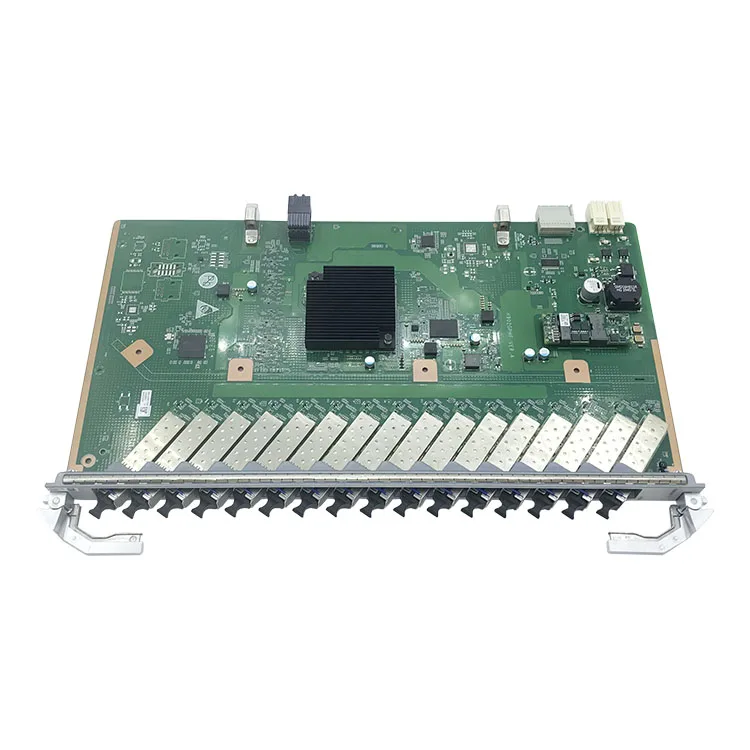

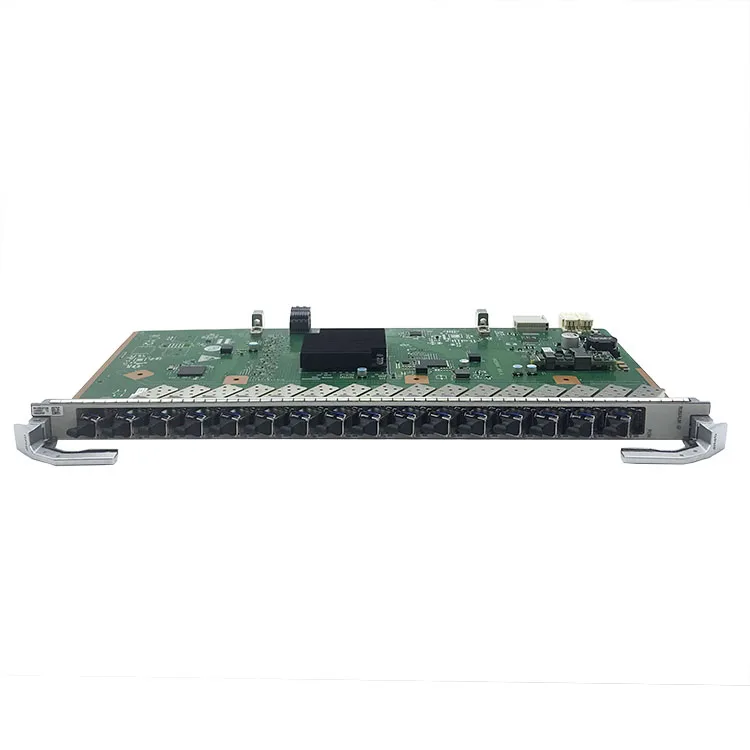

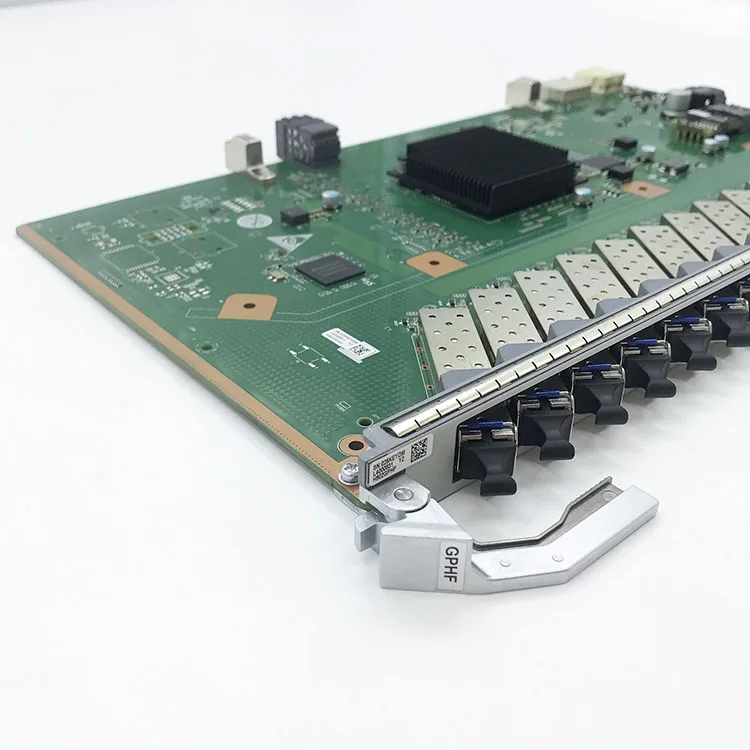

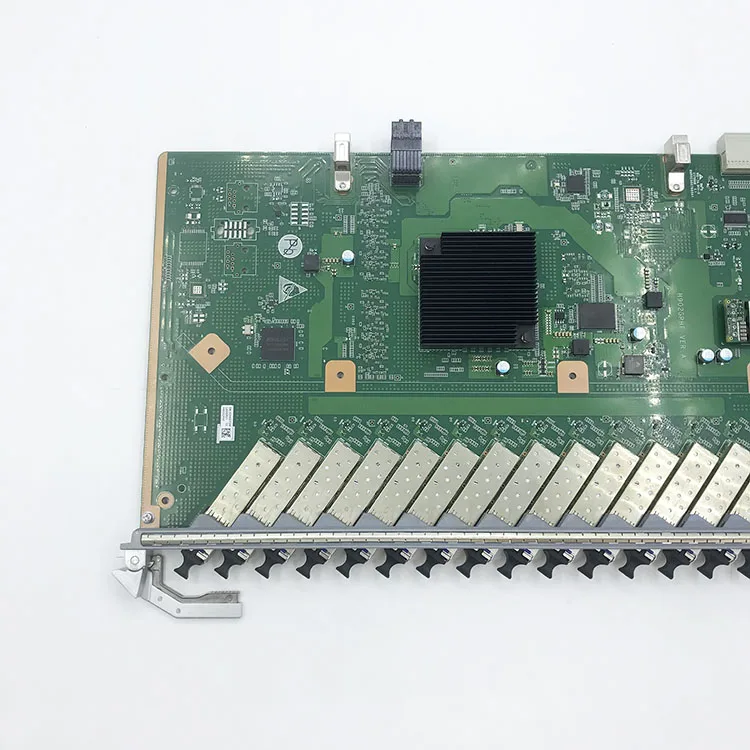

Huawei GPHF Service Board is a 16-port GPON interface board that works with ONU (Optical Network Unit) devices to implement GPON
service access.
The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture
and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video
experience, multi-service virtualization common platform, and smooth evolution of 50G PON.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications
such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
Huawei GPHF Service Board is a 16-port GPON interface board that works with ONU (Optical Network Unit) devices to implement GPON
service access.
The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture
and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video
experience, multi-service virtualization common platform, and smooth evolution of 50G PON.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications
such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
