Factory Direct sale Light weight high strength PP honeycomb Sandwich Panels for Wall Roof Floor FRP Composite Panel
- Category: >>>
- Supplier: Yangzhou Wansheng Industry Co. Ltd.
Share on (1600991364052):
Product Overview
Description
A series composite panels for RV , truck bodies and refrigerated vehicles.
The comoposite panels made have good performance in insulation, attractive surface flatness,light weight,high strength, etc.
Specifications: Composite panels for RV:can be 2800mm wide, 9500mm long and 100mm thick at maxi- mum.Composite panels for refrigerated trucks:can be 3200mm wide,16500mm long at maximum.Thickness ranges from 30mm to 200mm. Composite panels for dry trucks: can be 3200mm wide, 16500mm long and 60mm at maximum.
Applications: Mainly used in RV,logistic boxes,refrigerated vehicles, etc
Applications: Mainly used in RV,logistic boxes,refrigerated vehicles, etc
FRP Composite Panels Type

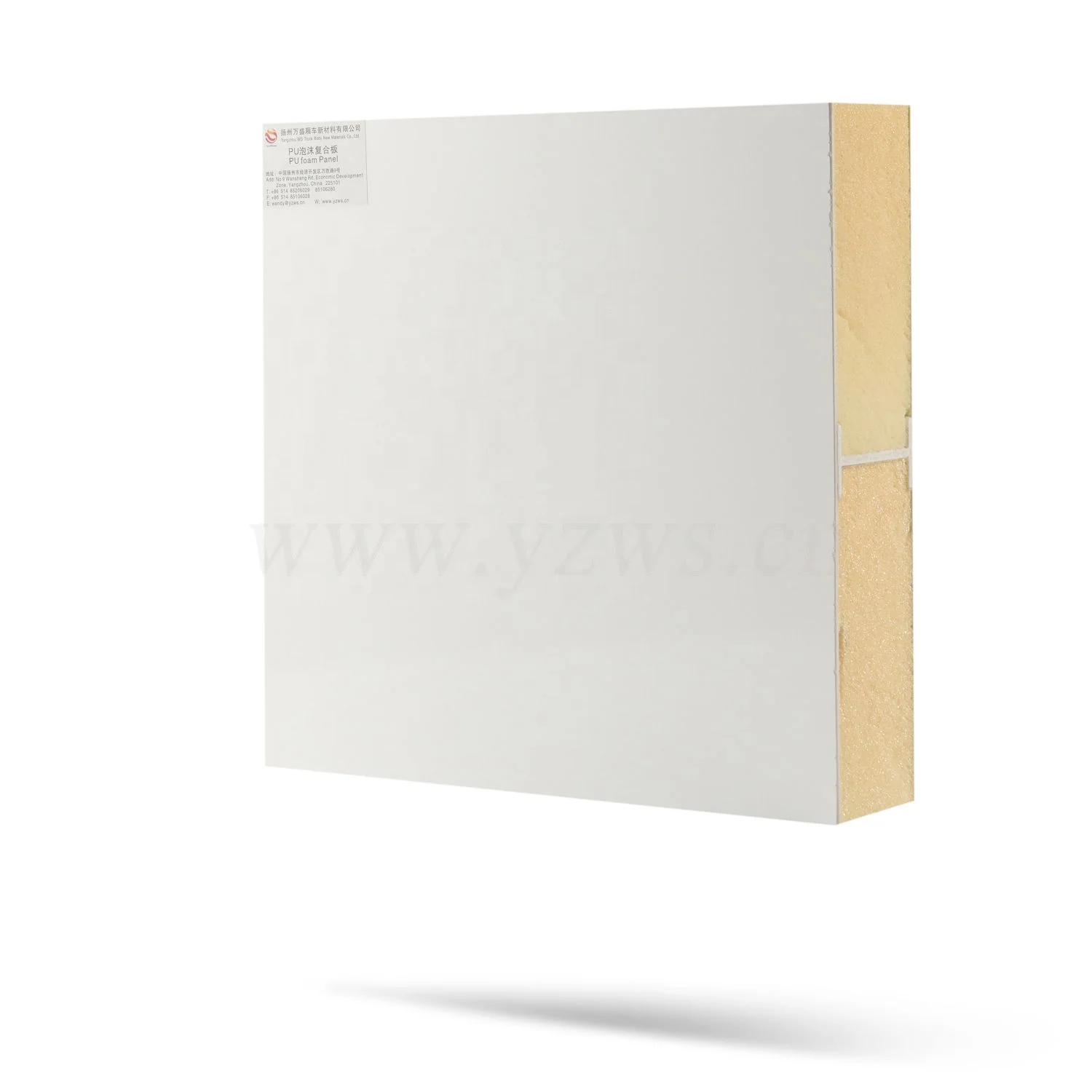

Item | FRP PU composite panel |
Core Material | PU Foam,Polyurethane Foam |
FRP skin | 1.0-3.0MM |
Core | 10-150MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
30 | 10.5 |
45 | 11 |
70 | 12.5 |
105 | 13.5 |
130 | 15 |
Main Performance data | ||||||
No | Item | Test results | Test method | |||
1 | Flat compressive strength | ≥0.18MPa | GB/T1453 | |||
2 | Edgewise compressive strength | ≥2.0MPa | GB/T1454 | |||
3 | Tensile strength | ≥0.85MPa | GB/T1452 | |||
4 | Barcol hardness | ≥42 | GB/T3854 | |||
5 | Thermal conductivity | ≤0.025W/m.k | GB/T10295 | |||
Note:FRP I beam is used in panels for tensile strength test while no I beams in panels in compressive strength tests.Test conditions of termal conductivity:25℃ average temperature and 15℃ temperature difference. | ||||||

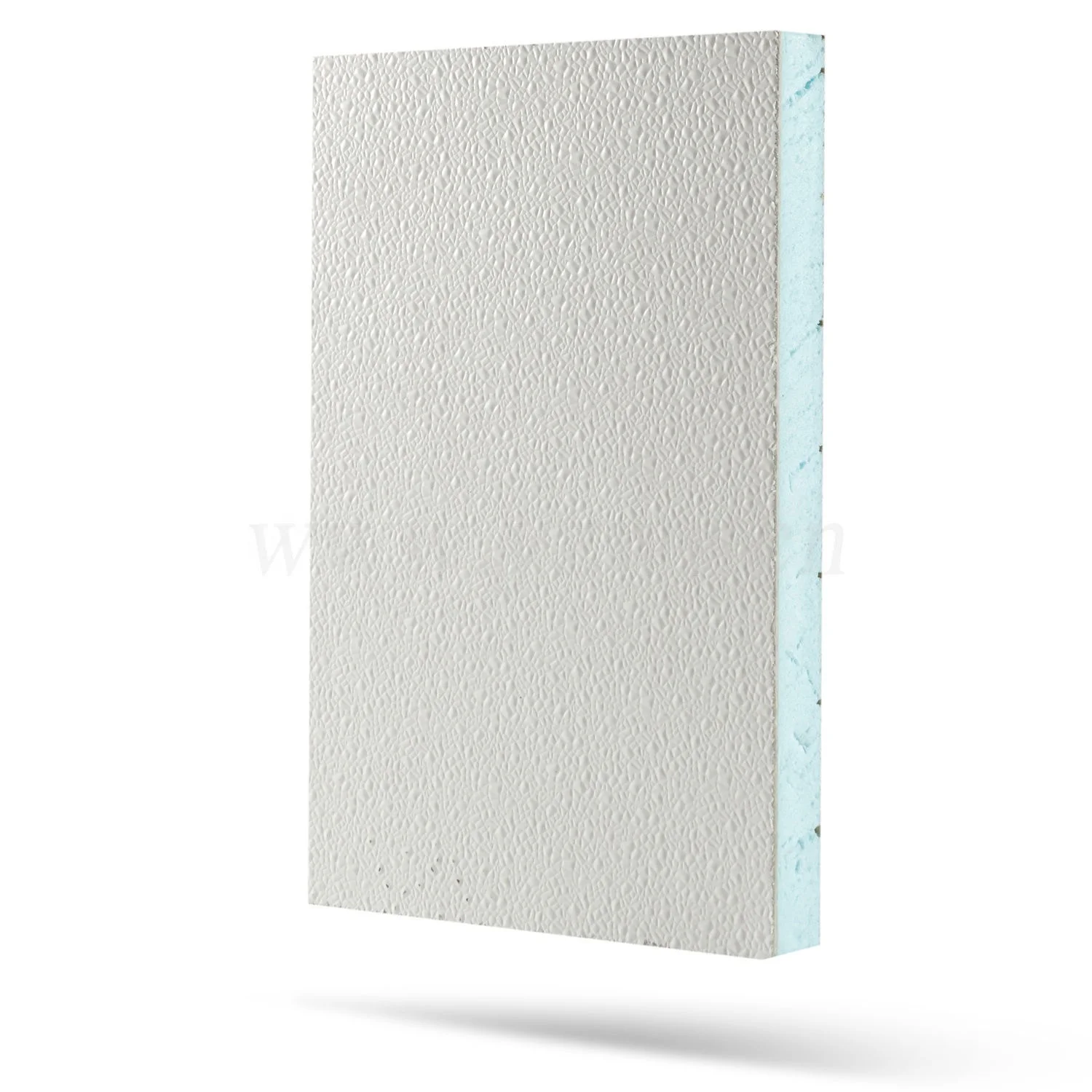

Item | FRP XPS composite panel |
Core Material | XPS foam,Extrude Polystyrene |
FRP skin | 1.0-3.0MM |
Core | 10-150MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
50 | 8.35 |
60 | 8.7 |
70 | 9.05 |
80 | 9.4 |
Main Performance data | ||||||
No | Item | Test results | Test method | |||
1 | Flat compressive strength | ≥0.25MPa | GB/T1453 | |||
2 | Edgewise compressive strength | ≥2.0MPa | GB/T1454 | |||
3 | Tensile strength | ≥0.75MPa | GB/T1452 | |||
4 | Barcol hardness | ≥42 | GB/T3854 | |||
5 | Thermal conductivity | ≤0.03W/m.k | GB/T10295 | |||
Item | FRP PP composite panel |
Core Material | PP Honeycomb |
FRP skin | 1.0-3.0MM |
Core | 10-100MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
15 | 7.5 |
18 | 8 |
21 | 8.5 |
Main Performance data | ||||||
No | Item | Test results | Test method | |||
1 | Static strength | ≥25MPa | GB/T17657 | |||
2 | Elastic modulus | ≥2000MPa | ||||
3 | Flat compressive strength | ≥1.2MPa | GB/T1453 | |||
4 | Edgewise compressive strength | ≥10.5MPa | GB/T1454 | |||
5 | Tensile strength | ≥0.5MPa | GB/T1452 | |||
6 | Barcol hardness | ≥42 | GB/T3854 | |||

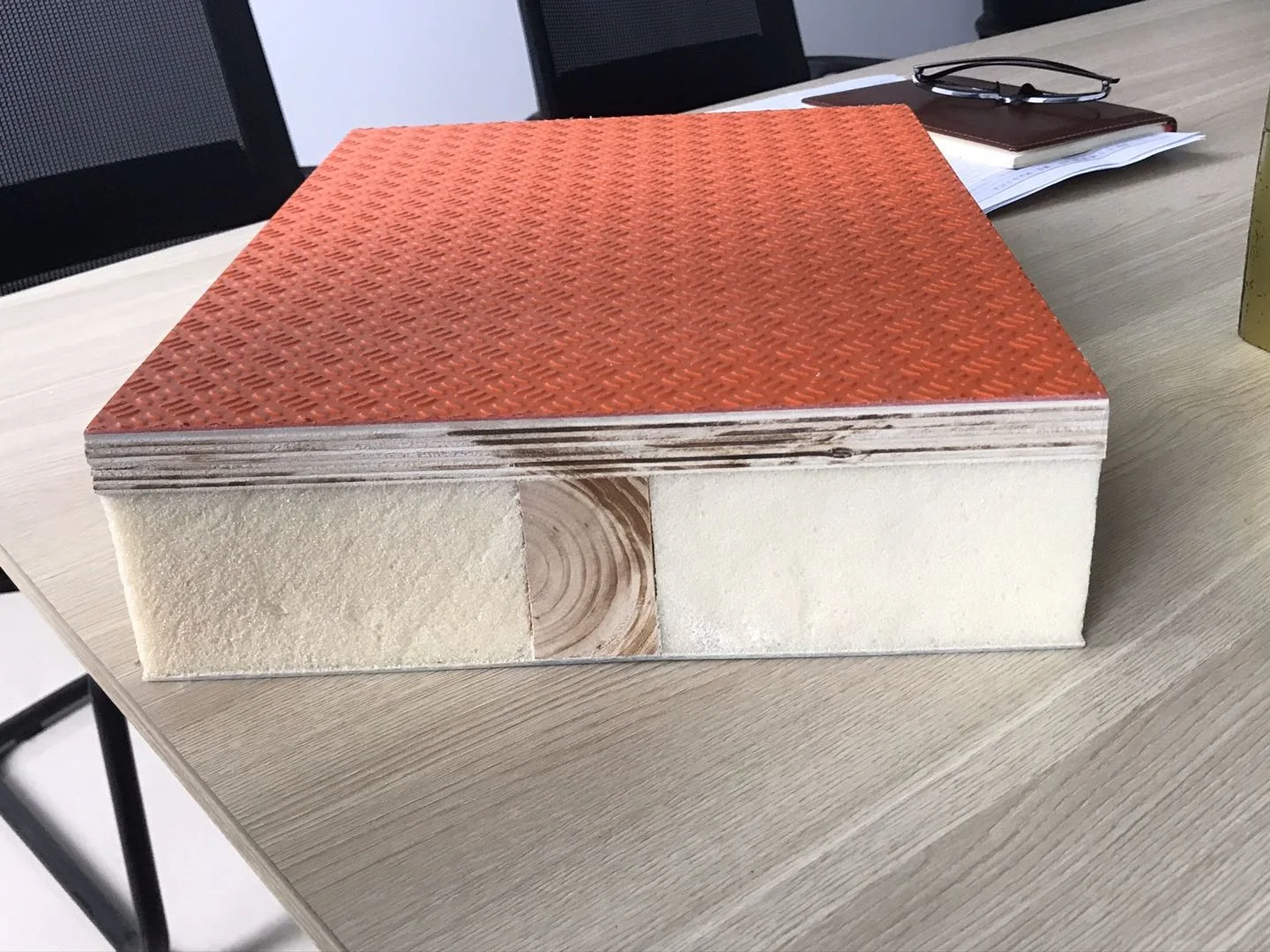

Item | FRP Plywood composite panel |
Core Material | Plywood |
FRP skin | 1.0-3.0MM |
Core | 10-100MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
15 | 12 |
18 | 14 |
21 | 16 |
Main Performance data | ||||||||
No | Item | Test results | Test method | |||||
1 | Static strength | Along wood grain | ≥60MPa | GB/T17657 | ||||
Cross wood grain | ≥50MPa | |||||||
2 | Elastic modulus | Along wood grain | ≥6000MPa | |||||
Cross wood grain | ≥4800MPa | |||||||
3 | Edgewise compressive strength | ≥35MPa | GB/T1454 | |||||
4 | Flat tension strength | ≥1.2MPa | GB/T1452 | |||||
5 | Barcol hardness | ≥42 | GB/T3854 | |||||
6 | Water boiling Test | No delamination in 72-hour water boiling | GB/T17567 | |||||
FRP Gelcoat Sheet Type
Standard surface with Gelcoat
Chopped strand
Glossy
White(colored)
Smooth and reflective
(show little fiberglass grain on surface)
Maxwidth 3200mm
Chopped strand
Glossy
White(colored)
Smooth and reflective
(show little fiberglass grain on surface)
Maxwidth 3200mm
Matte surface with Gelcoat
White(colored)
Smooth and not reflective
(show little fiberglass grain on surface)
Maxwidth 3200mm
White(colored)
Smooth and not reflective
(show little fiberglass grain on surface)
Maxwidth 3200mm
Mirror surface with Gelcoat
High glossy
White(colored)
Smooth and reflective
(like mirror,no fiberglass grain on surface)
Maxwidth 2550mm
High glossy
White(colored)
Smooth and reflective
(like mirror,no fiberglass grain on surface)
Maxwidth 2550mm
Glossy surface with Gelcoat
Woven roving
Glossy/Matte
White(colored)
Smooth and reflective
(show little fiberglass woven grain on surface)
Maxwidth 3200mm
Woven roving
Glossy/Matte
White(colored)
Smooth and reflective
(show little fiberglass woven grain on surface)
Maxwidth 3200mm
Glossy surface with Gelcoat
Stone pattern
Glossy
White(colored)
Smooth and stone grain
Decoration wall panels
Maxwidth 2500mm
Stone pattern
Glossy
White(colored)
Smooth and stone grain
Decoration wall panels
Maxwidth 2500mm
Glossy surface with Gelcoat
Anti-slip
Glossy
White/Grey/Black color
Smooth and anti-slip grain
Floor panels
Maxwidth 2500mm
Anti-slip
Glossy
White/Grey/Black color
Smooth and anti-slip grain
Floor panels
Maxwidth 2500mm
Glossy surface with Gelcoat
Leather pattern
Glossy
White(colored)
Smooth and leather grain
Decoration internal wall panels
Maxwidth 2500mm
Leather pattern
Glossy
White(colored)
Smooth and leather grain
Decoration internal wall panels
Maxwidth 2500mm
Glossy surface with Gelcoat
Cloth pattern
Glossy/Matte
White(colored)
Smooth and cloth grain
Decoration internal wall panels
Maxwidth 2500mm
Cloth pattern
Glossy/Matte
White(colored)
Smooth and cloth grain
Decoration internal wall panels
Maxwidth 2500mm
Glossy surface with Gelcoat
Bubble pattern
Glossy
White(colored)
Smooth and bubble grain
Decoration external wall panels
Maxwidth 2500mm
Bubble pattern
Glossy
White(colored)
Smooth and bubble grain
Decoration external wall panels
Maxwidth 2500mm
Glossy surface with Gelcoat
Quartz pattern
Glossy
Grey(colored)
Rough and quartz grain
Floor panels
Maxwidth 2500mm
Quartz pattern
Glossy
Grey(colored)
Rough and quartz grain
Floor panels
Maxwidth 2500mm
Applications
Shelter
Caravan
Camper
Ambulance
Travel trailer
Refrigerator truck
Dry Cargo Van
Tank Truck
Incubator
Why choose Wansheng?
Yangzhou Wansheng Industry Co.,Ltd.established in 2000. We have more than 20 years working experience in FRP products. The company has a registered capital of 214.18 million Yuan,an area of 4,000 square meters, a total assets of about 120 million Yuan and more than 400 employees.
