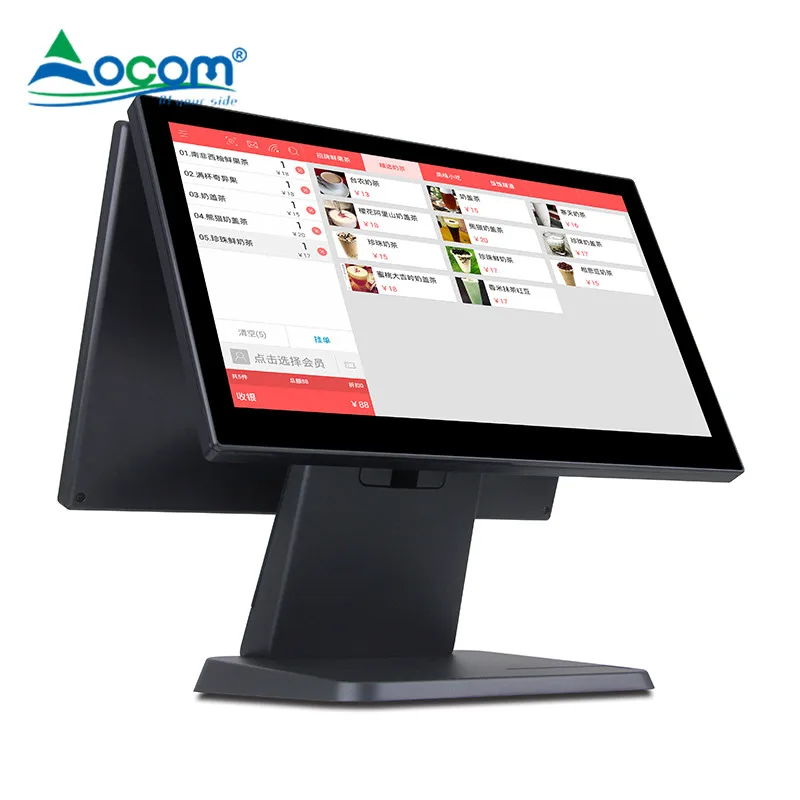

POS cash register touch screen all in one machine business supermarket retail cash register automatic cash drawer system
- Category: >>>
- Supplier: Shenzhen OCOM Technologies Limited
Share on (1600991390109):
Product Overview
Description
VR
Product details
* 6 inch BOE brand new LCD screen
* Multi-point projected capacitive touch panel
* Removable bottom plate for smaller packaging and less shipping cost
* The main screen supports large angle rotation to meet any observation angle
* Borderless screen , the front protects against direct water splashes
* Ultra-thin body makes the product more concise and stylish
* Thick and stable aluminum base
* Cable slots inside the base make the cable more tidy
* Customer display, secondary screen and MSR installation position is reserved on the shell
* Multi-point projected capacitive touch panel
* Removable bottom plate for smaller packaging and less shipping cost
* The main screen supports large angle rotation to meet any observation angle
* Borderless screen , the front protects against direct water splashes
* Ultra-thin body makes the product more concise and stylish
* Thick and stable aluminum base
* Cable slots inside the base make the cable more tidy
* Customer display, secondary screen and MSR installation position is reserved on the shell
Model | POS-1516-W | POS-1516-A | |
Name | 15.6 inch Windows touch screen pos terminal | 15.6 inch Android touch screen pos terminal | |
Housing | ABS plastic machine body with aluminium alloy base | ||
Color | whole black color machine body | ||
Display | |||
Main screen | 15.6 inch touch screen monitor | ||
Resoluiton | 1366*768, 1920*1080 for option | ||
Brightness | 300cd/m2 | ||
View angle | Horizon: 160; Vertical :150 | ||
Touch screen | Multi-point projected G+G capacitive touch | ||
Sub-display | 15.6inch display W or W/o touch function, resolution 1366*768 or 1920*1080 resolution for option | ||
Customer display | 2*20 VFD or 2*20 LCD mounted to back cover for option | ||
Performance | |||
Motherboard | Intel Celeron Bay Trail J1900 2.0GHz usually or intel core I3 / I5 4th generation CPU for option | ARM Cortex-A17 -RK 3288 quad core 1.8GHz CPU | |
System Memory | 1*SO-DIMM DDRIII slot, support1333*/1600 4GB (default) 2GB/8GB for option | On board 2GB DDRIII,4GB for option | |
Storage device | Msata SSD 64GB or higer, up to 256GB | 8GB eMMC, support 32GB TF card expanded | |
Audio | On board Real Tek ALC662 audio chip ALC5640 | On board Real Tek audio chip ALC5640 | |
LAN | 10/100Mbs,Realtek RTL8111F Lan chip built in Mini PCI-E slot,support embedded WIFI module | 10M/100M RTL8201F,10M/100M/1000M RTL8211E for option | |
Operating System | Windows7/8/10, Embedded,WEPOS,Linux | Android 7.1 or Android 8.1 for option | |
Connectivity | |||
External I/O port(J1900 and RK3288) | power button*1 | ||
12V DC in jack*1 | |||
LAN:RJ-45*1 | |||
USB *5 | |||
COM(RS232) * 1 | COM(RS232) * 2 | ||
VGA(15Pin D-sub)*1 | RJ11 for Cash drawer *1 | ||
Audio out*1 | MIC in*1 ,Audio out*1 | ||
Packge | |||
Weight | Net 4.0 Kg Gross 5.0 Kg | ||
Package with foam inside | 460*185*420 mm for single screen | ||
Environment | |||
Operating temperature | 0 to 40 degrees centigrade | ||
Storage temperature | -10 to 60 degrees centigrade | ||
Working humidity | 10%~80% No condensation | ||
Storage humidity | 10%~90% No condensation | ||
Accessories | |||
Power adapter | 110-240V/50-60HZ AC power input ,DC12V/5A output adaptor | ||
Power cable | Power cable plug compatible with USA /EU / UK etc and customized available | ||
CD driver | Motherboard driver and touch driver inside | ||
Other | |||
Compliance | FCC Class A/CE Mark/LVD/CCC | ||
