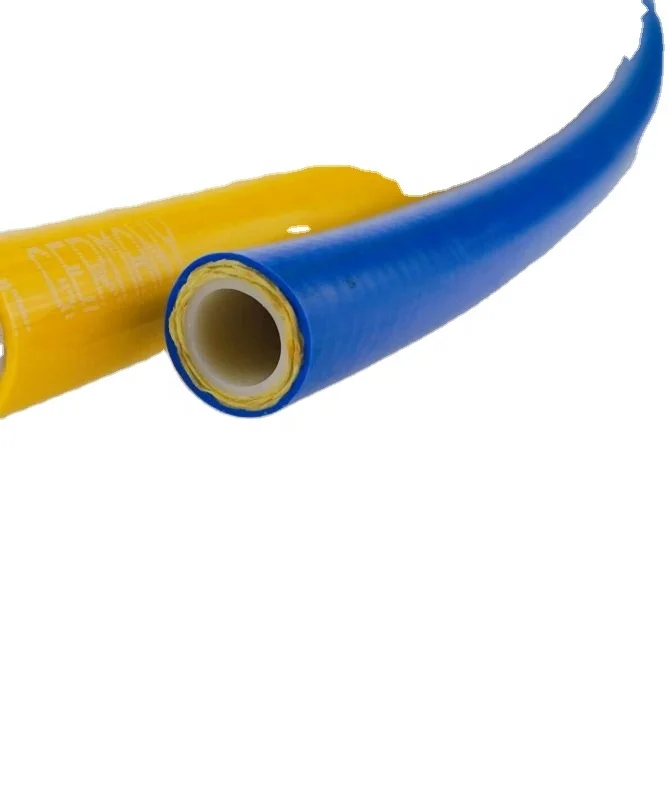

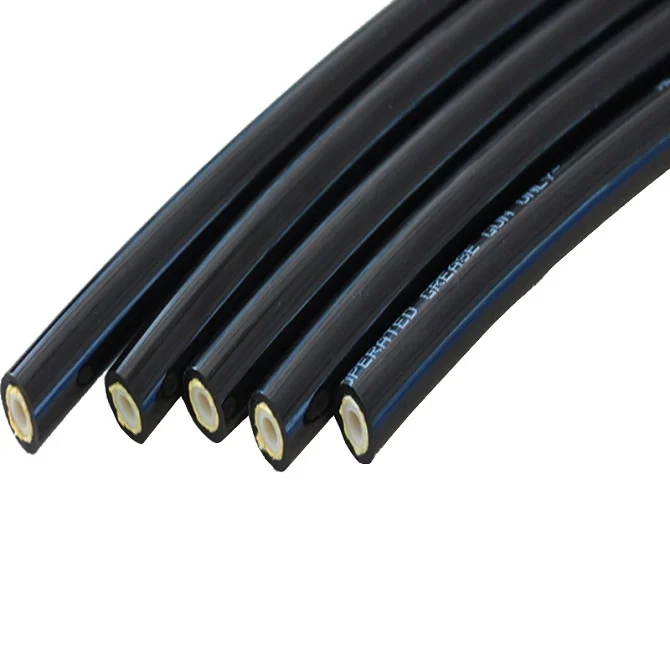

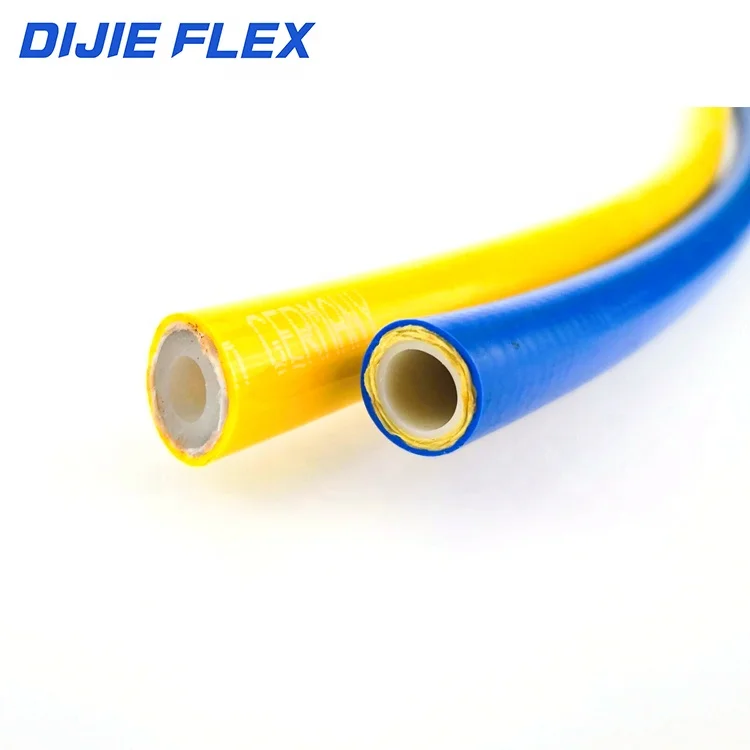

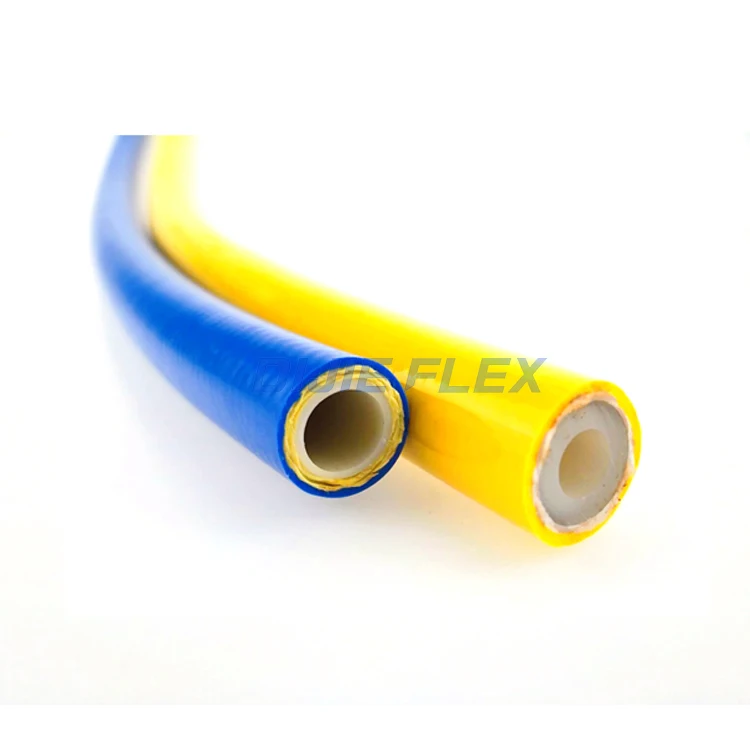

Thermoplastic high pressure hydraulic hose sae100 r7sae 100r8 nylon hose
- Category: >>>
- Supplier: Shandong Dijieflex Technology Co. Ltd.
Share on (1600991518332):
Product Overview
Description
Products Description
SAE 100R8-1S0 3949,2 norms
Black color, Pin Pricked-polyurethane Available twin and multi lines
with different hose combination and size. Also, special colors up on request
with different hose combination and size. Also, special colors up on request
INCH | Hose ID*OD | Model | Working Pressure | Bursting Pressure | Minimum BendRadius |
1/8 | 4*8.6mm | E0220A | 362bar | 1450bar | 15mm |
3/16 | 5*10mm | E0220B | 362bar | 1450bar | 22mm |
1/4 | 6.3*12.2mm | E0220C | 362bar | 1450bar | 30mm |
5/16 | 8*14.2mm | E0220D | 350bar | 1400bar | 40mm |
3/8 | 10*16mm | E0220E | 300bar | 1200bar | 70mm |
1/2 | 13*19.5mm | E0220F | 250bar | 1000bar | 90mm |
Shandong Dijieflex Technology Co. Ltd.
The Refinforcement of hydraulic hose is high strength steel wire winding layer with special treatment. Outside jacket is polyurethane material to provide the maximum abrasion resistance. Small fluid resistance, small volume expansion, good chemical corrosion resistance, lightweight small outside diameter, which greatly facilitates the use of various type of hydraulic tools. All hydraulic hoses conduct over-pressure testing before they leave the factory. High pressure bearing capacity, the maximum working pressure is up to 362Bar.
Recommend Products
Product Advantages
Product Applications
Product Applications
1.Compact high pressure hose suitable for hydraulic applications.
2.For use with petroleum,synthetic or water based hydraulic fluids in hydraulic systems.
3.Suitable for general fuild power transmissions like earthmoving,agricultural machinery, forklift trucks and other high pressure equipment.Also suitable for many industrial gaes.
2.For use with petroleum,synthetic or water based hydraulic fluids in hydraulic systems.
3.Suitable for general fuild power transmissions like earthmoving,agricultural machinery, forklift trucks and other high pressure equipment.Also suitable for many industrial gaes.
Company Profile
Shandong Dijieflex Technology Co. Ltd. is a famous company producing high quality full range of thermoplastic hoses. Our company mainly produces Ultra High Pressure Hose, PTFE Hose, Lubricating Hose, Grease Hose, Paint Spray Hose, TPU Hose, Sewer Cleaning Hose, Test Hose, Jack Hose, Nylon Hose, etc. We not only provide customers with high-reliability and cost-effective standard products,but also continuously develop new products according to the latest requirements of customers to meet the special application requirements of various industries. Our strict process and high quality's raw material make it easy to pass ISO9001 and TS16949 quality system certification. Our company has maintained the strongest competitiveness in new material development and new technology applications.
Manufacturer of hydraulic hoses
Our strict process and high quality raw material make it easy to pass ISO 9001 and TS16949 quality system certification.
Exhibition
Product packaging
We have sufficient raw materials to produce all kinds of hydraulic hoses, as well as sufficient stocks of Ultra High Pressure Hose, PTFE Hose, Lubricating Hose, Grease Hose, Paint Spray Hose, TPU Hose, Sewer Cleaning Hose, Test Hose, Jack Hose, Nylon Hose, etc. Fast delivery and good packaging quality.
Quality test: 100% pressure test and leakage test before packing.
Packing details: Standard export packing or according to customer's special requirements.
Delivery Detail: The specific delivery time depends on the items and the quantity.
FAQ
Q1: Are you factory or trading company?
A: We are factory, specialized in hose. Welcome to visit our factory.
Q2: What is your terms of packing?
A: Plastic woven belt, Carton Packaging, Wooden Cases or Your Request
Q3: What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q6: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
