LH HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment
LH-HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment
LH-HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment
LH-HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment
LH-HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment
LH-HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment
LH-HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment

LH HPDC 300T Die Casting Machine For Technology Cold Chamber Manufacturer Mould Metal Equipment

Share on (1600991550293):


Price:$33,441.00 - $35,441.00

Quantity:


Product Overview

Description

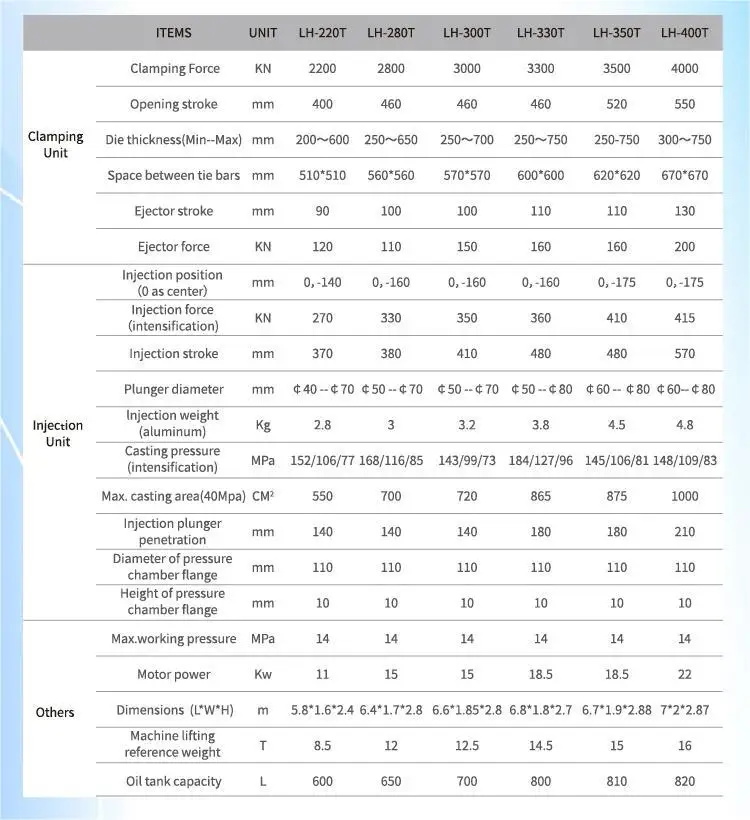

ITEMS
Unit
Specification
Clamping Force
KN
3000
Opening stroke
mm
460
Die thickness(Min--Max)
mm
250～700
Space between tie bars
mm
570*570
Ejector stroke
mm
100
Ejector force
KN
150
Injection position（0 as center）
mm
0，-160
Injection force（intensification)
KN
350
Injection stroke
mm
410
Plunger diameter
mm
￠50 --￠70
lnjection weight(aluminum)
Kg
3.2
Casting pressure (intensification)
MPa
143/99/73
Max. casting area(40Mpa)
CM2
720
Injection plunger penetration
mm
140
Diameter of pressure chamber flange
mm
110
Height of pressure chamber flange
mm
10
Max.working pressure
MPa
14
Motor power
Kw
15
Dimensions (L*W*H)
m
6.6*1.85*2.8
Machine lifting reference weight
T
12.5
Oil tank capacity
L
700


We reserve the right to make any technical improvement without further notice
