Black 10.1 10.4 12.1 Inch Custom Capacitive Touch Screen Panel Kit for Terminal Virtual Reality Ready USB Serial Interface
- Category: >>>
- Supplier: Leadingtouch Technology Co. Ltd.
Share on (1600991552015):
Product Overview
Description
10 Point Custom Screen 10.1 10.4 12.1 inch Capacitive touch screen panel kit for terminal
Product Description
LeadingTouch Project Capacitive (PCAP) Touch Solution | ||

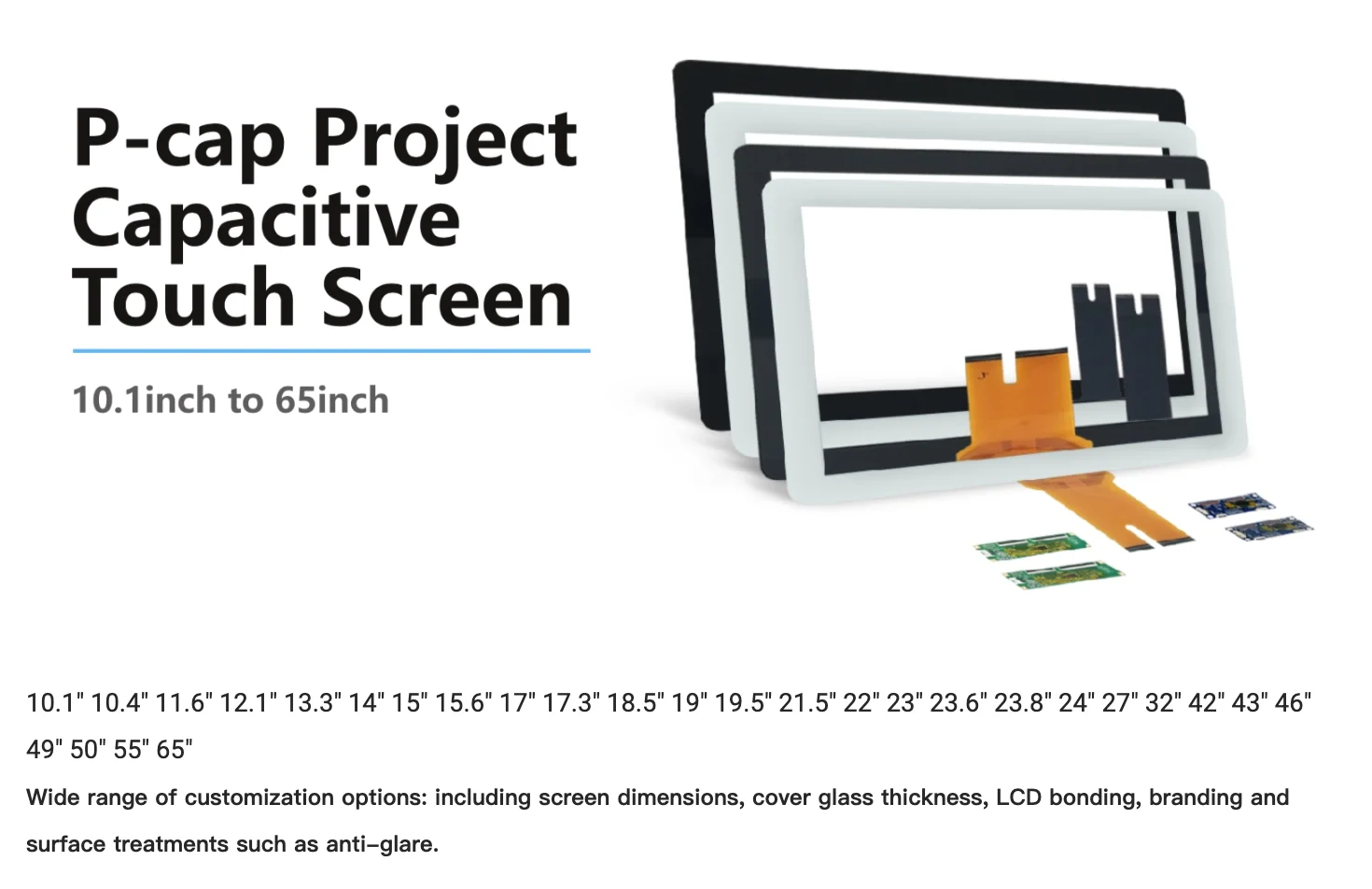

10.1 inch to 65 inch Project Capacitive (PCAP) Touch Panel | Touch Structures: Glass / Glass | |
Controller IC: iLITEK or EETI | Customize Size and Shapes | |
16 point multi-touch | Fast and sensitive touch response | |
Excellent optical clarity | Long-term stable operation over temperature | |
Optional surface treatments such as anti-glare | Cover Lens: 3mm - 12mm Heat Tempered Anti-Vandal Glass | |
Products: 10.4inch 4:3 Touch Panel
Model: PC1040AH-G11NL
Mode: PCAP(Project Capacitive) Touch Panel
Application: Interactive digital signage, Gaming and lottery terminals, Industrial automation, Medical equipment, Point-of-information & Transportation kiosks, POS solutions, Education / White board, Self-service / service automation kiosks
1. General Specification | ||
Touch Technology | PCAP project capacitive touch technology | |
Touch Panel Size | 10.4 inch 4:3 | |
Input Medium | Finger, gloved hand, or passive stylus | |
Touch_Panel Structures | G+G | |
Cover_Lens_Active Area | 162 x 214mm | |
Cover_Lens_Outline Dimension | 178 x 228mm | |
Total Thickness | 2.0±0.15mm (Cover_Lens 1.1mm & Sensor 0.7mm) | |
Report Rate | ≥100Hz | |
Positional Accuracy | ±1.5mm | |
Surface Hardness | ≧7H (Meets pencil hardness 7H per ASTM D 3363) | |
Cover_Lens | 3mm tempered anti-vandal glass meet UL60950 stell ball drop | |
Haze(ASTM D 1003) | Clear surface≦3% Antiglare Surface≦4% | |
Durability | Over 50 million touchs in one location | |
Touchscreen Operating Temperature | -20℃ ~ 70℃ | |
Controller Operating Temperature | -20℃ ~ 70℃ | |
Touchscreen Operating Humidity | 20% ~ 90%RH (Non-condensing) | |
Controller Operating Humidity | 20% ~ 90%RH (Non-condensing) | |
Storage Environmental | -30℃ ~ 80℃, RH<90% (Non-condensing) | |
2. Electrical Characteristics | ||
Touch_Controller_Mode | COB | |
Communication Interface(s) | USB(Standard), RS-232, I2C (Options) | |
Supply Voltage | DC5V | |
How to supply it | From COM / USB Port /Mainboard of PC | |
Number of Touches | Up to 16 | |
Operating System | Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android | |
Warranty | 1 year | |
Agency Approvals | FCC,CE,ROHS | |
Related Products
Our Company
LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
Certifications
Packing & Delivery
FAQ
Q: Which size do you have for the projected capacitive (PCAP) touch screen? | ||||||||
A: 10.1" 10.4" 11.6" 12.1" 13.3" 14" 15" 15.6" 17" 17.3" 18.5" 19" 19.5" 21.5" 22" 23" 23.6" 23.8" 24" 27" 32" 42" 43" 46" 49" 50"55" 65" Capacitive touch screen | ||||||||
Q: Do you supply OEM service? | ||||||||
A: Yes, we can make the touch screen according to your drawing. | ||||||||
Q: What is your MOQ? | ||||||||
A: One or two pieces sample for testing is ok. | ||||||||
Q: What is your payment methods for capacitive touch screen panel? | ||||||||
A: PayPal, T/T, Credit card-Ali Pay. | ||||||||
Q: How long is the warranty period? | ||||||||
A: One Year. | ||||||||
Q: What is the capacitive touch screen panel application? | ||||||||
A: Open frame touch monitor, POS, ATM, Kiosk, Medical Treatment, Media Player, Industrial Control, etc. | ||||||||
