LH HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber
LH-HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber
LH-HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber
LH-HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber
LH-HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber
LH-HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber
LH-HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber

LH HPDC 630T Die Casting Machinecold Chamber Die Casting Machine With High Pressure Injection For Aluminum Alloy Cold Chamber

Share on (1600991709941):


Price:$80,000.00 - $81,000.00

Quantity:


Product Overview

Description

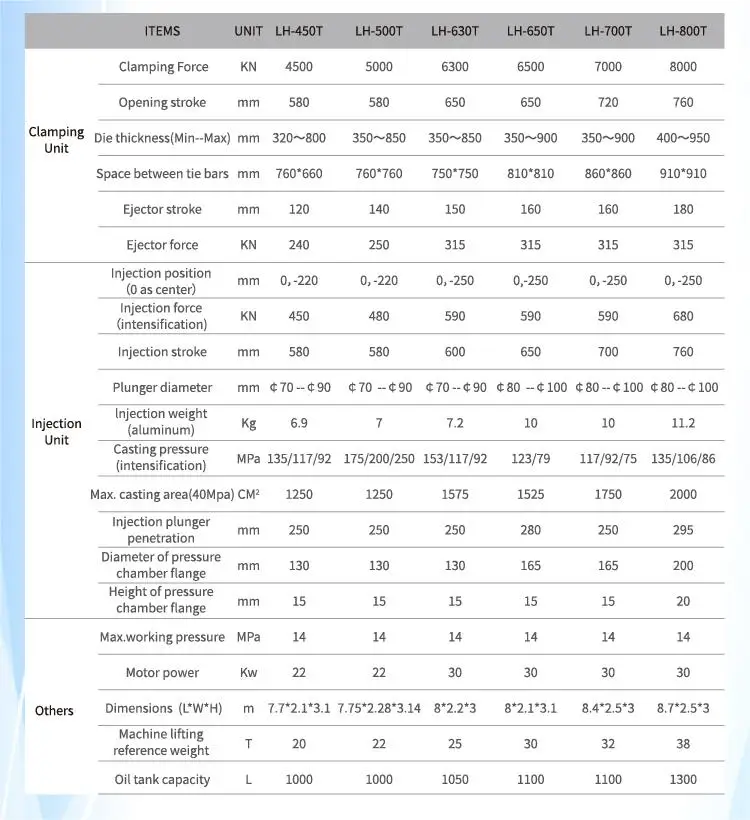

ITEMS
Unit
Specification
Clamping Force
KN
6300
Opening stroke
mm
650
Die thickness(Min--Max)
mm
350～850
Space between tie bars
mm
750*750
Ejector stroke
mm
150
Ejector force
KN
315
Injection position（0 as center）
mm
0，-250
Injection force（intensification)
KN
590
Injection stroke
mm
600
Plunger diameter
mm
￠70 ￠80 ￠90
lnjection weight(aluminum)
Kg
7.2
Casting pressure (intensification)
MPa
153/117/92
Max. casting area(40Mpa)
CM2
1575
Injection plunger penetration
mm
250
Diameter of pressure chamber flange
mm
130
Height of pressure chamber flange
mm
15
Max.working pressure
MPa
14
Motor power
Kw
30
Dimensions (L*W*H)
m
8*2.2*3
Machine lifting reference weight
T
25
Oil tank capacity
L
1050


We reserve the right to make any technical improvement without further notice
