5 Ton 10Ton Industrial Use Jib Crane Price Drawing Design With Derricking Jibs
- Category: >>>
- Supplier: Wuhan Rayvanbo Import And Export Trade Co. Ltd.
Share on (1600991859287):
Product Overview
Description
Product Description
JIB Crane Description

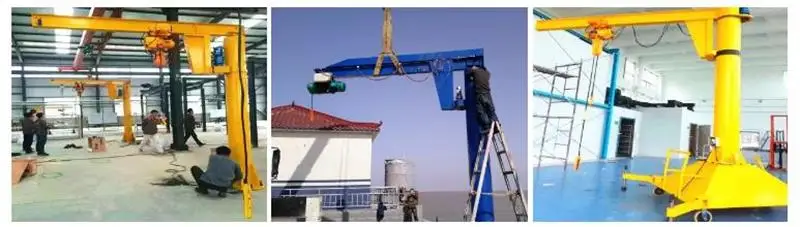

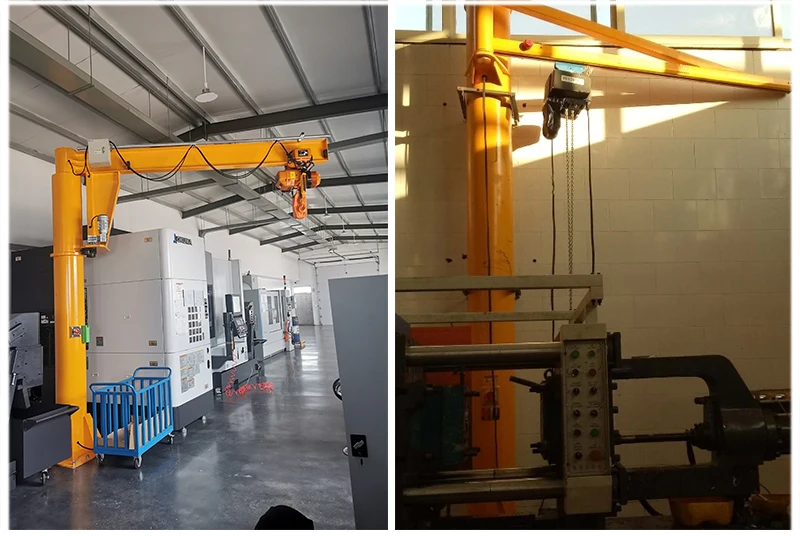

Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or KBK light beam, rotating way can be manual(< 1t) or electric. JIB crane can be equiped electric wire rope hoist, electric chain hoist or manual hoist. It is suitable to work in the short-range and intensive lifting occasions. So it’s widely used in workshops, warehouses, docks and other fixed place.

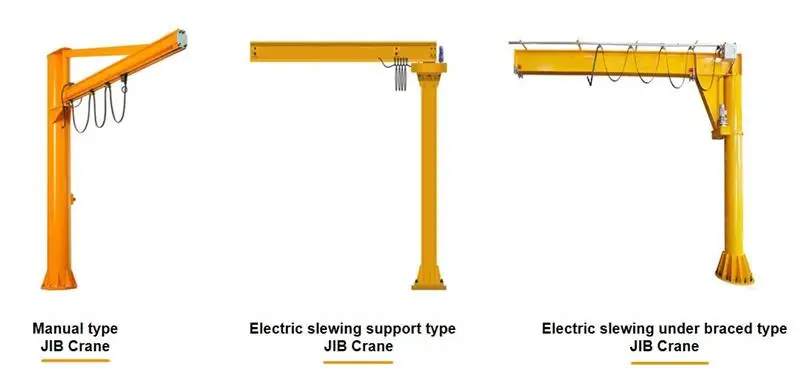

We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 360 ° according to client’s usage.
Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or KBK light beam, rotating way can be manual(< 1t) or electric. JIB crane can be equiped electric wire rope hoist, electric chain hoist or manual hoist. It is suitable to work in the short-range and intensive lifting occasions. So it’s widely used in workshops, warehouses, docks and other fixed place.
We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 360 ° according to client’s usage.
Product Details
Main Features:
1. Column using seamless pipe, main beam use I-beam or KBK beam.
2. Rotation can be manual or motorized.
3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
4. Unique structure, safe and reliable, high efficiency and flexible.
5. Can be customized according to client’s requirements.
6. Easy installation.
1. Column using seamless pipe, main beam use I-beam or KBK beam.
2. Rotation can be manual or motorized.
3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
4. Unique structure, safe and reliable, high efficiency and flexible.
5. Can be customized according to client’s requirements.
6. Easy installation.
Specification
Lift capacity(T) | 1, 2, 3, 5, 10, 16, 20 | ||||||
Span(M) | 7.5-22.5 | ||||||
Mechanism traveling | speed(m/min) | 10, 20, 30 | 45, 60 | ||||
motor | type | ZDY1 21-4 | ZDR12-4 | ||||
power(kw) | 2*0.8 | 2*1.5 | |||||
speed(r/min) | 1380 | 1380 | |||||
Electric chain hoist or wire rope hoist | model | CD1/MD1/HHBB | |||||
lift height(m) | 3-25 | ||||||
traversing speed(m/min) | 20,30 or can be customized | ||||||
lifting speed(m/min) | 8(7); 8/0.8(7/0.7) | ||||||
Workclassfication | A3-A5 | ||||||
Power supply | 380V/50HZ or on request | ||||||

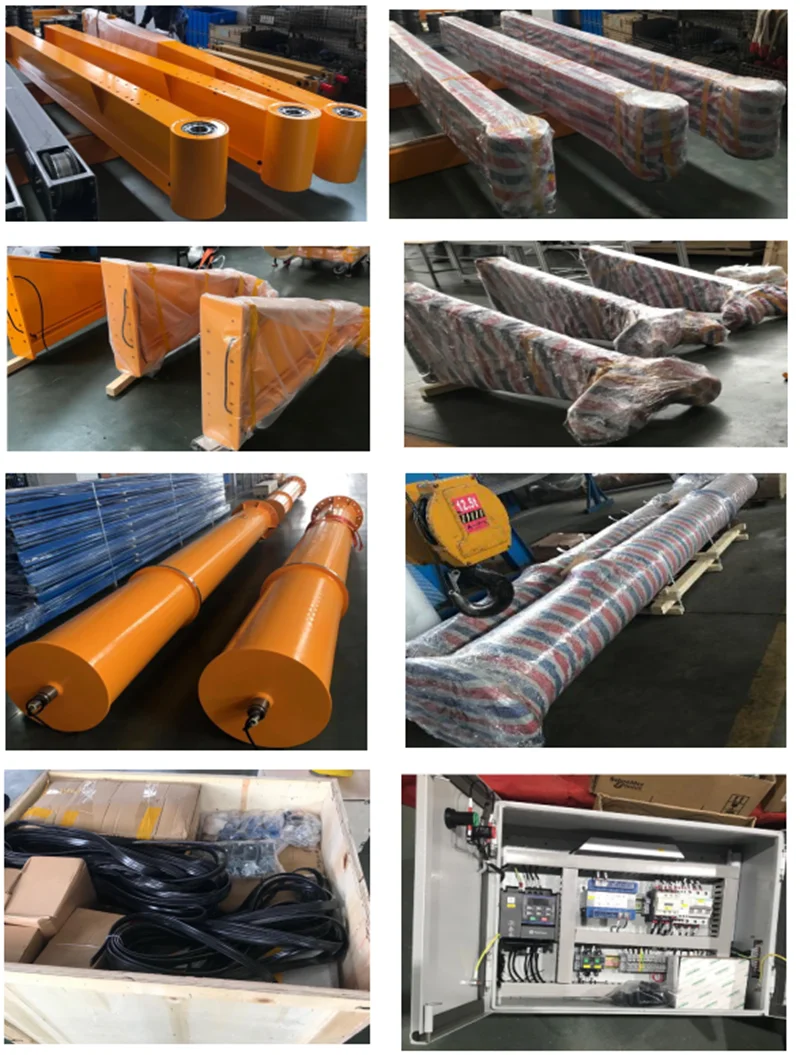

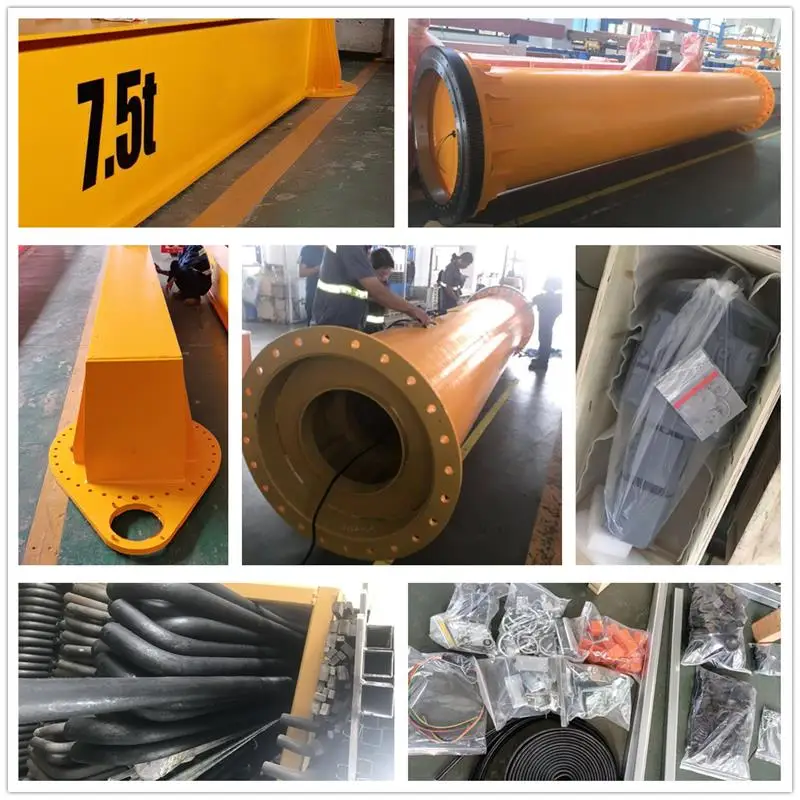

Packing & Delivery
Wooden box or as your requirement packaging
