R290 Monoblock Heating&Cooling Factory Price CE, ERP, MCS, KEYMARK, BAFA, SG READY A Smart Control
- Category: >>>
- Supplier: Guangdong New Energy Technology Development Co. Ltd.
Share on (1600991920607):
Product Overview
Description
Product Description

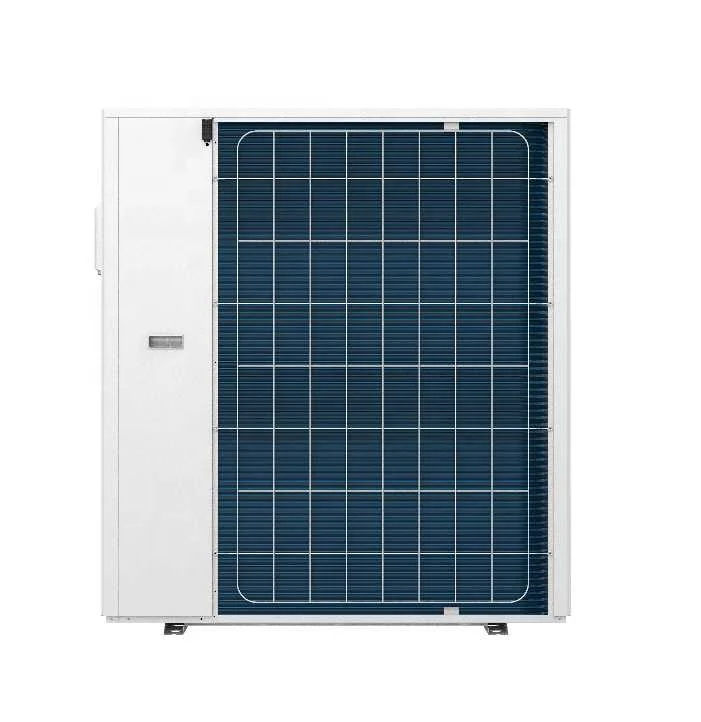

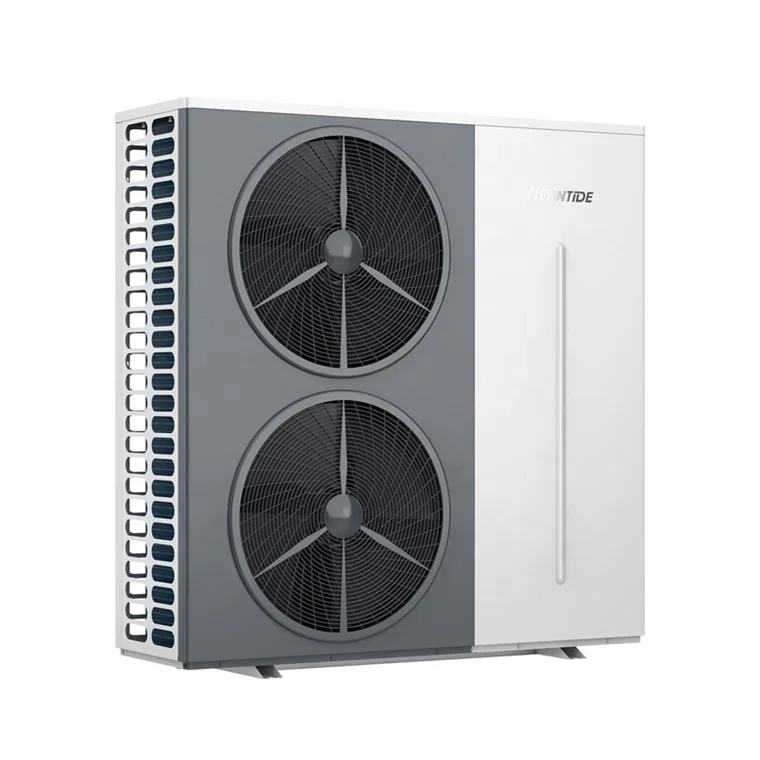

R290 refrigerant Monobloc EVI dc inverter air to Cooling&Heating heat pump
1.Heating Capacity range: 7-21kW
1.Heating Capacity range: 7-21kW
2.Adopting famous brand compressor and heat exchanger with larger surface area to achieve high COP
3.Water exchanger equipped with high efficiency tube in shell heat exchanger

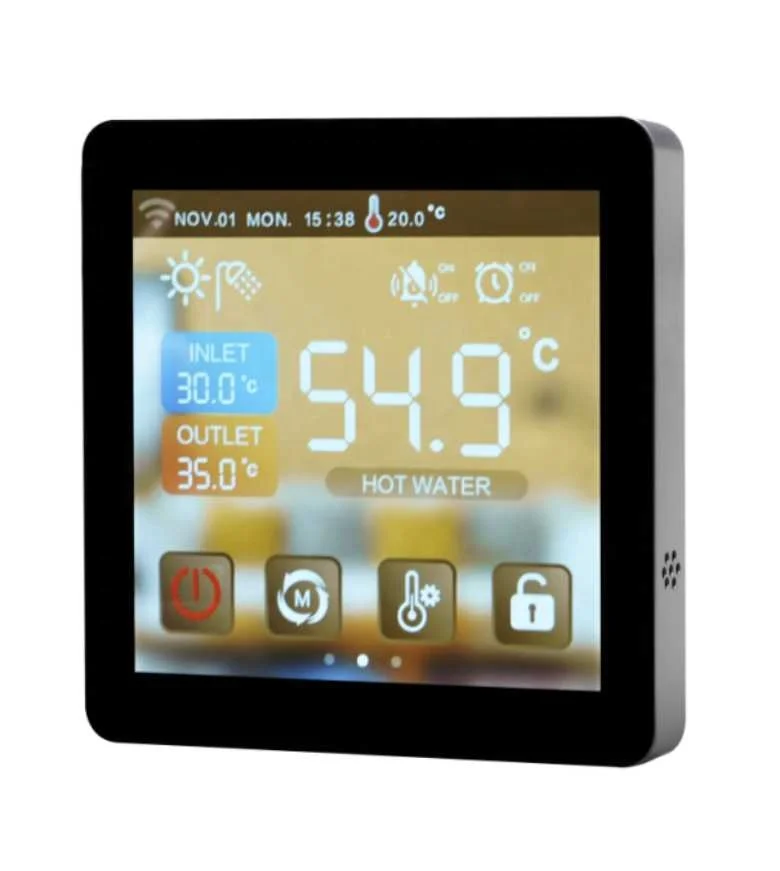

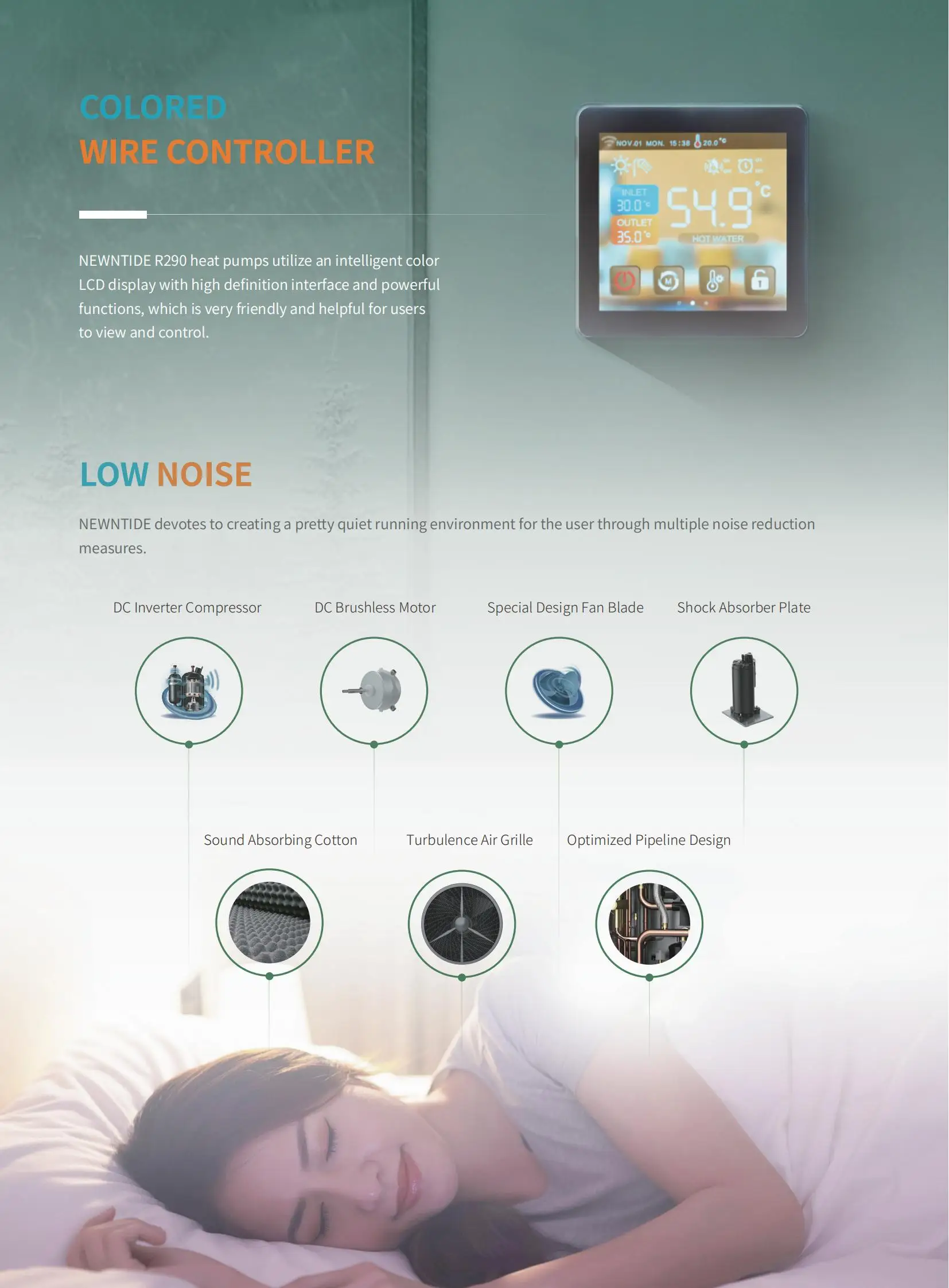

4.Optional Wi-Fi Control makes it easy to operate the heat pump anytime and anywhere

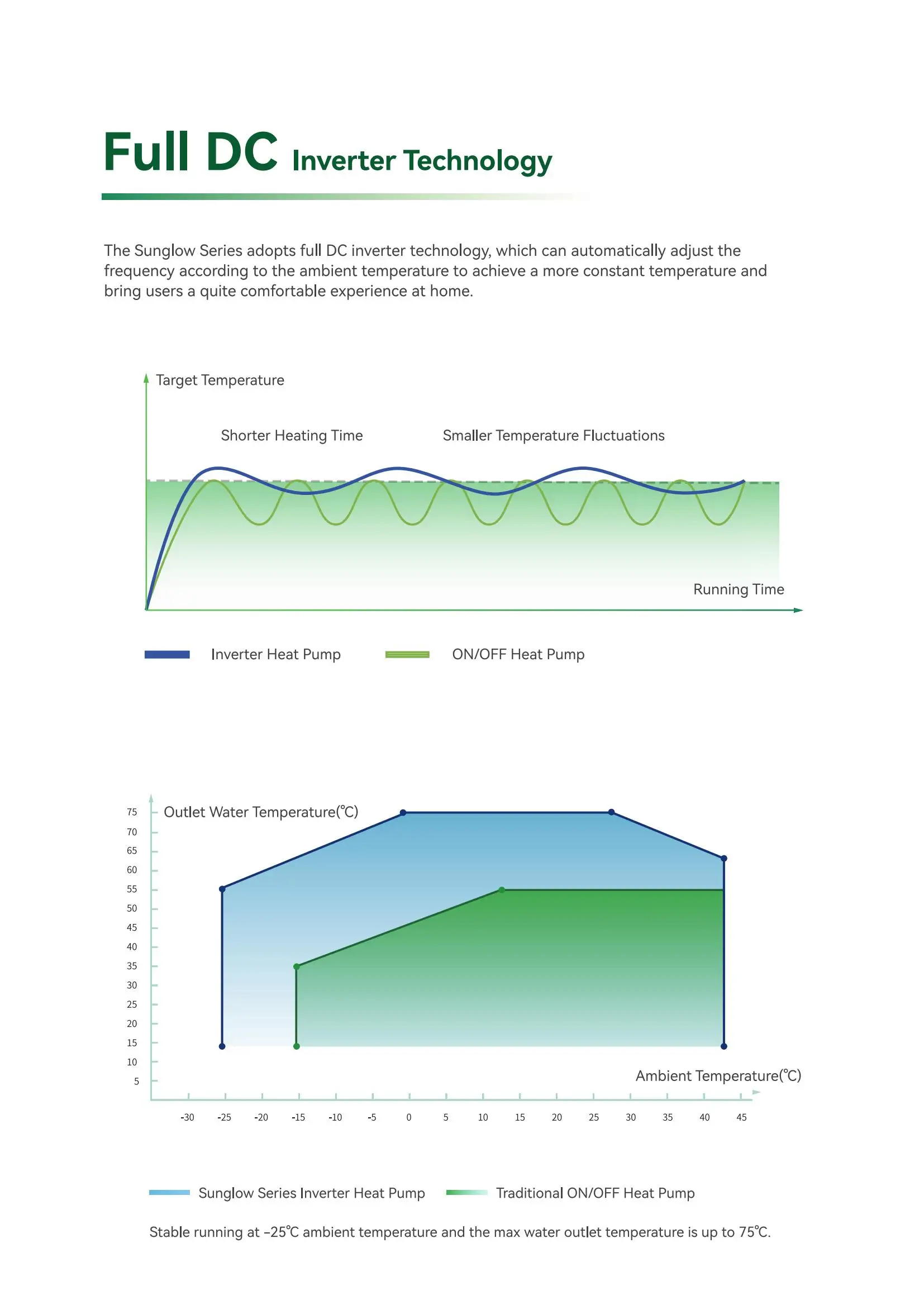

5.The machine can run stably in the ambient temperature of -25~43°C
6.R290 refrigerant, environmentally friendly – Green energy
Product Parameters
Mode:NE-F | 60HCR5INVM | 90HCR5INVM | 130HCR5INVM | 160HCR5INVM | ||||
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | ||||||||
Heating Capacity (kW) | 2.00~6.00 | 3.50~8.81 | 4.50~12.74 | 6.00~16.00 | ||||
Power Input (kW) | 0.30~1.31 | 0.58~1.89 | 0.75~2.82 | 1.0~3.49 | ||||
Heating Current Input Range(A) | 1.32~5.75 | 2.65~8.18 | 3.43~12.20 | 4.4~15.3 | ||||
COP | 6.00~4.58 | 6.00~4.65 | 6.00~4.52 | 6.00~4.59 | ||||
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C. | ||||||||
Heating Capacity (kW) | 1.80~5.40 | 3.15~7.98 | 3.90~11.25 | 5.4~14.4 | ||||
Power Input (kW) | 0.39~1.74 | 0.68~2.55 | 0.85~3.66 | 1.17~4.97 | ||||
Heating Current Input Range(A) | 1.71~7.64 | 3.11~11.00 | 3.89~15.85 | 5.14~21.8 | ||||
COP | 4.63~3.10 | 4.63~3.13 | 4.59~3.07 | 4.61~2.90 | ||||
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C. | ||||||||
Cooling Capacity (kW) | 1.20~4.00 | 1.53~5.96 | 2.93~8.87 | 3.50~13.00 | ||||
Power Input (kW) | 0.26~1.38 | 0.33~2.11 | 0.63~3.26 | 0.76~4.33 | ||||
Cooling Current Input Range(A) | 1.15~6.06 | 1.51~9.13 | 2.88~14.10 | 3.34~19.00 | ||||
EER | 4.62~2.90 | 4.64~2.82 | 4.65~2.72 | 4.60~3.0 | ||||
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C. | ||||||||
Heating Capacity (kW) | 6.60 | 9.33 | 13.90 | 17.20 | ||||
Power Input (kW) | 1.52 | 2.14 | 3.28 | 4.00 | ||||
Hot Water Current Input Range(A) | 6.66 | 9.8 | 14.36 | 17.75 | ||||
COP | 4.35 | 4.35 | 4.24 | 4.30 | ||||
Max. Power Input (kW) | 2.8 | 4 | 5 | 6 | ||||
Max. Running Current (A) | 14.3 | 18.3 | 22.9 | 29 | ||||
Max. Outlet Water Temp. (°C) | 75 | |||||||
Operation Range (°C) | -25~43 | |||||||
Power Supply | 220-240V~/50Hz | |||||||
Rated Water Flow (m³/h) | 1.03 | 1.5 | 2.19 | 2.75 | ||||
Water Pressure Drop (kPa) | 30 | 37 | 41 | 48 | ||||
Expansion Tank (L) | 2 | 5 | ||||||
Compressor Brand | Highly WHP05500PUKPA6 | Highly WHP07600PSDPC9KQ | Highly WHP10200PSDPC9KQ | Highly WHP32900VSKTQ9JK | ||||
Circulating Pump Brand | GPA25-7.5H | GPA25-9H | GPA25-9H | GPA25-11H | ||||
Water Side Heat Exchanger | YOJO | |||||||
Air Side Heat Exchanger | 2 | 1.5 | 2 | 2排 | ||||
CO2 Equivalent (Ton) | 0.0015 | 0.0023 | 0.0029 | 0.0049 | ||||
ErP Level (35°C) | A+++ | |||||||
ErP Level (55°C) | A++ | |||||||
Display | 4-inch Colored Touch Screen | |||||||
Wi-Fi Function | Yes | |||||||
Refrigerant Type | R290 | |||||||
Refrigerant weight (KG) | 0.65 | 0.78 | 0.94 | 1.65 | ||||
Sound Pressure Level dB(A) at 1m | 43~48 | 43~49 | 43~55 | 44~54 | ||||
Sound power level dB(A) at 1m | 57~63 | 58~64 | 58~70 | 60~69 | ||||
Water Pipe Connection (inch) | G1 1/4" | |||||||
Water Proof Class | IPX4 | |||||||
Electricity Shock Proof | I | |||||||
Net Weight（kg） | 84 | 115 | 119 | 175 | ||||
Net Dimensions (L×W×H) (mm) | 1180 x 440 x 710 | 1263 x 440 x 875 | 1263 x 440 x 1377 | |||||
Shipping Dimensions (L×W×H) (mm) | 1250×455×837 | 1327×455×1000 | 1327×455×1520 | |||||
Shipping Weight (kg) | 100 | 130 | 134 | 195 | ||||
Shipping Dimensions (L×W×H) (mm) | 1275×475×880 | 1347×475×1040 | 1347×475×1530 | |||||
Shipping Weight (kg) | 116 | 136 | 140 | 217 | ||||
GP 20′ | 42 | 42 | 42 | 21 | ||||
GP 40′ | 92 | 84 | 84 | 42 | ||||
40′ HQ | 138 | 90 | 90 | 45 | ||||
Mode:NE-F | 90HCR5TINVM | 130HCR5TINVM | 160HCR5TINVM | 185HCR5TINVM | 200HCR5TINVM | |||||
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | ||||||||||
Heating Capacity (kW) | 3.50~8.81 | 4.50~12.74 | 6.00~16.00 | 6.30~18.00 | 6.70~20.36 | |||||
Power Input (kW) | 0.58~1.89 | 0.75~2.82 | 1.00~3.49 | 1.05~3.92 | 1.12~4.62 | |||||
Heating Current Input Range(A) | 0.95~3.10 | 1.23~4.61 | 1.63~5.70 | 1.71~6.40 | 1.79~7.17 | |||||
COP | 6.00~4.65 | 6.00~4.52 | 6.00~4.59 | 6.00~4.59 | 5.98~4.40 | |||||
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C. | ||||||||||
Heating Capacity (kW) | 3.15~7.98 | 3.90~11.25 | 5.4~14.4 | 5.7~16.20 | 5.80~18.48 | |||||
Power Input (kW) | 0.68~2.55 | 0.85~3.66 | 1.17~4.97 | 1.24~5.58 | 1.26~6.29 | |||||
Heating Current Input Range(A) | 1.11~4.17 | 1.39~5.98 | 1.92~8.11 | 2.02~9.12 | 2.02~10.06 | |||||
COP | 4.63~3.13 | 4.59~3.07 | 4.60~2.90 | 4.60~2.90 | 4.60~2.94 | |||||
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C. | ||||||||||
Cooling Capacity (kW) | 1.53~5.96 | 2.93~8.87 | 3.50~13.00 | 4.0~13.5 | 4.40~14.40 | |||||
Power Input (kW) | 0.33~2.11 | 0.63~3.26 | 0.76~4.33 | 0.86~4.50 | 0.95~4.69 | |||||
Cooling Current Input Range(A) | 0.54~3.45 | 1.03~5.33 | 1.24~7.08 | 1.41~7.35 | 1.52~7.26 | |||||
EER | 4.64~2.82 | 4.65~2.72 | 4.63~3.0 | 4.63~3.0 | 4.63~3.08 | |||||
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C. | ||||||||||
Heating Capacity (kW) | 9.33 | 13.90 | 17.20 | 19.80 | 22.69 | |||||
Power Input (kW) | 2.14 | 3.28 | 4.00 | 4.60 | 5.19 | |||||
Hot Water Current Input Range(A) | 3.5 | 5.36 | 6.53 | 7.51 | 7.95 | |||||
COP | 4.35 | 4.24 | 4.30 | 4.30 | 4.37 | |||||
Max. Power Input (kW) | 4 | 5 | 6 | 6.5 | 6.8 | |||||
Max. Running Current (A) | 7.1 | 8.7 | 10.8 | 11.3 | 11.6 | |||||
Max. Outlet Water Temp. (°C) | 75 | |||||||||
Operation Range (°C) | -25~43 | |||||||||
Power Supply | 380-415V/3N~/ 50Hz | |||||||||
Rated Water Flow (m³/h) | 1.5 | 2.19 | 2.75 | 3.10 | 3.44 | |||||
Water Pressure Drop (kPa) | 37 | 41 | 48 | 60 | 68 | |||||
Expansion Tank (L) | 2 | 5 | ||||||||
Compressor Brand | Highly WHP07600PSDPC9KQ | Highly WHP10200PSDPC9KQ | Highly WHP32900VSKTQ9JK | |||||||
Circulating Pump Brand | GPA25-9H | GPA25-9H | GPA25-11H | GPA25-11H | GPA25-11H | |||||
Air Side Heat Exchanger | 1.5 | 2 | 2 | |||||||
CO2 Equivalent (Ton) | 0.0023 | 0.0029 | 0.0049 | 0.0049 | 0.0049 | |||||
ErP Level (35°C) | A+++ | |||||||||
ErP Level (55°C) | A++ | |||||||||
Display | 4-inch Colored Touch Screen | |||||||||
Wi-Fi Function | Yes | |||||||||
Refrigerant Type | R290 | |||||||||
Refrigerant weight (KG) | 0.78 | 0.94 | 1.65 | 1.65 | 1.65 | |||||
Sound Pressure Level dB(A) at 1m | 43~49 | 43~55 | 44~54 | 44~54 | 44~56 | |||||
Sound power level dB(A) at 1m | 58~64 | 58~70 | 60~69 | 60~70 | 60~72 | |||||
Water Pipe Connection (inch) | G1 1/4" | |||||||||
Water Proof Class | IPX4 | |||||||||
Electricity Shock Proof | I | |||||||||
Net Weight（kg） | 129 | 133 | 180 | 180 | 180 | |||||
Net Dimensions (L×W×H) (mm) | 1263 x 440 x 875 | 1263 x 440 x 1377 | ||||||||
Shipping Dimensions (L×W×H) (mm) | 1327×455×1000 | 1327×455×1520 | ||||||||
Shipping Weight (kg) | 144 | 148 | 200 | |||||||
Shipping Dimensions (L×W×H) (mm) | 1347×475×1040 | 1347×475×1530 | ||||||||
Shipping Weight (kg) | 150 | 154 | 222 | |||||||
GP 20′ | 42 | 42 | 21 | 21 | 21 | |||||
GP 40′ | 84 | 84 | 42 | 42 | 42 | |||||
40′ HQ | 90 | 90 | 45 | 45 | 45 | |||||
Product Details

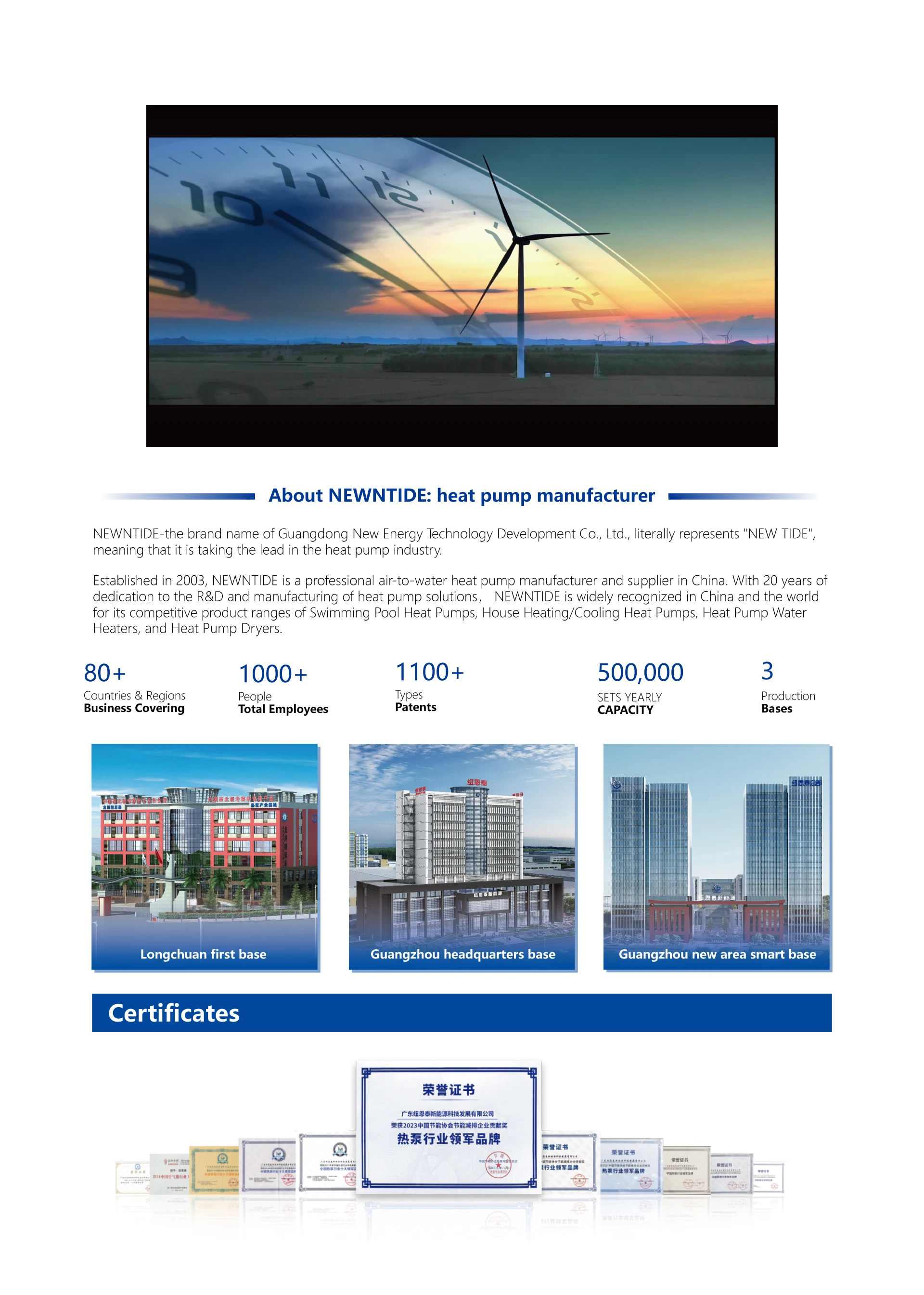

Why Choose NEWNTIDE?
