Wholesale Price Solar Thermal Outdoor Portable Home Solar Hot Water Systems Induction Heater With Ce Certification
- Category: >>>
- Supplier: Qingdao Haier New Energy Electric Appliance Co. Ltd.
Share on (1600992004159):
Product Overview
Description
Products Description

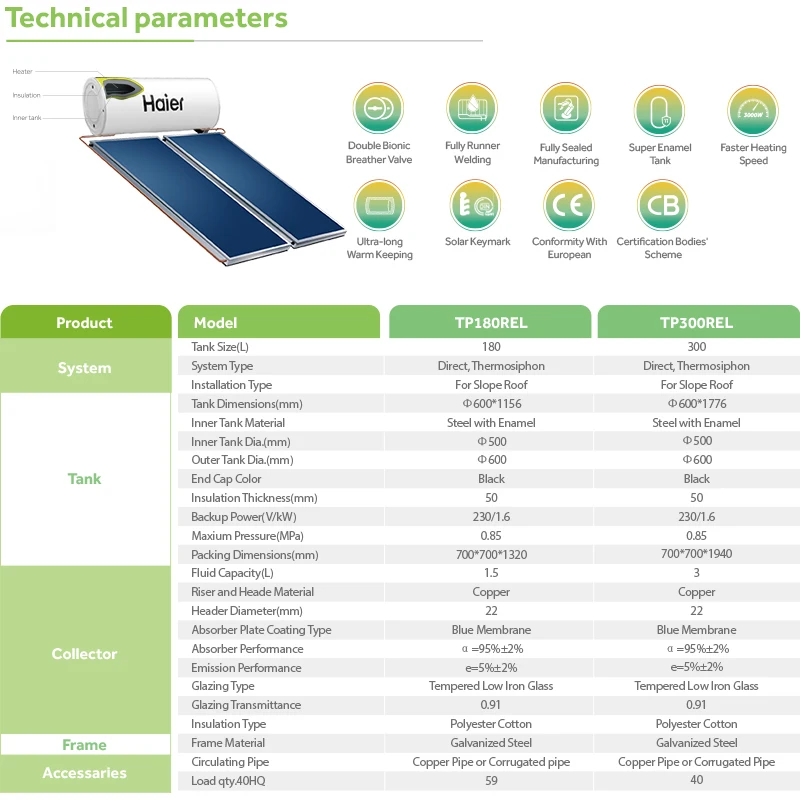

Product Name | TP REL | ||||
Product | Model | TP180REL | TP300REL | ||
System | Tank Size(L) | 180 | 300 | ||
NO.of Collector | 1 | 2 | |||
Aperture Area(㎡ ) | 1.9 | 3.8 | |||
System Type | Direct,Thermosiphon | ||||
Installation Type | For Slope Roof | For Flat Roof | |||
Tank | Tank Dimensions(mm) | Φ600*1156 | Φ600*1776 | ||
Outer Casing Material | Color Steel Plate | ||||
Inner Tank Material | Steel with Enamel | ||||
Inner Tank Dia.(mm) | Φ500 | ||||
Outer Tank Dia.(mm) | Φ600 | ||||
End Cap Color | Black | ||||
Anode Material | Magnesium | ||||
Insulation Thickness(mm) | 50 | ||||
Backup Power(V/kW) | 230/1.6 | ||||
Maxium Pressure(MPa) | 0.85 | ||||
Cold Water Inlet | G3/4" | ||||
Hot Water Outlet | G3/4" | ||||
Packing Dimensions(mm) | 700*700*1320 | 700*700*1940 | |||
Collector | Model | PGTL2.0-1 | |||
Net Dimensions(mm) | 2000*1000*80 | ||||
Heat Transfer Media | Water | ||||
Fluid Capacity(L) | 1.5 | 3 | |||
Riser and Heade Material | Copper | ||||
Header Diameter(mm) | 22 | ||||
Absorber Plate Coating Type | Blue Membrane | ||||
Absorber Performance | α=95%±2% | ||||
Emission Performance | e=5%±2% | ||||
Glazing Type | Tempered Low Iron Glass | ||||
Glazing Transmittance | 0.91 | ||||
Insulation Type | Polyester Cotton | ||||
Backing Sheet | Aluminum-plated Zinc Plate | ||||
Frame | Anlge(°) | / | |||
Frame material | Galvanized steel | ||||
Accessaries | Circulating Pipe | Copper Pipe or Corrugated Pipe | |||
Safety Valve(MPa) | 0.85 | ||||
Load qty.40HQ | 59 | 40 | |||
Heat Collection Standards
Blue membrane full plate technology
* The magnetron sputtering selective absorption coating technology from Germany is adopted, the absorption rate is up to 95% , the emission is as low as 5%.
* 5000 conduction spots between the copper riser and panel is added, the heat conduction efficiency is higher than industry level.
360° heat exchange technology
* By using 360°heat exchange technology, heating efficiency can be improved, enabling the provision of a large amount of hot water. You can enjoy the comfortable hot water any time.
* National Patent No.: ZL 201020122251.4
Violet gold high-efficiency tube
* Three-target (stainless steel-copper-aluminum) coating, the quality of the film is stable, the absorption ratio can reach up to 92%, with supper absorption rate and fast heating.
* The reflective layer is pure copper film, which has higher reflection efficiency. And the vacuum degree can reach up to 5x10-3Pa and the heating effect is more obvious.
Almighty collector technology
*High-efficiency energy-gathering panels use low-boiling-point refrigerants as heat-absorbing and heat-transfer working fluids to fully absorb heat from sunlight, air, and rainwater, realizing efficient heating for 24 hours in four seasons, and stable operation throughout the year.
Safety Standards
Super Enamel Tank
Standing out from the average tank, with the addition of titanium. Haier Titanium Coating Tank boasts ultra-strong anti-corrosion performance, Better durability and premium quality.
National Patent No.: 2006101674878
Safe Dry Heating Protection Over-thermal Proof
When there is no water in the tank or the water level is lower than a certain level, the system will actively cut off the circuit to prevent heating element from dry heating and eliminate potential hazards.
When the water temperature exceeds 85 Celsius degree, it will automatically sound an alarm and switch off the heating circuit.
When the water temperature exceeds 85 Celsius degree, it will automatically sound an alarm and switch off the heating circuit.
Patented ShockProof
Shock Proof technology is to form a large resistance between the human body and the machine, make the high voltage to poor voltage, providing you a safe bathing scene
Galvanized Sheet Bracket
Haier’s solar support is made of Shouguang’s high quality galvanized steel, Haier exclusive powder coating and 90kv high voltage electrostatic spraying, which has stronger corrosion resistance.
The triangular design structure can withstand Wind Force 10.
The triangular design structure can withstand Wind Force 10.
Anti-collision and Anti-pressure panel
It is made of high-strength low iron glass material, which can resist the attack of 30mm diameter of steel balls at height of 1.5 meter and withstand the weight of a small car of 1.2 tons. It is also crash-resistant, anti-pressure and highly durable.
Insulation Standards
Smart appointment
The bath time can be set twice a day, and the heating mode can be intelligently controlled according to the weather conditions to ensure bathing around the clock.
Power saving display
According to the water temperature rise and hot water volume , the saved energy cost could be calculated accordingly and shown on screen.
Patented HG water temperature and water level sensor
Under the current industry level, the temperature measurement accuracy is 5 Celsius degree. Through our technology innovation, our senor can detect the water temperature with the tolerance of 2 Celsius degree, which brings more stable water output continuously.
Smart bathing settings
Intelligent and precise control of water temperature, pre-set heating to enjoy the convenient hot water; Automatic anti-freeze function to ensure the pipework is running smoothly in winter, without any fear of harsh weather.
Smart Standards
Patented “heating-insulation ring” technology
The connection between the water tank and the vacuum tube is where the solar heat is lost most. Through our “heating –insulation ring” technology, our product could lock the heat and prevent water from reverse flow.
National Patent NO.:ZL201220031662.1
National Patent NO.:ZL201220031662.1
Patented horizontal foaming process
Inheriting Haier refrigerator’s 28 years of experience in forming and heat preservation, the ingenious dense heat locking wall, high density overall foaming at one time, firmly locks the heat without loss, and the heat preservation effect is increased by 25%.
National Patent NO.:ZL201220702004.0
National Patent NO.:ZL201220702004.0
Patented EPS positioning mould technology
EPS high density material, the thermal insulation performance is better than ordinary foaming materials, and the thermal insulation flow channel designed by the European expert realizes the double layers insulation of the end cover. The thermal insulation effect is better.
National Patent NO.:ZL201220702072.7
National Patent NO.:ZL201220702072.7
Top-end foaming material
Made of the good quality polyurethane, having stable quality, dense and thick property for the heat preservation.
Core Technology
