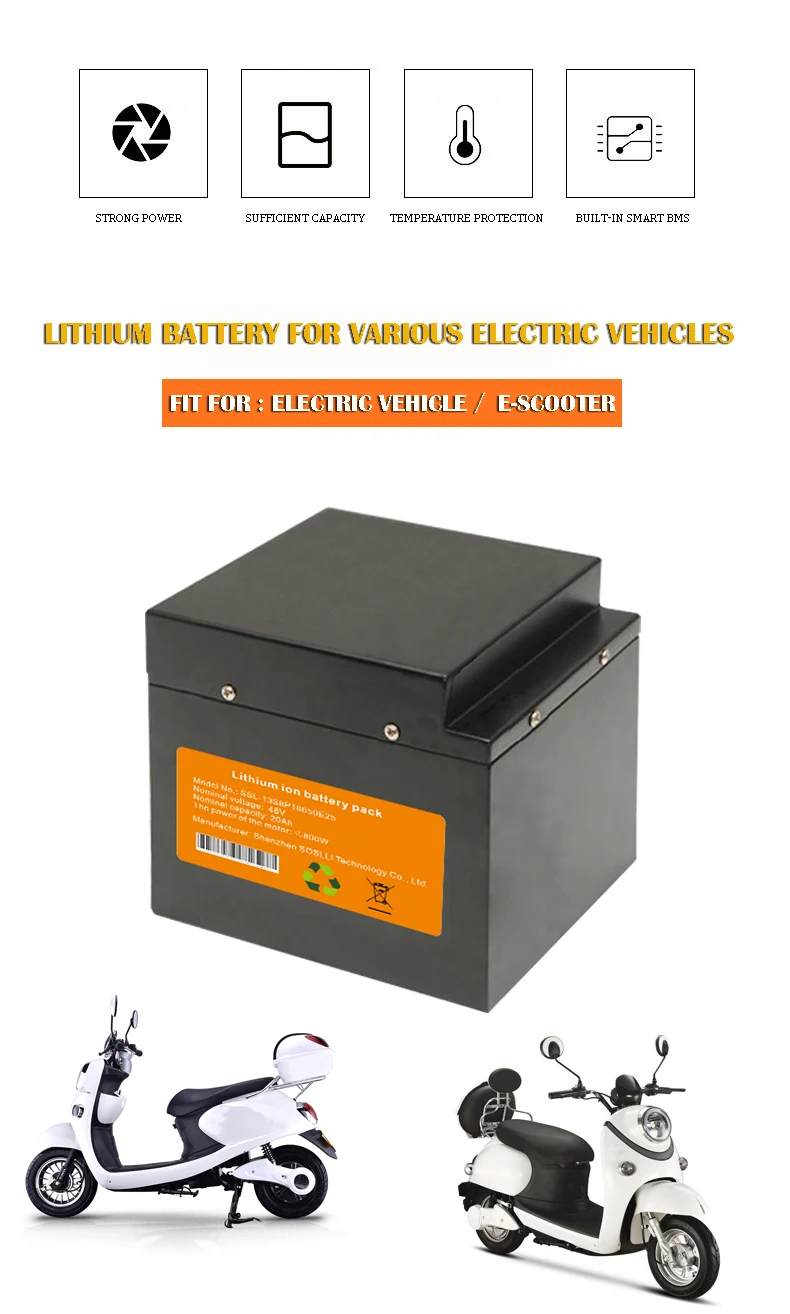

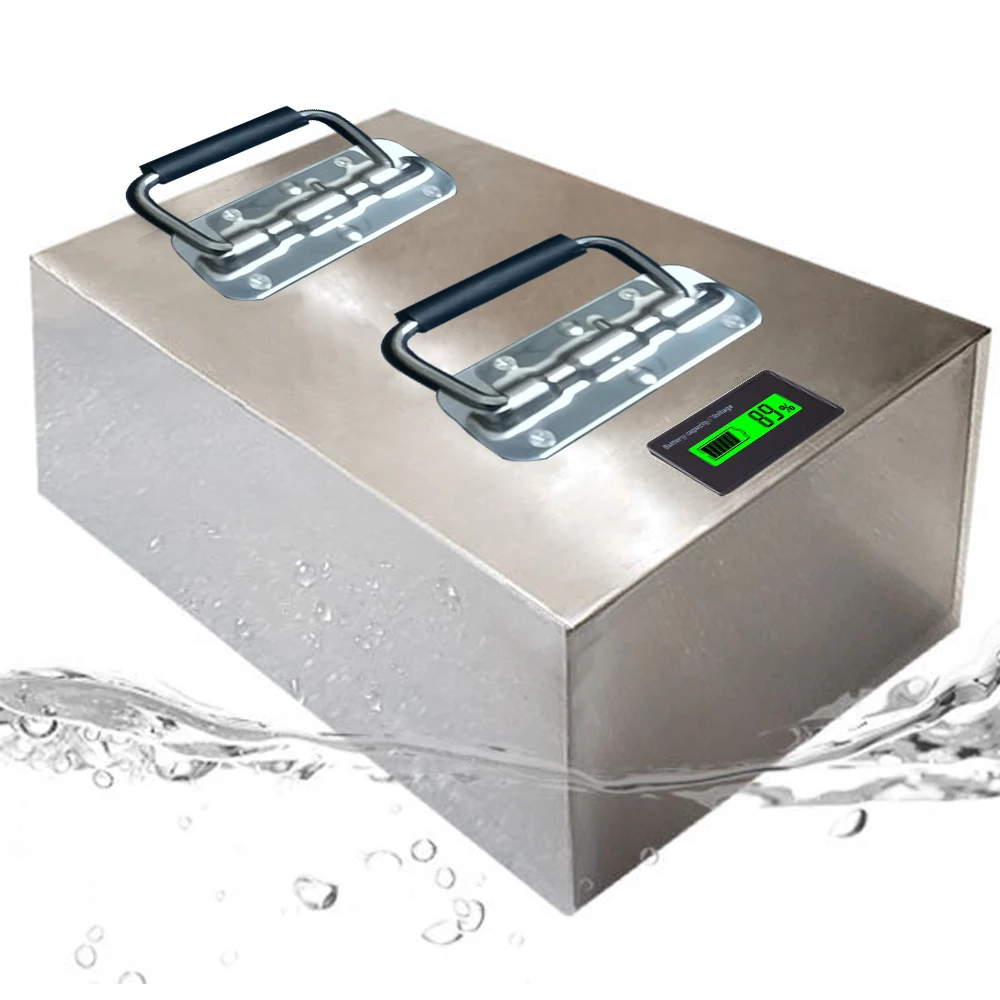

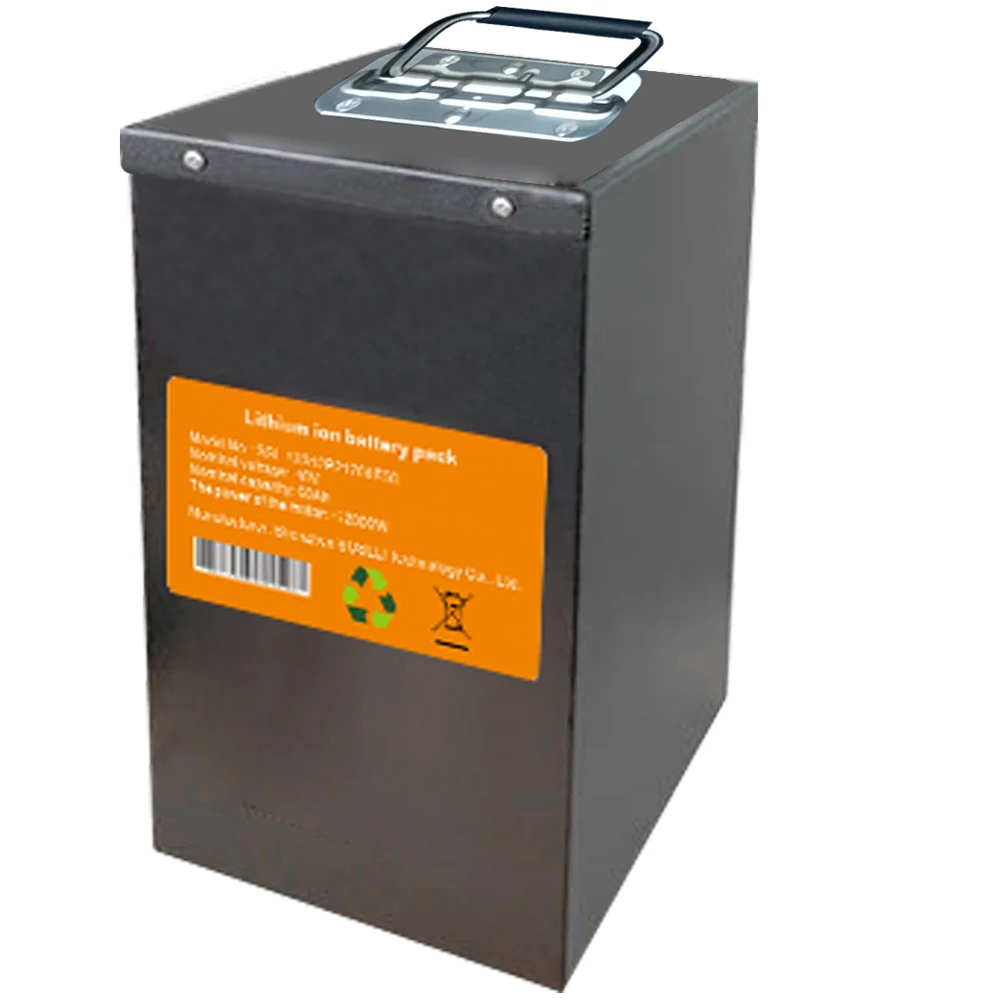

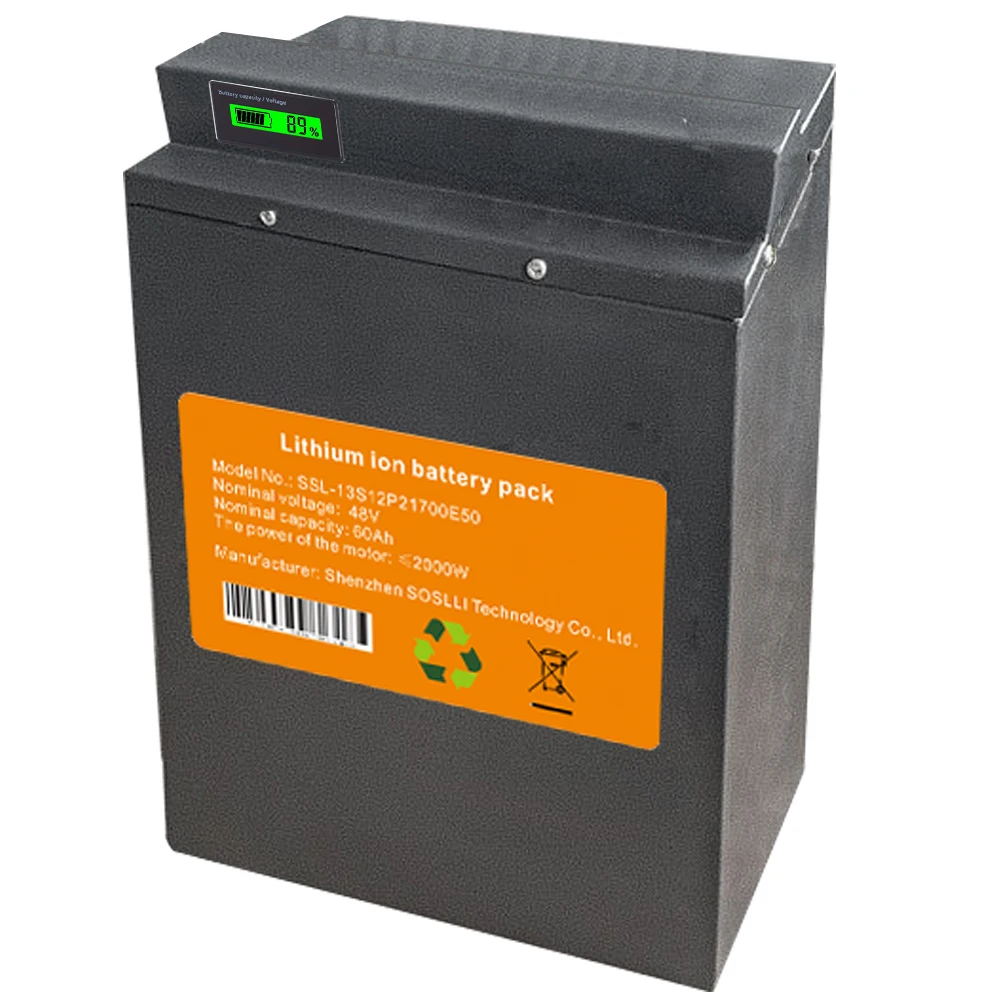

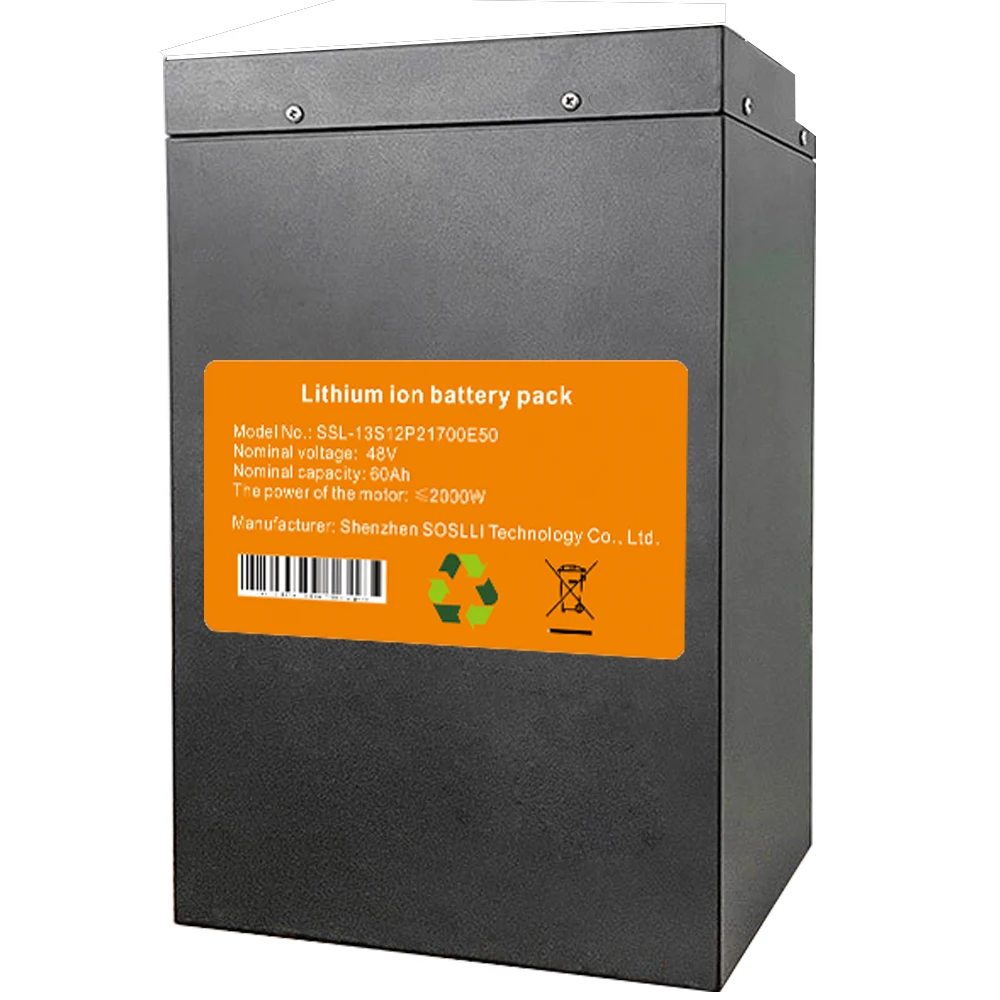

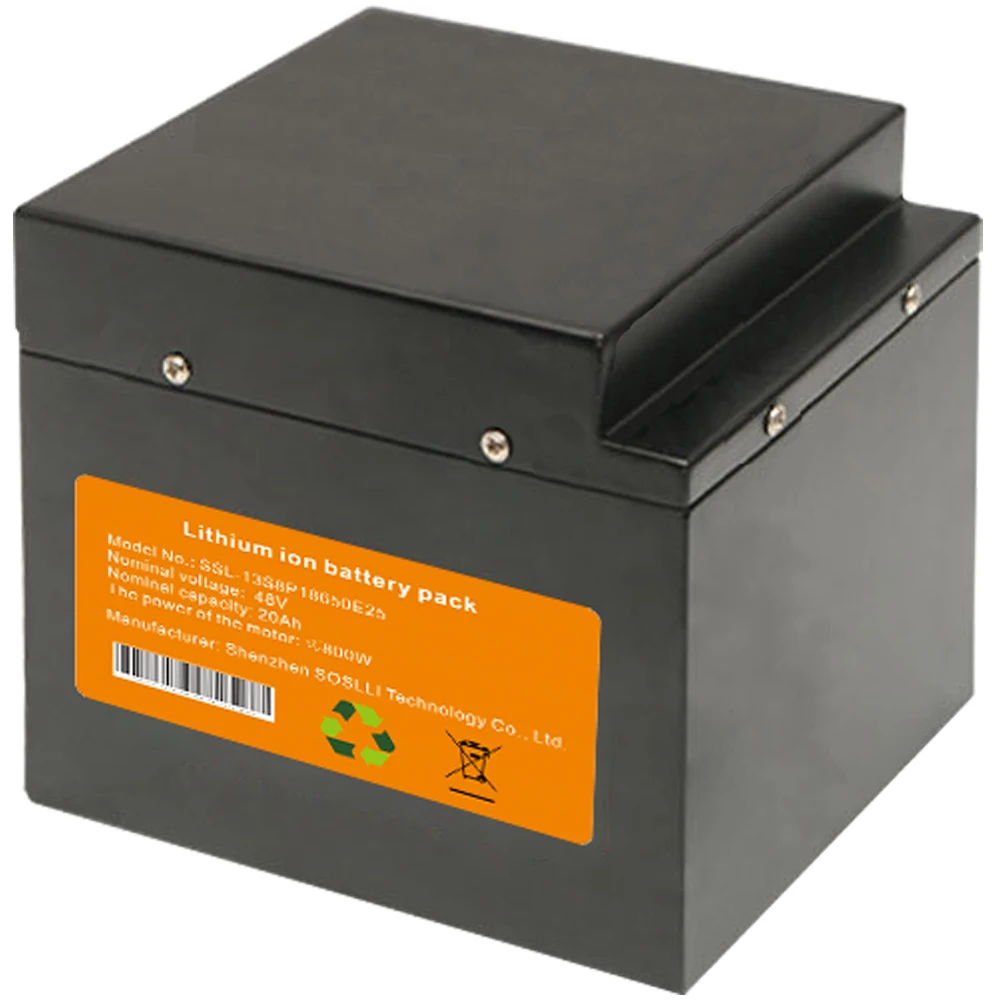

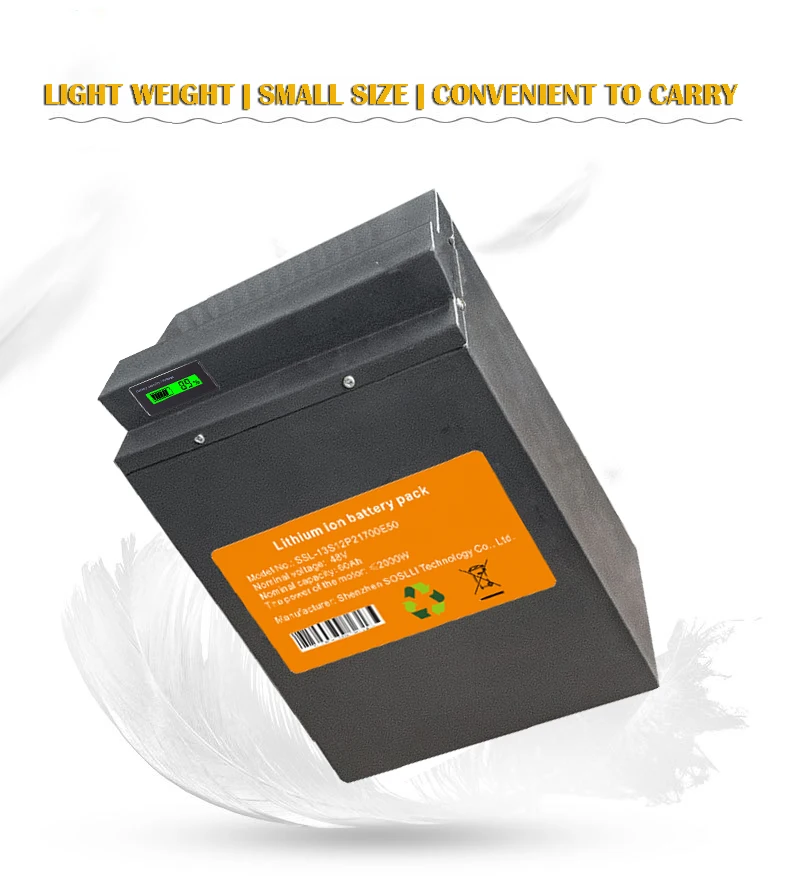

SOSLLI OEM 36V 48V 60V 72V 10Ah 20Ah 30Ah 40Ah 50Ah 55Ah 60Ah lithium ion battery pack for electric bicycle lithium batteries
- Category: >>>
- Supplier: Shenzhen Soslli Technology Co. Ltd.
Share on (1600992010719):
Product Overview
Description
No. | Item | Specification | ||
1 | Battery Type | Lithium ion battery pack | ||
2 | Nominal Voltage | 48V (can be customized) | ||
3 | Nominal Capacity | 20Ah (can be customized) | ||
4 | Charging Cut-off Voltage (Min.) | 54.6V | ||
5 | Discharging Cut-off Voltage (Max.) | 35.75V | ||
6 | Max Continuous Discharging Current (A) | 1C | ||
7 | Max Pulse Discharging Current (A) | 3C | ||

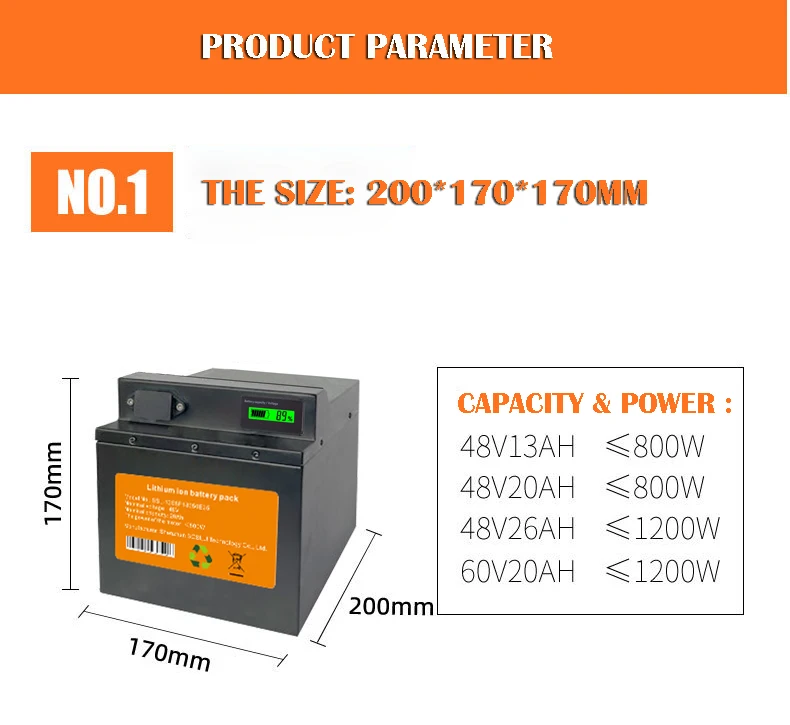

8 | Battery Size | 200*170*170mm | ||
9 | Battery Cell | 18650 2500mAh | ||

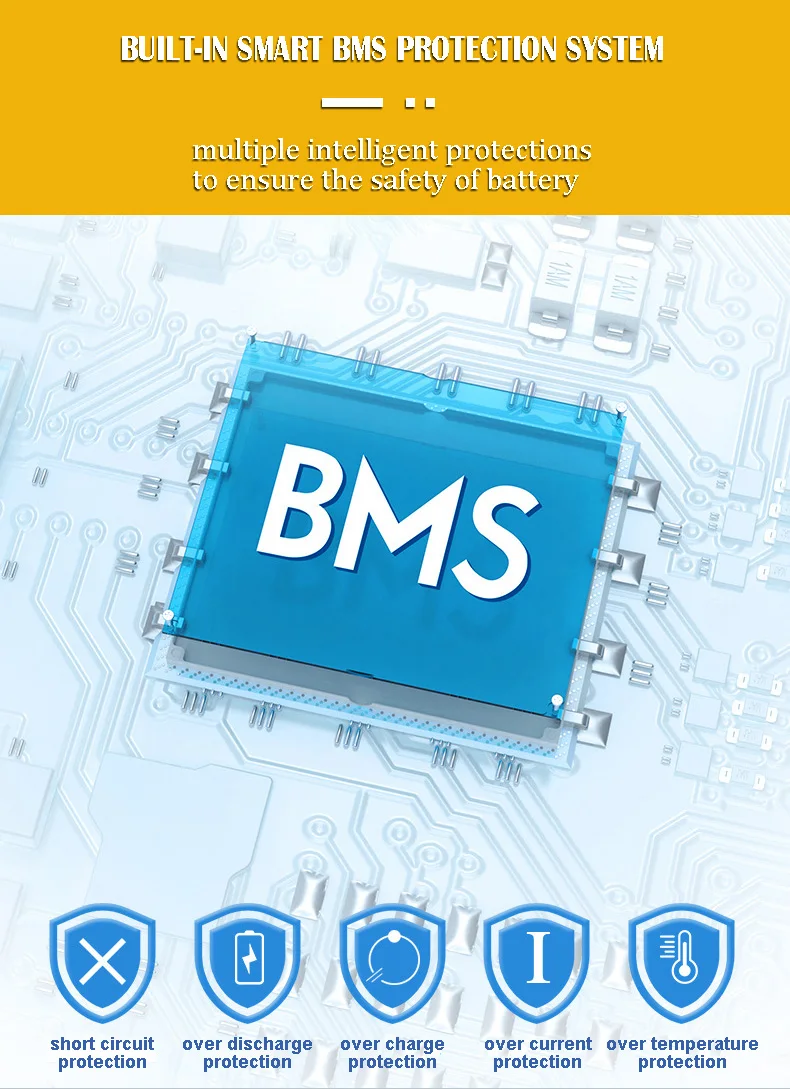

10 | Protection Fuctions of BMS/PCB | over charge over discharge short circuit Over load over temperature balance protection | ||
11 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +45℃ 45~85%RH | |
Min. 3 months | -20℃ ~ +35℃ 45~85%RH | |||
Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
12 | OEM/ODM | acceptable | ||

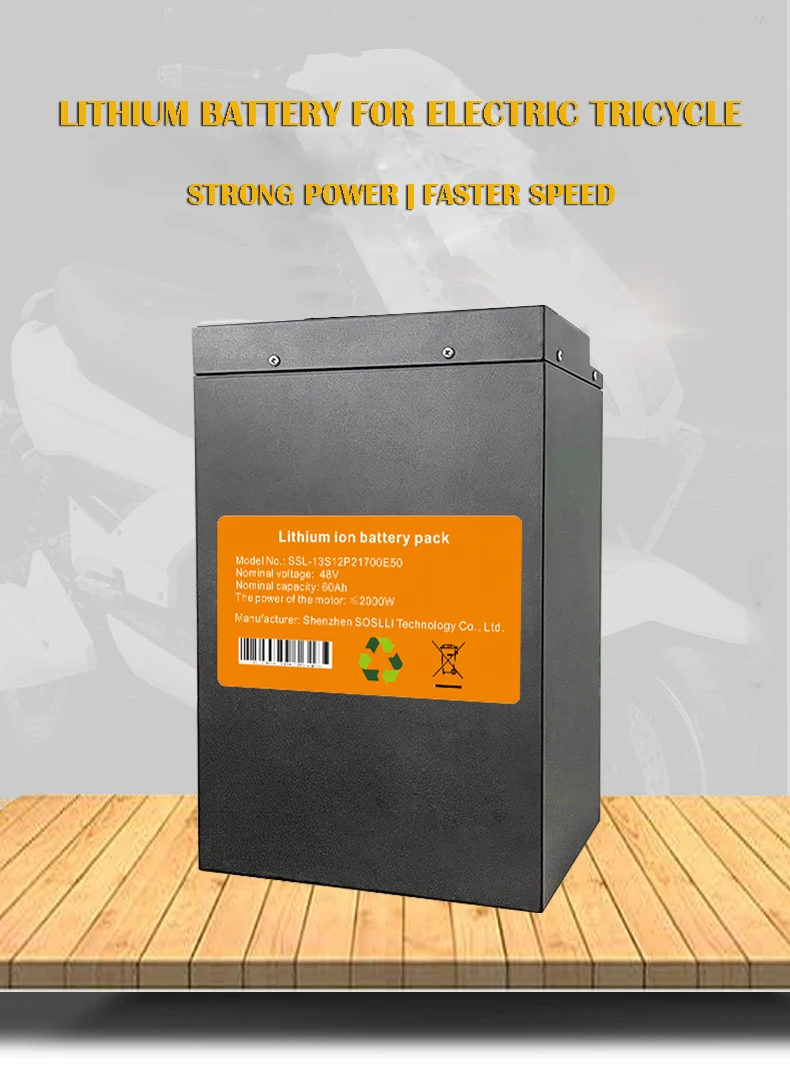

13 | Application | Electric bicycle, Motorcycle, tricycle, four-wheeler | ||
14 | Cycle life | 500 Times | ||
15 | Certification | CE, RoHS, UN38.3, MSDS | ||
16 | Warranty | 12 Months | ||
Typical advantage of Soslli's lithium Ion battery pack:
1. Safety: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 500 times & 80% capacity retain.
4. Large batch production, offering very similar cells for rating.
1. Safety: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 500 times & 80% capacity retain.
4. Large batch production, offering very similar cells for rating.
Precautions for using batteries:
1. The battery should be handled with care during use to avoid damaging internal components;
2. It is prohibited to use batteries in series or parallel;
3. The battery should be placed inside the battery case without any looseness, shaking, compression deformation or other adverse phenomena;
4. It is strictly prohibited to insert the positive and negative poles of the battery into each other, reverse connect the load, or connect them to mismatched electric vehicle loads;
5. The battery needs to be charged in a timely manner or within 24 hours after discharge;
6. During battery storage, charge the battery every 1 month
7. It is necessary to use a matching charger for charging, and it is strictly prohibited to use a lead-acid battery charger
8. Unauthorized disassembly is strictly prohibited during use;
9. It is strictly prohibited to use and keep batteries near heat sources or high-temperature sources (such as fires, heaters, etc.);
10. It is strictly prohibited to immerse the battery in water, and it should be stored in a cool and dry environment when not in use
Regarding charging:
1.\tCharging must be carried out using a charger specifically equipped or certified by our company, otherwise it may result in shortened battery life, battery failure, and termination of warranty services;
2.\tProhibit direct contact with conductive objects at both ends of the positive and negative poles
3.\tPlease charge the battery within OC~40C for daily use, charging as needed;
4.\tWhen the battery leaves the factory, there is only a small amount of battery charge. Please fully charge the battery before use
5.\tTo ensure charging safety, it is strictly prohibited to charge at home or in unattended areas. When charging, please place the electrical appliances and batteries in a ventilated, stable, dry, free of flammable and explosive materials, and in an open and safe place out of reach of children;
6.\tDuring the charging process, the charger may generate heat, as long as the temperature does not exceed 60 ° C, it is considered normal;
7.\tAfter the battery is fully discharged, it should be charged in a timely manner and the charging time should not be less than 3 hours.
Regarding discharging:
1.\tThis product can only be used on electric vehicles with specified electrical performance matching, and cannot be used on other electrical equipment, otherwise it will not be guaranteed;
2.\tDamage or improper configuration of the controller, motor, horn, lighting equipment, etc. of an electric vehicle can lead to high current discharge of the battery. At this time, the battery will protectively stop outputting, and it can be restored by turning off the power and restarting, without any impact on your cycling
3.\tApplicable temperature range of this product: 10 ° C to 45 ° C; Like all other batteries, as the temperature decreases, the available energy of the battery decreases, which is a normal phenomenon;
4.\tWhen using lithium batteries, avoid water, beverages, and corrosive liquids inside the battery, which may cause leakage, heat, smoke, fire, and explosion of the battery;
5.\tIt is prohibited to use two or more batteries in series or parallel without permission, otherwise warranty will not be granted
1. The battery should be handled with care during use to avoid damaging internal components;
2. It is prohibited to use batteries in series or parallel;
3. The battery should be placed inside the battery case without any looseness, shaking, compression deformation or other adverse phenomena;
4. It is strictly prohibited to insert the positive and negative poles of the battery into each other, reverse connect the load, or connect them to mismatched electric vehicle loads;
5. The battery needs to be charged in a timely manner or within 24 hours after discharge;
6. During battery storage, charge the battery every 1 month
7. It is necessary to use a matching charger for charging, and it is strictly prohibited to use a lead-acid battery charger
8. Unauthorized disassembly is strictly prohibited during use;
9. It is strictly prohibited to use and keep batteries near heat sources or high-temperature sources (such as fires, heaters, etc.);
10. It is strictly prohibited to immerse the battery in water, and it should be stored in a cool and dry environment when not in use
Regarding charging:
1.\tCharging must be carried out using a charger specifically equipped or certified by our company, otherwise it may result in shortened battery life, battery failure, and termination of warranty services;
2.\tProhibit direct contact with conductive objects at both ends of the positive and negative poles
3.\tPlease charge the battery within OC~40C for daily use, charging as needed;
4.\tWhen the battery leaves the factory, there is only a small amount of battery charge. Please fully charge the battery before use
5.\tTo ensure charging safety, it is strictly prohibited to charge at home or in unattended areas. When charging, please place the electrical appliances and batteries in a ventilated, stable, dry, free of flammable and explosive materials, and in an open and safe place out of reach of children;
6.\tDuring the charging process, the charger may generate heat, as long as the temperature does not exceed 60 ° C, it is considered normal;
7.\tAfter the battery is fully discharged, it should be charged in a timely manner and the charging time should not be less than 3 hours.
Regarding discharging:
1.\tThis product can only be used on electric vehicles with specified electrical performance matching, and cannot be used on other electrical equipment, otherwise it will not be guaranteed;
2.\tDamage or improper configuration of the controller, motor, horn, lighting equipment, etc. of an electric vehicle can lead to high current discharge of the battery. At this time, the battery will protectively stop outputting, and it can be restored by turning off the power and restarting, without any impact on your cycling
3.\tApplicable temperature range of this product: 10 ° C to 45 ° C; Like all other batteries, as the temperature decreases, the available energy of the battery decreases, which is a normal phenomenon;
4.\tWhen using lithium batteries, avoid water, beverages, and corrosive liquids inside the battery, which may cause leakage, heat, smoke, fire, and explosion of the battery;
5.\tIt is prohibited to use two or more batteries in series or parallel without permission, otherwise warranty will not be granted
Company Profile
Shenzhen SOSLLI Technology Co., Ltd. is an original Lithium ion battery factory in China.
We have 1600+ skilled workers, 110+ QC, 66+ R&D teams and more than 10+ years battery industry experience.

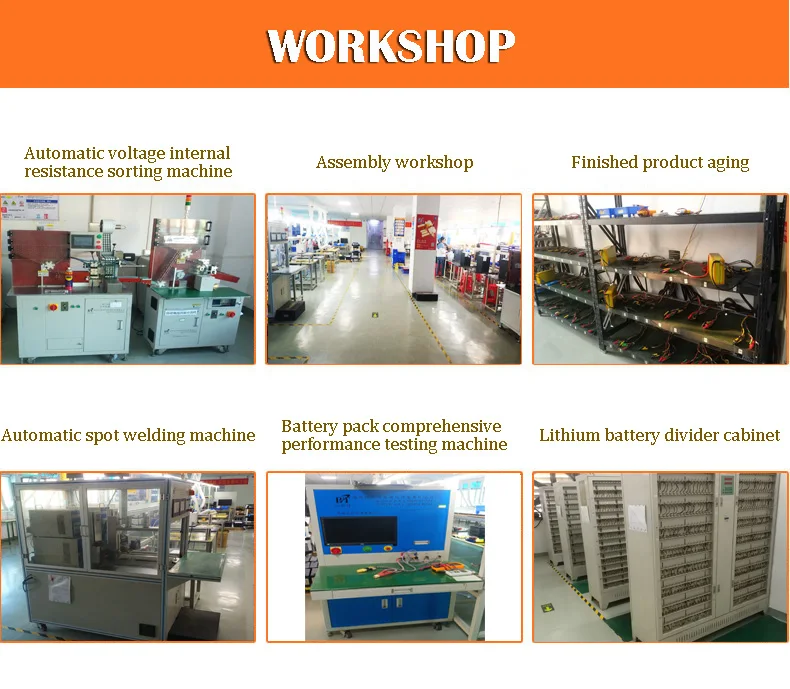

SOSLLI owned automatic 14500 and 18650 Lithium ion cells production line with series high technology equipments and testing center.We work closely with customers to provide safer, longer cycle life, cost-effective battery products under ISO 9001 system,acquired IEC62133, CQC, CE, RoHS, KC, CB, UL, MSDS, UN38.3, etc.
SOSLLI supply OEM & ODM Lithium battery products including E-bike battery, power battery, energy storage battery, 3C industrial battery and customized battery pack.
SOSLLI strive for an international platform to supply one-stop battery service.
Welcome contact with us.
We have 1600+ skilled workers, 110+ QC, 66+ R&D teams and more than 10+ years battery industry experience.
SOSLLI owned automatic 14500 and 18650 Lithium ion cells production line with series high technology equipments and testing center.We work closely with customers to provide safer, longer cycle life, cost-effective battery products under ISO 9001 system,acquired IEC62133, CQC, CE, RoHS, KC, CB, UL, MSDS, UN38.3, etc.
SOSLLI supply OEM & ODM Lithium battery products including E-bike battery, power battery, energy storage battery, 3C industrial battery and customized battery pack.
SOSLLI strive for an international platform to supply one-stop battery service.
Welcome contact with us.
FAQ
1.How can I get the price?
We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer the price to you.
2. Can I buy samples before placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,Money Gram, and PayPal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air, by truck ,by railway or by express(EMS,UPS,DHL,TNT,FEDEX ,ect).
Please confirm with us before placing orders.
6.How do you build up a long-term and good relationship with your customers?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2. Can I buy samples before placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,Money Gram, and PayPal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air, by truck ,by railway or by express(EMS,UPS,DHL,TNT,FEDEX ,ect).
Please confirm with us before placing orders.
6.How do you build up a long-term and good relationship with your customers?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
