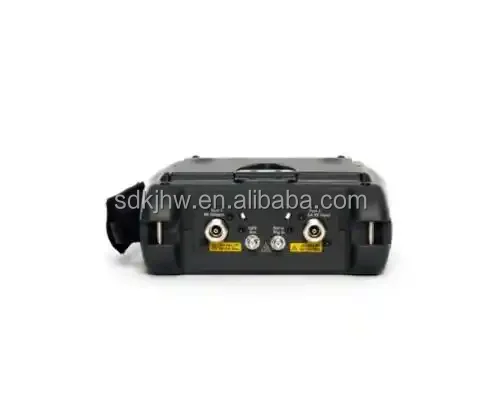

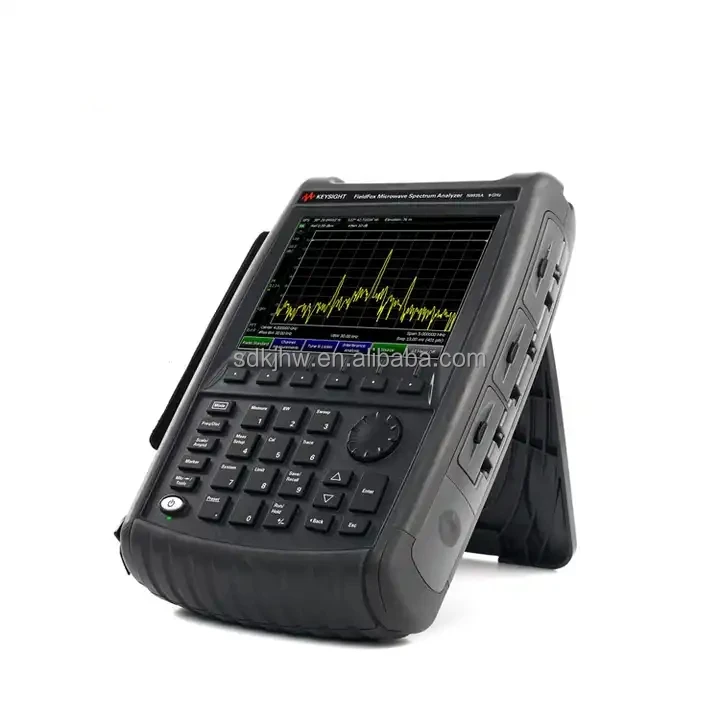

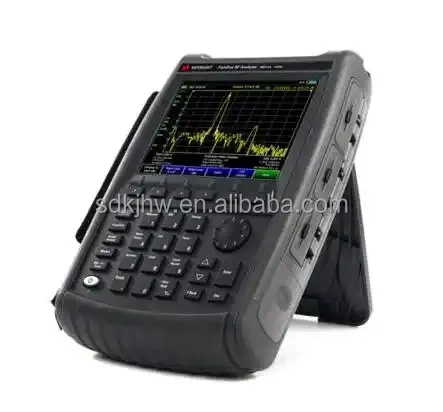

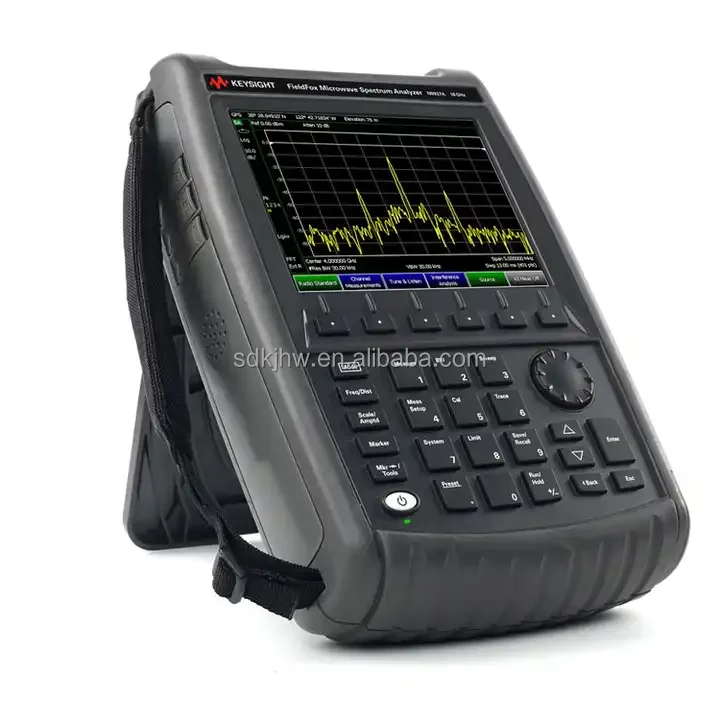

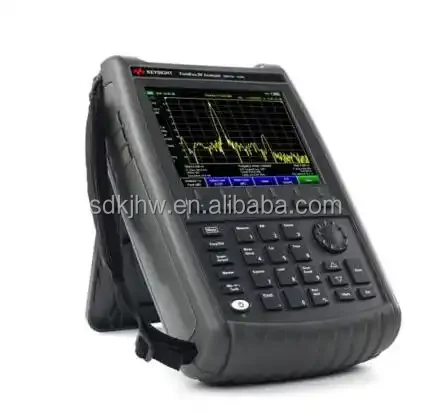

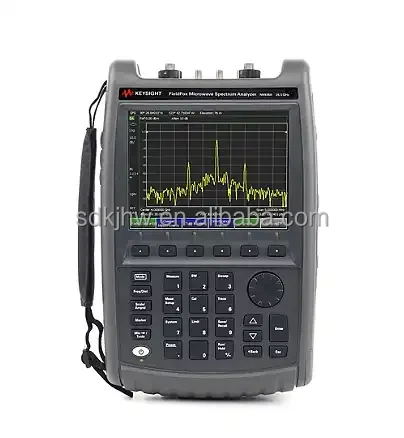

Wholesale Agilent Keysight N9937B 30kHz 18GHz FieldFox Handheld Microwave Combo Analyzer
- Category: >>>
- Supplier: Beijing Shandian Technology Co. Ltd.
Share on (1600992033503):
Product Overview
Description
PRODUCT DESCRIPTION
Fast Delivery Good Price 18 GHz FieldFox Handheld RF Analyzer N9937B
Faced with the new dynamics of broadband, microwave and millimeter wave communications, Keysight has developed a new generation of FieldFox microwave analyzers, which it owns 100 MHz real-time bandwidth and up to 26.5 GHz frequency range. To meet the millimeter-wave frequency requirements of the 5G, satellite communications, and vehicle-mounted radar industries, FieldFox can also easily expand the frequency range to 110 GHz by adding downconverters. FieldFox is also the industry's most comprehensive handheld analyzer, supporting more than 20 critical RF and microwave instrument functions, including signal analyzer, full 2-port vector network analyzer, real-time spectrum analyzer, wireless demodulation, continuous wave signal source, power meter and other instrument functions, all in this comprehensive field verification suite.
TECHNICAL SPECIFICATION
Maximum Frequency | 18 GHz |
CAT/VNA Start Frequency | 30 kHz |
SA Start Frequency | 5 kHz |
VNA System Dynamic Range | > 114 dB |
Best Speed at 1001 Point, 1 Sweep | 171 us/pt |
Output Power | 8 dBm |
Trace Noise | 0.001 dB |
Number of Built-In Ports | 2 ports |
Instrument Type | Combination Analyzer |
Cable and Antenna Analyzer | Yes - Standard |
Spectrum Analyzer | Yes - Optional |
Vector Network Analyzer | Yes - Optional |
Additional CAT/VNA Based Features | Vector Voltmeter |
Mixed-Mode S-Parameters | |
DTF/TDR Cable Measurements | |
Additional SA Based Features | Built-In Power Meter |
Extended Range Transmission Analysis (ERTA) | |
Real-Time Spectrum Analysis | |
Noise Figure Measurements | |
Over-The-Air Measurements | |
System Features | Built-In DC Source |
GPS Receiver - Internal Only | |
Remote Control Capability | |
Power Measurement Using USB Sensor | CW or Swept-Frequency |
Frequency-Offset | |
RF Pulse Test with Peak Sensor | |
Standard Attenuator Range | 40 dB |
Standard Attenuator Step | 5 dB |
DANL @1 GHz | -163 dBm |
Maximum Analysis Bandwidth | 100 MHz |
Phase Noise @1 GHz (1 MHz offset) | -124 dBc/Hz |
Phase Noise @1 GHz (10 kHz offset) | -117 dBc/Hz |
Phase Noise @1 GHz (30 kHz offset) | -115 dBc/Hz |
Spur Free Dynamic Range | > 104 dB |
TOI @1 GHz (3rd Order Intercept) | +11 dBm |
Applications Available | Yes |
Maximum Real-Time Bandwidth | 100 MHz |
Bandwidth Options | 10 standard, 40, 100 MHz |
Performance Level | ◆◆◆◆◇◇ |
Applications-Cellular | 89600 VSA Software |
Over-The-Air LTE FDD and 5GTF | |
Applications-Digital Video | 89600 VSA Software |
Applications-General Purpose | AM/FM Tune and Listen |
Cable and Antenna Analysis | |
Field Strength Measurement | |
SCPI Code Compatibility | |
Spectrogram | |
Stimulus Response | |
Applications-Wireless Connectivity | 89600 VSA Software |
Handheld / Modular | Yes |
