XY 44 750 1400 m Spindle Diamond Core Drilling Rig Machine Equipment
- Category: >>>
- Supplier: Shandong Yikuang Drilling Technology Co. Ltd.Shandong Ltd.
Share on (1600992114128):
Product Overview
Description

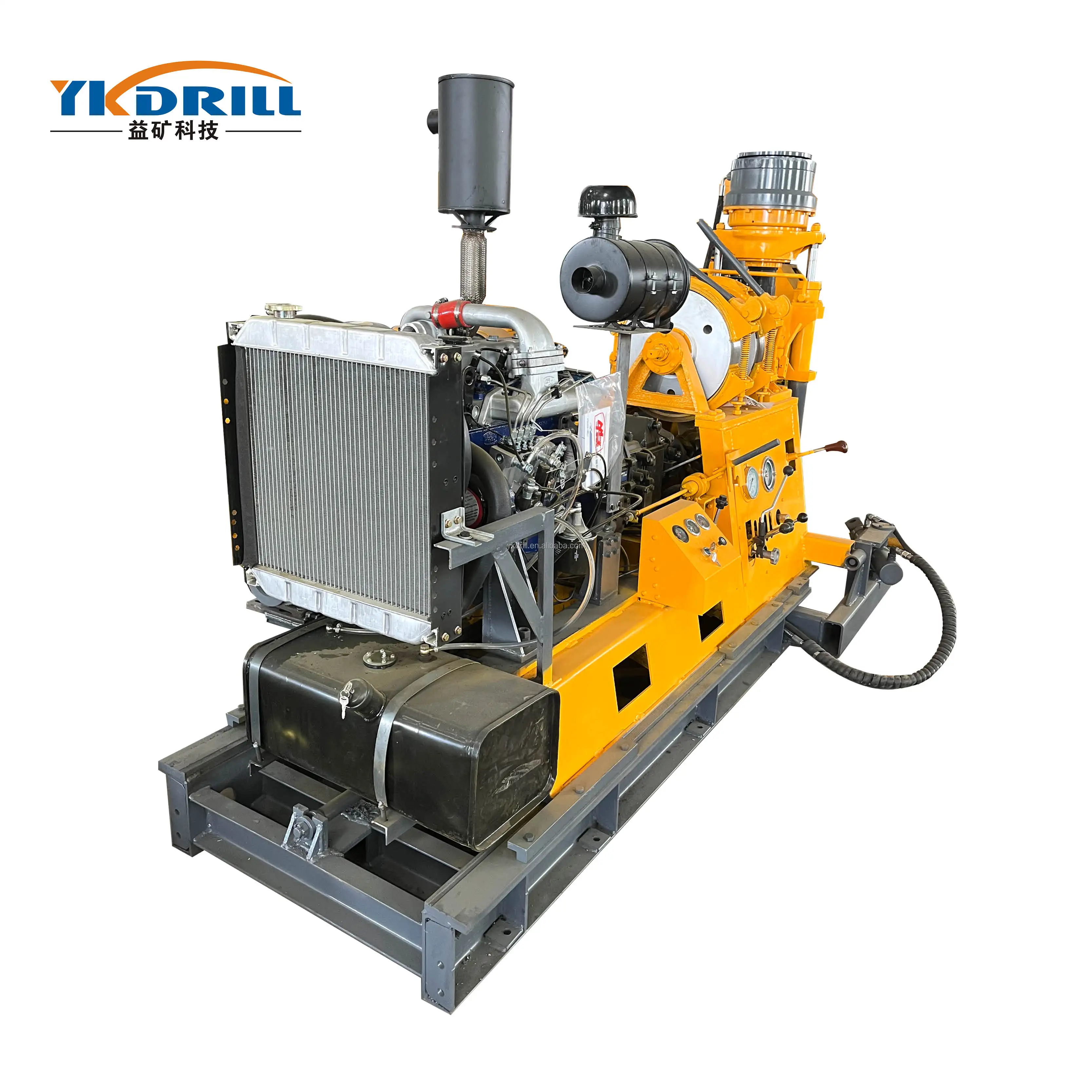

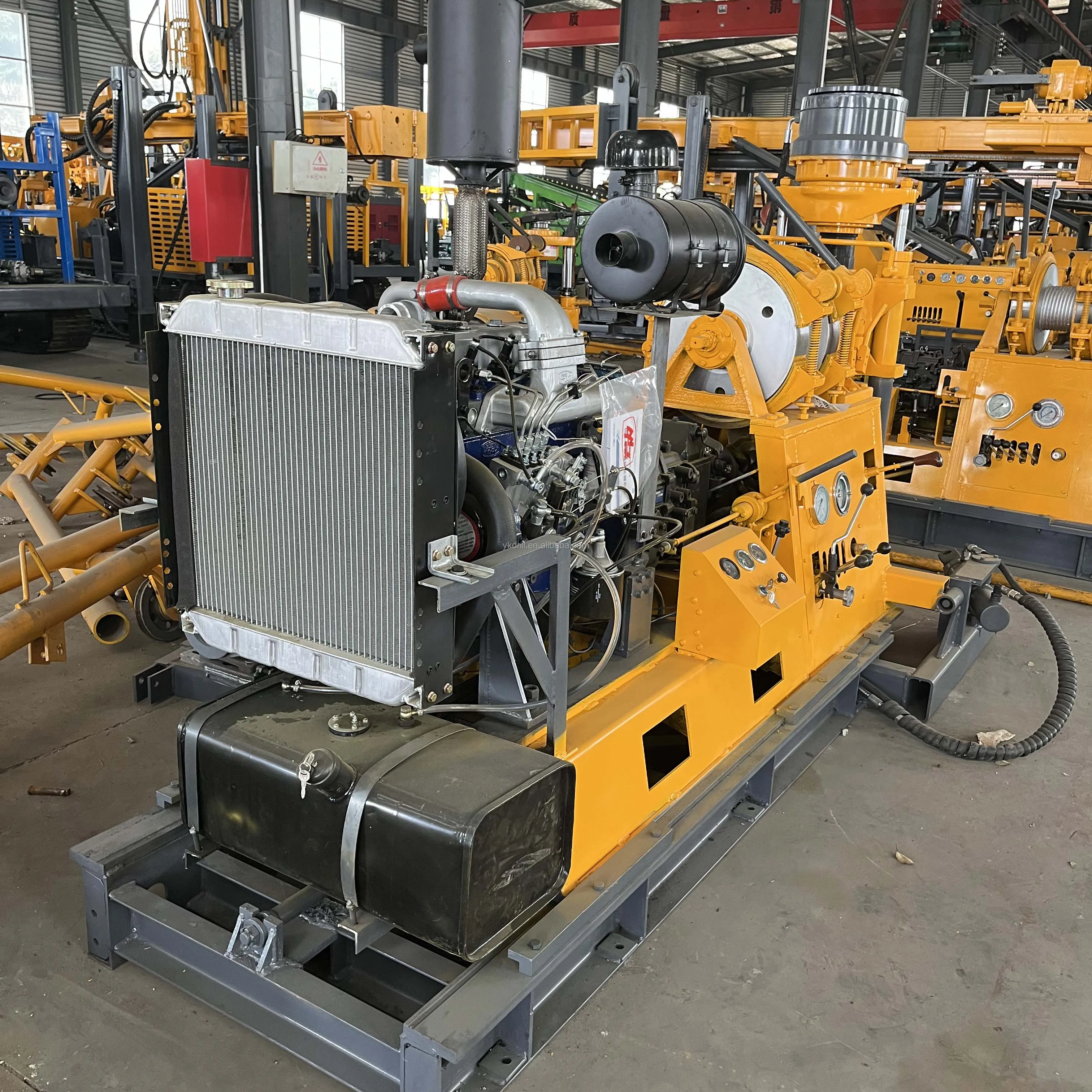

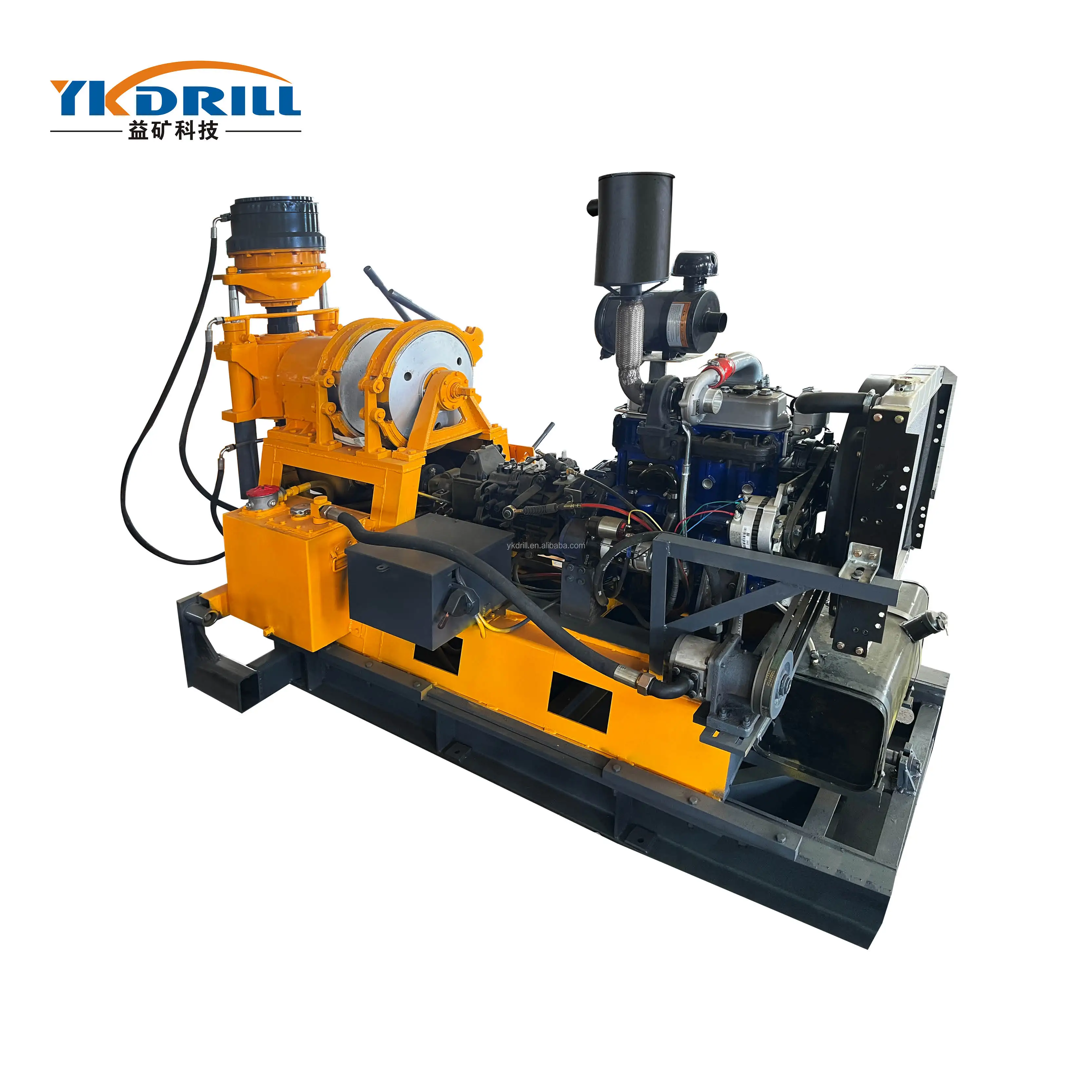

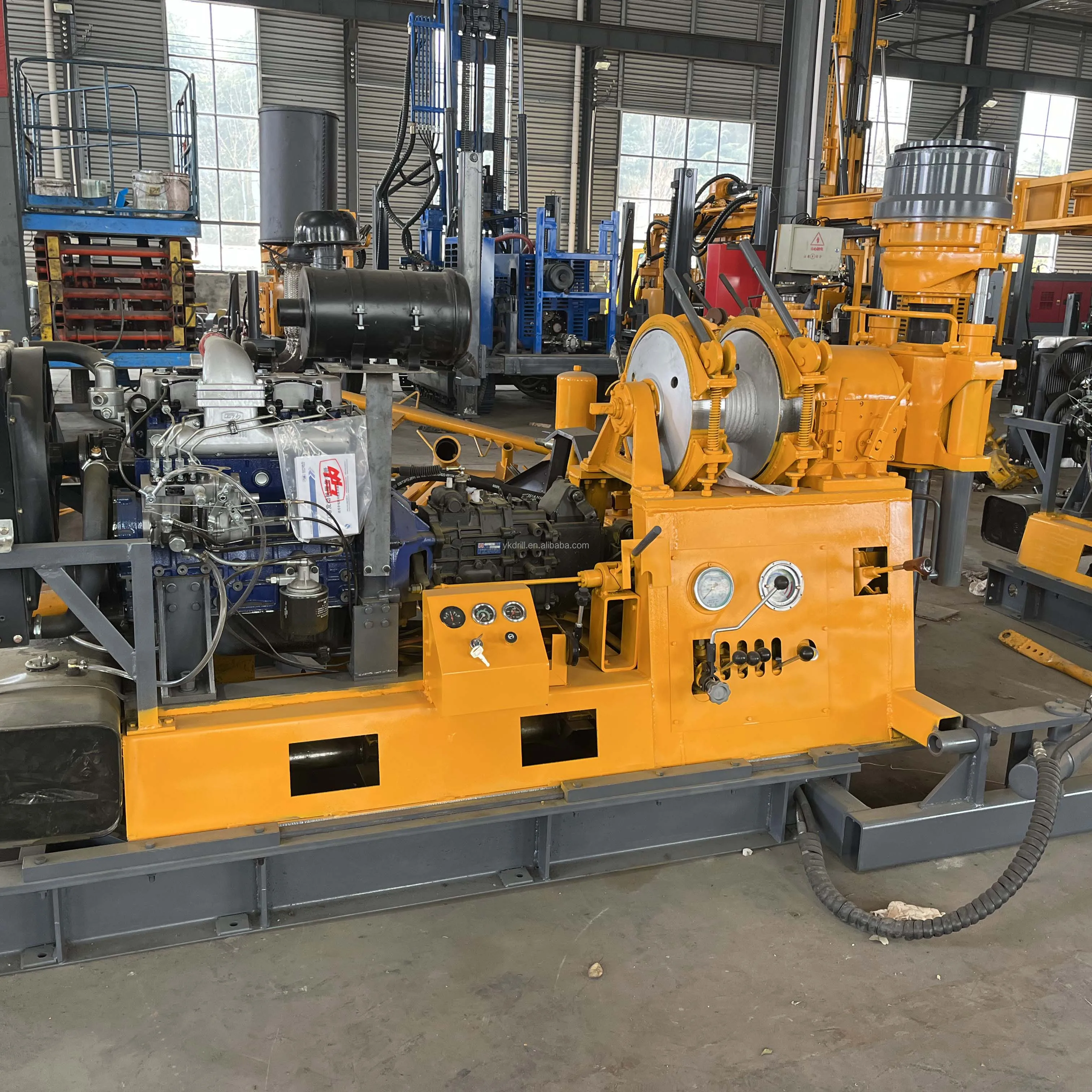

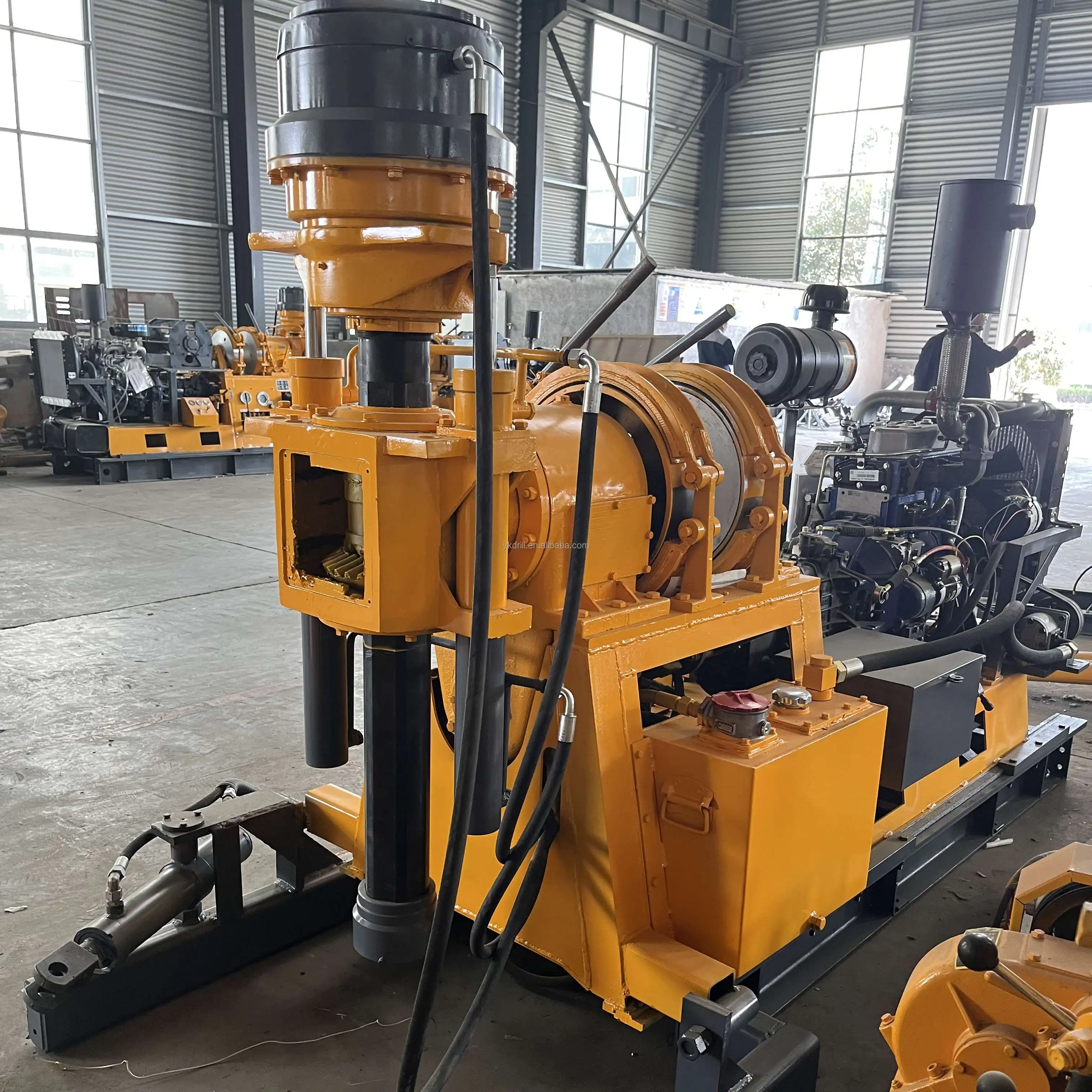

XY-44 750 -1400 m Spindle Diamond Core Drilling Rig Machine Equipment
Product Description
Drilling machine use:
Mining, coal, engineering, hydropower, metallurgy, transportation, chemical and other geological survey drilling, highway, railway, tunnel, housing survey, etc., drilling, water exploration, gas exploration drilling;
Drilling and grouting of bolts and cables in mines, slopes and foundation pits.
Recommended drilling rig models:
Recommended drilling rig models within 300 meters of drilling depth:

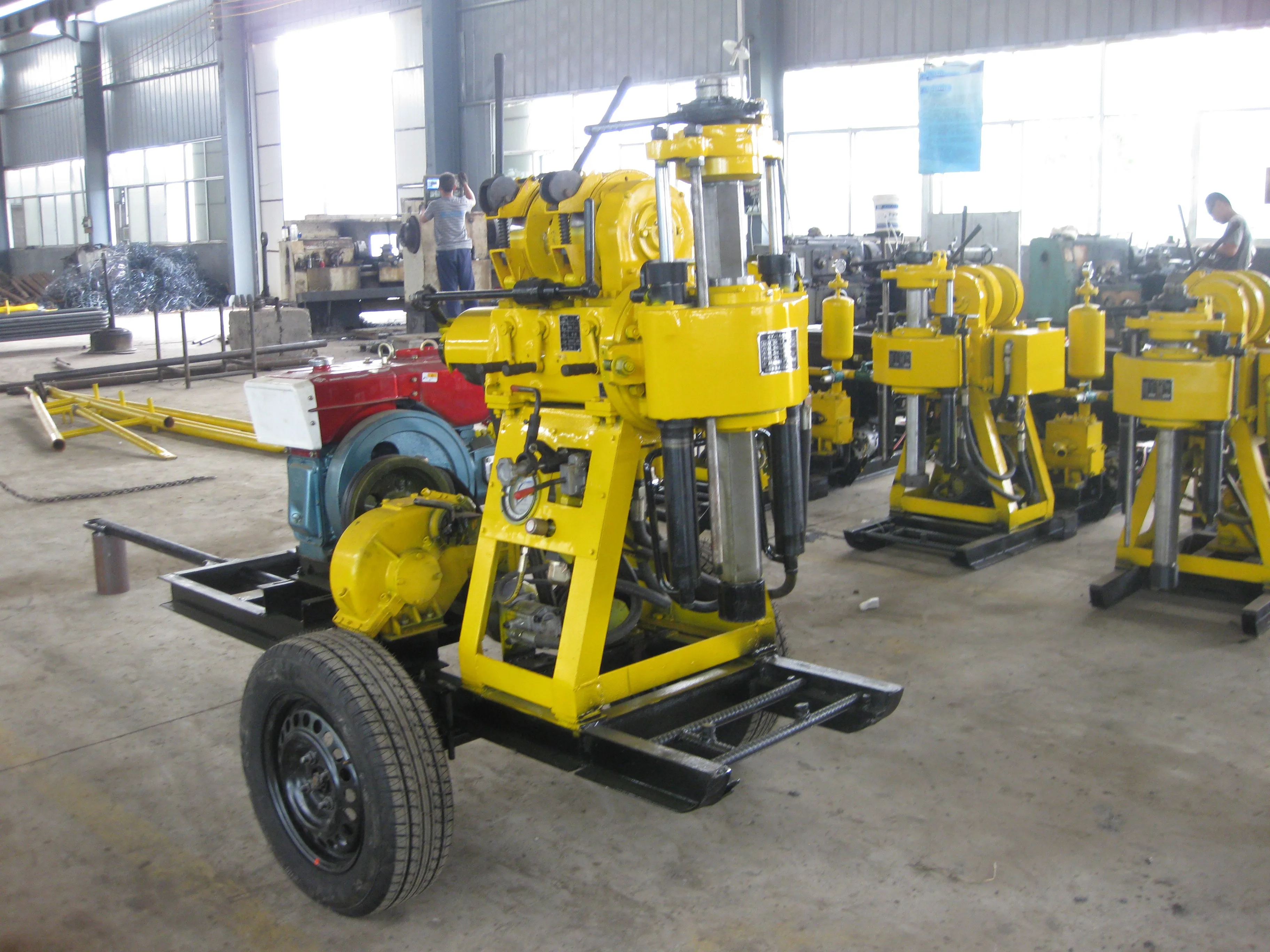

XY-1A, XY-1B, XY-150A, XY-150B, XY-2A, XY-2B
Recommended drilling rig models for drilling depths within 300-1000 meters:
xy-4, XY-44, XY-6, XY-6B
XY-100 drilling rig is suitable for census exploration, geophysical exploration, road and building exploration and drilling projects such as blasting.
According to customer requirements, XY-100 (no pump) and XY-100 (YJ) drilling rigs are designed on the basis of XY-100
Drilling machine advantages:
1. With hydraulic automatic feeding mechanism, high drilling efficiency
2. The upper ball clamping mechanism is used instead of the chuck, which can realize the non-stop reverse lever
3. The handle is centralized, easy to operate, safe and reliable
4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same chassis
5. Small footprint, light weight, strong decomposability, easy to relocate, suitable for various terrains such as plains and mountains
technical parameter
rig |
| mud pump |
|
drilling depth | 600mm | type | Horizontal single cylinder double acting |
Drill pipe diameter | 42mm | When equipped with diesel engine | 95 L/min |
Opening diameter | 110mm | When equipped with a motor | 77 L/mm |
End hole diameter | 75mm | maximum allowable pressure | 1.2Mpa |
Drilling inclination | 90°-75° | Continuous working pressure | 0.7Mpa |
Rig size (L*W*H) | 1640*1030*1440(mm) | Suction pipe diameter | 32mm |
Rig weight (without power) | 500kg | Drain pipe diameter | 25mm |
Transfer itinerary | 350mm | oil pump |
|
gyrator |
| model | YBC-12/125 |
Vertical shaft speed (third gear) | 142,285,570 r/min | Nominal pressure | 12.5Mpa |
Vertical axis travel | 450mm | Nominal flow | 8 ml/r |
Maximum moving speed of vertical shaft without load | 0.05m/s | Nominal speed | 800-2500 r/min |
Maximum moving speed of vertical shaft without load | 0.067m/s | Power engine (diesel engine or electric motor) |
|
Maximum feed pressure of vertical shaft | 15KN | Diesel model | ZS1100 |
Maximum lifting capacity of vertical shaft | 25KN | rated power | 12.1KW |
hoist |
| Rated speed | 2200 r/min |
Maximum lifting force (one speed, single rope) | 10KN | Motor model | Y132M-4 |
Reel capacity | 27m | rated power | 7.5KW |
Wire rope diameter | 9.3mm | Rated speed | 1440 r/min |
Packaging & Shipping

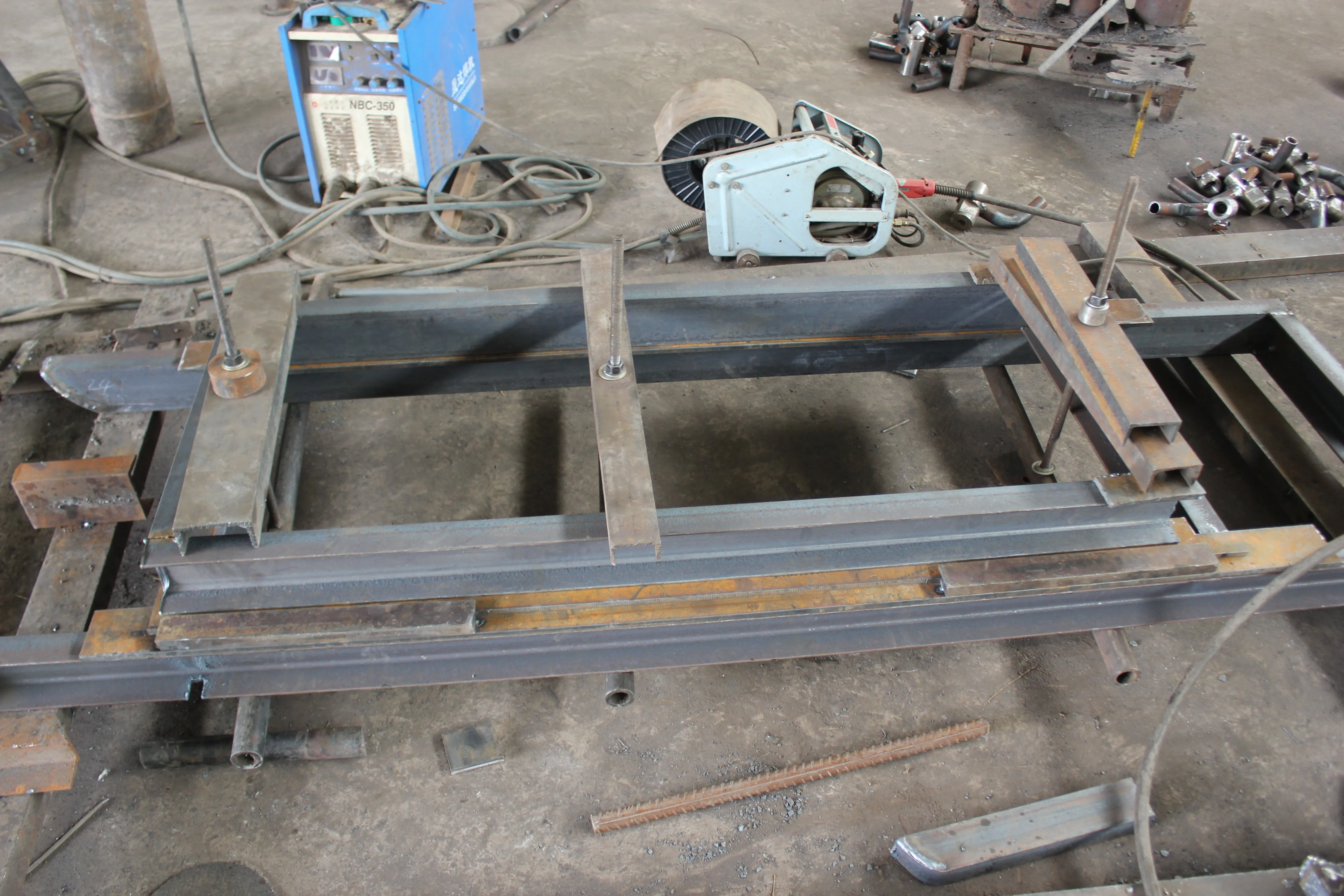

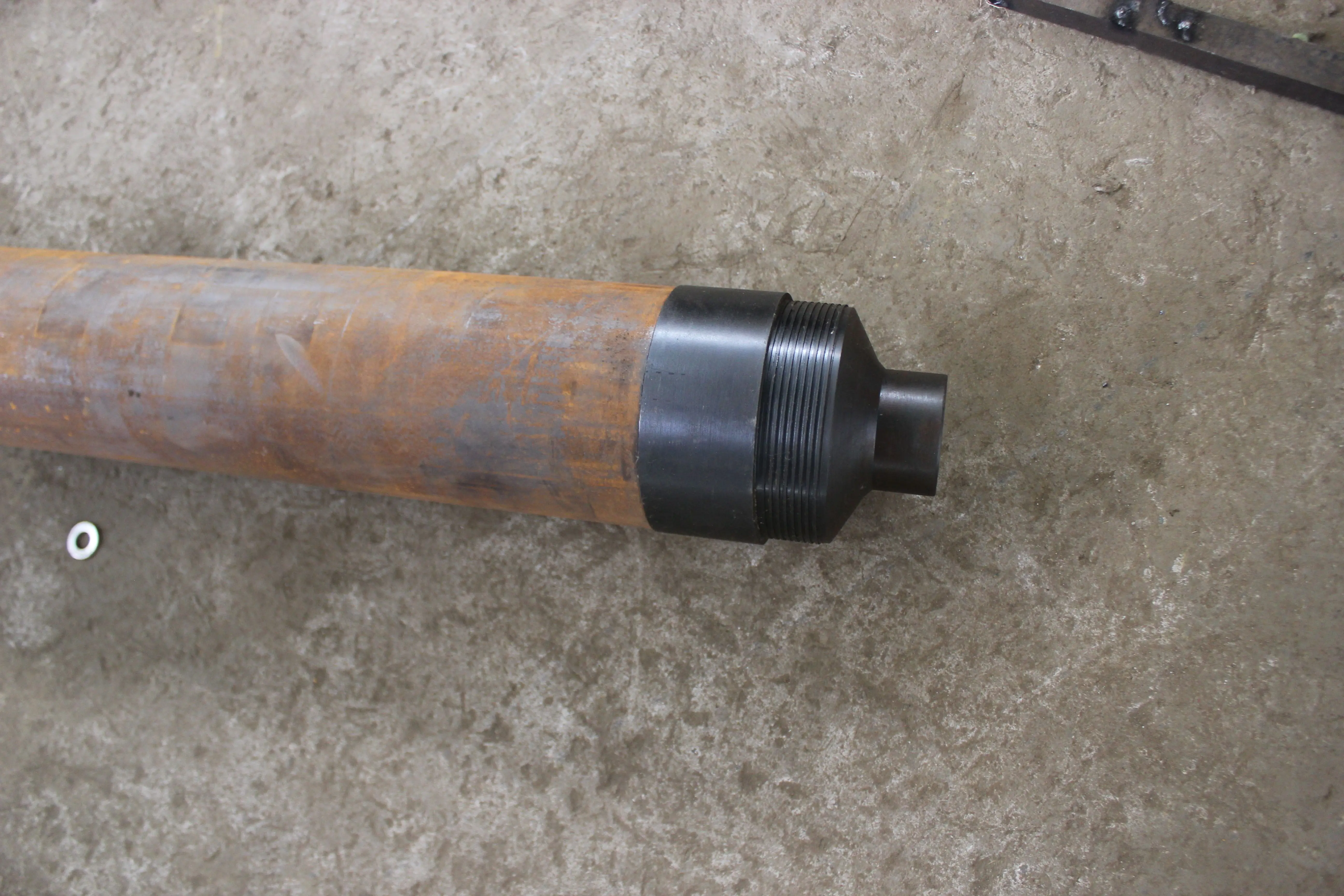

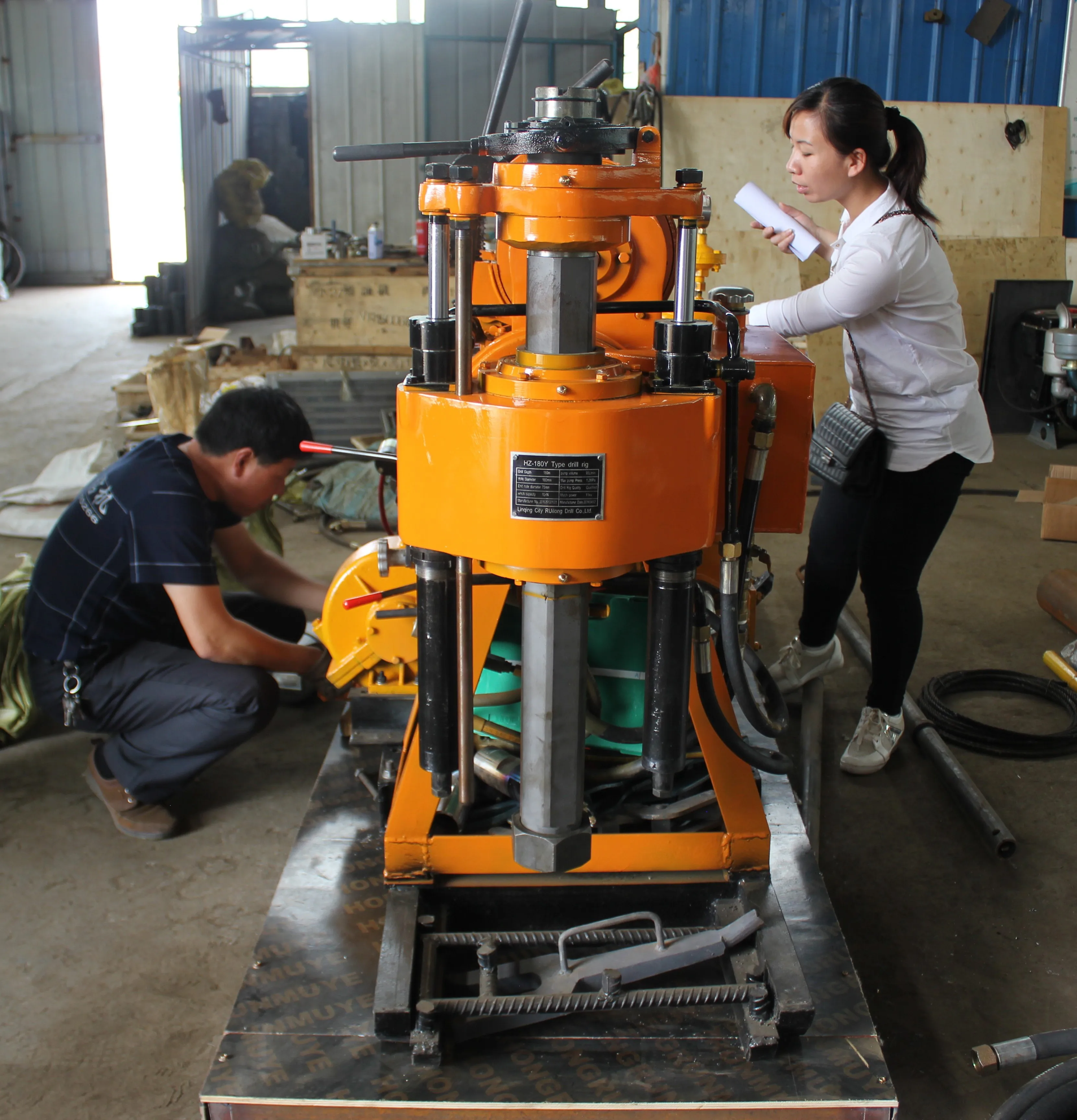

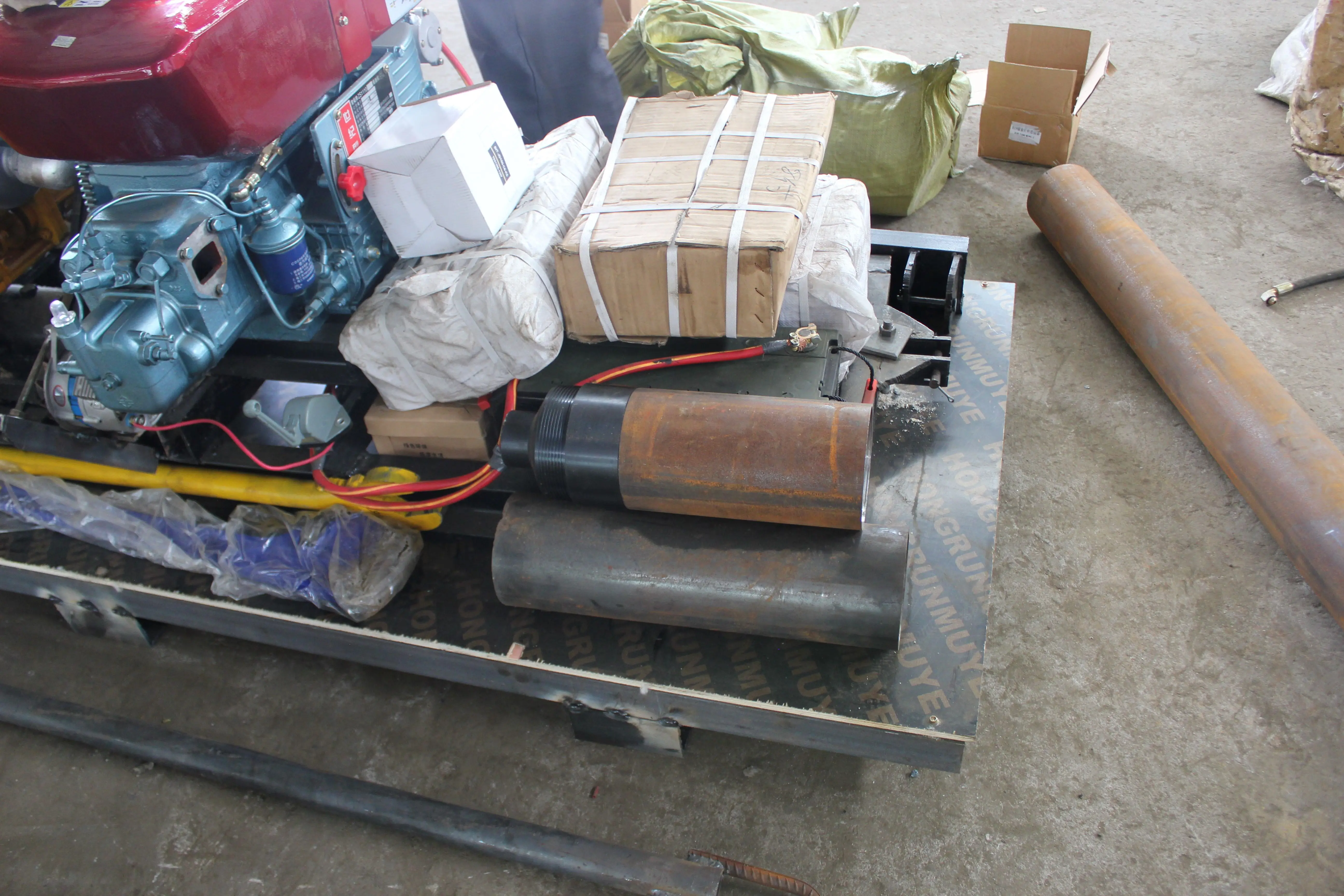

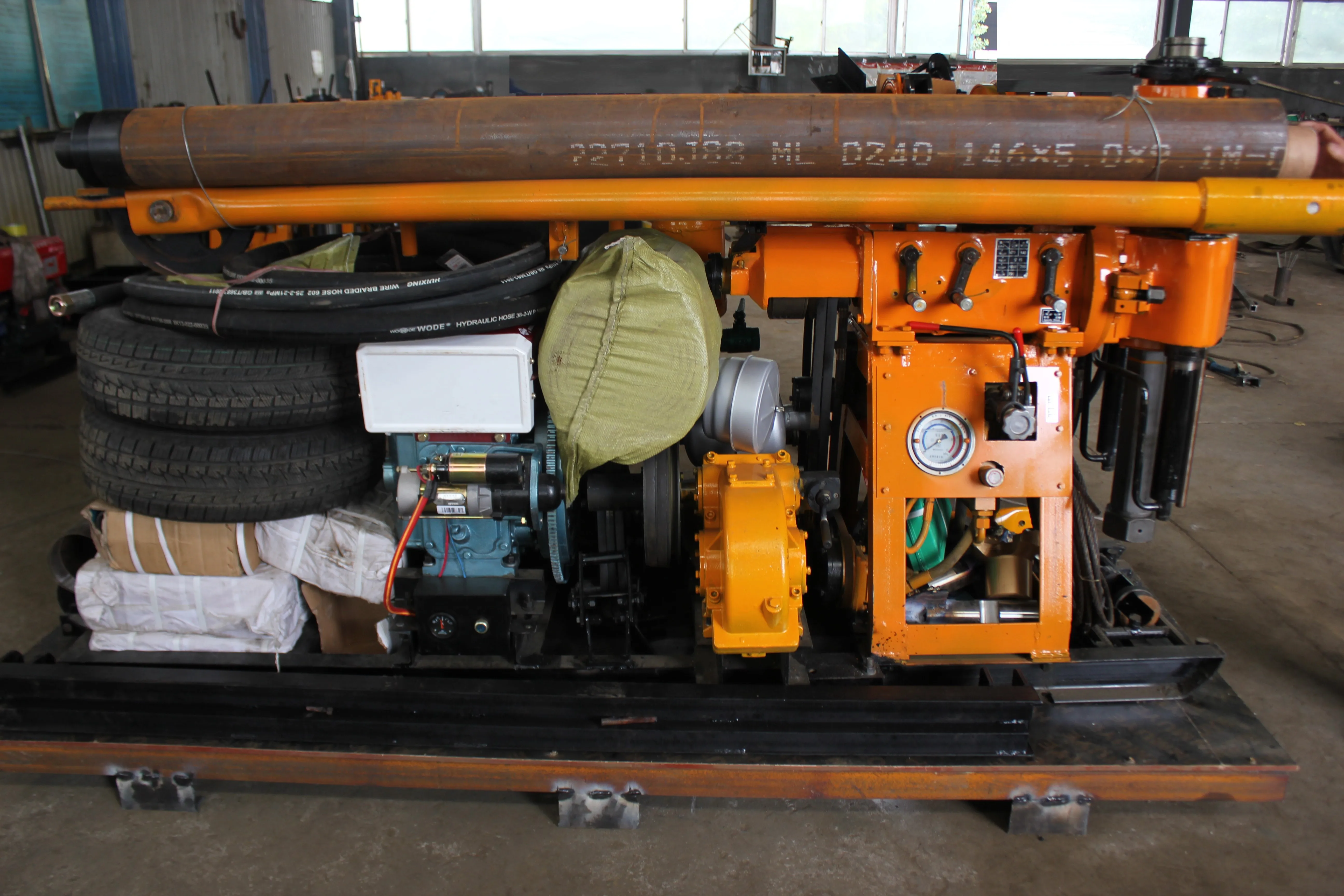

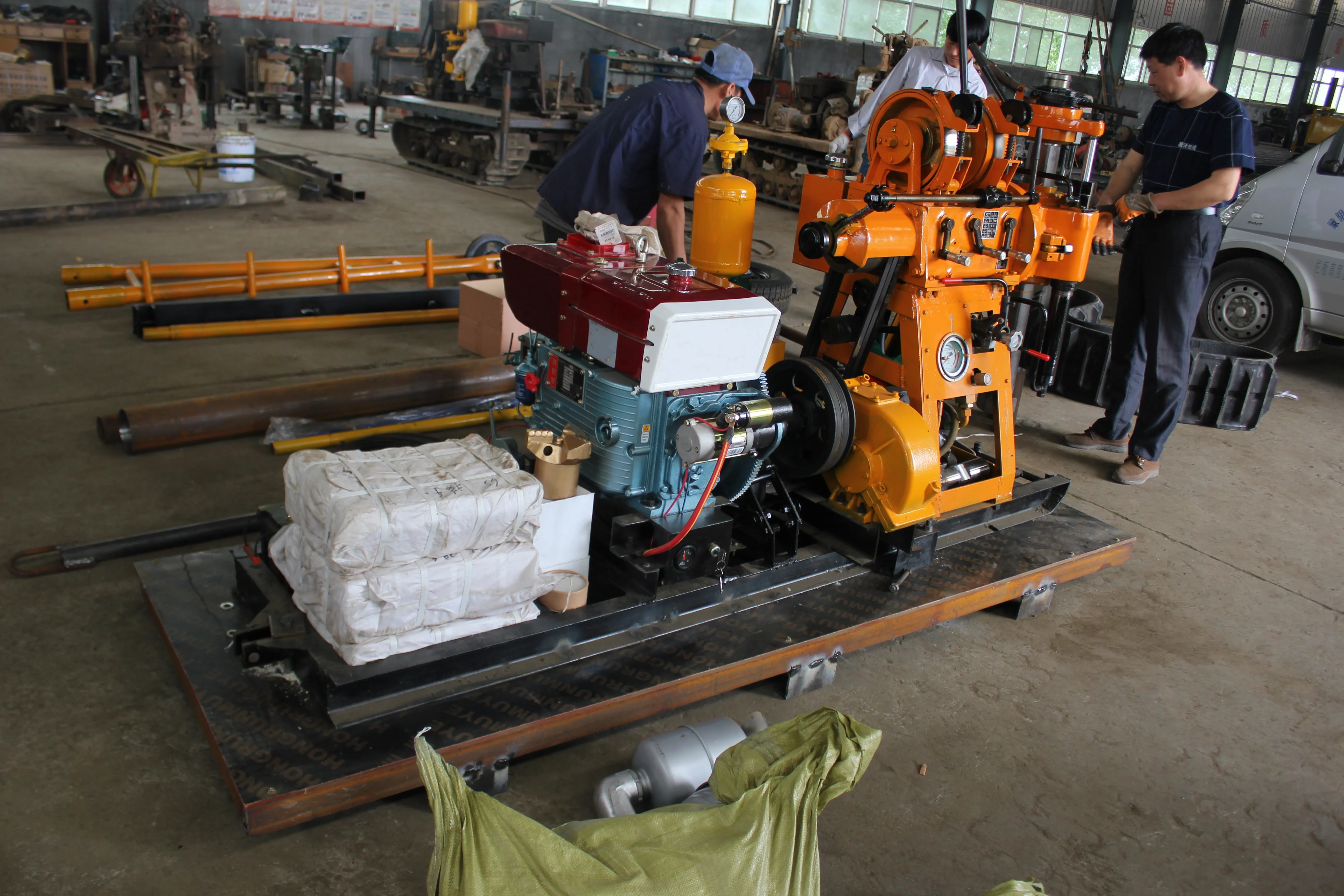

Water well drilling rig and accessories is packed with wooden box or according to customer requirement.Packinging & shipping picture as reference:
About Us
Our Services
(1)Produce water well drilling rig,oil well drilling rig,diamond core drilling rig and drilling accessories.
(2)All model drilling rigs are available,MOQ is only 1 set.Many sizes in stock.OEM,ODM. Export to USA,Europe,Asia,Africa,America and Australia.
(3)Fast production for big orders,delivery by sea,truck,air,express.Works on FOB,CIF.
Company Information
Shandong Yikuang Drilling Technology Co.,Ltd. (hereinafter referred as YK drill) is a professional manufacturer of mining equipment and rock drilling tools. As a young and developing enterprise, YK drill is located in Linqing City of Shandong Porvince. Main distribution scope of YK drill includes full range of rock drilling tools for top-hammer open mine drilling, under-ground long-hole drilling, top-hammer tunnel drilling and rock bolt anchoring. The full range rock drilling tools include hydraulic drilling tools, DTH drilling tools, tapered equipment and drilling tools for under-ground long-hole drill rigs; the hydraulic drilling tools include drill rods, drill bits, couplings, shank adapters, hydraulic drifters and thereof spare parts. DTH drilling tools include DTH hammers, DTH bits and DTH drill pipes of high pressure, middle pressure and low pressure. The tapered equipment include high-quality tapered button bits, tapered chisel bits, tapered cross bits, tapered rods and integral rods. The distribution network of YK drill includes more than 20 Provinces, autonomous regions and municipalities in domestic marker, and more than 20 countries like Australia, America, Canada, Finland, Germany, Japan, South Africa, Chile and so on around the world. YK drill looks forward to cooperating sincerely with clients all over the world.
FAQ
(1)What type drilling rig do you produce?
Answer: Water well drilling rig,oil well drilling rig,diamond core drilling rig and drilling accessories.
(2)What specification is your drilling rig?
Answer: We have different types and models drilling rig for different drilling purpose.
(3)We are interested in your drilling rig,we have some questions.How can I get your offer?
Answer:Kindly send us E-mail or call us,we will try all best to support you and give you good price.
