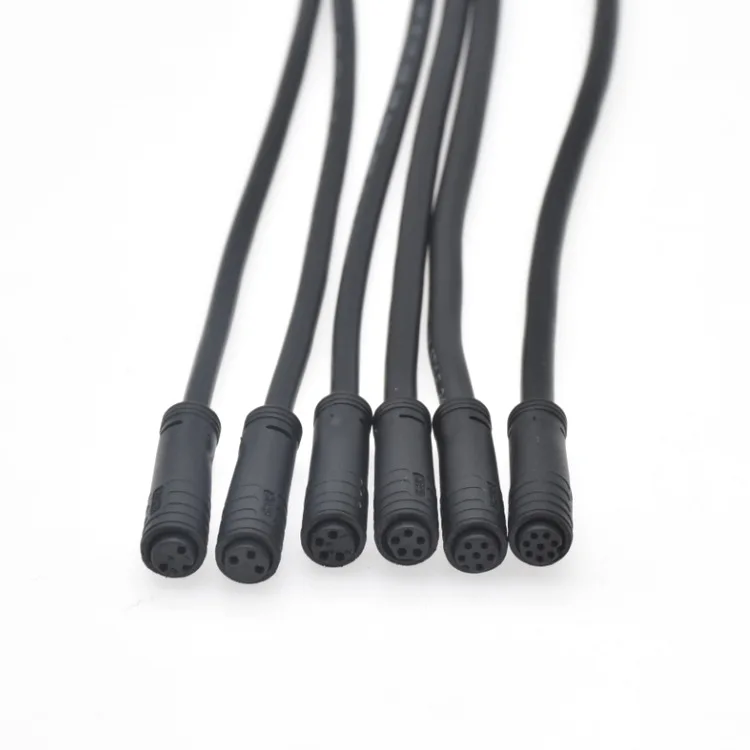

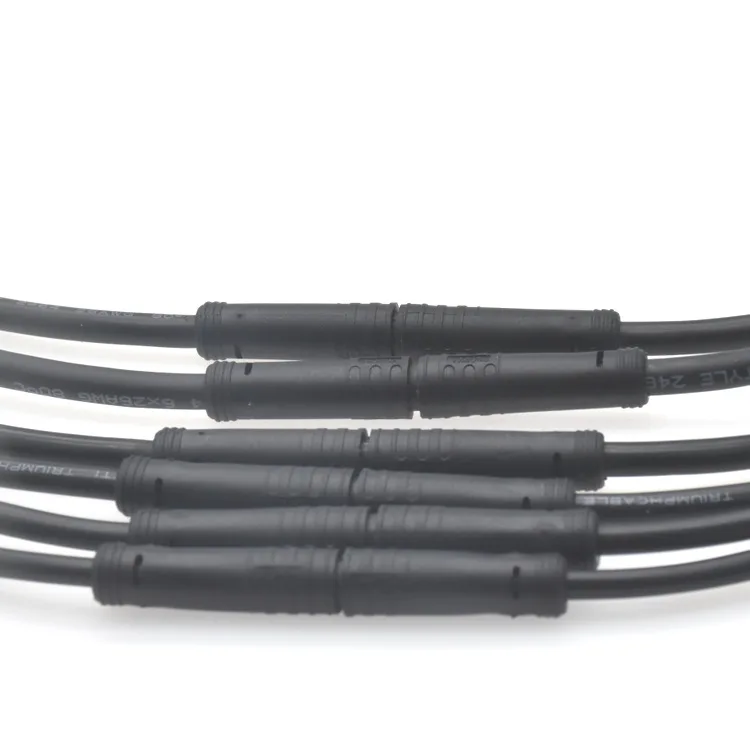

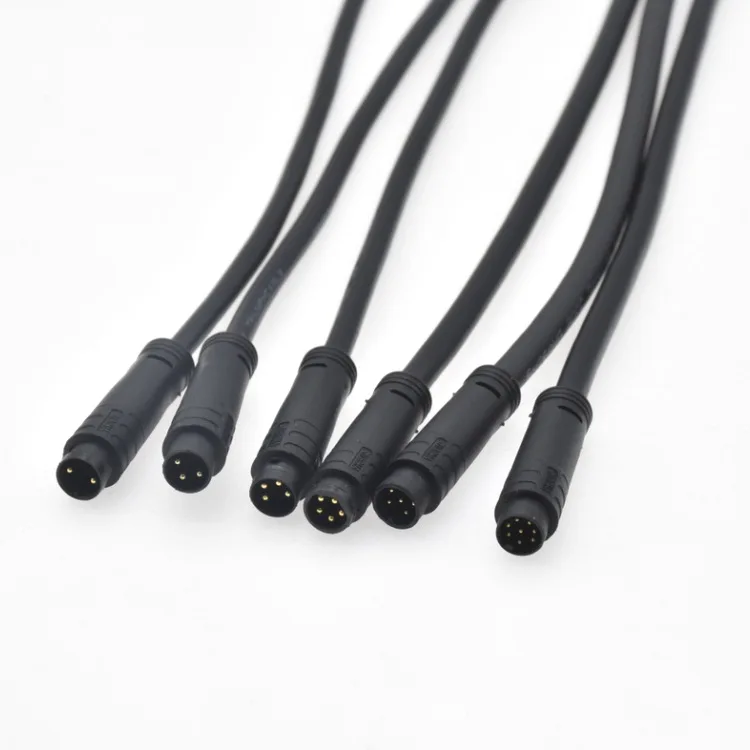

Electric bicycle/scooter/tricycle signal M8 Snap in Sensor Cable 2Pin 3Pin 8Pin M8 Plastic Connector
- Category: >>>
- Supplier: YIYIDEA Technology CO. LTD
Share on (1600992232617):
Product Overview
Description
Product Paramenters
1. Product View
2. Technical Parameters
Design Standard | DIN EN 61076-2-104 (IEC) |
Connector Design | M8 Connector |
Connector locking system | Screw, Panel Mount |
Shielded Optional | Unshielded or Shielded |
Termination | Panel Mount Connector |
Panel Mount Conn Design | Solder, Dip Solder, Crimping, Litz wires |
Coding | A B C D X S L Y K T M |
Material | PA66, Brass Gold Plated |
Mechanical Operation | >100 Mating Cycles |
Contacts Resistance: | 3m Ω |
Operation Temperature | ~25°C ~ 85°C |
Protection Rate | IP67 |
Salt Mist | 48h |
Application | Electronics, Automotive, Medical, Automation |
3. M8 A Code Contact Arrangement and Wire Core Color
M8 A Code Wire Core Color | ||||||||||
PIN | Color | Color | Color | Color | Color | |||||
2 core | 3 core | 4 core | 6 core | 8 core | ||||||
1 | RED ● | BRN ● | BRN ● | BRN ● | BRN ● | |||||
2 | -------- | -------- | WHT ○ | WHT ● | WHT ● | |||||
3 | BLK ● | BLU ● | BLU ● | BLU ● | GRE ● | |||||
4 | BLK ● | BLK ● | BLK ● | BLK ● | ||||||
5 | GRY ● | GRY ● | ||||||||
6 | RED ● | PNK ● | ||||||||
7 | BLU ● | |||||||||
8 | RED ● | |||||||||
M8 B Code Wire Core Color | ||||
PIN | Color | |||
5 Core | ||||
1 | BRN | ● | ||
2 | WHT | ● | ||
3 | BLU | ● | ||
4 | BLK | ● | ||
5 | GRY | ● | ||
M8 D Code Wire Core Color | ||||
PIN | Color | |||
4 Core | ||||
1 | YEL | ● | ||
2 | WHT | ● | ||
3 | ORA | ● | ||
4 | BLU | ● | ||
4. M8 Panel Mount Connector
4-1. Front Fasten Male Panel Mount Connector
M8 Front Fasten Male Socket
M8*1.0
M8 Front Fasten Male Socket
Shieled M8*1.0
M8 Front Fasten Male Socket
Dip Soloder M8*1.0
M8 Front Fasten Angle Male
DIP Solder with bracket M8*1.0
M8 Front Fasten Male Socket
DIP Solder with bracket M8*1.0
M8 Front Fasten Male Socket
Dip Soloder, Shieled M8*1.0
4-2. Rear Fasten Male Panel Mount Connector
M8 Rear Fasten Male
M8*0.5
M8 Rear Fasten Male
Shielded M8*0.5
M8 Rear Fasten Male Socket
M10*0.75
4-3. Front Fasten Female Panel Mount Connector
M8 Front Fasten Female
M10*0.75
M8 Front Fasten Female
M10*1.0
M8 Front Fasten Male
M12*1.0
M8 Front Fasten Female
Dip Holder with bracket M10*1.0
M8 Front Fasten Angle Female
Dip Holder with bracket M10*1.0
M8 Front Fasten Female
Angle Front View
4-4. Rear Fasten Female Panel Mount Connector
M8 Rear Fasten Female
M10*0.75
M8 Rear Fasten Female
M8*1.0
M8 Rear Fasten Female
M8*0.5
Our Advantages
◒◒ 10 Years+ Connector Manufacturing Experience
10Years+ Connector Manufacturing Experience and OEM ODM R&D Experience.
◒◒ Technique Support
We could provide product design service for customers.
◒◒ Strict Quality Control
Quality is fundamental to the survival of enterprises.
We have a complete quality system and quality testing equipment.
◒◒ High Quality Service
.More advantage and better service
About YIYIDEA
◒◒ Our Introduction
Specializing in Circular Connector, Wire Harness and Cable Assembly one-step Solution Supplier.
◒◒ Production Workshop
Real Workshop shows our Enterprise Strength

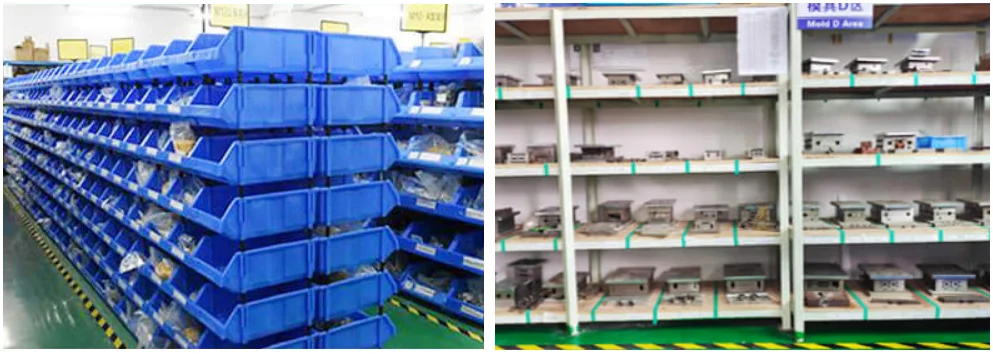

◒◒ Clean and Tidy Warehouse
