Professional Manufacture Cheap Original Constant Voltage 24v 40w Power Supply Street Light Led Driver

Share on (1600992592973):


Price:$8.42 - $10.36

Quantity:


Product Overview

Description







Products Description


Professional Manufacture Cheap Original constant voltage 24v 40W power supply street light led driver

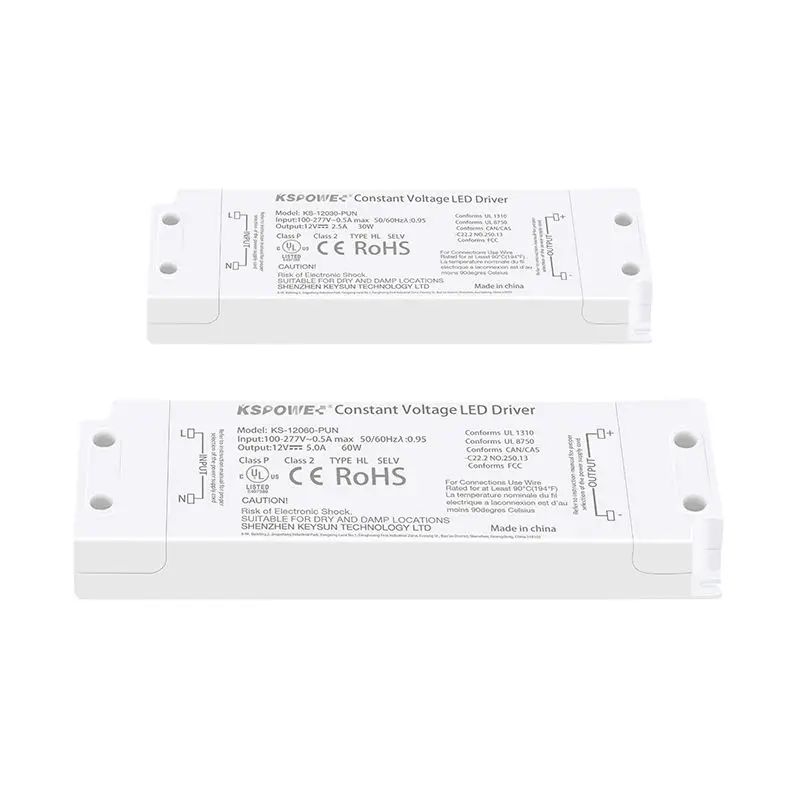

The KSPOWER - PUN series high PF led driver 40 Watt is one constant voltage and non dimmable solution, rectangular plastic case design, single channel, accept AC input voltage range from 100-120V & 200-240V, and output voltage options: 12V, 24V, 36V, 48V. The led power transformer is one Class 2 power supply, great ideal for led strip lights and other low voltage devices such as led strip light, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The class 2 led driver is small volume, with certification UL/cUL, CE, ROHS. The led dc transfromer is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.



Features:
* High PFC function to 0.92
* Single channel & CV power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Use in Dry and Damp locations
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire


Note:Any custom label/package/case is acceptable, provide OEM and ODM service



Input Voltage
100-120Volts AC 60Hz & 200-240Volts AC 50Hz
NO.
KSPUN-40W12
KSPUN-40W24
KSPUN-40W36
KSPUN-40W48
Output Voltage
12V
24V
36V
48V
Rated Current
3333mA
1667mA
1111mA
830mA
Rated Power
40W
Certification
UL cUL CE RoHS ...
Dimension(L*W*H)
153*50*20mm / 6.02*1.97*0.78in

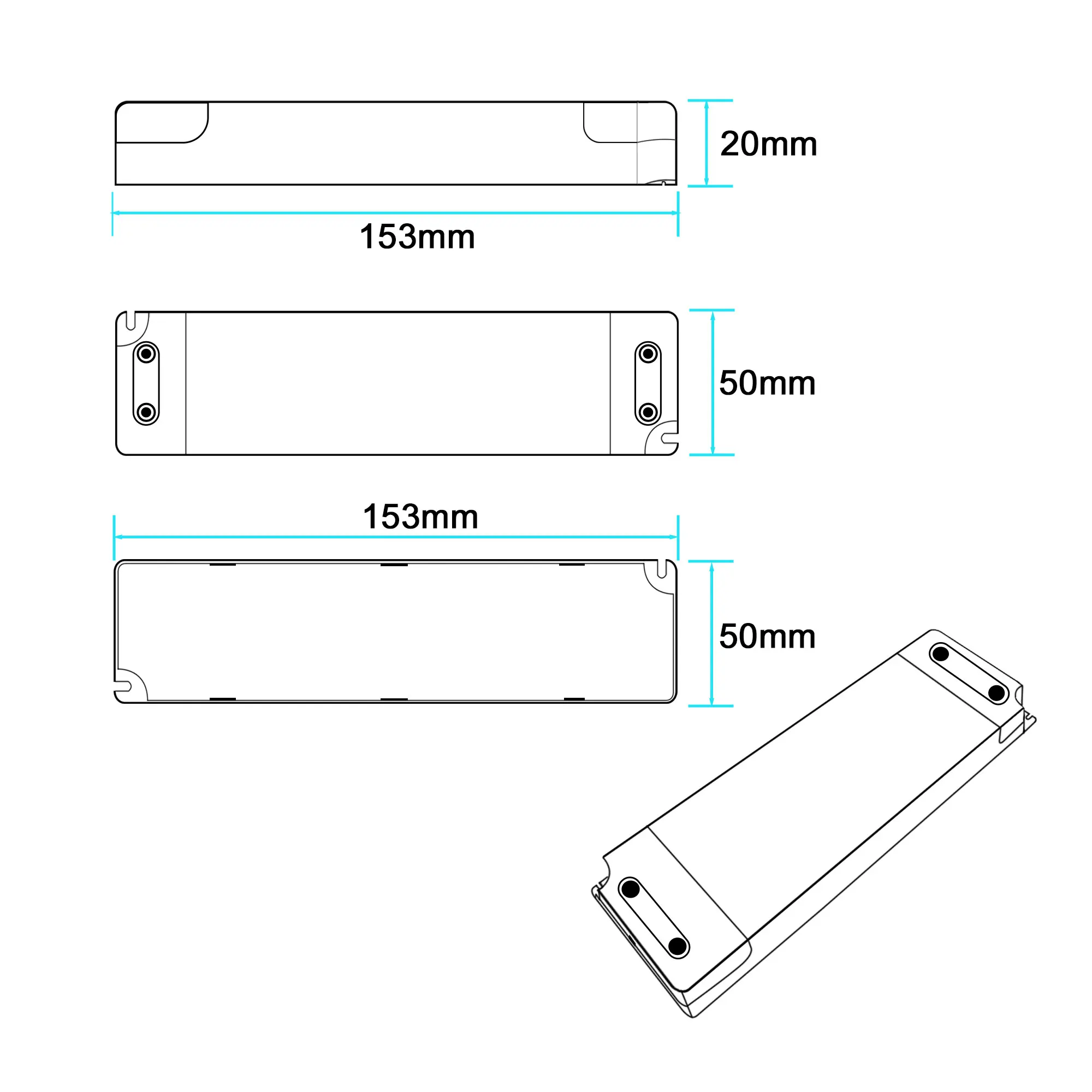

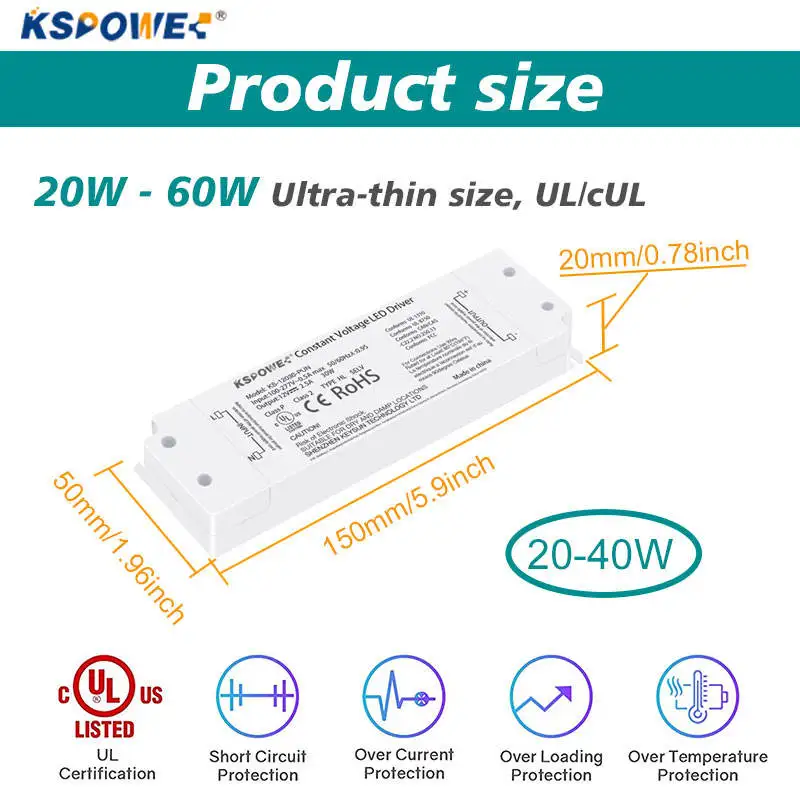

Dimension Drawing




The led driver is enough power to run one of LED strip, cabinet light etc. DC 12/24/36/48-volt single white color constant voltage and compatible with led strips.


















Company Profile




Working Room




Exhibition




Certifications

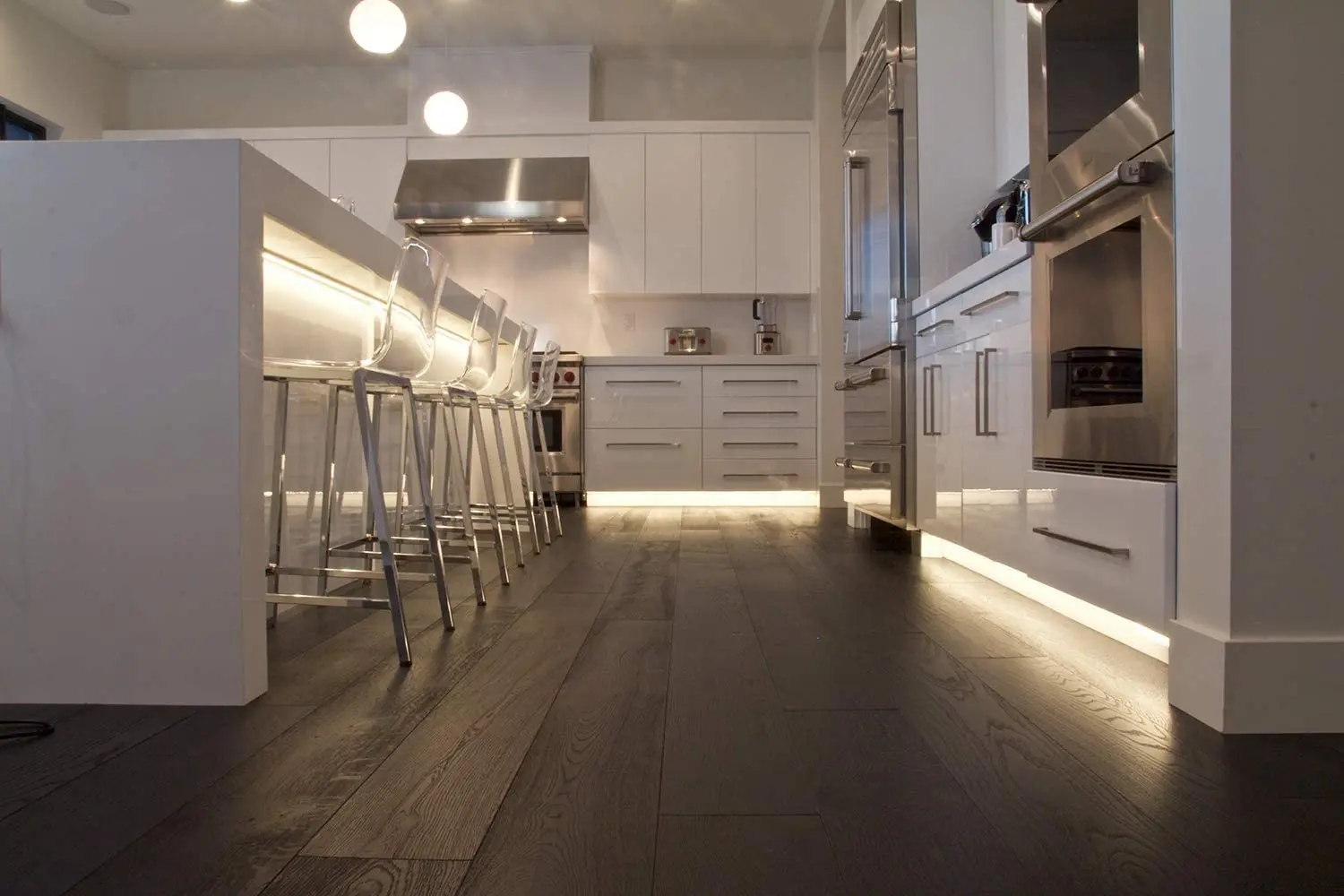

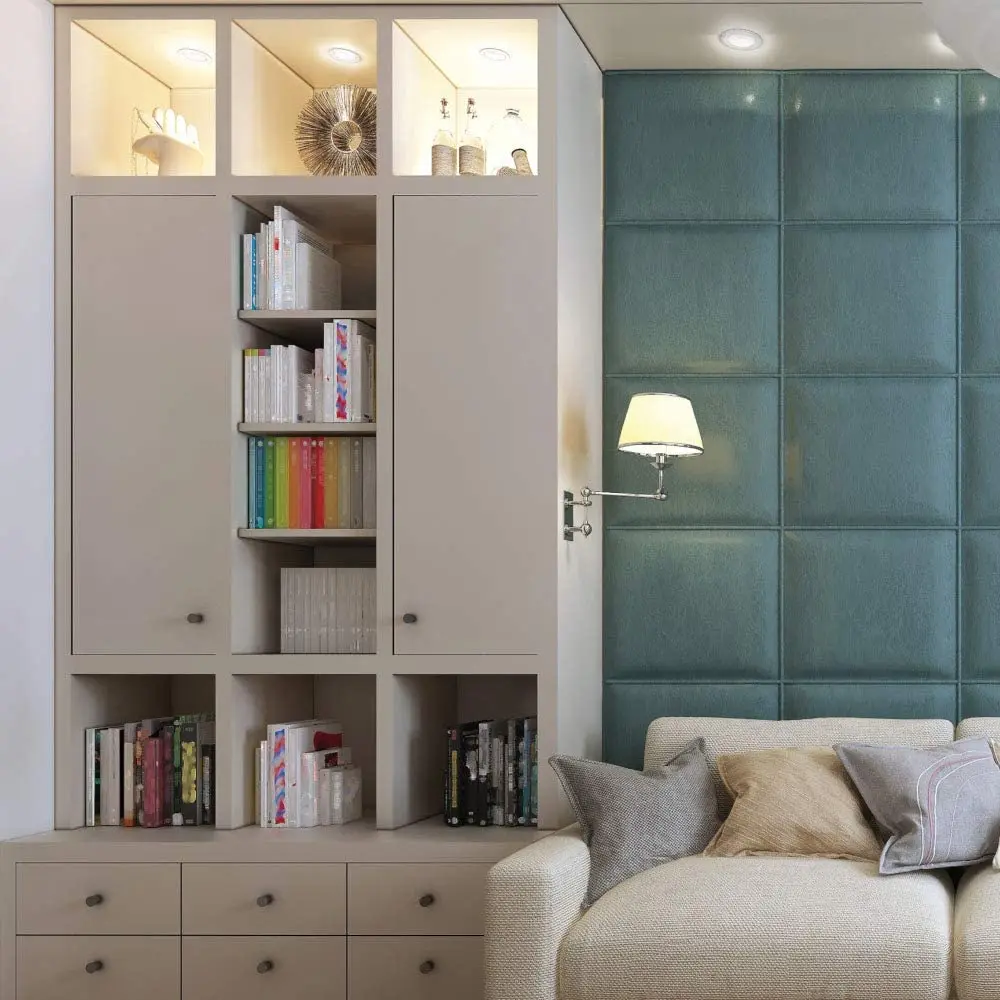

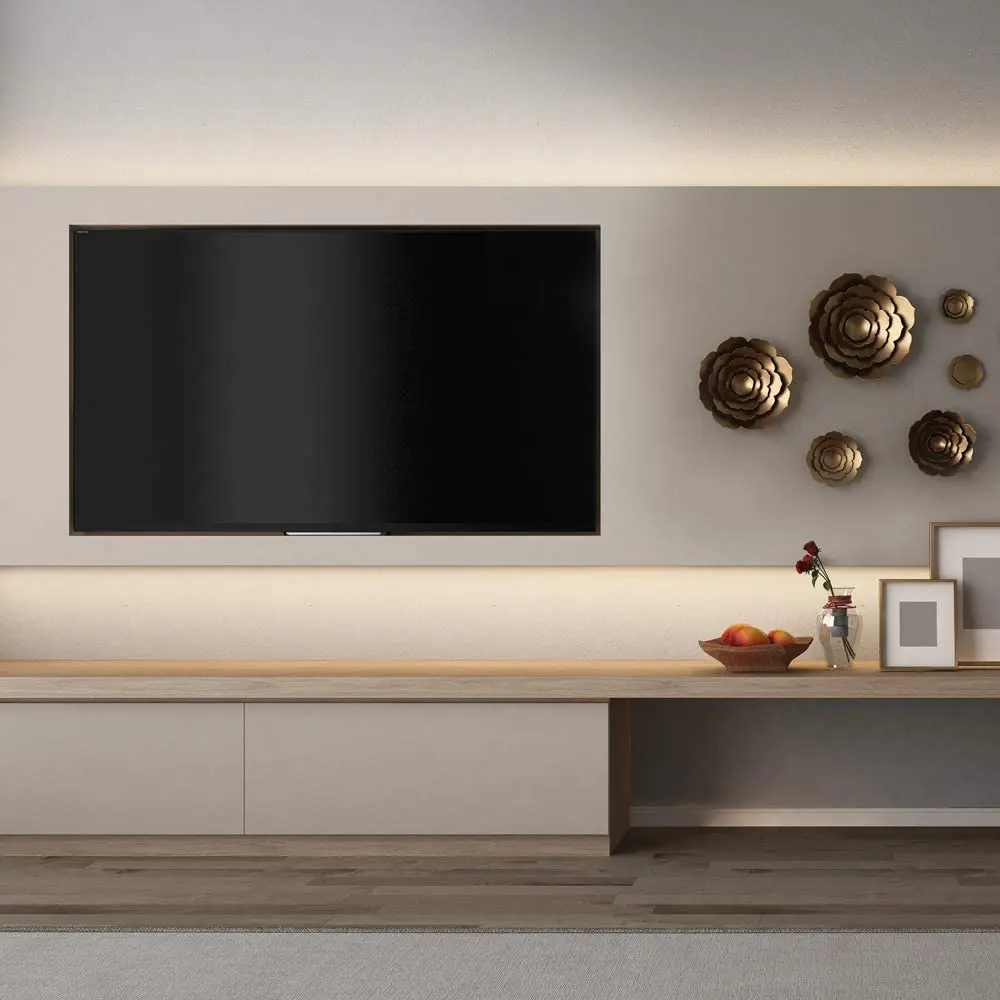

Applications




Product packaging


1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.


Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
