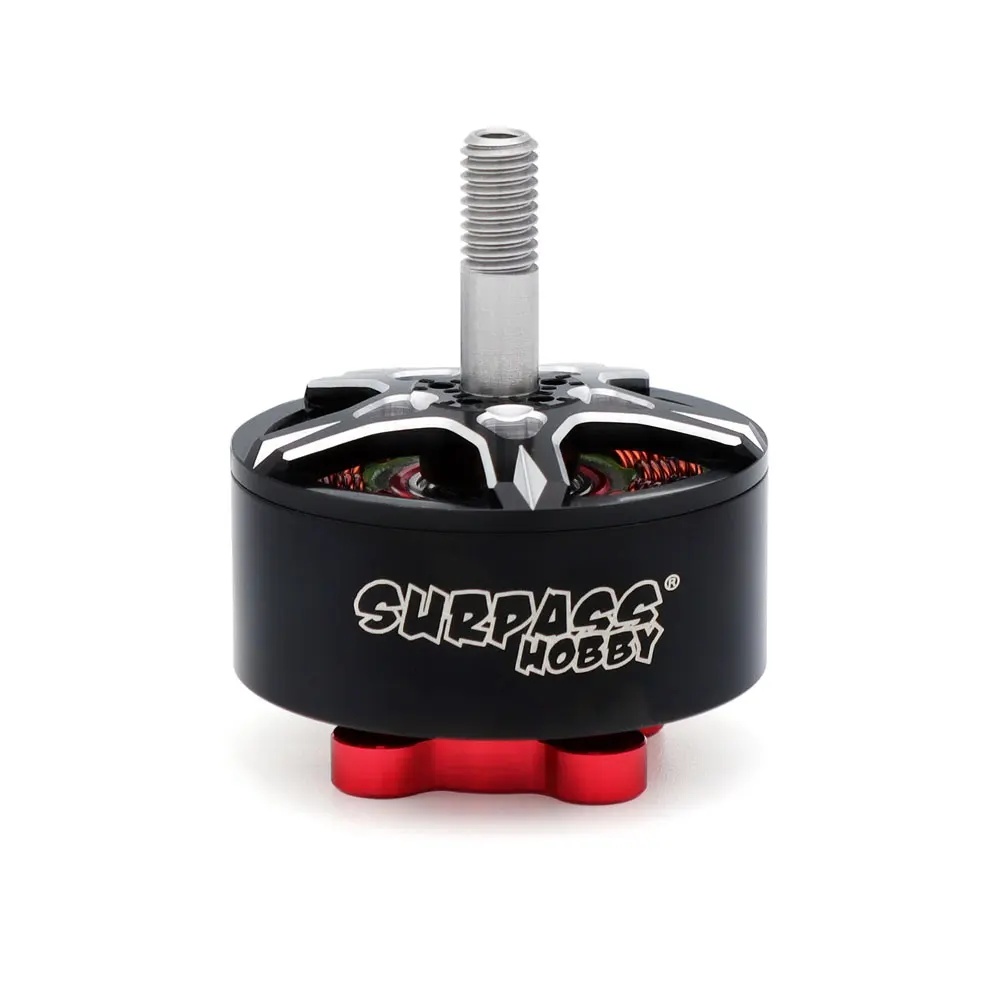

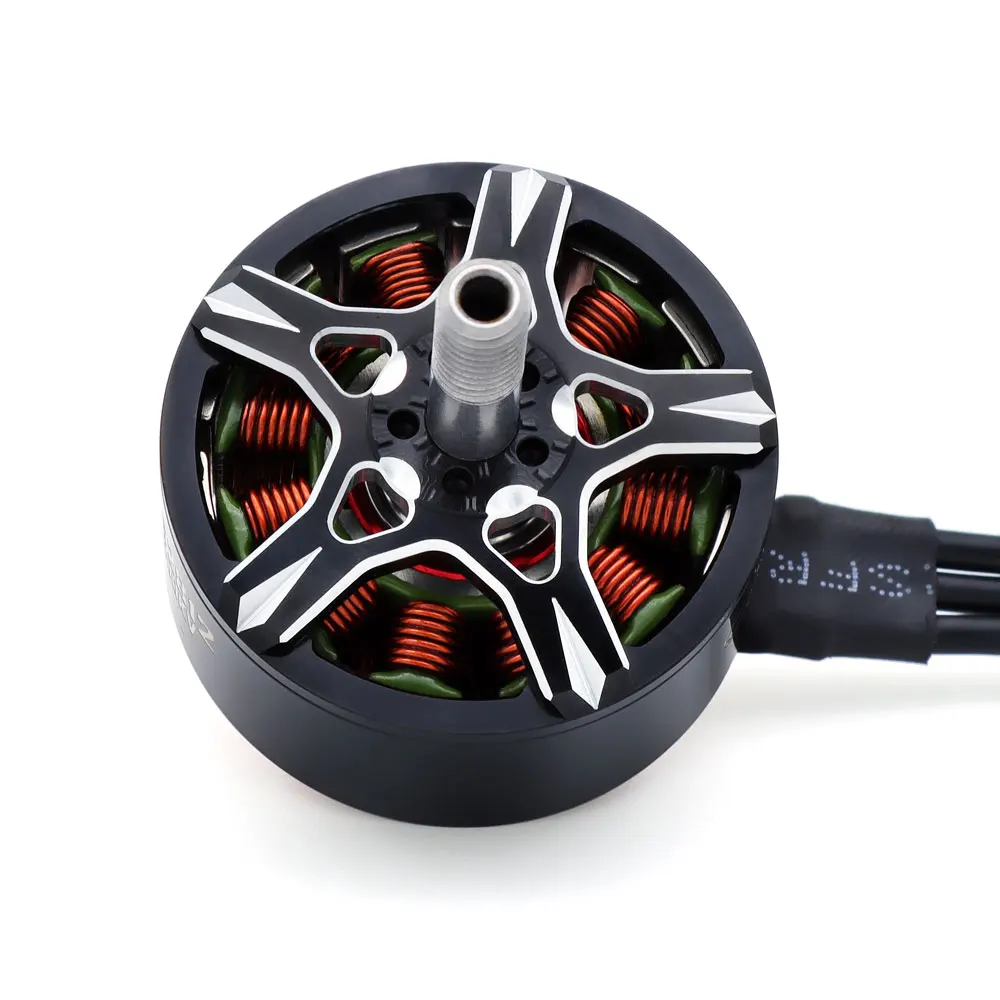

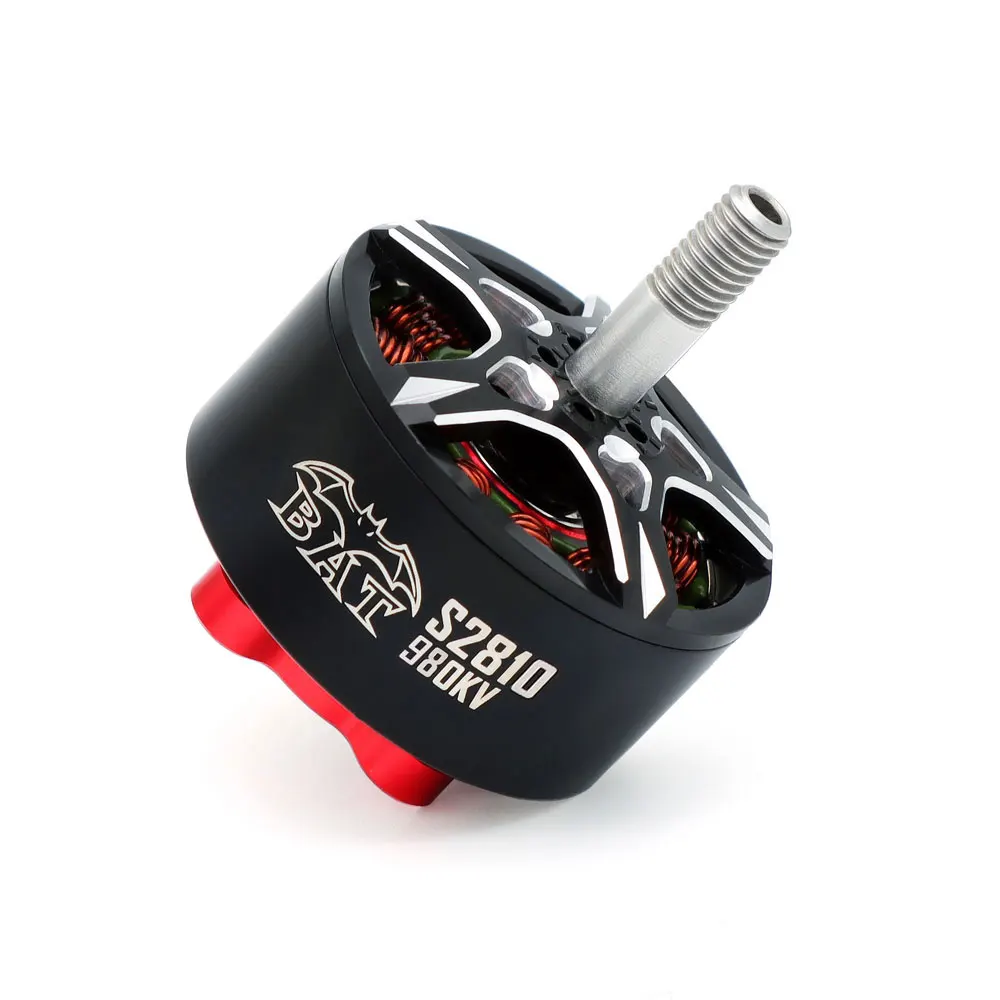

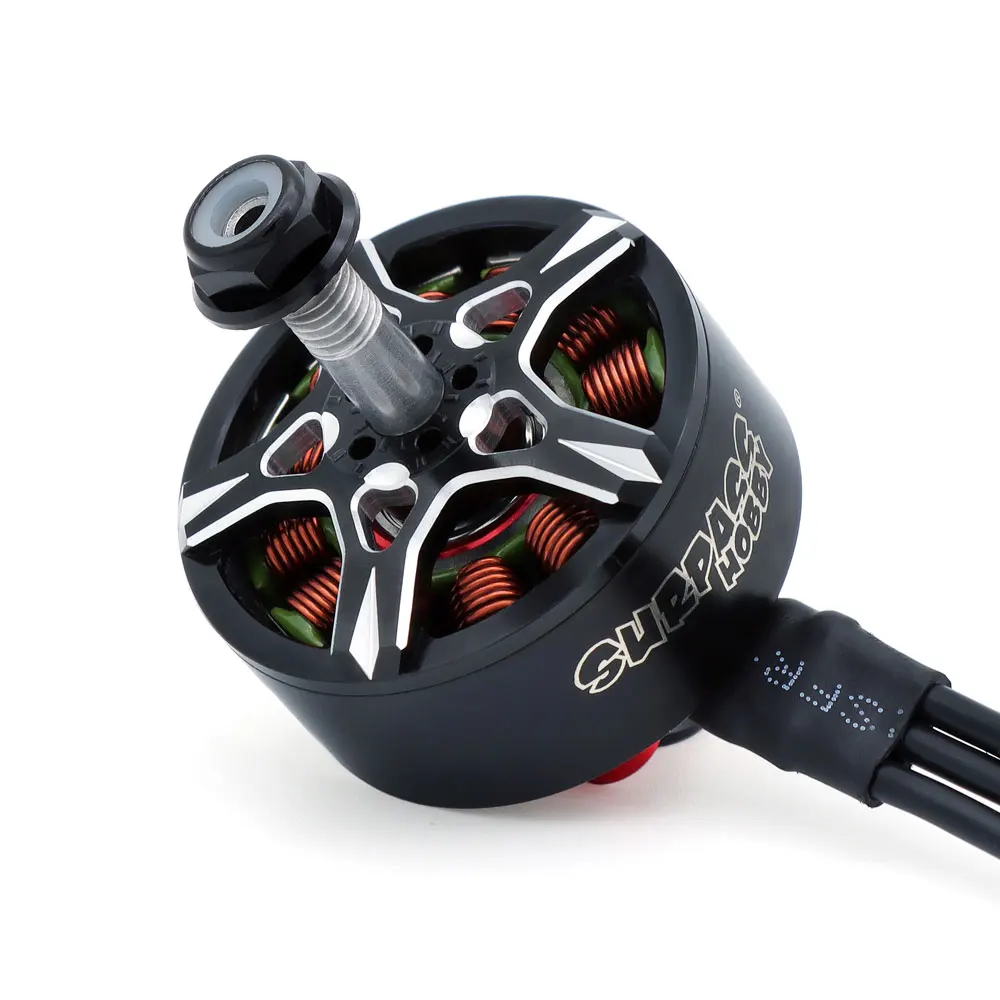

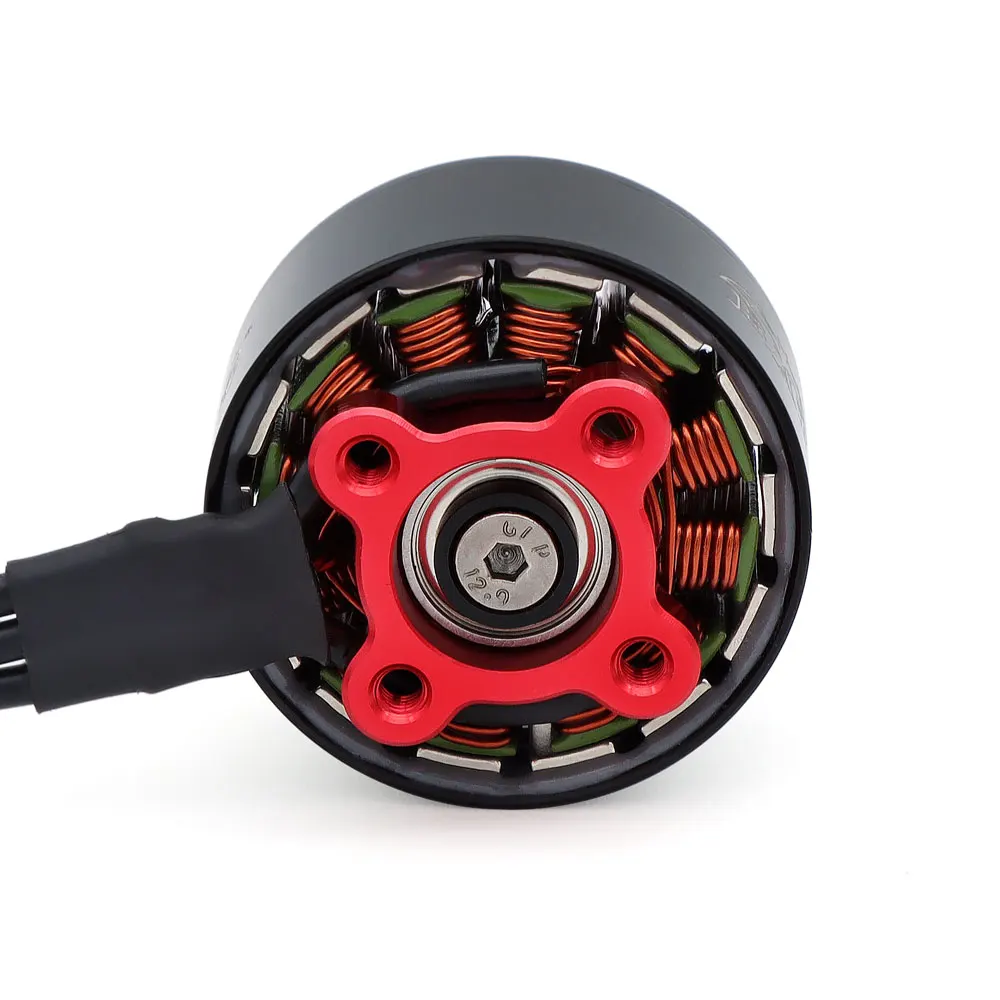

Surpass Hobby SURPASS HOBBY Bat S2810 14 Pole FPV MOTOR for WUPRO Drones With 4k Camera And Gps Remote Control
- Category: >>>
- Supplier: Shenzhen Surpass Tech Co. Ltd.
Share on (1600992632953):
Product Overview
Description
Rocket motor Bat S2806.5& S2808 & S2810&S2812&S3110&S3115 14 Pole FPV MOTOR M5
Features:
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion
Specification:
Brand Name: Surpasshobby
Item Name: Brushless motor
Item name:S2810
KV:980KV/1200KV
Max watts: 2300W
Rotor Poles: 14
No Load current: 1.2A
Motor size: Ф63 x 54
Stator size: Ф53 x 20
Battery: 6-12S Lipo
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion
Specification:
Brand Name: Surpasshobby
Item Name: Brushless motor
Item name:S2810
KV:980KV/1200KV
Max watts: 2300W
Rotor Poles: 14
No Load current: 1.2A
Motor size: Ф63 x 54
Stator size: Ф53 x 20
Battery: 6-12S Lipo
Package listing:
1 x S2810 brushless motor
1 x Mounting Parts Set
1 x S2810 brushless motor
1 x Mounting Parts Set
Product Description
KV(RPM/Volt) | 980KV/1200KV |
LMax watts: | 2300W |
The size of stator | 5320 |
Battery | 6-12S Lipo |
