5L/10L/20L/30L Biological Liquid/Solid Fermentor Organic Fertilizer Fermentation Tank

Share on (1600992640673):


Price:$17,000.00

Quantity:


Product Overview

Description

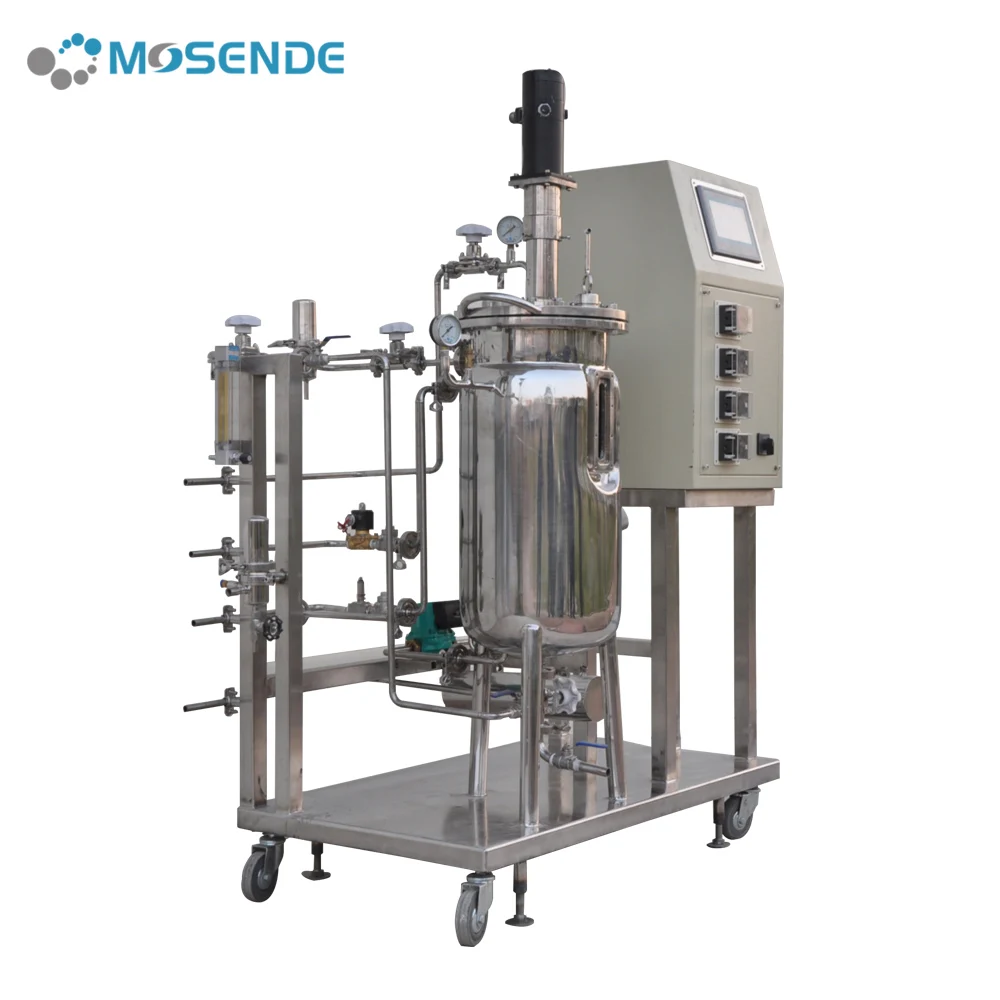

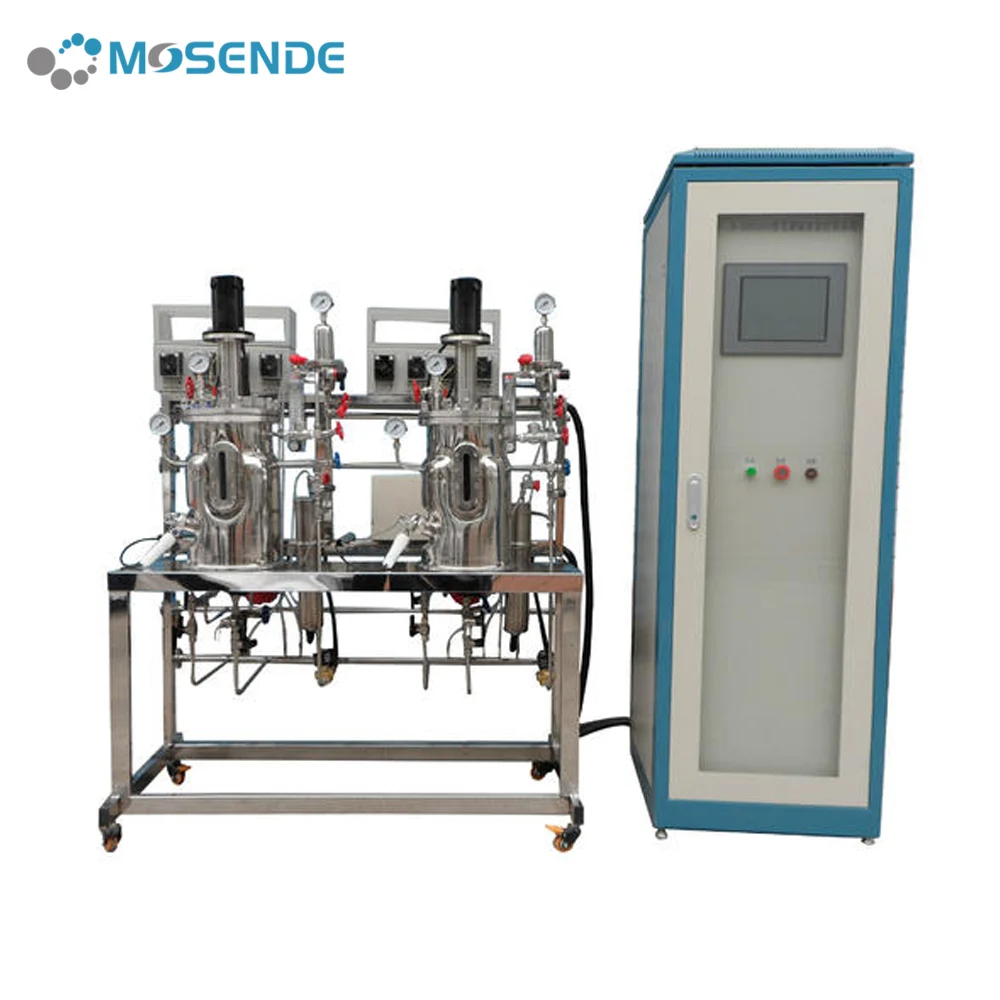

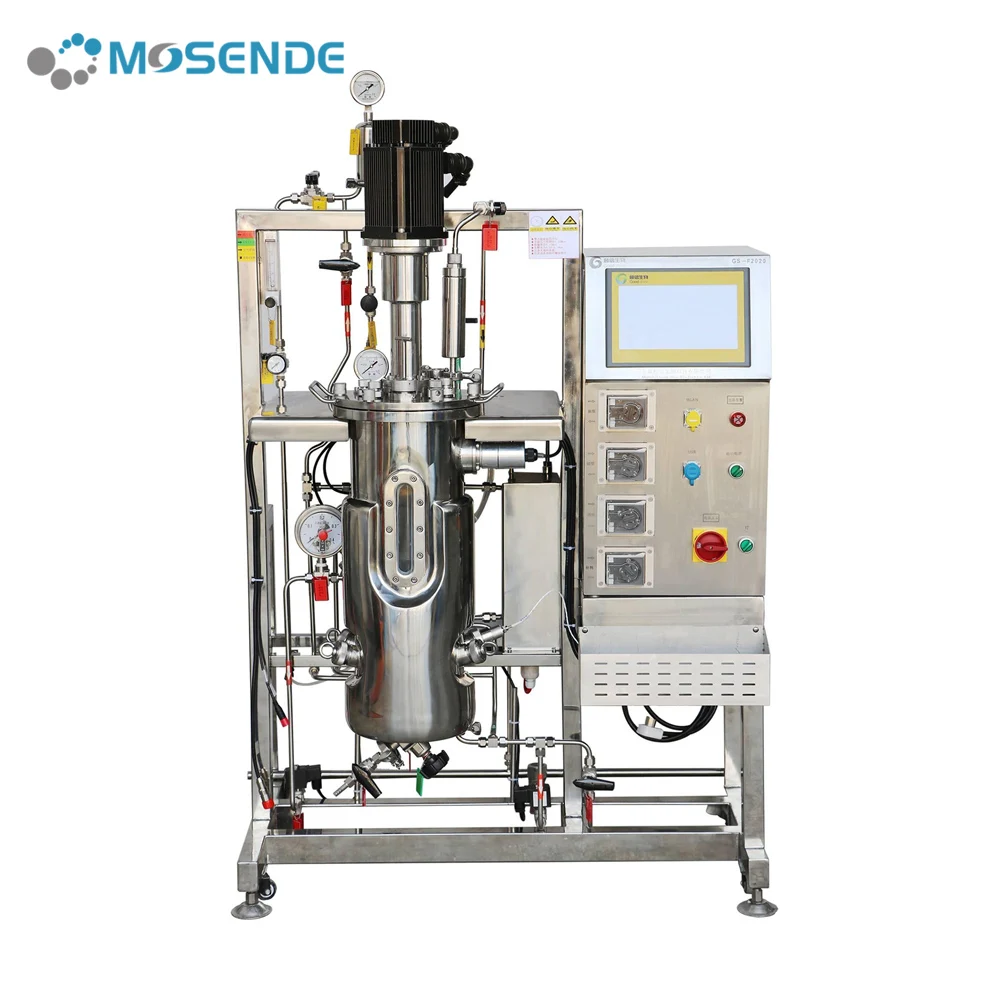

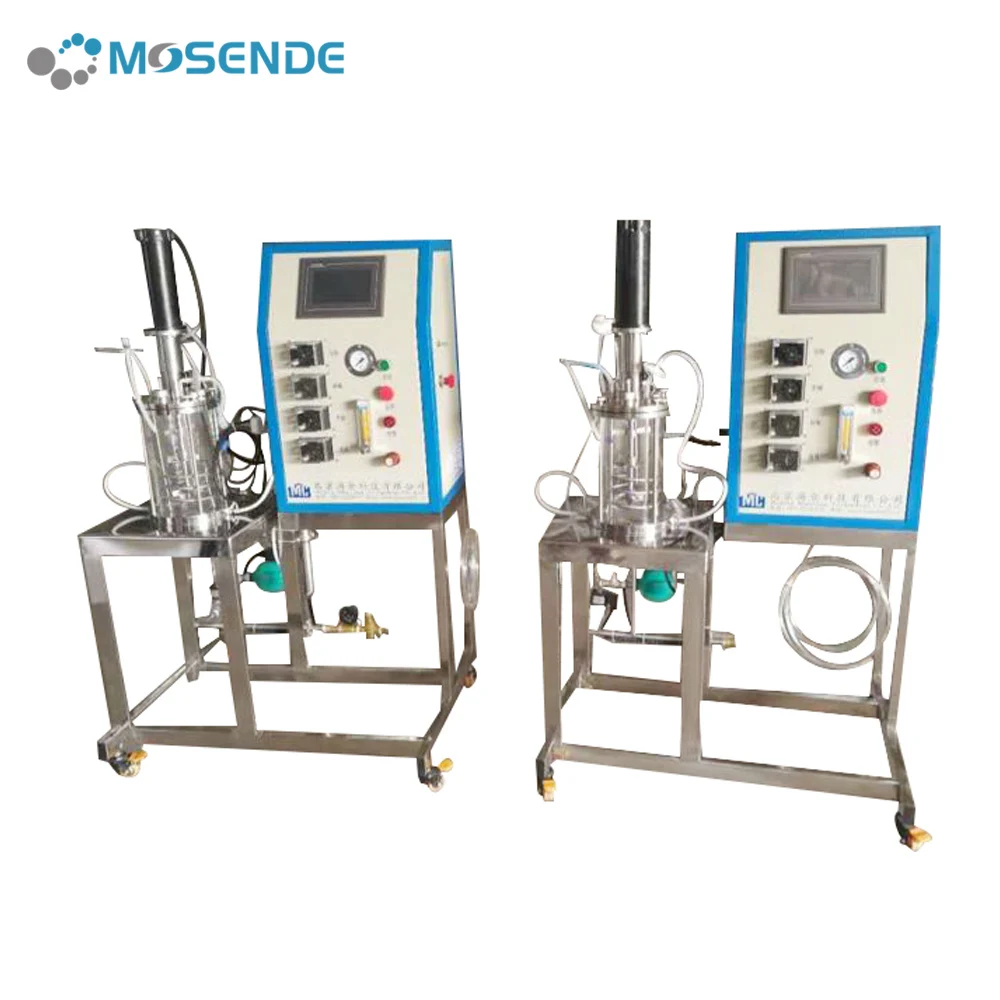

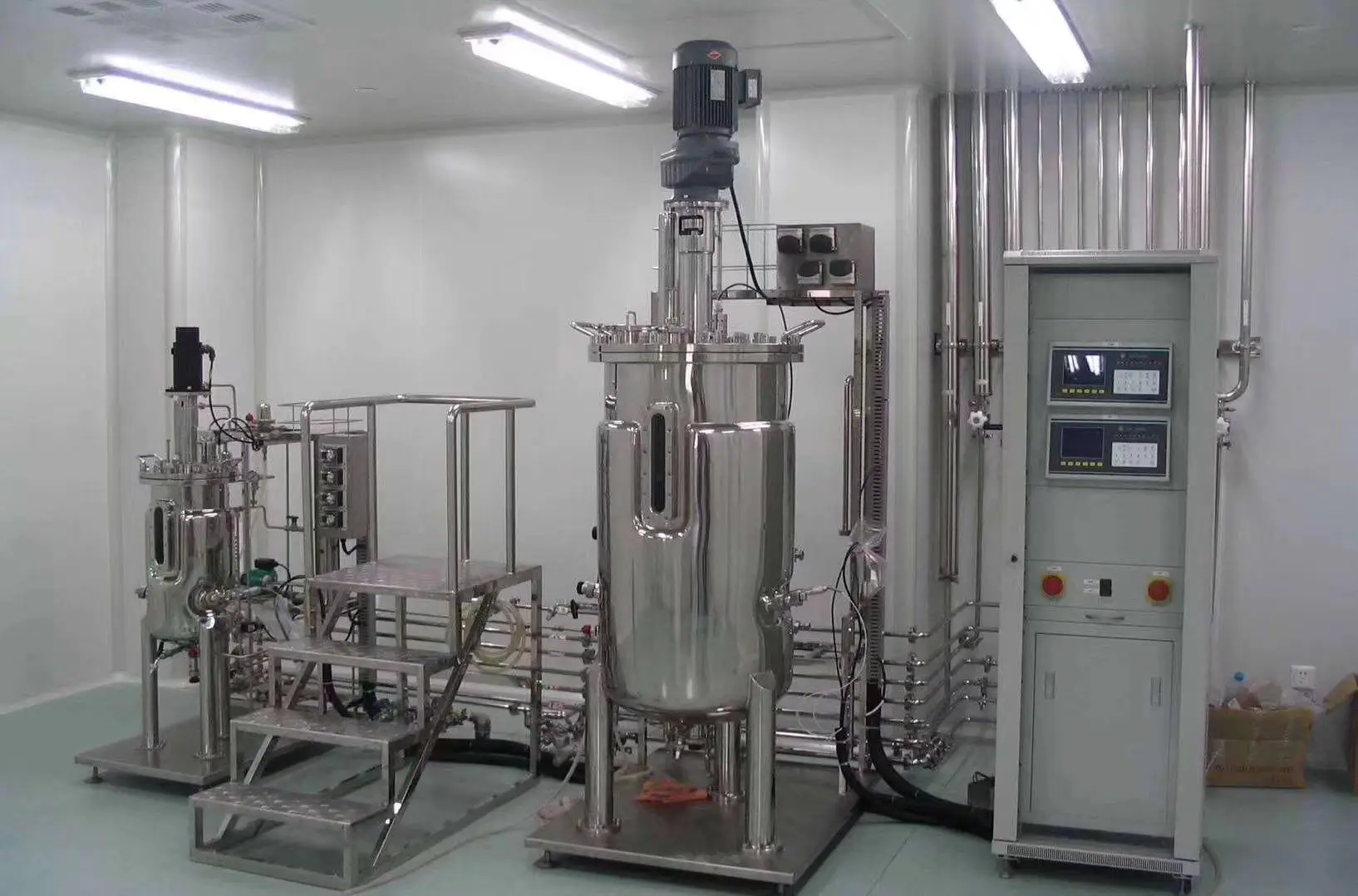

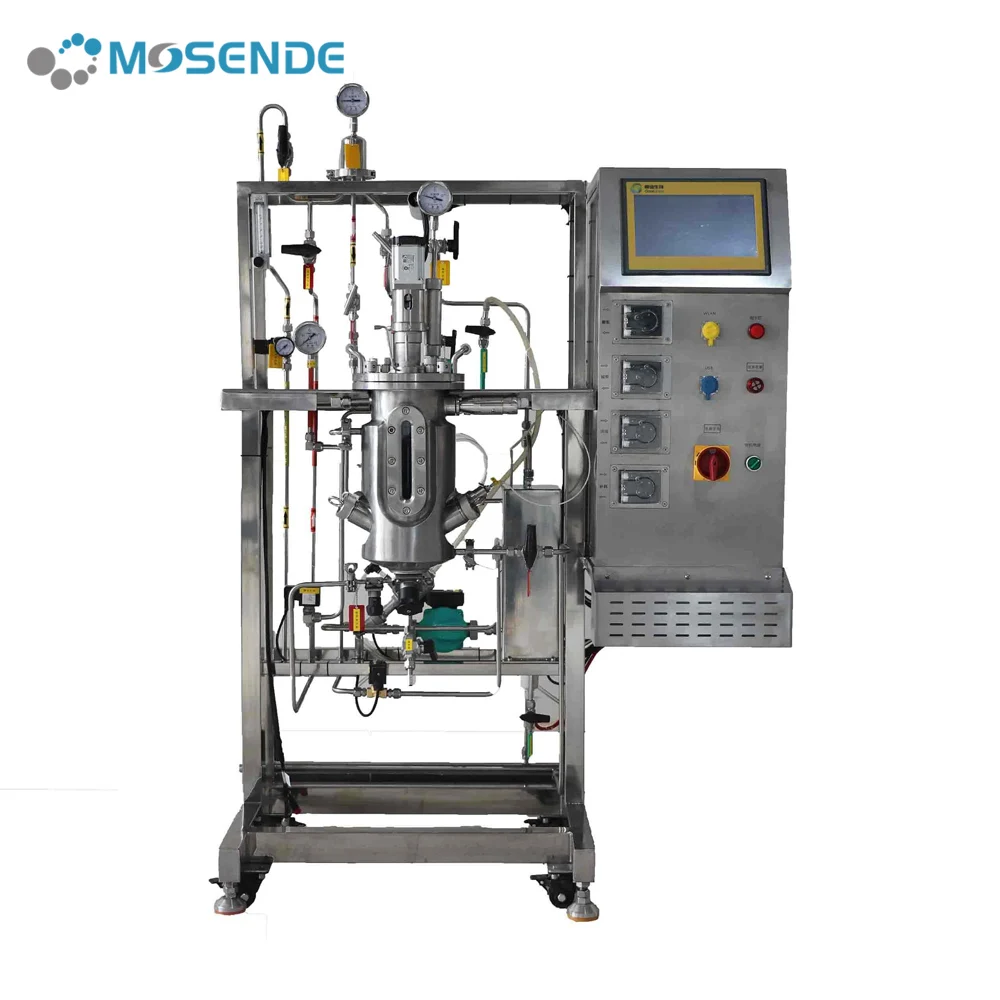

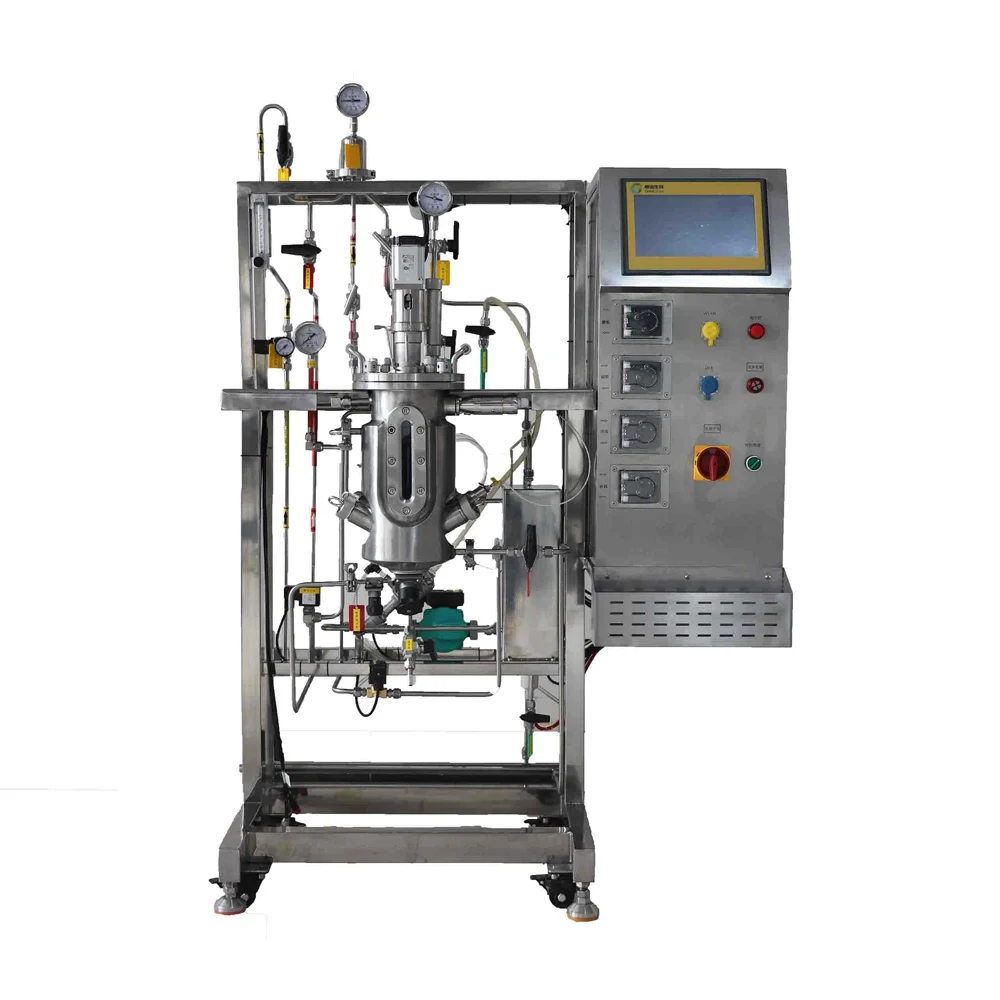

5L/10L/20L/30L Biological Liquid/Solid Fermentor Organic Fertilizer Fermentation Tank



Product Description

      Fermentation tank refers to the device used for microbial fermentation in industry. Its main body is a main cylinder made of stainless steel plate. The structure should be tight and reasonable in design and processing. It can withstand steam sterilization, have certain operation flexibility, reduce internal accessories as far as possible (avoid dead angle), strong material and energy transfer performance, and can be adjusted to facilitate cleaning, reduce pollution, suitable for the production of a variety of products and reduce energy consumption.
     This product is widely used in microbial laboratories of scientific research institutes and enterprises. It is an ideal tool for precision fermentation test. It can be applied to the screening of medium formula, the optimization of fermentation process parameters and the validation of production technology and strains. In particular, the crude mash medium is especially suitable.




Main uses
       The equipment can be widely used in the aerobic fermentation process of antibiotics, amino acids, enzyme preparations, vitamins, organic acids, etc. It can be used in gas-liquid and gas-liquid-solid reactions in chemical industry. It can be used for sewage treatment in environmental protection. At present, the equipment is used in the production of glutamic acid, antibiotics, xanthan gum, glucoamylase and citric acid in China. The volume of the equipment has reached 140m3, and remarkable economic benefits have been achieved after putting into use. The air necessary for fermentation flows up and down inside and outside the static mixing element to drive the fermentation liquid circulation and promote the gas-liquid full mixing.





Biological fermentation tank can be customized according to customer needs.





Detailed configuration list of fermentation tank system






















































































































No



Equipment name



Specification and model



remarks



quantity



1



Fermentation tank



5L/10L/20L/30L



316Lstainless steel



1 set



2



Lower computer control system



HND-BIO6000



Touch screen + PLC



1 set



3



Temperature control system



GermanyPT100



Platinum resistance



1 set



4



PH detection control system



Mettler



Imported from Switzerland



1 set



5



Do detection system



Mettler



Imported from Switzerland



1 set



6



Speed control system



Taiwan Taian



Stepless speed regulation



1 set



7



Feeding system



HND-BL



Peristaltic pump flow



1 set



8



Defoaming system



HND-XP



Peristaltic pump flow



1 set



9



Pressure detection system



0-0.4Mpa



Online indication



full set



10



Flow system



Glass rotor type



Online indication



1 set



11



Sterile air filtration system



Shanghai filter factory



Membrane filtration



full set



12



Pipeline and valve



DN6/8/10/15



SUS304 stainless steel



full set



13



Air compressor



0.18 Cubic / minute



Oil free type



1 set



14



Air tank



100L



With safety valve



1 set



15



Steam generator



9KW



Fully automatic



1 set






 Pay attention to our store and become a fan. There will be a special price. Welcome to buy.





Detailed Images


 27
