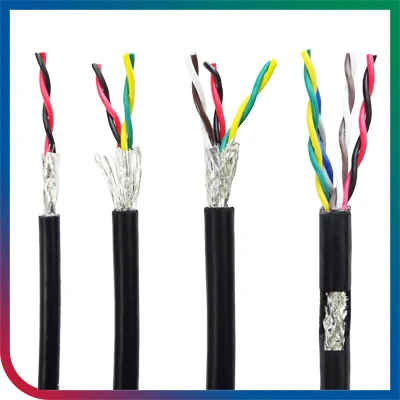

2pairs 22awg stranded tinned copper PVC jacket communication signal cable control cable RS485 shielded cable

Product Overview

Description

SURELINK 2pairs 22awg stranded tinned copper PVC jacket signal communication cable control cable RS485 shielded cable



Cable Overview



Physical characteristics(overall)

Conductor

AWG	Stranding	Material	Norminal Trade Name	No.of Pairs
22	7x30awg	Tinned copper	0.75mm	2



Insulation

Material	Nominal Wall Thickness
HDPE Insulation	0.62mm



Color chart

Number	Color
1	White/Blue
2	White/Orange



Outer Shield Material

Type	Layer	Material
Tape	1	Aluminum
Braid	2	65% tinned copper



Outer Jacket Material

Material	Nominal Diameter	Nominal Wall Thickness
PVC jacket	8.89mm	1.35mm



Electrical Characteristics

Nominal conductor DCR:14.7Ohm/1000ft

Nominal outer shield DCR:2.95Ohm/1000ft

Nom.Capacitance conductor to conductor:11Pf/ft

Nom.Capacitance conductor to other conductor to shield:20.9 Pf/ft

Nominal Characteristic Impedance:120 Ohm

Nominal Velocity of Propagation(VP):78%

Max Recommended Current(A):2.7 Amps per conductor@25℃

Temperature Range

Temp rating:60℃

Operating temp range:-20℃ to 60℃



Related Hot Models







Manufacturer Introduction



Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.



Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.



Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.



We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.



Main Cable Categories Provided by Us



1.Optical Fiber Cable and Patch Cord

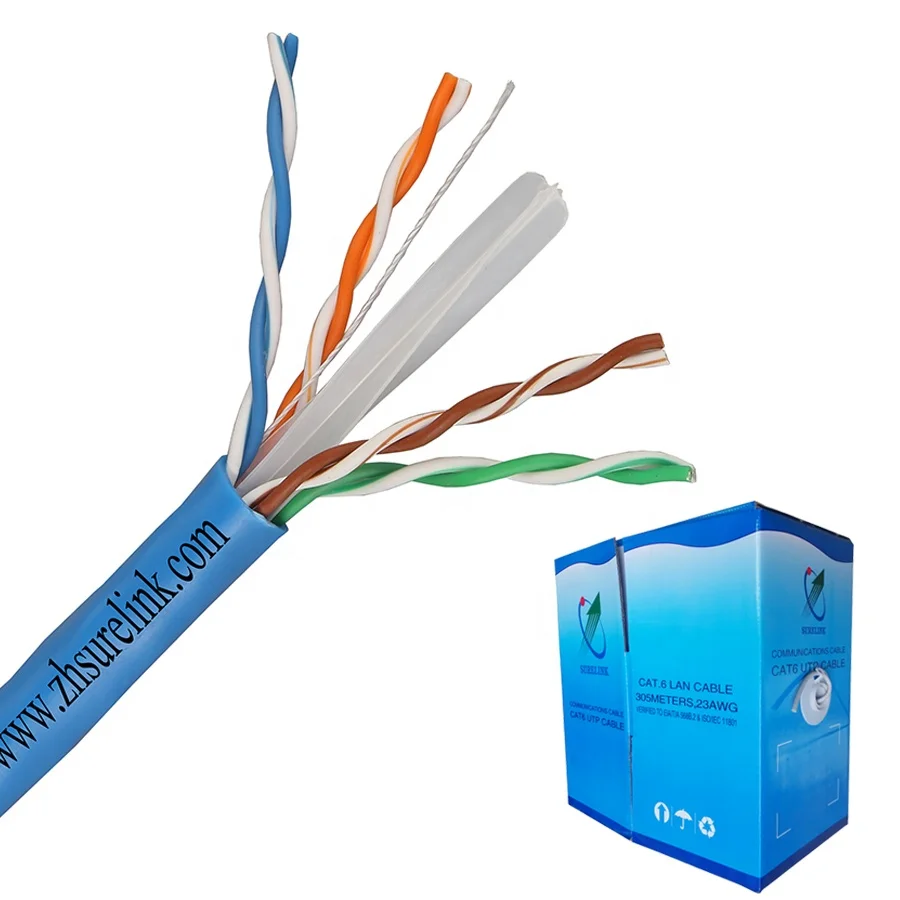

2.Lan and Network Cable and Patch Cord

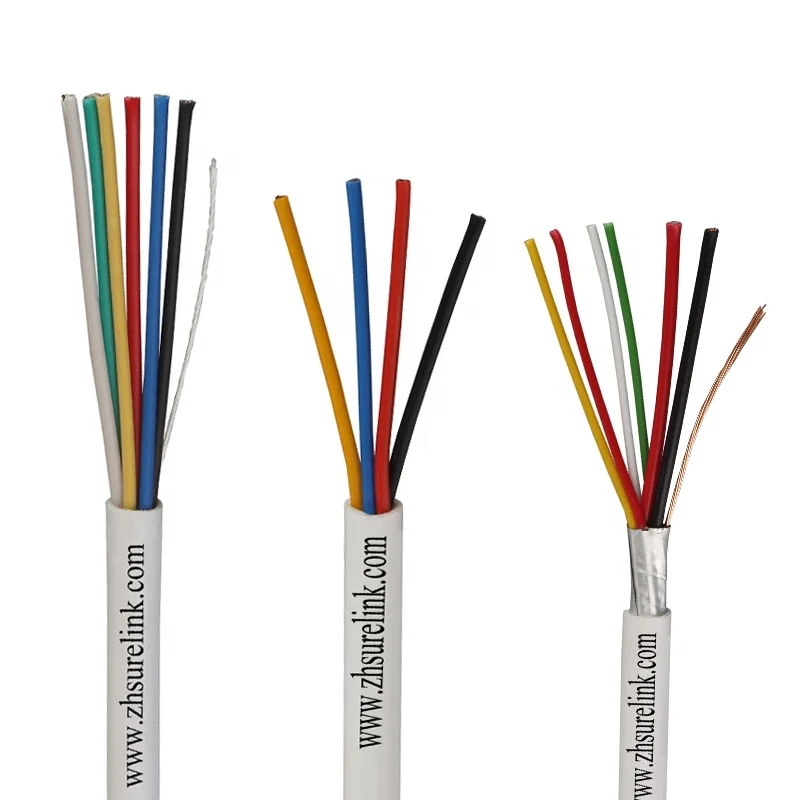

3.Alarm Cable and Speaker Cable
