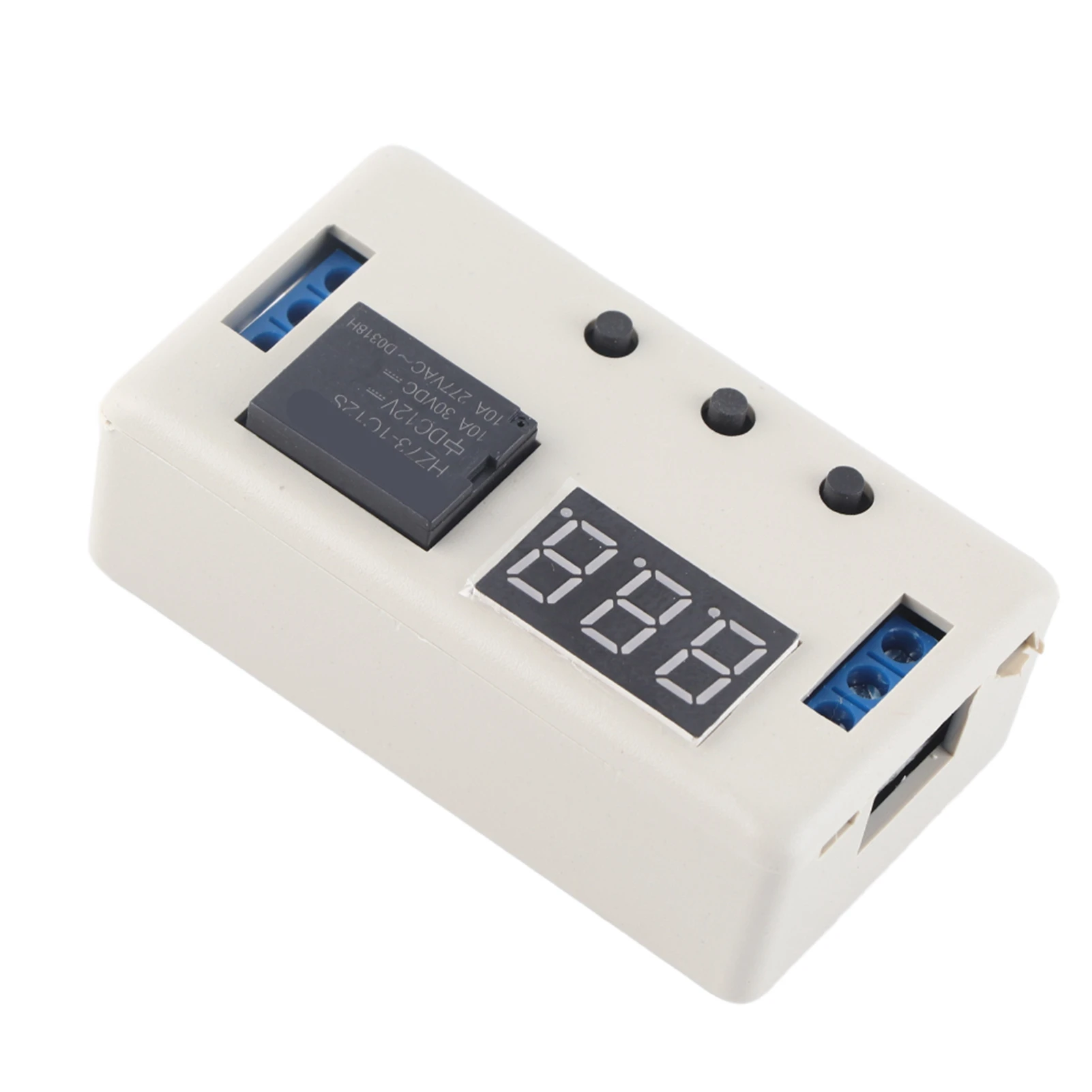

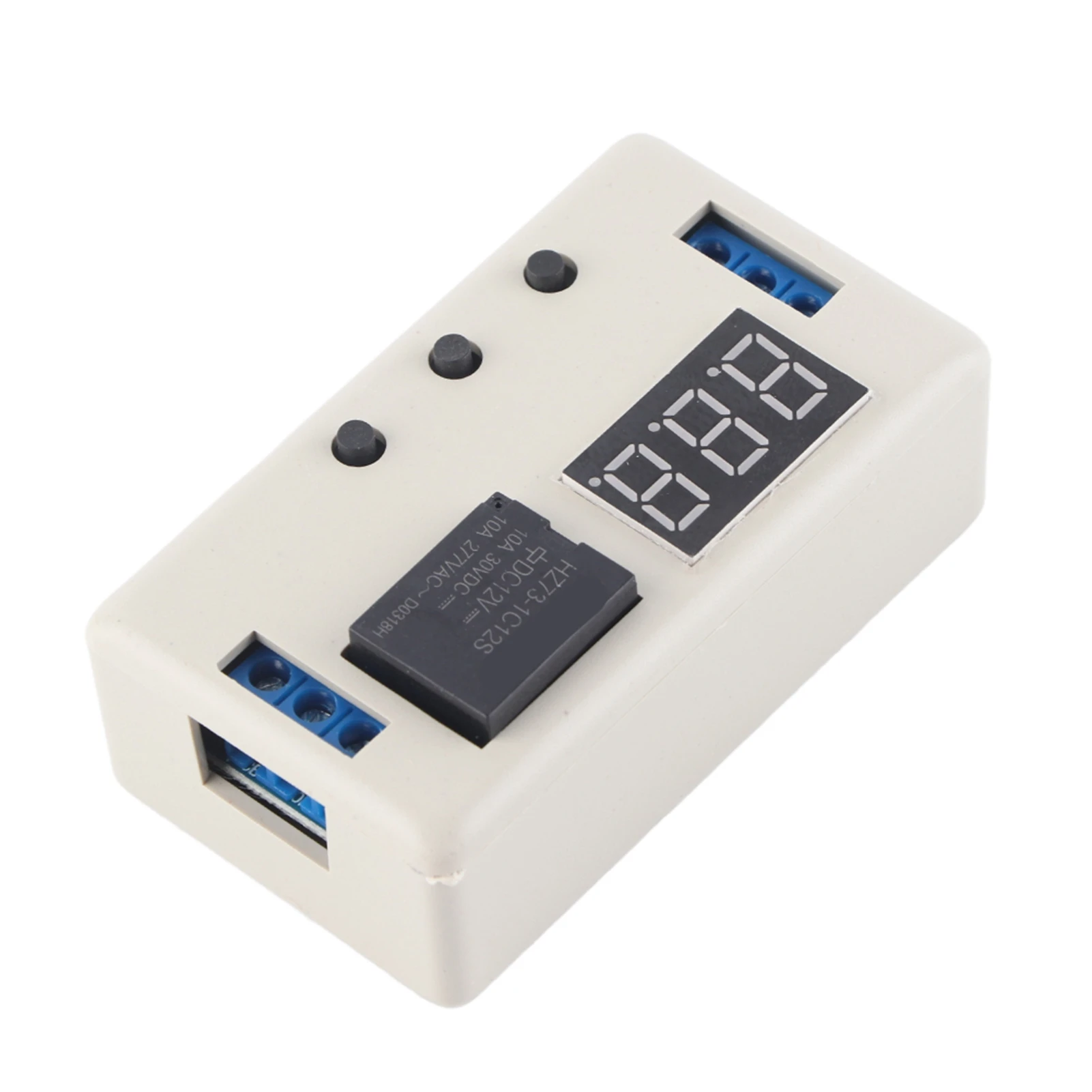

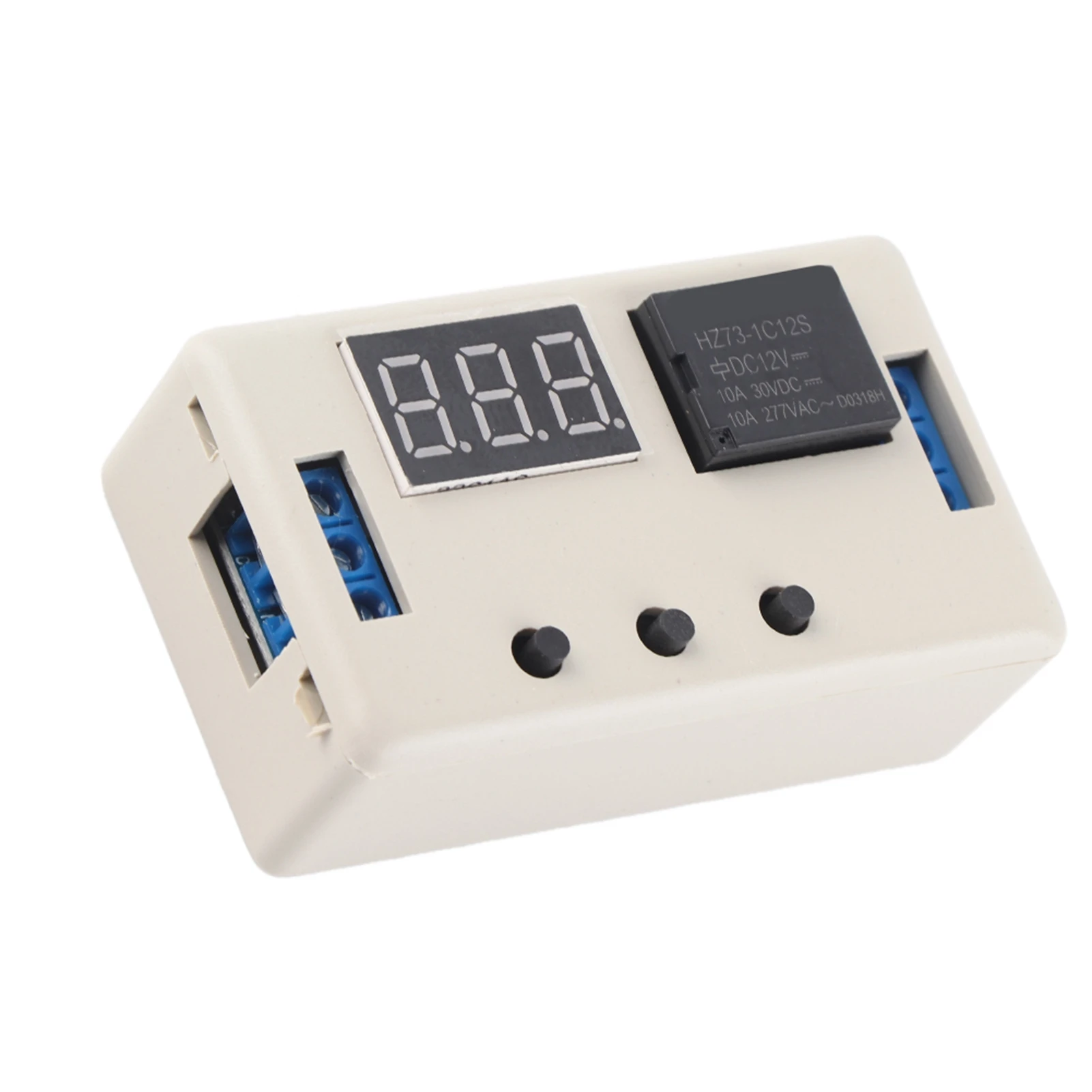

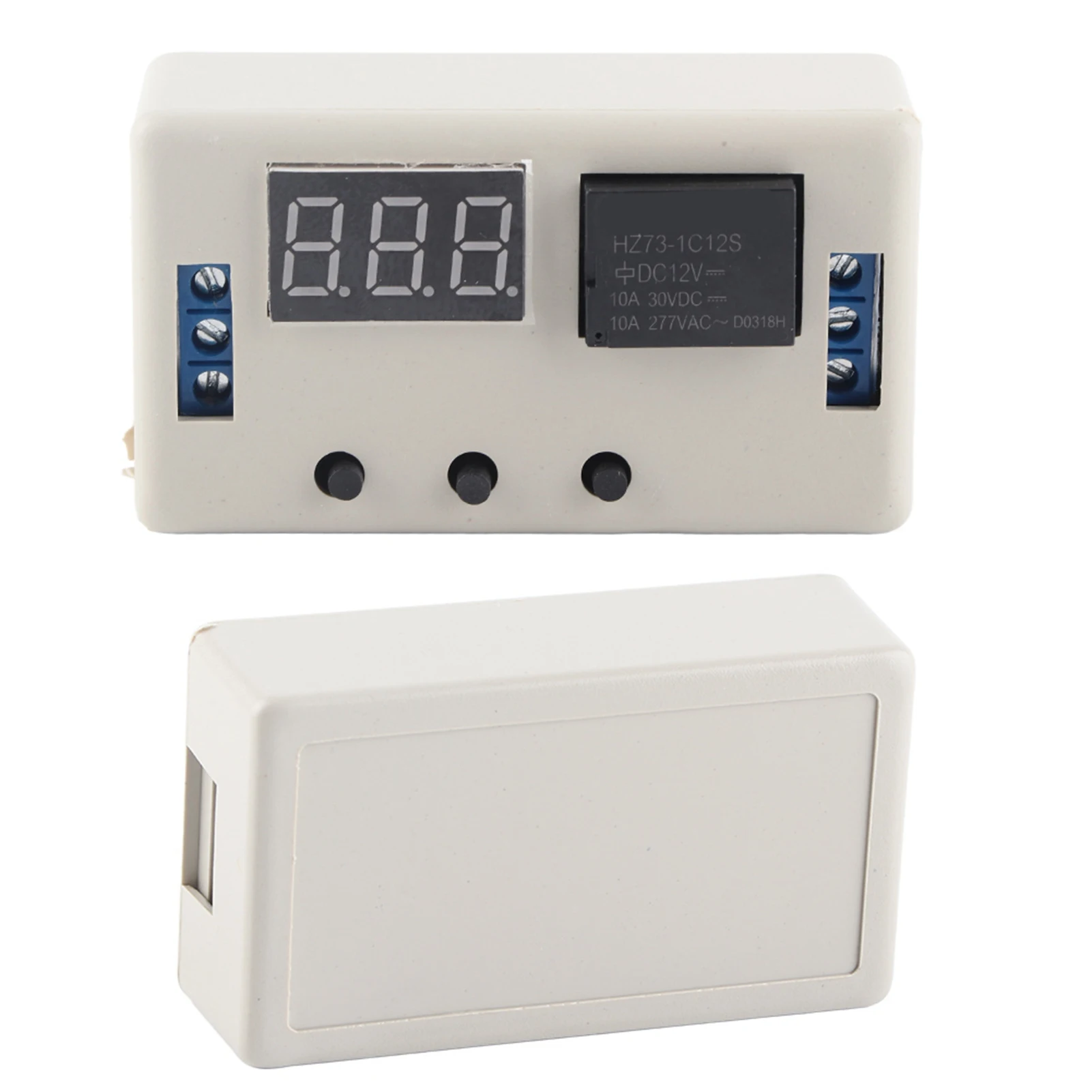

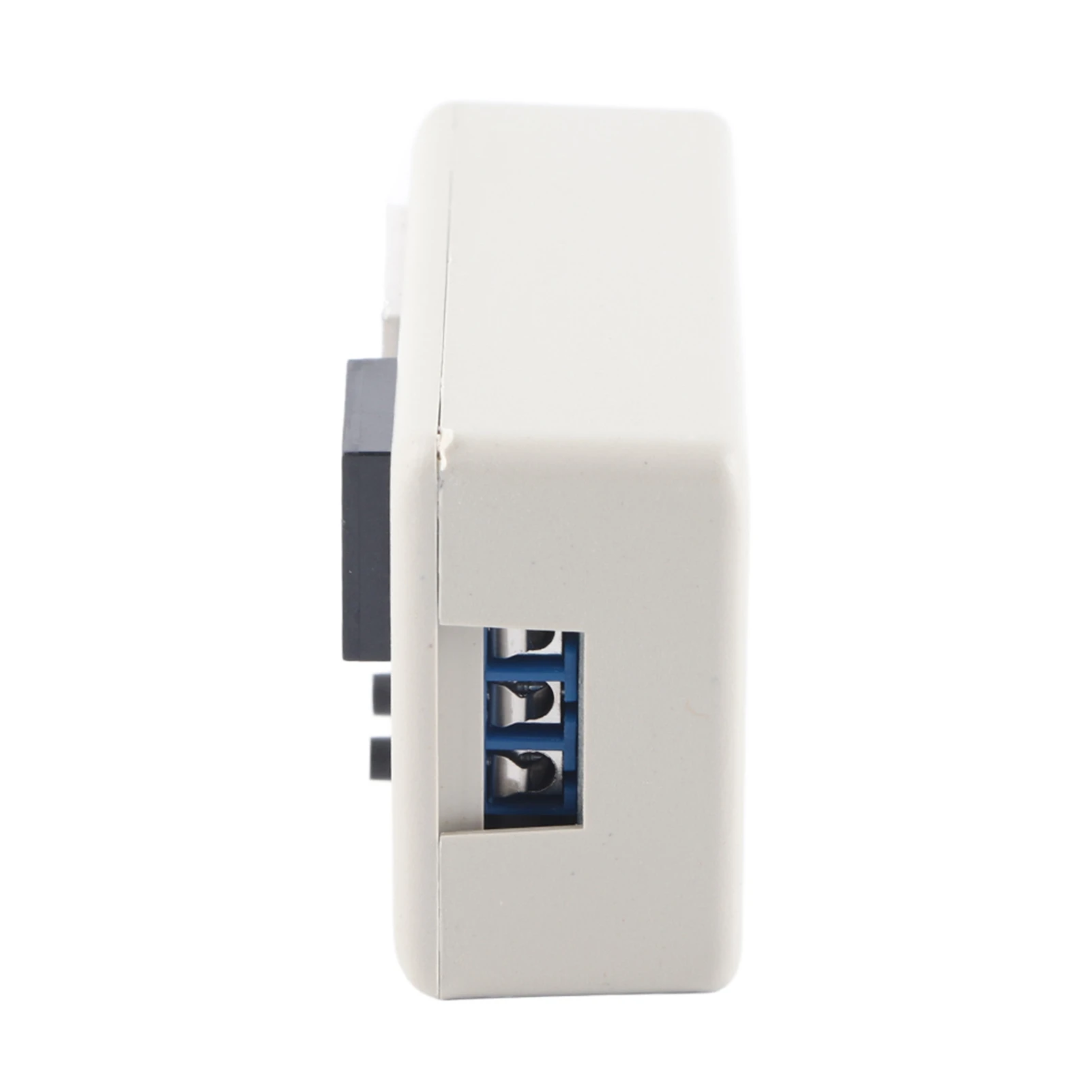

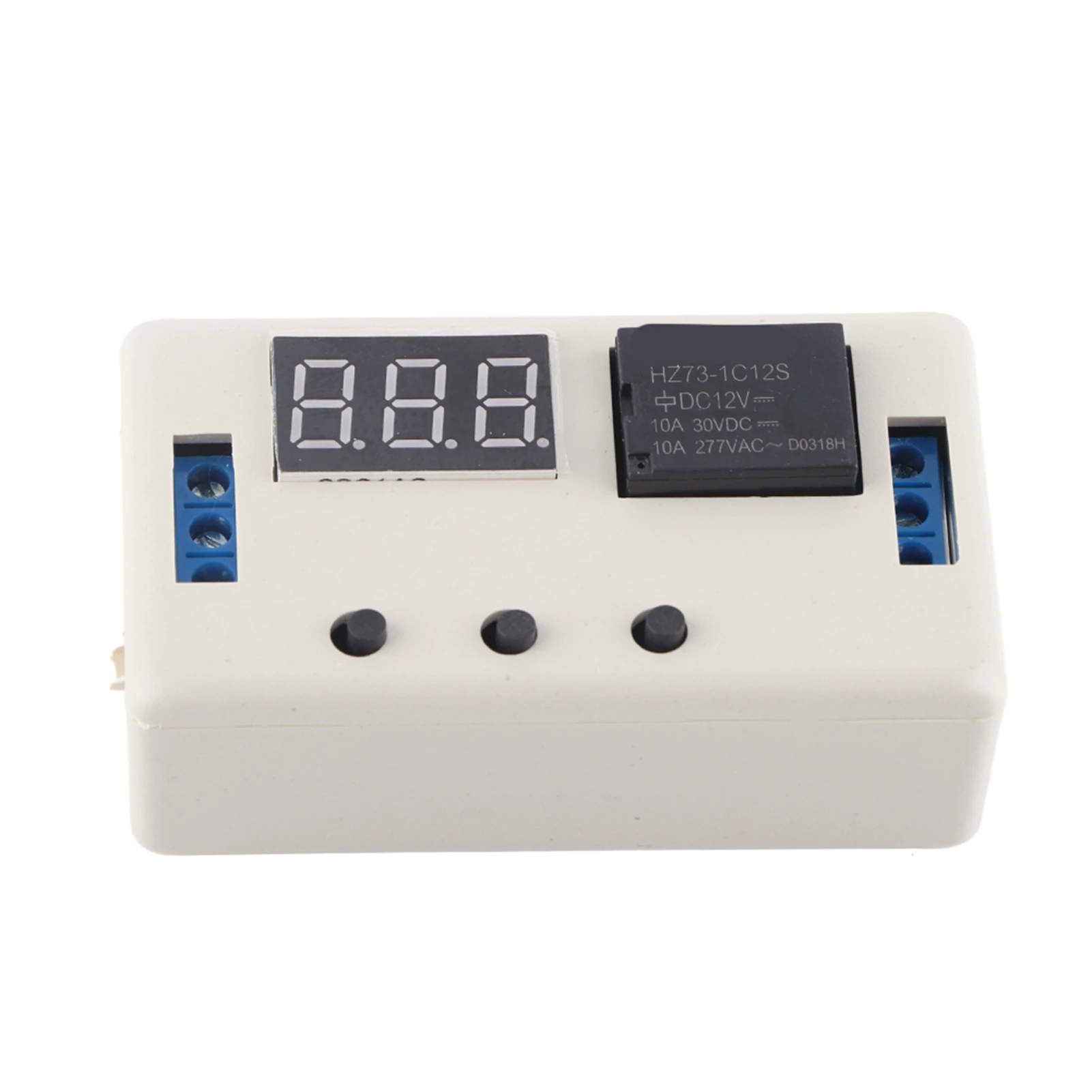

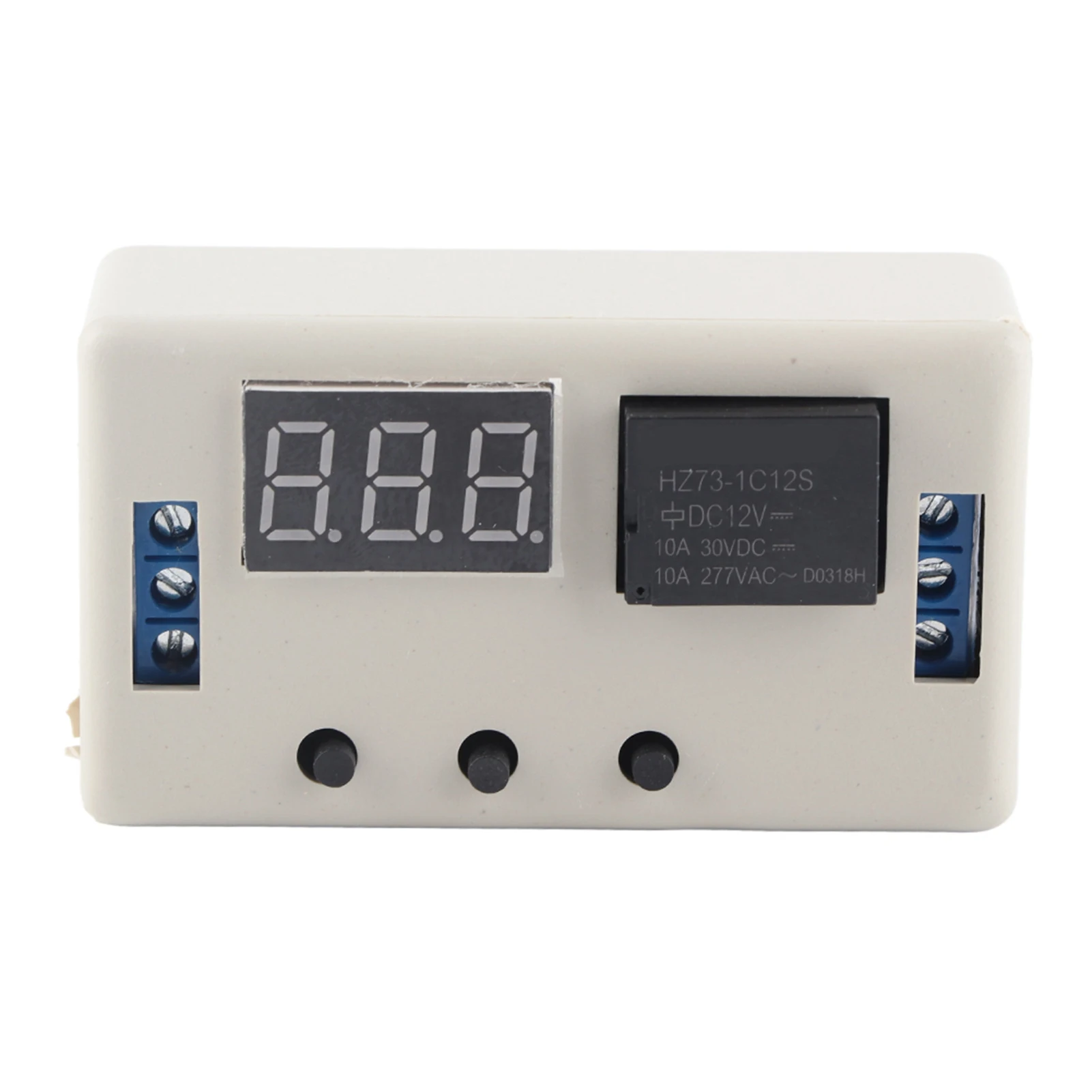

YYC 2 12V Time Delay Relay Module LED Digital Display Cycle Timer Control Switch

Features:

1. Increased the power supply anti-reverse connection function.

2. The input and output are isolated by optical coupler, which enhances the anti-interference ability.

3. Setting parameters can be remembered forever even if power failure.

4. High stability, industrial grade circuit boards, class PLC.

5. The terminal can hold the voltage for a long time.

6. It has multiple functions to meet more application requirements.

7. Low power consumption, superior performance.

8. The product has a wide range of applications and can be used in many fields.

Specification:

Material: Plastic

Weight: 42g/1.5oz

Voltage: 12V

Relay Capacity: AC220V 10A / DC30V 10A

Static Current: 20mA

Operating Current: 50mA

Voltage: 4V~20V

Service Life: 100,000 Times

Operating Temperature: -40~85℃

Size: 64.2*34.8*18.5mm / 2.5*1.4*0.1in

Instructions:

1. The triggers the relay to close. When the time is up, the relay is disconnected during the delay
A: invalid trigger again B: trigger again to restart timing C: restart relay reset to terminate timing
2. The timing time T1 at the beginning of trigger and T2 at the time of relay snap-in time and T2 at the time of disconnection (reset) are adjustable
3. Cycle use: connect T1, disconnect T2, and cycle indefinitely. T1 and T2 are both adjustable
4. If there is a , the relay is engaged, keep engaged, the disappears and the timing starts. When the time is up, the relay is disconnected.
During the delay, the is given again. The delay is cancelled, the disappears and the time is retimed.

Package List:

1 x Timer Relay
