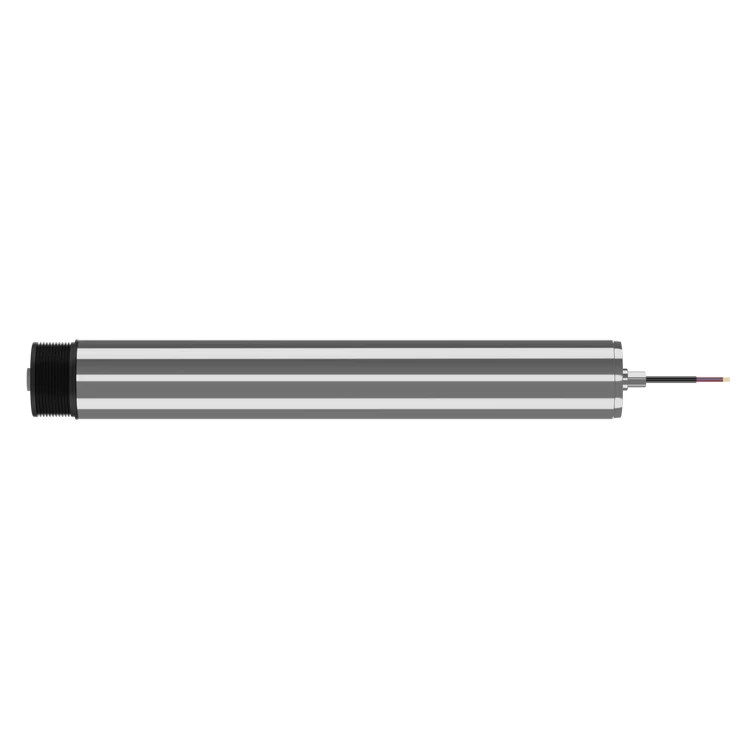

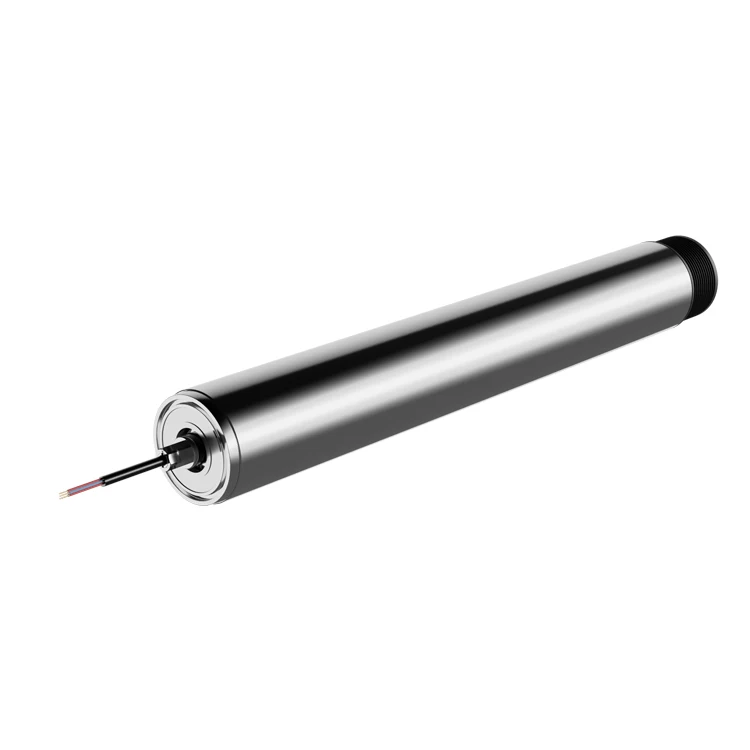

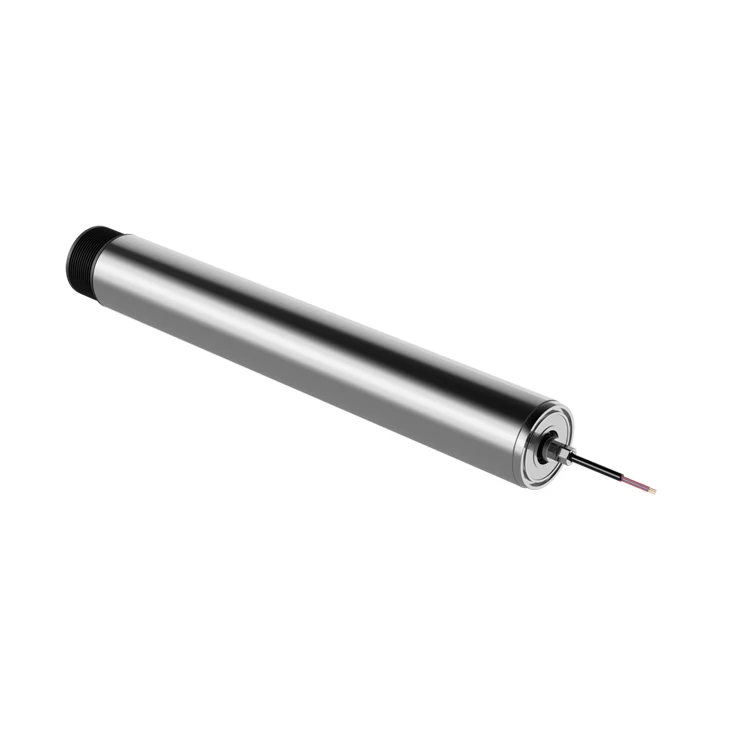

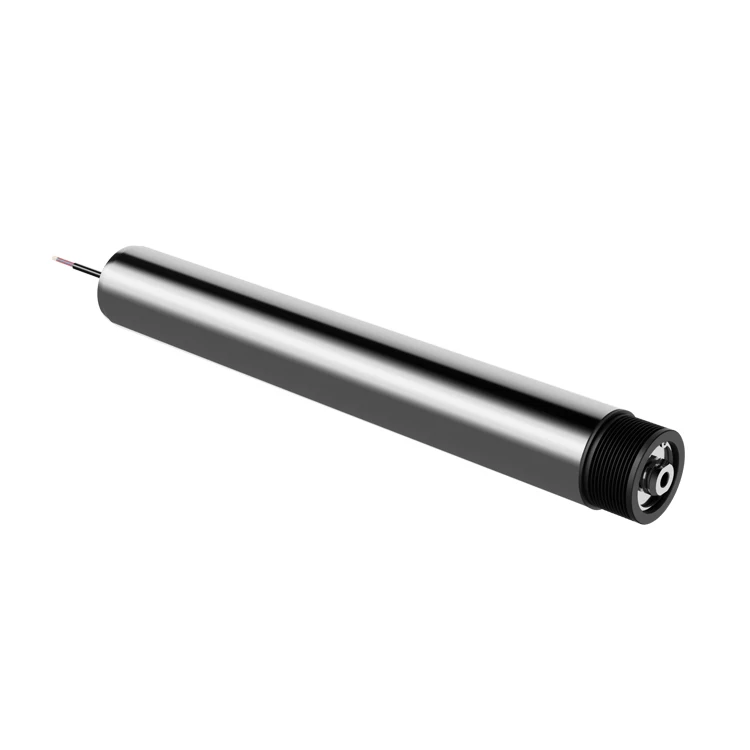

zhaowei smart drum motor price 300mm bldc drum Roller Motor high torque brushless 24v 48v drum motor brush for belt conveyor

Product Overview

Description



Basic parameters of drum motor
Rated voltage	24V,48v DC
Rated current	4.1A
Starting current	10.5A
Rated power	35w 50w 80w 200w (customizable according to demand)
Maximum noise	55dB
diameter	50mm,60mm,76mm,80mm,89mm
Cable length	500-2000mm (customizable according to demand)
RI effective length	250 ~ 1500 mm (customized grooves)
Transmission speed ratio	5/7/13/18/25/30/42/65/78/90/108
Protection level	IP54
Steel pipe material	A: Carbon steel PVD+spray coating B: Stainless steel C: Carbon steel+2mm PVC soft adhesive D: Carbon steel+5mm soft adhesive

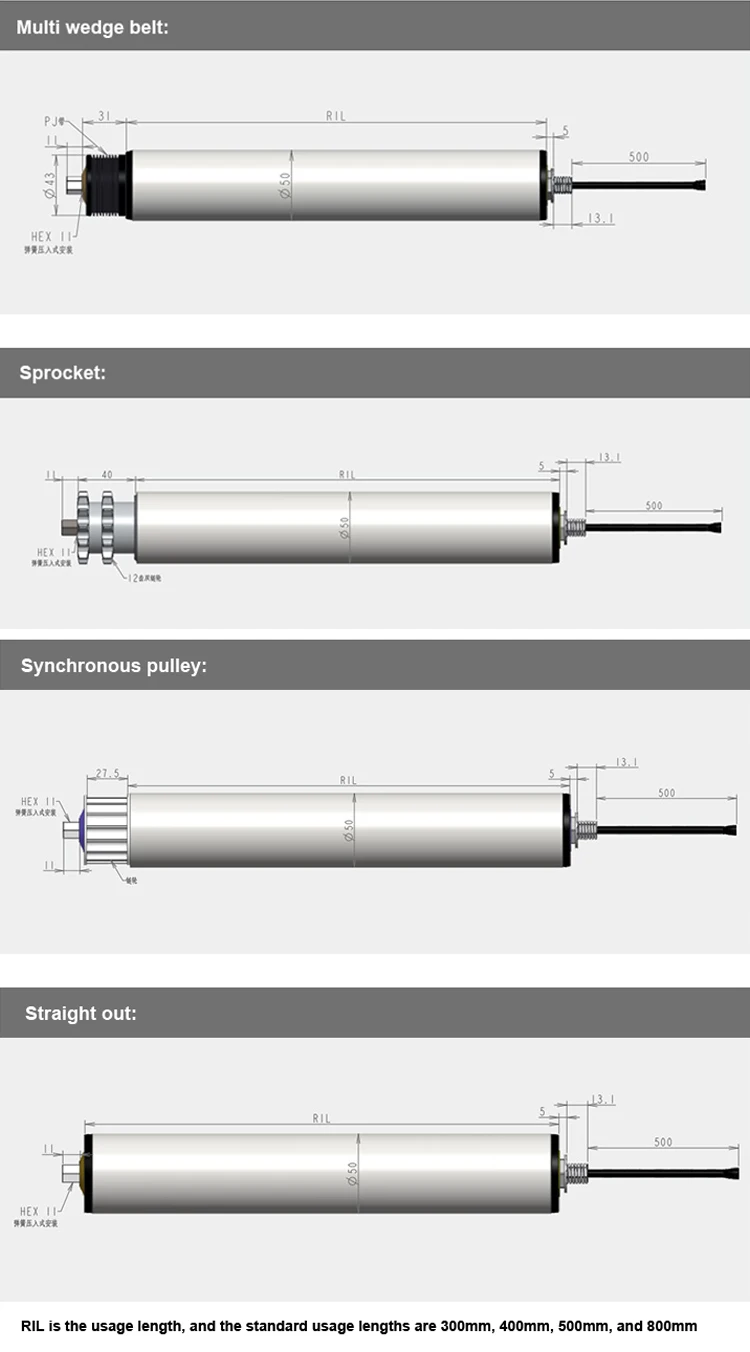

Driven method	Straight, plastic multi -deeds, O -type bands, dual -link wheels, metal multi -deeds, synchronous bands
Glue wrapping form	PVC sleeve 2mm, 5mm, PU sleeve 2mm (TAB)
Conical drum	Standard drum (without taper)
Axis mode	11mm hex, thread M12x1.25
Operating ambient temperature	0 °~40 ° C/-30 °~50 ° C





Product Description

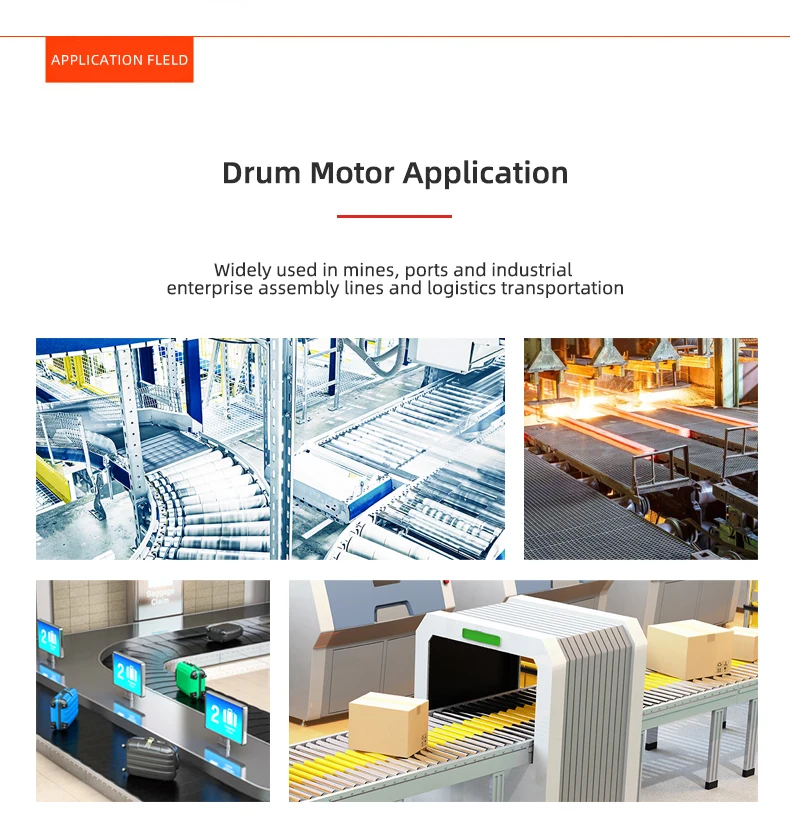

The Zhaowei drum motor adopts an integrated mechanism, which has many characteristics such as high torque, compact structure, simple and convenient assembly, and good sealing. It can be customized with different lengths of 300-1000mm and diameters of 50-76mm according to needs, suitable for transportation scenarios in multiple fields such as food and logistics.
Zhaowei has developed a drum motor solution based on its insight into the pain points of drum motor products.
High power: Compared to the 30-50W motor power available on the market, Zhaowei Electromechanical uses an 80W high-power motor to achieve greater torque output in limited space, helping logistics enterprises to operate smoothly during peak hours.
Modular: In addition to high power, Megaway also adopts a design structure with motor lines facing outward, achieving modular assembly and more convenient maintenance.
High strength: In contrast, the Zhaowei gearbox is manufactured using powder metallurgy, which has improved its strength and lifespan.

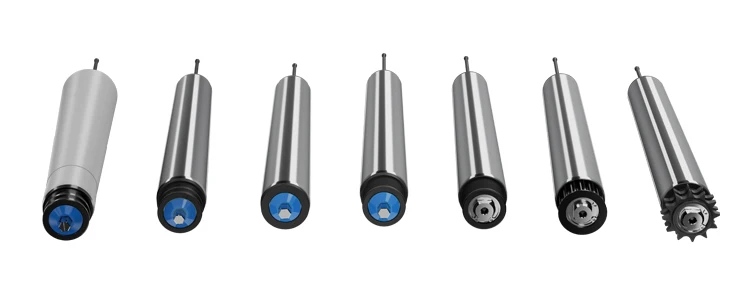

Diversification: In order to meet customer customization needs, it supports various lengths such as 300-1000mm, diameters such as p50mm, p60mm, and p76mm, as well as various drive linkage methods such as straight through, plastic multi wedge belt, metal multi wedge belt, steel double sprocket, and synchronous belt wheel, to meet customer customization needs.
Our company can design, develop, and produce products according to the special needs of customers. Please consult customer service on the Zhaowei Electromechanical website for details.
