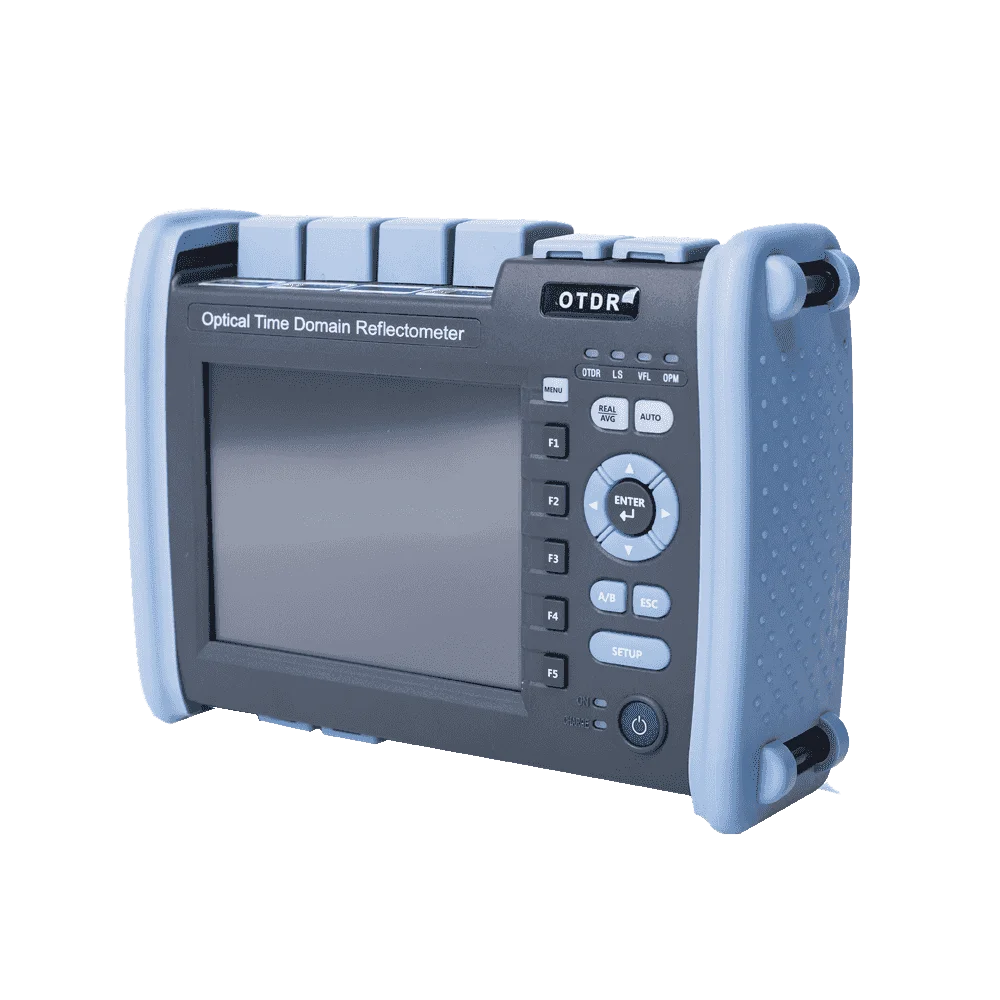

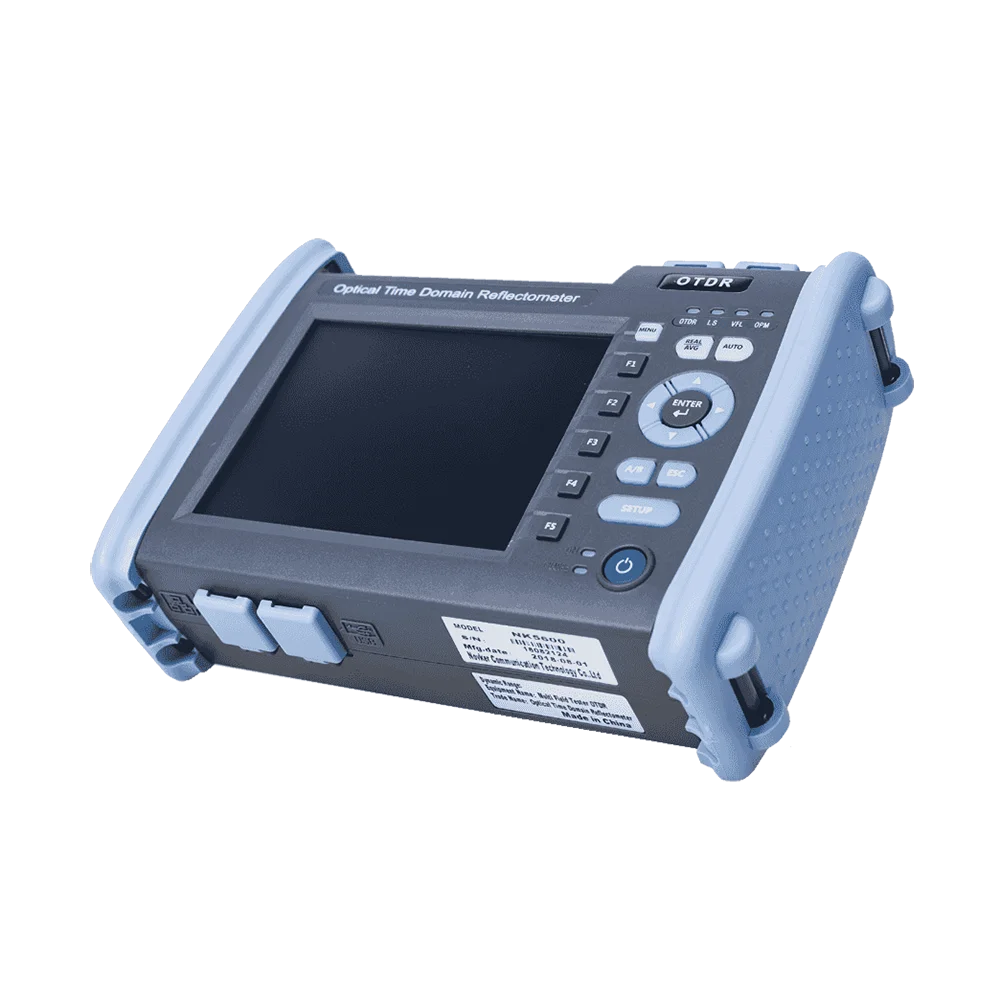

OTDR Testing Multifunction Integrated VFL 5MW Touch Screen Optical Time Domain Reflectometer Mini Otdr Fiber Optic
- Category: >>>
- Supplier: Shenzhen Ut-Kingtechnology Co. ltd
Share on (1600993110705):
Product Overview
Description
1310nm +1550nm 35dB + 33dB OTDR Testing Multifunction Integrated VFL 5MW Touch Screen Optical Time Domain Reflectometer VFL function Visual Fault Location
Parameter:
Model: GR-730
Dynamic range: 32/30dB
Ranging accuracy: ±(1m+sampling interval+0.005%x distance)
The highest ranging resolution: 0.05m
Test range: 0.5~256km
Event dead zone: 0.8m
Attenuation blind zone: 6m
Test pulse width: 5~20000ns
Loss threshold: 0.01dB
Number of sampling points: 128k
Linearity: 0.05dB/dB
Loss resolution: 0.001 dB
Waveform storage capacity: 22000 frames
External interface: USB, Min-USB, R)-45

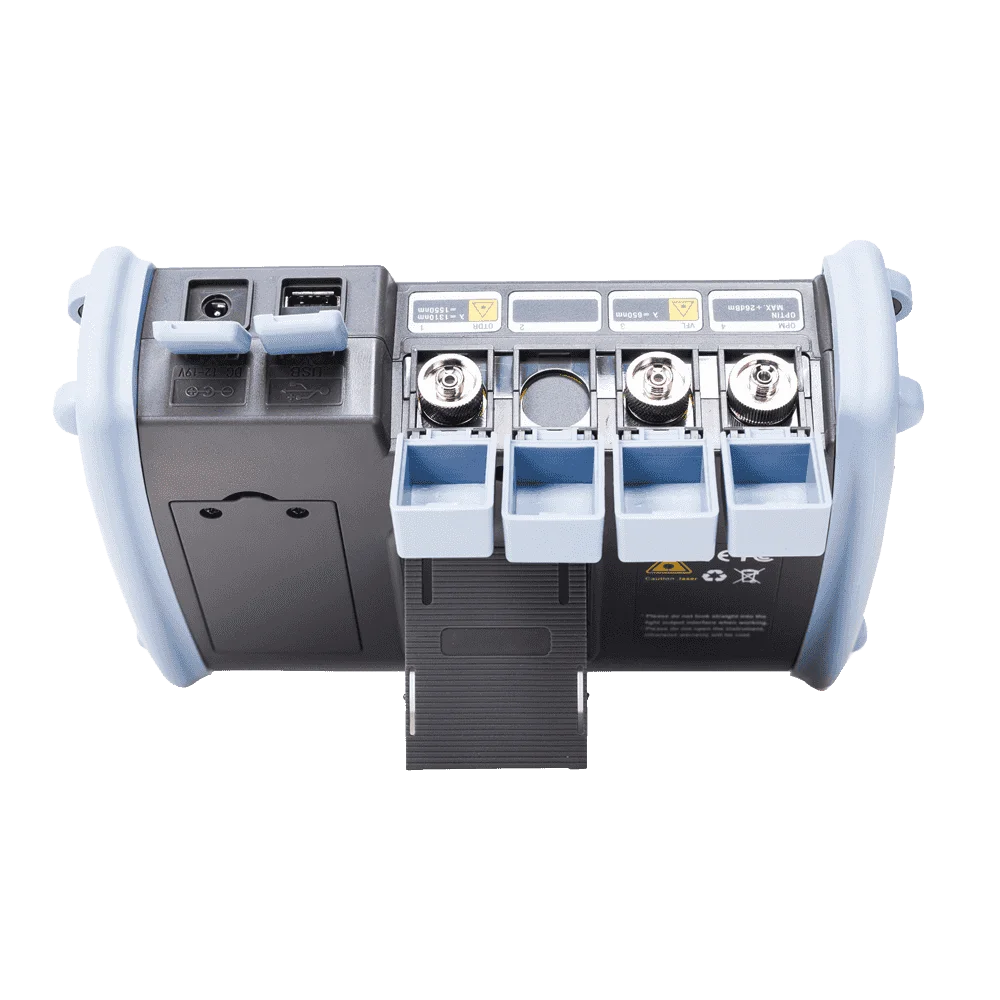

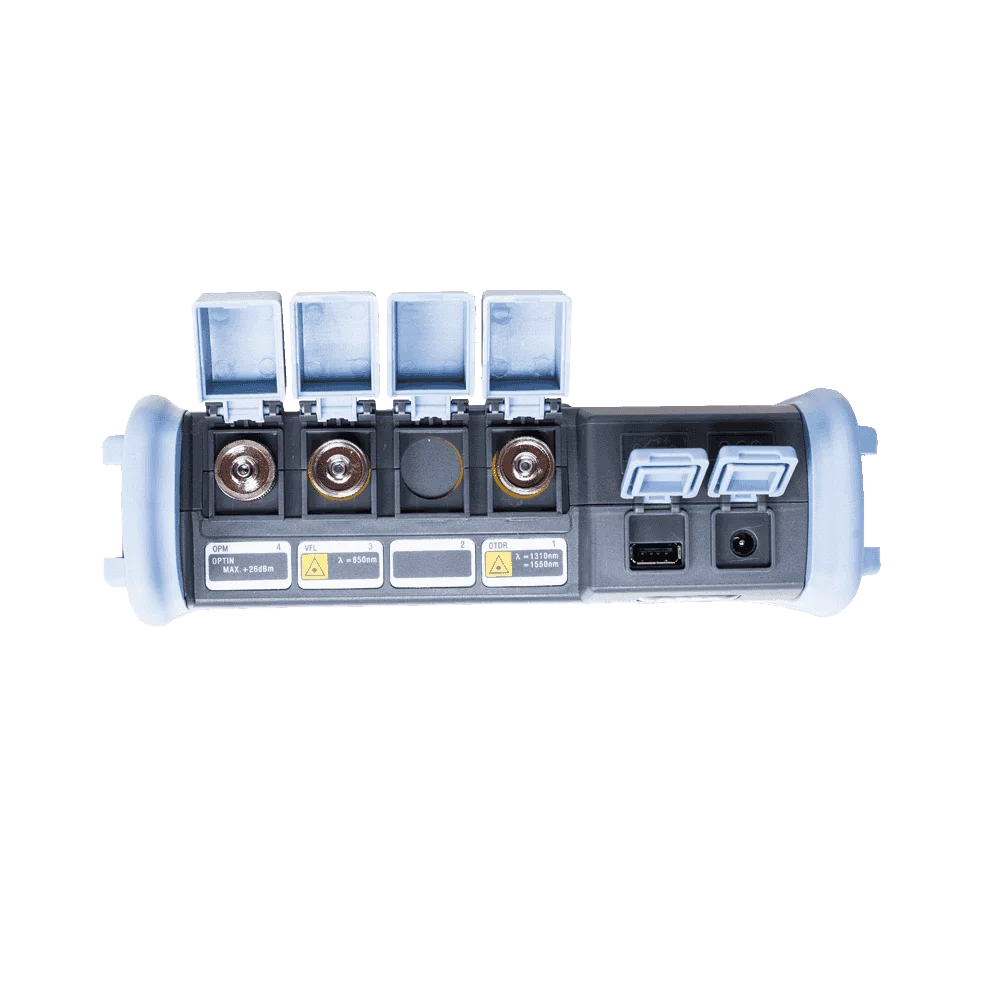

Optical output interface: FC/SC/ST (replaceable)
VFL: 650nm+10nm, 25mW (typical)
Optical power meter: wavelength: 1200nm ~ 1650nm power range: -45 ~ +26dBm
Stable light source: 1310/1550nm: -5dBm, CW (270Hz, 1K270Hz, 2K270Hz)

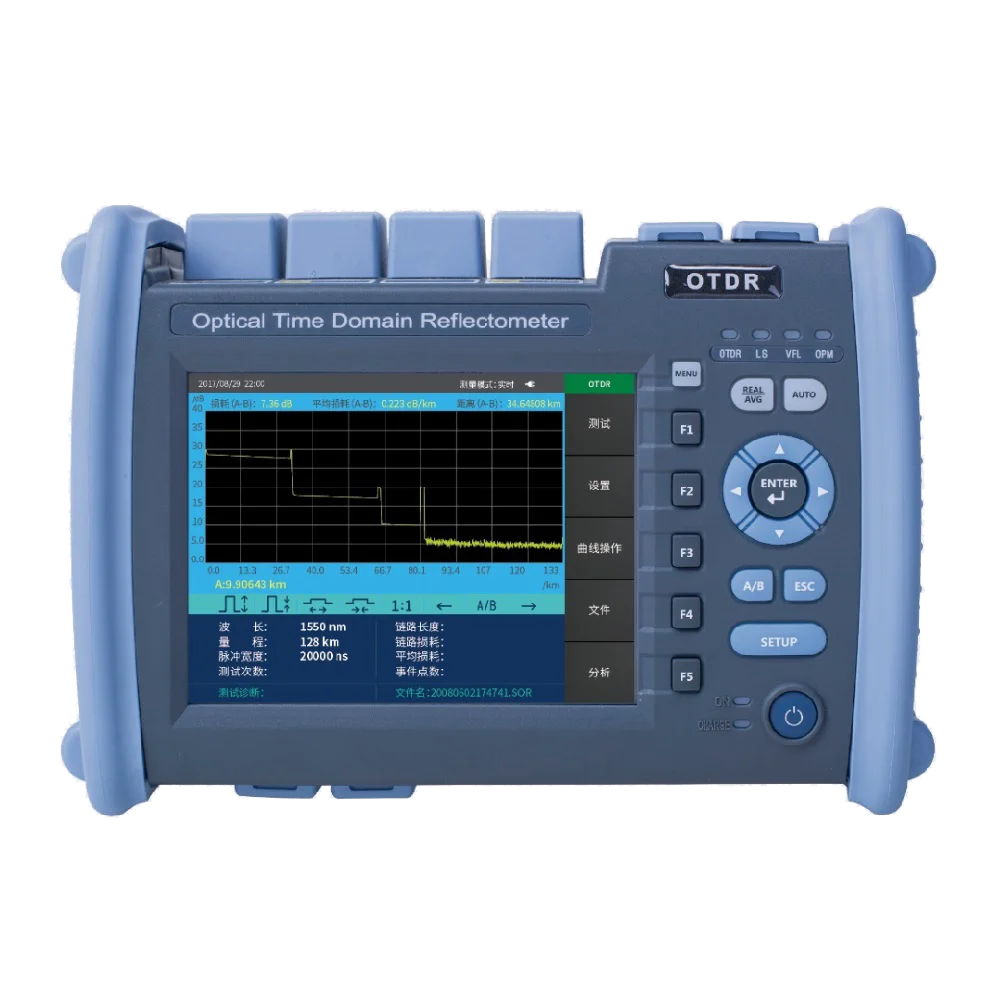

Display: 5.8 inch color TFT LCD touch screen
Battery: 7.4v/5000mAh lithium battery pack, support 12 hours continuous working time
Power: Output: 19V.1.31A
Working temperature: -5 ~ +50°C, Storage temperature: -20 ~ +70°C
Relative humidity: 0 ~ 95% without condensation
Size L21 5mm*150mm* 70mm
Weight (including battery): <1.5kg

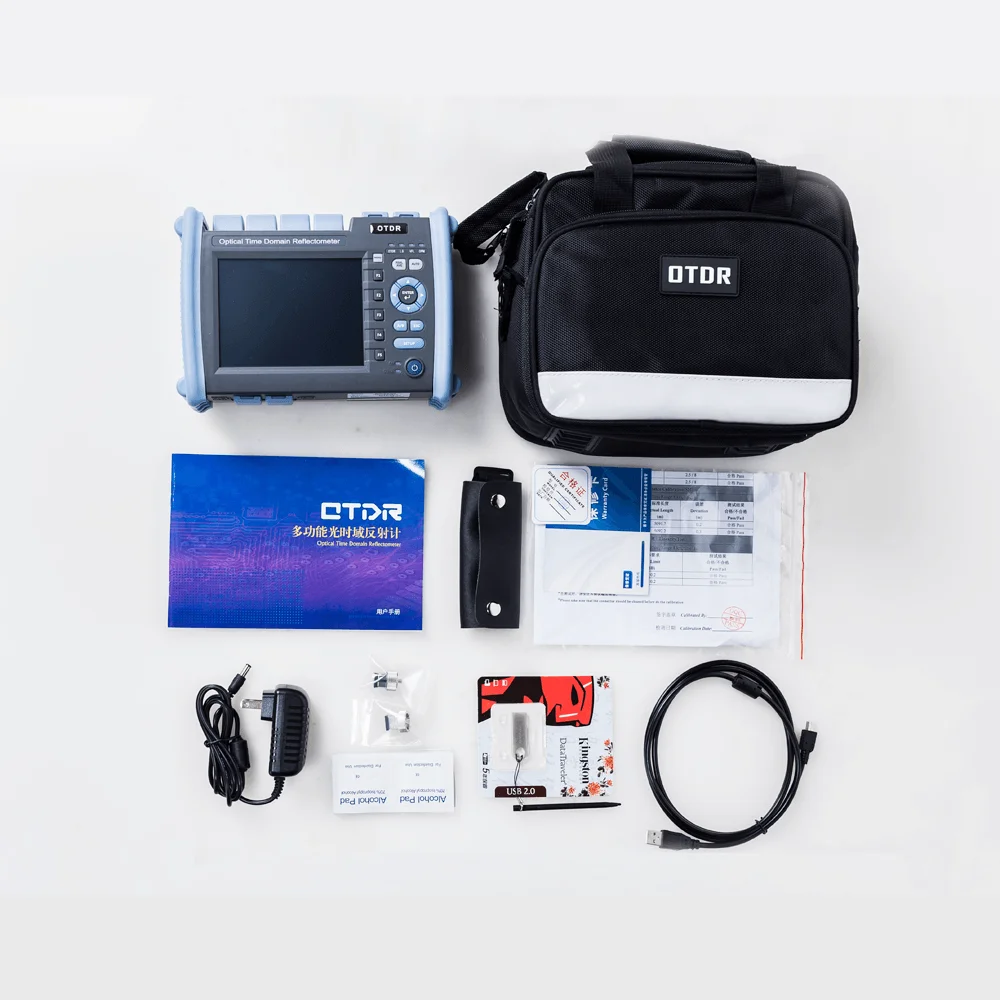

Package include:
1x A set of GR-730 Optical time domain reflectometer
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
